OPERATOR’S MANUAL

A Division of Snow Joe®, LLC

R

ELECTRIC LAWN MOWER

16-INCH | 12-AMP | 360-DEGREE | 3-WHEEL

Model MJ404E-360 Form No. SJ-MJ404E-360-880E-M

IMPORTANT!

Safety Instructions

All Operators Must Read These
Instructions Before Use

Always follow these safety guidelines. Failure to do so may
result in serious bodily injury or death.

General Safety WARNINGS!

When using this electric lawn mower, basic safety precautions

should always be followed to reduce the risk of re, electric

shock, and personal injury. These precautions include:

mWARNING! Do not operate without the entire grass

collection bag, discharge guard, rear ap, or other safety

protective devices in place and in proper working order.

mWARNING! The use of any other accessory or

attachment might increase the risk of injury.

mWARNING! To reduce the risk of injury, inspect the

grass collection bag frequently and replace with recommended
replacement if there are signs of wear or deterioration.

Before using the lawn mower, take the time to familiarize
yourself with the controls, especially how to stop the lawn
mower in an emergency. The only individuals who should use
the lawn mower are those who have a thorough understanding
of the instructions and who know how to operate the machine.
Children should never be allowed access to the lawn mower.

Retain this manual for future reference and reread it at the start
of each mowing season.

FOR DOUBLE-INSULATED
LAWN MOWERS

1. Replacement parts – When servicing this unit, use only

identical replacement parts. Replace or repair damaged
cords immediately.

2. Polarized plug – Polarized appliance connections reduce
the risk of electric shock. This lawn mower has a polarized
plug (one blade is wider than the other) and will require the
use of a polarized extension cord. There is only one way

the lawn mower’s plug will t into a polarized extension
cord. If the plug does not t fully into the extension cord,
reverse the plug. If the plug still does not t, obtain a

© 2017 by Snow Joe®, LLC
All rights reserved. Original instructions.

correct polarized extension cord. A polarized extension
cord will require the use of a polarized wall outlet. There

is only one way the plug will t into a polarized wall
outlet. If the plug does not t fully into the wall outlet,
reverse the plug. If the plug still does not t, contact a
qualied electrician to install the proper wall outlet. Do not

change the equipment plug, extension cord receptacle, or
extension cord plug in any way.

mWARNING! Contact with moving parts may cause

entanglement, dismemberment, or other serious bodily
injury. Always keep body parts (i.e. hands, feet) a safe
distance away from moving parts. Ensure all covers and
guards are securely in place before use.

Hot surfaces (i.e. the motor) may ignite ammable or
combustible items and cause a re or explosion, which

can result in serious bodily injury. Keep the lawn mower a

safe distance away from ammable or combustible items

until surfaces that are hot have completely cooled. Do

not store the lawn mower near ammable or combustible

items.

A damaged blade or worn blade nut may break o the lawn

mower assembly and cause serious injury. Replace the
damaged blade or blade nut before using the lawn mower.

FOR ALL LAWN MOWERS

1. Avoid dangerous conditions – Do not use the lawn

mower in the rain or when the grass is damp or wet.

2. Keep children, bystanders, and pets away – Always
keep children and spectators a safe distance away from
the lawn mower during operation and as the machine
cools.

3. Dress properly – Always wear personal safety gear (i.e.
glasses, rubber gloves, protective footwear, and dust
masks) and proper clothing when using the lawn mower.
Loose clothing, long hair, or jewelry may get caught in the
moving parts. Wear a protective covering to contain long
hair.

4. Use the right appliance – Do not use the lawn mower
for any applications other than those for which it was
intended.

5. Do not force the lawn mower – It will perform better with
less likelihood of personal or mechanical injury if it is used
at the rate for which it was designed.

6. Do not overreach – Keep proper footing and balance at
all times.

7. Stay alert – Always be alert and watch what you are
doing. Use common sense. Do not operate the lawn

SAVE THESE INSTRUCTIONS

1

mower when you are tired or under the inuence of

alcohol or drugs.

8. Disconnect the lawn mower – Disconnect the lawn
mower from the power supply when it is not in use,
before servicing, when changing accessories, and when
performing any other maintenance task.

9. Store idle lawn mower indoors – When not in use, the
lawn mower should be stored indoors in a dry, locked
place out of the reach of children.

10. Maintain the lawn mower with care – Keep cutting
edges sharp and clean for best and safest performance.

Inspect the lawn mower cord periodically and if damage

is found have it repaired by an authorized service facility.
Extension cords should also be inspected periodically
and immediately replaced if damaged. Keep handles dry,
clean, and free from oil and grease.

11. Use personal protective equipment. Always wear eye
protection – Protective equipment such as safety glasses,

a dusk mask, non-skid safety shoes, a hard hat, and
hearing protection, when used for appropriate conditions,
will reduce the possibility of personal injuries.

12. Avoid unintentional starting – Ensure the switch is in the
OFF position before connecting the power cord, or before
picking up or carrying the tool. Carrying power tools with

your nger on the switch or charging power tools with the

switch ON can lead to accidents.

13. Remove any adjusting key or wrench before starting
the power tool – A wrench or a key left attached to a

rotating part of the power tool may result in personal
injury.

14. Keep cutting blades sharp and clean – Properly
maintained cutting blades with sharp edges are less likely
to bind and are easier to control.

15. Keep all parts of the body away from the cutting blade
– Do not remove cut material or hold material to be cut

when blade is moving. Make sure the switch is o when

clearing jammed material. A moment of inattention while
operating the product may result in serious personal injury.

16. If the lawn mower strikes a foreign object, follow these
steps:

i) Stop the lawn mower by releasing the On/O switch

lever.

ii) Disconnect the power cord.

iii) Inspect for damage.

iv) Repair any damage before restarting and operating

the lawn mower.

17. Only use identical replacement blades and
other genuine parts.

18. Keep guards in place and in proper working order.

Electrical Safety

1. Ground fault circuit interrupter (GFCI) protection should

be provided on the circuit(s) or outlet(s) to be used for
the lawn mower. Receptacles are available having built-in
GFCI protection and may be used for this measure
of safety.

2. To reduce the risk of electric shock, this appliance has
a polarized plug (i.e. one blade is wider than the other).
Use this appliance only with a polarized, UL-listed (CSA

certied in Canada) extension cord recommended for
outdoor use. The appliance plug will t into a polarized

extension cord only one way.

If the appliance plug does not t fully into the extension

cord, reverse the plug. If the plug still does not t, obtain

a correct polarized extension cord. A polarized extension
cord will require the use of a polarized wall outlet. The

extension cord plug will t into the polarized wall outlet
only one way. If the plug does not t fully into the wall
outlet, reverse the plug. If the plug still does not t,
contact a qualied electrician to install the proper wall

outlet. Do not modify the appliance plug, extension cord
receptacle, or extension cord plug in any way.

3. To prevent electric shock, use only with an extension cord
suitable for outdoor use, such as SW, SOW, STW, STOW,
SJTW, or SJTOW.

Before use, check that the extension cord is in good

condition. When using an extension cord, make sure to
use one heavy enough to carry the current your product
will draw. For lengths less than 50 feet, a No. 14 AWG
extension cord should be used. An undersized cord will
cause a drop in line voltage resulting in loss of power and
overheating.

m WARNING m

Electric shock may cause SEVERE INJURY or
DEATH. Heed these warnings:

• Do not allow any part of the lawn mower to make

contact with water while it is in operation. If the

appliance becomes wet while turned o, wipe dry

before starting.

• Use only a UL-, CSA-, or ETL-rated extension cord for

outdoor, all-weather use, such as the Snow Joe
Sun Joe
with lighted end (Model PJEXT50-B). Visit snowjoe.
com to purchase this extension cord online or, to order
by phone, call 1-866-SNOWJOE (1-866-766-9563).

• Do not use an extension cord over 100 ft (30 m).

• Do not touch the appliance or its plug with wet hands

or while standing in water. Wearing rubber boots

oers some protection.

®

SJTW-A 14-gauge 50-foot extension cord

®

+

Extension Cord

Wire Gauge (A.W.G.):

2

EXTENSION CORD CHART

Length

Up to 50 ft

(15 m)

14 12

+50 ft - 100 ft

(+15 m - 30 m)

4. To prevent the appliance cord from disconnecting from
the extension cord during operation, make a knot with the
two cords as shown in Table 1.

Table 1. Method of Securing Extension Cord

IMPORTANT!

Safety Instructions for
Walk-Behind Mowers

Cord set

(A) Tie cord as shown

(B) Connect plug and receptacle

5. Do not abuse the cord. Never pull the lawn mower by the

cord or yank the cord to disconnect it from the receptacle.
Keep the cord away from heat, oil, and sharp edges.

Appliance cord

Double-Insulated Appliances

In a double-insulated appliance, two systems of insulation
are provided instead of grounding. No grounding means are
provided on a double-insulated appliance, nor should a means
for grounding be added to the appliance. Servicing a double­insulated appliance requires extreme care and knowledge

of the system, and should be performed only by qualied

service personnel at an authorized Snow Joe® + Sun Joe®
dealer. Replacement parts for a double-insulated appliance
must be identical to the parts they replace. A double-insulated
appliance is marked with the words “Double Insulation” or
“Double Insulated.” The symbol (square within a square)
may also be marked on the appliance.

DOUBLE-INSULATED: GROUNDING NOT

REQUIRED. WHEN SERVICING, USE ONLY
IDENTICAL REPLACEMENT PARTS.

This electric lawn mower is double-insulated, eliminating the
need for a separate grounding system. Use only identical
replacement parts. Read the instructions before servicing
double-insulated appliances. Use this lawn mower only as
described in this manual.

General Operation

• Read, understand, and follow all instructions on the

machine and in the manual(s) before starting.

• Do not put hands or feet near or under the machine.
Always stay clear of the discharge opening.

• Keep guards in place and in proper working order.

• Only responsible adults who are familiar with the

instructions should be allowed to operate this machine.

• Clear the mowing area of foreign objects such as rocks,

wire, toys, and other miscellaneous articles, which could
be picked up and thrown by the blade. Stay behind the
handle when the engine (motor) is running.

• Make sure that the mowing area is clear of bystanders
before starting the machine. Stop the machine if anyone
enters the area.

• Do not operate the machine while barefoot or while

wearing sandals. Always wear substantial footwear.

• Always look down and behind before and while moving

backward with the lawn mower.

• Never direct discharged material toward anyone. Avoid

discharging material against a wall or other obstruction.

• Never leave a running machine unattended.

• Stop the engine (motor) and wait until the blade comes to

a complete stop before cleaning the machine, removing
the grass collection bag, changing accessories, or
unclogging the discharge guard.

• Operate the machine only in daylight or in good
articial light.

• Do not operate the machine when you are tired or under
the inuence of alcohol or drugs.

• Never operate the lawn mower in wet grass. Always be

sure of your footing; walk, never run, with the lawn mower.

• If the machine should start to vibrate abnormally, stop
the engine (motor) and immediately check the machine
to ascertain the cause. Vibration is generally a signal of
trouble.

• Keep blades sharp.

• Keep hands and feet away from the cutting area.

• Always wear eye protection when operating the machine.

• Objects struck by the lawn mower blade can cause severe

injuries. The mowing area should always be carefully
examined and cleared of all objects prior to each mowing.

• Only use identical replacement blades.

3

Slope Operation

Slopes are major factors related to slip and fall accidents,
which can result in severe injury. Operation on all slopes
requires extra caution. If you feel uneasy on a slope, do not
mow it.

• Mow across the face of slopes; never mow slopes

following an up and down traverse. Exercise extreme
caution when changing direction on a slope.

• Watch for holes, ruts, bumps, rocks, or other hidden
objects. These may cause an unexpected slip or fall.

• Do not mow on wet grass or excessively steep slopes.
Poor footing could cause a slip and fall accident.

• Do not mow near drop os, ditches, or embankments.
You could lose your footing or balance.

Children

Tragic accidents can occur if the operator is not alert to the
presence of children. Children are often attracted to the
machine and the mowing activity. Never assume that children
will remain where you last saw them.

• Keep children out of the mowing area and under the
watchful care of a responsible adult other than
the operator.

• Stay alert and turn the lawn mower o if a child enters the

area.

• Never let children operate the machine.

• Use extra care when approaching blind corners, shrubs,

trees, or other objects that may block your view of a child.

Service

• Keep all nuts and bolts tight.

• Never tamper with safety devices. Regularly check to

ensure these devices are in place and in proper
working order.

• Keep the lawn mower free from grass, leaves, or other
debris buildup.

• Never make any adjustments or repairs with the engine
(motor) running. Always unplug electric lawn mowers
before adjusting, cleaning, or repairing.

• Check the grass collection bag components and
the discharge guard frequently and replace with
manufacturer’s recommended parts when necessary.

• Mower blades are sharp. Wrap the blade or wear gloves,
and use extra caution when servicing them.

• Maintain or replace safety and instruction labels,
as necessary.

4

Safety Symbols

The following table depicts and describes safety symbols that may appear on this product. Read, understand, and follow all
instructions on the machine before attempting to assemble and operate.

Symbols SymbolsDescriptions Descriptions

DANGER! Rotating blades. Keep

hands and feet away.

Safety Alert. Caution.

To reduce the risk of injury, user
must read instruction manual.

WARNING! Do not expose or
operate the unit in rain or wet
conditions. Keep dry.

Slip on slope hazard – Use extra
caution when mowing on slopes to
prevent slip and fall accidents.

Thrown objects and rotating
blade can cause severe injury.

Keep bystanders and children a safe
distance away.

Wear eye and hearing protection. For
protection against injury, wear ear
defenders and safety goggles.

Wear protective gloves and
non-slip footwear when using the
machine and handling debris.

Severing of toes or ngers by

rotary mower blade.

Keep bystanders a safe distance
away from the work area.

Blades continue to rotate after

machine is switched o.

Keep extension cord away from
cutting blades.

Disconnect the mains plug if the
cord is damaged or entangled.

Look behind when backing up with
the lawn mower.

5

Know Your Electric Lawn Mower

Read the owner’s manual and safety instructions carefully before operating the lawn mower. Compare the illustration below
to the lawn mower in order to become familiar with the location of the various controls and adjustments. Save this manual for
future reference.

1. Soft grip

2. On/O switch lever

3. Extension cord restraint holder

4. Safety lock button

5. Switch box

6. Cable clip

7. Upper handle

8. Upper handle knob and bolt (2)

9. Appliance cord

10. Grass indicator window

11. Grass collection bag

12. Lower handle knob and bolt (2)

13. Rear wheel (2)

14. Mower height adjustment shaft

(front)

15. Front wheel

16. Motor housing

17. Handle

18. Mower height adjustment lever

(back)

19. Handle adjustment gear (2)

20. Ejector ap

21. Grass collection bag handle

22. Lower handle

1

2

3

10

11

5

6

7

8

12

13

21

20

22

19

18

17

16

4

9

Technical Data

Rated Voltage 120 V ~ 60 Hz

Power 12 A

No Load Speed 3100 ± 10% rpm

Rotor 14.2 in. (36 cm) steel blade

Cutting Width 14.2 in. (36 cm)

14

Cutting Height 1.2 in. to 2.4 in.
(30 mm to 60 mm)

Grass Collection Bag Capacity 9.2 gal (35 l)

Deck Width 15.7 in. (40 cm)

Weight 24.3 lbs (11 kg)

6

15

Unpacking

Carton Contents

• Electric lawn mower with lower handle

• Upper handle

• Upper handle knobs and bolts (2)

• Grass collection bag

• Grass collection bag handle

• Spanner wrench

• Manual and registration card

1. Carefully remove the lawn mower and check to see that all
of the above items are supplied.

2. Inspect the product carefully to make sure no breakage

or damage occurred during shipping. If you nd damaged

or missing parts, DO NOT return the unit to the store.
Please call the Snow Joe® + Sun Joe® customer service
department at 1-866-SNOWJOE (1-866-766-9563).

NOTE: Do not discard the shipping carton and packaging

material until you are ready to use your new electric lawn
mower. The packaging is made of recyclable materials.
Properly dispose of these materials in accordance with
local regulations.

IMPORTANT! The equipment and packaging material are not
toys. Do not let children play with plastic bags, foils, or small

parts. These items can be swallowed and pose a suocation

risk!

Handle Assembly

1. Place the upper handle over the upper ends of the lower

handle. Align the holes. Use the two sets of upper handle
knobs and bolts to secure (Fig. 1).

Fig. 1

Upper handle
knob and bolt

Upper
handle

Upper handle
knob and bolt

Lower
handle

2. Clip the cable in the cable clips that are preassembled on

the handle.

Grass Collection Bag Assembly + Fitting

1. Clip the protective plastic straps onto the support rod of

the grass collection bag (Fig. 2).

Assembly

mWARNING! Do not connect to the power supply

until assembly is complete. Failure to comply could result in
accidental starting and serious personal injury.

mWARNING! Before performing any maintenance, make

sure the tool is unplugged from the power supply. Failure to
heed this warning could result in serious personal injury.

mWARNING! The product must be fully assembled

before operation. Do not use a product that is only partially
assembled or assembled with damaged parts.

NOTE: Before using the lawn mower, follow these instructions
to assemble the handle and the grass collection bag.

Fig. 2

R

Protective
plastic straps

2. Insert the grass collection bag handle into the holes on the

top of grass collection bag until it clicks in (Fig. 3).

7

Fig. 3

3. Lift the ejector ap with one hand. With the other hand,

hold the grass collection bag by the handle and hook it in
from above (Fig. 4).

Fig. 4

Ejector

ap

Grass
collection bag
handle

R

R

1. Power o and unplug the lawn mower.

2. To adjust the cutting height in front, place the lawn mower

on its side. Pull the mower height adjustment shaft to the
outside of the original slot (Fig. 5).

Fig. 5

Mower height
adjustment shaft

1.2.3.4.

3. Insert the shaft into the desired slot. Place the lawn mower

back on to its wheels.

4-Position Height Adjustment:

(1) 1.2 in. (30 mm)

(2) 1.6 in. (41 mm)

(3) 2.0 in. (52 mm)

(4) 2.4 in. (63 mm)

4. To adjust the cutting height in back, Pull the mower height

adjustment lever to the outside of the original slot (Fig. 6).

Grass collection bag

Operation

This lawn mower is intended for private residential use to cut
grass in small lawns and gardens. This lawn mower is not

intended to cut grass in public parks, playing elds, farms, or

forests. Do not use this lawn mower for any application other
than that for which it is intended.

Adjusting the Cutting Height

This electric lawn mower is equipped with a 4-position height
adjustment system to tailor grass cutting heights from 1.2 in. to

2.4 in. (30 mm to 60 mm). To change the cutting height of the
grass, follow the instructions below.

mWARNING! Before making these adjustments,

disconnect the power supply to the lawn mower and wait until
the rotating blade has come to a complete standstill. Wearing
gloves is recommended due to the close proximity of the
cutting blade.

ALWAYS FOLLOW ALL SAFETY PRECAUTIONS AND
RECOMMENDATIONS LISTED PREVIOUSLY IN THIS
MANUAL.

Fig. 6

Mower height
adjustment lever

5. Insert the lever into the slot that matches the front height

slot that the mower adjustment shaft is in.

6. Reconnect the power supply to the lawn mower and
resume normal use.

mWARNING! Make sure that the mower is set in the same

height on the front wheel and the rear wheel to avoid uneven
cut.

8

Adjusting the Handle

This lawn mower is equipped with an adjustable handle that
can be set into multiple angle between 0° and 180°. The
mostly used handle positions are marked below (Fig. 7):

Starting + Stopping

Do not switch on the lawn mower until it has been completely
assembled. Before switching on the unit, always check the
appliance cord and the extension cord for signs of damage.
Use only intact cords.

Fig. 7

High position

Low

Hanging
position

To adjust the handle angle, follow the instruction below:

1. Power o and unplug the lawn mower.

2. Loosen the lower handle knobs on both sides, and rotate

the handle assemble to your desired angle (Fig. 7).

NOTE: There's an indicator system located next to each

of the two gears that helps to quick-set the handle. The
indicator system marked the storage position, the hanging
position, a high position and a low position. To quick-set
the handle, align one of the arrows on the gear to the
desired position indicator (Fig. 8).

3. Make sure that the gears of the handle angle adjustment
system are snapped in, and then tighten the lower handle
knobs (Fig. 8).

Fig. 8

The gears
snaps in

Lower handle
knob

Storage position

High position
Low position

Hanging position

Arrow

position

Storage
position

mWARNING! Damaged cords pose a severe risk of injury.

Replace damaged cords immediately.

mWARNING! Before switching on the lawn mower, make

sure that it is not in contact with any foreign objects. Keep
your hands and feet a safe distance away from the rotating
mower blade and the ejector opening. Failure to comply with
these warnings can result in severe personal injury.

IMPORTANT: Do not start the lawn mower in tall grass.

1. Place the unit on a level lawn surface.

2. Push a loop of the extension cord through the slot on the

extension cord restraint holder from the opposite side and
around the cord restraint hook. Insert the appliance cord
into the extension cord (Fig. 9).

Fig. 9

Extension cord

restraint holder

Extension

cord

Appliance
cord

NOTE: Do not plug the extension cord into the outlet until it

had been secured with the extension cord restraint holder and
connected to the lawn mower's appliance cord. Only use a
UL-rated extension cord for outdoor, all-weather use. Do not
use an extension cord over 100 ft (30 m). See Extension Cord
Chart on page 2.

3. Place the bulk of the extension cord on the lawn closest to
the starting point.

4. Before starting the lawn mower, hold the soft grip with
both hands and tilt the handle downward to slightly raise
the front of the lawn mower. This will reduce the risk of
lawn damage during start-up (Fig. 10).

9

Fig. 10

R

R

7. To stop the lawn mower, release the On/O switch lever
(Fig. 11).

Grass Collection Bag Volume Indicator

1. If the grass collection bag is empty or is not completely

full with grass, the grass indicator window will remain

open (due to the ow of air) or will utter open and close

as the grass accumulates in the bag (Fig. 13).

2. When the grass bag reaches its maximum capacity, the
grass indicator window will remain closed (due to the
restricted air ow). This signals that it is time to empty
the bag (Fig. 13).

5. To start the lawn mower, press and hold the safety lock
button while pulling the On/O switch lever toward you.
Once the machine powers on, release the safety lock
button (Fig. 11).

Fig. 11

On/O switch lever

Safety lock button

6. Let the motor get up to speed, gently lowering the lawn

mower down into the cutting position and start mowing
(Fig. 12).

Fig. 12

Fig. 13

Grass indicator
window

EMPTY

FULL

Mowing Tips

mWARNING! Inspect the area prior to mowing and

remove all the stones, sticks, wires, and other debris that
might be thrown by the rotating blade.

NOTE: A sharp blade will greatly enhance the performance of
the lawn mower, especially when cutting tall blades of grass.

• Be sure to check the blade periodically for signs of wear

and sharpen it at least once per year.

• In order to prevent electric shock, do not operate the lawn
mower in damp or wet conditions.

• Do not mow in a circle. Travel back and forth across the

lawn following the path outlined below (Fig. 14).

• When cutting thick grass, reduce your walking speed
in order to allow for a more eective cut and a proper

discharge of the clippings. For a healthy lawn, always

cut o one-third or less from the total length of the grass.

The average lawn should be approximately 1.5 to 2 in.
(3.8 cm to 5 cm) long during cool months, and more than
2 in. (5 cm) long during hot months. If there is growth,
the lawn should be cut in the fall.

10

Fig. 14

• While mowing, make sure that the electric cable is always

behind you and resting on the area of grass already cut.

• The lawn will look better if it is always cut to the same

height and in alternate directions.

• When crossing any graveled area, release the On/O
switch lever to turn o the lawn mower. The stones can be

picked up and thrown by the rotating blade.

• Set the lawn mower to the highest cutting height when

mowing on uneven ground or in tall weeds.

mWARNING! If you strike a foreign object, stop the motor

and disconnect the power cord. Thoroughly inspect the lawn
mower for any damage. Repair any damage before operating
the lawn mower.

Overload Protection

The lawn mower has an internal cut o switch which will stop

the operation of the motor temporarily if overloaded. This cut

o switch will suddenly stop the motor from operating should

the motor become too hot during the operation of the lawn
mower.

1. Disconnect the lawn mower from the power supply and
inspect blade for any obstructions.

2. Wait up to 2 minutes, or longer depending on ambient
temperature and the operation being performed, before
switching on the lawn mower and resuming normal
operation.

mWARNING! The mower blade will continue to rotate for

a brief period after the unit has been switched o. Do not tilt or

carry the unit while the motor is still running and do not touch
the blade while it is still rotating. Failure to comply could result
in severe personal injury.

Maintenance

mWARNING! Before cleaning, repairing, or inspecting the

lawn mower, disconnect the power supply to the unit and verify
that all moving parts have come to a complete stop.

General

• Always keep the lawn mower clean and free of grass, dirt,

or other debris.

• Keep the handles dry, clean, and free of oil and grease.

• After each cutting session, remove accumulated grass

clippings and debris using either a dry cloth or handbrush.
You may also clean the equipment with a damp cloth and
some soft, non-abrasive soap. Do not use cleaning agents
or harsh solvents as they may damage the equipment's
plastic components. Make sure that no water penetrates
the equipment's interior as intake of water can destroy the
switch/plug mechanism and the electric motor.

• Do not clean the lawn mower with running water,

particularly with high-pressure water.

• Check all nuts, bolts, and screws for proper tightness

before each use.

• Frequently inspect the grass collection bag for signs of

wear and replace immediately with a genuine Snow Joe®
+ Sun Joe® part if damage is found.

• Replace excessively worn or damaged parts immediately.

• To maximize your lawn mower's longevity, all screwed

parts, including the wheels and axles, should be cleaned
and lubricated. There are no parts inside the equipment
which require additional maintenance or lubrication.

Blade Maintenance

IMPORTANT: The mower blade is sharp and can cause severe

personal injury if handled incorrectly. Wrap the blade or wear
protective gloves, and use extra caution when handling.

The steel blade is designed to provide a ne cut in long or

tough grass. Deterioration in the quality of cut indicates blade
wear or damage. Follow these steps to determine if the blade
needs to be resharpened or replaced:

1. Disconnect the electrical supply to the lawn mower.

2. Turn the lawn mower on its side to expose the underside

of the blade housing.

3. Check the blade.

a. If the blade is blunt or has minor wear, then resharpen.

Please call Snow Joe® + Sun Joe® customer service for
assistance at 1-866-SNOWJOE (1-866-766-9563).

b. If the blade shows signs of major wear or damage

(i.e. gouged, bent), then replace. Please call Snow Joe®
+ Sun Joe® customer service for assistance at
1-866-SNOWJOE (1-866-766-9563).

11

mWARNING! An excessively vibrating lawn mower

indicates that the blade is not properly balanced or has
become deformed from striking an object. In this case, the
blade must be repaired or replaced. Please follow the proper
maintenance procedures for blade care or call the
Snow Joe® + Sun Joe® customer service center for assistance
at 1-866-SNOWJOE (1-866-766-9563).

Blade Replacement

IMPORTANT: Only use original replacement parts specied for

this lawn mower.

You can purchase a replacement blade (Model MJ404E-BLD)
and other genuine replacement parts by ordering online at
snowjoe.com or, to order by phone, contact Snow Joe® +
Sun Joe® customer service at 1-866-SNOWJOE
(1-866-766-9563). The use of parts that do not meet the

original equipment specications may lead to improper

performance of the lawn mower, may compromise operator
safety, and will void the manufacturer's warranty.

1. Disconnect the electrical supply to the lawn mower.

2. Turn the lawn mower on its side to expose the underside

of the blade housing.

3. Wear heavy-duty gloves, or use a cloth to grip the blade.

4. To remove the blade bolt, hold the blade rmly by one

hand, and use the supplied spanner wrench to loosen the
blade bolt by turning it counterclockwise (Fig. 15).

Fig. 15

Blade

Spanner
wrench

Bolt

5. Fit the new blade, the washer and the bolt back on

following the same steps in reverse order (Fig. 16).

Fig. 16

Blade

Washer

Nut

Storage

Follow the steps below to prepare the lawn mower for storage:

1. Disconnect the power supply to the lawn mower.

2. Clean the lawn mower with a damp cloth or hand brush.

3. Inspect the lawn mower carefully for worn, loose, or

damaged parts. Check connections and screws and
tighten if necessary. Pay special attention to the mower
blade and replace/sharpen if it shows signs of wear. Refer
to the Maintenance section.

4. Store the lawn mower indoors in a dry, clean, and cool
area out of the reach of children. Do not store the unit next
to corrosive materials, such as fertilizer and rock salt.

5. Wipe the extension cord to remove any foreign
substances, such as oil or stains. Replace the extension
cord immediately if it is cut or damaged in any way.

6. Wind the cord in a series of equal loops to prevent it
from tangling.

7. Do not cover the lawn mower with a solid plastic sheet.
Plastic coverings trap moisture around the lawn mower,
which can damage the unit.

8. The handle on your lawn mower can be folded for
compact storage or hanging. Follow the instruction below.

Storage Position

i) Loosen the lower handle knobs on both sides.

ii) Flip the handle assembly to the front until the second

arrow on the gear lines up with the storage position
indicator. Make sure the gear snaps in (Fig. 17).

12

Fig. 17

iii) Loosen the upper handle knobs on both sides. Flip the

upper handle back (Fig. 18).

Fig. 18

Hanging Position

i) Loosen the lower handle knobs on both sides.

ii) Flip the handle assembly to the back until the rst

arrow on the gear lines up with the hanging position
indicator. Make sure the gear snaps in (Fig. 19).

Fig. 20

R

R

Fig. 19

iii) Tighten the lower handle knobs.

iv) Hang the mower on the wall (Fig. 20).

Service + Support

R

If your Sun Joe® MJ404E-360 electric lawn mower requires
service or maintenance, please call 1-866-SNOWJOE
(1-866-766-9563) for assistance.

Model + Serial Numbers

When contacting the company or reordering parts, you will
need to provide the model and serial numbers of your product.

These are found on the decal axed to the housing or handle

of your lawn mower. Copy these numbers into the space
provided below.

Record the following numbers from the housing or handle of your
new product:

M J 4 0 4 E - 3 6 0

Model #:

Serial #:

13

Troubleshooting

Problem Remedy

Motor does not run

Motor power drops

Motor performance drops

Grass collection bag

not lling suciently

• Unplug the unit from the power source and check that the blade is able to

rotate freely. If the lawn mower was previously in use, let the motor cool
down for a while before restart.

• Check mains, and extension cord.

• Clean discharge channel/housing.

• Start lawn mower on short grass or in a previously mowed area and tilt back.

• Correct the cutting height.

• Check that you are using a suitable extension cord of proper gauge and

length (see Extension Cord Chart pg. 2).

• Power source (e.g. generator) has too low voltage.

• Correct the cutting height.

• Clean discharge channel/housing.

®

• Replace or resharpen mowing blade (contact an authorized Snow Joe

Sun Joe

• Correct the cutting height.

• Allow the lawn to dry.

• Clean the grille on the grass collection bag.

• Clean the discharge channel/housing.

®

service center).

+

Only a company specialist may be able to correct faults that cannot be rectied with the aid of this table. Please call the
Snow Joe® + Sun Joe® customer service center at 1-866-SNOWJOE (1-866-766-9563).

14

Optional Accessories

mWARNING! ALWAYS use only authorized Snow Joe

replacement parts or accessories that are not intended for use with this tool. Contact Snow Joe® + Sun Joe® if you are unsure
whether it is safe to use a particular replacement part or accessory with your tool. The use of any other attachment or accessory
can be dangerous and could cause injury or mechanical damage.

®

+ Sun Joe® replacement parts and accessories. NEVER use

ModelAccessories Item

1

2

R

3

14.2-Inch (36 cm) mower blade

9.3 gal (35.2 l) grass collection bag

MJ404E-BLD

MJ404E-BAG

Snow Joe® + Sun Joe® SJTW-A 14-gauge
50-foot extension cord with lighted end

PJEXT50-B

4

Snow Joe® + Sun Joe® Universal Wall
Bracket with Mounting Hardware

NOTE: Accessories are subject to change without any obligation on the part of Snow Joe® + Sun Joe® to provide notice of such
changes. Accessories can be ordered online at snowjoe.com or via phone by contacting the Snow Joe® + Sun Joe® customer
service center at 1-866-SNOWJOE (1-866-766-9563).

SJWB

15

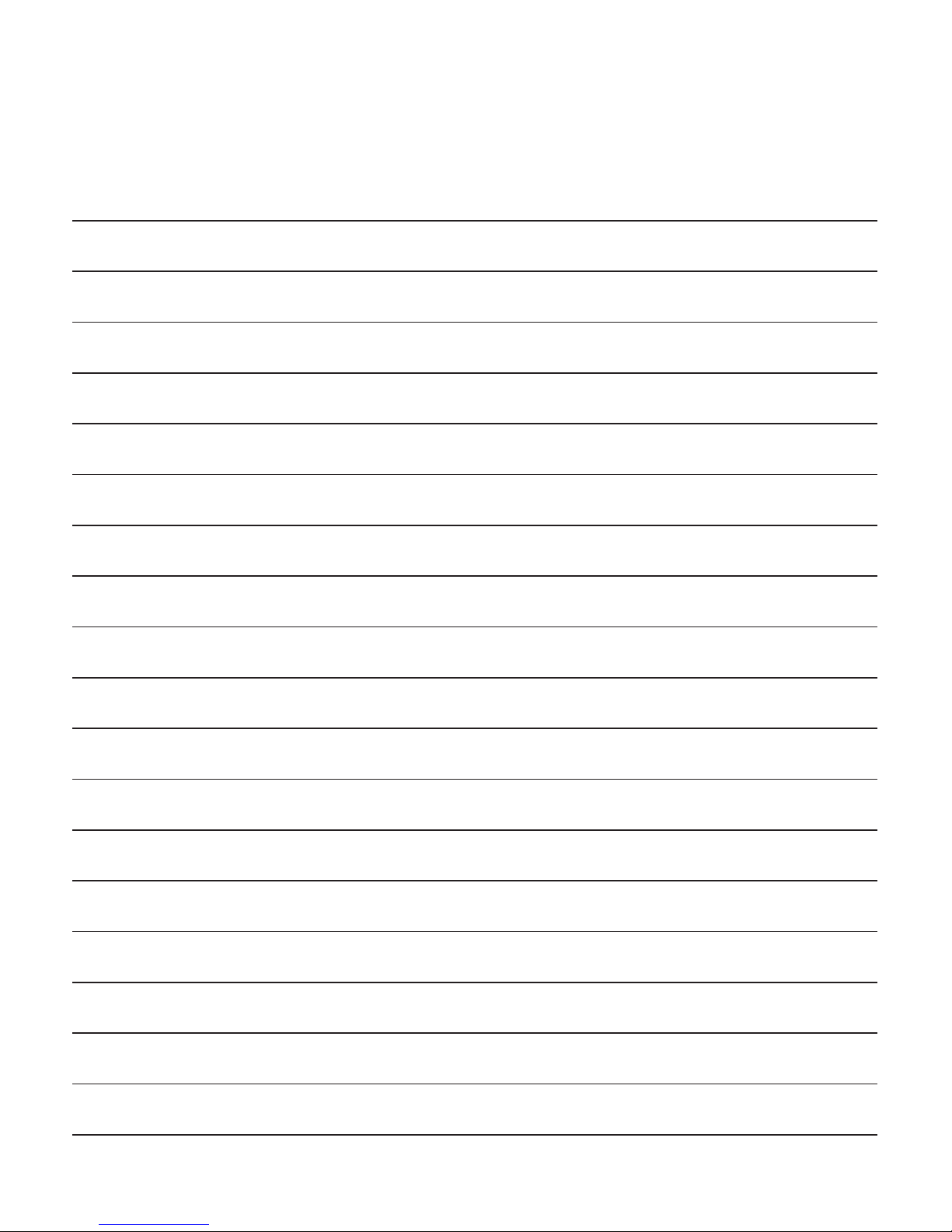

NOTES

16

NOTES

17

NOTES

18

SNOW JOE® + SUN JOE® CUSTOMER PROMISE

ABOVE ALL ELSE, Snow Joe® + Sun Joe® are dedicated to you, our customer. We strive to make your experience as pleasant

as possible. Unfortunately, there are times when a product does not work or breaks under normal operating conditions. We
think it’s important that you know what you can expect from us. That’s why we created the Snow Joe® + Sun Joe® promise.

OUR PROMISE: Snow Joe® + Sun Joe® warrant new products for two years from the date of purchase. If your product does

not work, or there’s an issue with a specic part, we will x this by either sending you a free replacement part or by sending

you a new or comparable product at no charge. How cool is that! Before you know it, you’ll be back in action cutting,
sawing, mowing, washing and…?

PRODUCT REGISTRATION:

Snow Joe®, LLC (“Snow Joe® + Sun Joe®”) strongly encourages
you to register your purchase. You can register online at
snowjoe.com/ProductRegistration, or by printing and mailing
in a registration card available online from our website, or
calling our Customer Service Department at 1-866-SNOWJOE
(1-866-766-9563), or by e-mailing us at [e-mail].
Failure to register your product purchase will not diminish your
warranty rights. However, registering your purchase will allow
Snow Joe® + Sun Joe® to better serve you with any of your
customer service needs.

WHO CAN SEEK WARRANTY COVERAGE?

This Warranty is extended by Snow Joe® + Sun Joe® to the owner
of this Machine (a “Machine” consists of a product powered by
a motor) for residential and personal household use only. This
Warranty does not apply to products used for commercial, rental
or re-sale purposes. Should ownership of this machine change
during the 2-year period, please update the Machine’s owner
information at snowjoe.com/ProductRegistration.

WHAT IS COVERED?

Snow Joe® + Sun Joe® warrants to the owner that if this Machine
fails within 2 years from the date of purchase due to a defect in
material or workmanship or as a result of normal wear and tear
from ordinary household use, Snow Joe® + Sun Joe® will send a
replacement part or product, as needed, free of charge and with
free shipping to the original purchaser.

If, in Snow Joe® + Sun Joe®’s sole discretion, the failed Machine
cannot be repaired with a part, Snow Joe® + Sun Joe® will elect to
either (A) send a new Machine at no charge and with free shipping
or (B) refund the full purchase price to the owner.

WHAT IS NOT COVERED?

This Warranty does not apply to the Machines that have been used
commercially or in non-household applications. This Warranty

does not cover cosmetic changes that do not aect performance.

This Warranty is only valid if the Machine is used and maintained
in accordance with the instructions, warnings and safeguards
contained in the owner’s manual. Snow Joe® + Sun Joe® will not
be responsible for the cost of any unauthorized warranty repairs.
This warranty does not cover any cost or expense incurred by
the purchaser in providing substitute equipment or service during
reasonable periods of malfunction or non-use of this product
while waiting for a replacement part or unit under this warranty.

Wearing parts like belts, augers, chains and tines are not covered
under this warranty, and can be purchased at snowjoe.com or
by calling 1-866-SNOWJOE (1-866-766-9563). Batteries are
covered in full for 90-days from the date of purchase.

Repair, replacement or refund of the purchase price are the
exclusive remedies of purchaser and the sole liability of Snow Joe®
+ Sun Joe® under this warranty. No employee or representative
of Snow Joe® + Sun Joe® is authorized to make any additional

warranty or any modication to this warranty which may be

binding upon Snow Joe® + Sun Joe®. Accordingly, purchaser
should not rely upon any additional statements made by any
employee or representative of Snow Joe® + Sun Joe®. In no event,
whether based on contract, indemnity, warranty, tort (including
negligence), strict liability or otherwise, shall Snow Joe® +
Sun Joe® be liable for any special, indirect, incidental, or
consequential damages, including, without limitation, loss of

prot or revenue.

Some states do not allow limits on warranties. In such states, the
above limitations may not apply to you.

Outside the USA, other warranties may apply.

19

snowjoe.com

mWARNING! This product or its power cord contains chemicals, including lead, known to the State

of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling.
For more information go to www.P65Warnings.ca.gov.

mWARNING! Some dust created by power sanding, sawing, grinding, drilling, and other construction activities

contains chemicals known [to the State of California] to cause cancer, birth defects, or other reproductive harm.
Some examples of these chemicals are:

• lead from lead-based paints,

• crystalline silica from bricks and cement and other masonry products, and

• arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce
your exposure to these chemicals: work in a well ventilated area, and work with approved safety
equipment, such as those dust masks that are specically designed to lter out microscopic particles.
For more information go to www.P65Warnings.ca.gov.
