Page 1

SG80KTL

User Manual

PV Grid-connected Inverter

SG80KTL-UEN-Ver12-201801 Version: 1.2

Page 2

Page 3

About This Manual

This manual is for string inverter SG80KTL (hereinafter referred to as inverter unless otherwise specified). The inverter is grid-connected, transformer-less, robust and of high conversion efficiency. We hope the inverter will satisfy you when you use it with your PV plant system.

Aim

This manual contains information about the inverter, which will provide you guidelines to connect the inverter into the PV power system and how to operate the inverter.

Target Group

This manual is for technical personnel who is responsible for inverter installation, operation and maintenance and inverter owner who will perform daily LCD operation.

How to Use This Manual

Read the manual and other related documents before any work on the inverter. Documents must be stored carefully and available at all times.

All rights reserved including the pictures, markings and symbols used. Any reproduction or disclosure, even partially, of the contents of this manual is strictly forbidden without prior written authorization of Sungrow.

The contents of the manual will be periodically updated or revised due to the product development. It is probably that there are changes of manual in the subsequent inverter edition. The latest manual can be acquired via visiting the web site at www.sungrowpower.com.

Symbols Explanation

Important instructions contained in this manual should be followed during

Page 4

which, if not avoided, could result in

WARNING

Disconnect the inverter from all the

external power sources before service!

Do not touch live parts until 10 minutes after disconnection

from the sources!

10 min

Hot surface! May exceed 60

℃！

Danger to life due to high voltages!

Only qualified personnel can open

and service the product!

Check user manual before service!

installation, operation and maintenance of the inverter. And they will be highlighted by the following symbols.

DANGER indicates a hazard with a high level of risk which, if not avoided, will result in death or serious injury.

WARNING indicates a hazard with a medium level of risk which, if not avoided, could result in death or serious injury.

CAUTION indicates a hazard with a low level of risk which, if not avoided, could result in minor or moderate injury.

NOTICE indicates a situation equipment or property damage.

Symbols on the Inverter Body

NOTE indicates additional information, emphasized contents or tips to help you solve problems or save time.

Page 5

Content

About This Manual .......................................................................... I

1 Safety Instructions ................................................................... 1

2 Product Description ................................................................. 6

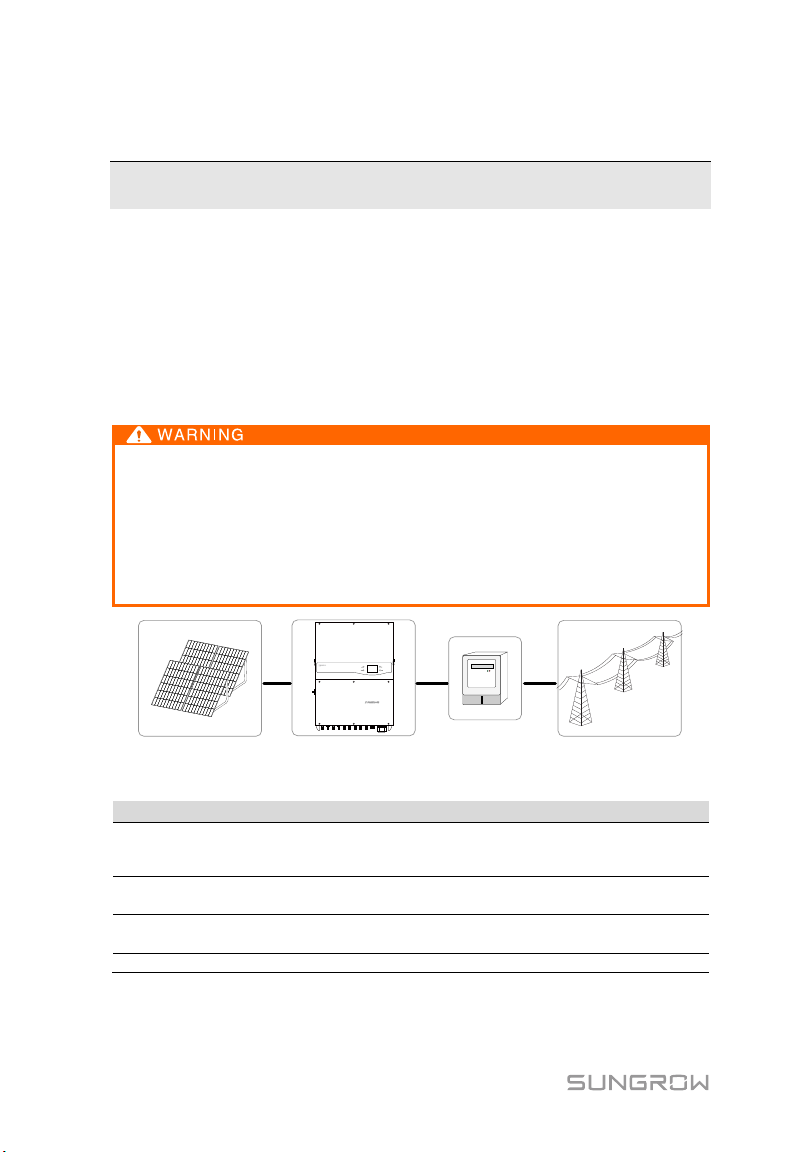

2.1 Intended Usage ................................................................................................... 6

2.2 Product Introduction ......................................................................................... 7

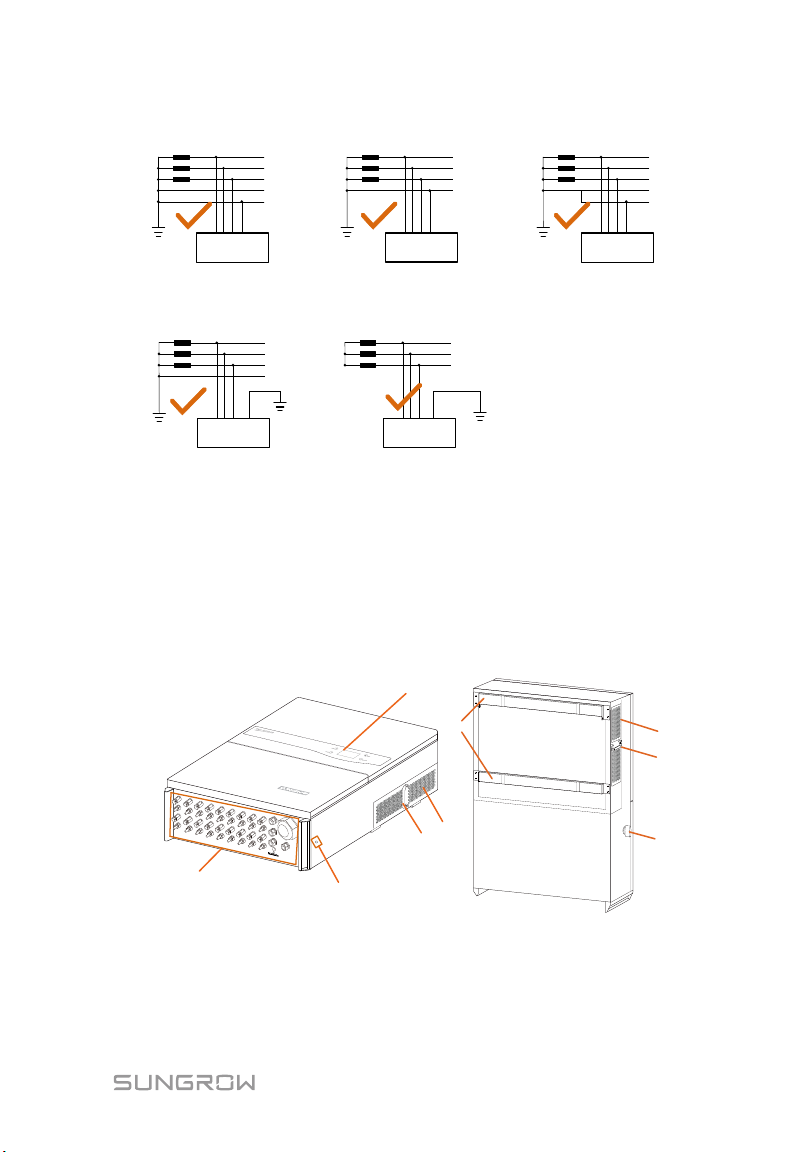

2.2.1 Appearance ............................................................................................................. 7

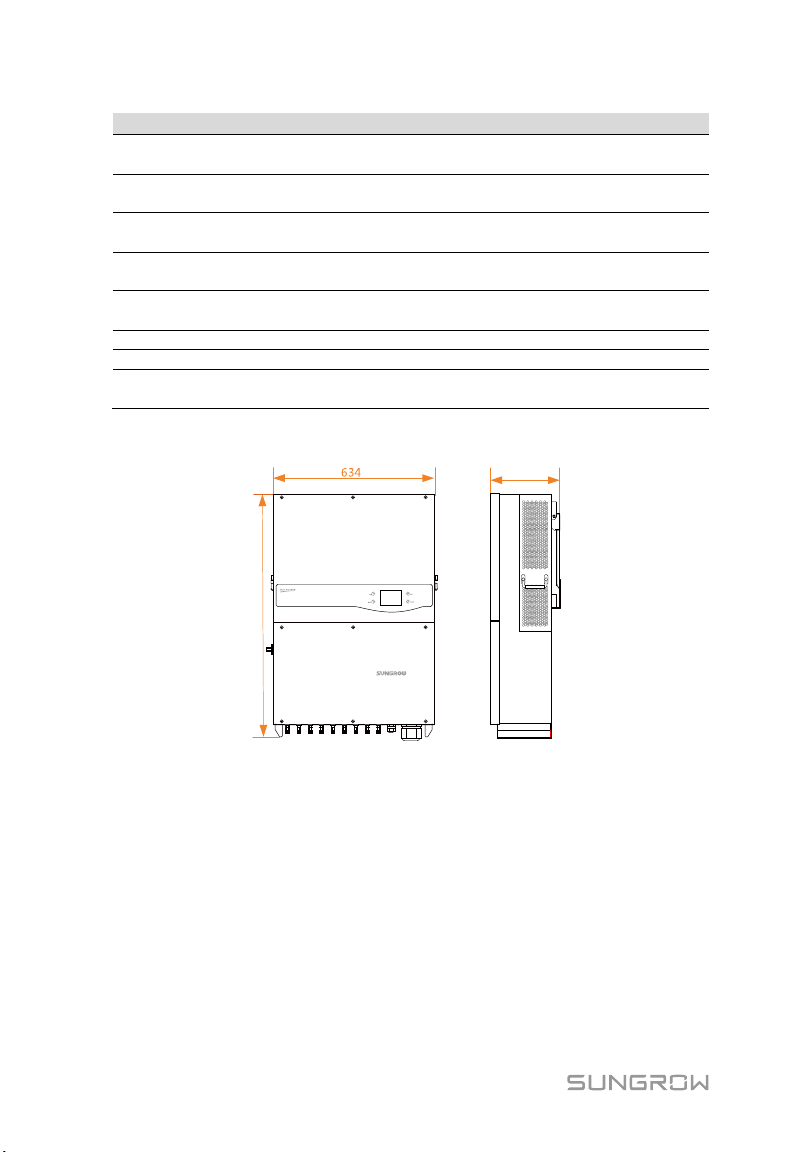

2.2.2 Dimensions .............................................................................................................. 8

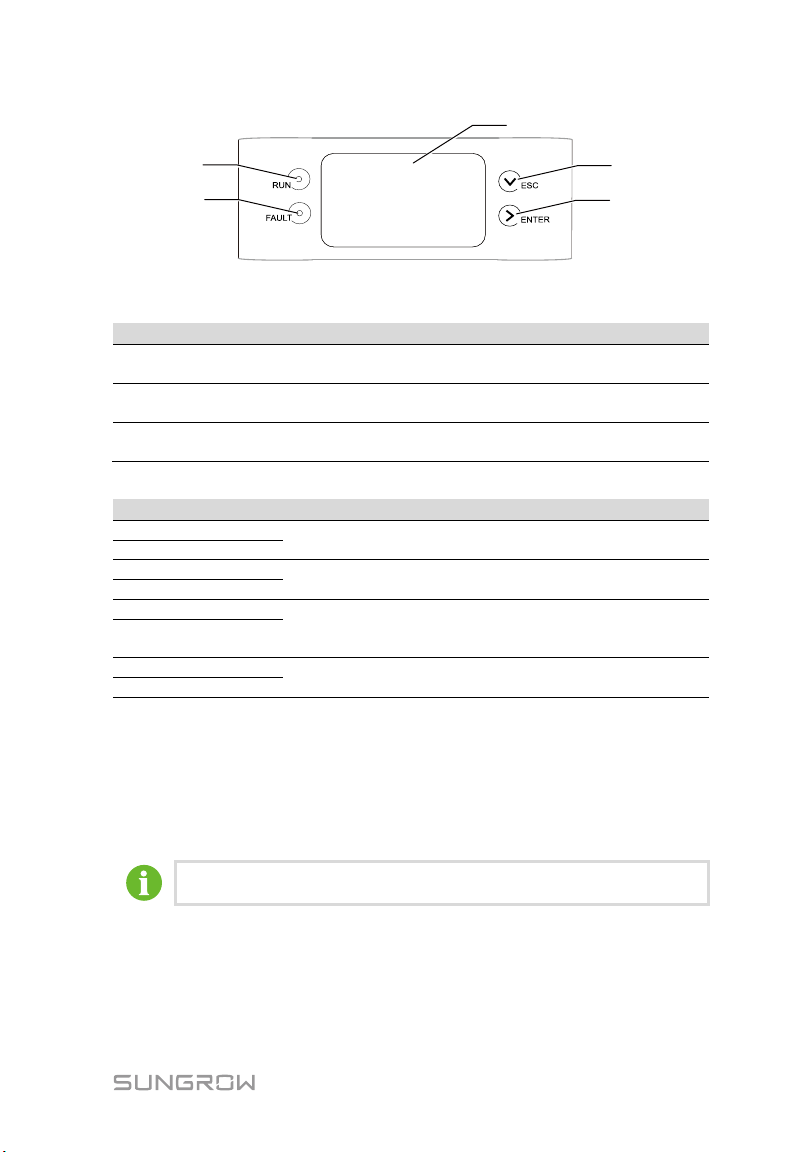

2.2.3 LCD Display .............................................................................................................. 8

2.2.4 DC Switch ................................................................................................................. 9

2.3 Technical Description ..................................................................................... 10

2.3.1 Circuit Diagram ....................................................................................................10

2.3.2 Function Description ..........................................................................................11

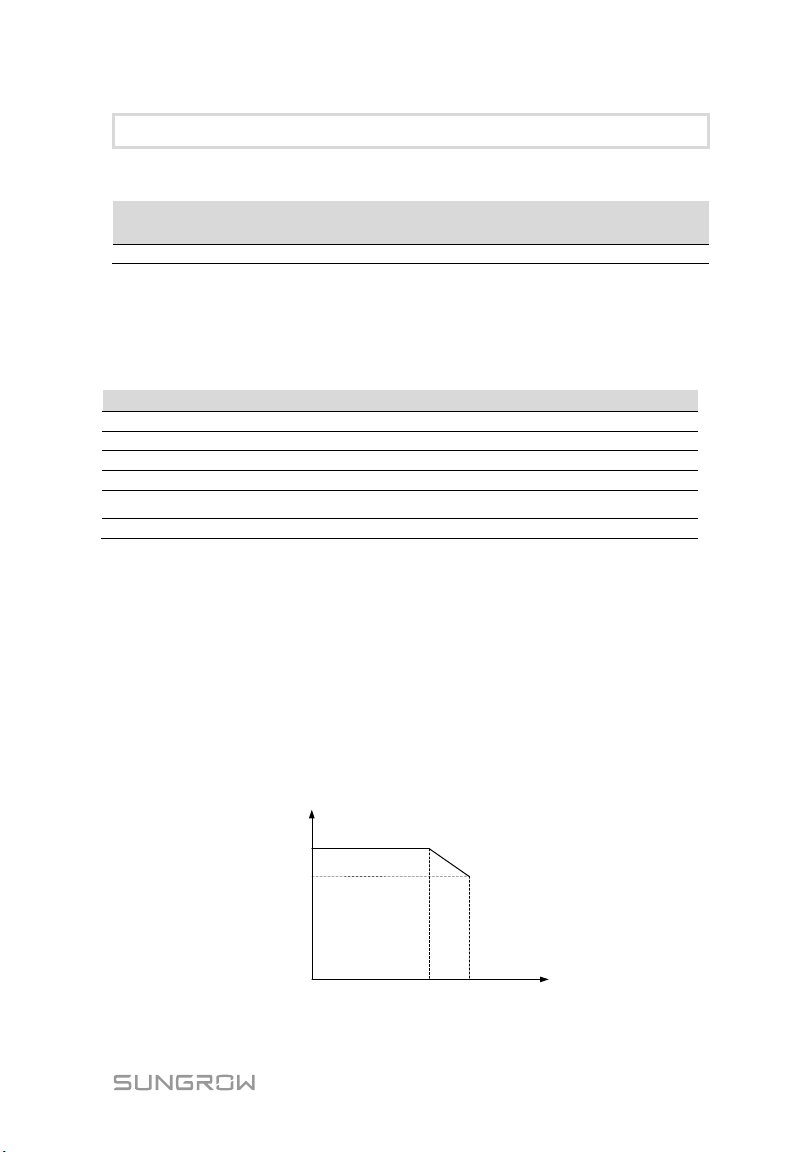

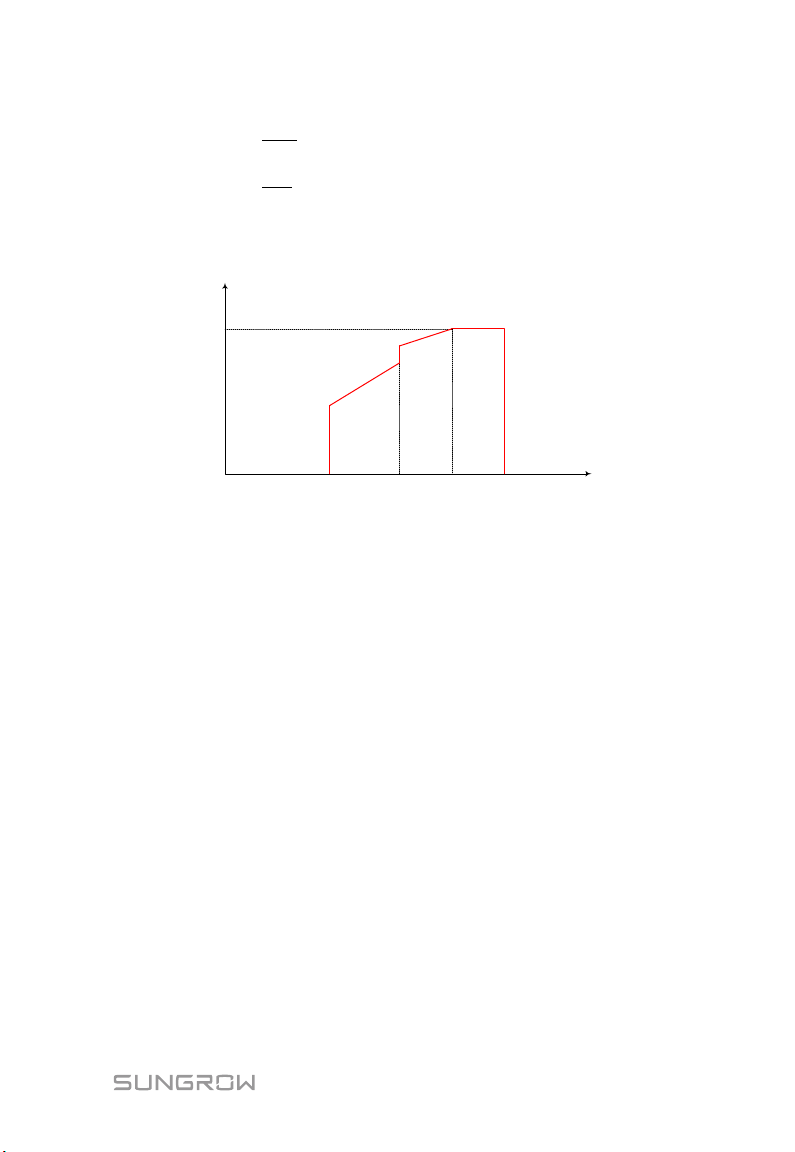

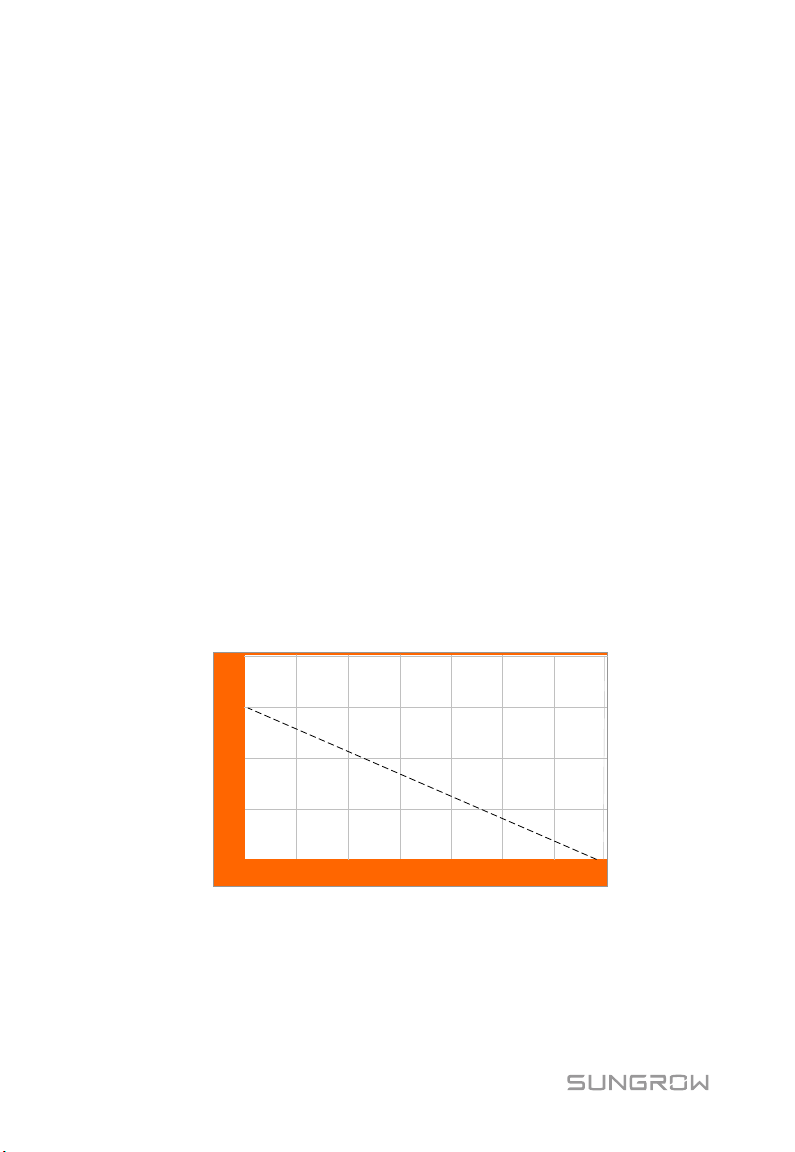

2.3.3 Derating ..................................................................................................................11

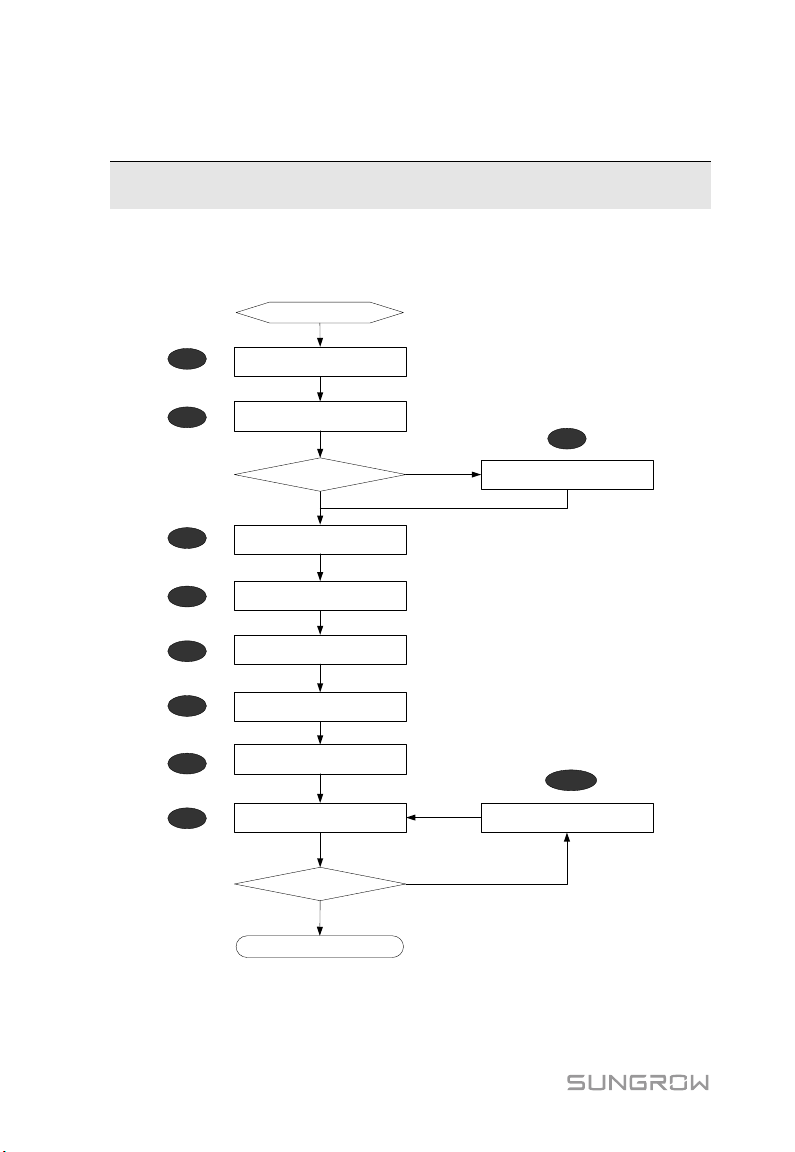

3 Installation Flow..................................................................... 14

4 Unpacking and Storage ......................................................... 16

4.1 Unpacking and Inspection ........................................................................... 16

4.2 Identifying Inverter ......................................................................................... 16

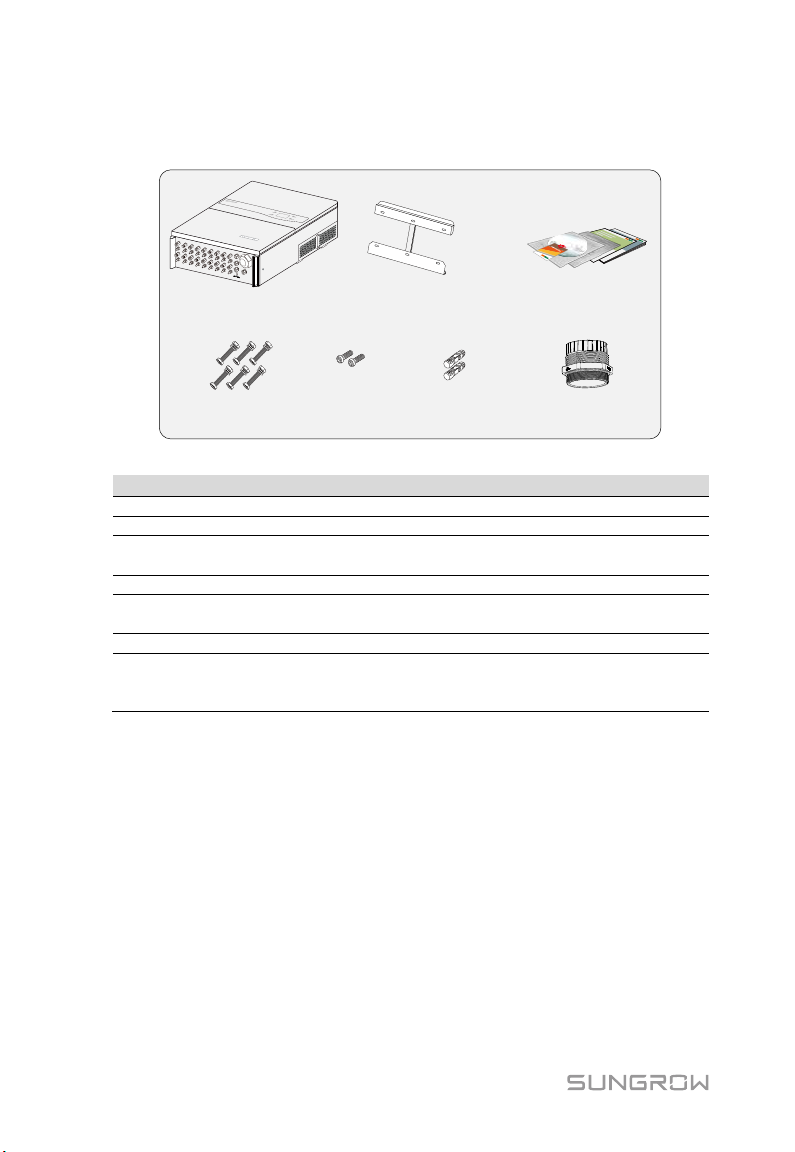

4.3 Scope of Delivery ............................................................................................. 18

4.4 Inverter Storage ............................................................................................... 18

5 Mechanical Installation ......................................................... 20

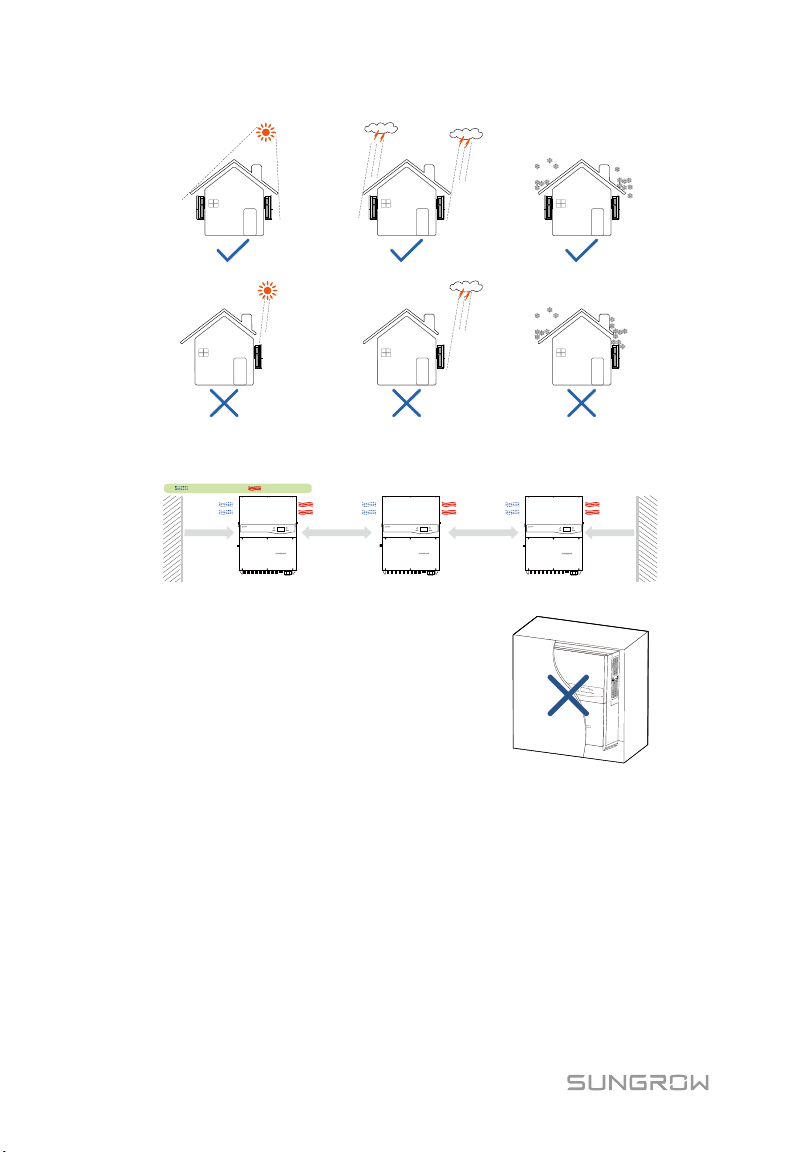

5.1 Installation Site Selection .............................................................................. 20

5.2 Moving Inverter to Installation Site............................................................ 22

5.3 Installing the Inverter ..................................................................................... 23

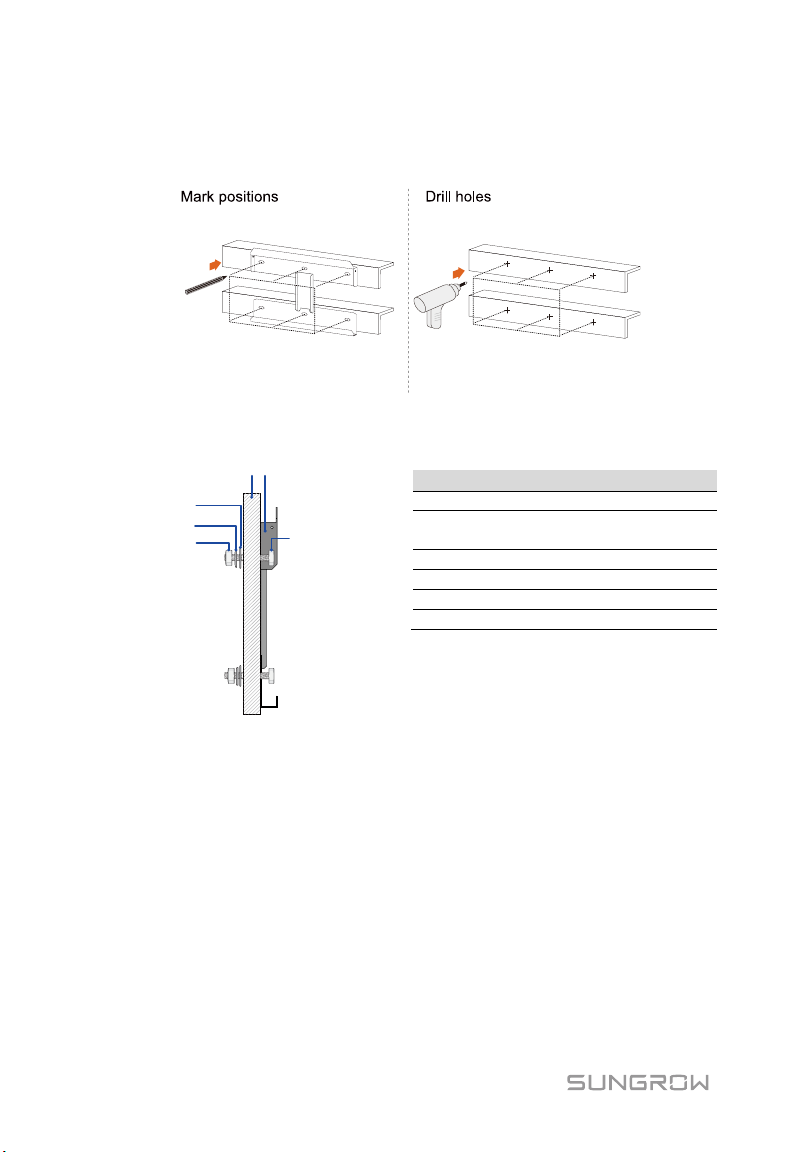

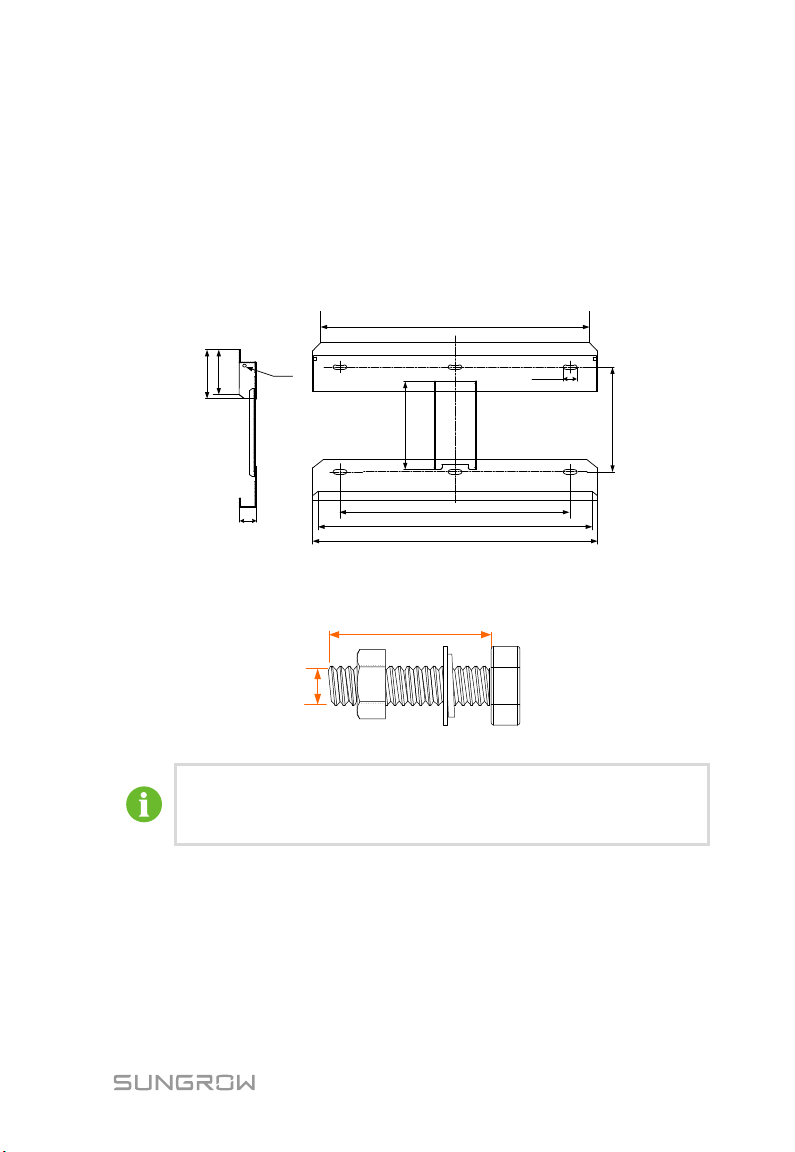

5.3.1 Installing to Metal Frame ..................................................................................23

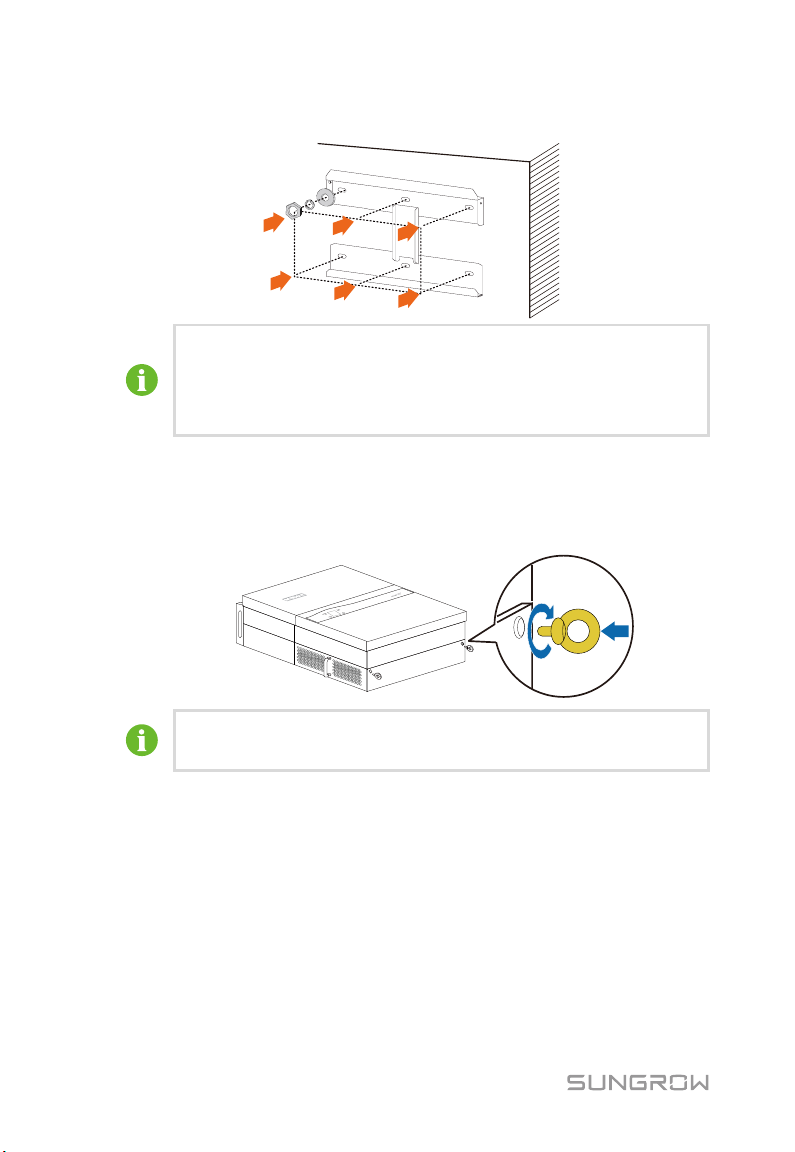

5.3.2 Installing to Concrete Wall ................................................................................25

6 Electrical Connection ............................................................. 28

6.1 Terminal Description ...................................................................................... 28

III

Page 6

6.2 AC Side Cable Connection ............................................................................ 29

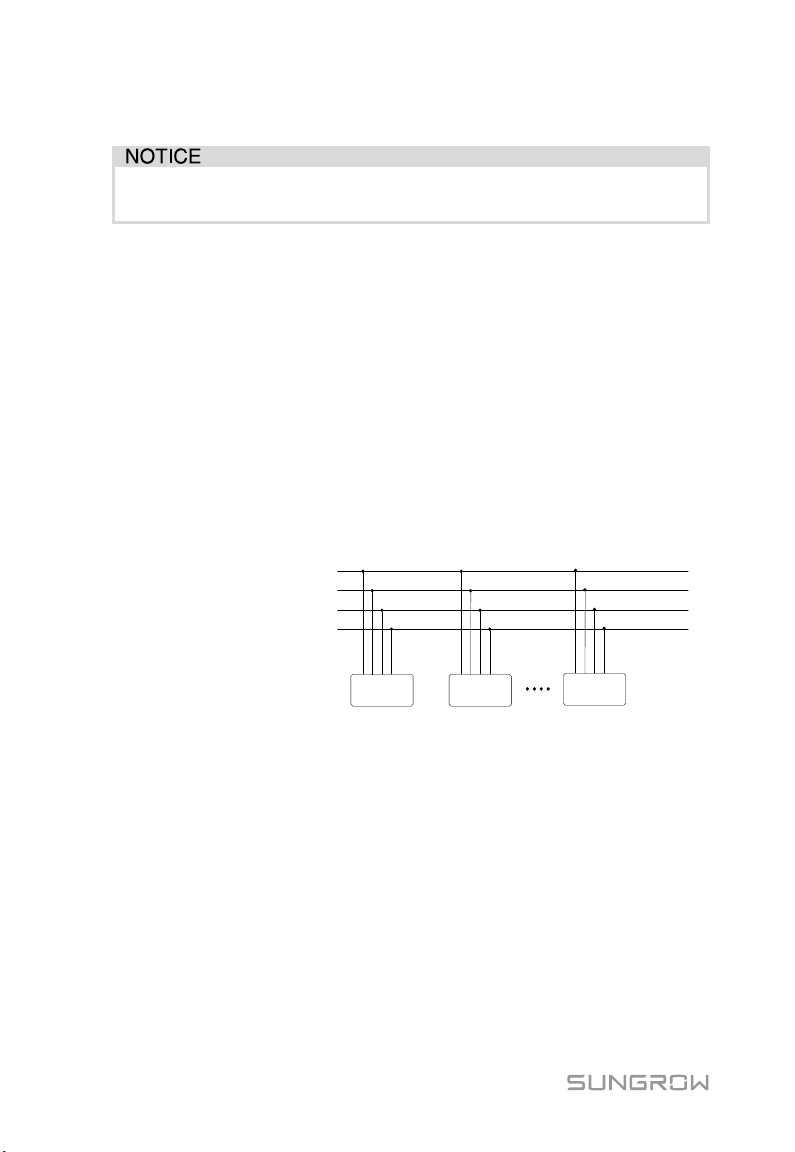

6.2.1 AC side requirements .........................................................................................29

6.2.2 Grid Connection ...................................................................................................32

6.3 PV Array Connection ....................................................................................... 36

6.3.1 PV Input Configuration ......................................................................................36

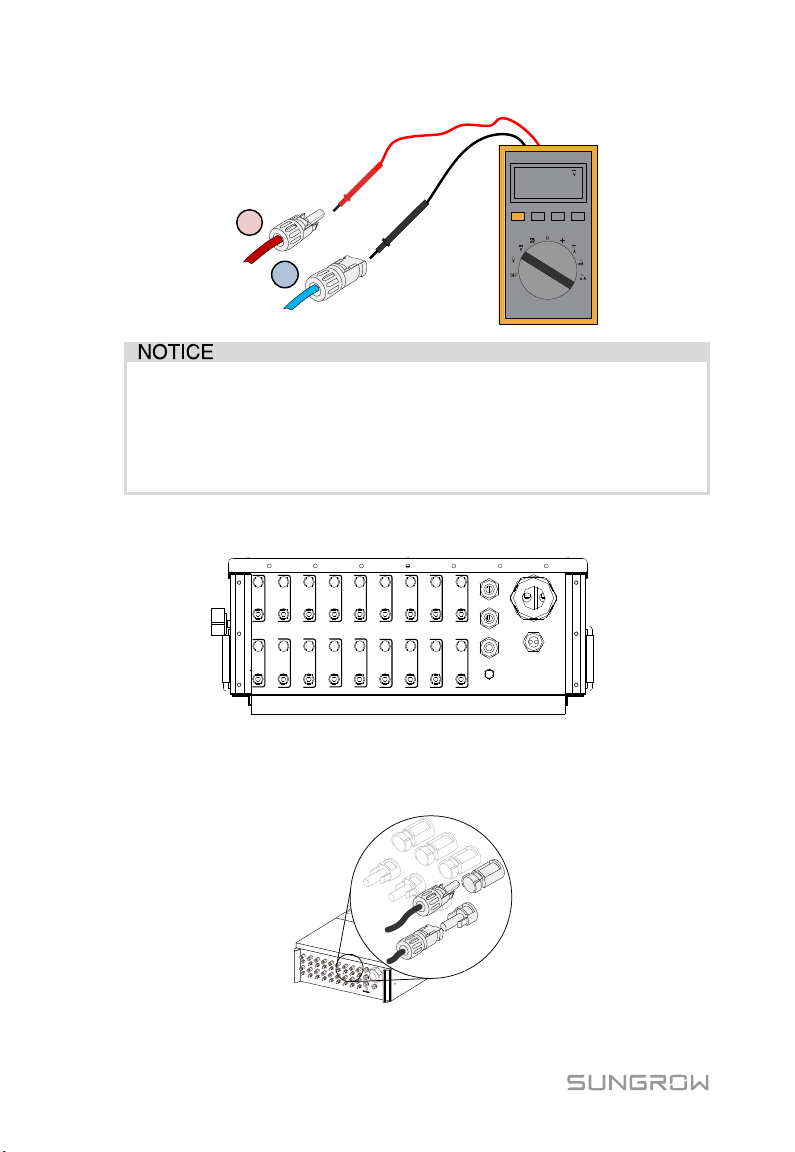

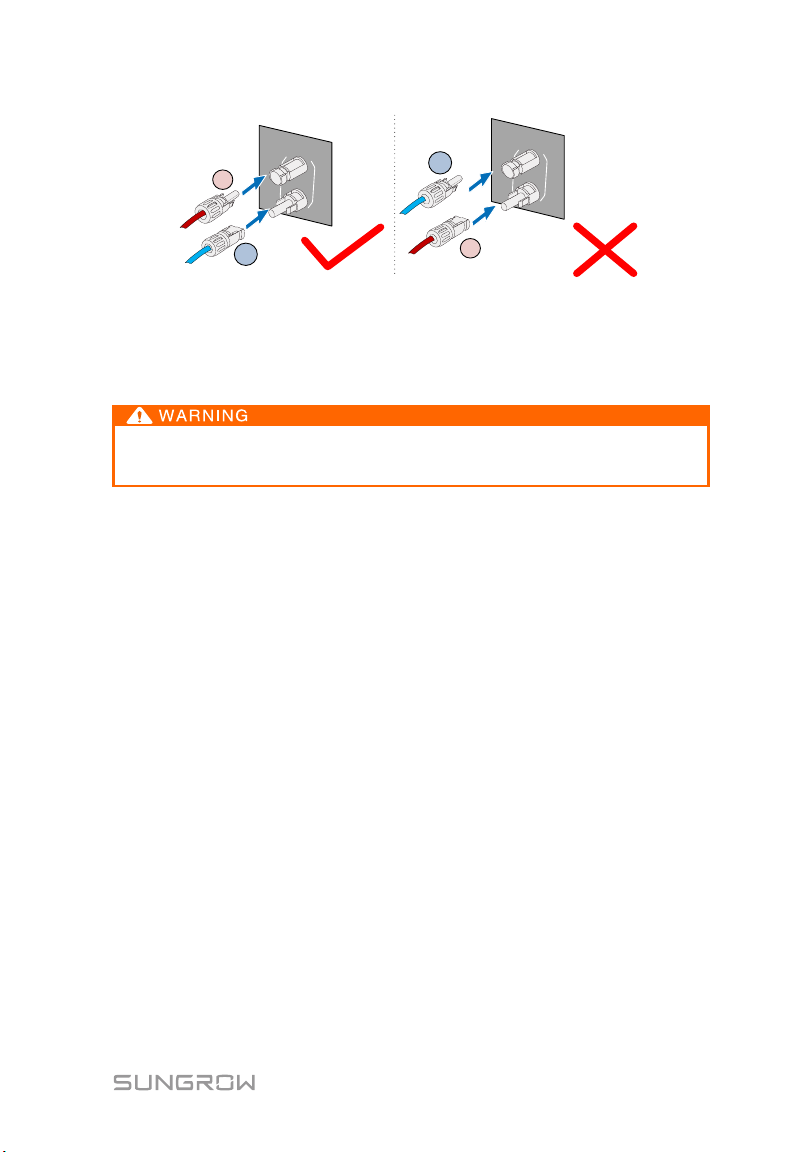

6.3.2 PV Input Connection ..........................................................................................38

6.4 Grounding the Inverter .................................................................................. 41

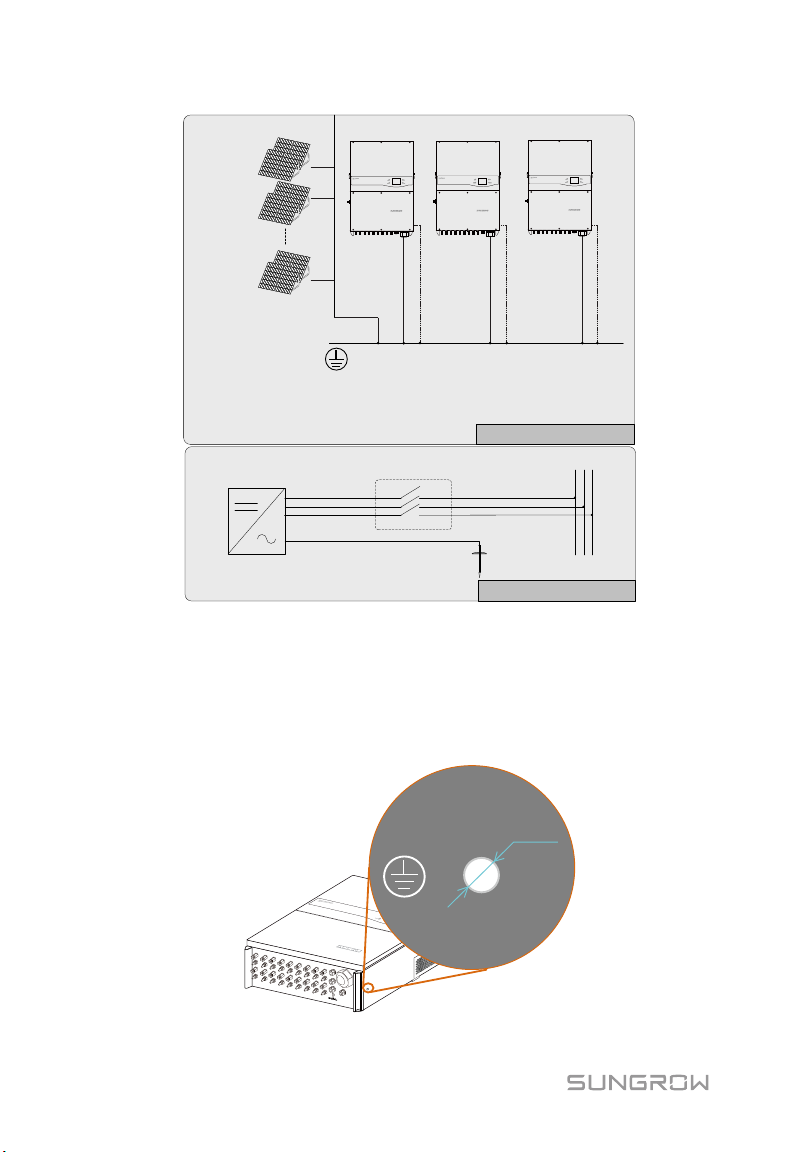

6.4.1 Grounding System Overview ...........................................................................41

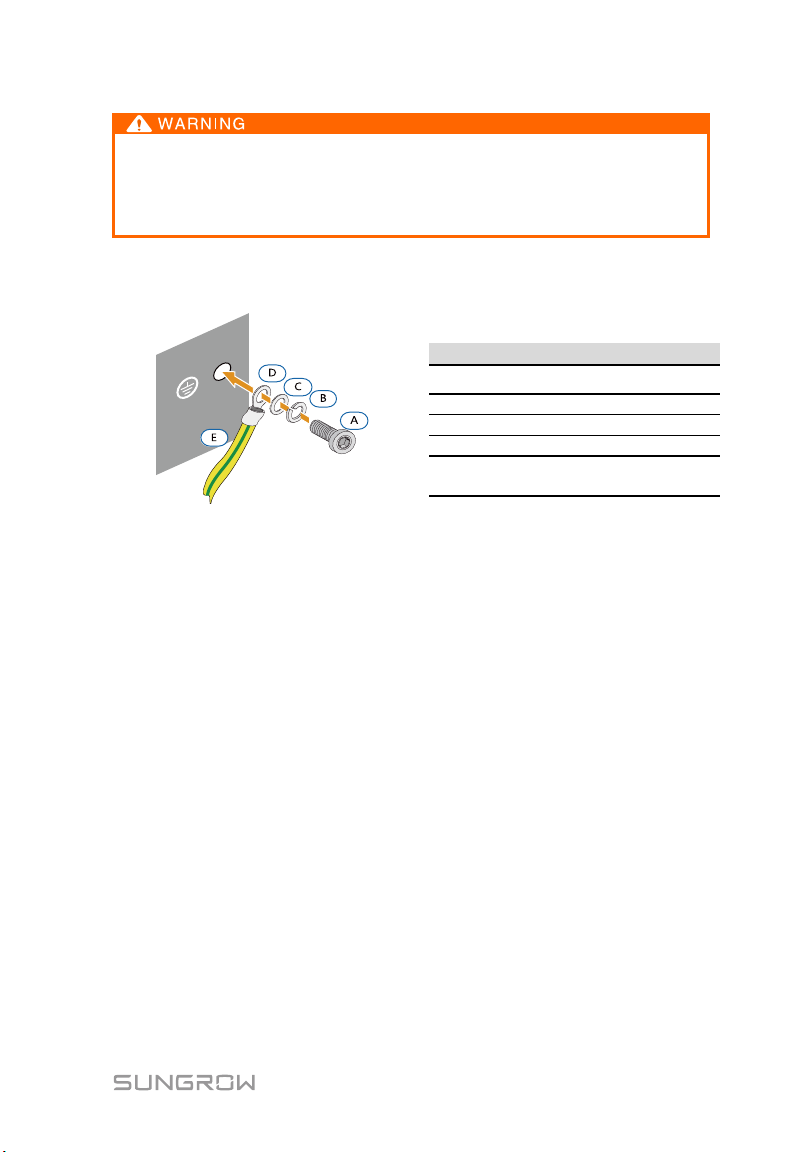

6.4.2 Second Protective Earth Terminal ..................................................................42

6.5 Communication Connection........................................................................ 43

6.5.1 Communication Overview ...............................................................................43

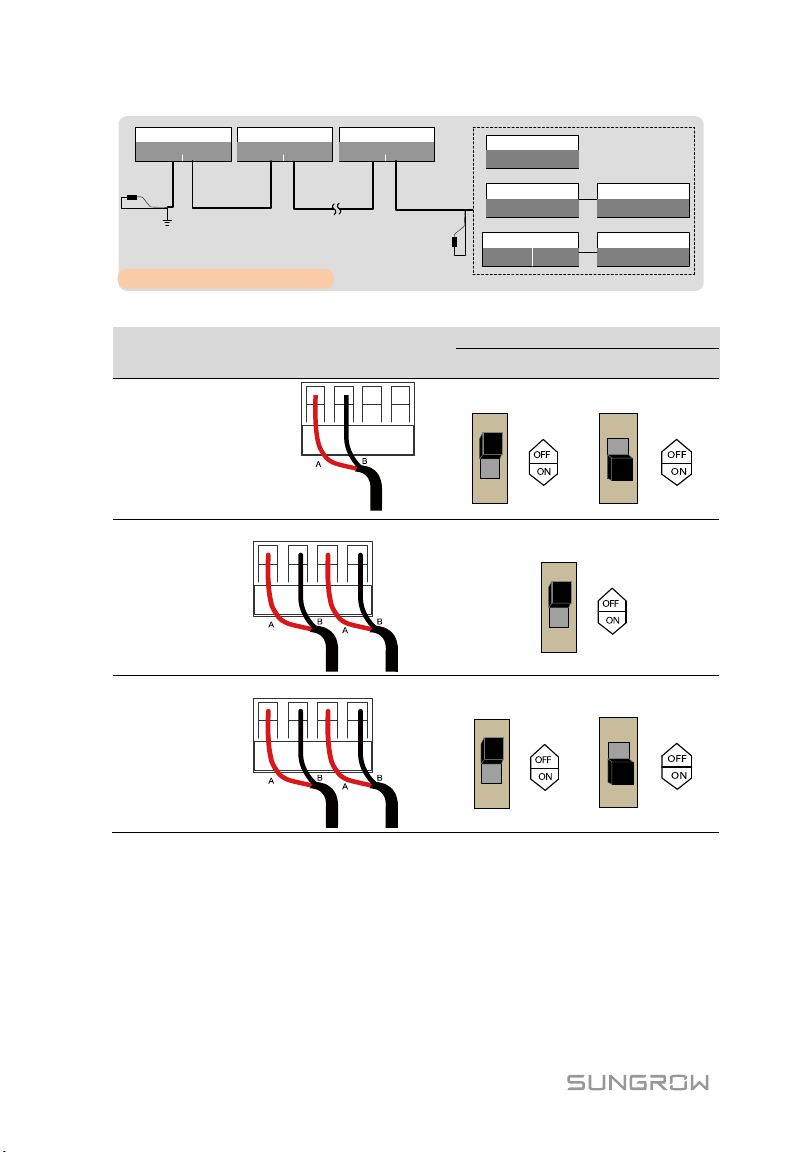

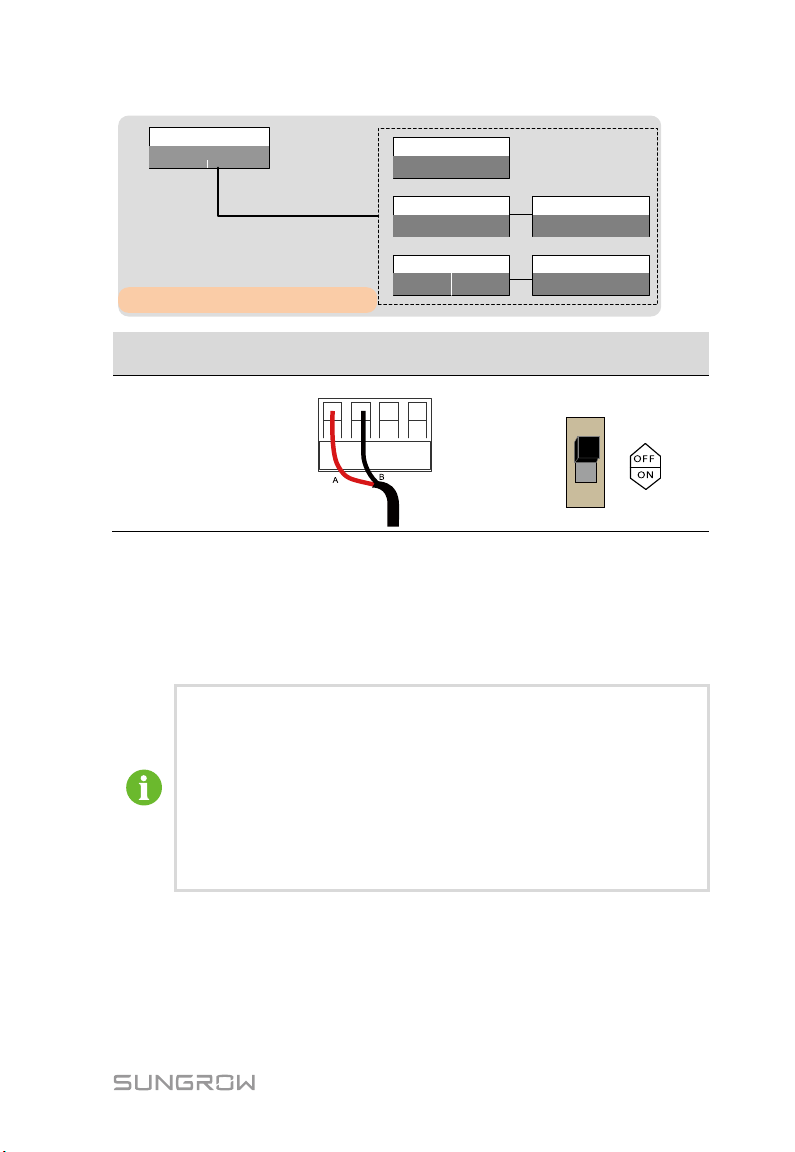

6.5.2 RS485 Communication System .......................................................................44

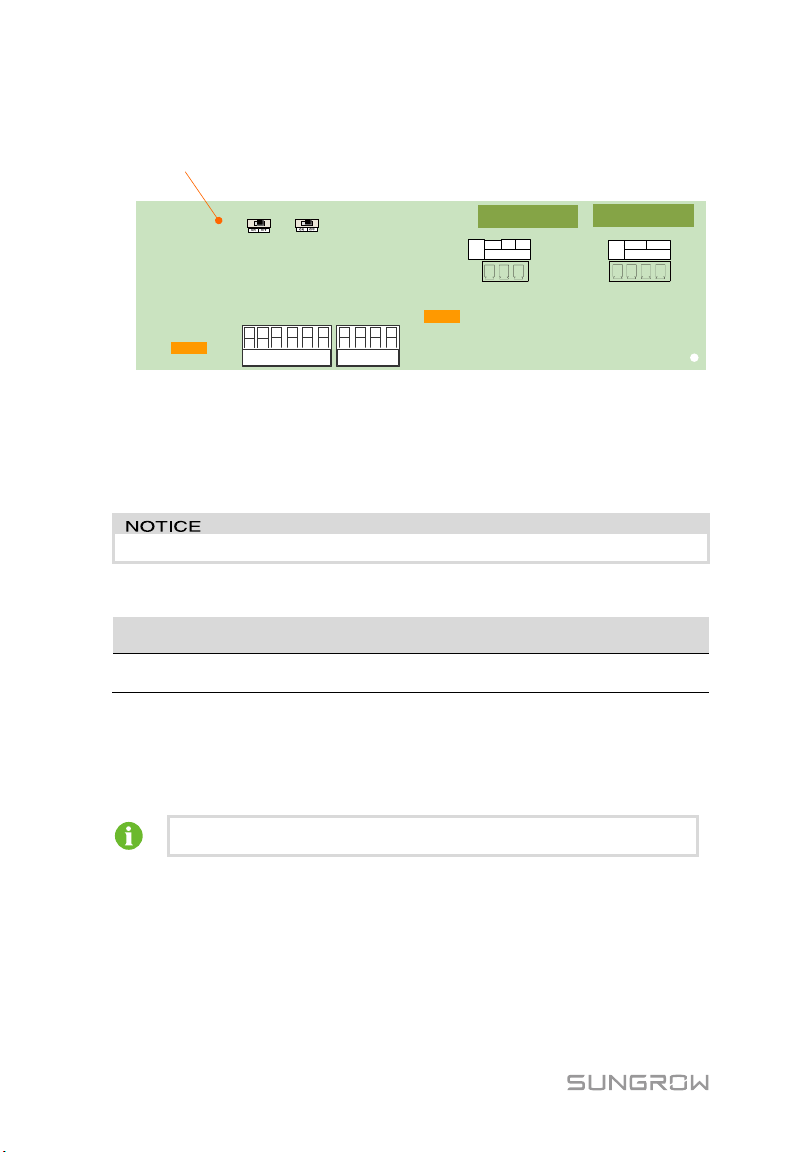

6.5.3 RS485 Communication Connection ..............................................................46

6.6 Configurable Dry Contact ............................................................................. 47

7 Commissioning ...................................................................... 50

7.1 Inspection before Commissioning ............................................................. 50

7.2 Commissioning Procedure ........................................................................... 50

8 Disconnecting, Dismantling and Disposing the Inverter .... 54

8.1 Disconnecting the Inverter ........................................................................... 54

8.2 Dismantling the Inverter ............................................................................... 55

8.3 Disposal of the Inverter.................................................................................. 55

9 Troubleshooting and Maintenance ...................................... 56

9.1 Troubleshooting .............................................................................................. 56

9.1.1 Troubleshooting of LED Indicator ..................................................................56

9.1.2 Troubleshooting of Faults in LCD Screen .....................................................56

9.2 Maintenance ..................................................................................................... 61

9.2.1 Routine Maintenance .........................................................................................61

9.2.2 Maintenance Instruction ...................................................................................61

9.3 Contact Sungrow Service .............................................................................. 64

10 Operation of LCD Display ...................................................... 65

10.1 Description of Button Function ................................................................... 65

Page 7

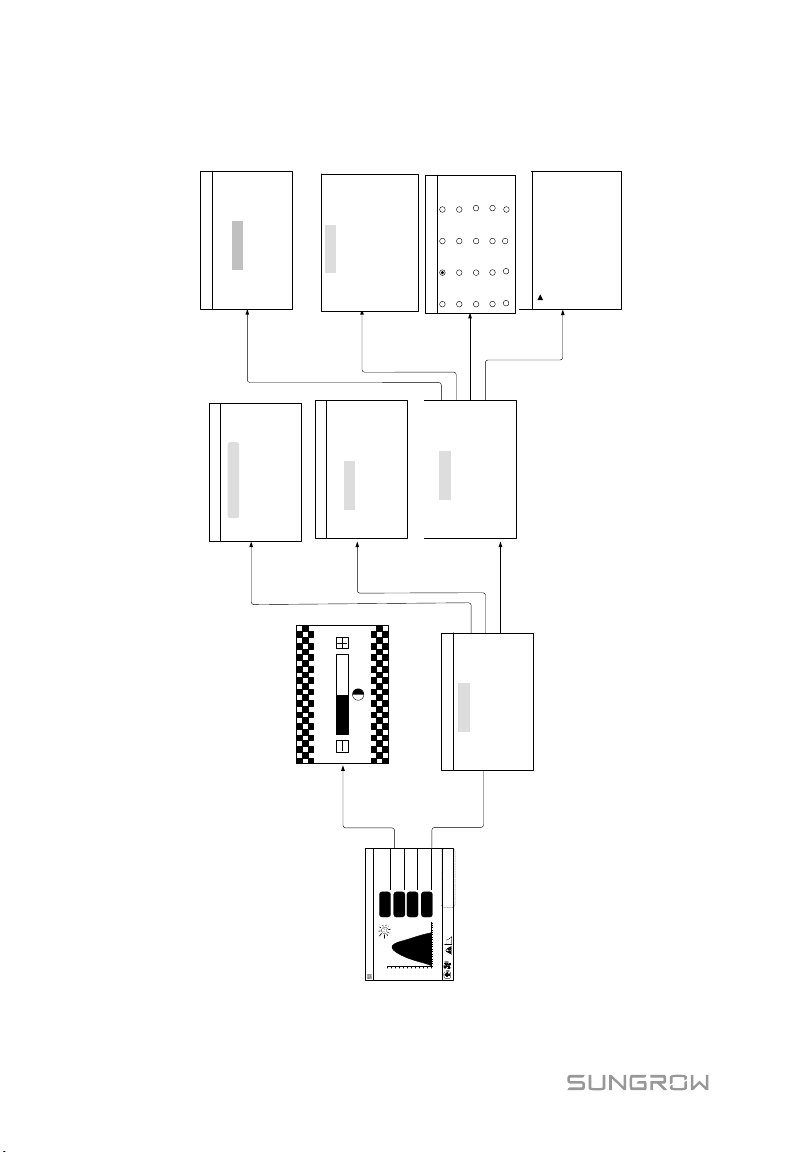

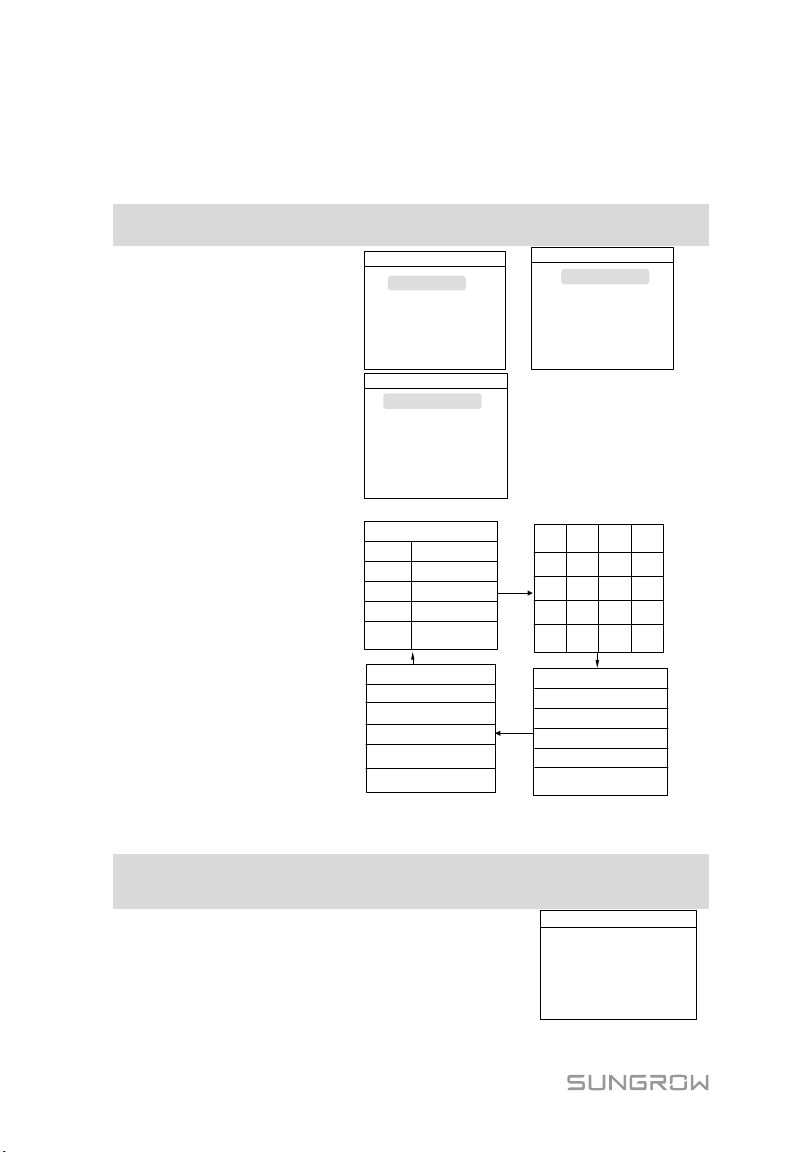

10.2 Menu Tree .......................................................................................................... 66

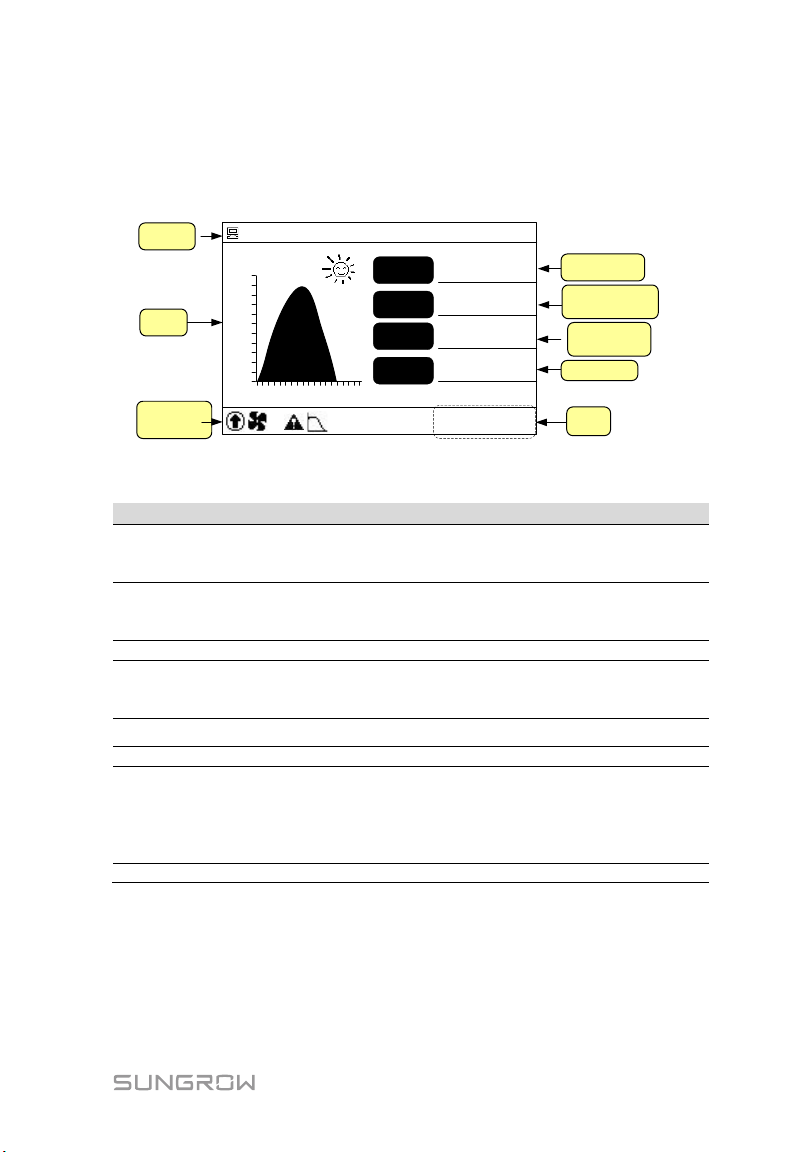

10.3 Main Screen ....................................................................................................... 67

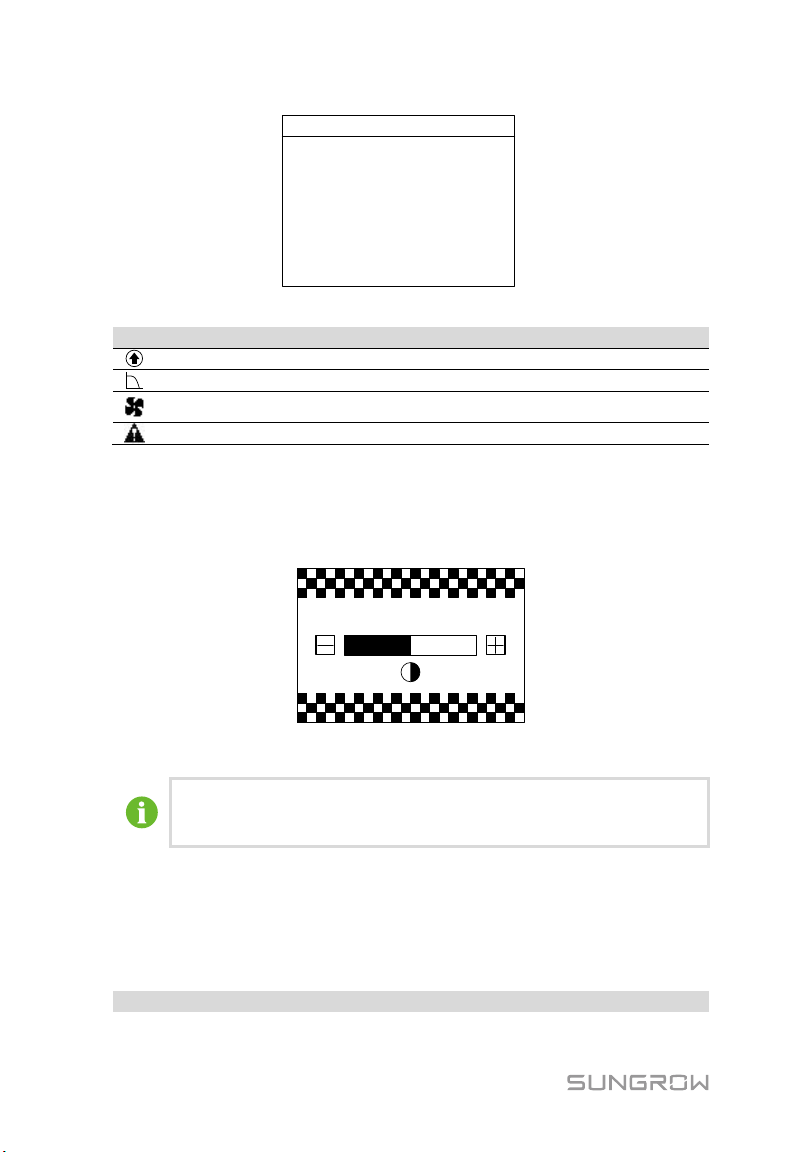

10.4 Contrast Adjustment ...................................................................................... 68

10.5 Checking Running Information ................................................................... 68

10.6 Checking History Information ..................................................................... 70

10.6.1 Checking Running Records ............................................................................70

10.6.2 Checking Fault Records ...................................................................................70

10.6.3 Checking History Event Records ..................................................................71

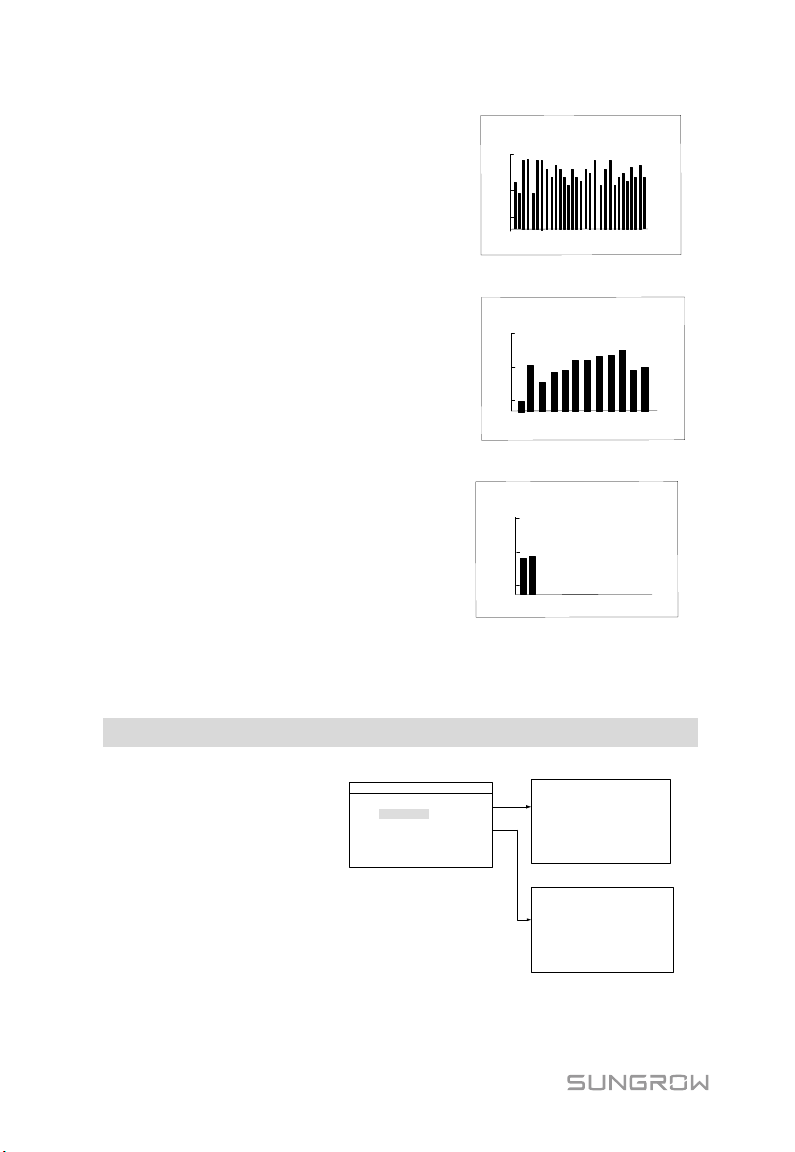

10.6.4 Checking Energy Records ...............................................................................71

10.7 Starting/Stopping ............................................................................................ 72

10.8 Password Entry ................................................................................................. 73

10.9 System Parameter Setting ............................................................................. 73

10.9.1 Language Setting ..............................................................................................73

10.9.2 Time Setting ........................................................................................................74

10.9.3 Total Energy Deviation Adjustment ............................................................74

10.9.4 Load Default .......................................................................................................75

10.9.5 Checking Firmware Version ...........................................................................75

10.10 Running Parameter Setting .......................................................................... 76

10.10.1 Main Screen of Run-param ..........................................................................76

10.10.2 Active/Reactive Power Parameters ...........................................................78

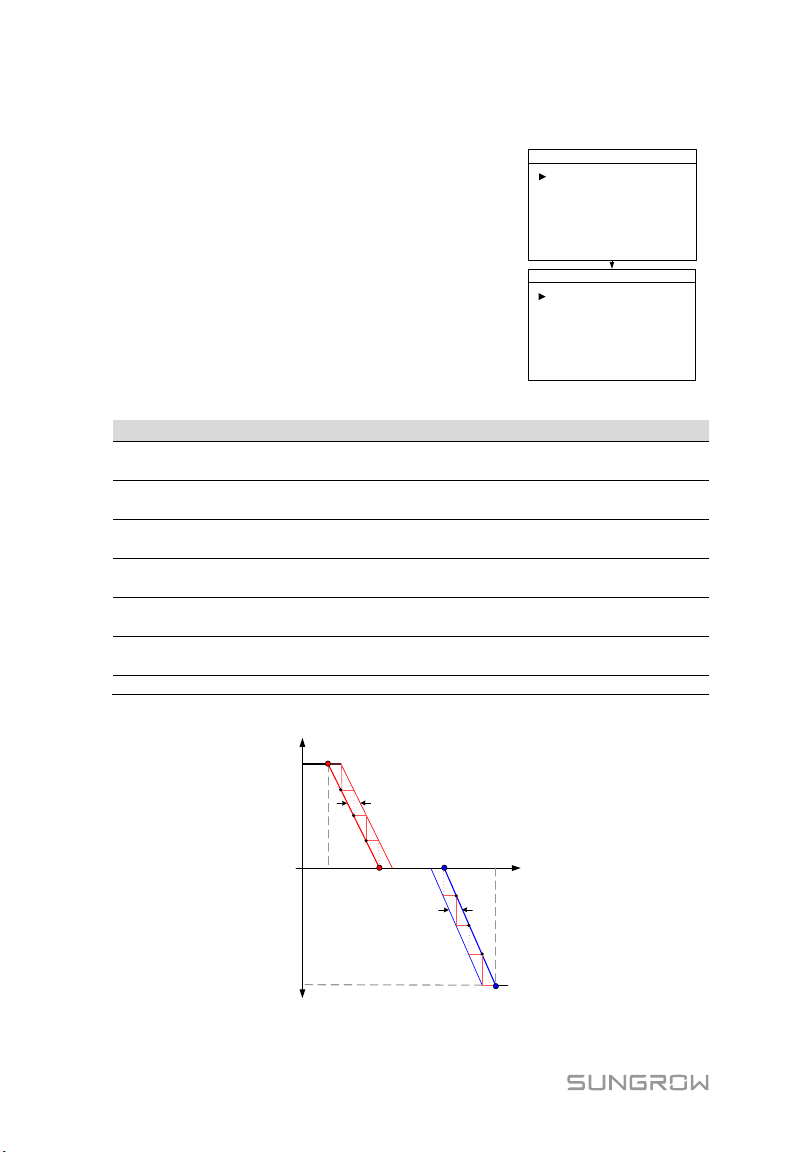

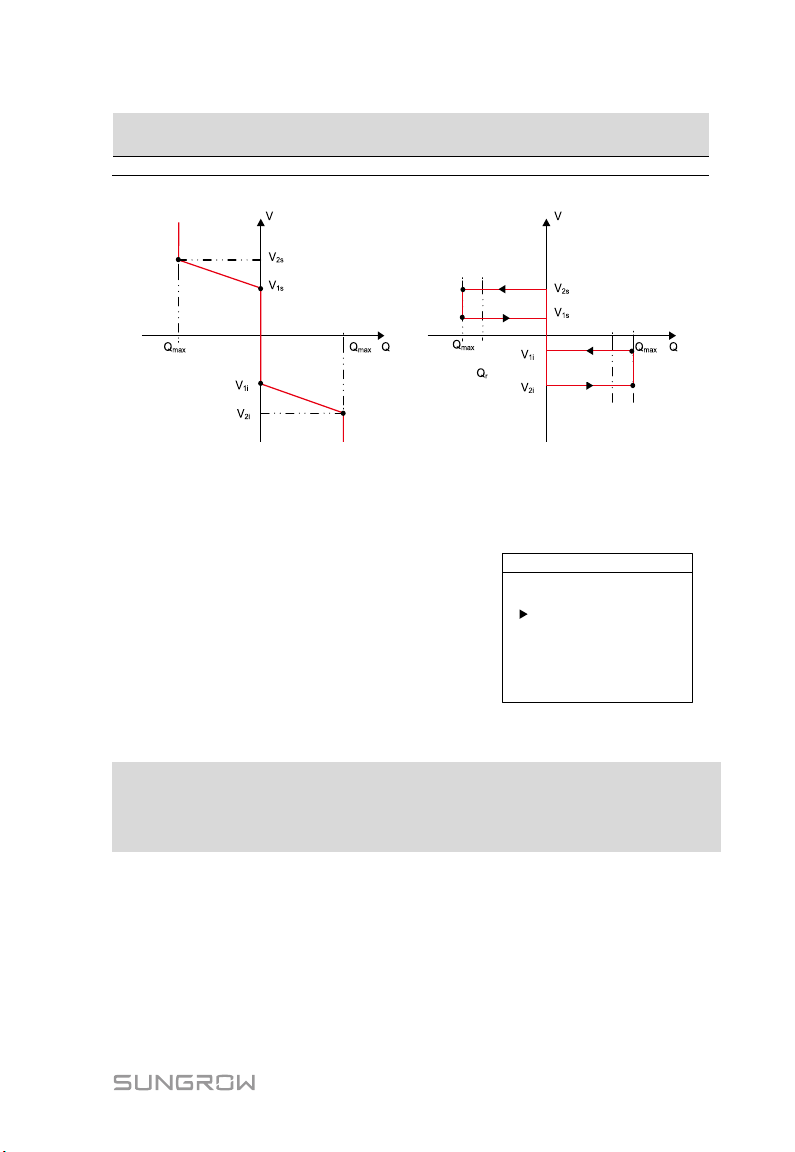

10.10.3 Reactive Power Regulation ..........................................................................78

10.10.4 Reactive Power Setting for Italy .................................................................81

10.10.5 Save P/Q-set .....................................................................................................83

10.10.6 Time Parameters..............................................................................................83

10.10.7 LVRT Parameter ...............................................................................................84

10.10.8 Derating Parameters ......................................................................................84

10.10.9 ISO Parameters ................................................................................................84

10.11 Protection Parameter Setting ...................................................................... 85

10.11.1 Country Setting ...............................................................................................85

10.11.2 Single-stage Protection Parameter Setting ............................................87

10.11.3 Multi-stage Protection Parameter Setting ..............................................87

10.11.4 Protection Recovery Setting .......................................................................88

Page 8

10.11.5 Protection Parameter Confirmation .........................................................88

10.12 Communication Parameter Setting ........................................................... 88

10.13 Advanced Parameters Setting ..................................................................... 89

10.13.1 PVS Detect Settings .......................................................................................89

10.13.2 10min Max-V ....................................................................................................90

10.13.3 Grid Unbalance ................................................................................................91

11 Appendix ................................................................................ 92

11.1 Technical Data .................................................................................................. 92

11.2 Exclusion of Liability ....................................................................................... 93

11.3 About Us ............................................................................................................. 94

11.4 Contact Information ....................................................................................... 95

Page 9

1 Safety Instructions

The inverter has been designed and tested strictly according to the international safety regulations. As electrical and electronic equipment, safety instructions related to them must be complied with during installation, commissioning, operation and maintenance. Incorrect operation or work may result in damage to:



The life and well-being of the operator or a third party



The inverter and other properties that belong to the operator or a third party

Therefore, the following general safety instructions must be read and always kept in mind prior to any work. All detailed work-related safety warnings and notes will be specified at the critical points in corresponding chapter.

All installations should be performed by technical personnel. They have:

 received professional training;  read through this manual and understood all related safety instructions;  been familiar with electric system related safety instructions.

Technical personnel mentioned above may perform the following work:



Install the inverter onto the wall;



Connect the inverter to the PV system;



Connect other devices to the PV system;



Commission the inverter;



Operate and maintain the inverter.

Before Installation

The unit is thoroughly tested and strictly inspected before delivery. Damage may still occur during shipping.

If there is visible damage to the packaging or the inner contents, or if there is something missing, contact Sungrow or the forwarding company.

Page 10

1 Safety Instructions User Manual

the instructions in the manual when moving and

e may follow if the device is improperly

There is a risk of injury due to improperly handling the device!

 Always follow

positioning the inverter.

 Injuries, serious wounds, or bruis

handled.

During Installation

Make sure inverter is not electrically connected before installing the inverter.

System performance loss due to bad ventilation!

The equipment requires good quality ventilation during operation. Keep the unit upright and nothing covering the heatsink.

During Electrical

All electrical connection must be in accordance with national and local standards.

The connection to the grid can be done only after receiving approval from the local utility grid company.

Lethal voltage exists!

PV arrays will produce electrical energy when exposed to sunlight and thus can create potential electrical shock hazards.

All cables must be firmly attached, undamaged, properly insulated and adequately dimensioned.

Page 11

User Manual 1 Safety Instructions

Touch the end of the cables that has no insulating treatment and may still

During Inverter Operation

Do not disconnect inverter DC side connection while the inverter AC side is under load!

First, de-energize inverter from dual power scores and then verify that there is no voltage present.

Do not open inverter enclosure when inverter is under load or operating.

Only intact and locked inverter cabinet can ensure personal and property safety.

There is a risk of burn!

Do not touch device hot parts (for example, the heatsink) during operation. Only the LCD display and DC switch can be touched during operation.

Operate the inverter by strictly following the descriptions in this manual to avoid unnecessary injury to the persons and damage to the device. Arc flash, fire or explosion may follow if otherwise and Sungrow will hold no liability for the damages followed.

At least the following improper operations can cause the arc flash, fire and explosion inside the device. Remember all the time that these accidents can only be handled by qualified personnel. Improper handling of the accidents occurred may lead to more serious fault or accident.

 Plug and unplug the DC side HV fuse when it is alive; 

be alive;

 Touch the connection copper bus bar, terminal or other spare parts inside

the device that may be alive;

 The power cable connection is loose;  Spare parts like the bolts are falling inside the inverter;

Page 12

1 Safety Instructions User Manual

Incorrect operation of the non-qualified persons that receives no training;

Restart the inverter only when the fault that may impair the inverter



Before any operation to the device, a beforehand assessment of the possible arc flash in the operation area is necessary. If there is arc flash,

 The operators must receive related safety trainings;  Try the best to assess the areas that may appear the electric shock;  Before any operation in the area that may appear electric shock, wear

personal protective equipment (PPE) that meets the requirement. A PPE category 2 is recommended.

Maintenance and Service

There is a risk of inverter damage or personal injury due to incorrect service work!

Before any operation, you should perform the following steps:

 First disconnect the grid side switch and then disconnect he DC switch;  Wait at least 10 minutes until the inner capacitors are discharged

completely;

 Verify, using proper testing device to make sure there is no voltage or

current.

Keep unrelated person away!

A temporary warning sign and barrier must be posted to keep non-related person away during electrical connection and maintenance.



safety functions is removed.

 Inverter contains no owner serviceable part inside. Please contact local

authorized personnel if any service work is required.

Page 13

User Manual 1 Safety Instructions

Do not replace the inverter internal components without permission. Damages may follow and it may void any or all warranty rights from Sungrow.

There is a risk of inverter damage due to electrostatic discharge!

The printed circuit boards contain components sensitive to electrostatic discharge.

 Wear a grounding wrist band when handling the boards.  Avoid unnecessary touch with the boards.

Others

Certain parameter setting (country selection, etc.) on the LCD display must only be done by professional persons.

Incorrect country setting may affect the inverter normal operation and cause a breach of the type-certificate marking.

All safety instructions, warning labels nameplate on the inverter:

 Must be clearly visible;  Should not be removed or covered.

Respect the following regulations:

 Grid-connection regulations;  Safety instructions related to PV arrays;  Safety instructions related to other electrical devices.

Page 14

A B C D

Item

Description

Note

Metering device

Utility grid

TT, TN-C, TN-S, TN-C-S, IT

2 Product Description

2.1 Intended Usage

SG80KTL inverter, 3-phase string inverter without transformer, is a crucial unit in the PV power system.

Inverter is designed to convert the direct current power generated from the PV modules into grid-compatible AC current and feeds the AC current to the utility grid. The intended usage of the inverter is illustrated in Fig. 2-1.

Inverter cannot connect the PV strings whose positive and negative terminals need to be grounded.

Do not connect any local load between the inverter and the AC circuit breaker.

Inverter is applicable only to the grid-connected PV system. Any other usage is strictly forbidden.

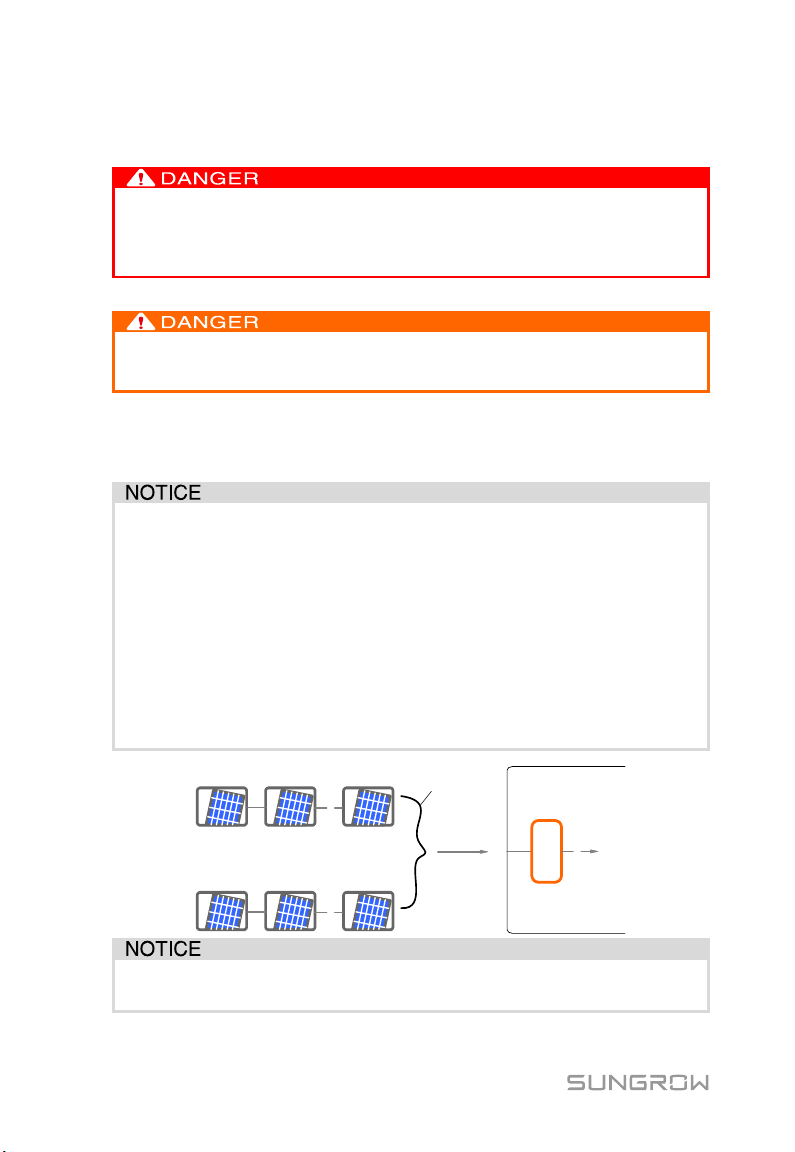

Fig. 2-1 Inverter application in PV power system

A PV strings

B Inverter SG80KTL

If the local altitude is above 3000m, the inverter cannot apply to the IT grid system.

The following figure shows the common grid configurations.

Monocrystalline silicon; polycrystalline silicon and thin-film without grounding

Measure inverter output energy

Page 15

User Manual 2 Product Description

L1 L3

SG80KTL

Transformer

L1 L3

SG80KTL

Transformer

L2 PEN

L1 L3

SG80KTL

-C

Transformer

L1 L

80KTL

TN-

C-S

L2 N

SG80KTL

TN-S

Transformer

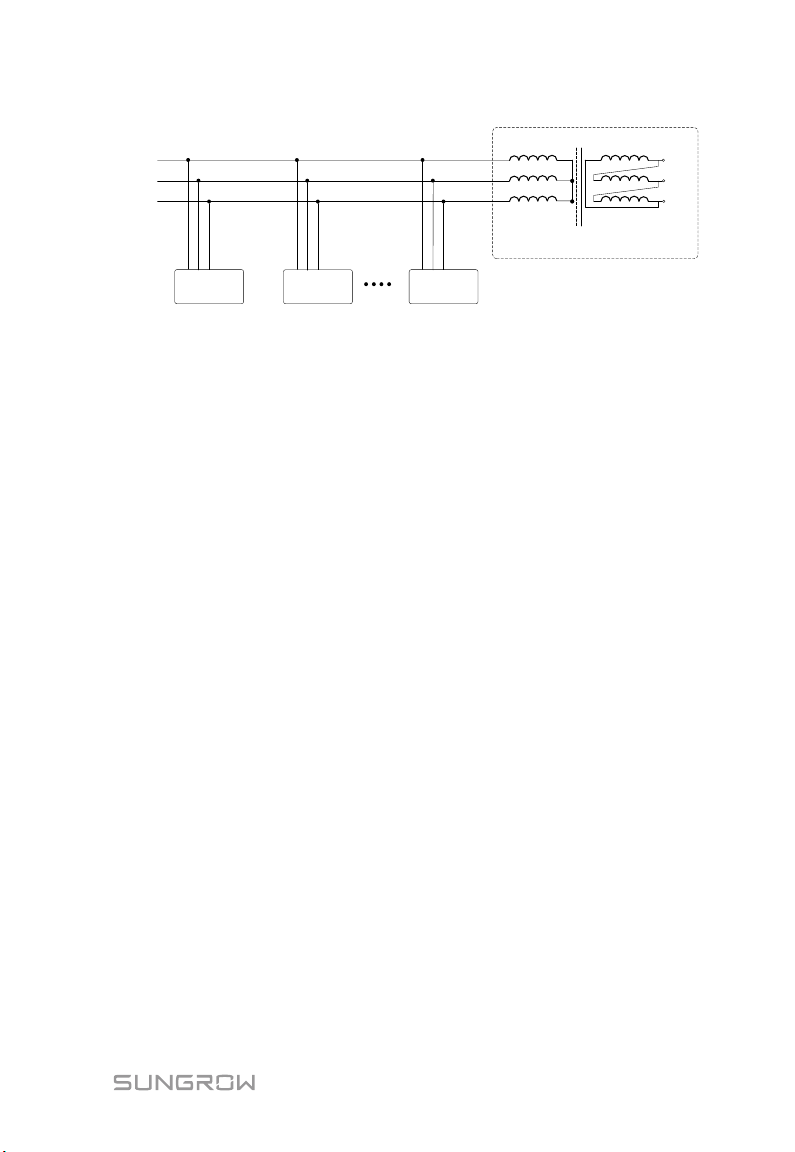

More than one inverter can be connected to the system if the capacity of the PV system exceeds the capacity of a single inverter. Connect proper PV input for each inverter at the input side and connect the output side to the grid.

2.2 Product Introduction

2.2.1 Appearance

Fig. 2-2 Appearance

* Pictures are indicative only. Product in kind prevail.

Page 16

2 Product Description User Manual

No.

Name

Description

Human-computer interface for viewing of the running information and parameter configuration.

Electrical connection area

Include DC terminal, AC terminal ad RS485 communication terminal.

Handles are designed for transporting, installing and disassembling the inverter

Specified in EN 50178, user can connect this terminal as per requirements.

Air outlet

Controlled forced-air cooling method. Ensure well ventilation.

Hanger

Hang the inverter to the backplate.

Fans

3 fans used for inverter forced cooling

Protective components to safely disconnect DC side current.

267

932

1 LCD display

3 Handles

4 PE second terminal

8 DC switch

2.2.2 Dimensions

Fig. 2-3 Dimensions of the inverter (in mm)

2.2.3 LCD Display

As a human-computer interaction interface, LCD display comprises two LED indicators and two buttons for user to check the inverter operation information and configure inverter parameters.

Page 17

User Manual 2 Product Description

No.

Name

Description

LED indicators

“RUN” and FAULT”. Indicate the inverter operation state. Detailed explanation is shown in Tab. 2-2

Two buttons for LCD operation and parameter configuration. Detailed explanation is shown in Tab. 10-1

Display inverter present state, operation information, history information and parameters, etc.

LED state

Description

“RUN”: ON

“FAULT”: OFF

“RUN”: OFF

A fault occurs, or protection function is enabled.

“FAULT”: ON

“RUN” : OFF

Inverter does not operate,

display.

“RUN”: Flicker

“FAULT”: OFF

Fig. 2-4 LCD display

Tab. 2-1 Description of LCD display

2 Buttons

3 LCD screen

Tab. 2-2 Description of LED indicators

Inverter is running.

“FAULT”: OFF

or communication fault occurs between the DSP and LCD

Warning information occurs to the inverter.

2.2.4 DC Switch

DC switch is used to disconnect the DC current safely whenever necessary.

Inverter operates automatically when input and output requirements are met. Turn the DC switch to the OFF position to stop the inverter when a fault occurs or when you need to stop the inverter.

Turn the DC switch to the ON position before restart the inverter.

Page 18

2 Product Description User Manual

Inversion circuit

LCD/RS485

DSP+CPLD

L1 L2 L3 PE

DC In

+ -

L1 L2 L3

DC EMI

Filter

DC bus

Inversion

circuit

EMI

Filter

Reactor

Relay

Junction box

Fan

DC SPD

switch

DC fuse

Auxiliary

power circuit

Current detection

2.3 Technical Description

2.3.1 Circuit Diagram

Fig. 2-5 shows the main circuit of the inverter.

MPPT is utilized for DC input to ensure the maximum power from the PV array at different PV input conditions.

Inversion circuit converts the DC power into AC power and feeds the AC power to the utility grid through the AC terminal. The protection circuit is equipped to ensure the device safe operation and personal safety.

DC switch is used to disconnect the DC current safely; inverter provides standard RS485 ports for communication. User can check running data and set related parameter through the LCD display.

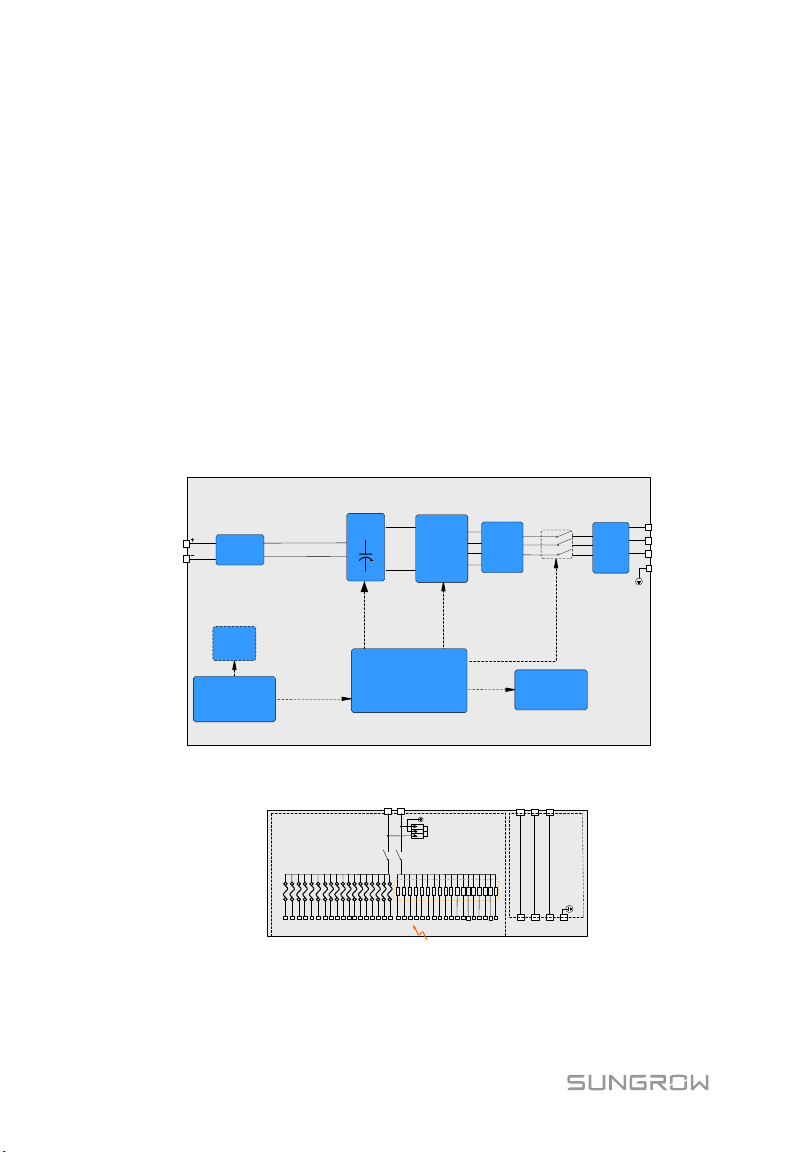

Fig. 2-5 Circuit diagram of SG80KTL

Page 19

User Manual 2 Product Description

2.3.2 Function Description



Inversion function

Inverter converts the DC current into grid-compatible AC current and feeds the AC current into grid.



Data storage and display

Inverter achieves the running information, fault records and etc. and displays them on the integrated LCD display.



Parameter Configuration

Inverter provides various parameter configuration for inverter optimal operation.



Communication Interface

Standard RS485 port, can be connected to monitoring device and PV system



Protection Function

− Short-circuit protection

− Ground insulation resistance detection

− Inverter output voltage monitoring

− Inverter output frequency detection

− Residual current protection

− DC injection of AC output current surveillance

− Anti-islanding protection

− Ambient temperature monitoring

− DC over-voltage protection

− Over-current protection

− Power module over-temperature protection

2.3.3 Derating

Output derating is a way to protect the inverter from overload or potential faults. Situations require inverter power derating are:



Internal temperature is too high (including ambient temperature and module temperature)



Grid voltage is too low



External power class adjustment



Grid frequency is too high

Note: [*] valid only when the country selected is DE or IT.

[*]

Page 20

2 Product Description User Manual

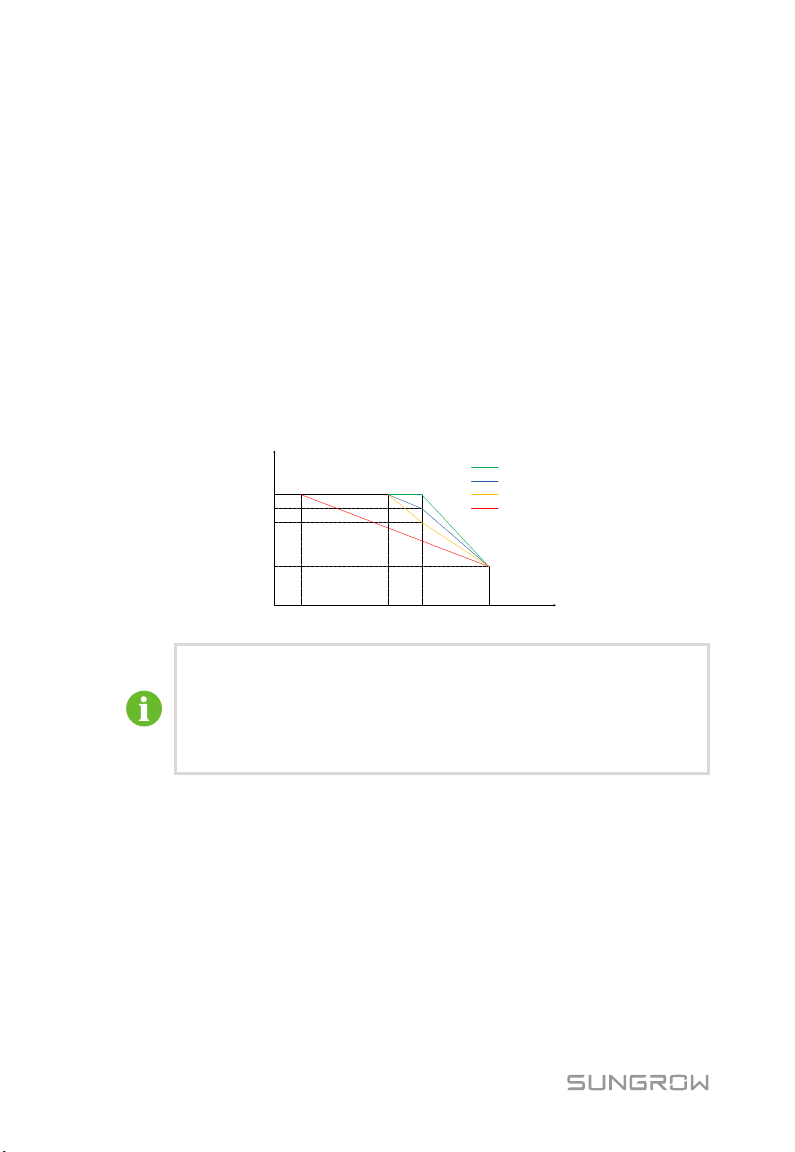

Ambient Temperature [°C]

Temperature Derating Curve（Vac=400V）

S（KVA）

26.4

45 50 60

Vmpp=600V

Vmpp=700V

Vmpp=800V

Vmpp=850V

Power Limit Setting

Inverter output power can be adjusted via the LCD display or remote grid dispatch from the grid company. The corresponding operating state will display on the LCD screen.

Over-temperature Derating

High ambient temperature, fan broken or poor ventilation will lead to inverter power derating.



When the module temperature exceeds the upper limit, inverter will derate power output until the temperature drops within the permissible range.



When the internal temperature exceeds the upper limit, inverter will derate power output until the temperature drops within the permissible range.

Lower limit of the over-temperature derating: 33% of the nominal powe r.

If the module temperature and internal temperature reach to power derating conditions, inverter will derate the power output according to the lower temperature between the two.

Grid Under-voltage Derating

When grid voltage is low, inverter will derate the output power to make sure the output current is within the permissible range. Once the grid voltage is within Vmin…215V, inverter will derate the output power.

The voltage displayed in the follow figure is the phase voltage.

Page 21

User Manual 2 Product Description

Vgrid

（V）

（kVA）

215

Vmin

Vmax

230

min

max

80 215V

230

80 215V 230V

230

80 230V

gri d

o gri d

gri d

o grid

o gri d

P kVA V V

P kVA V P kVA V V



= × ≤<

  

=× ≤≤

 

= ≤≤  

Fig. 2-6 Grid under-voltage derating

Page 22

Unpacking and Inspection

Read User Manual

Install inverter

Electrical connection

Check before commissioning

Commissioning

Start

Success?

End

Troubleshooting

Yes

Install immediately?

Storage

Select mounting location

Yes

Move inverter

3 Installation Flow

Fig. 3-1 shows the installation flow of the inverter and Tab. 3-1 gives the detailed explanation.

Fig. 3-1 Installation flow

Page 23

User Manual 3 Installation Flow

Step

Description

Reference

Unpacking and inspection

4.1

Read the User Manual, especially the section on “Safety 3

Store the inverter if it is not to be installed immediately

4.4 4 Select optimal installation site

5.1

Move the inverter to the installation site

5.2

Install the inverter to the selected installation site

5.3

Electrical connection;

Communication connection.

Inspection before commissioning

7.1 9 Start up the inverter and configure corresponding parameters.

7.2

Troubleshooting

9.1

Tab. 3-1 Description of installation flow

Instruction”

DC side connection; AC side connection;

6.3~6.7

Ground connection;

Page 24

1110mm

800mm

391mm

4 Unpacking and Storage

4.1 Unpacking and Inspection

Although being strictly tested and checked, damages may still occur to the inverter during shipping. Therefore, the first thing you should do after receiving the device is to conduct a thorough inspection.



Check the packing for any visible damage upon receiving.



Check the completeness of delivery contents according to the packing list.



Check the inner contents for damage after unpacking.

If any damage is found, please contact Sungrow or the for warding company.

Do not disposal of the original packaging. It is best to store the inverter in its original packaging.

Fig. 4-1 Inver ter paper packaging

4.2 Identifying Inverter

The nameplate is attached to one side of the inverter and the packaging carton respectively. It provides information on type of inverter, important specifications, marks of certification institutions, and serial number which is available and identified by Sungrow.

Page 25

User Manual 4 Unpacking and Storage

Item

Description

SUNGROW logo and product type

Inverter technical data

Marks of certification institutions

Company name, website and origin

icon

Description

CE mark of conformity. The inverter is in compliance with directives of CE.

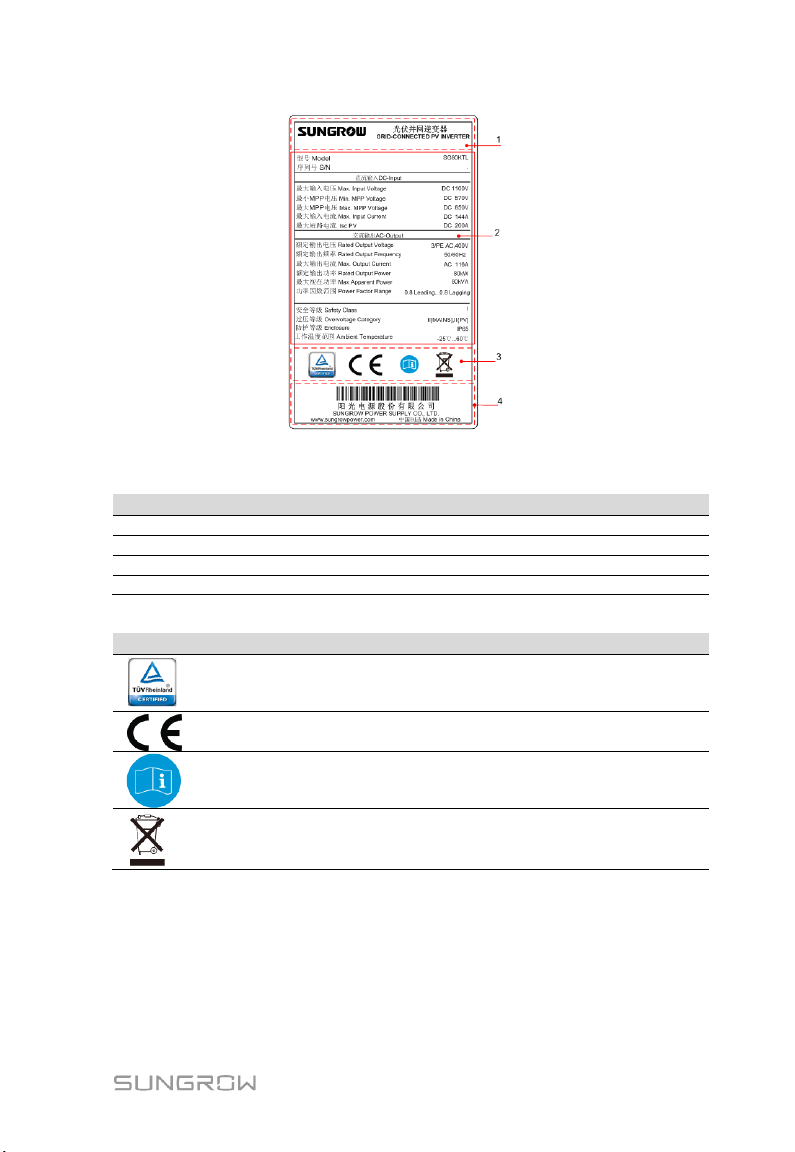

Fig. 4-2 Inverter nameplate

*Image shown here is indicative only. Product in kind prevail.

Tab. 4-1 Description of icons on the nameplate

TUV mark of conformity. The inverter is in compliance with directives of TUV.

Refer to corresponding instructions.

Do not dispose of the inverter with household garbage.

Page 26

4 Unpacking and Storage User Manual

D E

×18

Item

Name

Description

Inverter

--- B Backplate

Used to fix the inverter to the installation site.

Quality certificate, packing list, test report, CD and quick user manual

Fasten set

Six units to fasten backplate to metal frame.

Two M4×16 screws to fix the inverter with the backplate.

DC connector

Eighteen pairs MC4 terminals for PV connection.

When the external diameter of the AC cable you selected matches it, replace the original AC cable gland on the bottom of the device before wiring.

4.3 Scope of Delivery

Fig. 4-3 Scope of delivery

C Documents

E Fix screw

G AC cable gland

4.4 Inverter Storage

Store the inverter properly when the inverter is not to be installed immediately. Sungrow shall hold no liability for the corrosion of the device or the failure of device internal components caused by storage of the device not following the requirements specified in this manual. Inverter must be packed into its original carton with the desiccant bags inside.



Inverter must be packed into its original carton with the desiccant bags inside.



Seal the packing carton with adhesive tape.



Store the inverter in a dry and clean place to protect it against dust and moisture.



Relative temperature: -30℃…70℃; Relative humidity: 0-95%.

Page 27

User Manual 4 Unpacking and Storage



If one inverter is stacked on top of the other inverter, the max. stack layer should be two.



Keep distance from the chemical corrosive materials to avoid possible corrosion.



Periodically（six months) check for any visible damages during the storage period.

Replace the packing in time if necessary.



The packing should be upright.



If the inverter is stored for half a year or longer time, local installer or service dept. of Sungrow should perform a comprehensive test before connecting the inverter into PV power system.

Page 28



material

Flammable wall



Flammable material or gas near the

installation

5 Mechanical Installation

5.1 Installation Site Selection

Select an optimal installation site for install safe operation, long service life and outstanding performance.

Take the load capacity of the wall into account. The wall (concrete wall or metal frame) should be strong enough for the weight of the inverter over a long period.



Install the inverter where is convenient for electrical connection, operation and maintenance.

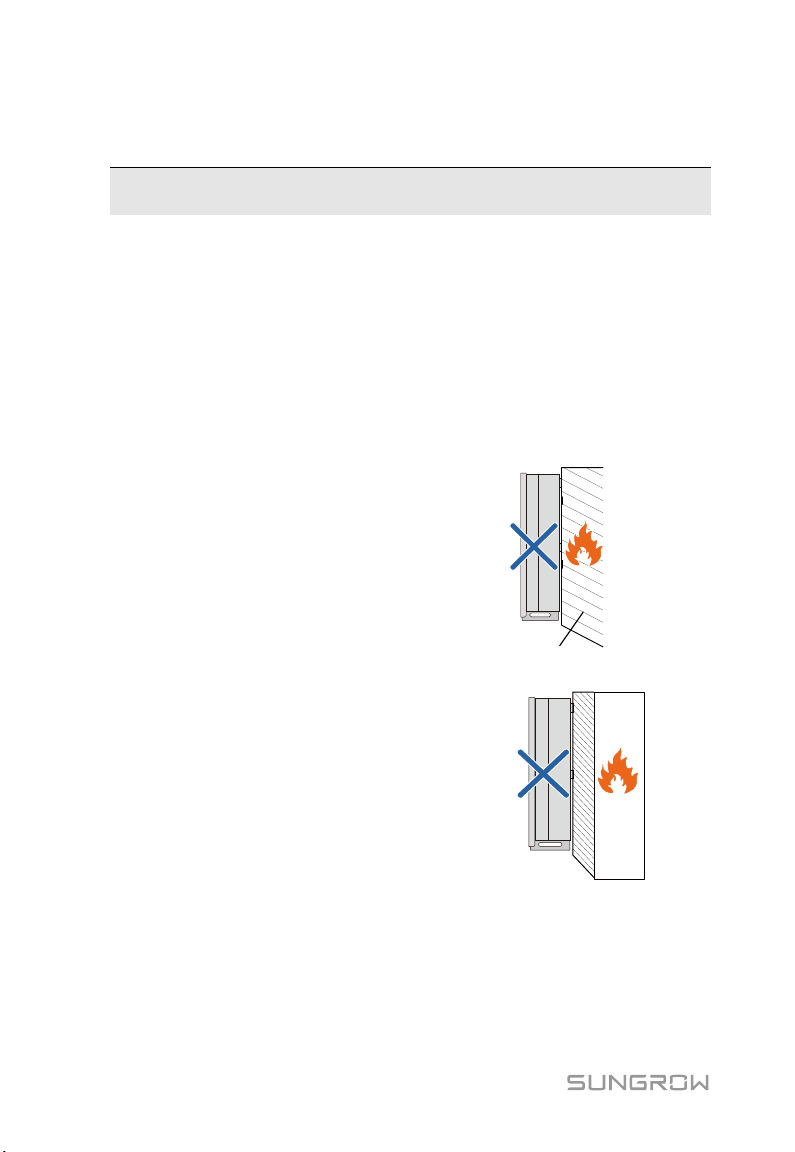

Do not install the inverter on the wall made up of flammable materials.

Do not install the inverter near flammable materials or gas.

Page 29

User Manual 5 Mecha nical Installation



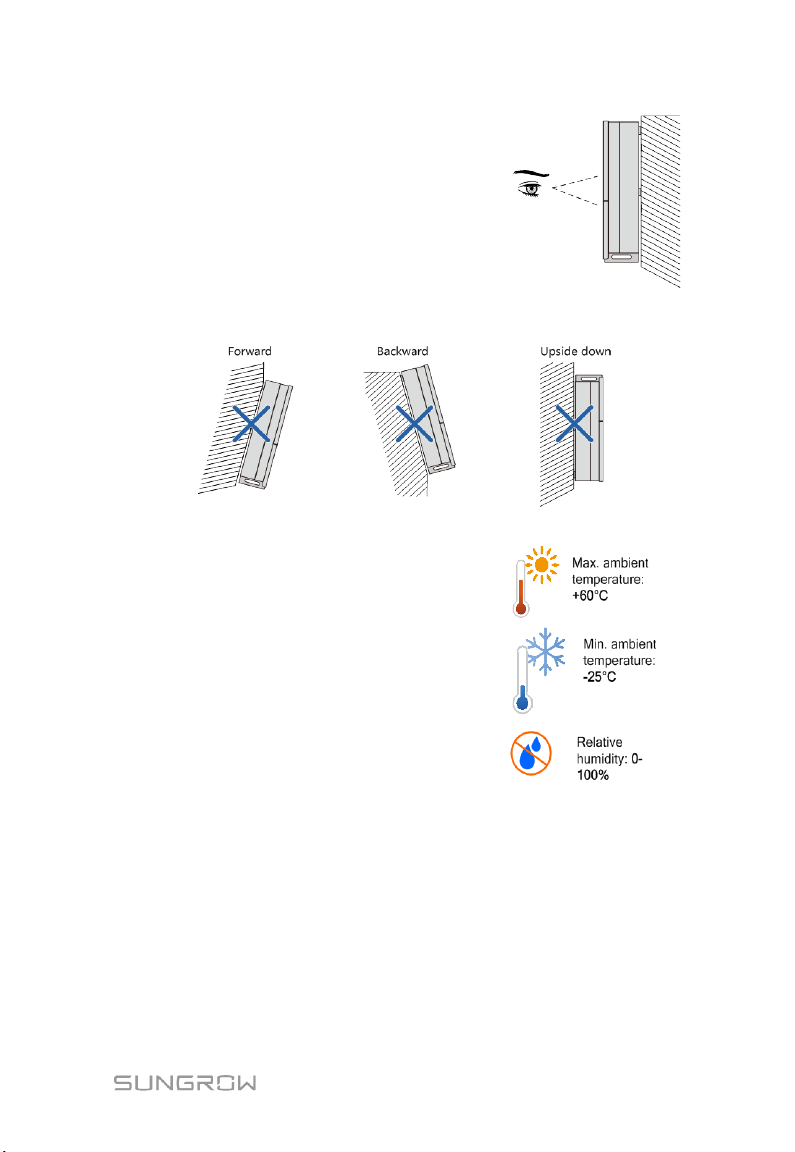

Install the inverter at eye-level for easy button operation and display read.



Do not install the inverter upside down or with an inclination.



With an IP65 protection rating, the inverter can be installed both outdoors and indoors.



The ambient temperature should be within -25°C to 60°C. Inverter will operate with power derating if temperature is too high.



The relative humidity range of the installation site is 0-100%.



Do not expose the inverter to direct sunlight or rain or snow. Shaded installation site is preferred.

Page 30

5 Mechanical Installation User Manual

Snow

Rainfall

Direct sunlight

800mm

600mm600mm

Cold air

Hot air



Take enough space for convection into consideration when installing multiple inverters. It is suggest to stagers the inverters.



Do not install the inverter in a confined space. Inverter will not work normally if otherwise.



Install the inverter where children cannot reach.



Do not install the inverter near residential area. Noise can be produced during inverter operation which may affect the daily life.

5.2 Moving Inverter to Installation Site

To install the inverter, remove the inverter from the packaging and move it to the installation site. Follow the instructions below during inverter moving:



Always keep in mind the weight of the inverter.



Lift the inverter by gasping the handles on two sides of the inverter.



Move the inverter by two persons or proper moving devices.

Page 31

User Manual 5 Mecha nical Installation

2-M4X10

440 524 544

524

26X

230.5

256.

M10

o install the inverter to concrete walls, user needs to purchase



Do not release the equipment unless it has been secured to the wall firmly.

5.3 Installing the Inverter

Inverter is installed to the wall by the backplate enclosed in the packing. If you do not use the supplied backplate, you can drill holes as per specifications below:

Fig. 5-1 Dimensions of the backplate (figures in mm)

The stainless fasteners are supplied for attaching the backplate to metal frame.

Fig. 5-2 Dimensions of fastener for metal frame (figures in mm)

T expansion bolts with proper size (recommended: M10*65) to fix the backplate to the concrete walls.

5.3.1 Installing to Metal Frame

Step 1 Remove the backplate and fasteners from the packaging. Step 2 Place the backplate to the chosen metal frame and adjust it to proper

position and height.

Step 3 Mark the position for holes drilling according to the holes position of the

backplate.

Page 32

5 Mechanical Installation User Manual

Install backplate

No.

Name

Description

Hexagon nut

M10

Spring washer

Flat washer

Screw bolt

M10*45

Metal frame

- F Backplate

Step 4 Drill holes according to the marks make before. If the shape of the metal

frame does not match the backplate, re-drill holes on the backplate according to the chosen metal frame.

Step 5 Secure the backplate to the metal frame firmly by the supplied fastener.

Torque of the fasten nut is 35 Nm.

Step 6 Lift the inverter above the backplate and then slide down to make sure they

match perfectly.

Step 7 After putting the inverter on the backplate, secure the inverter to the

backplate with two M4×16 screws (fix screw hole has its own nut).

Page 33

User Manual 5 Mecha nical Installation

5.3.2 Installing to Concrete Wall

Step 1 Remove the backplate and corresponding fasteners from the packaging. Step 2 Place the backplate to the chosen concrete wall and adjust it to proper

position and height.

Step 3 Mark the position for holes drilling according to the holes position of the

backplate.

Step 4 Drill holes according to the marks make before.

Check to ensure that there is no other electronic or plumbing installation inside the wall before drilling holes.

Step 5 Secure the backplate to the wall firmly by the supplied expansion bolt sets.

Torque of the fasten nut is 35 Nm.

Page 34

5 Mechanical Installation User Manual

Install backplate

lower, the inverter can be directly linked

• If the installation location is

to the backplate, please follow step 6 and then jump to Step 10.

• If the installation location is higher, the inverter can not be directly

linked to the backplate, please perform steps 7 to 11.

Step 6 Lift up inverter above the backplate and then slide down to make sure that

the recesses on the back of the inverter fit perfectly together with the backplate.

Step 7 Screw two M12-screwed lifting rings to the screw holes on top of the

inverter.

M12-screwed lifting ring is a standard component. It is not within the scope of delivery. Please purchase from the market if needed.

Step 8 Lead the rope (with sufficient load-carrying capacity) prepared beforehand

through the two lifting rings to lift the inverter. Inverter is lifted to the level of the fixed backplate or adjacent place.

Page 35

User Manual 5 Mecha nical Installation

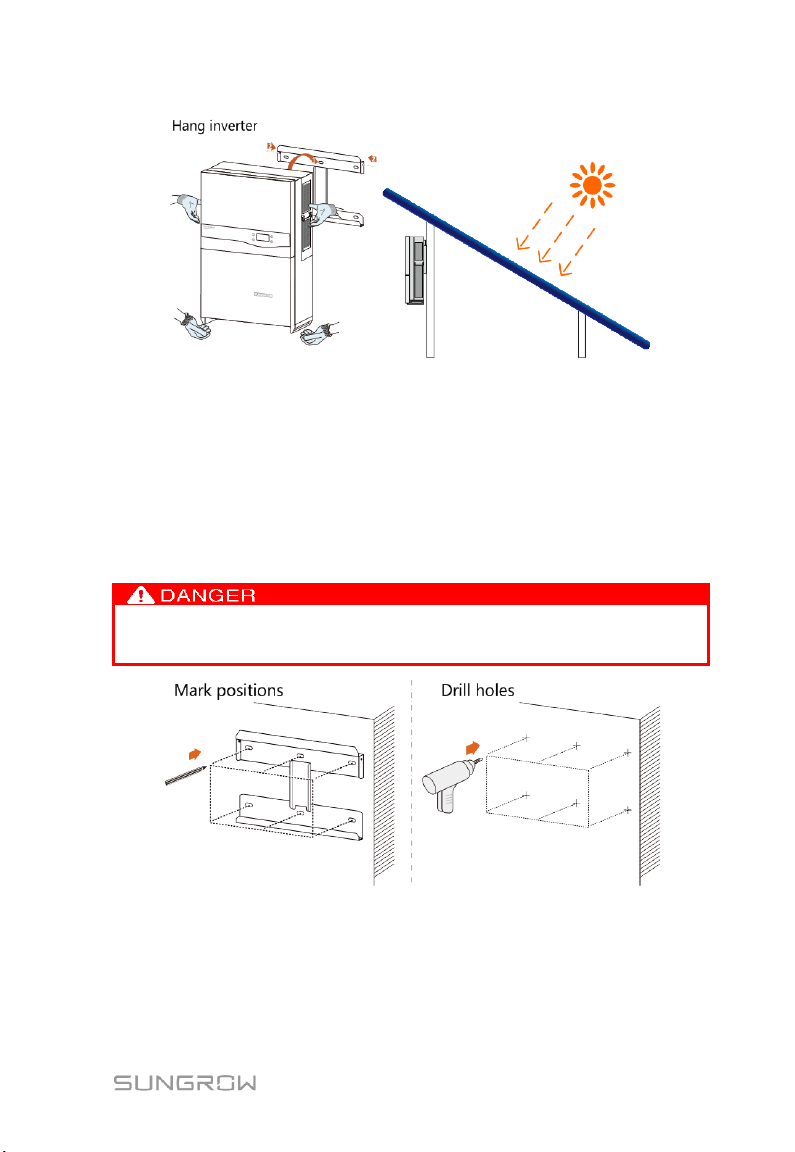

Hang inverter

Please keep the inverter balance during the whole process of inverter lifting. Inverter may hit the wall or other obstacles if otherwise.

Step 9 Fit the inverter to the backplate, refer to step 6.

Step 10After fit the inverter to the backplate, fasten the inverter to the backplate

with two M4×16 screws.

Page 36

 Improper cable connection may lead to fetal personal injury or device

equipment: helmet,

Front view

6 Electrical Connection

Once the inverter is secured to the installation site, it can be connected to the PV system.

All electrical connection must comply with local regulations and related electrical rules (AS 4777.1 etc.).

permanent damages.

 Cable connection can be done only by professional personnel.  Always keep in mind that the inverter is dual power supplied. Electrical

operators must wear proper personal protective insulated footwear and glove, etc.

6.1 Terminal Description

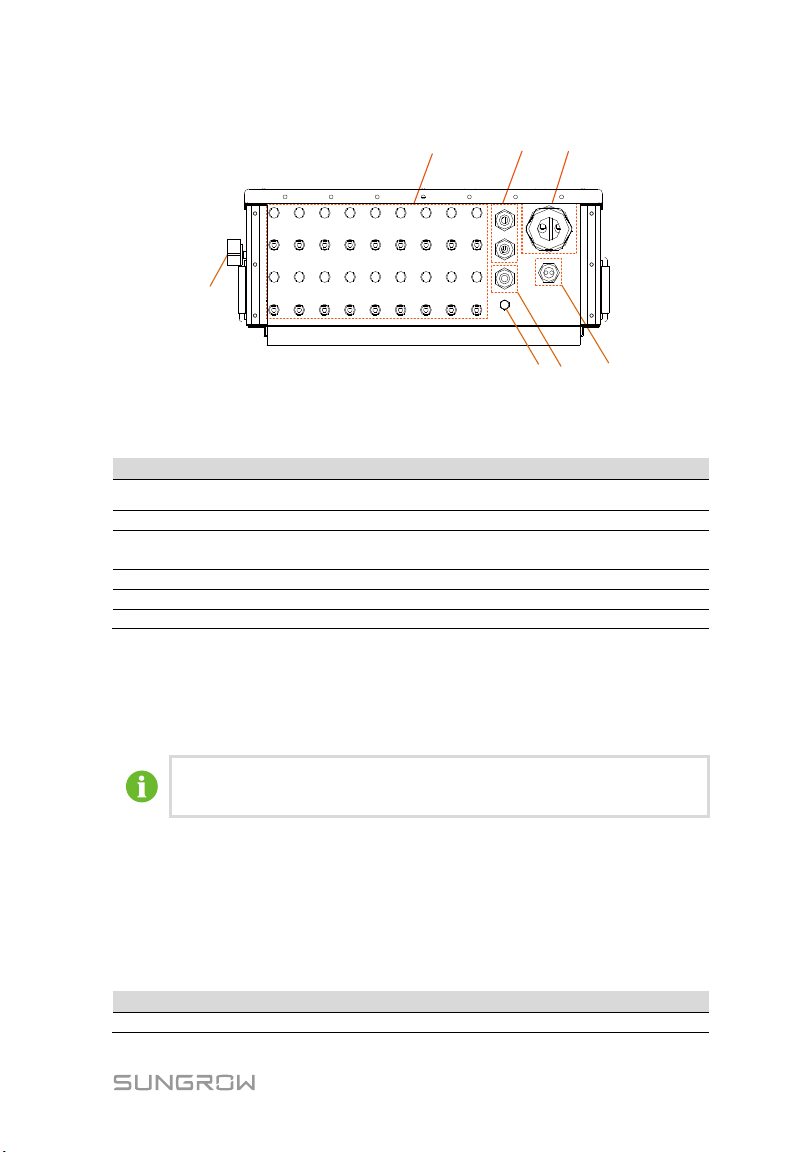

Inverter electrical connection terminals and cable entries are all at the inverter junction box as shown in Fig. 6-1.

Page 37

User Manual 6 Electrical Connection

Bottom view

7 8

No.

Description

No.

Description

DC SPD

AC cable gland

AC cable gland for connecting 4

Cooling fan

DI/DO cable gland

AC crimping terminal

Waterproof air valve

DC input plug-in terminal

Inverter

Recommended AC circuit breaker

SG80KTL

160A

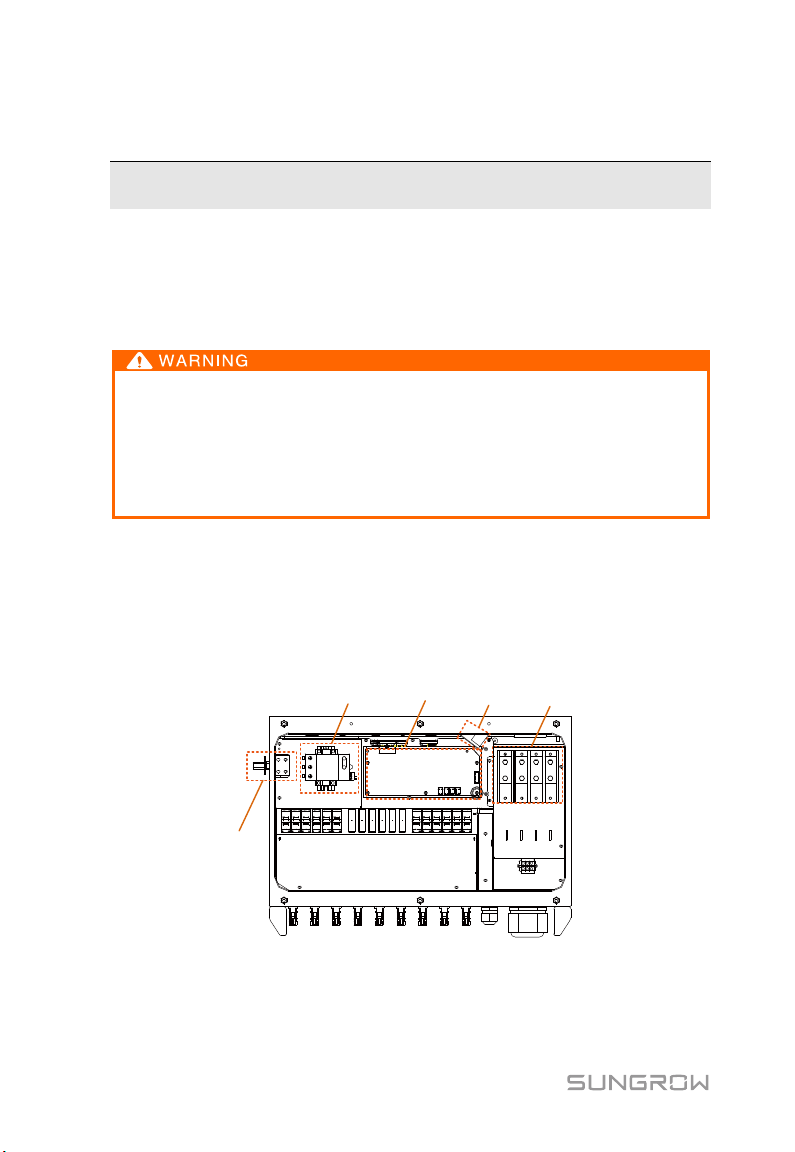

Fig. 6-1 Cable connection area

*Pictures are indicative only. Please in kind prevail.

1 DC switch 7 Communication cable glands

3 Configuration circuit board 9

6.2 AC Side Cable Connection

6.2.1 AC side requirements

Connection to the utility grid must be done only after receiving approval from the local company.

Before grid-connection, verify to make sure the gird voltage and frequency meet the requirements of the inverter. Contact the local grid company for solution if otherwise. For detailed parameter, please refer to 11.1 Technical Data.

AC Circuit Breaker

An independent three or four-pole circuit breaker is installed outside the output side of the inverter to ensure that the inverter can be disconnected safely.

Tracker control cabinet

Page 38

6 Electrical Connection User Manual

It is not allowed for several inverters to use one circuit breaker.

Scenario 1: Several inverters are in parallel connection to

of the

please contact

Inverter 1

Inverter 2

Inverter n

Scenario 2:

everal inverters are in parallel connection to the low voltage side of the MV



 It is not allowed to connect loads between inverter and circuit breaker.

Residual Current Device

With an integrated comprehensive residual current monitoring unit inside, the inverter is able to distinguish the fault current from normal capacitive leakage current. Inverter will disconnect from the grid as soon as a fault current of more than limit value is detected.

Multiple Inverters in parallel Connection

The following different requirements must be respected if several inverters are in parallel connection to the grid.

If an external RCD or residual current breaker is installed, the switch should be triggered when the fault current is 800mA or higher.

the 3-phase low voltage grid Requirements: If the number grid-connected inverters exceed 40,

Sungrow.

S transformer. The high voltage side is connected to the middle voltage grid. Requirements: If the number of the grid-connected inverters exceed 40, please contact Sungrow.

Page 39

Low-voltage side High voltage side

MV transformer

Inverter 1

Inverter 2

Inverter n

User Manual 6 Electrical Connection

Medium-voltage Transformers

The following requirements must be observed when installing medium-voltage transformers:



The transformer for the inverter can be a distribution transformer, however it must be designed for the typical cyclical loads of a PV system(load in the day and possibly no load at night).



The transformer can be of the liquid-immersed type or dry type. Shield winding is not necessary.



The line-to-line voltage on the low-voltage side of the transformer must endure the output voltage of inverter. When connecting to the IT grid, the withstanding voltage of the low-voltage winding side of the transformer, the AC cables and the secondary devices (including the relay protection, detection & measuring, and other related auxiliary devices) to the ground should not be lower than 1100V.



The line-to-line voltage on the high-voltage side of medium-voltage transformer should comply with the power grid voltage of installation site.



A transformer with a tap changer on the high-voltage side is recommended in order to remain consistent with the grid voltage.



At an ambient temperature of 25℃, transformers should withstand 110% of total

load rating.



Transformer with a short-circuit impedance less than 6% is recommended.



For thermal rating, the load curve of the transformer and the ambient conditions at the respective installation site must be taken into account.



The inverter apparent power is not permitted to exceed the transformer power. The maximum nominal AC current of all connected inverters must be taken into account. If the number of the grid-connected inverters exceed 40, please contact Sungrow.

Page 40

6 Electrical Connection User Manual

400 408 416 424 432 440 448

0.1

0.2

0.3

Max. grid impedance [Ohm]

AC voltage without loads [V]

456

0.4



The transformer must be protected from overloading and short circuiting.



The transformer is an important part of grid-connected PV generation system. The fault carrying capacity of the transformer should be taken into account at all time s. The fault types include: system short-circuit, grounding fault, voltage drop, and etc...



Ambient temperature, relative humidity, altitude, air quality, and the relevant indexes should be taken into account at all times.



The country-specific power grid frequency should be taken into account at all times.



The country-specific standards and directives should be taken into account at all times.

6.2.2 Grid Connection

AC terminal block is on the bottom of the inverter. AC connection is the 3-phase-4-wire grid connection (L1, L2, L3 and PE).

AC Cable Requirements

Select AC cables according to the following factors:



Grid impedance corresponds to the specifications below to avoid accidental short-circuit or output power derating.



Considering the voltage drop and other conditions, please enlarge the cable dimension. Power loss of the cable should be less than 1% of the nominal power.



Withstand ambient temperature.



Cable layout (inside wall, underground, free air, etc.)



UV resistance and so on.

Page 41

User Manual 6 Electrical Connection

Step 2 Unscrew the 6 bolts on the front cover of the

L1 L2

No.

Description

Remark

Protective layer

External diameter of the cable: 30.5-50 mm

Length of insulation to be stripped off

Insulation layer

Range: 30-150mm2; recommended value: 70mm2

* The external diameter of the AC cable described in A is proper range.

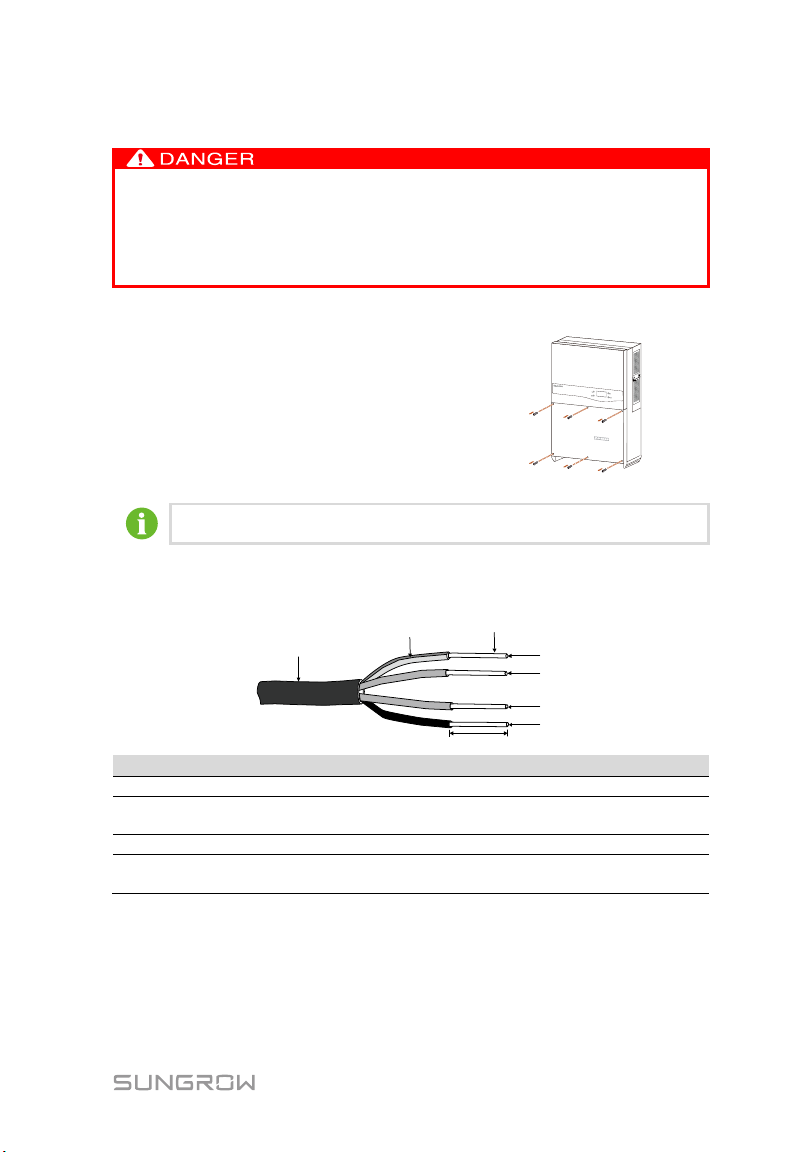

Connecting Inverter to Grid

High voltage inside the inverter!

Ensure all cables are voltage-free before electrical connection.

Do not connect the AC circuit breaker until all inverter electrical connections are completed.

Step 1 Disconnect the AC circuit breaker and ensure it will not reconnect

accidentally.

lower junction box.

Step 3 Peal the cables as shown below.

For flexible cables (stranded wires), use cold pressing terminal lugs.

The cross-section of the AC cable must be selected carefully in order to prevent accidentally disconnections of the inverter from the grid due to high impedance of the cable.

D Cross section of AC cables



If you select AC cable with the external diameter within the range of 30.5-40mm,

24 mm

please select the smaller AC cable gland.



If you select AC cable with the external diameter within the range of 40-50 mm, please select the larger AC cable gland.

Page 42

6 Electrical Connection User Manual

The following table gives the recommended max. Length of the AC cables based on

Cross-section of the AC cable (mm2)

Max. length of the AC cables (m)

0-50

50-100

>100

Min

Max

26.7~42.3

9.8

13.6

53.5~67.4

11.9

16.3

70~107

15.8

22.6

127~177

19.8

29.4

The table values are to use for the following cable type:

Screw tightening torque(Nm)

Min

Max

26.7~42.3

7.9

10.8

53.5~67.4

9.5

13.0

70~107

12.7

18.1

127~177

15.8

23.5

the cross-section of the AC cables.

Step 4 Select the adaptive wire diameter of AC cable gland according to actual AC

cable diameter. Remove or install the two AC cable glands on the bottom of the device by torque of recommended value.



Remove or install the smaller AC cable gland by torque of 12…13 Nm.



Remove or install the larger AC cable gland by torque of 16…17 Nm.

Peel the plastic film on one end of the AC cable protection with proper tools before AC cable connection. Only the AC cable protection itself needs to be replaced; other accessories (packing nuts) can still be used.

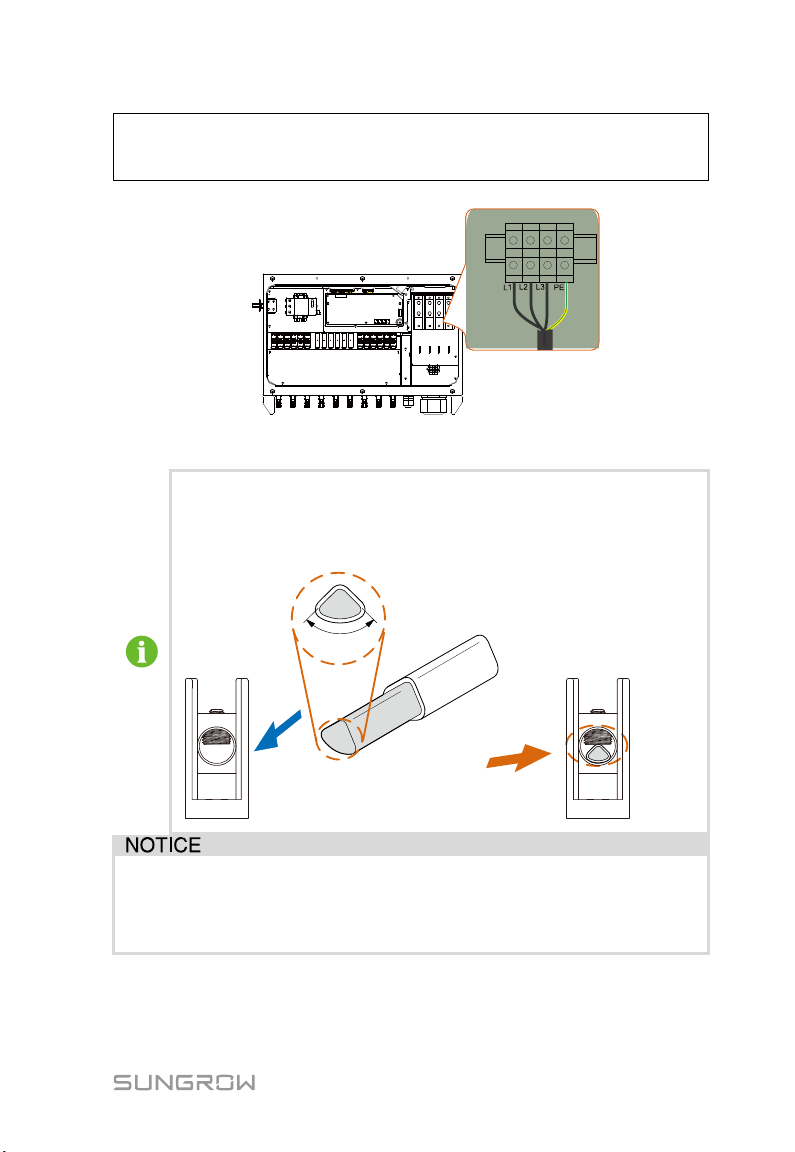

Step 5 Fix the AC cable to the corresponding terminals with torque shown in the

follow table.

Screw tightening torque(Nm)

Cable section(mm2)

1.Copper stranded(including sector);

2. Aluminum solid(including sector).

Cable section(mm2)

Page 43

User Manual 6 Electrical Connection

The table values are to use for the following cable type:

Step 6 Pull the cable gently to make sure it is secured.

L1 L

2 L3

section of the AC cable is sectorial, please place the apex(A)

e corresponding

90°

apex

)

Observe the AC terminal layout. Device will not work normally if the phase

1.Aluminum stranded;

* Pictures here are indicatively only. Product in kind prevail.

If the crossof sector upside and then fix the AC cable to th terminals.



cable is connected to the PE terminal.

 Do not squeeze or press the cable insulation layer. Improper connection

may affect the normal operation of the inverter.

Step 7 Seal the gaps between the AC cable and the gland inside the lower part of

the cabinet by fireproofing mud.

Page 44

6 Electrical Connection User Manual

MPPT

Inverter inside

PV input

homogenous structure: including the same type, the same number of PV

6.3 PV Array Connection

Lethal voltage exists!

PV arrays produce electrical energy when exposed to light and thus can create an electrical shock hazard.

Make sure that the PV impedance to the ground is proper before connecting the PV array to the inverter.

6.3.1 PV Input Configuration

Inverter has a PV input area and a MPP tracker is equipped.

The following requirements must be respected. Ignorance of them may void any or all warranty rights.

 The inverter internal cable connection cabinet is equipped with positive

fuse and no negative fuse. During system design, configure or not configure the external fuse to the negative cables of the string according to the local regulations.

 Make sure the voltage of each PV array is less than 1100V at all times.

Irrevocable damage may follow if otherwise.

 Make sure the max. short-circuit current of the DC side is within the

permissible range. Irrevocable damage may follow if otherwise.

To make full use of the DC input power, the PV string should be with a

Page 45

User Manual 6 Electrical Connection

cells, identical tilt and identical orientation.

Max. open-circuit voltage limit for each input

1100V

200A

Item

Parameter

PV cell type

YL250P-29b

Power

250W

Open-circuit voltage (STC)

37.6V

Short-circuit current (STC)

8.92A

No. of PV cells in a PV string

Open

-circuit voltage threshold(V)

3000

Altitude[m]

4000

1100

920

Before connecting PV array to inverter, the following electrical parameters must be met.

Short-circuit current limit

Considering the negative voltage temperature coefficient of PV cells, more attention should be paid to the open-circuit voltage of PV strings when the ambient temperature is the lowest. Meanwhile please notice that the max. open-circuit voltage of each PV string decreases with the increase of the altitude.

Tak eYL250P-29bPV cells for example.

Open-circuit voltage temperature coefficient (β)

-0.32%/°C

Under the STC condition, where ambient temperature is 25°C, the open-circuit voltage of PV cells is 37.6V×23=864.8V<1100V.

Supposed that the lowest temperature is -25°C, the open-circuit voltage of PV cells is 23×37.6V×[1+β×(min. ambient temperature- STC temperature)] = 23×37.6V×[1+(-0.32%/°C) ×(-25°C-25°C)]=990V<1100V (meet the operation requirement).

Therefore, PV string should be designed to meet the open-circuit voltage requirement even under the lowest ambient temperature condition.

The curve relationship between the open-circuit voltage threshold and the altitude is shown below.

Page 46

6 Electrical Connection User Manual

Cable

diameter

Max.

voltage

4~6mm2 12AWG~10AWG

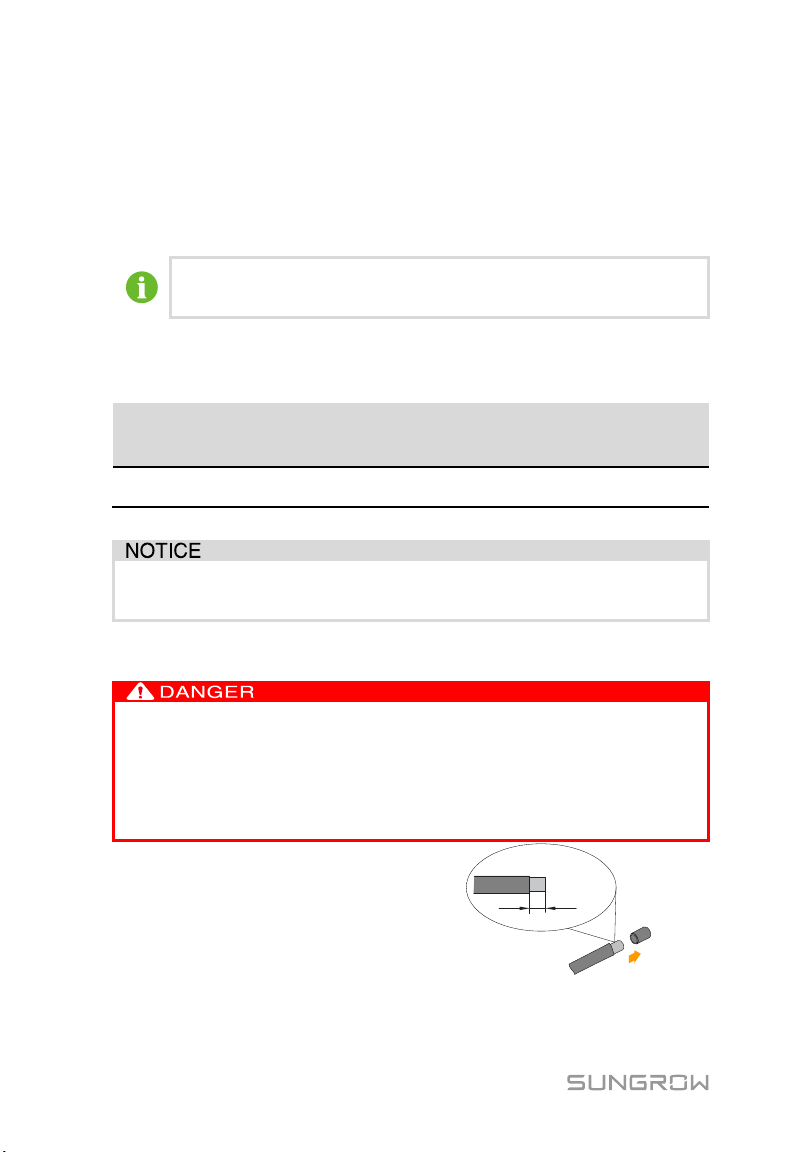

Step 1 Strip off 7mm insulation layer from all

7mm

6.3.2 PV Input Connection

DC input should be connected using PV input terminal, which is within the scope of delivery.

PV string side cables should be equipped with DC connector and MC4 connector is within the scope of delivery.

To maintain the IP65 protection rate, only the supplied DC connector or connector with the same protection rate can be used.

DC Cable Requirements

Tab. 6-1 DC cable requirements

Cross-sectional area

External

6~9mm 1100V 12A

The current of each DC input should be less than 12A; otherwise the fuse may blow out.

DC Cable Connection

High voltage inside the inverter!

Make sure all DC and AC cables connected to the inverter are voltage-free before electrical connection.

Do not connect the AC circuit breaker before electrical connection is completed.

DC cables.

withstand

Max. input current for each PV string

Page 47

User Manual 6 Electrical Connection

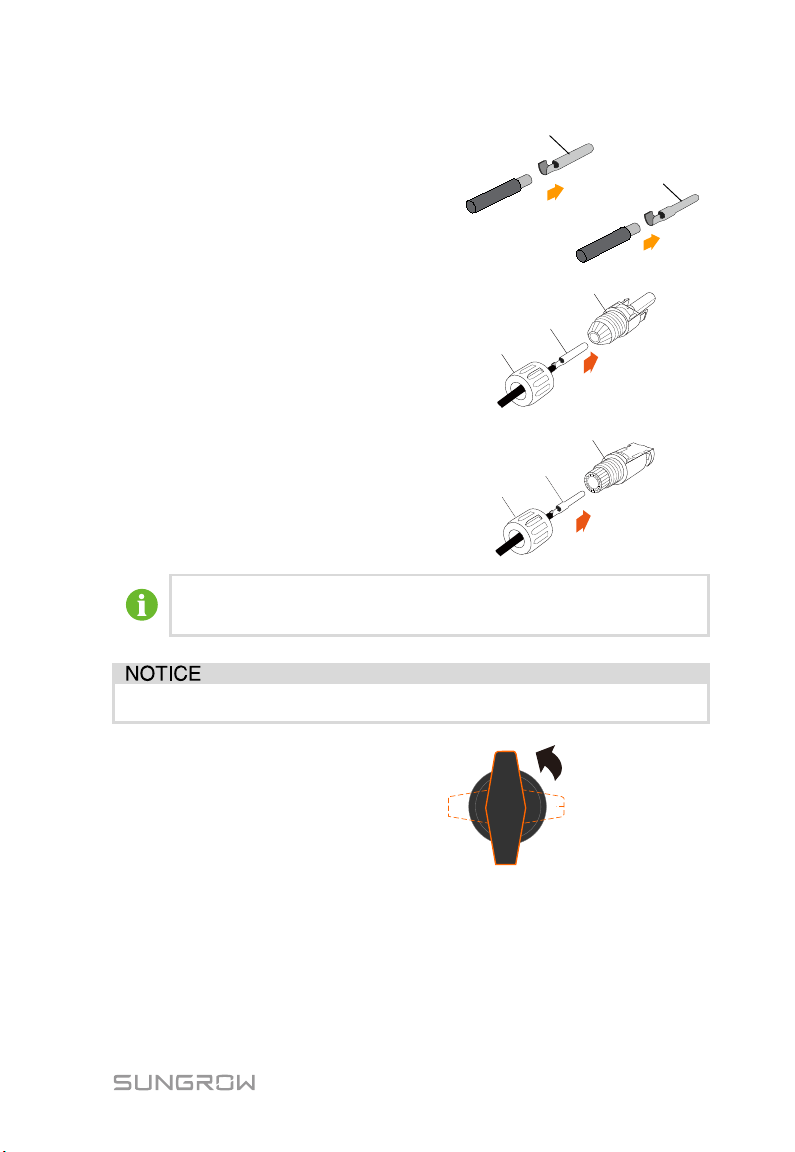

Step 2 Assemble cable ends with crimp

Positive Crimp Contact

Negative Crimp Contact

Step 3 Lead the cable through the cable

Insert the crimp contact into the

Crimp Contact

Positive Insulator

Cable Gland

Negative Insulator

Crimp Contact

Cable Gland

Step 6 Check to make sure the polarities of PV strings are correct.

Step 7 Disconnect the DC switch.

OFF

Step 8 Check the connection cable of PV string for the correct polarity and that the

contacts by crimping pliers.

gland.

Step 4

insulator until it snaps into place. Then pull gently to make sure it is secured.

Step 5 Screw the cable gland to insulator with

tightening torque 2.5…3 Nm.

For more assembly and connection instruction, please visit the webpage of the device manufacturer.

The inverter will not function properly if the DC polarities are reversed.

open-circuit voltage does not exceed the inverter input limit 1100V, even under the lowest operating temperature.

Page 48

6 Electrical Connection User Manual

880.0

Step 9 Connect the DC input strings following the sequence of silk-screen number 1

Bottom view

1+1-3+

5-7+7

-9+9

13+

13-

11+

15+

15-

10+

10-

12+

12-

14+

14-

16+

16-

18+

18-

• Check the positive and negative polarity of the PV cells. After

confirmation, you can insert the DC connectors into the input terminals on the bottom of the inverter.

• For the same MPPT, reverse connection of a single string is prohibited.

A permanent failure of the system or inverter may follow if otherwise.

to number 18 on the bottom of the cabinet.

Step 10Insert the positive and negative DC connectors into the input terminals on

the bottom of the inverter until there is an audible sound.

Page 49

User Manual 6 Electrical Connection

Step 11Seal the unused DC terminals with waterproof plugs.

6.4 Grounding the Inverter

Due to the transformer-less design of the inverter, neither the DC positive pole nor the DC negative pole of the PV string can be grounded.

6.4.1 Grounding System Overview

In this PV system, all non-current carrying metal parts and device enclosure should be grounded (such as the PV array frame and inverter enclosure).

When there is only one inverter in the PV system, ground the PE cable.

When there are multiple inverters in the PV system, they can be multi-point grounded. Connect PE cables of all inverters and the mounting metal frames of PV array to the equipotential cable (according to the on-site situation) to realize equipotential connection.

Page 50

6 Electrical Connection User Manual

Grounding of Inverter AC Side

PV Arrays 1

PV Arrays 2

PV Arrays n

Mounting Frame of PV

arrays

Grounding of PV Power System

Inverter

AC Grounding Electrode

AC Circuit Breaker

L2L3

L2 L3

Inverter

Inverter 2

Inverter n

Equipotential

cable

Fig. 6-2 Grounding of inverter

6.4.2 Second Protective Earth Terminal

Position of Second PE Terminals

There is a second PE terminal on one side of the inverter and it should be grounded.

Fig. 6-3 Second PE terminal

Page 51

User Manual 6 Electrical Connection

The ground connection of this second PE terminal cannot replace the

shall hold no liability for any

Item

Name

Description

Screw B

Lock washer

- C Washer

- D Cable socket

Yellow-green cable*

*the cross-sectional area of the

green cable shall be exactly the

cable.

connection of the PE terminal of the AC cables. Make sure the two PE terminals are all grounded reliably. Sungrow possible consequences caused by ignorance of this warning.

Cable Connection

M6×12mm

Fig. 6-4 Second PE connection

* Connection parts are not within the

yellowsame with that of the PE cable of the AC

scope of delivery

6.5 Communication Connection

6.5.1 Communication Overview

There are two communication waterproof connection terminal on the bottom of the inverter. RS485 A/B terminals and RS485 interface are provided on the configuration circuit board of the junction box. A 120Ω terminating resistor can be connected between the A and B communication cable through the dip switch (marked as

‘SW1’).

Page 52

6 Electrical Connection User Manual

Configuration circuitboard

RS485

A B A

120Ω

terminating

resistor switch

Alarm

COM

DO1

DI-

LOCAL STOP

DI1

SW2

SW1

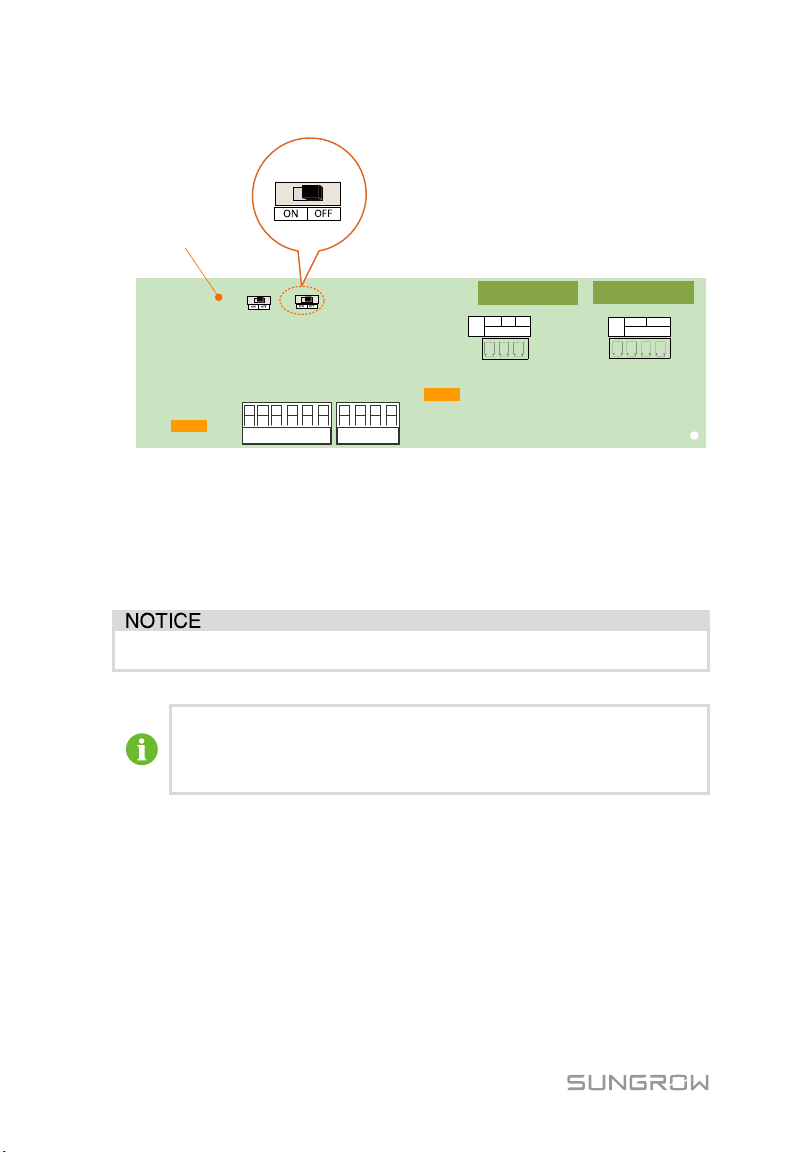

Fig. 6-5 Communication configuration

Inverter operation information can be transferred to the PC of the installed monitoring software (e.g. Insight) or to a local data logging device (e.g. Logger 3000) through RS485 communication connection.

Prepare communication cable before communication connection.

RS485 communication cables should be shielded twisted pair cables.

A converter such as RS485-232 converter or Logger is needed to convert signal between inverter and PC.

Network interface is an optional function. Contact Sungrow if necessary.

6.5.2 RS485 Communication System

For Single Inverter

Where there is only one inverter, a RS485 cable can guarantee the communication connection.

Page 53

User Manual 6 Electrical Connection

Inverter

RS485

Data Logger

RS485

Data Logger

RS485

485-232 converter

RS232

RS48

Communication of single inverter

Terminating Resistor

Only out

120

ohm

The length of RS485 communication cable should be less than 1200m.

Inverter Communication connection

Single inverter

For Multiple Inverters

Where there is more than one inverter, all inverters can be communicated in a daisy chain through RS485 communication cable. The first and last inverters in the chain must be terminated with a resistor of 120Ω. The shielding layer of RS485 cable should be single-point grounded.



 If several inverters communicate with each other and connect to the

Logger 3000, at most 4 daisy chains are supported and 60 devices in total can be connected (i.e. 4 daisy chains can be connected with at most 15 devices connected to one chain or 3 daisy chains are connected with at most 20 devices connected to one chain).

 If several inverters communicate with each other and connect to the

RS485-232 converter, at most 15 devices are allowed to connect to the daisy chain.

Page 54

6 Electrical Connection User Manual

Data Logger

485

Data Logger

RS485

RS485-232 converter

RS232

RS485

Shielding layer is grounded

120Ω

Inverter 1

RS485

Inverter 2

Inverter n

Multiple inverters in daisy chain

120Ω

RS485

Terminating Resistor

Only out

120ohm

In and Out

120ohm

In and Out

120ohm

Inverter Communication connection

Inverter

2~n-1

Inverter

6.5.3 RS485 Communication Connection

n≤15 n>15

Yes

RS485A/B Bus Connection

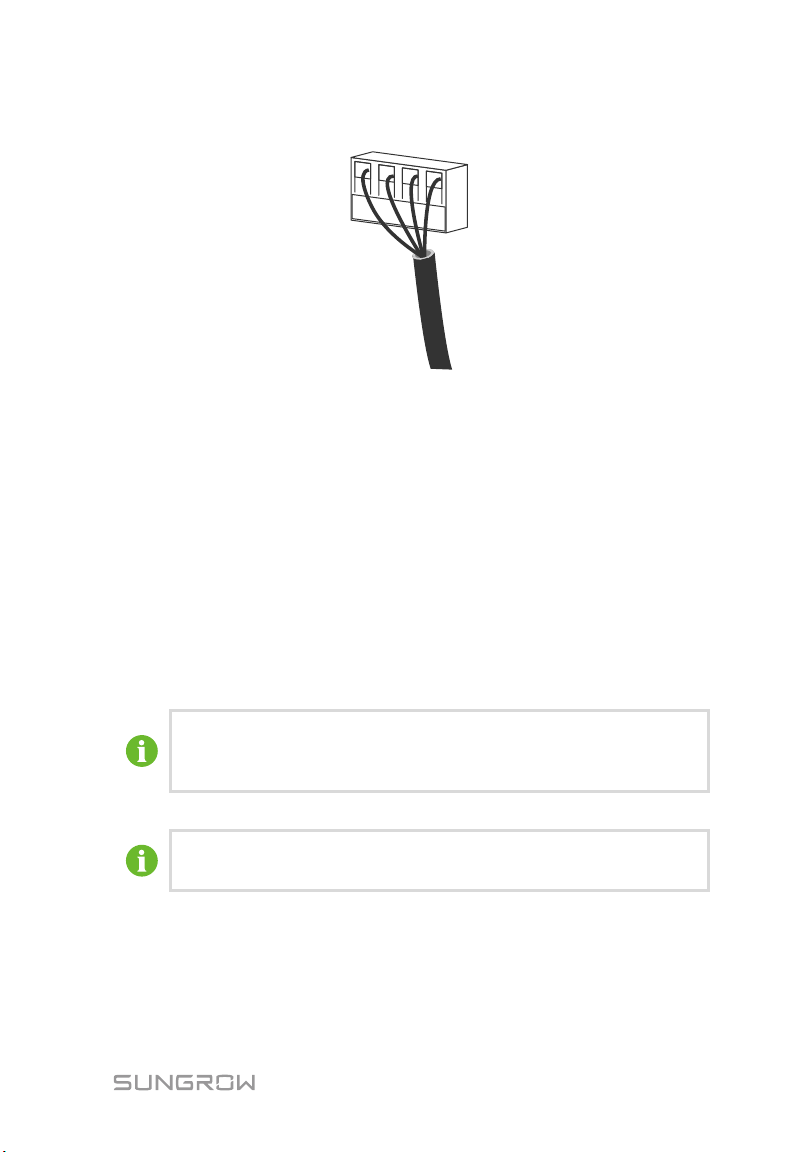

Step 1 Lead Network cable through communication cable gland to the

configuration circuit board.

Step 2 Strip off the insulation layer of the communication cable. Connect the A, B,

and GND of RS485 communication cable to corresponding terminals

Page 55

User Manual 6 Electrical Connection

according to the marks on the configuration circuit board.

Step 3 According to the position of the inverter (refer to the prior section), repeat

step 1…2 to connect the other RS485 cables.

Step 4 Pull cables outwards to confirm whether they are fastened firmly. Step 5 According to the position of the inverter (refer to the prior section), switch

ON or OFF the terminating resistor.

Step 6 Tighten the tread-lock sealing lock. Block off the vacant terminals to protect

the dust and moisture penetrating inside the inverter.

Step 7 Seal the gaps between the cable and the gland inside the lower part of the

cabinet by fireproofing mud. If there is no other connection procedure, reassemble and fix the front cover of the connection cabinet.

Step 8 Connect the communication devices. Refer to other manuals and documents

if there are other devices.

Step 9 Confirm the communication connection and set the communication

parameters.

If more than one inverter is connected to PC or Logger, please set the communication parameters from the LCD display. For more information, please refer to 10.12 Communication Parameter Setting.

Logger 3000 and RS485-232 converter are optional parts and can be ordered from Sungrow.

6.6 Configurable Dry Contact

There are Fault Alarm dry contacts and Emergency Stop dry contacts located on the configurable circuit board.

Page 56

6 Electrical Connection User Manual

Configuration circuitboard

RS485

A B A B

SW1

Alarm

COM

DO1

DI+

DI-

LOCAL STOP

DI1

SW2

The cross-section area range of dry contact’s cable is 28AWG…16AWG.

AC Requirements

DC Requirements

Max. Voltage: 250Vac Max. Current: 5A

Max. Voltage: 30Vdc Max. Current: 5A

Alarm dry contacts

The dry contacts can be configured as fault alarm. When the inverter is running normally, the two terminals NC&COM are short-circuited. When a fault occurs, the two terminals NO&COM are short-circuited.



The devices to be connected to the relays must comply with the related requirements:

Local Stop dry contacts

The dry contacts can be configured as Local Stop. When the two terminals IN&GND are short-circuited, the inverter will stop running immediately.

The dry contacts only support passive switch signal input.

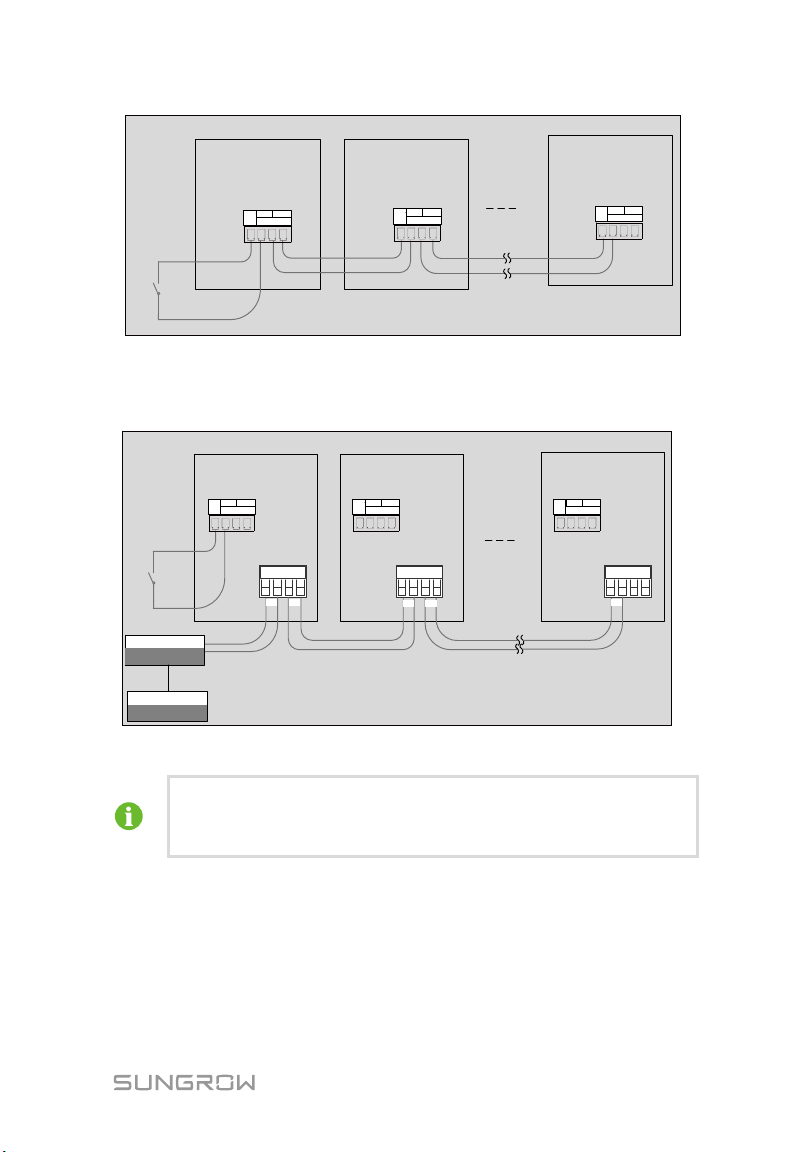

• Multiple inverters connected in a daisy chain topology

Page 57

User Manual 6 Electrical Connection

Inverter

Inverter2

Inverter N

Passive switch

DI+

DI-

LOCAL STOP

DI1

DI+

DI-

LOCAL STOP

DI1

DI+

DI-

LOCAL STOP

DI1

Inverter1

Inverter2

Inverter N

RS485 connections

Passive switch

Master inverter

Slave inverter

OUT

Data Logger

RS485

RS232

DI+

DI-

LOCAL STOP

DI1

DI+

DI-

LOCAL STOP

DI1

DI+

DI-

LOCAL STOP

DI1

Fig. 6-6 Multiple inverters connected in a daisy chain topology

• Multiple inverter Master-slave mode connection in an RS485 daisy chain

Fig. 6-7 Multiple inverter Master-slave mode connection

The inverter with a direct connection to the data logger is automatically set to the master inverter. It sends Stop instructions to other inverters via RS485 communications.

Page 58

Step 1 Close the AC circuit breaker.

Step 2 Rotate DC switch to “ON” position.

supply DC power to inverter. The LCD

when DC voltage

7 Commissioning

Commissioning is a critical part for a PV system, which can protect the system from fires, injury and electrical shock.

7.1 Inspection before Commissioning

Before starting the inverter, you should check the following items.

Ambient Environment

1. Inverter is accessible for operation, maintenance and service.

2. Check again to confirm that the inverter is firmly installed onto the wall.

3. Well ventilation.

4. Leave nothing on top of the inverter.

5. Inverter and accessories are correctly connected.

6. Cables are routed in safe place or protected against mechanical damage.

7. Specification of AC circuit breaker is reasonable.

8. Terminals not used underneath the inverter are sealed.

9. Warning signs & labels are suitably affixed and durable.

7.2 Commissioning Procedure

If all checking items mentioned above meet the requirements, precede as follows to start up the inverter for the first time.

Step 3 Suppose there are sufficient sunlight and

enough DC power. PV arrays initialize and

display is activated exceeds inverter startup voltage. If there is

a defect on the display, contact Sungrow.

Page 59

User Manual 7 Commissioning

Step 4 Press  to choose country code. Confirm

Countries

DE FR

Other

TH TK US

Step 5 Select the country code according to the

country code represents corresponding

. Before country

Warning!

Only qualified personnel

are allowed to adjust

following parameters.

Improper settings may

cause damage to the

inverter!

If the country code is not set correctly during commissioning, reset the

Step 6 If the country code set as GR, a Grid



Grid codes

GR_L

GR_IS

After setting the Country parameter, please proceed to set other

parameters of the inverter in accordance with the specific requirements of the local grid. Before commissioning, please check

the settings by Pressing ENTER.

installation country of the inverter. Each

local protective parameters that have been preset before delivery setting, there is warning screen. Operate according to the warning information and press ENTER.

thoroughly if the set parameters meet the local grid requirement.

Refer to “10.11 Protection Parameter Setting” for country code explanation. If the inverter is installed where the country code is not included, please choose item “Other” and manually set the protection parameters.

protection parameters as dictated in “10.11 Protection Parameter Setting”. There may be faults if otherwise.

codes page as shown in the right will appear. Press

to select grid code and

press ENTER to confirm.

Page 60

7 Commissioning User Manual

If the country code set as DE, a Grid codes page

voltage grid; MV signifying



f the country selected is not the

Grid codes

380V

400

Grid codes

50Hz

60Hz

Other

After selecting the Grid Code, there will be

Pro-

Stage

Single-stage

Multi-stage

as shown in the right will appear, where LV signifying lowmedium-voltage grid. Press  to select grid code and press ENTER to confirm.

If the country code set as TK, a Grid codes page as shown in the right will appear. Press select grid code and press ENTER to confirm.

If the country code set as TH, a Grid codes page special for Thailand will appear. Press select grid code and press ENTER to confirm.

If the country code set as Other, a Grid codes page as shown in the right will appear. Press to select grid code and press ENTER to confirm.

I above-mentioned 5 countries, enter the next step directly.

Step 7

a “Pro-stage” type selection screen and then corresponding sub-menu will come up. For detailed information, please refer to “

10.11 Protection Parameter Setting”.

Page 61

User Manual 7 Commissioning

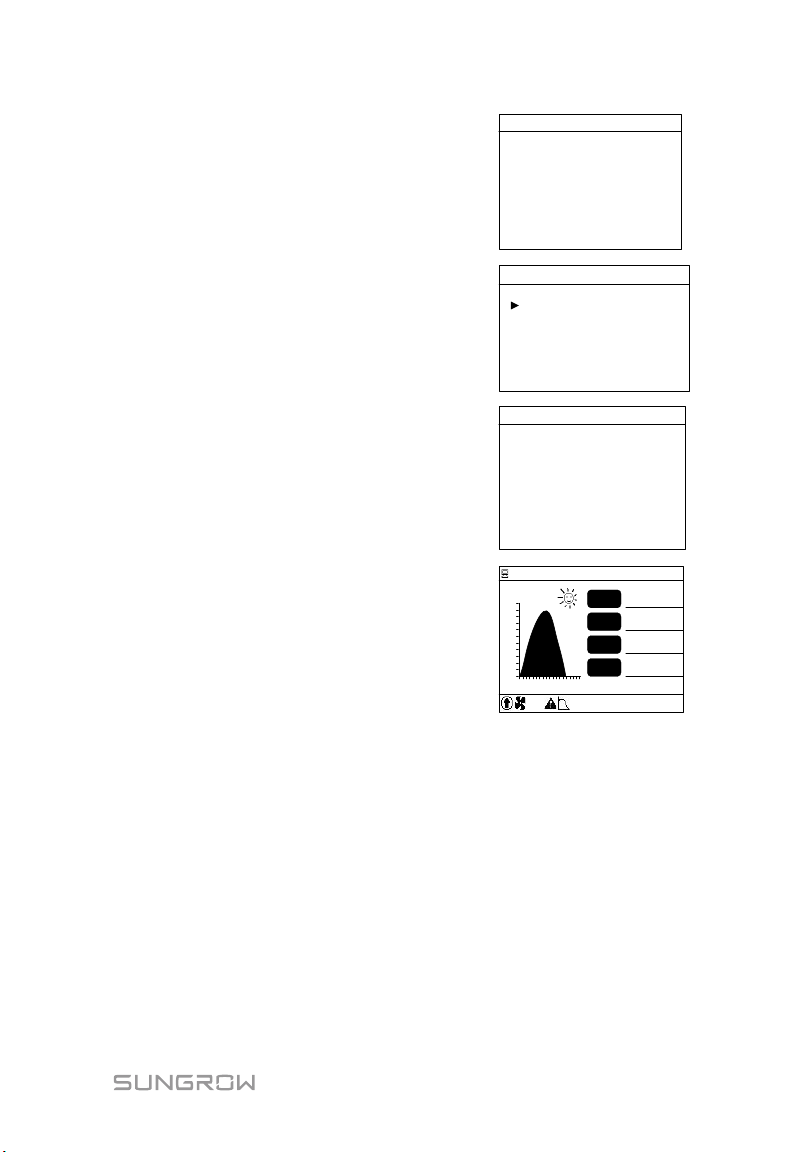

Step 8 Set the inverter time as per local time.





Time

Time: 10

:30:55

YY/MM

/DD

Date: 17

/01/

Step 9 Set the inverter modbus parameter. Press



Modbus param

Addr 001

Step 10After configuring all parameters, there will

Setting confirmation

Countries Other

Pro-stage Single

-stage

Grid codes MV

Date 2017

/01

Confirm above settings?

Step 11Inverter will enter into startup process.

kW h

15.6

497600

Run

kWh

100

.0%

P(%)

110

5 8

11 14 2017

001

-ac E-day E-

tot

State

2017

/01

/31 10

:30

.000



Incorrect time setting will affect the data logging. Press

Press

to set the specific time and date.

to move the cursor and

Press ENTER to confirm setting.

to move the cursor and Press  to set

the modbus parameter. Press ENTER to confirm setting.

be a “setting confirmation” screen. Check whether all above-mentioned parameters are correct. Confirm by Pressing Cancel by Pressing

ESC and reset.

ENTER.

Observe the status of LED indicators and the LCD main screen. If commissioning succeeds, the “RUN” indicator will be on and “Run” will be displayed on the “State” area.

If commissioning fails, the “FAULT” indicator will be on and “Fault” will occur on the display. Press

to view “current fault” information. Remove the existing fault and

then repeat the commissioning procedures.

Page 62

Step 3 Wait about ten minutes until the

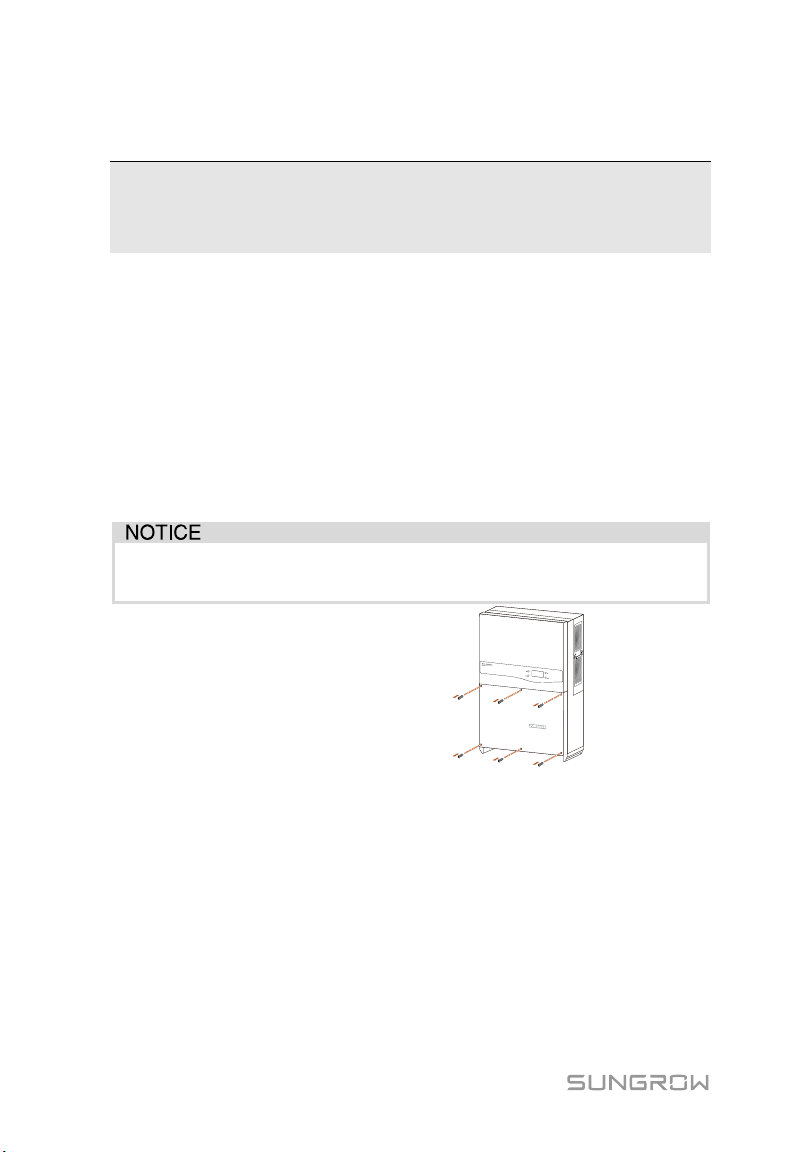

Loose the six screws on the lower

8 Disconnecting, Dismantling and

Disposing the Inverter

8.1 Disconnecting the Inverter

For maintenance work or any service work, inverter must be switched off. During normal operation, switching off is not necessary.

Proceed as follows to disconnect the inverter from DC and AC power sources

Step 1 Disconnect the external AC circuit breaker and prevent it from accidental

reconnecting.

Step 2 Rotate the DC switch to the “OFF” position and then pull off all the PV string

inputs

Please strictly follow the above sequence. Inverter will not work damage if otherwise.

capacitors inside the inverter have been discharged.

Step 4

connection cabinet and then remove the lid.

Step 5 Measure AC voltage to ground at the

AC terminal to confirm AC output voltage of inverter at the AC circuit breaker is zero.

Step 6 Remove the AC cables. Step 7 Remove the DC cables.

Page 63

User Manual 8 Disconnecting, Dismantling and Disposing the Inverter

8.2 Dismantling the Inverter

Refer to Chapter 5 and Chapter 6 to dismantle the inverter in reserve steps.

If the inverter will be reinstalled in the future, please refer to “4.4 Inverter Storage” for a proper conservation.

8.3 Disposal of the Inverter

Users should take the responsibility for the disposal of the inverter.

Some parts and devices in the inverter, such as the LCD display, batteries, modules and other components, may cause environment pollution. Users must comply with the related local regulations to avoid pollution.

Page 64

Fault type

Troubleshooting

Disconnect AC side circuit breaker.

Check the polarity of the PV arrays.

Disconnect AC side circuit breaker.

heck the correctness of inverter electrical

Sungrow.

A fault is not removed yet.

If fault cannot be solved, please contact Sungrow.

Warning fault occurs of the inverter.

If fault cannot be solved, please contact Sungrow.

9 Troubleshooting and

Maintenance

9.1 Troubleshooting

9.1.1 Troubleshooting of LED Indicator

LED indicators and LCD screen are OFF

“RUN” indicator id OFF

“Fault” indicator is ON

“RUN” indicator is blinking

Rotate DC switch to the “OFF” position.

Rotate DC switch to the “OFF” position. C connection. Check whether DC input voltage exceeds the inverter startup voltage of inverter. If all above conditions are OK, please contact with

Perform troubleshooting according to fault type in LCD screen.

9.1.2 Troubleshooting of Faults in LCD Screen

When faults occur, “Fault” state will be shown on the main screen. Press  to view multiple “current fault” information pages.

Page 65

User Manual 9 Troubleshooting and Maintenance

Fault Code

The grid voltage exceeds

rotection time and

protection threshold vary

requirements.

Check the grid voltage; If the grid voltage exceeds the inverter permissible range, ask utility grid company

range, contact Sungrow.

exceeds the permissible

This is a short-term fault due to grid

If the fault still exists, please contact Sungrow.

The grid voltage is below

s allowable lower

protection threshold vary

requirements.

Check the grid voltage.

voltage exceeds the inverter

permissible range, ask utility grid company

range, contact Sungrow.

This is a short-term fault due to grid

for inverter

Sungrow.

he AC output current

The inverter will resume if the output current

Sungrow.

The inverter will self-recover after several seconds.

The grid frequency exceeds inverter allowable upper limit.

Check the grid frequency. If the grid voltage exceeds the inverter

range, contact Sungrow.

The grid frequency is below

lower limit.

Check whether AC circuit breaker is

are all firmly

If all conditions are OK and this fault still occurs, contact Sungrow.

The DC component of AC current exceeds inverter limit.

Description Troubleshooting

inverter allowable range.

002

as per different country’s

for solution. If the grid voltage is within the permissible

003

Grid transient voltage

range

inverter’

004

limit. Protection time and

as per different country’s

005 The grid voltage is too low.

006

exceeds inverter protection limit.

007 Transient AC overcurrent

008

009

the inverter allowable

010 Islanding

condition. Wait a moment for inverter recovery.

If the grid

for solution. If the grid voltage is within the permissible

condition. Wait a moment recovery. If the fault still exists, please contact

falls below the protection value. If the fault still exists, please contact

permissible range, ask utility grid company for solution. If the grid voltage is within the permissible

connected. Check whether AC cables connected. Check whether grid is in service.

011

Wait for inverter recovery. If the fault still occurs, contact Sungrow.

Page 66

9 Troubleshooting and Maintenance User Manual

Fault Code

Fault current leakage is

Check the PV strings for ground fault.

, contact

Sungrow.

Wait for inverter recovery. If the grid voltage exceeds the inverter

range, contact Sungrow.

The average grid voltage

the permissible

range for over 10 minutes.

Wait for inverter recovery.

Sungrow.

Grid impedance exceeds

Check the model of the AC cables.

If the fault occurs repeatedly, contact Sungrow.

Wait for inverter recovery. If the fault occurs repeatedly, contact Sungrow.

021

PV input overcurrent

Check the PV configuration and connection.

PV configuration mode has changed during inverter running.

Inverter resumes normal operation when

If the fault occurs repeatedly, contact Sungrow.

Transient unbalance of

Inverter resumes normal operation when

If the fault occurs repeatedly, contact Sungrow.

This is a short-term fault. Wait for inverter

If the fault still occurs, contact Sungrow.

Module temperature is too high

Check whether AC output power exceeds the nominal power.

Description Troubleshooting

012

detected

013 Grid abnormal is detected

014

015

exceeds

inverter’s limit

016 AC output overloads

017 Grid voltage unbalance

019

The transient bus voltage is high.

020 The bus voltage is high.

023

If the fault occurs repeatedly

permissible range, ask utility grid company for solution. If the grid voltage is within the permissible

If the fault occurs repeatedly, contact

Wait for inverter recovery.

Check the PV configuration; Restart the inverter.

024

025

Neutral point deviation is detected.

voltage neutral point

026 Bus voltage fluctuation

036

deviation is within the permissible range;

recovery

Page 67

User Manual 9 Troubleshooting and Maintenance

Fault Code

Check the functionality of the fans. Replace

If the fault still occurs, contact Sungrow.

Wait for inverter recovery. If the fault still occurs, contact Sungrow.

Inverter insulation resistance fault (ISO-flt)

Wait for inverter recovery. If the fault still occurs, contact Sungrow.

Wait for inverter recovery. If the fault occurs repeatedly, contact Sungrow.

Current leakage sampling channel failure

Wait for inverter recovery. If the fault still occurs, contact Sungrow.

If the fault occurs repeatedly, contact Sungrow.

Disconnect and stop the inverter. Wait for ambient temperature to rise within the permissible range and then restart inverter.

DC/AC inversion circuit fault

Wait for inverter recovery. If the fault still occurs, contact Sungrow.

on the display is not in

Disconnect the inverter.

select PV configuration mode and

Connection”.

Phase-R current sampling channel fault.

If the fault occurs repeatedly, contact

Phase-S current sampling channel fault.

Phase-T current sampling channel fault.

Hardware Overvoltage/

Wait for inverter recovery. If the fault occurs repeatedly, contact Sungrow.

Stop inverter, disconnect the power supply and remove the broken fan

071

AC side SPD fault

Replace SPD if necessary; Contact Sungrow.

072

DC side SPD fault

Stop inverter, disconnect the power supply

Contact Sungrow.

Description Troubleshooting

037

Ambient temperature is too high.

038 Relay fault

039

040

AC or DC overcurrent fault, or DC overvoltage fault

041

042 Current imbalance.

043

ambient temperature falls below -25

044

045 PV boost circuit fault

PV configuration mode set

047

accordance with the reality.

048

049

050

broken fan if necessary. Clean air outlet grills.

Wait for inverter recovery. If the fault still occurs, contact Sungrow.

Rere-connect PV strings. For more detailed information, please refer to “6.3 PV Array

Wait for inverter recovery.

Sungrow.

051

Overcurrent protection

070 Fans failure

073 Fuse has blown out

and replace the fuse;

Page 68

9 Troubleshooting and Maintenance User Manual

Fault Code

A fault has occurred in the internal

Contact Sungrow.

r irradiation is not

sufficient for inverter

Wait for sufficient irradiation. If this fault recurs when irradiation is

adjust the connection of PV inputs.

Check the PV system design and adjust the connection of PV inputs.

PV power abnormal

Check the PV input for disconnection or

Sungrow

Wait for inverter recovery.

t occurs repeatedly, contact

Sungrow.

Check the current and press ENTER to remove the warning.

089

AFD failure warning

Restart AFD function through LCD operation.

Check the PV polarity. If it is connected

If the warning still occurs, contact Sungrow.

Check the PV polarity. If it is connected

If the warning still occurs, contact Sungrow.

output current

Check if the PV strings are covered. If the PV

f so, reconnect the cable and reset the PVS

If the warning still occurs, contact Sungrow.

17/18 PVS output current

Check if the PV strings are covered. If the PV

If the warning still occurs, contact Sungrow.

Description Troubleshooting

074 LCD communication fault

Sola

075

operation.

076 PV overload

078

warning

087 AFD block

088 Arc warning

532-547

564/565

548-563

1-16 PVS reverse polarity warning

17/18 PVS reverse polarity warning

1-16 PVS abnormal

communication of the inverter. However, the inverter continues feeding into the grid.

sufficient, check the PV system design and

looseness. If the warning fault still exists, please contact

If the faul

reversely, reconnect it.

strings are clean and uncovered, check the PV module for failure. Check the DC input cable for disconnection. I function.

580/581

Device internal hardware fault may cause other unpredictable faults. Therefore, once the hardware fault is removed but other faults occur repeatedly, please contact Sungrow Customer Service Center.

abnormal

strings are clean and uncovered, check the PV module for failure. Check the DC input cable for disconnection. If so, reconnect the cable and reset the PVS function.

Page 69

User Manual 9 Troubleshooting and Maintenance

Item

Method

Period

Six months to

on the dust contents in air.)

Check whether there is crack of the fan blade.

following section).

Once a year Check the fuse and DC SPD

the fuse (refer to the following section) and DC SPD (contact Sungrow) whenever necessary.

Every Six

Stop the inverter and disconnect it from all power supplies before

9.2 Maintenance

9.2.1 Routine Maintenance

System clean

Fans

SPD

Check the temperature and dust of the inverter. Clean the inverter enclosure if necessary. Check if the air inlet and outlet are normal. Clean the air inlet and outlet, if necessary.

Check whether there is any abnormal noise when the fan is turning. Clean or replace the fans if necessary (see the

Replace

a year (depend

months

9.2.2 Maintenance Instruction

Fan Maintenance

Fans inside the inverter are used to cool the inverter during operation. If the fans do not operate normally, inverter may not be cooled down and efficiency may decrease. It is therefore necessary to clean the dirty fans and replace the broken fans in time.



maintenance.

 Lethal voltage still exists in the inverter. Please wait for at least ten

minutes and then perform maintenance work.

 Only qualified electricians can maintain the fans.

Step 1 Disconnect the AC circuit breaker. Step 2 Rotate the DC switch to the “OFF” position and then pull off all the PV string

inputs

Step 3 Wait for at least ten minutes. Step 4 Disconnect all electrical connection in the reverse procedures in the “6

Electrical Connection”.

Step 5 Lift up the inverter. Step 6 Place the inverter on the platform.

Page 70

9 Troubleshooting and Maintenance User Manual

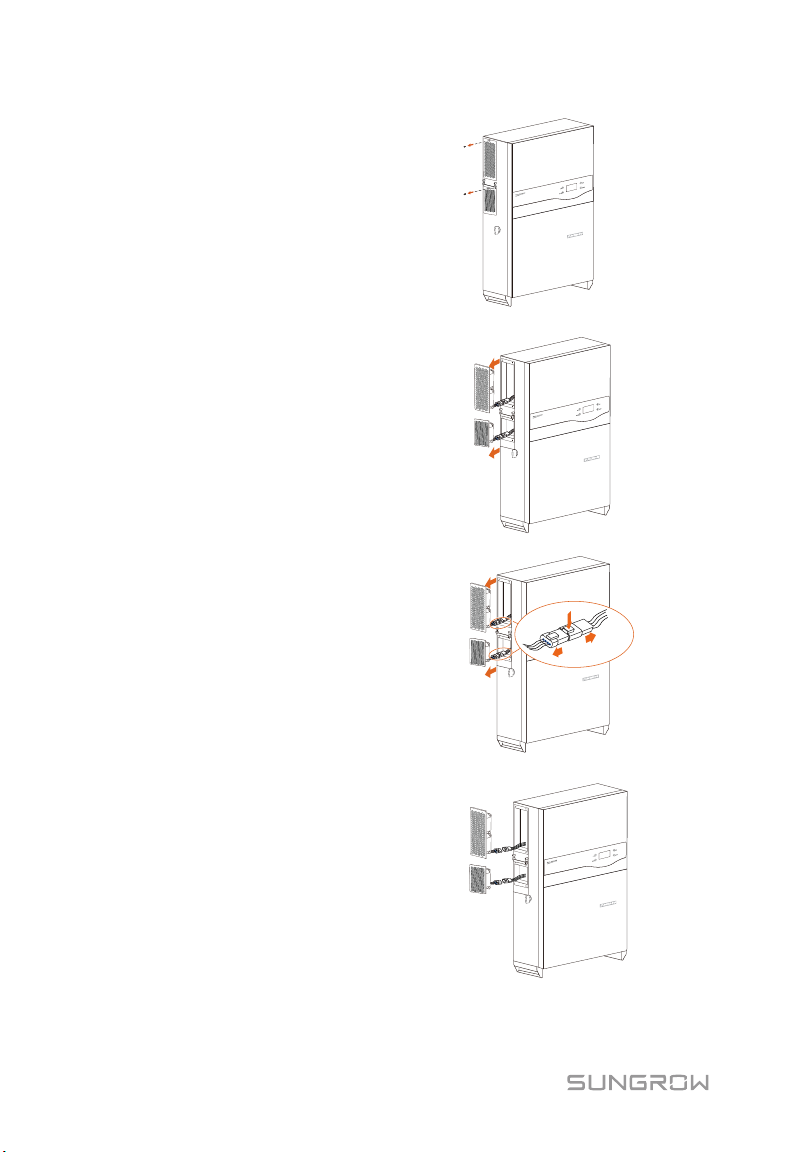

Step 7 Unscrew the bolts as shown in the

Step 8 Disassemble the metal plate slightly.

Step 9 Press on the ribbing of the locking

Step 10 Remove the fans out of the inverter.

right picture.

hooks and pull the cable outwards.

Step 11 Clean the fan with soft brush or vacuum cleaner; or replace the broken fans.

Page 71

User Manual 9 Troubleshooting and Maintenance

Check using multimeter to identify

Step 12 Reassemble the fans back into the inverter and restart the inverter.

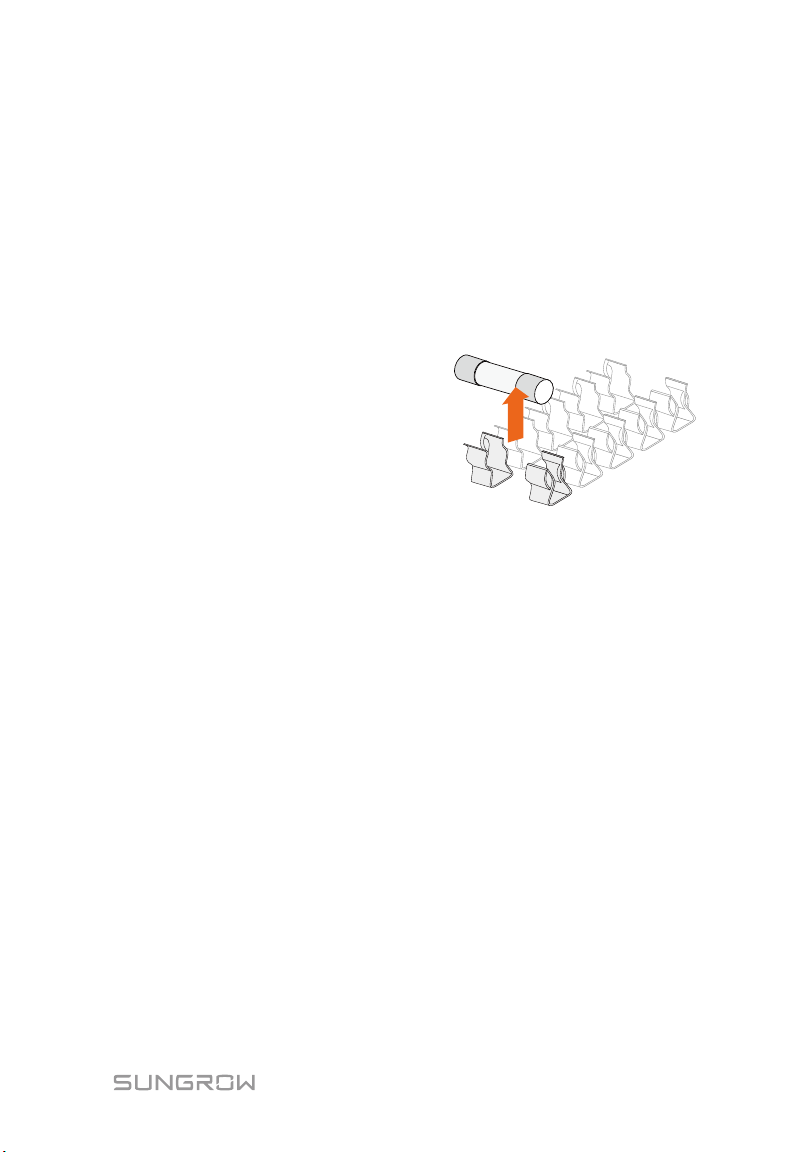

Replacing the Fuse

Proceed as follows to replace the blown fuse due to over-current:

Step 1 Disconnect the AC circuit breaker. Step 2 Rotate the DC switch to the “OFF” position and then pull off all the PV string

inputs

Step 3 Wait for at least ten minutes. Step 4 Open the front cover of the inverter junction box.

Step 5

the blown fuse.

Step 6 Check the corresponding PV strings. Step 7 Remove the blown fuse.

Step 8 Order fuse with the same model and insert the new fuse into the fuse holder. Step 9 Reassemble the inverter front cover ad restart inverter.

Cleaning Air Inlet and Outlet

A huge amount of heat is generated in the process of running the inverter. The inverter adopts a controlled forced-air cooling method.

In order to maintain good ventilation, please check to make sure the air inlet and outlet are not blocked.

Clean the air inlet and outlet with soft brush or vacuum cleaner if necessary.

Page 72

9 Troubleshooting and Maintenance User Manual

9.3 Contact Sungrow Service

Should you have any problems in operating on the inverter, please contact us:

Service hotline: +86 551 65327817

Email: [email protected] (after-sales)

[email protected] (technical support)

We need the following information to provide you the best assistance:



Type of the inverter



Serial number of the inverter



Fault code/name



Brief description of the problem

Page 73

Button

Operation

Description

Press for less than 2 seconds

Move upwards or downwards or scroll among set values. Hereinafter, it is referred to as “Press ”.

Press for more than two seconds

Press for less than 2 seconds

Move left or right, or turn pages. Hereinafter, it is referred to as “Press ”.

Press for more than two seconds

10 Operation of LCD Display

10.1 Description of Button Function

Inverter offers two buttons for user to look up the running information and configure parameters. The two buttons have multiple functions. Please refer to Tab. 10-1 before any operation onto inverter.

Tab. 10-1 Button function

If there is no button operation for:

 1 minute, LCD backlight is OFF;  2 minutes, system returns to the default menu (main screen).

Return to the previous menu or cancel the command. Hereinafter, it is referred to as “Press ESC”.

Enter into the sub-menu or confirm the command. Hereinafter, it is referred to as “Press ENTER”.

` 65

Page 74

ESC

ENTER

50%

Run-inform

His-inform

Start/Stop

Set-param

His-inform

Run-record

Evt-record

Flt-record

Energy-record

Start/Stop

Start

Stop

Set-param

Sys-param

Run-param

Pro-param

Com-param

Run-param

P-Q param

Time param

Derating param

Iso param

LVRT param

Com-param

Addr 001

Time

Energy-adj

Sys-param

Firmware version

Load default

Languages

kWhkW

15.6

497600

Run

kWh

100.0%

P(%)

110

5 8 11 14 2017 23

001

P-ac

-day

E-tot

State

2017

/01/31 10

:30

60.000

Countries

GB DE FR

Other

TK US

Advanced Settings

10 Operation of LCD Display User Manual

10.2 Menu Tree

Fig. 10-1 Menu tree

Page 75

User Manual 10 Operation of LCD Display

Power curve

Time

Present power

Today’s energy

Total energy

Inverter state

Icon &active power limit

kW h

15.6 497600

Run

kWh

100.0%

P(%)

110

5 8 11 14 2017 23

001

Device address

P-ac

E-

day

E-tot State

2017/01/31 10:30

80.

000

State

Description

After being energized, inverter tracks the PV arrays’ maximum power

operation mode.

Inverter enters Standby mode when DC side input is insufficient. In this

10.10.1 Main Screen of Run-param).

Stop

Inverter is stopped.

Inverter will stop operation by manual “stop” through LCD menu. In this

from the LCD menu.

Upd-fail

IAP upgrade failure

If a fault occurs, inverter will automatically stop operation, disconnect the

Main Screen of Run-param), inverter will automatically resume running.

Warning

Warning information is detected.

10.3 Main Screen

Once the inverter commissioning is finished, LCD display will enter the main screen as shown in Fig. 10-2.

Fig. 10-2 Main screen

Tab. 10-2 Description of the main screen

Run

Standby

Key-stop

Start…

point (MPP) and converts the DC power into AC power. This is the normal

mode inverter will wait within the Standby duration (set by user, refer to

way, inverter internal DSP stops. To restart the inverter, manually start

The inverter is initializing and synchronizing with the grid.

AC relay, and display the fault information on the LCD display with the

Fault

“FAULT” indicator on. Once the fault is removed in recovery time (set by user, refer to 10.10.1

If inverter is in “Fault” state, press  or  to view “Current fault” information. To know

Screen”.

the meaning of the fault code, please refer to

9.1.2 Troubleshooting of Faults in LCD

Page 76

10 Operation of LCD Display User Manual

Current fault P1/1

1 GRID 008

Icon

Description

Inverter is in IAP update process.

Inverter in power derating state.

50%

Main Screen

Menu→Run-inform

Tab. 10-3 Icon Description

Fans inside are working.

Inverter is operating in warning state.

10.4 Contrast Adjustment

Step 1 Press ESC to enter into the contrast adjustment screen.

Step 2 Press  to increase the setting value and press  to decrease the value. Step 3 Press ENTER to confirm the contrast setting.

Contrast adjustment range: 0…100%

Recommended value: 50% or 60%.

10.5 Checking Running Information

The main screen displays some basic information about the inverter. For more detailed information, please operate as follows:

(Press ENTER)→

(Press ENTER)

Page 77

User Manual 10 Operation of LCD Display

LCD display will show the detailed running information. Scroll pages by pressing  /.

DC power input: the total PV input power.

DC power input 60248W

Vdc[V] 570.4

Idc[A] 105.4

Pdc[W] 60248

Check the DC current of each input.

DC-1: 4.23A DC-7: 4.23A DC-13: 6.25A

DC-2: 4.23A DC-8: 4.23A DC-14: 6.25A DC-3: 4.23A DC-9: 4.23A DC-15: 6.25A

DC-4: 4.23A DC-10: 4.23A DC-16: 6.25A DC-5: 4.23A DC-11: 4.23A DC-17: 4.23A DC-6: 4.23A DC-12: 4.23A DC-18: 4.23A

R S T

Vac[

V] 230

.0 230.0 230.0

Iac[A] 6.0 6.0 6.0

Pac[W] 0 0 0

F[Hz] 0.00 0.00 0.00

CO2-reduce: Total CO2 emission reduction due to

Inverter selected grid code (note: if

country selected is TH, grid code here is 220V or

CO2-reduce 6kg E-month 10kWh h-Total 1h T-today 63min Temp 25.0°C

ISO 30kΩ

P-W 100W

Country DE

Grid code LV

S-Va 130VA

Vdc[V]: DC voltage of each input. Idc[A]: DC current of each input. Pdc[W]: DC power of each input.

Vac[V]: Phase voltage. Iac[A]: Phase current. Pac[W]: AC output of each phase. F[Hz]: Frequency of each phase.

the inverter.

E-month: The energy generated in this month. h-Total: Total running hours of the inverter. T-today: Inverter running time today. Temp: Internal temperature of the inverter. ISO: Insulation resistance to the ground of the input

side.

P-W: Inverter output active power. S-Va: Inverter output apparent power. Country: Inverter selected country code. Grid code:

country selected is DE, grid code here is LV or MV;

230V; country selected is TK, grid code here is AG or YG; country selected is Other, grid code here is 50Hz or 60Hz).

Page 78

10 Operation of LCD Display User Manual

Main Screen (Press ENTER)→Menu (Press , Press ENTER)→His-inform (Press ×2,

On the “Run-record” interface,

want to view. Confirm by

His-

inform

Run-record

Evt-record

Flt-record

Energy-record

Run-

record P

1/1

001 2017/01

/21(30

)

1 2017/01/21 18:50

Run-record T4 2015/01/21 P001/030

LCD display shows the running



CO2-

reduce 6kg

E-month 10kWh

Total 1h T-today 63min Temp 25.0°C

ISO 20000kΩ

R S T

Vac[V] 230.

0 230.0 230.0

Iac[A] 6.0 6.0 6

Pac[W

] 0 0 0

F[Hz] 0

.00 0.00 0.00

DC power input 60248W

Vdc[

V] 570.4

Idc[A] 105.4

Pdc[W] 60248

P-W 0W

Country CA

S-Va 280VA

Grid codes 60HZ

On the “Flt-record” interface, scroll pages forwards by

Flt

-record P 1/2

001 2017/01/31 10:16:10 [0008]

005 2017/01/31 10:16:10 [0040]

002 2017/01/31 10:16:10 [0008]

003 2017/01/31 10:16:10 [0008]

004 2017/01/31 10:16:10 [0008]

10.6 Checking History Information

10.6.1 Checking Running Records

Press ENTER)→Run-record (Press ENTER)

scroll pages by pressing, and press  to select the date you

pressing ENTER.

records. Press  to turn pages and press of the selected date.

to view the records

10.6.2 Checking Fault Records

Main Screen (Press ENTER)→Menu (Press , Press ENTER)→His-inform (Press

ENTER)→Flt-record (Press ENTER)

pressing, and press  to scroll pages backwards.

Page 79

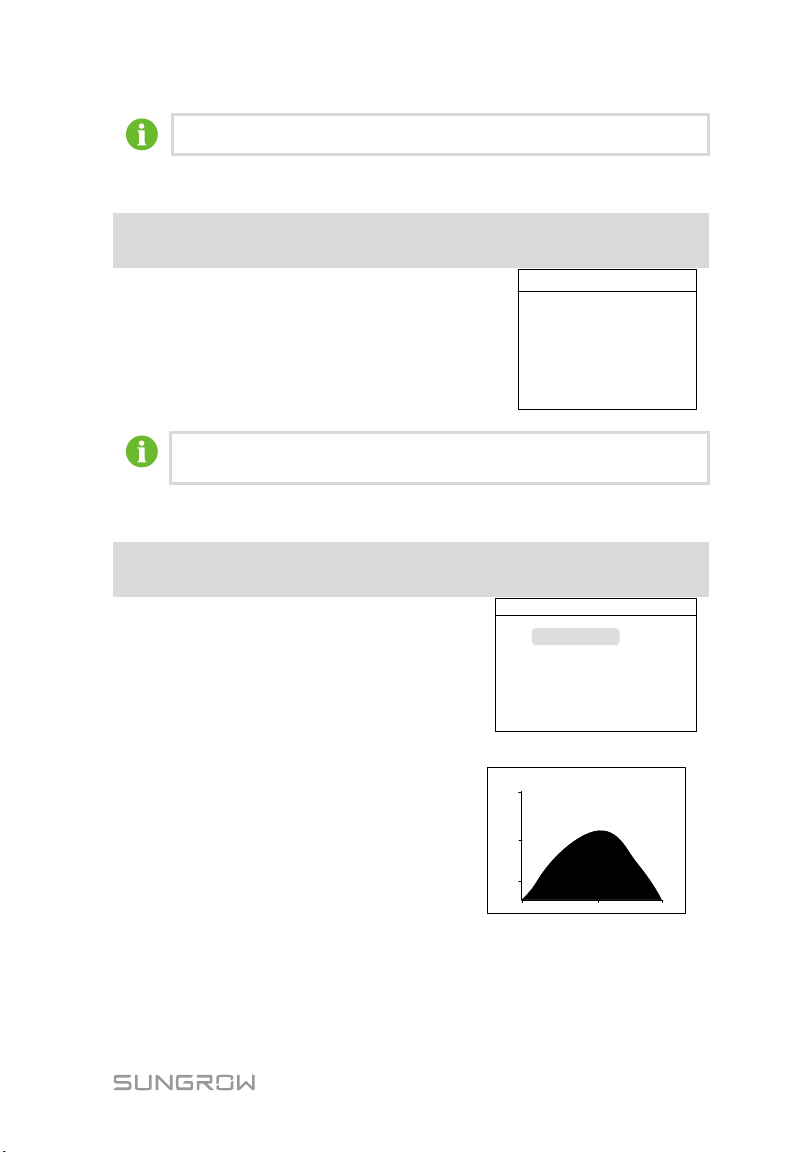

User Manual 10 Operation of LCD Display

On the “Evt-record” interface, scroll pages forwards by

Evt-record P 1/1

001 2017/01/31 10:16:10 Fault

LCD display shows the energy records. User can

, daily energy

Energy-

record

Power curve

Daily energy histogram

Monthly energy histogram

Annual energy histogram



110

P(%)

2017/01/31

Power curve

P1/2

The inverter can only store at most 100 latest fault records.

10.6.3 Checking History Event Records

Main Screen (Press ENTER)→Menu (Press , Press ENTER)→His-inform(Press ,

Press ENTER)→His-event (Press ENTER)

pressing, and press  to scroll pages backwards.

The inverter can only store at most 100 latest fault records.

10.6.4 Checking Energy Records

Main Screen (Press ENTER)→Menu (Press , Press ENTER)→His-inform(Press ,

Press ENTER)→Energy-record (Press ENTER)

view various energy records by pressing : power curve, daily energy histogram histogram, monthly energy histogram, and annual energy histogram.

Power curve: shows the power output from 5am to 11pm in a single day. Each point in the curve is the percentage of present power and nominal powe r. Press

or  to view the power curve of

the latest 7 days.

Page 80

10 Operation of LCD Display User Manual

Daily energy histogram: shows the power



view the daily energy of the latest 12

E(kWh)

800

400

160

Daily energy histogram

2017/01

P1/2

1: 0KWh



(

kWh

)

8000

Jan

Jul

Dec

24000

40000

2017

Monthly energy histogram

P01/02

1: 0KWh



(

KWh

)

400000

2015

Annual

energy

histogram

2022

2029

240000

80000

P01/

2015: 169KWh

 to choose

Confirm start inverter?

Confirm stop inverter?

Start/Stop

Start

Stop

Press ENTER to confirm.

output every day in the present month. Press  or

months.

Monthly energy histogram: shows the power output every month in a year. Press

or  to

view the monthly energy of the latest 15 years.

Annual energy histogram: shows the power output every year. Press

or  to view the

annual energy of the latest 90 years.

10.7 Starting/Stopping

Main Screen (Press ENTER)→Menu (Press ×2)→Start/Stop (Press ENTER)

Press “Start”/”Stop” and press

ENTER to confirm the choice.

Page 81

User Manual 10 Operation of LCD Display



Step 3 A password confirmation screen will occur.

Set-

param

Password:

111111

Press

to confirm the password and

Set-param

Sys-param

Run-param

Pro-param Com-param

Advanced Settings

f Auto is selected for languages, the

inverter system language will be the

Time

Energy-adj

Sys-param

Firmware version

Load default

Languages

10.8 Password Entry

Parameter setting is password-protected. To set the parameters, you should enter the correct password.

Step 1 Press ENTER to enter the Menu screen. Step 2 Press

to move the cursor to “Set-param” item and confirm by pressing

ENTER.

Press  to move cursor right and Press  to input the password 111111.

Step 4

ENTER

enter the “Set-param” sub menu.

10.9 System Parameter Setting

There are various user settable system parameters. You can set the system parameters after entering the correct password.

10.9.1 Language Setting

Main Screen (Press ENTER)→Menu (Press ×3) →Set-param (Press ENTER)→Enter

password (Press ENTER)→Sys-param (Press ENTER, Press )→Languages (Press ENTER)

language of the country selected

Page 82

10 Operation of LCD Display User Manual

Languages

Auto English Deutsch

Francaise Italia

中文

Press  to move the cursor and press  to change

Time

Date: 17/01/31

Time:

10:30

:55

YY/MM/DD

can be performed everyday through the upper

ENTER)

10.9.2 Time Setting

Time deviation between the time on the inverter and the local time of the installation site may cause data logging failure. Please adjust inverter time according to the local time.

Main Screen(Press ENTER)→Menu (Press ×3)→Set-param(Press ENTER)→Enter

password (Press ENTER)→Sys-param(Press ENTER, Press )→Time(Press ENTER)

value. Press ENTER to confirm setting.

For user with higher accuracy requirement of the inverter internal clock, time calibration computer (or other channel communicated with the device). For details, please refer to the time calibration description in the inverter communication protocol.

Please contact Sungrow if there is still time deviation after calibration.

10.9.3 Total Energy Deviation Adjustment

If the accumulative value “E-total” in the inverter is different from the value in the external metering device, you should adjust energy by “Energy-adj” setting.

Main Screen(Press ENTER)→Menu (Press ×3)→Set-param(Press ENTER)→Enter

password (Press ENTER)→ Sys-param(Press ENTER, Press ×2) →Energy-adj(Press

Page 83

User Manual 10 Operation of LCD Display

Energy-adj

+0000kWh

ENTER)

Press ENTER to confirm “load default”.

Load default

Confirm resume setting?

version(Press ENTER)

Press  to move the cursor and press  to change value. Press ENTER to confirm setting. The positive symbol “+” can be changed to the negative symbol “-”. The adjustment range is from -9999 to +9999 kWh. (Energy-adj value)= (Real measured value) - (E-tot reading value).

10.9.4 Load Default

All history information will be unrecoverable cleared and all parameters will return to the default value except the protective parameters and time once the “load default” operation is performed.

Main Screen (Press ENTER)→Menu (Press ×3)→Set-param(Press ENTER)→Enter

password (Press ENTER)→Sys-param(Press ENTER, Press ×3)→Load default (Press

10.9.5 Checking Firmware Version

Main Screen (Press ENTER)→Menu (Press  ×3)→Set-param(Press ENTER)→Enter

password (Press ENTER) → Sys-param(Press ENTER, Press ×4) → Firmware

Page 84

10 Operation of LCD Display User Manual

Inverter shows detailed firmware information,

DSP_SG80KTL_

V11

_V1

_A_M

Ver:

Device Type

: SG80KTL

SN: A

1405170001

Firmware version

LCD_SG80KTL_

V03_A

to enter the setting



Run-param

P-Q param

Time param

Derating param

Iso param

LVRT param

User can only check the running parameter in this interface. The default values of the

password.

Inverter active power limitation

et the active power

the raise and decline

When Rate limit is ON, set the active power rise rate.

When Rate limit is ON, set the active power decline rate.

including LCD version and DSP version. The firmware version information is read only.

10.10 Running Parameter Setting

10.10.1 Main Screen of Run-param

Main Screen (Press ENTER)→Menu (Press  ×3)→Set-param (Press ENTER)→Enter

password (Press ENTER, Press )→Run-param (Press ENTER)

On the “Run-param” screen, press  to select one item and press ENTER interface. For each item, Press  to move the cursor and

to set the appropriate value.

Press

Confirm settings by Pressing ENTER.

running parameters have been preset as per grid code of corresponding countries. To set the running parameter, please contact Sungrow to acquire advanced

Tab. 10-4 Description of Running Parameters

Parameter Description Default Range

P-W limits

S change rate. When it is

Rate limit

P-Q param

set to [ON], user can set

rate.

Power raise

Power Decline

100.0% 0~100%

[OFF]

[OFF]/ [ON]

100%/min 8~100%/min

6000%/min 8~6000%/min

Page 85

User Manual 10 Operation of LCD Display

Parameter

Description

Default

Range

Set the power rise rate when a fault is

hen it is

ON, the active power

Set the active power raise rate.

100%/ min

Whether to save the active power setting

Save Q-Var setting

Whether to save the reactive power setting

[Pt]/[Qt]/ [Off] / [Q(P)] / [Q(U)]

Set the reactive power regulation function

Inverter output power factor

-1.000~-0.800/ +0.800~+1.000

Inverter reactive power

0~+100%/

Time from inverter standby to startup

Time from inverter fault is removed to standby

30s [IT: 300s]

Set the Derating param

inverter will operate with power derating when grid frequency exceeds the set value.

Set the ISO protection

set value.

Set the resistance to the ground.

Set the LVRT to OFF or

hen it is ON,

inverter can keep

connection for a

fault occurs and

for grid recovery.

Fault slowup

Slowup rate

Save P-W Setting

Q-Var witch

Q-Var limits

Time param

Standby time

Recover time

Derating param

Iso

ISO

param

removed. W

raise rate can be set.

limitation

to OFF or ON. If it is ON,

function to ON or OFF. When it is ON, inverter will not connect to the grid when resistance to the ground is below the

[ON] [OFF]/ [ON]

8~100%/min

[OFF] [OFF]/ [ON]

[ON]

[OFF] [OFF]/ [ON]

+1.000

0.0% 0~-100%

20s 20~255s

0-900s

[OFF] [OFF]/ [ON]

[ON] [OFF]/ [ON]

ISO pro value

LVRT param

30KΩ 20~3000KΩ

ON. W

gridcertain time when grid

- [OFF]/ [ON]

provide reactive power

Page 86

10 Operation of LCD Display User Manual

ENTER)

P-Q Param

Rate limit [ON/OFF]

P-W limits 100.0%

Power raise 100%/min Power decline 6000%/min Fault slowup [ON/OFF]

Slowup rate 10%/min

P-Q param

Q-Var limits +100.0%

Q-Var switch [OFF]

RF +1.000

Regulation Mode

The reactive power can be regulated by the parameter PF (Power Factor).

The reactive power can be regulated by the parameter Q-Var limits (in %).

The PF is limited to +1.000, and the “Q-Var limits” is limited to

0.0%.

Q(P)

The PF changes with the output power of the inverter.

Q(U)

The reactive power changes with the grid voltage.

“Pf”

“Qt”

“

10.10.2 Active/Reactive Power Parameters

Main Screen (Press ENTER)→Menu (Press  ×3)→Set-param (Press ENTER)→Enter

password (Press ENTER, Press )→Run-param (Press ENTER) →P-Q Param (Press

10.10.3 Reactive Power Regulation

Inverter provides reactive power regulation function. Use the “Q-Var s w it ch” parameter to activate this function and select proper regulation mode.

Tab. 10-5 Explanation of reactive power regulation switch

Explanation

Off

Mode

The reactive power can be regulated by the parameter PF on the Run-param screen.

Mode

The reactive power can be regulated by the parameter Q-Var limits (in %) on the Run-param screen.

Off” Mode

Reactive power cannot be regulated. The PF is limited to +1.000, and the Q-Var limit is limited to 0.0%.

Page 87

User Manual 10 Operation of LCD Display

“

PF changes with the inverter output power.

(Italy), after

to enter the



. Confirm

settings by Press ENTER.

Run-param- Q( P)

Upper PF Cap 1. 000

Lower Power 050.0 %

Lower PF Ind 0. 900

Upper Power 100.0 %

Parameter

Explanation

Default

Range

Upper PF Cap

Power factor of point P1 in the Q(P) mode curve

Lower Power*

Output power of point P1 in the Q(P) mode curve (in %)

Power factor of point P2 in the Q(P) mode curve

Upper Power*

Output power of point P2 in the Q(P) mode curve (in %)

COS

Lower PF

Ind

Lower Power

Power

P/Pn

Upper Power

Upper PF

Cap

Capacitive

Inductive

COS Ф

Lower PF Ind

=0.9

Power

P/Pn

Upper Power

=100

Upper PF

Cap =1

General Q(

P) curve Default Q(

P) curve

Lower Power

50%

Q(P)” Mode(when the country selection is not “IT”)

If the country selection is not “IT” selecting Q(P) Mode, Press Run-param-Q(P) submenu. For each item setting, Press  to move cursor and

Press

to set the appropriate value

Tab. 10-6 “Q(P)” Mode Parameters Explanation

1 0.9~1

50% 0%~50%

Lower PF Ind

* Lower Power < Upper Power

Fig. 10-3 Reactive Power Regulation Curve in Q(P) Mode

0.9 0.9~1

100% 50%~100%

Page 88

10 Operation of LCD Display User Manual

The reactive power ratio changes with the grid



Run-param-Q(U)

U1 Limit 095.0%

U2 Limit 105.0%

Hysteresis 3.0%

Run-param-Q(U)

Lower Q/Sn Ind 050.0%

Upper Q/Sn Cap 050.0%

Lower U Limit 095.0%

Upper U Limit 115.0%

Parameter

Explanation

Default

Range

Lower Q/Sn Ind

Inductive Q/Sn value of point P4 in the Q(U) mode curve

Upper Q/Sn Cap

Capacitive Q/Sn value of point P1 in the Q(U) mode curve

Grid voltage limit (in %) of point P1 in the Q(U) mode curve

Grid voltage limit (in %) of point P4 in the Q(U) mode curve

Grid voltage limit (in %) of point P2 in the Q(U) mode curve

Grid voltage limit (in %) of point P3 in the Q(U) mode curve

Hysteresis*

Hysteresis voltage width (in %)

0%~5%

Upper

Q/Sn Ind

Lower

Q/Sn Cap

Hysteresis

U1 Limit

U2 Limit

Lower U limit

Upper U limit

Grid

voltage

/Sn

“Q(U)” Mode(when the country selection is not “IT”)

voltage.

If the country selection is not “IT” (Italy), after selecting Q(U) mode, Press

to enter the Run-param-Q(U)

submenu. For each item setting, Press  to move cursor and Press

to set the appropriate value.

Confirm settings by Pressing ENTER.

Tab. 10-7 “Q(U)” Mode Parameters Explanation

25% 0%~50%

Lower U Limit

Upper U Limit

U1 Limit*

U2 Limit*

* U1 Limit + Hysteresis < U2 Limit - Hysteresis

Fig. 10-4 Reactive Power Regulation Curve in Q(U) Mode

80% 80%~100%

115% 110%~120%

95% 90%~110%

105% 100%~110%

Page 89

User Manual 10 Operation of LCD Display

Power factor changes with the output power of the

editing mode, then the selected parameter will be

editing mode.

Run-param-Q(P) P3/3

Pf max 0.900

PA 020.0% PB 050.0% PC 100.0%

Uin 105.0%

Uout 100.0%

Parameter

Explanation

Default

Range

Step

Active power at point A (in %)

Active power at point B (in %)

Active power at point C (in %) Pf max

Power factor at point C

0.9

0.9~1

0.01

Enter Q(P) regulation mode when grid voltage is above Uin

Exit from the Q(P) regulation mode when grid voltage is below Uout

10.10.4 Reactive Power Setting for Italy

If the “Countries” selected is “IT” (Italy), several LCD menus and operation methods are different from other countries.

The differences focus on “Run-param” as shown below.

Italy “Q(P)” Mode

inverter.

Select Q(P) mode and Press  to enter into the “Run-para-Q(P)” sub-menu.

Press  to move the cursor; Press  to enter the

shaded.

Press  to increase one-step value; Press  to

decrease one-step value.

Press ENTER to confirm the setting and exit from the

Tab. 10-8 Italy “Q(P)” Mode Parameters Explanation

PA*

PB*

PC*

Uin**

Uout**

*PA < PB≤ PC ** Uin＞Uout

20% 20~100% 1%

50% 20~100% 1%

100% 20~100% 1%

105% 100~110% 1%

100% 90~100% 1%

Page 90

10 Operation of LCD Display User Manual

Inductive

Capacitive

Default Curve

Deviation

No Regulation

cosg

= ±

0,98

Depends on

the capacity of the inverter.

The reactive power ratio changes with the grid

to enter the

editing mode, then the selected parameter will be

Run-

param-Q (U) P 3/ 4

Qmax 100.0 %

V2 i 090.0 % V

1i 092. 0% V1 s 108.0 % V2 s 110.0 %

Pin 020.0 %

Run-param- Q(U ) P4 /4

Curve 　　 [A ]

Pout 009.0 %

Para meter

V2i*

Grid voltage at point D (in %)

90%

90~110%

V1i*

Grid voltage at point C (in %)

92%

90~110%

V2s*

Grid voltage at point A (in %)

108%

90~110%

V1s*

Grid voltage at point B (in %)

110%

90~110%

Qmax

The max. ratio of reactive power (in %)

90%

50~100%

Enter the Q(U) regulation mode when power is above Pin

Exit from the Q(U) regulation mode when power is below Pout

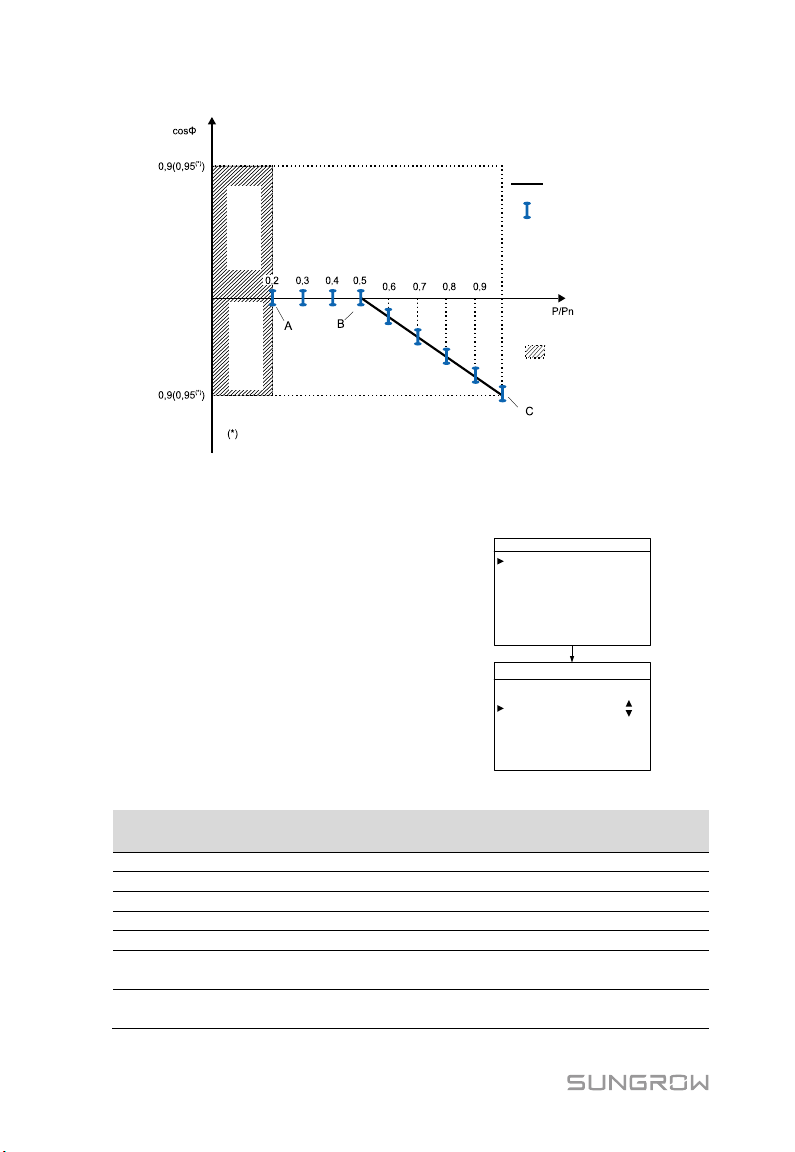

Fig. 10-5 Reactive Power Regulation Curve in “IT” Q(P) Mode

Italy “Q(U)” Mode

voltage. Select Q(U) mode and Press  “Run-para-Q(U)” sub-menu.

Press  to move the cursor; Press  to enter the

shaded.

Press  to increase one-step value; Press  to

decrease one-step value.

Press ENTER to confirm the setting and exit from

the editing mode.

Tab. 10-9 Italy “Q(U)” Mode Parameters Explanation

Explanation Default Range Step

Pin**

Pout**

20% 20~100% 1%

9% 1~20% 1%

Page 91

User Manual 10 Operation of LCD Display

Para meter

Curve

Curve type

A/B

A: Default

Capacitive

Inductive

Capacitive

Inductive

Save P-

W setting [

ON/OFF]

Save Q-Var setting [

ON/OFF

]

-Q param

Explanation Default Range Step

*V2i < V1i < V1s < V2s**Pin > Pout

Fig. 10-6 Reference Reactive Power Regulation Curve in “IT” Q(U) Mode

10.10.5 Save P/Q-set

On the “Save P/Q-set” screen, Press  to move arrow to one item, Press  to move cursor and Press  to set. Confirm by Pressing ENTER. Select “ON” to save the values set after power down. Select “OFF” to restore default values ater power down.

10.10.6 Time Parameters

Main Screen (Press ENTER )→Menu (Press  ×3)→Set-param(Press ENTER)→

Enter password (Press ENTER, Press )→Run-param (Press ENTER, Press )→ Time-param (Press ENTER)

Page 92

10 Operation of LCD Display User Manual

Time-param

Standby time 020s

Recovery time 000s

Derating param

Fre-Derating [

ON/OFF

]

P1 100%

2 50.20Hz

P2 100%

F3 52.00

P3 100

F1 50.

00Hz

ISO param

ISO pro value 30kΩ

ISO [ON/

OFF]

10.10.7 Derating Parameters

Main Screen (Press ENTER )→Menu (Press  ×3)→Set-param(Press ENTER)→

Enter password (Press ENTER, Press )→Run-param (Press ENTER, Press ×3)→ Derating param (Press ENTER)

10.10.8 ISO Parameters

Main Screen (Press ENTER )→Menu (Press  ×3)→Set-param(Press ENTER)→

Enter password (Press ENTER, Press )→Run-param (Press ENTER, Press ×4)→ ISO param (Press ENTER)

10.10.9 LVRT Parameter

Main Screen (Press ENTER )→Menu (Press  ×3)→Set-param(Press ENTER)→

Enter password (Press ENTER, Press )→Run-param (Press ENTER, Press ×2)→

Page 93

User Manual 10 Operation of LCD Display

LVRT param (Press ENTER)

LVRT param

LVRT kf

LVRT [ON/OFF]

LVRT normal volt 195.5V

LVRT T1 300.00S

LVRT tolera volt

34.5

LVRT T2 0.62S

To make the protection parameters setting convenient,

f the country selected is not in the list, please choose

Other and then input the protection parameters

Countries

DE FR IT

Other

TH TK US

Country Code

Country

Language

Great Britain

English

Germany

German

France

French

Italy

Italian

Spain

English

Austria

German

Australia

English

User can only check the parameter in this interface. The default values of the

password.

10.11 Protection Parameter Setting

Protection parameters are designed for the threshold value that can trigger the protection function of the inverter.

Main Screen (Press ENTER)→Menu (Press  ×3)→Set-param (Press ENTER)→Enter

password (Press ENTER, Press ×2)→Pro-param (Press ENTER)

Press  to move cursor and Press  to input the password.

protection parameters have been preset as per grid code of corresponding countries. To set the protection parameter, please contact Sungrow to acquire advanced

10.11.1 Country Setting

inverter provides in-built protection parameters for certain countries. Press  to choose countries and press ENTER to confirm. I

manually.

Tab. 10-10 Country code description

Page 94

10 Operation of LCD Display User Manual

Country Code

Country

Language

Czech

English

Belgium

French

Denmark

English

Greece

English

Netherlands

English

Portugal

English

China

Chinese

Sweden

English

Romania

English

Thailand

English

Turkey

English

United States

English

Other

Country not mentioned above

English



Grid codes

GR_L

GR_IS

Grid codes

380V

400V

Grid codes

50Hz

60Hz

Other

If country selected is not the five countries

 to choose

Pro-Stage

Single-

stage

Multi-stage

When the country selected is TH, TK, DE, GR or Other, the grid code specific to them will appear on the LCD display as shown below. Press

to choose grid code and

press ENTER to confirm.

mentioned above, you need not to choose grid code. The Pro-Stage interface will appear. You may choose Single-stage or Multi-stage. Press single-stage or Multi-stage and press ENTER to confirm.

Page 95

User Manual 10 Operation of LCD Display



Pro-param Single

Vgrid-

max

478.

Vgrid-

min

318

Fgrid

max

51.

Fgrid

-min

49.

80Hz

The following interfaces will appear if



. Confirm settings

Pro-param MultiPro-param Multi

Pro-param Multi

I-Max-V.time 000.00s

I-Max-V.grid 000.0V

II-Max-V.time 000.00s

II-Max-V.grid 000.0V

I-Min-V.time 000.00s

I-Min-V.grid 000.0V

II-Min-V.time 000.00s

II-Min-V.grid 000.0V

I-Max-F.time 000.00s

I-Max-F.grid 00.00Hz

II-Max-F.time 000.00s

II-Max-F.grid 00.00Hz

I-Min-F.time 000.00s

I-Min-F.grid 00.00Hz

II-Min-F.time 000.00s

II-Min-F.grid 00.00Hz

Parameter

Explanation

Max-V. prot

Over-voltage protection

Min-V. prot

Under-voltage protection

Max-F. prot

10.11.2 Single-stage Protection Parameter Setting

The following interfaces will appear if Single-stage is selected.

Press  to select parameter, Press  to move

cursor and Press

to set the appropriate value.

Confirm settings by Pressing ENTER.

10.11.3 Multi-stage Protection Parameter Setting

Multi-stage is selected.

Press  to select parameter, Press 

to move cursor and Press appropriate value by Pressing ENTER.

Tab. 10-11 Multi-stage Protection Parameters Explanation

to set the

Ⅰ-Max-V. grid Stage Ⅰ Grid over-voltage (U>)

Ⅰ-Max-V. time Stage Ⅰ Grid over-voltage (U>) tripping time

Ⅱ-Max-V. grid Stage Ⅱ Grid over-voltage (U>>)

Ⅱ-Max-V. time Stage Ⅱ Grid over-voltage (U>>) tripping time

Ⅰ-Min-V. grid Stage Ⅰ Grid under-voltage (U<)

Ⅰ-Min -V. time Stage Ⅰ Grid under-voltage (U<) tripping time

Ⅱ-Min -V. grid Stage Ⅱ Grid under–voltage (U<<)

Ⅱ-Min -V. time Stage Ⅱ Grid under–voltage (U<<) tripping time

Ⅰ-Max-F. grid Stage Ⅰ Grid over-frequency (f>)

Ⅰ-Max-F. time Stage Ⅰ Grid over-frequency (f>) tripping time

Ⅱ-Max-F. grid Stage Ⅱ Grid over-frequency (f>>)

Ⅱ-Max-F. time Stage Ⅱ Grid over-frequency (f>>) tripping time

Over-frequency protection

Page 96

10 Operation of LCD Display User Manual

Parameter

Explanation

Min-F. prot

After setting the protection parameters, inverter

max-recover

.10

min-

recover

49.

50Hz

Vmax-recover 415

in-recover 381.0V

Pro

-recover

Parameter

Explanation

Vmax-recover

Max. protection recovery voltage

Vmin-recover

Min. protection recovery voltage

Fmax-recover

Max. protection recovery frequency

Fmin-recover

Min. protection recovery frequency

Setting confirmation

Countries Other Pro-stage Single-stage

Grid codes MV Date 2017/01/31

Confirm above settings?

Under-frequency protection

Ⅰ-Min-F. grid Stage ⅠGrid under-frequency (f<)

Ⅰ-Min -F. time Stage Ⅰ Grid under-frequency (f<) tripping time

Ⅱ-Min -F. grid Stage Ⅱ Grid under-frequency (f<<)

Ⅱ-Min -F. time Stage Ⅱ Grid under-frequency (f<<) tripping time

10.11.4 Protection Recovery Setting

enters protection recovery interface.

Tab. 10-12 Description of protection recovery parameters

10.11.5 Protection Parameter Confirmation

The setting confirmation interface will appear once the protection parameters are input. Press

ENTER to confirm the parameter selection and

press ESC to reset the protection parameters.

10.12 Communication Parameter Setting

Main Screen (Press ENTER)→Menu (Press  ×3)→Set-param (Press ENTER)→Enter

password (Press ENTER, Press ×3)→Com-param (Press ENTER)

Page 97

User Manual 10 Operation of LCD Display

Press  to move cursor and press  to set the

Com-param

Modbus param

Uart param

Device address range: 1-247.

Addr 001

Modbus param

Baud rate can be set to 9600bps or 19200bps.

Baud [9600]

Parity [ NO ]

Stop bit [1]

Uart param

A password confirmation screen will occur. Press  to

Password:

000000

Set-param

User can only check the parameter in this inter face. The default values of the

password.

appropriate value. Confirm settings by Pressing ENTER.

Parity can be set to NO, ODD or EVEN. Stop bit can be set to 1b or 2b.

10.13 Advanced Parameters Setting

The inverter provides a variety of advanced protection features.

Main Screen(Press ENTER )→Menu (Press  ×3)→Set-param (Press ENTER)→Enter

password (Press ENTER, Press ×4)→Advanced settings(Press ENTER)

advanced parameters have been preset as per grid code of corresponding countries. To set the advanced parameters , please contact Sungrow to acquire advanced

10.13.1 PVS Detect Settings

Main Screen(Press ENTER )→Menu (Press  ×3)→Set-param (Press ENTER)→Enter

password (Press ENTER, Press ×4)→Advanced settings(Press ENTER)→PVS Detect

move cursor right and Press  to input the password

111111.

Page 98

10 Operation of LCD Display User Manual

PVS Detect represents the PV strings current abnormal

dvanced settings

PVS Detect

10min Max-

Grid Unbalance

Press  to select PVS Detect function settings. Press

PVS Detect

OFF

Reset

Set-param



Advanced settings

Password:

000000

Advanced settings

PVS Detect

10min Max-v

Grid Unbalance

10min Max-V

Pro-value 000.0V

Rec-value 000.0V

10min Max-v [ON/OFF]

When the PV inputs are changed, the corresponding “fault” state will be shown on

input strings number.

conditions detection. Press ENTER to confirm.

ENTER to confirm the selection.

the main screen. You can perform the PVS Detect Reset function to re-detect the PV

10.13.2 10min Max-V

Main Screen(Press ENTER)→Menu (Press ×3)→Set-param (Press ENTER)→Enter

password (Press ENTER, Press ×4)→Advanced settings(Press ENTER, Press )→ 10min Max-V

A password confirmation screen will occur. Press

to move cursor right and Press  to input the

password 111111.

Press ENTER to confirm.

Press  to select 10min Max-V function settings,

set the over-voltage protection point in 10min.

Press ENTER to confirm the selection.

Page 99

User Manual 10 Operation of LCD Display

rid voltage

Grid Unbalance

Amplitude

Pro-time

10%

05.00S

Grid Unbalance [ON/OFF]

10.13.3 Grid Unbalance

Main Screen(Press ENTER)→Menu (Press ×3)→Set-param (Press ENTER)→Enter

password (Press ENTER, Press ×4)→Advanced settings(Press ENTER, Press ×2)→ Grid Unbalance

Press  to select and set the g unbalance protection point. Confirm the selection by Pressing ENTER.

Page 100

Parameters

SG80KTL

Input Side Data

Connection to 400Vac grid

Max. PV input voltage

1100V

Startup voltage

620V

MPP voltage range

570 - 950V

MPP voltage range for No. of MPPT(s)

Max. number of PV strings per MPPT

Max. PV input current

144A

Max. input current for input connector

Short-circuit current of PV input

Max. inverter backfeed current to the array

Output Side Data

Nominal AC output power

80000W

Max. AC output apparent power

Max. AC output power

80000W

Max. AC output current

116A

Nominal AC voltage

3P/PE, 230 / 400V

AC voltage range

310 - 480Vac

AC connected Inrush current(Peak/Duration)

Maximum output fault current

102A

Maximum output overcurrent protection

Nominal grid frequency

50Hz/60Hz

Grid frequency range

45 - 55Hz/ 55 - 65Hz

THD

DC current injection

>0.99 default value at nominal power (adj. 0.8 overexcited...0.8 underexcited)

11 Appendix

11.1 Technical Data

nominal power

Power factor

570 - 850V

12A

200A

80000VA

70A/0.05ms

280A

< 3% (at nominal power)

<0.5%In

Sungrow SG80KTL User Manual

About This Manual

Related Documents

Target Group

How to Use This Manual

Symbols Explanation

Symbols on the Inverter Body

1 Safety Instructions

Before Installation

During Installation

During Electrical

During Inverter Operation

Maintenance and Service

Others

2 Product Description

2.1 Intended Usage

2.2 Product Introduction

2.2.1 Appearance

2.2.2 Dimensions

2.2.3 LCD Display

2.2.4 DC Switch

2.3 Technical Description

2.3.1 Circuit Diagram

2.3.2 Function Description

2.3.3 Derating

Power Limit Setting

Over-temperature Derating

Grid Under-voltage Derating

3 Installation Flow

4 Unpacking and Storage

4.1 Unpacking and Inspection

4.2 Identifying Inverter

4.3 Scope of Delivery

4.4 Inverter Storage

5 Mechanical Installation

5.1 Installation Site Selection

5.2 Moving Inverter to Installation Site

5.3 Installing the Inverter

5.3.1 Installing to Metal Frame

5.3.2 Installing to Concrete Wall

Step 4 Drill holes according to the marks make before.

Step 9 Fit the inverter to the backplate, refer to step 6.

6 Electrical Connection

6.1 Terminal Description

6.2 AC Side Cable Connection

6.2.1 AC side requirements

AC Circuit Breaker

Residual Current Device

Multiple Inverters in parallel Connection

Medium-voltage Transformers

6.2.2 Grid Connection

AC Cable Requirements

Connecting Inverter to Grid

Step 3 Peal the cables as shown below.

6.3 PV Array Connection

6.3.1 PV Input Configuration

6.3.2 PV Input Connection

DC Cable Requirements

DC Cable Connection

Step 11Seal the unused DC terminals with waterproof plugs.

6.4 Grounding the Inverter

6.4.1 Grounding System Overview

6.4.2 Second Protective Earth Terminal

Position of Second PE Terminals

Cable Connection

6.5 Communication Connection

6.5.1 Communication Overview

6.5.2 RS485 Communication System

For Single Inverter

For Multiple Inverters

6.5.3 RS485 Communication Connection

RS485A/B Bus Connection

6.6 Configurable Dry Contact

7 Commissioning

7.1 Inspection before Commissioning

Ambient Environment

1. Inverter is accessible for operation, maintenance and service.

2. Check again to confirm that the inverter is firmly installed onto the wall.

3. Well ventilation.

4. Leave nothing on top of the inverter.
