Page 1
OPERATION MANUAL
FOR ELECTRIC JACK
Please read this manual carefully before operation.
OPERATION MANUAL FOR ELECTRIC JACK
Page 2
A. TECHNICAL D ATA
1. The elect ric jack is used for a car whose to tal w e igh t is belo w 2,000 Kg s.
2. Inser t the plug of the elect ric jack into the car lighter jack. Voltage is DC 13.5V ±1V.
3. Ma x imum electric current is 10A , (by a 10A fuse).
4. Jacking height is 22 cm, ranging from 12 cm to 35 cm.
5. The w eight of the electric jack is 4.10 Kgs.
6. Rated loading w eight is 800Kgs, with a maximum of 1000Kgs.

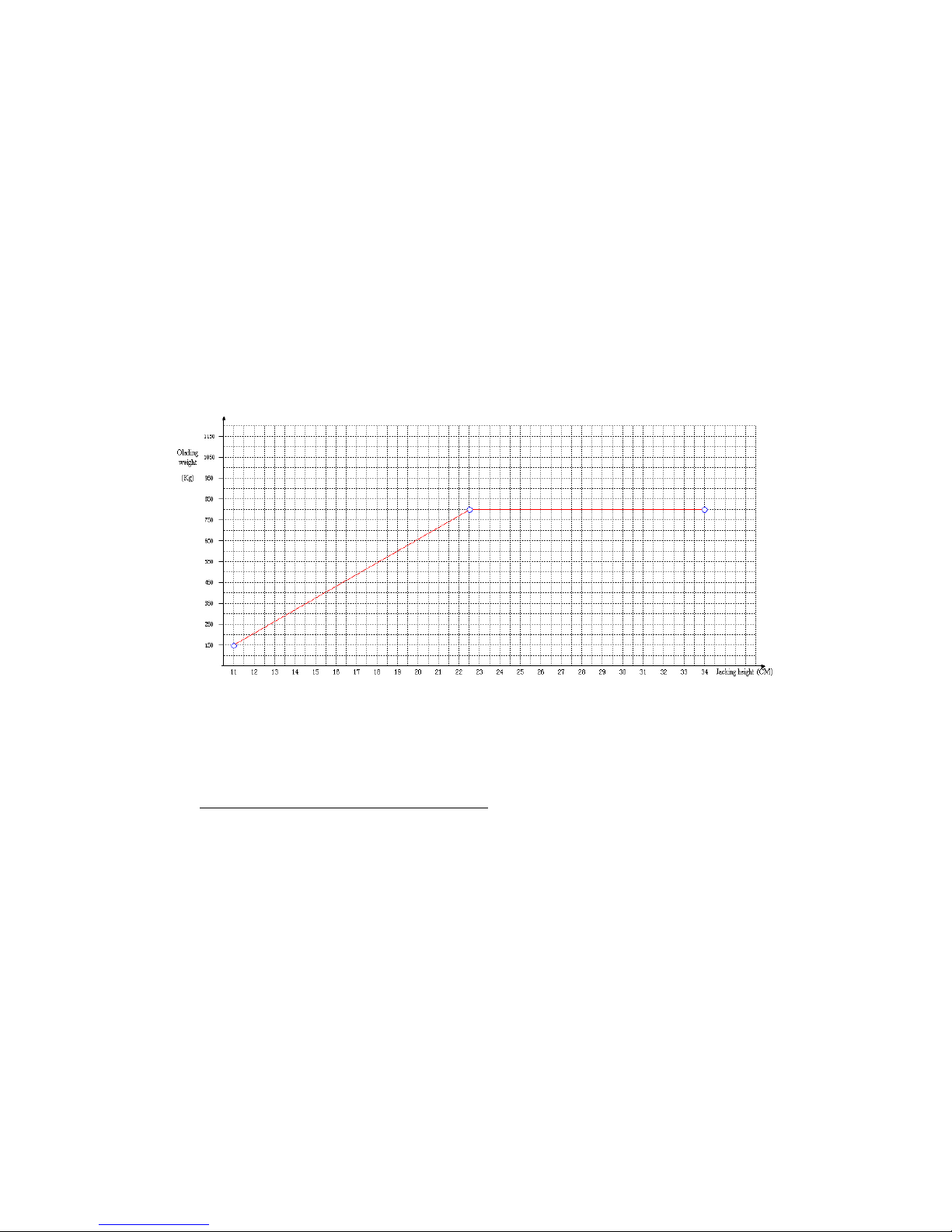

7. Please see the belo w graph for the w eight loaded by t he electric jack.
Graph for the weight
B. OPERATION INSTRUCTIONS
1. Park the car on smooth and solid ground.
2. Inser t the plug of the elect ric jack into the car lighter jack.
3. Start the engine of the Car --- Very impor tan t .
4. The saddle of the elect ric jack should be placed against the right bottom of the car and
the electr ic jack should be put on smooth and solid ground.
5. Press “UP” on the s witchboard and confirm that the saddle is connected wi th the righ t
bot t om posi t ion of the car. Press “ UP” continuousl y till the car is jacked to an ideal height.
6. Press “DO W N” on the sw i t chboard to lo wer the car completely after repairing.
7. Press “DO WN” on the s wi tchboard to adjust the position of the electric jack when the
saddle is not touched on the right bot t om position of the car.
WARNING:
Do not move the car while the electric jack is working.
The follo w ing point s are important for y our safet y:
Page 3
1. Please read the “OPERATION MANUAL FOR ELECTRIC JACK” carefull y and understand all
the instructions before operation.
2. Overloading operation is forbidden.
3. The elect ric jack is placed only on smooth and solid ground.
4. Keep your body a w a y from the car while the elect ric jack is w orking.
TROUBLE ANA LYSIS
Trouble
Causes
Measures
A. Overloaded
A. Reduce the weight
B. No elec t rici t y in the lighte r.
B. Check it or inser t The plug
correc tly.
The elect ric jack doe s not
w ork Or the car cannot be
jacked up.
C. Fuse is broken.
C. change a good fuse.
Additional Emergency Function, when the j ack can NOT get down because the fuse is broken, and no new fuse
ava il ab le at hand, You can use the small wrench in the box and follow the underneath instructions to lower the car
to the ground, Easily!
Step 1
Step 2
Step 3
