Page 1
40 WATT CRYSTALLINE
User’s Manual
SOLAR PANEL KIT WITH STAND
Page 2
Congratulations on your Coleman® solar product purchase. This product is designed to the highest technical
What’s included: Wire connected to solar panel 6.7 ft. (2.04 m), extension wire 8 ft. (2.4 m), Battery Clamps,
Voltage tester with Quick Connect, 7 Amp Solar Charge Controller with Quick Connect Technology
Power Rating
: Maximum rating 40 Watts (under ideal condition s )
Current
: 2.3 A@ 17.1V
FEATURES:
• High efficiency crystalline solar cells
• Qu
ickly connects and disconnects to the battery
• Overcharge and Discharge protected
• Weatherproof design
• Included foldable stand
• Conveniently comes with extension cable
• Maintenance free, lightweight compact design
OPERATING INSTRUCTIONS
For optimal power, ensure the panel is directly facing the sunlight.
WARNING:
• Follow the below instructions carefully to not cause any bodily harm
• Correct polarity must be observed for product to function properly and safely
• Risk of fire, electric shock, and injury to persons if operating instructions are not followed
• Any misuse or tampering of the product and/or any included accessories will void warranty and may caus
e
bodily harm
• Fo
llow all safety instructions provided by the battery manufacturer when handling 12V batteries. Always wear
safety glasses. Keep sparks, flames and cigarettes away from batteries at all times.
SOLAR PANEL STAND:
On the rear of the panel, simply pull out integrated stand. Extend stand to maximum for securing panel.
For additional stability, add weights to bottom of stand (this step is optional).
CONNECTION SETUP: follow in the following order
1. Solar panel connects to the Quick-Connect extension cord
2. Quick Connect extension connects to the Solar Charge Controller at the ‘SOLAR’ input
3. The Solar Charge Controller connects via the ‘BATTERY’ output to your 12v battery (not included), use the
included ‘alligator clamps’ for this connectio n . (Red- to the positive terminal, Black to the negative terminal)
(See illustration on next page)

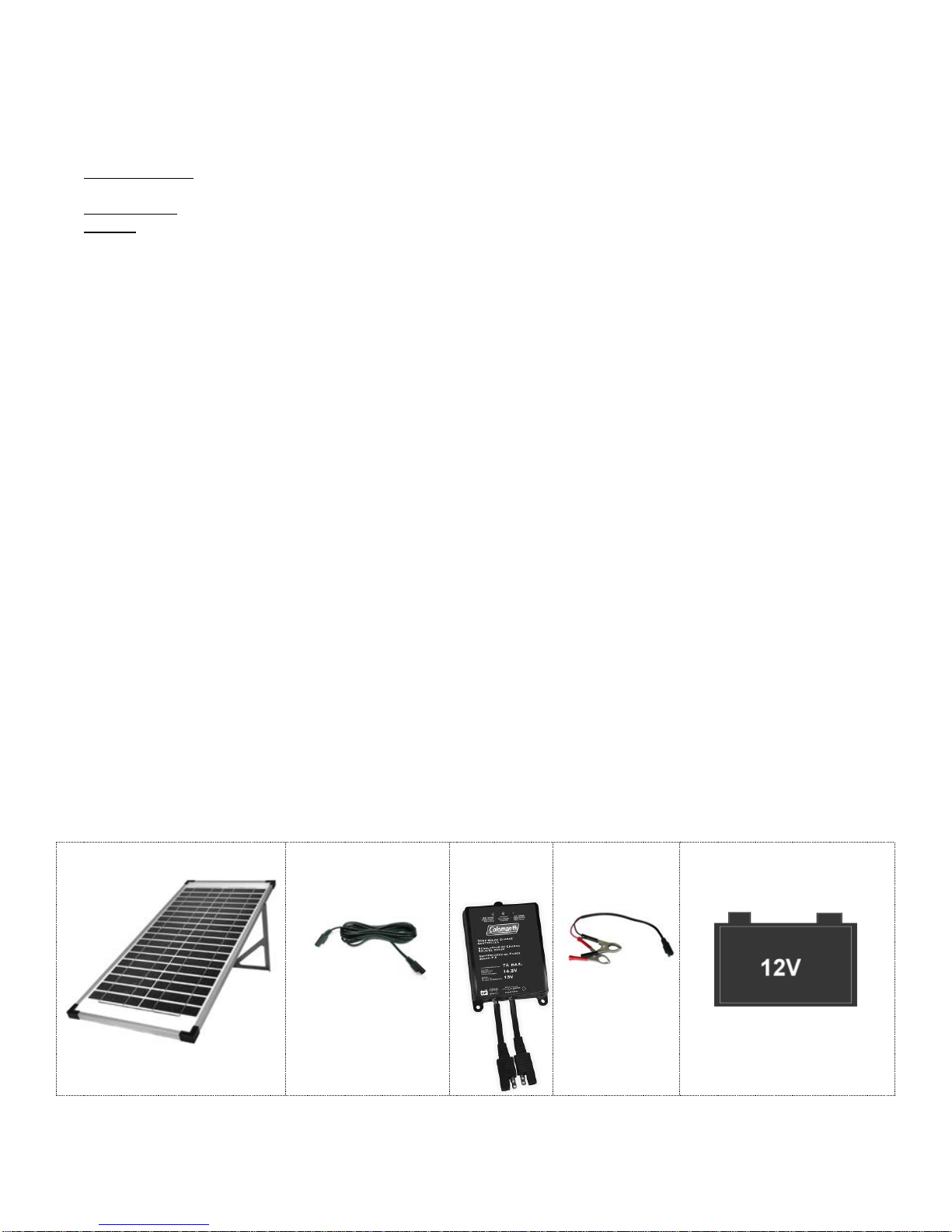

Typical Connection Setup
Solar Panel
Extension wire
Charge
Controller
Battery Clamps
12V Battery (not
included)
specifications and standards. It will supply years of maintenance free use. Please read these instructions
thoroughly prior to installation, then store in a safe place for future reference.
Page 3
Your Solar Charge Controller:
Your 7 Amp Solar Charge Controller has 3 LEDs
• GREEN (Charged)
• YELLOW (Charging)
• RE
D (Low input voltage)
Th
e input wattage of this solar charge controller cannot exceed 105 Watts or 7 Amps
FAQ:
1. What type of batteries can my Solar Panel charge?
A. Any rechargeable 12V battery such as those commonly found in ones used in cars, boats and RVs.
2. Can I overcharge my battery?
A. No, the included Solar Charge Controller regulates against any overcharge
3
. Why does my battery not appear to be charging?
A.
It is common to have issues with 12V batteries, check their voltage regularly. Some batteries may not reach the
charge controllers designated ‘FULL’ status. This is normal, as there are many different battery technologies.
Battery use and condition can also affect this behaviour.
