Sunco Electronic V20 User Manual

Warning

1.Keep it safe from falling and dropping.

2.Keep it distance from any strong magnetic interference objects like electrical
machine to avoid strong radio waves that might be damaging the product and
affect the sound or image quality.

3.Don’t expose the product directly to high temperatures and strong sunlight.

4.We recommend using high quality Micro SD Card for the best results.

5.Don’t place your Micro SD card near strong magnetic objects to avoid data error.

6.In case of overheating, unwanted smoke or unpleasant smell from the device,
unplug it immediately from the power outlet to prevent hazardous fire.

7.Keep it safety from children while on charging.

8.Stored the device in a cool, dry and dust free location.

1

Camera introduce：

1. Insert the card

Lens

Speaker

LCD display

wifi/up

down

Micro USB port

WIFI Indicator
ON/OFF/Mode Switch
OK

Sound hole
MicroSD card port

HDMI port
Screw thread hole
Battery cover

2

Operation instruction

Firstly ,insert a Micro SD card .as followings:

Notice : Pls turn off the camera when plug in /take out card
Support Class6 or above TF card, suggest Cass 10 or above high speed card
for professional recording. Please choose branded micro SD Card and format
it before using.

3

2. Plug in and take out the battery

Slide down the battery cover could open it.
According to the P/N sign and arrow direction , install the battery into camera
correctly.

3.Battery charging

Support PC USB , standard USB charger and car charger for charging.

4. Turn on/off

Turn on: Long press 3 seconds Mode key ,camera turn on.
Turn off: Long press 3 seconds Mode key , camera turn off.

4

WIFI Indicator

ON/OFF/Mode(Charge Indicator)

OK(Video Indicator)

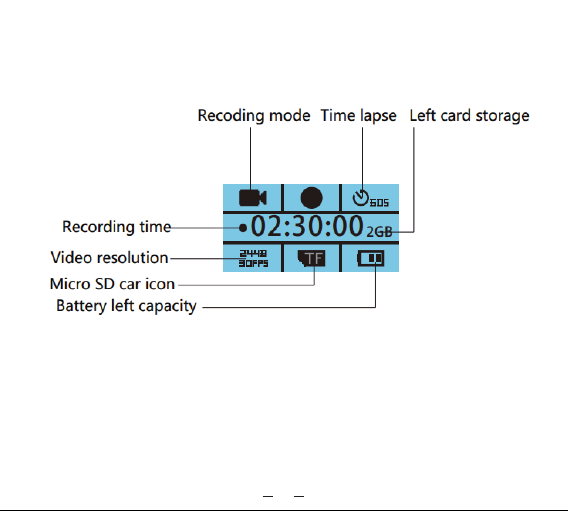

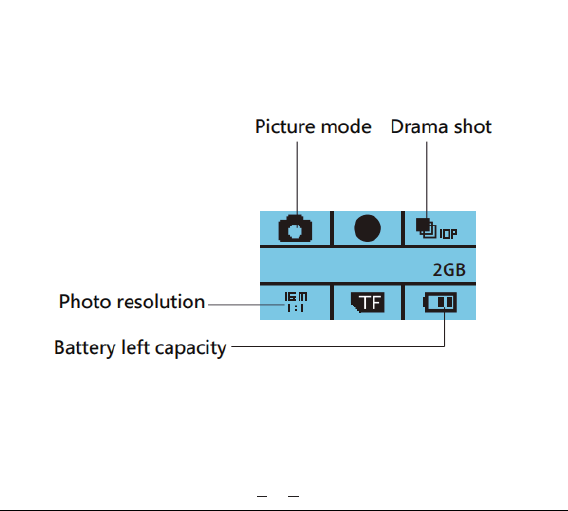

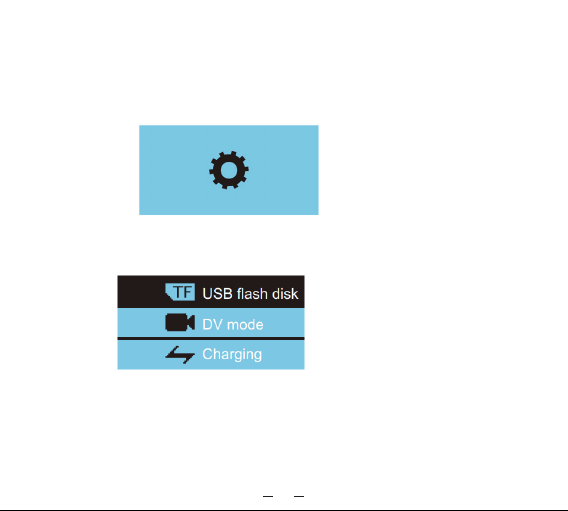

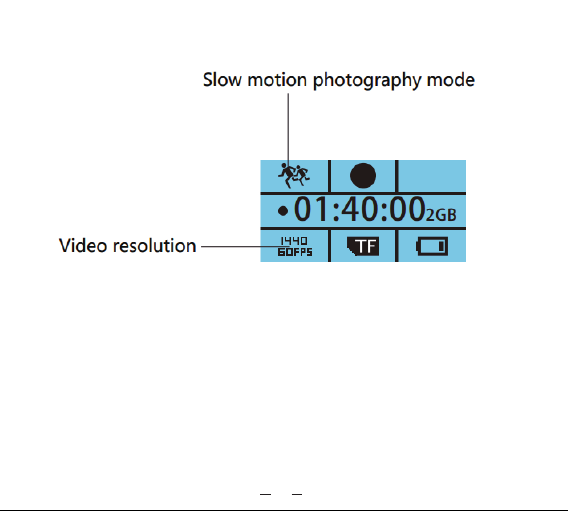

5. Mode switch :

Turn on the camera , press on/off key again and again , it will show cycling recording/
Photo/Slow motion/setting mode. As follows:

5
