Sunco Electronic SO23 User Manual

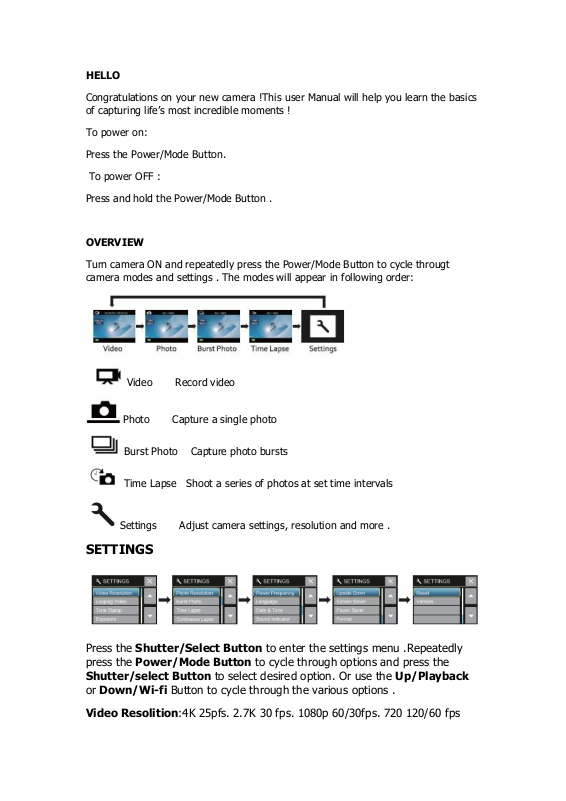

HELLO

Congratulations on your new camera !This user Manual will help you learn the basics
of capturing life’s most incredible moments !

To power on:

Press the Power/Mode Button.

To power OFF :

Press and hold the Power/Mode Button .

OVERVIEW

Turn camera ON and repeatedly press the Power/Mode Button to cycle througt
camera modes and settings . The modes will appear in following order:

Video Record video

Photo Capture a single photo

Burst Photo Capture photo bursts

Time Lapse Shoot a series of photos at set time intervals

Settings Adjust camera settings, resolution and more .

SETTINGS

Press the Shutter/Select Button to enter the settings menu .Repeatedly
press the Power/Mode Button to cycle through options and press the
Shutter/select Button to select desired option. Or use the Up/Playback
or Down/Wi-fi Button to cycle through the various options .

Video Resolition:4K 25pfs. 2.7K 30 fps. 1080p 60/30fps. 720 120/60 fps

Looping Video : off/On (4K & 2.7K not supported )

Time Stamp:Off/date/ Date & time

Exposure:+-2.0/+-1.7/+-1.3/+-1.0/+-0.7/+-0.3/

Photo Resolution:12M/8M/5M/4M

Burst Photo:3 Photos

Time Lapse:2s/3s/5s/10s/20s/30s/60s

Continuous Lapse:Off/On

Power Frequency : 50Hz/60Hz/Auto

Language ：English/Tranditional

Chinese/Italian/Spanish/Portuguese/German/Dutch/France/Czech/Plisj/Turkis
h/Russian/Japanese/Korean/Thai

Date & Time :MM/DD/YY, DD/MM/YY,or YY/MM/DD

Sound Indicator:Shutter On/Off.Start Up o/off , None,Beep ON/off,Volume

0/1/2/3

Upside Down:On/off

Screen Saver ：Off/1min/ 3min/ 5min

Power Saver：Off/ 1min/ 3 min/ 5 min

Format:No/ Yes

Reset:No/ Yes

Version

VIDEO MODE

Video

To record Video ,verify the camera is in Video mode . If the VIDEO icon on
your camera’s LCD Screen is not showing , Press the Power /Mode Button
repeatedly until it appears .

To start recording :

Press the Shutter/Select Button . The camera will emit one beep and the
Camera Status Lights will flash while recording .
