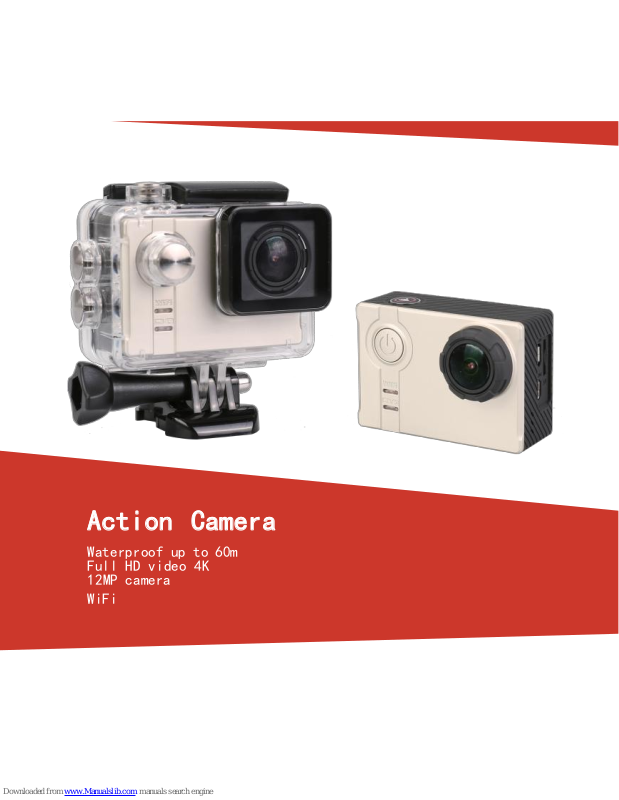

Action Camera

Waterproof up to 60m Full HD video 4K 12MP camera

WiFi

Warning

It is a high-precision product, please do not fall or crash.

Please do not expose the unit to strong magnetic objects, such as magnet and eletrical motor.

3.Never leave the products to high temperatures and direct sunlight.

4.Please choose branded Micro SD card. Neutral cards are not quaranteed to work normally.

5.Please do not place Micro SD card near strong magnetic objects to avoid data loss.

While it is charging,keep the product out of children’sreach.

7.Keep the devices in cool,dry, and insulated places.

Preface

This product is a high-definition digital motion video recording device tailored to market demand. It has a variety of industry-leading features,including: digital video recording, photo shooting, audio recording, and perfect for vehicle data recording, outdoor sports, home security, deep-water probing, aerial photo,etc, allowing you to film at anytime any where. And it has a variety of patents.

Mulitpurpose

Product Features

Full high definition screen that displays fascinating videos recorded

2.Ambarella A12S75 solution

3.12-megapixel photo shooting with 166 degree wide angle lens

4.Wireless wifi transmission

Car DVR recorder function

HDMI HD output,Support FPV mode

7.Support storage cards up to 64GBmaximum

8.Multiple video recording formats:4K /1080P /720P

9.Support MP4 video recording format

10. Support Bluetooth function

Product Schematic

OK / WIFI

Microphone

Power / Mode

WIFI Indicator

Operating Indicator

Micro USB Slot

SD Card Slot

HDMI Port

External Mic

Speaker

Lens

Operating

Indicator 2

Charging

Indicator

Operating Indicator 3

Down

Screen

Battery

Battery cover

Aerial Photography

Indicator

Battery cover lock

1/4 nut

Waterproof cover Schematic

Waterproof case door lock

OK / WIFI

Lens

Down

Power / Mode

配件图

Accessories

Waterproofcase

Bicycle stand

Base 1

Base 2

Fixed b a s e

Switch support1

Switch support 2

Switch support 3

adapter

Charger

Helmet base

Ribbon

3M adhesive tape

Wire rope&Ribbon

USB cable

Wiper

back cover

User manual

Operation

Inserting Micro SD Card

Note: Please choose branded Micro SD card and format it on computer ,before use. Neutral cards are not

guaranteed to worknormally.

Installing and removing battery

A.The battery door has been locked when the lock catch is in the”LOCK”, push the lock catch to “ ”,then to

“ ”, the battery door will be open again.

B.Correctly install battery into camera as indicated by+/- symbols and direction of arrows marked on battery until

it’s in place.

C.About battery power: please refer to the symbol: Full power mode “ ” low power mode“ ”. D.Remove battery: Open the battery cap and take battery out. Note: Please push the lock catch to the position of”LOCK” before use the device in case that battery looses or falls

in the process of using.

Battery Charging

A.Camera can charge by either connecting it to computer or power adapter. B.Charging camera on vehicle by connecting it to car charger. C.Camera can record video while charging(switch into Vehicle-mounted Mode in “menu”). D.Charging can be done even when it’s powered off.

Power mode

Press and hold power for 3-5 seconds to turn iton/off.

5.Mode Switching Switching between video recording/photo shooting/playback/menu by pressing “PowerOn-Off”button.

6.WIFI Control Before use WIFI Control function, please install GoAction software to your mobile phone or tablet PC. Note: Android phone downloads APP in Google Play. IOS phone downloads APP in Apple Store.

Connection Steps:

After switching camera on, press the WIFI button for 2 seconds and turn on/off WIFI function.( WIFI icon will be

display or disappear at the top right of the screen.) When turning on WIFI function, camera will reset. WIfi icon become green after reseting and waitig for 5 seconds.(It expresses that WIFI can be connected normally now.)

2.Open the WIFI connection of mobile phone to search for the camera device: AMBA A12—XXXX from the available wireless networks. (Password is 1234567890.)

3.Open the installation of GoAction software

7. Start the camera, shift to setting menu, find "Bluetooth Pair", then press "OK" button,the camera will display "Bluetooth Pair Start", at the same time, press any key on the remote control, it will flash blue light. On the camera screen, it displays "Bluetooth Pair", after around 20 seconds, you could see " Bluetooth Pair Success!", that means connect successfully, then back to normal mode.

screen, it displays "Bluetooth Pair", after around 20 seconds, you could see " Bluetooth Pair Success!", that means connect successfully, then back to normal mode.

8. How to reocrd videos and configure reocrding setting

8-1. Video Recording

Switch to recording mode and there will be an “ ” icon in the upper left corner of the screen. Press OK to start recording and the “ ” icon will start to flash. Press “OK”again if you want to stop and disappear

8-2. Photo Shooting& Setting

Switch the camera on and press“Mode”to select “Photo shooting Mode”,there will be an “ ” icon in the upper left corner of display screen and the camera is in photo shooting mode. Press “OK” to take photos. 8-3. Burst Mode& Setting

Switch the camera to the “Playback Mode”(“ ”is shown on the top left corner of video preview mode,and

“ ” is shown on the top left corner of photo preview mode.), select files by using the UP and DOWN arrows,

then replay and stop video or review photos by pressing the shooting button. You can also replay by mobile

phones via WIFI. Note: When camera crashs for malfunction, you can detach battery and install again, it will go back to normal

Specifications

Image Sensor

Type

1/2.3” CMOS 12.40MP (Sony IMX117)

Effective Pixels

Approx. 12.40 Mega Pixels (4072 * 3046) Output Pixels

Approx. 12.40 Mega Pixels

Lens

Focal Length

Lens f= 3mm

F No.

F= 2.8

F.O.V(D)

166°(H=120° V=89°)

LCD Display

2” 960*240 dots matrix TFT LCD

Viewfinder

Optical

Viewfinder

Focusing

Type

Fixed

Exposure

Control

Programmed AE

Compensation

±2EV (0.33 EV steps)

ISO Equivalent

Auto, 100, 200, 400, 800, 1600

LED

Modes

White Balance

Auto / Incandescent /D4000/D5000/Daylight / Cloudy /D9000/D10000/ Flash / Fluorescent/Water / Outdoor

Video resolution

4K/30P

NTSC: 4K 3840x2160 30P 16:9

3840x2160 25P SuperView 2160P 2880x2160 30P 4:3

2.7K 2704x2028 30P 4:3 2704x1520 30P SuperView

2.7K 2704x1520 30P 16:9

2.5K 2560x1440 60P/30P 16:9 1440P: 1920x1440 60P/30P 4:3 1080P: 1920x1080 120P/100P/60P/30P 16:9 1920x1080 60P/30 SuperView 960P: 1280x960120P/60P/30P 4:3 720P: 1280x720 240P/200P/120P/60P/30P 16:9 1280x720 120P/30P SuperView

PAL: 4K 3840x2160 25P 16:9

3840x2160 25P SuperView 2160P 2880x2160 25P 4:3

2.7K 2704x2028 25P 4:3

2704x1520 25P SuperView

2.7K 2704x1520 25P 16:9

2.5K 2560x1440 50P/25P 16:9

1440P: 1920x1440 50P/25P 4:3

1080P: 1920*1080 100P/50P/25P 16:9

1920*1080 50P/25P SuperView 960P: 1280x1080 100P/50P/25P 4:3 720P: 1280x720 200P/100P/50P/25P 16:9 1280x720 100P/25P SuperView

Audio

Mic and Speaker (Mono) Equipped

Bluetooth

Bluetooth is about 12 meters from the maximum

Photo size

Media

Internal memory: no internal memory External memory: supporting SDHC Card up to 64GB

File Format

Photo : JPEG Audio : PCM 48KHZ 16bit Video : H.264 High Profile Level 4.2 MP4

Image Size 12Mp

16M（4608x3456 4:3） 14M（4254x3264 4:3） 12M （4000x3000 4:3）

8.3M（3840x2160 16:9） 5M（2560x1920 4:3） 3M（2048x1536 4:3）

Video Output

HDMI: Support NTSC 1920X1080P60,PAL1920X1080P50 output With CEC Composite: NTSC/PAL

Time Lapse Function

OFF / 2 Seconds /3 Seconds / 5 Seconds / 10 Seconds / 30 Seconds / 60 Seconds

Photo Functions

Self Timer ：OFF / 2 Seconds / 3 Seconds / 5 Seconds / 10 Seconds / 30 Seconds / 60 Seconds Burst Rate ：OFF / 3 P/s / 5 P/s / 10 P/s

Auto Shoot ：OFF / 3 Seconds / 5 Seconds / 10 Seconds / 30 Seconds / 60 Seconds

Function option

Video Quality

S.Fine / Fine / Normal

Photo Quality

S.Fine / Fine / Normal

Video Quality:

Off/ Date / Time / Dt_Tm

Photo Quality:

Off/ Date / Time / Dt_Tm

Default Mode

Video / Photo

Quick Capture

ON / OFF

EIS

On / OFF

Motion Detection

Off / Low / Medium / High

Long Exposure

Off / 1/30 seconds / 1 second / 2 seconds / 5 Seconds / 10 Seconds / 30 Seconds / 60 Seconds

Dual Streams

On / OFF

Loop Record

OFF /1 Min./ 2 Min. / 3 Min. / 5 Min.

Car DV：

ON / OFF

Delay Off ：

Off / 5 Sec / 10 Sec / 20 Sec / 30 Sec / 60 Sec

TV Mode ：

NTSC / PAL

Light Freq. ：

50HZ / 60HZ

OSD ：

ON / OFF

Screen_Off ：

OFF / 30 Seconds / 1 Min. / 3 Min. / 5 Min.

Auto Shutdown ：

OFF / 3 Min. / 5 Min. / 10 Min.

Status LED：

ON / 1 / 2 / 3 / 4

WiFi LED：

ON / OFF

TV OUT ：

ON / OFF

Beep

ON / OFF

Mic Volume ：

OFF / 50% / 60% / 70% / 80% / 90% / 100%

Metering：

Center/Multi /Spot

Effect Mode

Normal /Art / Sepia / Negative / BW/VIVID/70Film

Sharpness ：

Strong / Noraml / Soft

Scene Mode ：

Normal / Flashi/Night/Sports/Landscape/Portrait/Sunset

ISO ：

Auto / 100 / 200 / 400 / 800 / 1600

EV ：0.0

EV ：-2.0 / -1.7 / -1.3 / -1.0 / -0.7 / -0.3 / 0.0 / +0.3 / +0.7 /

+1.0 / +1.3 / +1.7 / +2.0

Time Setup

set-up time

Date Format

Y/M/D,D/M/Y,M/D/Y

Bluetooth Pair

Select Bluetooth Pair WIFI:

ON / OFF

WiFi SSID ：

AMBA_A12_XXXXXX

WiFi Password ：

1234567890

Format

YES/NO

Default Setting

YES/NO

Version ：

A12-VX.X

Language

English / Simple Chinese/ Traditional Chinese/ Russion / German / Italian / French/ Korean / Japanese / Portuguese / Spanish / Arabic / Polish

Interface

USB 2.0 : Recharging/File Transfer Power Source

Li-ion rechargeable Battery 1050mAH

Accessories

Car power adaptor, Mount, USB Cable, HDMI Cable, AV Cable

Dimensions (W*H*D)

L: 61mm, W:42mm, H:23 mm(with lens part will be 33mm)

Weight

about 78.5g(With battery)

Support

Mass Storage Driver Windows XP(Service pack 2) or later Mac OS X 10.4.11 or later

System Requirements

For Windows

*PC with processor better than Pentium 4 3.2GHz *Windows XP(Service pack 2) or later *Minimum 1 GB System RAM *Minimum 256 MB RAM Video Card *USB port, CD-ROM drive *1024*768 pixels, 32-bit color display compatible monitor

FCC STATEMENT :

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Warning: Changes or modifications not expressly approved by the party responsible for compliance could void

the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.

RF warning statement:

The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.
