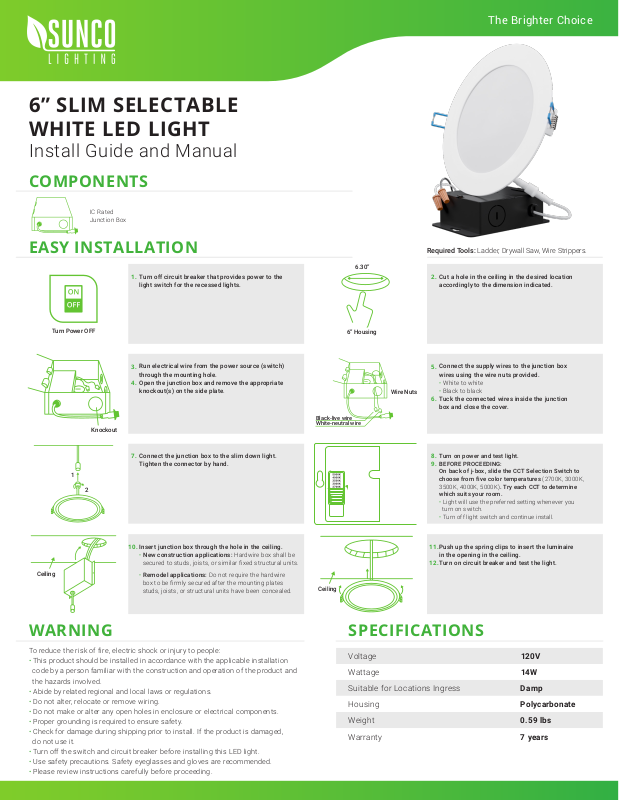

Page 1
6” SLIM SELECTABLE
WHITE LED LIGHT
Install Guide and Manual
COMPONENTS
IC Rated
Junction Box
The Brighter Choice
EASY INSTALLATION
Turn off circuit breaker that provides power to the
1.
light switch for the recessed lights.
Turn Power OFF
Run electrical wire from the power source (switch)
3.
through the mounting hole.
Open the junction box and remove the appropriate
4.
knockout(s) on the side plate.
Knockout
Connect the junction box to the slim down light.
7.
Tighten the connector by hand.
1
2
6” Housing
Black-live wire
White-neutral wire
6.30”
Wire Nuts
Required Tools: Ladder, Drywall Saw, Wire Strippers.
Cut a hole in the ceiling in the desired location
2.
accordingly to the dimension indicated.
Connect the supply wires to the junction box
5.
wires using the wire nuts provided.
• White to white
• Black to black
Tuck the connected wires inside the junction
6.
box and close the cover.
Turn on power and test light.
8.
BEFORE PROCEEDING:
9.
On back of j-box, slide the CCT Selection Switch to
choose from five color temperatures (2700K, 3000K,
3500K, 4000K, 5000K). Try each CCT to determine
which suits your room.
• Light will use the preferred setting whenever you
turn on switch.
• Turn off light switch and continue install.
Ceiling
Insert junction box through the hole in the ceiling.
• New construction applications: Hardwire box shall be
secured to studs, joists, or similar fixed structural units.
• Remodel applications: Do not require the hardwire
box to be firmly secured after the mounting plates
studs, joists, or structural units have been concealed.
Ceiling
Push up the spring clips to insert the luminaire
11.10.
in the opening in the ceiling.
Turn on circuit breaker and test the light.
12.
WARNING SPECIFICATIONS
To reduce the risk of fire, electric shock or injury to people:
• This product should be installed in accordance with the applicable installation
code by a person familiar with the construction and operation of the product and
the hazards involved.
• Abide by related regional and local laws or regulations.
• Do not alter, relocate or remove wiring.
• Do not make or alter any open holes in enclosure or electrical components.
• Proper grounding is required to ensure safety.
• Check for damage during shipping prior to install. If the product is damaged,
do not use it.
• Turn off the switch and circuit breaker before installing this LED light.
• Use safety precautions. Safety eyeglasses and gloves are recommended.
• Please review instructions carefully before proceeding.
Voltage
Wattage
Suitable for Locations Ingress
Housing
Weight
Warranty
120V
14W
Damp
Polycarbonate
0.59 lbs
7 years
