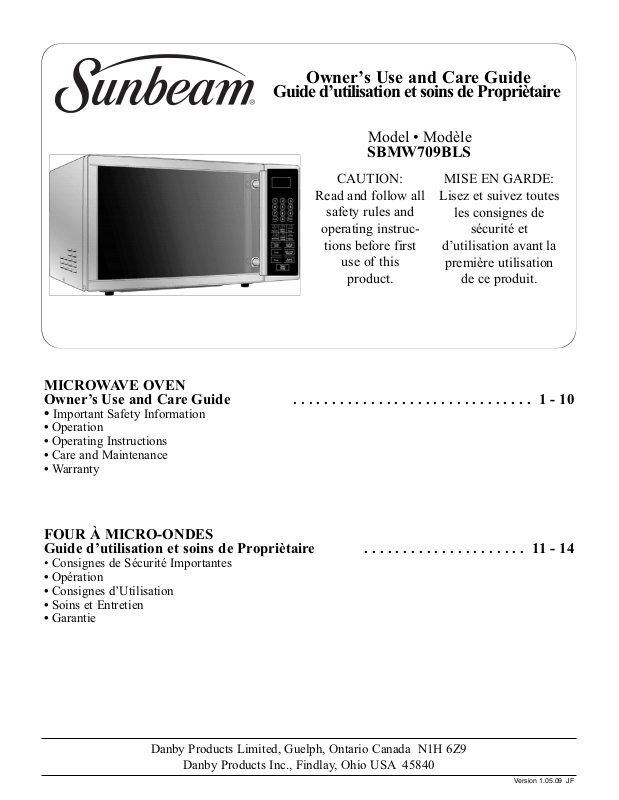

Sunbeam SBMW709BLS User Manual
Owner’s Use and Care Guide
Guide d’utilisation et soins de Propriètaire
Model • Modèle
SBMW709BLS
Danby Products Limited, Guelph, Ontario Canada N1H 6Z9
Danby Products Inc., Findlay, Ohio USA 45840
Version 1.05.09 JF
CAUTION:
Read and follow all
safety rules and
operating instruc-
tions before first
use of this
product.
MISE EN GARDE:
Lisez et suivez toutes
les consignes de
sécurité et
d’utilisation avant la
première utilisation
de ce produit.
MICROWAVE OVEN
Owner’s Use and Care Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 10
•
Important Safety Information
• Operation
• Operating Instructions
• Care and Maintenance
• Warranty
FOUR À MICRO-ONDES
Guide d’utilisation et soins de Propriètaire . . . . . . . . . . . . . . . . . . . . . 11 - 14
• Consignes de Sécurité Importantes
• Opération
• Consignes d’Utilisation
• Soins et Entretien
• Garantie
READ ALL SAFETY INFORMATION BEFORE USING
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO
EXCESSIVE MICROWAVE ENERGY
For your safety the information in this manual must be followed to minimize the risk of fire or explosion or
to prevent property damage, personal injury or loss of life.
Do Not Attempt to operate this oven with the door open since open-door operation can result in harmful
exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
Do Not Place any object between the oven front face and the door or allow soil or cleaner residue to
accumulate on sealing surfaces.
Do Not Operate the oven if it is damaged. It is particularly important that the oven door close properly and
that there is no damage to the:
1 door (bent),
2 hinges and latches (broken or loosened),
3 door seals and sealing surfaces.
The Oven Should Not be adjusted or repaired by anyone except properly qualified service personnel.
FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY
INTERFERENCE STATEMENT (U.S.A. ONLY)
This equipment generates and uses ISM frequencies and if not installed and used properly, that is in strict
accordance with the manufacturer's instructions, may cause interference to radio and television reception. It
has been type-tested and found to comply with limits for ISM Equipment pursuant to Part 18 of FCC Rules,
which are designed to provide reasonable protection against such interference in a residential installation.
However, there is no guarantee that interference will not occur in particular installations. If this equipment
does cause interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more ofthe following:
• Reorient the receiving antenna of radio or television.
• Relocate the microwave oven with respect to the receiver.
• Move the microwave oven away from the receiver.
• Plug the microwave into a different outlet so that microwave and receiver are on different branch circuits.
The Manufacturer is not responsible for any radio or TV interference caused by UNAUTHORIZED
MODIFICATION to this microwave oven. It is the responsibility of the user to correct such interference.
SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY INFORMATION
1
IMPORTANT SAFETY INFORMATION (cont’d)
WARNING
SAFETY
PRECAUTIONS
2
To reduce the risk of fire, burns, electric shock, injury to persons or exposure of excessive microwave energy
when using your appliance, follow basic precautions, including the following sections.
• Read and follow the specific “Precautions to Avoid
Possible Exposure to Excessive Microwave Energy”
on page 2.
• This appliance must be grounded. Connect only to a
properly grounded outlet. See “Grounding
Instructions” section on page 5.
• Do not operate this appliance if it has a damaged
power cord or plug, if it is not working properly, or if
it has been damaged or dropped.
• Do not cover or block any openings on the
appliance.
• Use this appliance only for its intended use as
described in this manual. Do not use corrosive
chemicals or vapors in this appliance.
• This microwave oven is specifically designed to
heat, dry or cook food, and is not intended for
laboratory or industrial use.
• Some products such as whole eggs and sealed
containers – for example, closed glass jars- may
explode and should not be heated in this oven.
• Do not store this appliance outdoors.
• Do not use this product near water-for example, in a
wet basement, near a swimming pool or near a sink.
• Keep power cord away from heated surfaces.
• Do not immerse power cord or plug in water.
• See door surface cleaning instructions in the Care
and Maintenance section(s) of this manual.
• This appliance should be serviced only by
qualified service personnel. Contact nearest
authorized service facility for examination, repair or
adjustment.
• As with any appliance, close supervision is
necessarry when used by children.
To reduce the risk of fire in the oven cavity:
• Do not overcook food.
• Carefully attend appliance if paper, plastic or other
combustible materials are placed inside the oven
while cooking.
• Remove wire twist-ties and metal handles from
paper or plastic containers before placing them in the
oven.
• Do not use the oven for storage purposes. Do not
leave paper products, cooking utensils or food in the
oven when not in use.
• Do not use the microwave to dry newspapers.
• If materials inside oven should ignite, keep the oven
door closed, turn the oven off and disconnect the
power at the fuse or circuit breaker panel. If the door
is opened, the fire may spread.
SPECIAL NOTES ABOUT MICROWAVING
ARCING
Arcing is the microwave term for sparks in the oven. If you see arcing, press the START/STOP”
button and correct the problem.
Arcing is caused by:
• Metal or foil touching the side of the oven.
• Foil not molded to food (upturned edges act like
antennae).
• Metal, such as twist-ties, poultry pins, or goldrimmed dishes, in the microwave.
• Recycled paper towels containing small metal
pieces being used in the microwave.
• Only cook popcorn in your microwave oven using
a special microwave popcorn accessory dish, unless
you use popcorn labeled for use in microwave ovens.
• Some products- such as whole eggs (with shell),
sealed containers, and closed jars - will explode and
should not be heated in this microwave oven.
Heating these products in the microwave oven could
result in injury.
• Do not boil eggs in a microwave oven. Pressure
will build up inside egg yolk and will cause it to
burst, possibly resulting in injury.
• Operating the microwave with no food inside for
more than a minute or two may cause damage to the
oven and could start a fire. It increases the heat
around the magnetron and can shorten the life of the
oven.
• Foods with unbroken outer “skin” such as potatoes,
hot dogs, sausages, tomatoes, apples, chicken livers
and other giblets, and egg yolks should be pierced to
allow steam to escape before cooking.
IMPORTANT SAFETY INFORMATION (cont’d)
FOODS
3
SAFETY FACT:
SUPERHEATED WATER
Microwaved water and other liquids do not always
bubble when they reach the boiling point; they can
actually get superheated and not bubble at all.
Superheated liquid can bubble up when it is moved or
when something like a spoon or tea bag is put into it.
To prevent this from happening and causing injury, do
not heat any liquid for more than 2 minutes per cup.
After heating, let the cup stand in the microwave for 30
seconds before moving it or putting anything into it.
• Avoid heating baby food in glass jars, even with the
lid off. Make sure all infant food is thoroughly
cooked. Stir food to distribute the heat evenly. Be
careful to prevent scalding when warming formula.
The container may feel cooler than the milk really is.
Always test the milk before feeding the baby.
• Spontaneous boiling- Under certain circumstances,
liquids may start to boilduring or shortly after
removal from the microwave oven. To prevent burns
from splashing liquid, we recommend the following:
Before removing the container from the oven, allow
the container to stand in the the oven for 30 to 40
seconds after the oven has shut off. Do not boil
liquids in narrow-necked containers such as soft drink
bottles, wine flasks and especially narrow-necked
coffee cups. Even if the container is opened,
excessive steam can build up and cause it to burst or
overflow.
• Don’t defrost frozen beverages in narrow-necked
bottles (especially carbonated beverages). Even if the
container is opened, pressure can build up. This can
cause the container to burst, possibly resulting in
injury.
• Hot foods and steam can cause burns. Be careful
when opening any containers of hot food, including
popcorn bags, cooking pouches and boxes. To prevent
possible injury, direct steam away from hands and
face.
• Do not overcook potatoes. They could dehydrate
and catch fire, causing damage to your oven.
• Cook meat and poultry thoroughly- meat to at least
an INTERNAL temperature of 160°F (71.1°C), and
poultry to at least an INTERNAL temperature of
180°F (82.2°C). Cooking to these temperatures
usually protects against food borne illness.
MICROWAVE-SAFE
COOKWARE
Most glass casserole, cooking dishes, measuring cups, custard cups, pottery or china dinnerware which do not
have metallic trim or glaze with a metallic sheen can be used. Some cookware will be labeled “suitable for
microwaving”.
• If you use a meat thermometer while cooking, make sure it is safe for use in microwave ovens.
Make sure all cookware used in your microwave oven is suitable for microwaving.
SPECIAL NOTES ABOUT MICROWAVING
• Do not use recycled paper products. Recycled paper
towels, napkins, and waxed paper can contain metal
flecks which may cause arcing or ignite. Paper
products containing nylon or nylon filament should
be avoided, as they may also ignite.
• Not all plastic wrap is suitable for use in microwave
ovens. Check the package for proper use.
• Some styrofoam trays (like those that meat is
packaged on) have a thin strip of metal embedded in
the bottom. When microwaved, the metal can burn
the floor of the oven, or ignite a paper towel.
• Cookware may become hot because of heat
transferred from the heated food. Pot holders may be
needed to handle the cookware.
• “Boilable” cooking pouches and tightly closed
plastic bags should be slit, pierced, or vented as
directed by package. If they are not, plastic could
burst during or immediately after cooking, possibly
resulting in injury. Also, plastic storage containers
should be at least partially uncovered because they
form a tight seal. When cooking with containers
tightly covered with plastic wrap, remove covering
carefully and direct steam away from hands and face.
• Paper towels, waxed paper, and plastic wrap can be
used to cover dishes in order to retain moisture and
prevent splattering. Be sure to vent plastic wrap so
steam can escape.
How to test for a microwave-safe dish:
1) Place in the oven both the dish you are testing and
a glass measuring cup filled with1 cup of water.
2) Set the measuring cup either in or next to the dish.
3) Microwave 1 minute on high power.
If the dish heats, it should not be used for
microwaving. If the dish remains cool and only the
water in the cup heats, then the dish is microwavesafe.
• Use foil only as directed in this manual. TV dinners
may be microwaved in foil trays less than 3/4” high;
remove the top foil cover and return the tray to the
box. When using foil in the microwave, keep the foil
at least 1 inch away from the sides of the oven.
• Plastic cookware designed for microwave cooking
is very useful, but should be used carefully. Even
microwave-safe plastic may not be as tolerant of
overcooking conditions as are glass and ceramic
materials, and may soften or char if subjected to short
periods of over-cooking. In longer exposure to overcooking, the food and cookware could ignite.
Follow these guidelines:
1) Use Microwave-safe plastics only and use them in
strict compliance with the cookware manufacturer’s
recommendations.
2) Do not microwave empty containers.
3) Do not permit children to use plastic cookware
without complete supervision.
IMPORTANT SAFETY INFORMATION (cont’d)
MICROWAVE-SAFE
COOKWARE (cont’d)
4
GROUNDING
INSTRUCTIONS
This appliance must be grounded. In the event of an
electrical short circuit, grounding reduces the risk of
electric shock by providing an escape wire for the
electric current. This appliance is equipped with a
power cord having a grounding wire with a grounding
plug. The plug must be plugged into an outlet that is
properly installed and grounded.
Consult a qualified electrician or service technician if
the grounding instructions are not completely
understood, or if doubt exists as to whether the
appliance is properly grounded.If the outlet is a
standard 2-prong wall outlet, it is your personal
responsibility and obligation to have it replaced with
a properly grounded 3-prong wall outlet.
DO NOT under any circumstances cut or remove the
third (ground) prong from the power cord.
DO NOT use an adapter plug with this appliance.
DO NOT use an extension cord with this appliance.
If the power cord is too short, have a qualified
electrician or service technician install an outlet near
the appliance.
For best operation, plug this appliance into its own
electrical outlet to prevent flickering of lights,
blowing of fuse, or tripping of circuit breaker.
WARNING: Improper use of the grounding plug can result in a risk of electric shock.
1) Door Safety Lock System.
2) Oven Window: Screen allows
cooking to be viewed while keeping
microwave energy confined in oven.
3) Turntable Shaft
4) Roller Ring
5) Removable Glass Turntable:
Turntable and support must be in place
when using the oven. The turntable may
be removed for cleaning.
6) Control Panel
7) Electronic Display
OPERATION
FEATURES OF
YOUR MICROWAVE
CONTROLS
1) Quick Cook Buttons: Instant settings to cook popular foods.
2) Number Pad (0-9): Touch to set times or weights.
3) DEFROST Buttons:
a) Defrost by Weight: Programmed defrosting based on the weight of the
foods to be defrosted.
b) Speed Defrost: Quick defrost function that alternates defrost and stand
times to quickly and effectively defrost foods.
4) COOK BY WEIGHT: Programmed cooking based on the weight of
the foods to be cooked.
5) POWER LEVEL: Use to set power level. To check power level during
time cooking, touch POWER LEVEL pad.
6) TIMER: Timer functions independently, even while a cooking
program is in process.
7) COOK: Use for multi-stage cooking. Enables cooking at multiple
power and time settings automatically.
8) REHEAT: Automatically programs oven to heat a plate of food evenly.
Touch REHEAT pad, then START/STOP.
9) CLOCK: Use to set the time of day or recall the time of day.
10) RESET: Clears all previous settings.
11) START/STOP: Touch to start or stop cooking.
5
1
2
3
4
5
6
7
3b
9
1
2
4
5
6
7
10
11
8
3a
1) Touch CLOCK pad.
2) Use the number pads to enter the correct time. You
must touch at least three numbers to set the clock
(one for hour and two for minutes).
3) Touch CLOCK pad again.
NOTES: This is a 12 hour clock. When the oven is
first plugged in or when power resumes after a power
interruption, the display will show ENTER CLOCK
TIME. If you prefer to not have the clock displayed,
touch RESET.
You can check the clock time while cooking is in
progress by touching the CLOCK pad.
OPERATING INSTRUCTIONS
SETTING
THE CLOCK
# Pad % of Power
1
2
3
4
5
6
7
8
9
10
10%
20%
30%
40%
50%
60%
70%
80%
90%
100%
6
SETTING
THE TIMER
1) Touch TIMER.
2) Enter the amount of time by touching the number
pads. Digit time is in minutes and seconds and set left
to right. Set one digit (a 5 for 5 seconds) or up to four
digits (2405 for 24 minutes, 5 seconds).
3) Touch START/STOP.
NOTES: Time countdown can be seen in display for
3 seconds before clock or cooking time is returned to
display.
Touch TIMER and then touch RESET to cancel
TIMER during timing process.
COOKING
PROGRAMS
A) ONE-STAGE COOKING
1) Use the number pads to set a cooking time. You
can set a cooking time from one second to 99
minutes and 99 seconds.
2) If you want to set a power level other than 100%
power, touch POWER LEVEL, then use the number
pads to enter the power level. You can set the power
level from 1 to 9.
3) Touch START/STOP to start cooking.
Use single digits to set a cooking power level:
B) TWO-STAGE COOKING
Some recipes require different stages of
cooking at different temperatures.
1) SET STAGE 1:
Follow steps 1 and 2 in “One-stage
Cooking”. DO NOT TOUCH START
2) SET STAGE 2:
Touch COOK then enter proper cooking
time and (lower) power level. (Most 2stage recipes use lower power for second
stage.)
3) Touch START/STOP.
NOTES:
• After stage 1 time has elapsed, one
signal sounds, signaling the beginning of
stage 2.
• After total time has elapsed, 4 signals
sound and END appears in display. Touch
RESET or open oven door to clear END
before starting another cooking function.
CHILD LOCK
• To set, press and hold RESET for 3 seconds. LOCK is indicated on the display.
• To cancel, press and hold RESET for 3 seconds. LOCK indication disappears.
The safety lock prevents unsupervised operation by children.
Loading...
