Sunbeam SAW24CR3FHUE User’s Manual

Download

Page 1

User’s Manual

24,000 BTU Room Air Conditioner

PTT042106

SAW24CR3FHU

Page 2

Table of Contents

Page

Introduction

Parts Identification

Electrical Specifications

Tips Before Installation

Installation Instructions

Operating Instructions

Care and Maintenance

Troubleshooting Guide

Page 3

Introduction

Thank you for choosing this room air conditioner to cool your home. This USE AND CARE MANUAL provides information necessary for the proper care and maintenance of your new room air conditioner. If properly maintained, your air conditioner will give you many years of trouble free operation. To avoid installation difficulties, read instructions completely before starting. This manual contains information for the installation and operation of your room air conditioner.

Part Identification

Mechanical control model

Front Panel

Air Filter

Interior Air Inlet Grille

Cabinet

Fresh Air Vent Lever

Air Outlet

O O

Control Knob

O F

F H IG

H F AN

H IG

COOL

M E D F AN

COO

L O W F A N

L OW

O L

Exterior Air Inlet

Power Cord

Note: The figures in this manual are based on the external view of a standard model. Consequently, the shape may differ from that of the air conditioner you have selected.

Page 4

Introduction

Part Identification

Remote control model

Front Panel

Air Filter

Interior Air Inlet Grille

Cabinet

Fresh Air Vent Lever

Control Panel

Air Outlet

Speed

Control Panel

Exterior Air Inlet

Power Cord

Remote Control

Airconditioner

Timer

Fan Speed

Mode

Saver

Timer

Auto

High

Mid

Low

Note: The figures in this manual are based on the external view of a standard model. Consequently, the shape may differ from that of the air conditioner you have selected.

Page 5

Electrical specifications

1. All wiring must comply with local and national electrical codes and must be installed by a licensed electrician. If you have any questions regarding the following instructions, contact a licensed electrician.

2. Check available power supply and resolve any wiring problems BEFORE installing and operating this unit.

3. For your safety and protection, this unit is grounded through the power cord when plugged into a matching wall outlet. If you are

not sure whether your wall outlet is properly grounded, please consult a licensed electrician.

4. The wall outlet (3-pin) must match the plug (3-pin) on the power cord supplied with the unit. DO NOT use plug adapters or extension cords. See (Table 1) for receptacle and fuse information.

5. The rating plate on the unit contains electrical and other technical data. The rating plate is located on the right side of the unit. Make sure to use the correct power supply according to the rating plate of your air conditioner.

Electric Shock Hazard

If the air conditioner has a serial plate rating of 115 volts and up to and including 7.5 amps, the unit maybe on a fuse or circuit breaker with other devices. However, the maximum amps on all devices for that fuse or circuit breaker can not exceed the amps of the fuse for the circuit breaker.

If the air conditioner has a serial plate rating of 115 volts and greater than 7.5 amps it must have its own fuse or circuit breaker, and no other device or unit should be operated on the fuse or circuit breaker.

If the air conditioner has a serial plate rating of 230 volts, it must have its own fuse or circuit breaker, and no other device or unit should be operated on the fuse or circuit breaker.

To avoid the possibility of personal injury, disconnect power to the unit before installing or servicing.

COOLING CAPACITY

RATED VOLTS

AMPS

WALL OUTLET

FUSE SIZE

RECEPTACLE AND FUSE TYPES

8K-15K

125

18K

250

22K-24K

250

Table 1

Page 6

Tips before installation

Your Room Air Conditioner unit is designed to be highly efficient and save energy. Follow these recommendations for greater efficiency.

1. Select thermostat setting that suits your comfort needs and leave the thermostat at that chosen setting.

2. The air filter is very efficient in removing airborne particles. Keep the air filter clean. Typically, the filter should be cleaned once a month. More frequent cleaning may be necessary depending on outdoor and indoor air quality.

3. Use drapes, curtains, or shades to keep direct sunlight from heating your room, but DO NOT obstruct the air conditioner. Allow air to circulate around the unit without obstructions.

4. Start your air conditioner before outdoor air becomes hot/cold and uncomfortable. This avoids an initial period of discomfort while the unit is cooling or heating off the room.

5. When outdoor temperature is cool enough, use HIGH or LOW FAN only. This circulates indoor air, providing some cooling comfort, and utilizes less electricity than when operating on a cooling setting.

Your Room Air Conditioner was designed for easy installation in a single or double-hung window. NOTE: This unit is NOT designed for vertical (slider type) windows.

! !

CAUTION

To avoid installation/operating difficulties, read the instructions thoroughly.

NOTE: Save the shipping carton and packing

materials for future storage or transport of the unit. Please check the contents of the hardware kit against the corresponding model check list, prior to installation of the unit.

See lists below.(Fig.A)

Fig. 1A Installation Hardware Model 463AAC008BA

Fig. A Installation Hardware

3/4 Screws (10)

1/4 Screws (23)

Top Channel(1)

Bottom Channel(1) (For 8K to 12K models)

Bottom Channel(1) (For 15K to 24K models) (Factory-installed)

Lock Washers(4)

1-1/2 x1/4 Bolts(4)

1/4 Nuts(4)

Shutter Clamp(2)

Gasket(10)

Side Curtain RH(1)

Side Curtain RH(1) Side Curtain LH(1)

Side Curtain LH(1)

Seal(1)

Foam (1)

Mounting

Mounting Brackets(2)

Brackets(2) Angle

Angle Brackets(2)

Brackets(2)

End Cap & Leveling Legs(2)

Double Adhering Seal(1)

NOTE: Surplus screw(s) for spare use.

Tools Needed for Window Installation Screw drivers: Both Philips and flat head Power drill: 1/8 inch diameter drill bit Pencil Measuring tape Scissors Carpenters level

Page 7

Installation instructions

! !

Because the compressor is located on the controls side of the unit (right side), this side will be heavier and more awkward to manipulate. Inadequate support on control side of the unit can result in personal injury and damage to your unit and property. Therefore, it is recommended to have someone assist you during the installation of this unit.

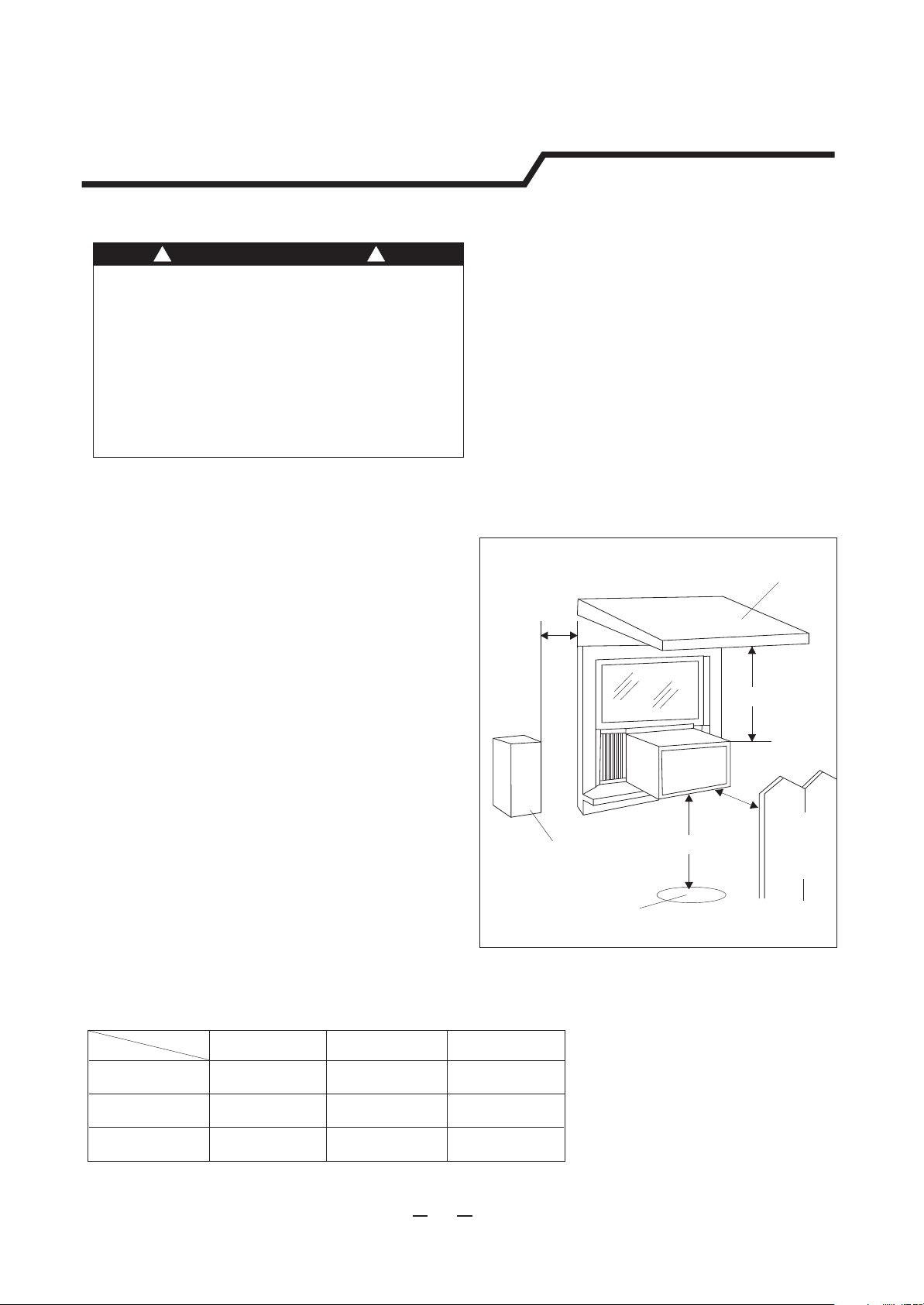

1. Select the Best Location

A. Your room air conditioner was designed to fit easily into a single or double hung window. However, since window designs vary, it may be necessary to make some modifications for safe and proper installation.

B. Make sure window and frame is structurally sound and free from dry and rotted wood.

C. For maximum efficiency, install the air conditioner on side of the house or building which favors more shade than sunlight. If the unit is in direct sunlight, it is advisable to provide an awning over the unit.

CAUTION

E. Be certain the proper electrical outlet is within reach of the installation. Use only a single outlet circuit rated at proper current (see table 1 on page 4). All wiring should be in accordance with local and national electrical codes.

F. Your unit was designed to evaporate condensation under normal conditions. However, under extreme humidity conditions, excess condensation may cause the basepan to overflow to the outside. The unit should be installed where condensation run-off cannot drip on pedestrians or neighboring properties.

Awning

20" Min.

12" Min.

20" Min.

D. Provide sufficient clearance around the cabinet to allow for ample air circulation through the unit. See (Fig.B). The rear of the unit should be outdoors and not in a garage nor inside of a building. Keep unit as far away as possible from obstacles and obstructions and at least 30" above the floor or ground. Curtains and other objects within a room should be prevented from blocking the air flow.

Window opening requirements

(see table below)

Size

Cabinet size (W*H*D) Min. Window opening Max. Window opening

Model

8K-10K

20.5" *14.8" *23.1"

24"

38"

12K

22.8" *15.7" *24.1"

27"

41"

Side obstruction

Fig.B

15-24K

26.5" *18.5" *26.9"

30"

44"

Ground

30" Min.

Fence, wall, or other obstacle.

Page 8

Installation instructions

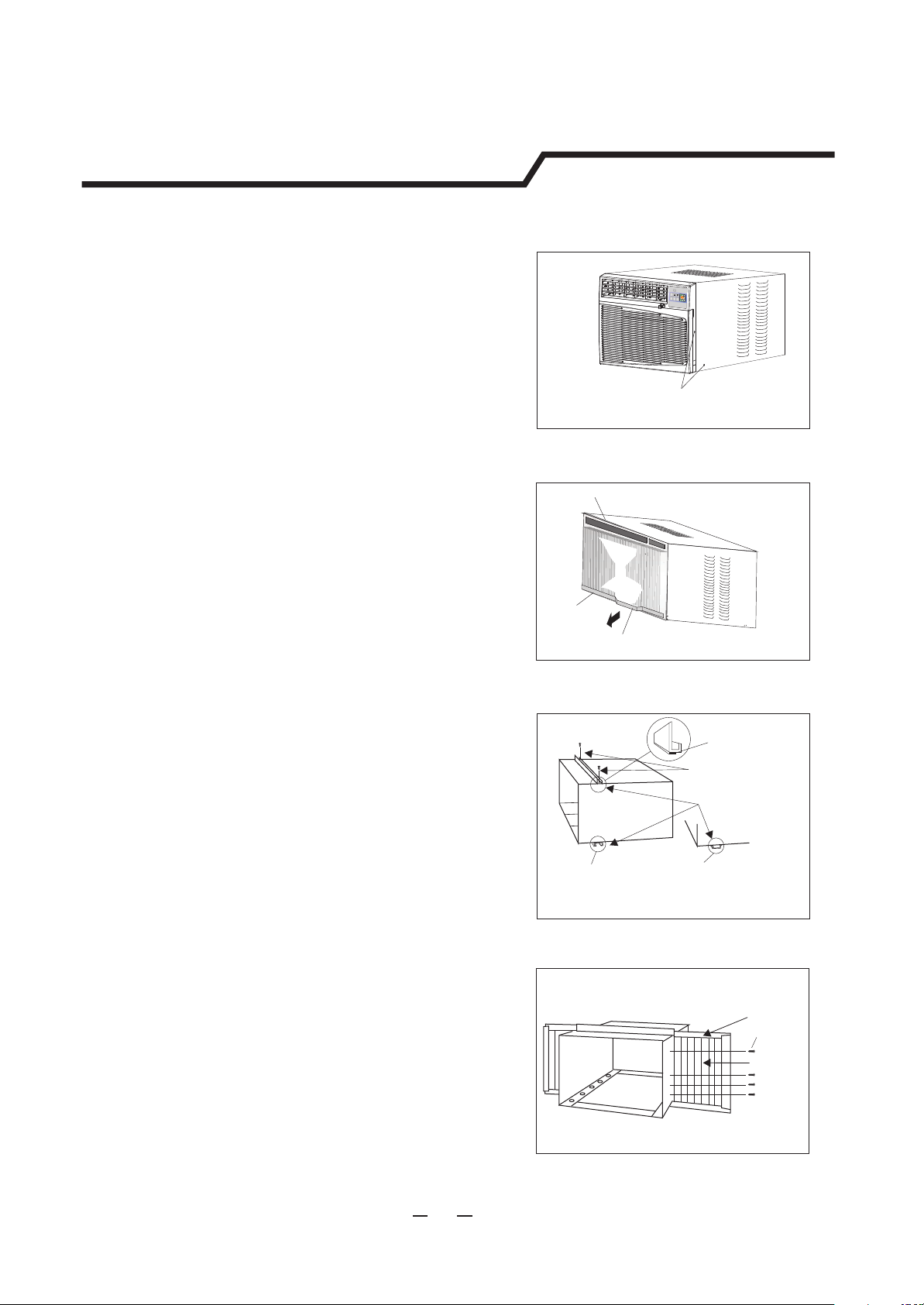

2. Preparation to Remove the Air Conditioner Slide-Out Chassis

A. Remove total of (4) Philips screws securing the chassis to the cabinet. There are (2) screws on each side. The set of screws closest to the front of the unit secure the front panel to the cabinet. The set of screw closest to the rear of the unit secure the cabinet to the chassis.

See (Fig. 1).

B. Remove the front panel assembly from the cabinet by gently pulling it.

C. Grasp the pull handle at the front of the slide-out chassis and carefully slide the air conditioner out of the cabinet. See (Fig. 2).

Coil

Airc

o n

d it ion

I M E

F A N

H R

M O

E S P

OFF

IT TH R

E E MIN

U TE S

BEFOR

E R

E S TAR

TI NG

Right side Philips screws

Fig. 1

Please seek assistance for this procedure.

Note: Screws must be reinstalled upon completion of the window installation to secure slide-out chassis.

3. Assembly of the upper & lower channels to the cabinet

A. " L" Shaped Top Channel: Stick the double adhering seal to the " L" shaped top channel, and then Install the "L" shaped top channel to the cabinet as shown in (Fig. 3) using (5) 1/4" screws. B. "n" Shaped Bottom Channel installed as shown in (Fig. 3)using (4) 1/4" screws.

NOTE: For 15K to 24K models, the bottom channel has been factory- installed, and their shapes may differ from the others,but their functions are similar.

4. Assembly of the side shutters (curtains) to the cabinet.

Slide the shutters into the top and bottom channels as shown in (Fig. 4). The shutters are identified (on each frame) as "left" & "right". Attach the shutters to the cabinet using (4) 1/4" screws on each side.

Chassis

Pull Handle

For 8K to 12K models

Fig. 2

Double Adhering seal

1/4" Screw

Channel

For 15K to 24K models (Factory-installed).

Fig. 3

Shutter Frame

Fig. 4

1/4" screw

Right Shutter

Page 9

Installation instructions

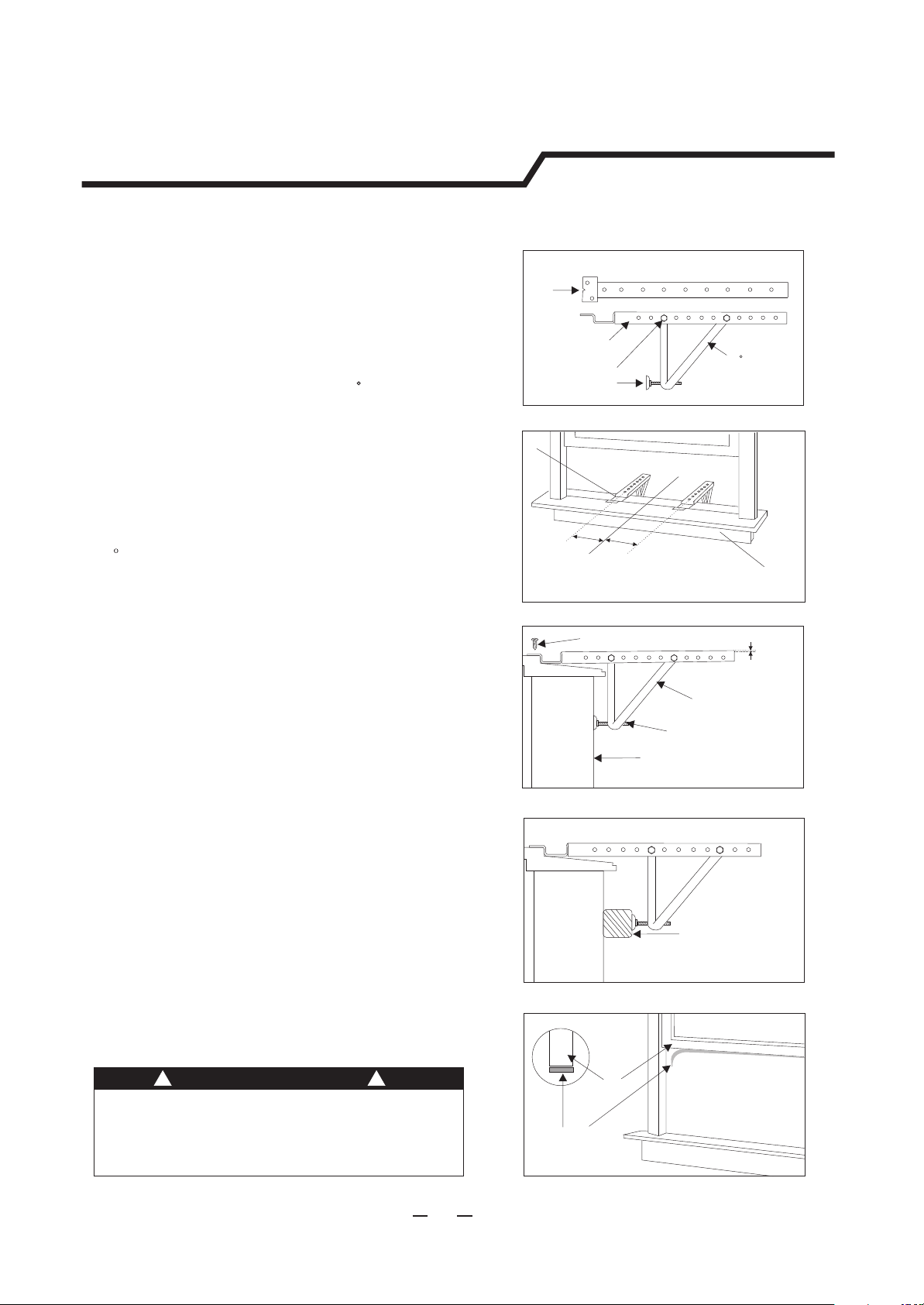

5. Installation of Mounting Brackets and First Sealing Strip

NOTE: Windows come in a variety of different

styles. Therefore, it may be necessary to modify or improve your particular installation.

A. Attach the bracket assembly to 90 angle support brackets (Fig. 5) using (2) 1 1/2" bolts Two bolts per bracket. Secure with the (2) 1/4" lock washers and (2) 1/4"nuts. DO NOT immediately tighten these bolts as it may be necessary to adjust the depth of the bracket assembly, depending on the depth of your window sill. See (Fig. 7).Install the two leveling screws into the 90 support brackets. Test the bracket assembly in the window before cabinet installation. If the leveling screws are distanced too far away from the wall to provide stability, it may be necessary for you to fill this area with a solid piece of wood. See (Fig. 8).

B. Measure the inside window sill width and find the center as shown in (Fig. 6). Align the V-slot in each bracket on these marks and mount the brackets to the sill using 3/4" screws provided. Brackets should be perpendicular to the inside window sill. See (Fig. 6).

V-slot

Leveling Screw

Bracket Assembly

Bracket Bolts

(TOP VIEW)

Fig. 5

V-slot

Center

7.5"

12.6"

Measurement for Model 8K = 7.5" Measurement for Model 10K =9.6" Measurement for Model 12K = 10.3" Measurement for Model 15K to 24K = 12.6"

Fig. 6

(2) 3/4" screws per bracket

Leveling Screw

Outer Wall Construction

90 Angle Support Brackets

Window sill

3/16" Maximum

Bracket Assembly

C. For proper condensation run-off it will be necessary to adjust the angle/pitch of the window brackets. This is accomplished by adjusting the distance of the leveling screw on the outer wall. The maximum angle/pitch should not exceed more than 3/16". See (Fig.7).

D. Cut the seal strip to fit the underside of the bottom window sash. Remove the peel-off backing on the seal and attach it to this sash. See (Fig. 9).

! !

CAUTION

Use a solid piece of wood to provide stability. This will be required when sills are extra deep. See (Fig. 8).

Window Sash

Window Sash Sealing Strip

Fig. 7

Fig. 8

Fig. 9

Solid Piece Wood (If required)

Page 10

Installation instructions

6. Installation of the cabinet

A. Align one hole in the bottom of the cabinet with one hole in the bracket assembly. Secure the cabinet to the bracket using (3) 1/4" screws provided. Repeat the same procedure on the opposite side of the cabinet. See (Fig. 10).

B. Ensure the "L" shaped mounting channel is positioned in front of the sash. The "U" shaped bottom channel of the cabinet should be positioned in the track provided on the bracket assembly. Pull the window down until it rests just behind the front of the "L" shaped mounting channel. See (Fig. 11).

C. Check to make sure that the cabinet is slanted slightly downward on the outside. If necessary, re-adjust support bracket as shown in (Fig. 7).

1/4" Screws

Fig. 10

Window Sash

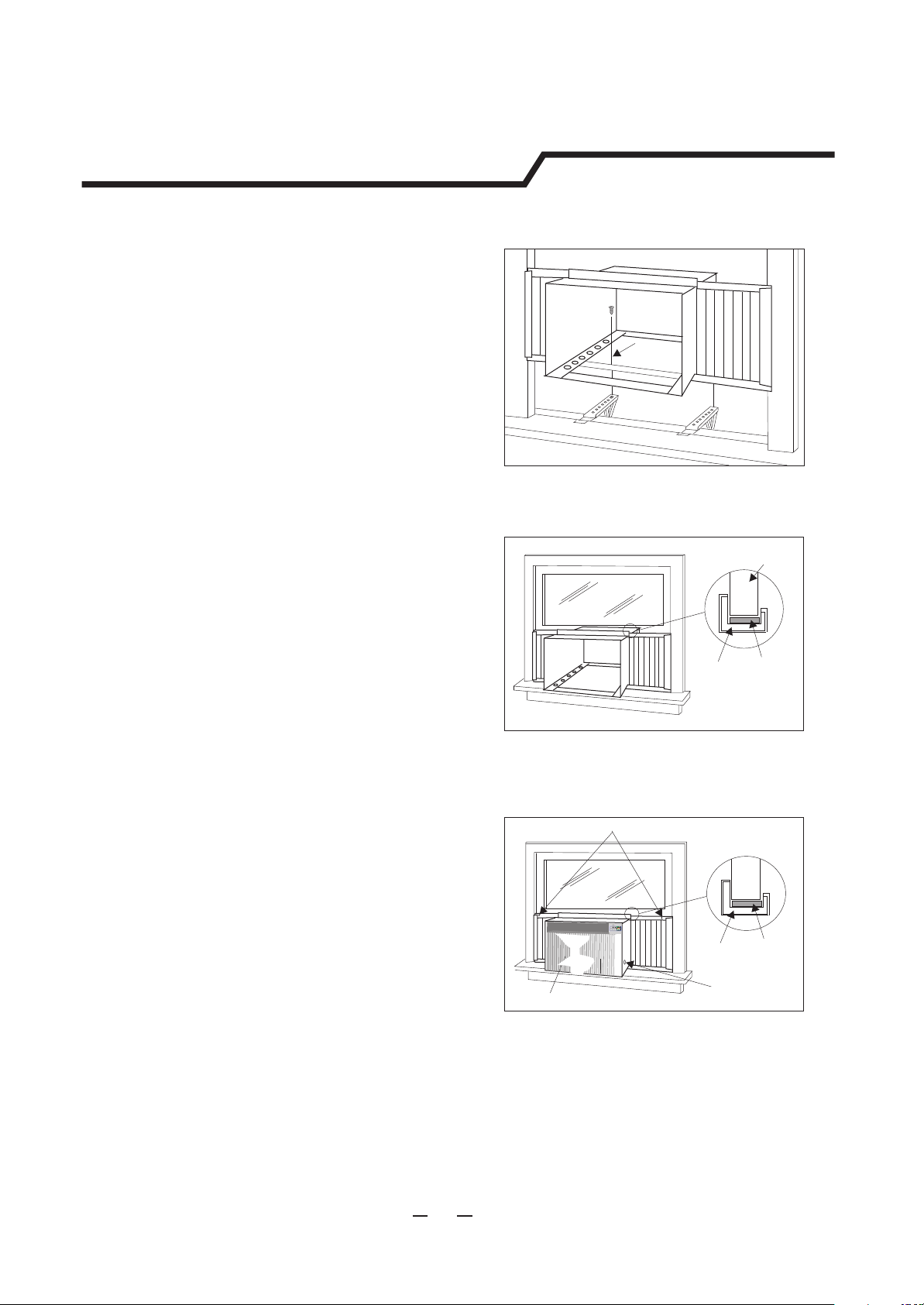

7. Secure Shutters

A. Carefully slide the air conditioner back into the cabinet.(Please seek assistance for this procedure). B. Reinstall the slide-out-chassis security screws (removed earlier) on both sides of the cabinet. See (Fig. 12).

Secure the top of the frames to the window sash with (2) 3/4" screws.

C. Now, secure bottom frame of shutters using one shutter clamp and one 3/4" screw on each side(Fig. 12).

8. Reinstalling Front Panel Assembly

A. Position the front panel on the cabinet starting at the top. The front panel lock tabs must be inserted into the retaining slots in the cabinet. Repeat this procedure on all sides. B. Secure the front grille to the cabinet using the Philips screws removed earlier(Fig. 1).

Coil

Fig. 11

3/4" screws

nd it

F HR

E M

E R

TIN

Fig. 12

"L"Shaped Mounting Channel

Security Screw

Seal

Page 11

Installation instructions

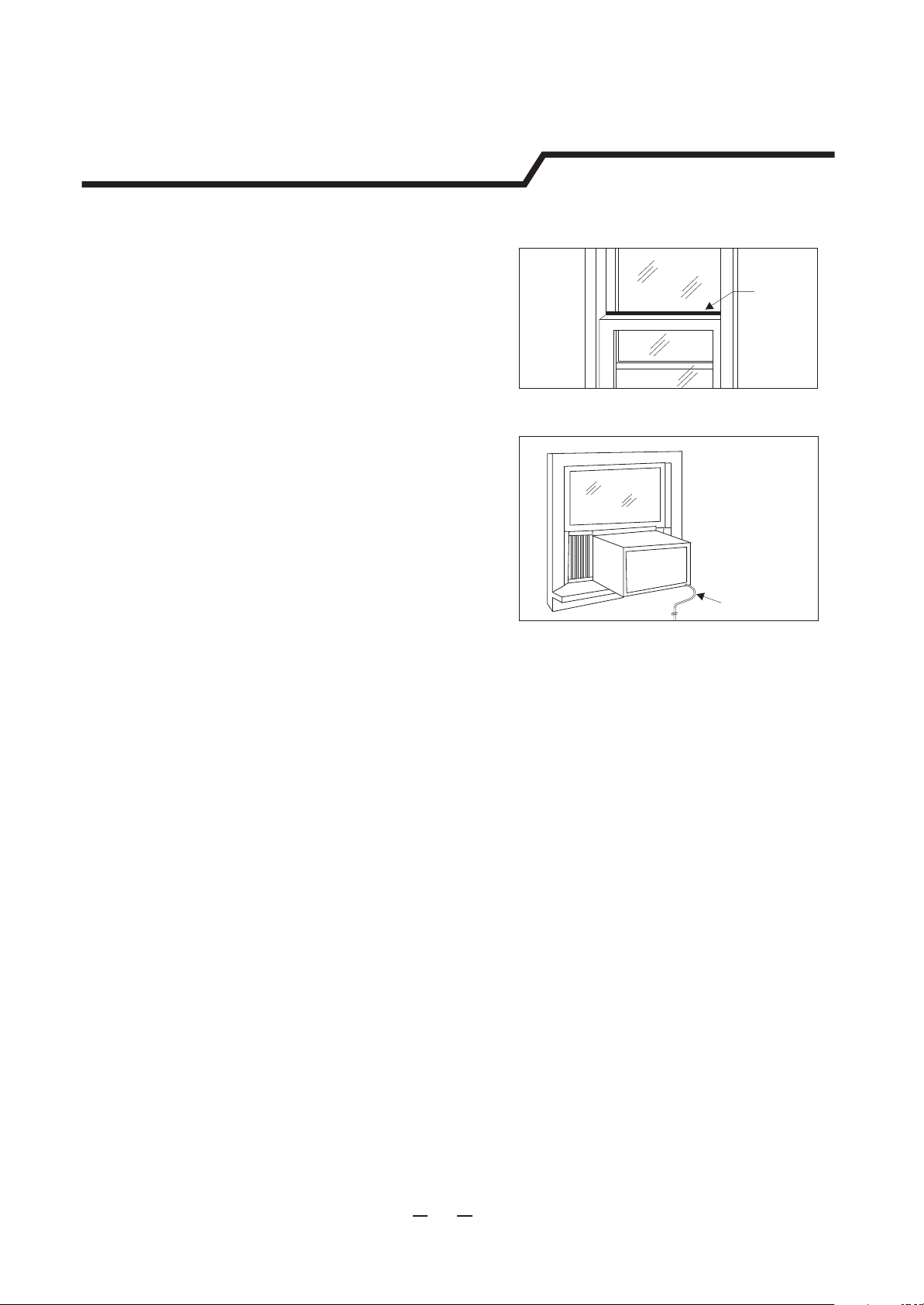

9. Complete the installation

A. Cut the foam to fit the opening between the top of the inside and outside window. See (Fig. 13).

B. Some installations may require additional sealing around the window and air conditioner. Check for any air leaks and seal where necessary.

C. In very humid areas, the water removal may be excessive enough to overflow the unit or increase the noise of the air conditioner. If this occurs, you may wish to attach a drain hose (not included) to the drain plug allowing condensations to run off conveniently. See (Fig. 14).

Fig. 13

Foam

Drain Hose (not included)

Fig. 14

Page 12

Operating Instructions

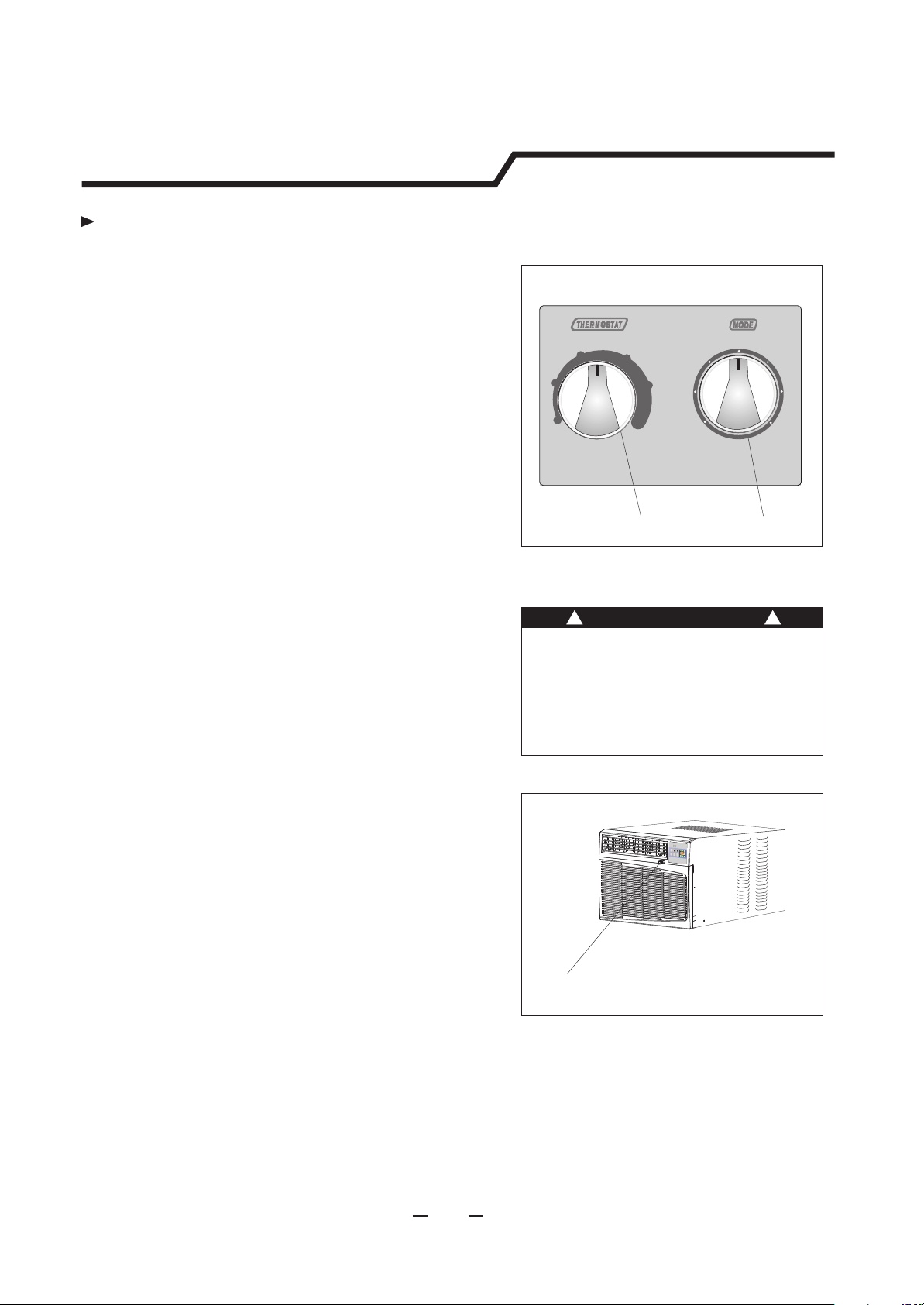

Mechanical control model

MODE

The mode knob controls fan speeds and cooling speeds. To set desired cooling temperature, simply rotate the mode knob dial to the appropriate setting.

THERMOSTAT

The thermostat automatically controls the cooling cycle (compressor) of the air conditioner to maintain room temperature. However, the fan motor will continue to operate after the compressor (cooling cycle) is completed. LOW FAN will circulate the air at a minimum speed

without cooling. MED FAN will circulate the air at a middle speed

without cooling. HIGH FAN will circulate the air at a maximum speed

without cooling.

LOW COOL provides cooling, automatically with minimum air circulation. Recommended for night-

time use. MED COOL provides cooling, automatically with middle air circulation. Recommended for nighttime use. HIGH COOL provides cooling, automatically with quick cooling or for extremely hot days. Once room is cooled, reduce setting to LOW COOL.

OFF will completely shut-off the unit.

NOTE: After setting the mode, allow 3

minutes before switching to another mode.

OFF

HIGH FAN

MED FAN

LOW FAN

Thermostat

HIGH COOL

LOW COOL

Mode knob

MED COOL

knob

Fig. 15

! !

CAUTION

When using FAN control, turn slowly allowing unit to adjust.

When using THERMOSTAT, be sure to allow three minutes before changing temperature. Adjusting too quickly may cause an overload resulting in a blown fuse.

A irc

o n

d it ion

I M E

F A N

H R

M O

E S P

OFF

IT T HR

E E MINU

TE S

BEFOR

E RE

S TA

R TI N G

Fresh Air Ventilation is usually kept in the closed position. Use only when clearing smoke and/or odors from the room. Pull to open.

Fresh Air Vent Lever

Fig. 16

Page 13

Operating Instructions

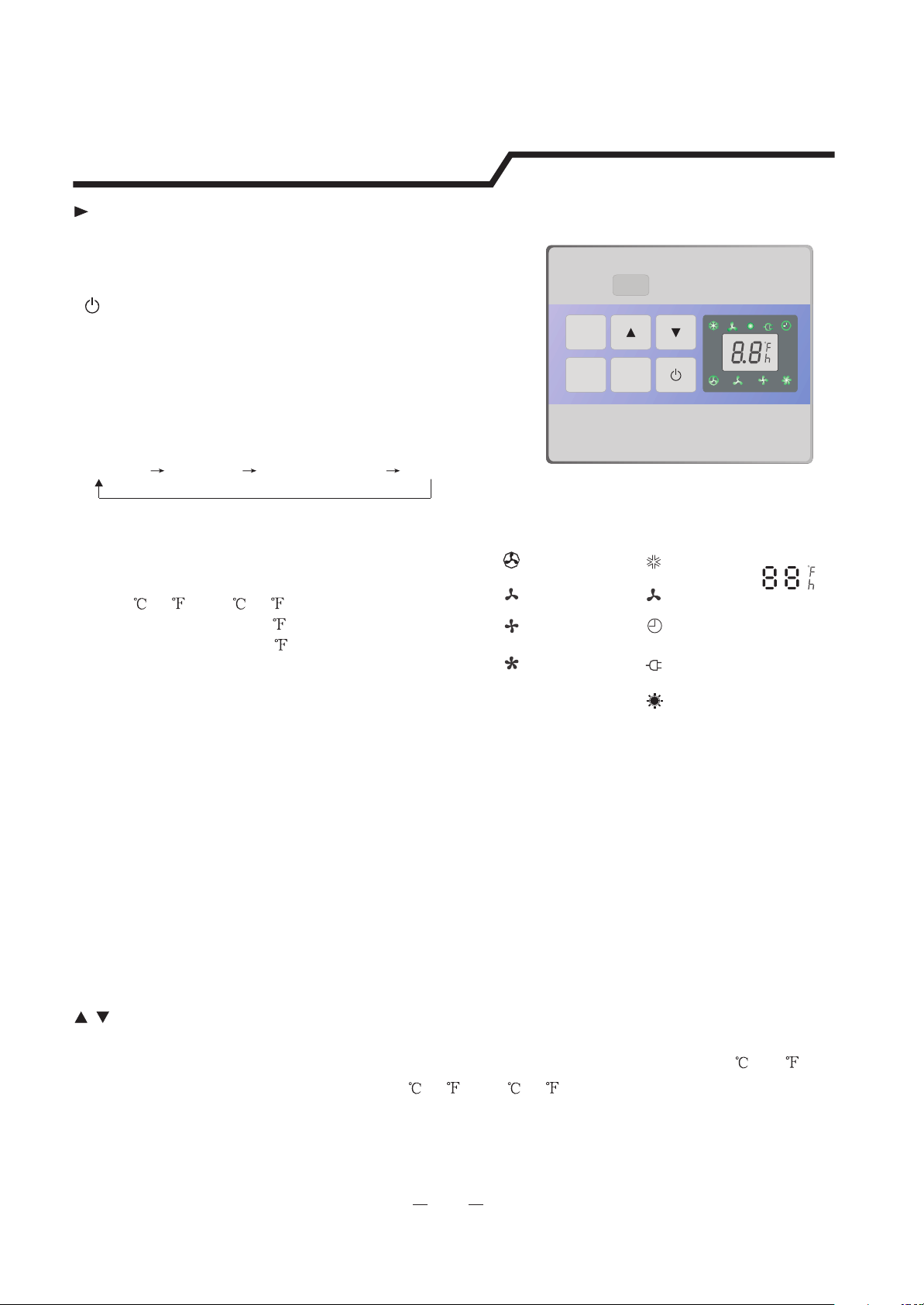

Electronic Control Panel Model

You can easily operate this air conditioner by pressing relevant button on the control panel as well as the remote control.

Button

The air conditioner will be started when it is energized or will be stopped when it is in operation, if you press this button.

Mode button

Each time Mode button is pressed, the operation mode is changed in sequence: COOLING FAN ONLY ENERGY SAVING COOLING

NOTE: After setting the mode, allow 3 minutes before switching to another mode. In the FAN ONLY Mode, Room Temperature display range is from 0 (32 ) to 38 (99 ). Room Temperature below 32 ,the Temperature display L0. Room Temperature above 99 ,the Temperature display H1.

Fan Speed button

Used to select fan speed in sequence auto, low, medium and high.

Timer button

Used to set or cancel timer operation.

Control Panel

Airconditioner

Timer

Fan Speed

Mode

Indication symbols of LED on control panel :

Auto fan speed Cooling

Low fan speed

Medium fan speed

High fan speed

LED on control panel lights on when the relevant mode is in used.

Fan only

Timer

Energy-saving

Heating

Display set temp Display set timer

When the unit is in operation, you can set OFF TIMER.When the unit is off, you can set ON TIMER.Timer setting range is 0 to 24 hours.

If the OFF TIMER is set, the timer LED displays the remaining time to turn off the unit for only 12 seconds, then LED shifts to display set temperature. If you press TIMER button within the 12 seconds, OFF TIMER will be cancelled.

If the ON TIMER is set, the timer LED displays the remaining time to turn on the unit. If you want to cancel ON TIMER, press TIMER button.

Button

Used to set room temperature in COOLING mode or used to set time in TIMER mode. If the two keys are pressed at the same time,the temperature LED display will alternate between and .

NOTE: Temperature setting range is from 19 (66 ) to 31 (88 ).

Page 14

Operating Instructions

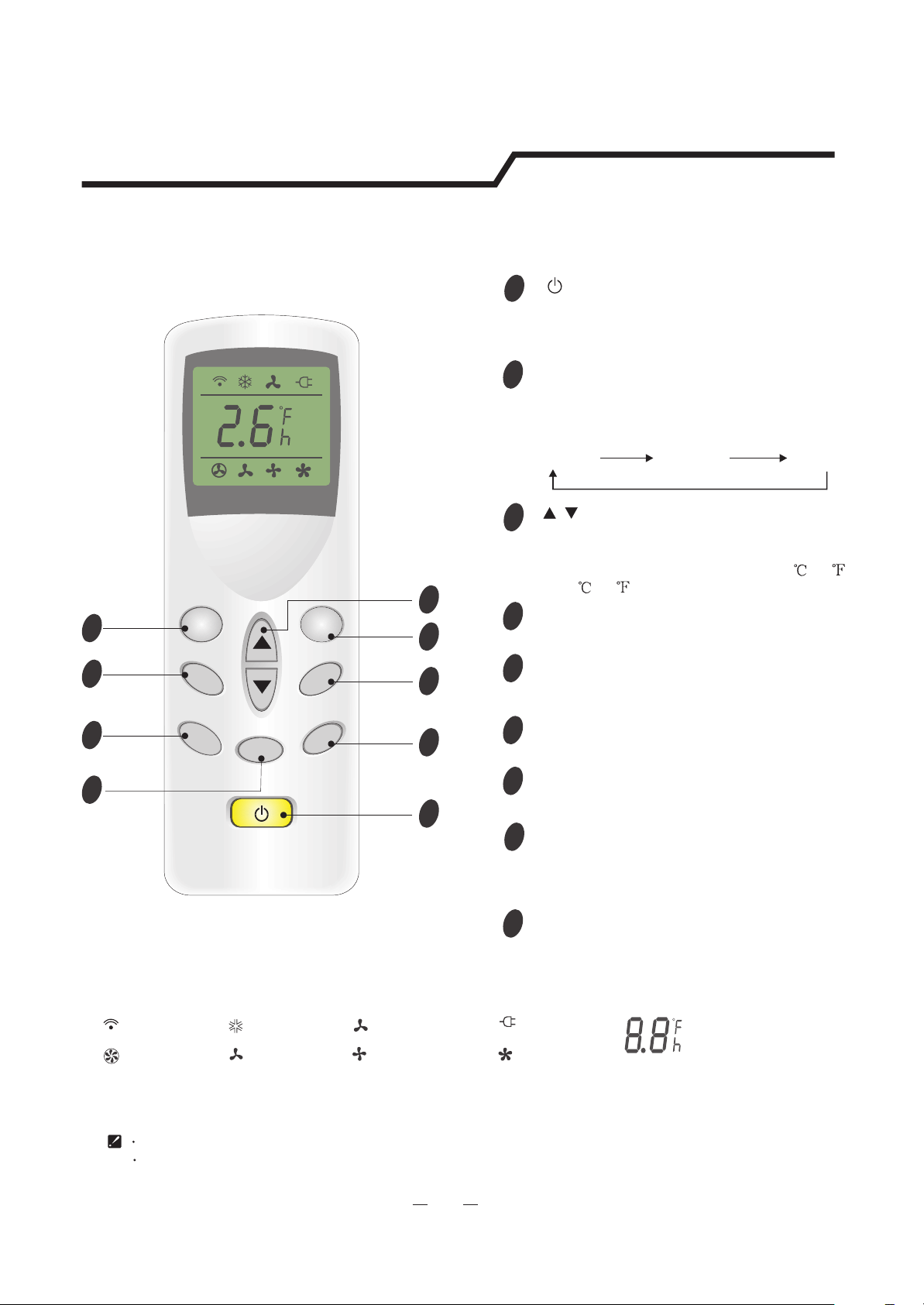

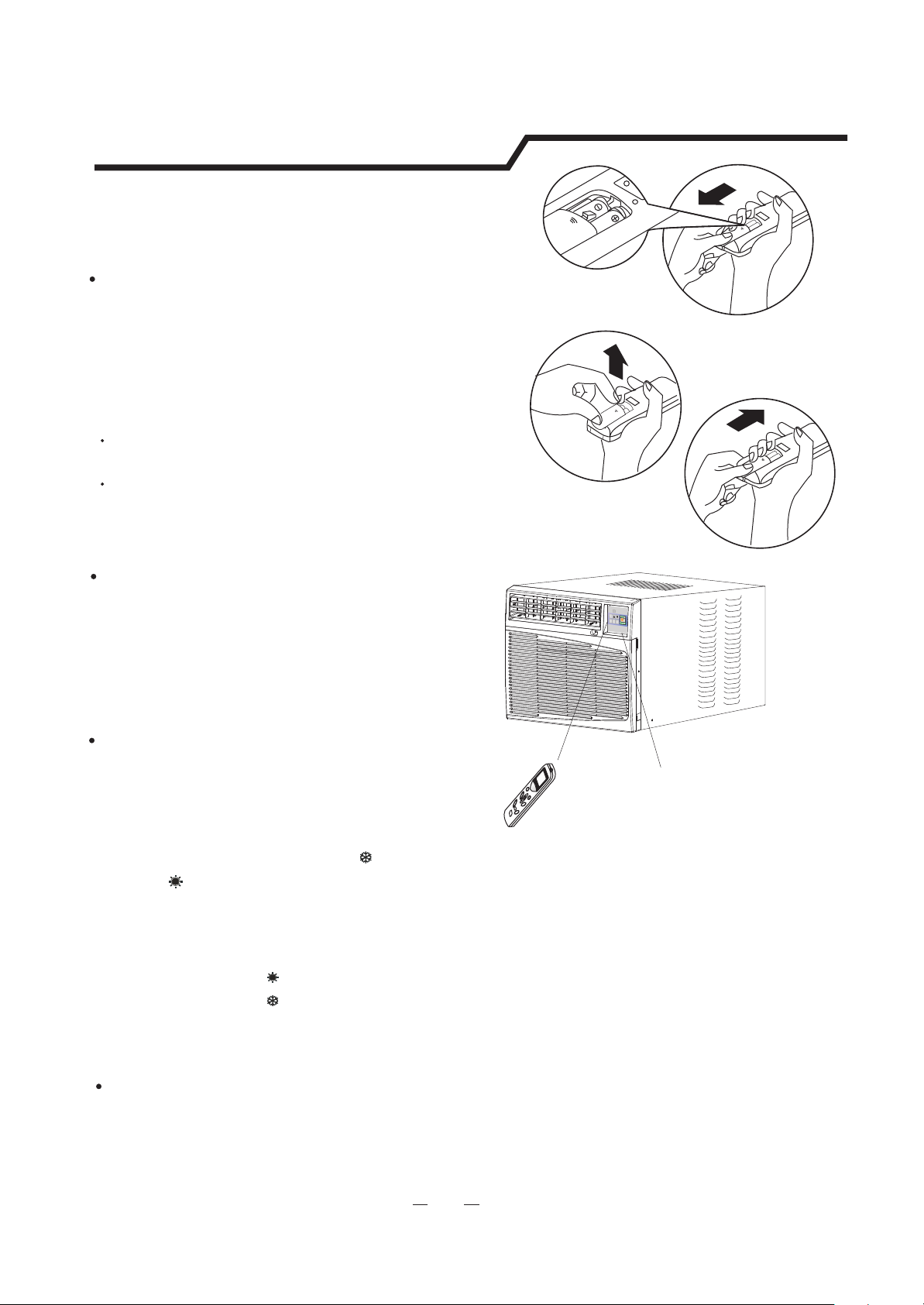

Remote control

Mode

High

BUTTON

The appliance will be started when it is energized or will be stopped when it is in operation, if you press this button.

Mode BUTTON

Used to select the operation mode.

Each time the Mode button is pressed, the operation modeis changed in sequence:

COOLING

BUTTONS

Used to set room temperature in Cooling

mode or used to set time in Timer mode.

Temperature setting range is from 19 (66 )

to 31 (88 ).

High BUTTON

Used to select the mode.high fan speed

FAN ONLY

COOLING

Saver

Timer

Auto

Mid

Low

Indication symbols of LCD on remote control:

Signal transmit

Auto fan speed

The Above symbols are shown when the relevant mode is in use.

Cooling

Low fan speed

Fan only

Medium fan speed

Mid BUTTON

Used to select the Mid mode.fan speed

Low BUTTON

Used to select the Low mode.fan speed

Auto BUTTON

Used to select the Auto mode. fan speed

Timer BUTTON

Used to set or cancel timer operation.

Note: Press the TIMER button again to confirm setting after adjusting the time.

Saver BUTTON

Used to select the mode.Energy-saving

Energy-saving

High fan speed

Display set temp Display set timer

When Changing modes during operation, sometimes the unit does not always respond at once. Wait 3 minutes.

Wait 3 minutes before restarting the appliance.

Page 15

Operating Instructions

The remote control is NOT preset as Cooling

only or Heat Pump by manufacturer.

Each time after the remote control replaces batteries

or is energized, the Cooling indicator and Heating

indicator will flashes alternately on LCD of the remote control.

User can preset the remote control type depending

on the air conditioner type you have purchased as follows:

Press any button when flashes, Heat Pump will be set.

Press any button when flashes, Cooling Only will be set.

If you don not press any button within 12 seconds, the remote control will be set as Heat Pump

automatically.

Back-light function(optional)

Remote Control Presetting

Hold down any button of rem ote control for about 2 seconds, back-light turns on. Release the

button, it lights off automatically 10 seconds later.

Remote control

How to Insert the Batteries

Remove the battery cover according to the arrow direction. Insert new batteries making sure that the (+) and (-) of

battery are matched correctly.

Reattach the cover by sliding it back into position.

Note:

Use 2 LR03 AAA (1.5volt) batteries. Do not use rechargeable batteries. Replace batteries with new ones of the same type when the display becomes dim.

If the replacement is done within 1 minute, the remote control will keep original presetting.

How to Use

To operate the room air conditioner , aim the remote control to the signal receptor. The remote control will operate the air conditioner at a distance of up to 23 feet when pointing at signal receptor of indoor unit.

Air

cond

itio

n er

TI M E

F A N

H R

DE S P E

OFF

IT T

HREE M

INUTES

FOR

E RE

S TAR

TI NG

Signal receptor

Page 16

Care and Maintenance

When servicing the air conditioner, be sure to turn the mode switch to the "OFF" position and disconnect the power cord from the electrical outlet.

1. DO NOT use gasoline, benzine, thinner or other chemicals on the air conditioner as these substances may cause damage to the paint finish and deformation of plastic parts.

2. Never attempt to pour water directly in front of the unit as this will cause deterioration of the electrical insulation.

Cleaning the Air Filter

Removal of Air Filter

If the air filter becomes clogged with dust, air-flow is obstructed and reduces efficiency. The air filter should be cleaned once a month. More frequent cleaning may be necessary depending on outdoor and indoor air quality.

Air Filter Removal:

The air filter on the above model is located behind the air intake front grille. To remove the air filter, open the air inlet grille and take the air filter . To reinstall the air filter, reverse the above procedure.

! !

DO NOT forget to install the air filter. If the air

conditioner is left to operate without the air filter, dust is not removed from the room and may cause your air conditioner to fail.

When the air filter inlet grille and cabinet are dirty, wipe with lukewarm water (below 40 C/104 F). Use of mild detergent is recommended.

Cleaning of Air Filter

1. Remove dust clogged in the filter by tapping it or vacuum clean it.

2. Wash the filter well with lukewarm water below 40 C (104 F) while rubbing lightly: To get better results, wash it with soapy water or a neutral cleaning agent.

3. Rinse the filter well using clean water then dry completely.

End-of-Season Care

1. Operate the fan alone for half a day to dry out the inside of the unit.

2. Turn off power and remove plug from wall socket.

3. Clean filter.

4. Store in a dry location.

CAUTION

Page 17

Troubleshooting Guide

Frequently, a problem is minor and a service call may not be necessary, use this troubleshooting guide for a possible solution.

PROBLEM POSSIBLE CAUSE SUGGESTED SOLUTION

Air conditioner will not operate

Inefficient or no cooling

Noisy unit

Odors

No power to the unit.

Dirty air filter.

Inappropriate capacity for application.

Blocked air flow.

Power interruption, settings change too quickly, or compressor overload tripped.

Loose parts. Inadequate support.

Formation of mold, mildew, or algae on wet surfaces.

Check connection of power cord to power source.

Check fuse or circuit breaker.

Set FAN CONTROL to position other than "OFF".

Clean or replace air filter.

Check with dealer to determine proper unit capacity for application.

Remove obstruction from grill or outdoor louvers.

Let fan run to restart compressor (in approximately 10 minutes).

Tighten loose parts. Provide additional support to unit.

Remove Replace drain plug.

Clean unit thoroughly.

drain plug and drain base pan.

Water dripping outside

Water dripping inside

Ice or frost build-up Low outside temperature.

NOTE:

If circuit breaker is tripped repeatedly, or fuse is blown more than once, contact a licensed technician.

Condensation run-off is normal during hot and humid weather

Unit is not properly angled to

allow water to drain outside.

Unit air filter is dirty.

Add flexible tubing to redirect water flow, see (Fig.14 Page.10)

Unit must be installed on an angle for proper condensation run-off. Check the unit and make adjustments.

When outdoor temperature is approximately 65 F or below, frost may form when unit is in cooling mode. Switch unit to FAN (only) operation until frost melts.

Remove and clean filter.

Page 18

is a registered trademark of Sunbeam Products, Inc. used under license. Distributed by Petters Consumer Brands, LLC. 4400 Baker Road, Minnetonka, MN 55343.

For service, support and warranty information, visit www.sunbeammajorappliances.com or in the US call 1-866-866-6283.
