Please read these instructions carefully
and retain for future reference.
Quantum Stainless
2.0 litre cordless kettle in brushed
stainless steel
Instruction Booklet
KE8510
Sunbeam’s Safety Precautions 1
Features of your Quantum Stainless 2
Using your Quantum Stainless 4
Sunbeam’s 3-Way Safety System 5
Care and Cleaning of your Quantum Kettle 6
Contents
1
Sunbeam are very safety conscious when
designing and manufacturing consumer products,
but it is essential that the product user also
exercise care when using an electrical appliance.
Listed below are precautions which are essential
for the safe use of an electrical appliance:
• Read carefully and save all the instructions
provided with an appliance.
• Always turn the power off at the power outlet
before you insert or remove a plug. Remove
by grasping the plug - do not pull on the cord.
• Turn the power off and remove the plug
when the appliance is not in use and
before cleaning.
• Do not use your appliance with an extension
cord unless this cord has been checked
and tested by a qualified technician or
service person.
• Always use your appliance from a power
outlet of the voltage (A.C. only) marked
on the appliance.
• Close supervision is necessary when your
appliance is being used near children or
infirm persons.
• Never leave an appliance unattended while
in use.
• Young children should be supervised to ensure
that they do not play with the appliance.
• Do not use an appliance for any purpose
other than its intended use.
• Do not place an appliance on or near a hot gas
flame, electric element or on a heated oven.
Do not place on top of any other appliance.
• Do not let the power cord of an appliance hang
over the edge of a table or bench top or touch
any hot surface.
• For safety reasons and to avoid maintenance
by unskilled persons, some appliances are
‘sealed’ using tamperproof screws. Such
appliances should always be returned to the
nearest Sunbeam Appointed Service Centre
for adjustment or repair if required.
• Do not operate any electrical appliance with a
damaged cord or after the appliance has been
dropped or damaged in any manner. If damage
is suspected, return the appliance to the
nearest Sunbeam Appointed Service Centre
for examination, repair or adjustment.
• For additional protection, Sunbeam
recommend the use of a residual current
device (RCD) with a tripping current not
exceeding 30mA in the electrical circuit
supplying power to your appliances.
• Do not immerse the appliance in water
or any other liquid unless recommended.
If you have any concerns regarding the performance and use of your appliance,
please visit www.sunbeam.com.au or contact the Sunbeam Consumer Service Line
Ensure the above safety precautions are understood.
Sunbeam’s Safety Precautions
SAFETY PRECAUTIONS FOR YOUR
SUNBEAM KETTLE.
• Always operate the kettle on a flat,
level surface.
• Boiling water will scald. Do not leave a
boiling or hot kettle near or where children
may touch it.
• Do not leave the power cord near the edge
of a bench top where children may touch
or pull it.
• Boiling water may be ejected, if overfilled.
• Do not remove lid while water is boiling.
• Do not operate the kettle without water.
• Always turn the power off and unplug the
cord while the kettle is NOT in use.
• Your Quantum Stainless kettle must only be
used with the power base supplied.
• Do not move kettle while switched on.
2
Features of your Quantum Stainless
Hinged locking lid.
Opens at the push of a button for one-handed
use and easy filling at the tap.
Removable mesh filter.
Keeps the water clean of any foreign matter
and is removable or easy cleaning.
2400 watt concealed element.
The fast boil 2400 watt element is concealed
in the base of the kettle for longer element
life. The smooth stainless floor reduces scale
build up and allows for easy cleaning.
Stylish brushed stainless steel design.
Long life stainless steel to suit any kitchen
décor.
3
Easy read water gauge.
The full length water gauge indicates the
volume of water in the kettle, up to 2.0
litres.
Ergonomic handle.
Contoured design for easy handling and
pouring.
Neon ON/OFF switch with auto cut out.
Lights up to indicate that the kettle is on and
heating. Switches the kettle off automatically
after boiling.
360 degree cordless power base.
Designed to allow you to place the kettle on
the base in any direction.
Cord storage facility.
Excess cord can be wound around the cord
storage facility underneath the power base.
3-Way Safety System.
1 – Automatically switches the kettle off after boiling.
2 – Cuts out for boil-dry production.
3 – Shuts down in case of overheating.
4
Before using your kettle.
Fill the kettle with water up to the maximum
level indicator, boil and discard.
Using your kettle.
1.Push down on the button at the top of the
handle to open the hinged locking lid.
2.Fill the kettle with the desired amount of
water (minimum 1 cup / 250ml).
NOTE: Do not fill above the maximum level
indicator (marked on the water gauge as
“MAX”) as water may spill out of the
spout when boiling.
Alternatively, the kettle may be filled
through the pouring spout.
3.Push the lid closed firmly until it locks
into position.
4.Place the kettle on the power base and
connect the plug into a 230/240 Volt AC
power outlet. Turn the power ON.
5.Press the ON/OFF switch downwards. The
light will illuminate to indicate the kettle is
heating.
Note: Do not open the lid while the kettle
is in use.
6.The kettle will switch off automatically
once the water has boiled.
Note: Ensure that the ON/OFF switch is
clear of obstructions. The kettle will not
turn off if the ON/OFF switch is
constrained. Do not remove the kettle from
the power base while in use.
7.Lift the kettle from the power base and
pour the water.
8.The kettle may be stored on the power
base while not in use. The kettle will not
re-boil until the ON/OFF switch is pressed
downward.
Note: Ensure the power is turned off at the
power outlet when the kettle is not in use.
Should you accidentally allow the kettle to
operate without water, it will cut out for
boil-dry protection. If this occurs, allow the
kettle to cool before filling with cold water
and re-boiling.

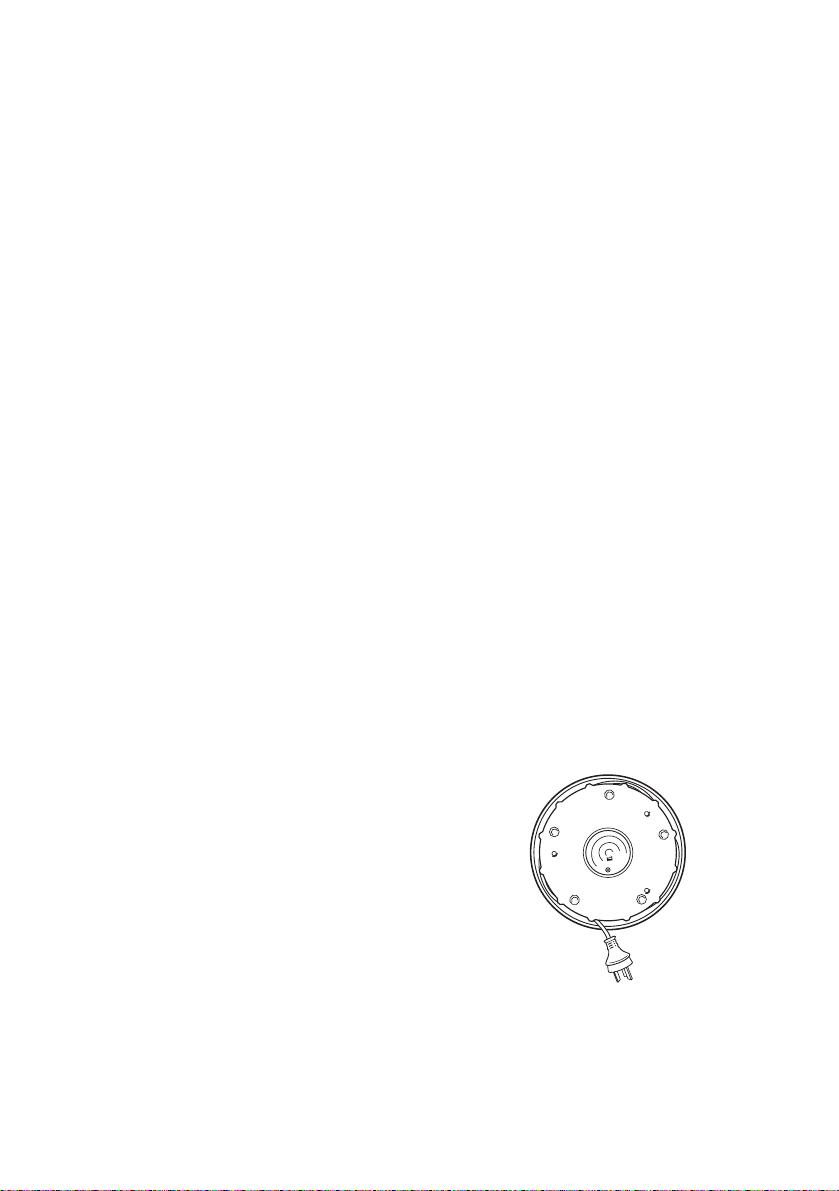

Cord Storage Facility.
Excess cord can be stored by winding the
cord around the storage facility underneath
the power base.
Using your Quantum Stainless
360° power base
5
Safety is a major consideration in the
design of a Sunbeam kettle. This is why we
have developed our 3-Way Safety System,
which ensures that your kettle will:
1. Automatically switch off after boiling.
For convenience, safety and energy
efficiency, your Sunbeam kettle features an
auto cut-out device.
2. Cut-out for boil-dry protection.
If the kettle is operated without water, it
will automatically cut-out, preventing any
damage to the element.
3. Shut-down in case of overheating.
In the event of overheating, the kettle will
automatically shut down to prevent further
damage. Should this occur, take your kettle
to a Sunbeam Service Centre or Appointed
Service Agent.
Sunbeam’s 3-Way
Safety System.
6
Always disconnect the kettle from the
power outlet before cleaning.
Never immerse the kettle switch area, cord
or power base in water, or allow moisture
to come into contact with these parts.
Removal of mineral deposits.
Mineral deposits in tap water may cause
the interior of the water gauge to discolour.
To remove this build-up, use Sunbeam
Liquid Descaler, a simple to use, non-toxic
cleaner available from Sunbeam Appointed
Service Agents.
Alternatively:
1.Fill the kettle with 3 cups of white vinegar
and the remainder with water and allow to
stand overnight. DO NOT BOIL.
2.Empty the solution from the kettle. Fill the
kettle with clean water, bring to boil and
then discard the water. Repeat and the
kettle will then be ready to use.
To clean the polished exterior.
The stainless steel surface may be wiped
over with a damp cloth and polished with a
soft dry cloth.
CAUTION: Do not use chemical, steel wool,
or abrasive cleaners to clean the outside of
the kettle, as these will scratch the
stainless steel surface.
To clean the mesh filter.
Press the button at the top of the handle
to open the hinged lid. Grasp the top of
the scale filter and pull upwards to
remove. Wash in warm soapy water and dry
thoroughly before replacing in the kettle.
Care and Cleaning.
‘Sunbeam’ & ’ Quantum’ is a registered trademark of
Sunbeam Corporation.
Made in China. Designed and engineered in Australia.
Due to minor changes in design or otherwise, the
product may differ from the one shown in this leaflet.
Backed by Sunbeam‘s 12 Month Replacement
Guarantee and National Service Network.
© Copyright.
SUNBEAM CORPORATION LIMITED 2002.
(INCORPORATED IN N.S.W.) A.C.N. 000 006 771
For more information or advice on this or any other
Sunbeam appliance, visit www.sunbeam.com.au or
contact the Sunbeam Consumer Service Line.
Australia 1800 025 059
New Zealand (09) 912 0747.
