Sunbeam JE6400M, JE6400S, JE6400, JE6400Y, JE6400DG User Manual

...
Fresh Start
Juice extractor with whole fruit chute
Instruction Booklet
This book covers the use and care of the following juicers:
JE6400 – White JE6400G – Lime Crush JE6400R – Watermelon Ice JE6400Y – Lemon Tang JE6400M – Mango Tango JE6400S – Satin
Please read these instructions carefully and retain for future reference.
Contents
Safety Precautions for your Juicer 1
Features of your Fresh Start
Helpful hints for juicing 4
A guide to the benefits of juicing 5
Assembling your Fresh Start
Operating your Fresh Start
Juicing speed guide 10
Disassembling your Fresh Start
Care and Cleaning 12
Trouble shooting guide 13
Recipes
Day starters 14
Juice remedies 15
Juice jolts 16
A good start for kids 17
™ Juicer 2
™ Juicer 7
™ Juicer 9
™ Juicer 11
Important instructions – retain for future use.
Sunbeam’s Safety Precautions
SAFETY PRECAUTIONS FOR YOUR
SUNBEAM JUICER.
• Do not put fingers or other objects into the feed chute whilst the juicer is in operation.
• Do not push fruit or vegetables into the feed chute with your fingers, always use the food pusher provided.
• If any fruit or vegetables become lodged in the feed chute, use the food pusher or turn off the juicer, remove the plug from the power outlet and disassemble to remove the lodged fruit or vegetables.
• Never operate without pulp container.
Sunbeam are very safety conscious when designing and manufacturing consumer products, but it is essential that the product user also exercise care when using an electrical appliance. Listed below are precautions which are essential for the safe use of an electrical appliance:
• Read carefully and save all the instructions provided with an appliance.
• Always turn the power off at the power outlet before you insert or remove a plug. Remove by grasping the plug – do not pull on the cord.
• Turn the power off and remove the plug when the appliance is not in use and before cleaning.
• Do not use your appliance with an extension cord unless this cord has been checked and tested by a qualified technician or service person.
• Always use your appliance from a power outlet of the voltage (A.C. only) marked on the appliance.
• This appliance is not intended for use by young children or infirm persons unless they have been adequately supervised by a responsible adult to ensure that they can use the appliance safely.
• Ensure the juicer is correctly and completely assembled before turning the appliance ‘On’.
• Ensure the juicer cover is clamped securely and pulp container is in place before juicer is turned on. Do not unfasten the twin-locking handles while the juicer is in operation.
• Juicing blades are very sharp, handle juicing filter basket with care when removing, replacing and cleaning.
• Always operate the juicer on a flat, level surface.
• Do not operate for more than 30 seconds at a time when juicing heavy loads. None of the recipes in this manual are considered a heavy load.
• Young children should be supervised to ensure that they do not play with the appliance.
• Never leave an appliance unattended while in use.
• Do not use an appliance for any purpose other than its intended use.
• Do not place an appliance on or near a hot gas flame, electric element or on a heated oven. Do not place on top of any other appliance.
• Do not let the power cord of an appliance hang over the edge of a table or bench top or touch any hot surface.
• Do not operate any electrical appliance with a damaged cord or after the appliance has been damaged in any manner. If damage is suspected, return the appliance to the nearest Sunbeam Appointed Service Centre for examination, repair or adjustment.
• For additional protection, Sunbeam recommend the use of a residual current device (RCD) with a tripping current not exceeding 30mA in the electrical circuit supplying power to your appliances.
• Do not immerse the appliance in water or any other liquid unless recommended.
If you have any concerns regarding the performance and use of your appliance, please visit
www.sunbeam.com.au or contact the Sunbeam Consumer Service Line. Ensure the above safety precautions are understood.
1
Features of your Sunbeam
Fresh Start
Food pusher
Whole fruit & vegetable feed chute
The extra large 75mm diameter feed chute takes whole fruit and vegetables reducing the amount of preparation needed.
Patent pending feed chute lever
Ensures a controlled and safe juicing action. The lever suspends the fruit above the blade until you are ready to apply downward pressure with the food pusher and commence juicing.
Juicer cover
Juice collector / bowl
Juicer
Twin-locking handles with safety braking system
4-second braking system provides essential safety. The blades will come to a complete stop, either when the juicing switch is turned ‘Off’ or the twin-locking levers are released.
Control switch with two speeds and off
Two speed control to optimise juicing results. Low speed for soft fruit, particularly those with a high water content including oranges and watermelon. High speed is ideal for hard and fibrous fruit and vegetables such as apples, ginger, celery and carrots.
2





Stainless steel blade and filtering basket
The commercial quality stainless steel blade and filtering basket, designed to maximise extraction of juice from fruit and vegetables.
Extra large pulp container
Large 3 litre capacity pulp container is ideal for extracting large volumes of juice without stopping. Once full the pulp container can be easily removed without having to dismantle the juicer.
Powerful 850 watt motor
Powerfully built 850 watt motor with 5 year guarantee, extracts juice at slower speeds reducing oxygen and heat damage to juice – ensuring maximised juice extraction and less froth.
Cord wrap
Cord wraps away to keep bench top clean.
Non-slip feet
Heavy-duty non-slip feet ensure the juicer remains stable and prevents slipping on the bench top during use.
Juicing jug
1 litre juicing jug with froth separating lid ensuing on easy pour and a smooth tasting juice.
3
Helpful hints for juicing
Preparing fruit and vegetables
Wash all fruit and vegetables well before juicing. There is no need to peel vegetables that have a thin skin but a light scrub with a clean sponge will help rid of any dirt that may be stuck on or any waxy coatings.
Peel fruit and vegetables that have a thick skin such as melons, pineapple and citrus fruit.
Juice only the freshest of fruit and vegetables to get the most out them and the best flavours.
Cut large pieces of fruit, such as melons into large wedges.
Some seeds from citrus fruits can be bitter so you may want to remove some of the seeds if desired.
Remove seeds and stones from fruit such as mangoes, papaya and stone fruit. This will prevent the blade from getting damaged.
Juicing techniques
When juicing different fruit and vegetables it may help to juice in different combinations. For example, when juicing apples and oranges, juice the soft fruit (oranges) first, then follow with the hard fruit (apples) second. This will help you to achieve the maximum juice extraction from the fruit and vegetables.
When juicing fresh herbs such as mint or parsley, add the herbs in between the fruit and vegetables to get the most out of the herb or if only using a small quantity, add the herb at the same time as a piece of fruit and vegetable.
Bananas can be hard to juice but the taste goes a long way. When juicing a blend of fruit with bananas, add the banana as either the first or second piece of fruit. The nectar of the banana will sit inside the filtering basket and as the remaining fruits are added into the juice extractor they will release the banana nectar throughout the rest of the juice resulting in frothy flavoursome juice.
When juicing small fruit such as grapes or strawberries, add the fruit in handfuls rather than one at a time, this will maximise the amount of juice extracted.
Be aware that beetroot stains all other fruit and vegetables. If juicing several different juice combinations, juice the drink with the beetroot last, so as to not stain the other drinks.
4
A guide to the benefits of juicing
Fruit / Vegetable Source of Benefits KJ per 100g
Apples Carotenes, pectin, potassium, May help in the treatment 150kj/100g vitamin C and dietary fibre, of constipation. energy giving carbohydrates.
Apricots Beta-carotene, iron, vitamin C, High in natural sugars for energy. 280kj/100g dietary fibre.
Banana Potassium, carbohydrates, Provides sustained energy. 225kj/100g dietary fibre, vitamin B6, vitamin C.
Beetroot Folate, potassium, leafy tops are rich The folate is excellent for 120kj/100g in beta carotene, calcium and iron. healthy cells.
Blueberries Carotenoids, vitamin C. Antibacterial. 200kj/100g
Capsicum High in vitamin C, beta carotene. 1 red capsicum has enough vitamin C 135kj/100g to meet the daily needs of 10 people.
Carrots Beta carotene, folate, dietary fibre. May help with night vision. 100kj/100g
Celery Only small amounts of vitamins Helps to clean mouth and teeth. 50kj/100g and minerals.
Cherries Very high in vitamin C, dietary fibre. May help to stabilise the heartbeat 170kj/100g and also keeps the skin healthy.
Cucumber Only small amounts of vitamins May help with flatulence. 30-50kj/100g and minerals.
Fennel Beta carotene, folate. Fennel seeds are good for digestion. 50kj/100g
Ginger Aids in digestion and is good for nausea and improves circulation.
Grapefruit Rich in vitamin C, fibre, bioflavenoids. Pink grapefruit contains Lycopene 110kj/100g which is an anti-cancer agent and may reduce the risk of prostate cancer.
Honeydew Melon Vitamin C, small amounts of May stimulate the kidneys to help 130kj/100g carotenoids. function better.
Kiwi Fruit Beta carotene, vitamin C, Helps in digestion and cleansing bioflavenoids, dietary fibre. of the skin. 180kj/100g
Lemon Bioflavenoids, limonene, pectin, The pectin may help reduce 95kj/100g vitamin C. blood cholesterol.
Lime Bioflavenoids, limonene, pectin, The pectin may help reduce 90kj/100g vitamin C. blood cholesterol.
Mandarins Vitamin C, beta carotene, folate, 165kj/100g
5
A guide to the benefits of juicing (continued)
Fruit / Vegetable Source of Benefits KJ per 100g
Mango Beta carotene, potassium, flavenoids Easy to digest. 235kj/100g
and other antioxidants.
Mint Antispasmodic volatile oils, Aids digestion. flavenoids, menthol.
Oranges High in vitamin C, fibre, beta Excellent for healthy skin and helps 100kj/100g carotene, flavenoids, thiamine, the body’s defences against bacterial pectin, folate. infections.
Papaya Protective carotenoids, rich in Helps digest proteins. 160kj/100g vitamin C, fibre, rich in papain.
Parsley Vitamin C, iron. Excellent for fresh breath.
Pawpaw Beta carotene, flavenoids, Helps digest proteins. 163kj/100g magnesium, rich in papain.
Peaches Good source of vitamin C, dietary Easy to digest and works as a gentle 130kj/100g fibre, beta carotene. laxative.
Pears Very good source of dietary fibre. Provide a quick source of energy. 190kj/100g
Pineapple Vitamin C, dietary fibre, beta carotene. Helps to digest protein. 160kj/100g
Plums Vitamin E, potassium, beta carotene, May help to retard the effects 110-155kj/100g malic acid. of wrinkling.
Raspberries High in dietary fibre, excellent source Helps in treating constipation. 110kj/100g of vitamin C, some folate.
Rockmelons Excellent source of vitamin C, beta May help in the prevention of cancer 90kj/100g carotene, carotenoids. and heart disease.
Spinach Zeaxanthin, vitamin C, beta carotene, Helps in keeping eyes healthy 65kj/100g folate, dietary fibre. in the elderly.
Strawberries Vitamin C, dietary fibre, some folate. Helps to absorb iron better after 80kj/100g eating meat.
Tomatoes Rich in lycopene, vitamin C, and May help reduce the risk of prostate 55kj/100g small amounts of vitamin E, folate, cancer in men. dietary fibre.
Watercress Vitamin C & E, folate, beta carotene, Thought to have cancer fighting 72kj/100g iron. properties.
Watermelon Carotenoids, beta carotene, vitamin C, May stimulate the kidneys to help 95kj/100g
dietary fibre. function better.
6
Assembling your Sunbeam
Fresh Start
Juicer
Before Use
After unpacking your Sunbeam Fresh Start™ Juicer, we recommend that you dissemble the unit before using for the first time. Wash all parts except the motor base in hot soapy water. Rinse and dry immediately.
Important: Always ensure your juicer is unplugged from the power outlet when not in use, during assembling or whilst removing parts.

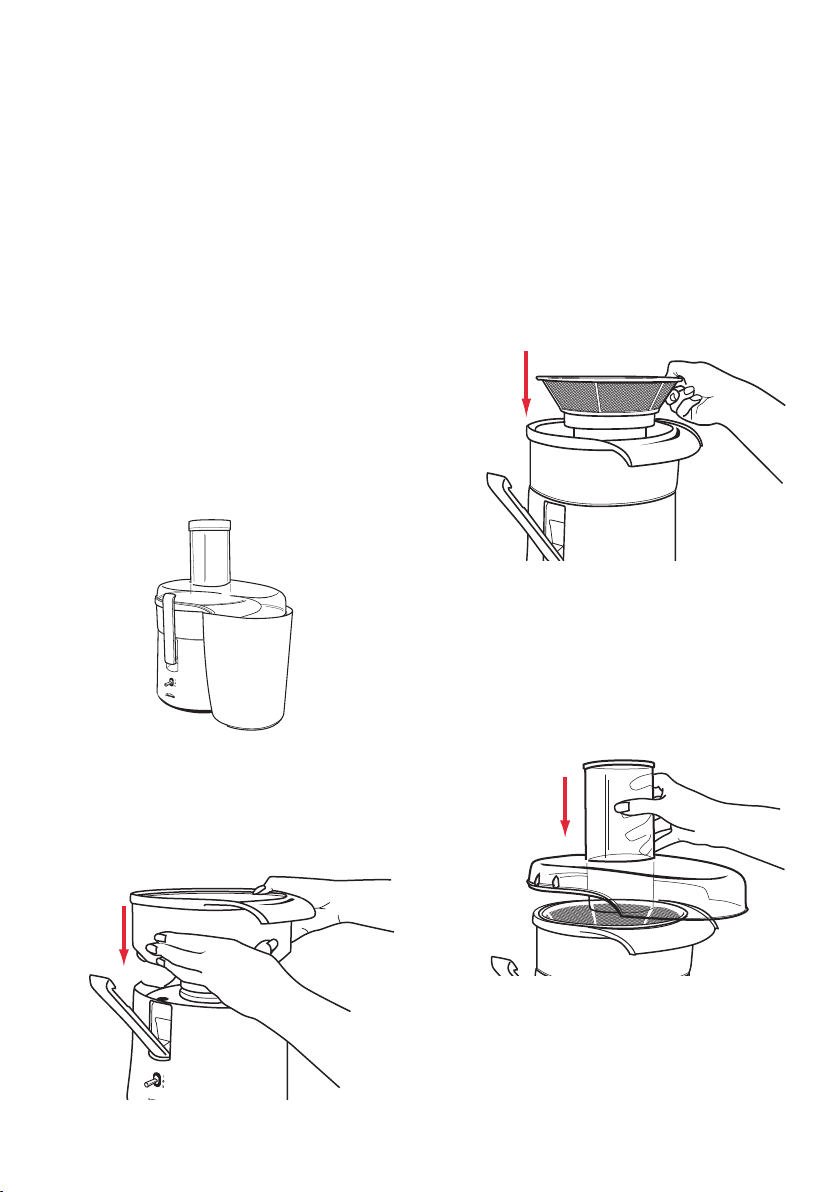

1. Set the motor base on a dry, level surface. For convenience when juicing, have the control switch facing you – figure 1.
Figure 1
3. Position the stainless steel blade and filtering basket onto the motor drive shaft and push down until firmly in place, the arrows indicate the correct alignment position of the basket – figure 3.
4. Place the juicer cover onto the juice collector / bowl, with the feed chute positioned over the stainless steel blade and filtering basket and push into position – figure 4.
Figure 3
Figure 4
2. Place the juice collector / bowl onto the top of the motor base – figure 2.
Figure 2
7
Assembling your Sunbeam Fresh Start™ Juicer (continued)
5. Secure the juicer cover by raising the twin­locking handles and clip the tops to the juicer cover – figure 5a. Press firmly on the lower part of the twin-locking handles to lock into place – figure 5b.
Figure 5a Figure 5b
6. Slightly tilt the pulp container and slide into place under the juicer cover – figure 6.
Tip: To reduce cleaning we recommend that
you line the pulp container with a plastic bag to collect the pulp.
Figure 6
7. Take the food pusher, align the groove on the food pusher with the notch on the inside of the feed chute and slide the food pusher down into the feed chute – figure 7.
Figure 7
8
Operating your Sunbeam
Fresh Start
Juicer
Note: The Fresh Start™ juicer should be completely assembled before use, if this is not the case see ‘Assembling your Sunbeam Fresh Start™ Juicer on page 7.
1. Ensure the control switch on the juicer is in the ‘Off’ position and insert the power cord into a 230-240V AC power outlet and turn the power ‘On’.
2. Clean fruit and vegetables thoroughly, ready for juicing.
Note: The extra large feed chute allows
whole fruit and vegetables to be juiced, however some fruit and vegetables may require other preparation before juicing, such as peeling and removing stones, see ‘Juicing speed guide’ on page 10 for our recommendations.
3. Ensure that the juicer has been assembled completely and correctly, making sure that the stainless steel blade and filtering basket revolves properly before placing fruit and vegetables in the juicer.
Note: The stainless steel blade and filtering
basket should be cleaned thoroughly before each use, see ‘Care and cleaning’ on page
12.
4. Place a jug or glass under the juice spout.
5. Select ‘Low’ or ‘High’ speed with the control switch. To select ‘Low’ speed push the control switch up ‘ push the control switch down ‘ll’.
For optimum juicing results ‘Low’ speed is
used primarily for soft fruit and vegetables, particularly those with a high water content and ‘High’ speed is ideal for hard and fibrous fruit and vegetables. A list of fruit and vegetables commonly used for juicing and their recommended juicing speed are specified in the ‘Juicing speed guide’ on page 10.
l’. To select ‘High’ speed
Important: Do not operate for more than
30 seconds at a time when juicing heavy loads. None of the recipes in this manual are considered a heavy load.
6. With the juicer in operation, place the fruit and vegetables into the feed chute. Using the food pusher, guide the fruit and vegetables down the feed chute and onto the stainless steel blade.
Tip: For maximum juice extraction, guide
the food pusher down the feed chute in a slow downward motion.
Important: Do not push fruit or vegetables
into the feed chute with your fingers, always use the food pusher provided.
7. The juice from the fruit and vegetables will flow directly into the jug or glass and the pulp will be separated and collected in the pulp container.
Important: When juicing be aware of
the level of pulp in the pulp collection container, because if the container is overfilled this can cause damage to the appliance and prevent the juicer from operating correctly.
8. When juicing is complete ensure that the juicer is switched ‘Off’ and unplugged from the power outlet.
9
Juicing speed guide
FRUIT / VEGETABLE TYPE RECOMMENDED SPEED
Apricots – remove stone Low Banana – remove skin Low Beetroot High Blueberries Low Capsicum - remove seeds Low Carrots High Celery High Cherries – remove pips Low Cucumber Low Fennel High Ginger High Grapes - remove stems High Grapefruit – remove skin Low Honeydew melon – remove skin Low Kiwi fruit – remove skin Low Lemon – remove skin Low Lime – remove skin Low Mandarins – remove skin Low Mangoes – remove skin & seed Low Mint High Oranges – remove skin Low Papaya High / Low Parsley High Pawpaw High / Low Peaches – remove stone Low Pears High / Low Pineapple – remove skin High Plums – remove stone Low Raspberries Low Rockmelons – remove skin Low Spinach High Strawberries Low Tomatoes Low Watercress High Watermelon – remove skin Low
Apples High
10
Disassembling your Sunbeam
Fresh Start
Juicer
1. Turn the power ‘Off’ at the power outlet and unplug the cord.
2. Slightly tilt the pulp container and slide away from the juicer – figure 8.
Figure 8
3. Place fingers under the bottom of the twin-locking handles and lift to release – figure 9.
Figure 9
4. Lift the juicer cover from the juice collector/bowl – figure 10.
5. Place fingers under the rim of the stainless steel blade and filtering basket and lift out – figure 11.
Important: Juicing blades are very sharp,
handle juicing filter basket with care when removing, replacing and cleaning.
Figure 10
Figure 11
6. Lift the juice collector/bowl from the motor base – figure 12.
Figure 12
11
Care and cleaning
Note: Ensure that the juicer is unplugged from the power outlet prior to cleaning.
Dishwashing
All parts of the Sunbeam Fresh Start™ juicer, excluding the motor base, can be placed in the dishwasher for effortless cleaning after juicing.
Note:
If using the dishwasher, due to high temperatures we recommend placing parts only on the top rack of your dishwasher. This will prevent any damage to the product due to heat.
Quick clean
For easy cleaning, ensure that immediately after use that the juicer is disassembled and that each removable part is rinsed under running water, removing any wet pulp and then allow to air dry.
Thorough cleaning
Disassemble the juicer and place all removable parts aside, see ‘Disassembling your Fresh Start™ juicer on page 11.
Rinse the juice collector, juicer cover, pulp container and food pusher under running water and wash with warm, soapy water. Rinse well.
Using the nylon cleaning brush supplied with the juicer, hold the stainless steel blade and filtering basket under running water and brush the outside of the basket first. Then with the basket still under running water, brush the inside of the basket in an anti­clockwise direction, removing the pulp. To ensure the stainless steel blade and filtering basket is free of all remaining pulp, hold it up to light and ensure that the holes in the filtering basket are not blocked.
Important: Juicing blades are very sharp, handle juicing filter basket with care when removing, replacing and cleaning.
Use a soft, damp cloth to wipe the motor base clean.
To clean the motor base
Clean the motor base of the juicer using a damp soft sponge with mild detergent and wipe over the appliance.
Important: Never immerse the motor base in water or any other liquid.
12
Troubleshooting Guide
Problem Possible cause What to do
Juicer will not start when speed The juicer hasn’t been assembled See ‘Assembling your Fresh Start™ is selected. correctly. Juicer', on page 7.
The juicer motor appears to struggle Pulp container is full. Empty the pulp container. during operation.
Pulp is caught in the Stop juicing, remove the juicer cover juicer cover. and clean out pulp. See ‘Disassembling your Fresh Start™ Juicer', and ‘Care and Cleaning’ sections. Try a slower juicing action – guide the food pusher down the feed chute in a slow downward motion.
Stainless steel blade and filtering After extended juicing of fibrous fruit basket is blocked with excess pulp. and vegetables the mesh on the filtering basket may need to be cleaned. Stop juicing, disassemble the juice extractor and clean the filtering basket. See ‘Disassembling your Fresh Start™
The selected juicing speed See ‘Juicing speed guide’ on page 10. is incorrect.
You notice less juice coming Large amounts of highly fibrous fruit Stop juicing, disassemble the juice out of the juice spout. and vegetables have caused excess extractor and clean the filtering pulp to build up in the filtering basket. basket. See ‘Disassembling your Fresh Start™ sections.
Juicer', and ‘Care and Cleaning’ sections.
Juicer'
and ‘Care and Cleaning’
13
Recipes
DAY STARTERS
For all recipes in this section, process all ingredients listed in the recipe through the juicer, stir and serve immediately.
All recipes make approximately 2 small serves.
Zinger
Pineapple
Green apples 2
Celery 1 stalk
Mint 1 sprig
Lemon
Flying High
Carrot 3
Green apples 2
Beetroot 1 small
Distant Melons
Watermelon 1 wedge, 200g piece
Honeydew
Rockmelon
small, peeled
¼
small, peeled
¼
, peeled
¼
, peeled
¼
Orange Madness
Pawpaw ½ large, peeled, seeds removed
Rockmelon
Lime
Grapes
Morning Calmer
Mango 1, seed removed
Oranges 2, peeled
Blood plums 4, seeds removed
Pick Up The Pace
Carrot 4
Green apple 1
Parsley 1 handful
Kiwi fruit 1, peeled
, peeled, seeds removed
¼
, peeled
¼
cup
½
14
Recipes (continued)
JUICE REMEDIES
For all recipes in this section, process all ingredients listed in the recipe through the juicer, stir and serve immediately.
All recipes make approximately 2 small serves.
Immune Booster
Green apples 3
Celery 3 stalks
Ginger 2cm piece
See the light
Green apples 2
Carrot 2
Ginger 2cm piece
Fuzzy Thoughts
Carrot 2
Celery 2 stalks
Green apples 1
Kiwi Fruit 1, peeled
Ginger 2cm piece
Body Cleanser
Carrot 3
Celery 1
Pear 1
Beetroot 1 small
Power Purifier
Carrot 3
Beetroot 1 small
Red capsicum
Spinach 2 large leaves
Classic Karma
Carrot 3
Green apples 2
Celery 2 stalks
Parsley 1 handful
, seeds removed
½
Jack’s Juice
Tomatoes 3
Celery 1 stalk
Carrot 1
15
Recipes (continued)
JUICE JOLTS
For all recipes in this section, process all ingredients listed in the recipe through the juicer, stir and serve immediately.
All recipes make approximately 2 small serves.
Tropical Memories
Pineapple
Strawberries 2 large
Kiwi Fruit 1, peeled
Watermelon 1 wedge, 200g piece
Cafe Cruiser
Pineapple ¼ small, peeled
Watermelon 1 wedge, 200g piece
Orange 1 small, peeled
Pear
Magenta Goddess
Beetroot 1 small
Carrot 2
Green apples 2
Pineapple
small, peeled
¼
½
small, peeled
¼
Watery Wonderland
Watermelon 1 wedge, 300g piece
Pineapple
Mint 1 sprig
Juice Rush
Rockmelon
Carrot 2
Watermelon 1 wedge, 300g piece
Lime half, peeled
Tropical Treasure
Mango
Rockmelon ½, peeled, seeds removed
Blueberries
Passionfruit flesh scooped into glass
That girl
Watermelon 2 wedges, 500g, skin removed
Lemon
small, peeled
¼
, peeled
¼
½
cup
½
, skin removed
¼
16
Recipes (continued)
A GOOD START FOR KIDS
For all recipes in this section, process all ingredients listed in the recipe through the juicer, stir and serve immediately.
All recipes make approximately 2 small serves.
Goody Gumdrops
Orange 1, peeled
Pineapple
Strawberries 2 large
Kiwi Fruit 1, peeled
Frothy Fantasy
Strawberries 4
Green apple 1
Banana 1, peeled
Grapes 1 cup
Berry Cherry
Strawberries 250g
Cherries 1 cup, stoned
small, peeled
¼
Juicy Juice
Raspberries 125g, frozen, thawed
Pear 1 small
Water
Drink Your Veges!
Carrot 2
Green apple 1
Celery 1 stalk
Kid Cold Crusher
Orange 2
Pineapple
Ally In Wonderland
Orange 2
Strawberries 8
Passionfruit 1, pulp scooped into glass
cup
¹/
³
small, peeled
¼
17
Notes
18
Notes
19
‘Sunbeam’, is a registered trademark of Sunbeam Corporation. ‘Fresh Start™’ is a trademark of Sunbeam Corporation. Made in China. Due to minor changes in design or otherwise, the product may differ from the one shown in this leaflet. Backed by Sunbeam’s 12 Month Replacement Guarantee and National Service Network.
© Copyright.
(INCORPORATED IN N.S.W.) A.C.N. 000 006 771
SUNBEAM CORPORATION LIMITED 2006.
Sunbeam Corporation is a division of GUD Holdings Ltd. For more information or advice on this or any other
Sunbeam appliance, visit www.sunbeam.com.au or contact the Sunbeam Consumer Service Line.
Australia 1800 025 059 New Zealand 0800 786 232.
01/0
6
Consumer Hotline
Australia
1800 025 059
New Zealand
0800 786 232
www.sunbeam.com.au
is a registered Trademark of Sunbeam
Corporation Limited. ACN 000 006 771.
© Sunbeam Corporation Limited 2006.
Loading...
