Open All
Electric Can Opener
Instruction Booklet
CA2800
Please read these instructions carefully
and retain for future reference.
Contents
Sunbeam’s Safety Precautions 1
Safety Precautions for your Open All 1
Features of your Open All 2
Using your Sunbeam Open All 4
Care and Cleaning of your Open All 6
Important instructions – retain for
future use.
Sunbeam’s Safety Precautions
SAFETY PRECAUTIONS FOR YOUR
SUNBEAM OPEN ALL.
• Keep fingers well away from blade when in use.
• Use extreme care when handling blades.
Sunbeam is very safety conscious when
designing and manufacturing consumer products,
but it is essential that the product user also
exercise care when using an electrical appliance.
Listed below are precautions which are essential
for the safe use of an electrical appliance:
• Read carefully and save all the instructions
provided with an appliance.
• Always turn the power off at the power outlet
before you insert or remove a plug. Remove
by grasping the plug - do not pull on the cord.
• Turn the power off and remove the plug
when the appliance is not in use and before
cleaning.
• Do not use your appliance with an extension
cord unless this cord has been checked
and tested by a qualified technician or
service person.
• Always use your appliance from a power
outlet of the voltage (A.C. only) marked
on the appliance.
• This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they
have been given supervision or instruction
concerning use of the appliance by a person
responsible for their safety.
• Children should be supervised to ensure that
they do not play with the appliance.
• The temperature of accessible surfaces may be
high when the appliance is operating.
• Never leave an appliance unattended while
in use.
• Do not place any part of this appliance in
a dishwasher.
• Use extreme care when handling off-cuts.
• Do not use an appliance for any purpose
other than its intended use.
• Do not place an appliance on or near a hot gas
flame, electric element or on a heated oven.
• Do not place on top of any other appliance.
• Do not let the power cord of an appliance hang
over the edge of a table or bench top or touch
any hot surface.
• Do not operate any electrical appliance with
a damaged cord or after the appliance has
been damaged in any manner. If damage is
suspected, return the appliance to the nearest
Sunbeam Appointed Service Centre
for examination, repair or adjustment.
• For additional protection, Sunbeam
recommend the use of a residual current
device (RCD) with a tripping current not
exceeding 30mA in the electrical circuit
supplying power to your appliances.
• Do not immerse the appliance in water
or any other liquid unless recommended.
• Appliances are not intended to be operated
by means of an external timer or separate
remote control system.
• This appliance is intended to be used in
household and similar applications such
as: staff kitchen areas in shops, offices and
other working environments; farm houses; by
clients in hotels, motels and other residential
type environments; bed and breakfast type
environments.
If you have any concerns regarding the performance and use of your appliance,
please visit www.sunbeam.com.au or contact the Sunbeam Consumer Service Line.
Ensure the above safety precautions are understood.
1
Features of your Open All
Release Button
Cutting Assembly
Support Bar
Drive Wheel
Knife Sharpener
Built in ceramic knife sharpener will ensure
that your knives remain sharp at all times.
Cord Storage
Handy cord storage keeps the
benchtop tidy by storing unwanted cord.
2
Lever
Blade
Magnetic Lid Holder
Stainless steel blade cutting action
Stainless steel blade allows for a smoother
cutting action.
Magnetic lid holder
Holds the lid in place during and after the
can is fully opened.
Removable lever
For easy cleaning, slide the release button
and remove the cutting assembly/lever.
Automatic operation
Simply lift the lever and position the blade
inside the rim of the can. Press the lever
down and the Open All
™
can opener will
automatically stop when the can is fully
opened.
3
Using your Sunbeam Open All
1. Ensure that the Cutting Assembly is
correctly positioned. (See figure 1.)
Release Button
Keyhole
Support
Bar
Lever
Drive
Wheel
Drive Wheel
Figure 1
The Cutting Assembly fits into the
keyhole opening at the top of the Open
™
All
can opener, above the Drive Wheel.
Slide the Release Button to the right as
the Cutting Assembly is inserted, it will
“click” into position, with the release
button returning to its original position.
2. Insert the plug into a 230-240 volt
power outlet and turn the power on.
3. Hold the Lever in the upright position.
Position the can under the Support Bar
so that the rim of the can rests on top
of the Drive Wheel, tilting the can at a
slight angle towards the main body of
the unit. (See figure 2.)
Figure 2
4. Firmly press the Lever down. This action
will bring the blade down and pierce
the lid of the can and start operating
the motor to turn the can. Ensure the
Magnetic Lid Holder is in contact with
the lid of the can. (See figure 3.)
Figure 3
5. When the can begins to turn, it is no
longer necessary to hold down the Lever.
6. When the can is fully opened, the Open
™
All
can opener will stop automatically.
4

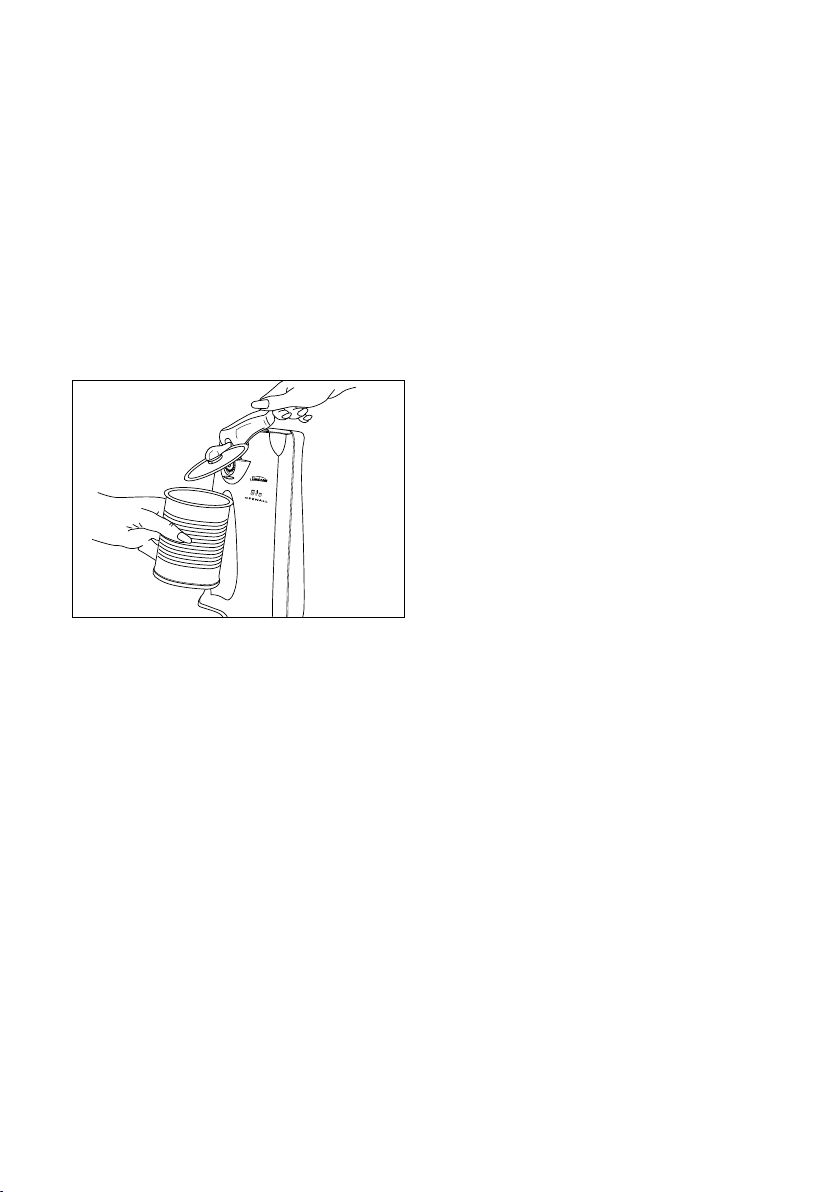

7. To remove the can, support the can with
one hand and lift the Lever with the
other. The lid will remain attached to the
Magnetic Lid Holder. (See figure 4.)
Figure 4
CAUTION: Be careful when removing the lid
from the magnet as the cut edge is sharp.
Opening dented/damaged cans:
Occasionally, badly dented cans will cause
the Open All
™
can opener to stall. If this
happens, grasp the dented can and guide
it through the cutting action manually until
the damaged areas are opened.
Jammed cans: To continue opening a can
that has become jammed, raise the Lever
and release the can. Begin the cutting
action again in a new position on the
can lip.
Sharpening knives: Support the Open All
can opener on top with one hand. With the
other guide the knife through the unique
ceramic block at the back of the Open All
can opener. Repeat this action until you
are satisfied with the sharpness of your
knife.
™
™
5
Care and Cleaning
Turn the power off and unplug the cord from
the power outlet before cleaning. The Cutting
Assembly is easily removed for thorough
cleaning. (See figure 5.)
Release Button
Keyhole
Drive Wheel
Figure 5
Removing the Cutting Assembly:
Raise the Cutting Assembly to its most
upright position. Slide the Release Button to
the right and slide out the Cutting Assembly.
To replace the Lever hold it vertically with the
Release Button slid to the right, gently slide
it into the Keyhole and rotate clockwise. (See
figure 5.)
Drive Wheel:
Wipe with a damp cloth to thoroughly clean,
use a small brush to remove accumulated
dirt.
Motor Housing:
Wipe over with a damp cloth.
Do not use harsh abrasives or cleaners to
clean any parts of your Open All
as these may scratch the parts.
Do not wash any parts in an automatic
dishwasher, as the hot water temperatures
and harsh detergents may ultimately warp
and scratch these parts.
Warning: NEVER IMMERSE THE OPEN ALL IN
WATER OR ANY OTHER LIQUID.
™
can opener,
6
Notes
Notes
12 Month Replacement Guarantee
In the unlikely event that this appliance develops any malfunction
within 12 months of purchase (3 months commercial use) due to
faulty materials or manufacture, we will replace it for you
free of charge.
Should you experience any difficulties with
your appliance, please phone our customer
service line for advice on 1300 881 861 in
Australia, or 0800 786 232 in New Zealand.
Alternatively, you can send a written claim
to Sunbeam at the address listed below.
On receipt of your claim, Sunbeam will
seek to resolve your difficulties or, if the
appliance is defective, advise you on how
to obtain a replacement or refund.
Your Sunbeam 12 Month Replacement
Guarantee naturally does not cover misuse
or negligent handling and normal wear and
tear.
Similarly your 12 Month Replacement
Guarantee does not cover freight or any other
costs incurred in making a claim. Please
retain your receipt as proof of purchase.
The benefits given to you by this guarantee
are in addition to your other rights and
remedies under any laws which relate to the
appliance.
Our goods come with guarantees that cannot
be excluded under the Australian Consumer
Law and under the New Zealand Consumer
Guarantees Act.
In Australia you are entitled to a
replacement or refund for a major failure and
for compensation for any other reasonably
foreseeable loss or damage. You are also
entitled to have the goods repaired or
replaced if the goods fail to be of acceptable
quality and the failure does not amount to
a major failure.
Should your appliance require repair or
service after the guarantee period, contact
your nearest Sunbeam service centre.
For a complete list of Sunbeam’s authorised
service centres visit our website or call:
Australia
www.sunbeam.com.au
1300 881 861
Units 5 & 6, 13 Lord Street
Botany NSW 2019 Australia
New Zealand
www.sunbeam.co.nz
0800 786 232
26 Vestey Drive, Mt Wellington
Auckland, New Zealand
Need help with your appliance?
Contact our customer service team or visit
our website for information and tips on
getting the most from your appliance.
In Australia
Visit www.sunbeam.com.au
Or call 1300 881 861
In New Zealand
Visit www.sunbeam.co.nz
Or call 0800 786 232
is a registered trademark.
‘Open All’ is a trademark of Sunbeam Corporation.
Made in China.
Due to minor changes in design or otherwise,
the product may differ from the one shown in this leaflet.
© Copyright.
ABN 45 000 006 771
Units 5 & 6, 13 Lord Street
Botany NSW 2019 Australia
Unit 3, Building D
26 Vestey Drive
Mt Wellington Auckland
New Zealand
Sunbeam Corporation is a division of GUD Holdings Ltd.
Sunbeam Corporation Limited 2011.
