Summit Electronics CDC 628 Users manual

MiniO

1080P HD DASHCAM

USER MANUAL

MANUAL DE USUARIO

MANUEL UTILISATEUR

MODEL #: CDC-628

EN

APP DOWNLOAD

Scan the QR Code below to download the
RoadCover™ app, which allows you to
control video recording and adjust the MiniO’s
settings. The MiniO will automatically start
recording when plugged in without using the
app. However, the app is necessary to unlock
the MiniO’s many additional features.

Once the RoadCover™ app is downloaded,
follow the installation steps detailed in this
manual, then connect your smartphone to the
MiniO as detailed in the “Connect Your Smart­phone” section of this manual.

ios

PACKAGE CONTENTS

• MiniO Dash Cam

• USB Car Charger

• USB Power Cable

• Adhesive Bracket (for mounting)

• Suction Mount

1

Android

INSERT MICRO SD CARD

Before using your MiniO,
insert the micro SD card
into the card slot below the
Bracket Socket. The MiniO
accepts Class 10 cards, with
storage up to 64GB. When
properly inserted, the micro
SD card will click and stay in
place when inserted.

OVERVIEW

SET UP

2

INSTALL THE MiniO

Connect the included Adhesive Bracket to the

Bracket Socket on the dashcam, then afx the

MiniO to the inside surface of your windshield.

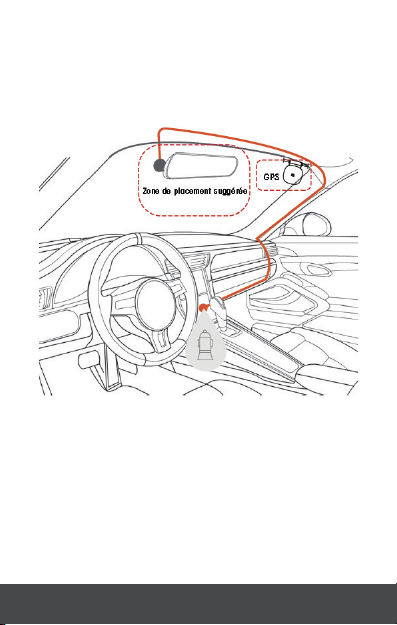

For optimal results, place the MiniO near the
rear-view mirror, as shown in the diagram below.

Connect the USB Power Cable to the MiniO and
the USB Car Charger, hiding the cable as seen
above to avoid blocking the driver’s visibility.

The GPS is embedded into the USB Power

Cable. Afx the GPS as seen above, unblocked

and with the adhesive sticker facing upwards.
When the vehicle starts up, the MiniO will start

up as well and automatically begin recording.

3

CONNECT YOUR SMARTPHONE

Enable WiFi on your smartphone, and connect
to the WiFi source named “miniO-XXXXX,” where
the Xs are numbers. The password to join is
“12345678.” Once you are connected to the
MiniO, launch the RoadCover™ app to explore
the features and settings on your MiniO.

OPERATION

GESTURE CONTROL

Swipe your hand across the Gesture Sensor’s

MiniO is set to take a photograph automatically,
but it can be changed to photography with video
by enabling the Clips feature through the Road­Cover™ app. This feature allows you to save a

after the gesture).

VIDEO CONTROLS

Once your smartphone is connected to the
MiniO, you will be able to pull up a live view
from the camera through the RoadCover™ app.
From this page, you can control the video func­tions and access saved clips and photos. Press
the microphone icon to toggle audio recording
on and off. Press the video icon to pull up saved
videos and photos. Press the gear icon to open
the Settings Menu.

4

SETTINGS MENU

The Settings Menu holds all of the adjustable
features of your MiniO. From here, you can
control which features are activated by Voice
Prompt, enable Connection Verication to
secure which smartphones can access saved
videos and photos, enable or disable Recording

Audio, adjust the Language or Video Resolu­tion, and many more features.

CARD STORAGE MANAGEMENT

The Card Storage Management option tracks
how much space is available on your micro SD
card and how much space is used by the differ-

ent saved les. You can choose to erase all les

of a single type by tapping the trash can icon

next to the le type. You can also Format the

card, which restores the micro SD card to facto­ry settings and erases everything saved to it.

UPDATE AND RESET THE MiniO

To install rmware updates for your MiniO, se­lect Version from the Settings Menu and choose
“Send Firmware & Upgrade.” This will download

any update les and send them wirelessly to the

MiniO. Always make sure your RoadCover™
app is up-to-date to ensure proper operation.

If you need to reset your MiniO to factory set­tings, press the Reset button on the camera for
a few seconds. This will reset all settings to the
factory default.

5

SPECIFICATIONS

VIDEO: 1920*1080 (16:9) / 30fps / *.mp4
AUDIO: 8KHz / 2 channels / AAC
PHOTO: 1920*1080 / *.JPG
STORAGE: Class 10 micro SD card, up to 64GB.
WORKING TEMPERATURE: -4o F to 158o F.
VOLTAGE: DC 5V / 450mA
LENS: 6-glasses, 156o Wide Angle, F1.8
WIFI: 2.4GHz, 802.11 b/g/n

FCC Statement

Changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates uses
and can radiate radio frequency energy and, if not installed and used in
accordance with theinstructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:

-- Reorient or relocate the receiving antenna.

-- Increase the separation between the equipment and receiver.

-- Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.

-- Consult the dealer or an experienced radio/TV technician for help
following two conditions (1)this device may not cause harmful interference,

This device complies with part 15 of the FCC rules. Operation is subject to the
and (2) this device must accept any interference received, including interference
that may cause undesired operation.

6

SUMMIT CE GROUP ONE YEAR LIMITED WARRANTY

SUMMIT CE GROUP LIMITED WARRANTY (“Warranty”) ― For Product

Categories Listed in Chart Below (as applicable, “Product”) Before returning your
Product for service under this Warranty, please (i) read the instruction manual
carefully. If you are still having trouble with your Product, please contact Technical
Support at [e-mail]

Warning: Some Products may contain components that are small enough to be
swallowed. Please keep out of reach of children.

Subject to the terms and conditions herein, SUMMIT CE GROUP LLC
(hereinafter called “SUMMIT CE GROUP”) warrants to the original purchaser
of the Product (“Customer”) that for the applicable Warranty Period listed below,
the Product will be free from defects in material or workmanship under normal,
non-commercial use (“Defects”). Warranty Period encompasses, as listed below,
separate “Coverage Periods” for Parts and Labor, each Coverage Period for one
year, to begin from the original date of Customer purchase. If Customer returns
a defective Product (or any component thereof) during the applicable Warranty

Period, SUMMIT CE GROUP will, at its option, during the specied Coverage

Periods for Parts and Labor (as applicable) either: (i) repair the Product (or, as
applicable, any component thereof) or (ii) replace the Product (or, as applicable,
any component thereof) with a new or refurbished Product (or, as applicable,
any component thereof), in either case free of charge to Customer for Parts
and/or Labor (as applicable) during the specied Coverage Period only, and

excluding applicable shipping charges (noted below), for which the Customer
is responsible. The foregoing states the Customer’s exclusive remedy and

SUMMIT CE GROUP’s sole liability for breach of the limited warranty contained
herein.

This Warranty specically excludes any Product (or, as applicable, any

component thereof) that has been subject to or Defects resulting from: (a) any
neglect or misuse by a Customer, an accident, improper application, violation
of operating instructions for the Product, any other Customer-induced damage,
or the alteration or removal of any Product serial number; (b) any modication
or repair to Product (or, as applicable, any component thereof) by any party
other than SUMMIT CE GROUP or a party authorized in writing by SUMMIT
CE GROUP; (c) any damage to Product (or, as applicable, any component
thereof) due to power surges, incorrect electrical voltage, misconnection to any
device, or malfunction of any device used with the Product (or, as applicable,
any component thereof); (d) cosmetic damage to the Product (or, as applicable,
any component thereof) caused by normal wear and tear; (e) shipping damage
that occurs while the Product is in transit; (f) damage caused by heat sources,
sunlight, electromagnetic conditions, or other climatic conditions; or (g) any acts
of God. Product is sold to Customer for personal, non-commercial use only.

not warranted for Customer’s commercial or rental use.

Product is
In addition, Product is not warranted against failure, and should not be used by
Customer for any application where (i) there is a risk that any data stored on
Product will be breached or otherwise compromised, or (ii) the data stored on

7

Product is relied upon for medical or lifesaving applications.
SUMMIT CE GROUP disclaims any Warranty for any of the foregoing uses

to the fullest extent permitted by law. Customer assumes any and all risks

associated with such uses of Product, and agrees to indemnify SUMMIT CE
GROUP for any damages claimed against SUMMIT CE GROUP for such uses.
EXCEPT FOR EXPRESS WARRANTIES STATED ABOVE AND TO THE
MAXIMUM EXTENT PERMITTED BY LAW, THE PRODUCTS ARE PROVIDED
“AS IS”, AND SUMMIT CE GROUP DISCLAIMS ALL OTHER WARRANTIES,
INCLUDING WITHOUT LIMITATION ANY IMPLIED WARRANTY (I) OF
MERCHANTABILITY, (II) OF FITNESS FOR A PARTICULAR PURPOSE, OR
(III) OF NON-INFRINGEMENT OF THIRD PARTY RIGHTS. TO THE MAXIMUM
EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT WILL SUMMIT
CE GROUP BE LIABLE TO CUSTOMER OR ANY THIRD PARTY FOR ANY
INDIRECT, SPECIAL, INCIDENTAL, CONSEQUENTIAL, EXEMPLARY OR
PUNITIVE DAMAGES, INCLUDING, WITHOUT LIMITATION, ANY LOST
PROFITS OR REVENUES, LOSS OR INACCURACY OF ANY DATA OR COST
OF SUBSTITUTE GOODS, REGARDLESS OF THE THEORY OF LIABILITY
(INCLUDING NEGLIGENCE) AND EVEN IF SUMMIT CE GROUP HAS BEEN
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES, SUMMIT CE GROUP’S
AGGREGATE LIABILITY TO CUSTOMER FOR ACTUAL DIRECT DAMAGES
FOR ANY CAUSE WHATSOEVER SHALL BE LIMITED TO THE CUMULATIVE
PRODUCT FEES PAID BY THAT CUSTOMER FOR THE PRODUCT CAUSING

THE DAMAGES, IF ANY. This Warranty gives Customer specic rights, and

Customer may also have other rights that vary from jurisdiction to jurisdiction. To
obtain Warranty service, Customer must email SUMMIT CE GROUP Technical
Support prior to making a Product return. Customer must include with Product
return the following items (failure to enclose any of these items may result in a
delay in the processing of your Warranty claim): (i) a dated sales receipt that
indicates the place of purchase, model number of Product, and amount paid; (ii)
a detailed description of Customer’s problem with Product; (iii) Customer’s full
name, phone number, and return address, and; (iv) a money order made out to
SUMMIT CE GROUP Electronics Corporation to cover return shipping charges
to US destinations only, for the applicable dollar amount shown for the Product
in the table above. SUMMIT CE GROUP will not make return shipments to a

P.O. Box. For shipping to international addresses, actual freight will be charged

to Customer. Return your Product freight-prepaid in its original packaging, or
packaging that affords an equal measure of protection. Please allow 4 to 6 weeks
for the processing of your claim (6 to 8 weeks from November to February).

8
