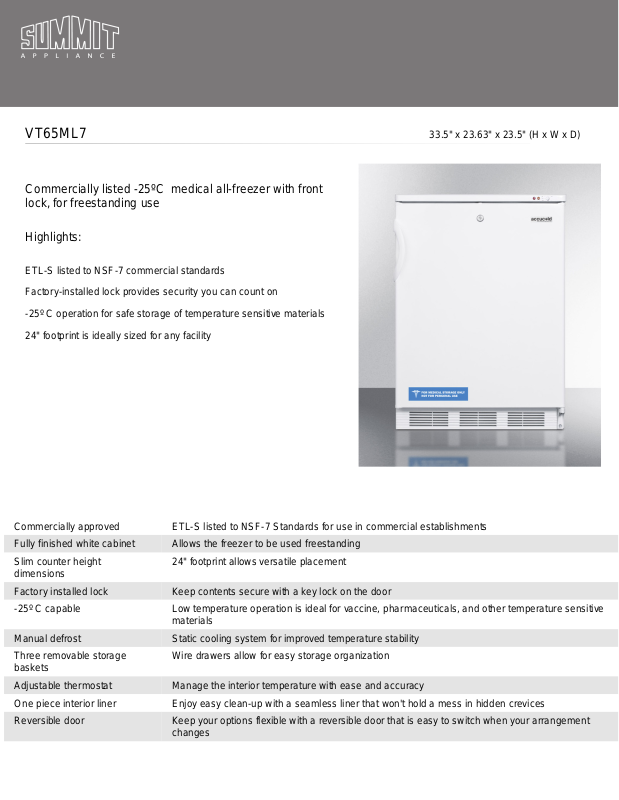

Summit VT65ML7 Instruction Manual
VT65ML7 33.5" x 23.63" x 23.5" (H x W x D)
Commercially listed -25ºC medical all-freezer with front
lock, for freestanding use
Highlights:
ETL-S listed to NSF-7 commercial standards
Factory-installed lock provides security you can count on
-25º C operation for safe storage of temperature sensitive materials
24" footprint is ideally sized for any facility
Commercially approved ETL-S listed to NSF-7 Standards for use in commercial establishments
Fully finished white cabinet Allows the freezer to be used freestanding
Slim counter height
dimensions
Factory installed lock Keep contents secure with a key lock on the door
-25º C capable Low temperature operation is ideal for vaccine, pharmaceuticals, and other temperature sensitive
Manual defrost Static cooling system for improved temperature stability
Three removable storage
baskets
Adjustable thermostat Manage the interior temperature with ease and accuracy
One piece interior liner Enjoy easy clean-up with a seamless liner that won't hold a mess in hidden crevices
Reversible door Keep your options flexible with a reversible door that is easy to switch when your arrangement
24" footprint allows versatile placement
materials
Wire drawers allow for easy storage organization
changes
Specifications:
Height 33.5"
Width 23.63"
Depth 23.5"
Capacity 3.5 cu.ft.
Ext Depth with Handle 25.13"
Interior Height 1 24.25"
Interior Width 1 17.75"
Interior Depth 1 16.5"
Comp Step Height 6.5"
Comp Step Width 17.5"
Comp Step Depth 5.5"
Shipping Weight 102.0 lbs.
Canadian Electrical Safety ULC
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
US Electrical Safety UL
Reversible Yes
Door Swing RHD
Drawers true
Drawer Quantity 3
Defrost Type Manual
Temperature Range -20ºC to -30ºC
Depth with door at 90° 46.13"
Thermostat Type Dial
Condensor Location N/A
Low Side PSI 70.0
Level Legs Quantity 2
Freon Oz 2.7
High Side PSI 235.0
Refrigerant Type R134a
Compressor Warranty 5 Years
Parts/Labor Warranty 1 Year
Sanitation ETL-S
