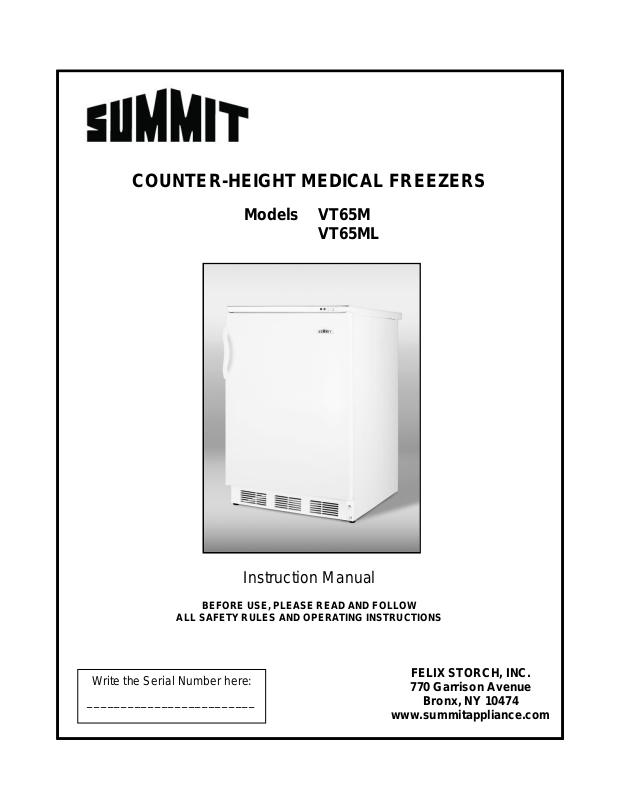

Summit VT65ML User Manual
COUNTER-HEIGHT MEDICAL FREEZERS
Models CM405
CM411L
VT65M
VT65ML
CM421BL
Instruction Manual
BEFORE USE, PLEASE READ AND FOLLOW
ALL SAFETY RULES AND OPERATING INSTRUCTIONS
Write the Serial Number here:
_________________________
FELIX STORCH, INC.
770 Garrison Avenue
Bronx, NY 10474
www.summitappliance.com
IMPORTANT SAFEGUARDS
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance.
Always read and obey all safety messages.
This
is the Safety Alert Symbol. This symbol alerts you to potential
hazards that can kill or injure you and others. All safety messages will
follow the Safety Alert Symbol and either the words ”DANGER” or
“WARNING”.
DANGER means that failure to heed this
safety statement may result in severe
personal injury or death.
WARNING means that failure to heed
this safety statement may result in
extensive product damage, serious
personal injury, or death.
Safety messages will alert you to what the potential hazard is, tell you how to reduce the chance
of injury, and let you know what can happen if the instructions are not followed.
Before the freezer is used, it must be properly positioned and installed as
described in this manual, so read the manual carefully. To reduce the risk
of fire, electrical shock or injury when using the freezer, follow basic precautions, including the following:
Plug into a grounded 3-prong outlet. Do not remove grounding prong, do not use an adapter,
and do not use an extension cord.
It is recommended that a separate circuit, serving only your freezer, be provided. Use
receptacles that cannot be turned off by a switch or pull chain.
Never clean freezer parts with flammable fluids. These fumes can create a fire hazard or
explosion. And do not store or use gasoline or other flammable vapors and liquids in the
vicinity of this or any other appliance. The fumes can create a fire hazard or explosion.
Before proceeding with cleaning and maintenance operations, make sure the power line of the
unit is disconnected.
Do not connect or disconnect the electric plug when your hands are wet.
Unplug the freezer or disconnect the power before cleaning or servicing. Failure to do so can
result in electrical shock or death.
Do not attempt to repair or replace any part of your freezer unless it is specifically
recommended in this material. All other servicing should be referred to a qualified technician.
1
Use two or more people to move and install the freezer. Failure to do so can result in back or
other injury.
To ensure proper ventilation for your freezer, the front of the unit must be completely
unobstructed. Choose a well-ventilated area with temperatures above 60
°
F (32°C). This unit must be installed in an area protected from the elements, such as wind,
90
rain, water spray or drips.
The freezer should not be located next to ovens, grills or other sources of high heat.
The freezer must be installed with all electrical connections in accordance with state and local
codes. A standard electrical supply (115V AC only, 60 Hz), properly grounded in accordance
with the National Electrical Code and local codes and ordinances, is required.
Do not kink or pinch the power supply cord of the freezer.
The fuse (or circuit breaker) size should be 15 amperes.
It is important for the freezer to be leveled in order to work properly. You may need to make
several adjustments to level it.
Never allow children to operate, play with or crawl inside the freezer.
Do not use solvent-based cleaning agents or abrasives on the interior. These cleaners may
damage or discolor the interior.
Do not use this apparatus for other than its intended purpose.
THIS APPLIANCE IS DESIGNED FOR MEDICAL OR PHARMACEUTICAL USE ONLY. IT IS
NOT INTENDED FOR USE AS A HOUSEHOLD FREEZER.
°
F (16°C) and below
Risk of child entrapment
Child entrapment and suffocation are not problems of the past. Junked or abandone d
refrigerators and freezers are still dangerous, even if they will “just sit in the garage a few
days.”
Before you throw away your old refrigerator or freezer: Take off the doors. Leave
the shelves or drawers in place so that children may not easily climb inside.
Never allow children to operate, play with, or crawl inside the refrigerator/freezer.
THIS APPLIANCE IS NOT INTENDED FOR USE BY YOUNG CHILDREN OR INFIRM PERONS
UNLESS THEY HAVE BEEN ADEQUATELY SUPERVISED BY A RESPONSIBLE PERSON TO
ENSURE THAT THEY CAN USE THE APPLIANCE SAFELY. YOUNG CHILDREN SHOULD BE
SUPERVISED TO ENSURE THAT THEY DO NOT PLAY WITH THE APPLIANCE.
- SAVE THESE INSTRUCTIONS -
2
Table of Contents
Important Safeguards .........................................................................................................1 - 2
Location of Parts .....................................................................................................................3
Technical Information ..............................................................................................................4
Installation Instructions .......................................................................................................4 - 6
Before Using Your Freezer ..........................................................................................4
Installing the Freezer ..............................................................................................4 - 5
Electrical Connection / Extension Cord ....................................................................... 5
Reversing the Door Swing / Door Handle Installation.................................................. 6
Operating Your Freezer .....................................................................................................7 - 8
Temperature Control / Modes of Operation .................................................................7
Switching on the Empty Freezer / Freezing Procedure / Storing Frozen Items .........8
Defrosting Your Freezer .............................................................................................. 8
Care and Maintenance ............................................................................................................9
Cleaning Your Freezer / Power Failure / Vacation Time
Moving your Freezer / Energy-Saving Tips
Troubleshooting ....................................................................................................................10
Limited Warranty ...................................................................................................................11
Removable
drawers
Front ventilation
slots (kick plate)
Location of Parts
Temperature control dial
(thermostat)
Indicator lights:
Compressor on (yellow)
Temperature alert (red)
Door
Fixed
shelves
Defrost water
outlet
Leveling legs
NOTE: Lock on model VT65ML is located on the front of
the door, near the top center.
3
