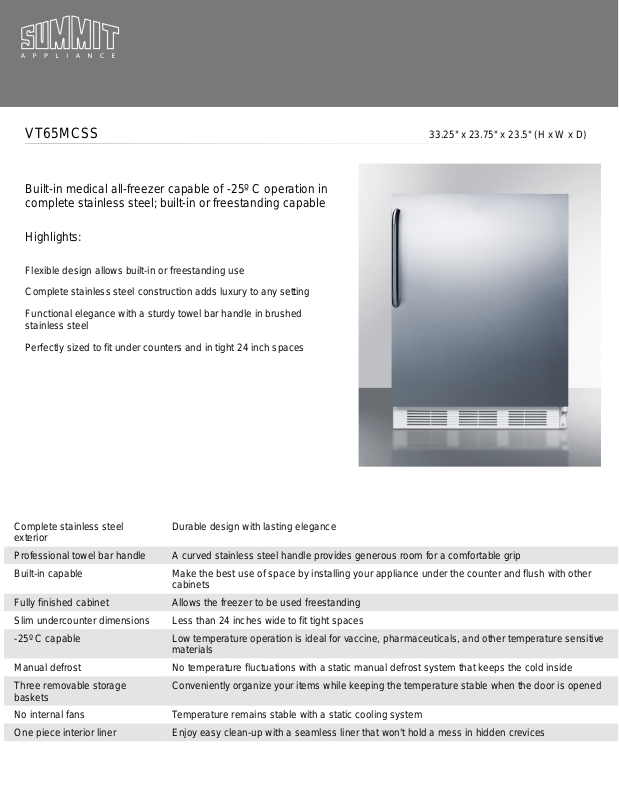

Summit VT65MCSS Instruction Manual

VT65MCSS 33.25" x 23.75" x 23.5" (H x W x D)

Built-in medical all-freezer capable of -25º C operation in
complete stainless steel; built-in or freestanding capable

Highlights:

Flexible design allows built-in or freestanding use
Complete stainless steel construction adds luxury to any setting
Functional elegance with a sturdy towel bar handle in brushed

stainless steel
Perfectly sized to fit under counters and in tight 24 inch spaces

Complete stainless steel
exterior

Professional towel bar handle A curved stainless steel handle provides generous room for a comfortable grip
Built-in capable Make the best use of space by installing your appliance under the counter and flush with other

Fully finished cabinet Allows the freezer to be used freestanding
Slim undercounter dimensions Less than 24 inches wide to fit tight spaces

-25º C capable Low temperature operation is ideal for vaccine, pharmaceuticals, and other temperature sensitive

Manual defrost No temperature fluctuations with a static manual defrost system that keeps the cold inside
Three removable storage

baskets
No internal fans Temperature remains stable with a static cooling system
One piece interior liner Enjoy easy clean-up with a seamless liner that won't hold a mess in hidden crevices

Durable design with lasting elegance

cabinets

materials

Conveniently organize your items while keeping the temperature stable when the door is opened

Specifications:

Height 33.25 up to 34.5"
Width 23.75"
Depth 23.5"
Capacity 3.5 cu.ft.
Ext Depth with Handle 24.75"
Interior Height 1 24.25"
Interior Width 1 17.75"
Interior Depth 1 16.5"
Comp Step Height 6.5"
Comp Step Width 17.5"
Comp Step Depth 5.5"
Height Adjustable true
Shipping Weight 143.0 lbs.
Amps 1.3
US Electrical Safety UL
Canadian Electrical Safety ULC
Voltage/Frequency 115 V AC/60 Hz
Reversible Factory Reversible
Door Swing RHD
Drawers true
Drawer Quantity 3
Temperature Range -20ºC to -30ºC
Defrost Type Manual
Height to Hinge Cap 34.75"
Depth with door at 90° 45.5"
Fan Type Exterior
Condensor Location N/A
Thermostat Type Dial
Refrigerant Type R134a
Low Side PSI 70.0
Freon Oz 2.7
High Side PSI 235.0
Level Legs Quantity 4
Parts/Labor Warranty 1 Year
Compressor Warranty 5 Years
