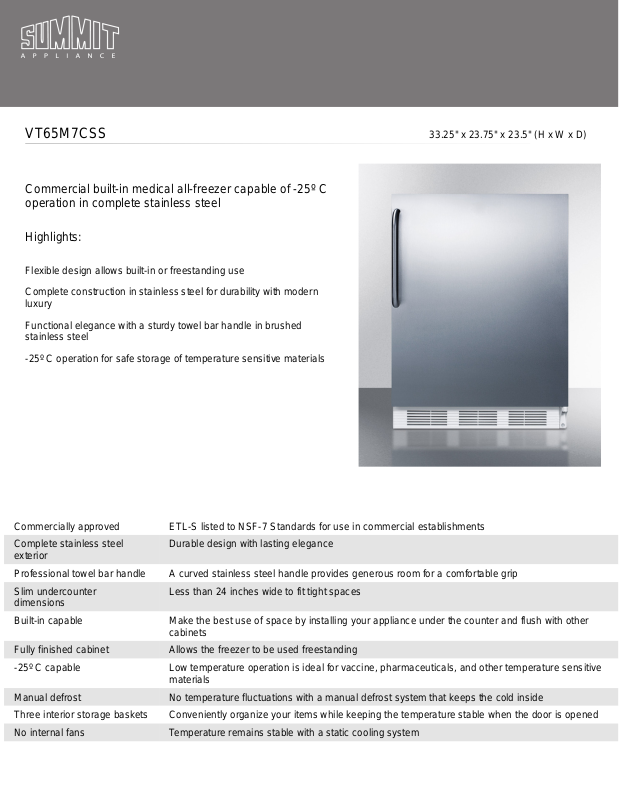

Summit VT65M7CSS Instruction Manual

VT65M7CSS 33.25" x 23.75" x 23.5" (H x W x D)
Commercial built-in medical all-freezer capable of -25º C operation in complete stainless steel
Highlights:
Flexible design allows built-in or freestanding use Complete construction in stainless steel for durability with modern
luxury Functional elegance with a sturdy towel bar handle in brushed
-25º C operation for safe storage of temperature sensitive materials
Commercially approved ETL-S listed to NSF-7 Standards for use in commercial establishments Complete stainless steel
exterior Professional towel bar handle A curved stainless steel handle provides generous room for a comfortable grip Slim undercounter
dimensions Built-in capable Make the best use of space by installing your appliance under the counter and flush with other
Fully finished cabinet Allows the freezer to be used freestanding
-25º C capable Low temperature operation is ideal for vaccine, pharmaceuticals, and other temperature sensitive
Manual defrost No temperature fluctuations with a manual defrost system that keeps the cold inside Three interior storage baskets Conveniently organize your items while keeping the temperature stable when the door is opened No internal fans Temperature remains stable with a static cooling system
Durable design with lasting elegance
Less than 24 inches wide to fit tight spaces
cabinets
materials
Specifications:
Height 33.25 up to 34.5" Width 23.75" Depth 23.5" Capacity 3.5 cu.ft. Ext Depth with Handle 24.75" Interior Height 1 24.25" Interior Width 1 17.75" Interior Depth 1 16.5" Comp Step Height 6.5" Comp Step Width 17.5" Comp Step Depth 5.5" Height Adjustable true Shipping Weight 143.0 lbs. Canadian Electrical Safety ULC Amps 1.3 Voltage/Frequency 115 V AC/60 Hz US Electrical Safety UL Reversible Factory Reversible Door Swing RHD Drawers true Drawer Quantity 3 Defrost Type Manual Temperature Range -20ºC to -30ºC Depth with door at 90° 45.5" Height to Hinge Cap 34.75" Fan Type Exterior Condensor Location N/A Thermostat Type Dial Low Side PSI 70.0 Refrigerant Type R134a Freon Oz 2.7 Level Legs Quantity 4 High Side PSI 235.0 Parts/Labor Warranty 1 Year Compressor Warranty 5 Years Sanitation ETL-S
