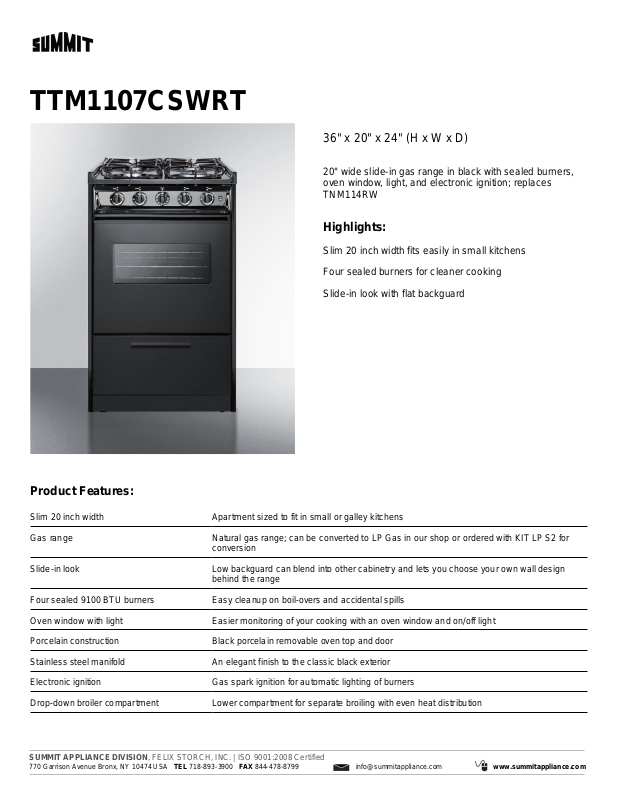

Summit TTM1107CSWRT Brochure

TTM1107CSWRT

36" x 20" x 24" (H x W x D)

20" wide slide-in gas range in black with sealed burners,
oven window, light, and electronic ignition; replaces
TNM114RW

Highlights:

Slim 20 inch width fits easily in small kitchens
Four sealed burners for cleaner cooking
Slide-in look with flat backguard

Product Features:

Slim 20 inch width Apartment sized to fit in small or galley kitchens
Gas range Natural gas range; can be converted to LP Gas in our shop or ordered with KIT LP S2 for

conversion

Slide-in look Low backguard can blend into other cabinetry and lets you choose your own wall design

behind the range
Four sealed 9100 BTU burners Easy cleanup on boil-overs and accidental spills
Oven window with light Easier monitoring of your cooking with an oven window and on/off light
Porcelain construction Black porcelain removable oven top and door
Stainless steel manifold An elegant finish to the classic black exterior
Electronic ignition Gas spark ignition for automatic lighting of burners
Drop-down broiler compartment Lower compartment for separate broiling with even heat distribution

SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2008 Certified

770 Garrison Avenue Bronx, NY 10474 USA TEL [phone] FAX [phone] [e-mail] www.summitappliance.com

TTM1107CSWRT Specifications:

Overview

Height of Cabinet 36.0" (91 cm)
Width 20.0" (51 cm)
Depth 24.0" (61 cm)
Door Black
Cabinet Black
US Electrical Safety CSA
Weight 145.0 lbs. (66 kg)
Shipping Weight 200.0 lbs. (91 kg)
Parts & Labor

Warranty

Gas Range

Ignition Spark
LP Convertible With KitLP

Oven Capacity 2.46 cu.ft
Cooktop Surface Porcelain
Burner Type Sealed
Number of Burners 4
Burner #1 BTU 9100.0
Burner #2 BTU 9100.0
Burner #3 BTU 9100.0
Burner #4 BTU 9100.0
Burner Controls Dial
Oven Controls Dial
Oven Light Yes
Cleaning Type Manual
Oven Rack Qty 2
Oven Window Yes
Oven Interior Height 14.0" (36 cm)
Oven Interior Width 16.0" (41 cm)
Oven Interior Depth 19.0" (48 cm)
Broiler Location Below Oven

1 Year

Accessory

SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2008 Certified

770 Garrison Avenue Bronx, NY 10474 USA TEL [phone] FAX [phone] [e-mail] www.summitappliance.com
