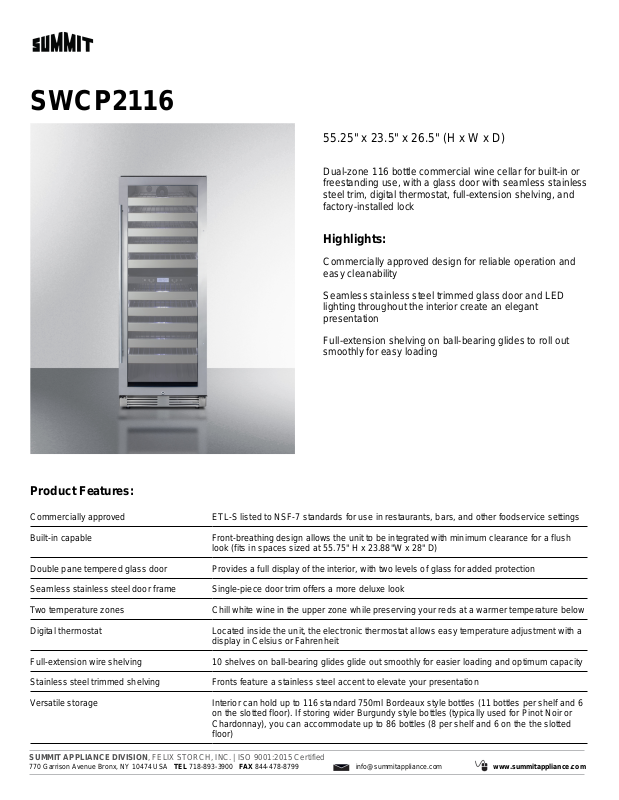

SWCP2116

55.25" x 23.5" x 26.5" (H x W x D)

Dual-zone 116 bottle commercial wine cellar for built-in or
freestanding use, with a glass door with seamless stainless
steel trim, digital thermostat, full-extension shelving, and
factory-installed lock

Highlights:

Commercially approved design for reliable operation and
easy cleanability

Seamless stainless steel trimmed glass door and LED
lighting throughout the interior create an elegant
presentation

Full-extension shelving on ball-bearing glides to roll out
smoothly for easy loading

Product Features:

Commercially approved ETL-S listed to NSF-7 standards for use in restaurants, bars, and other foodservice settings
Built-in capable Front-breathing design allows the unit to be integrated with minimum clearance for a flush

look (fits in spaces sized at 55.75" H x 23.88"W x 28" D)
Double pane tempered glass door Provides a full display of the interior, with two levels of glass for added protection
Seamless stainless steel door frame Single-piece door trim offers a more deluxe look
Two temperature zones Chill white wine in the upper zone while preserving your reds at a warmer temperature below
Digital thermostat Located inside the unit, the electronic thermostat allows easy temperature adjustment with a

display in Celsius or Fahrenheit
Full-extension wire shelving 10 shelves on ball-bearing glides glide out smoothly for easier loading and optimum capacity
Stainless steel trimmed shelving Fronts feature a stainless steel accent to elevate your presentation
Versatile storage Interior can hold up to 116 standard 750ml Bordeaux style bottles (11 bottles per shelf and 6

on the slotted floor). If storing wider Burgundy style bottles (typically used for Pinot Noir or

Chardonnay), you can accommodate up to 86 bottles (8 per shelf and 6 on the the slotted

floor)

SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified

770 Garrison Avenue Bronx, NY 10474 USA TEL [phone] FAX [phone] [e-mail] www.summitappliance.com

SWCP2116 Specifications:

Overview

Height of Cabinet 55.25" (140 cm)
Width 23.5" (60 cm)
Depth 26.5" (67 cm)
Depth with Handle 28.25" (72 cm)
Depth with door at

90°
Bottles 116 bottles
Defrost Type Automatic
Door Glass/SS
Cabinet Black
US Electrical Safety ETL
Canadian Electrical

Safety
Sanitation ETL-S
Amps 2.0
Voltage/Frequency 115 V AC/60 Hz
Weight 213.0 lbs. (97 kg)
Shipping Weight 240.0 lbs. (109 kg)
Estimated Time to

Ship
Parts & Labor

Warranty
Compressor

Warranty

Wine Cellar

Number of Zones 2
Door Swing RHD
Reversible Yes
Shelf Type Wire
Shelf Qty 10
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.58 oz.
High Side PSI 320.0
Low Side PSI 120.0
Level Legs 2
Temperature Range 41-54°F (upper zone);

48.75" (124 cm)

ETL-C

Next day shipping

1 Year

5 Years

54-65°F (lower zone)
