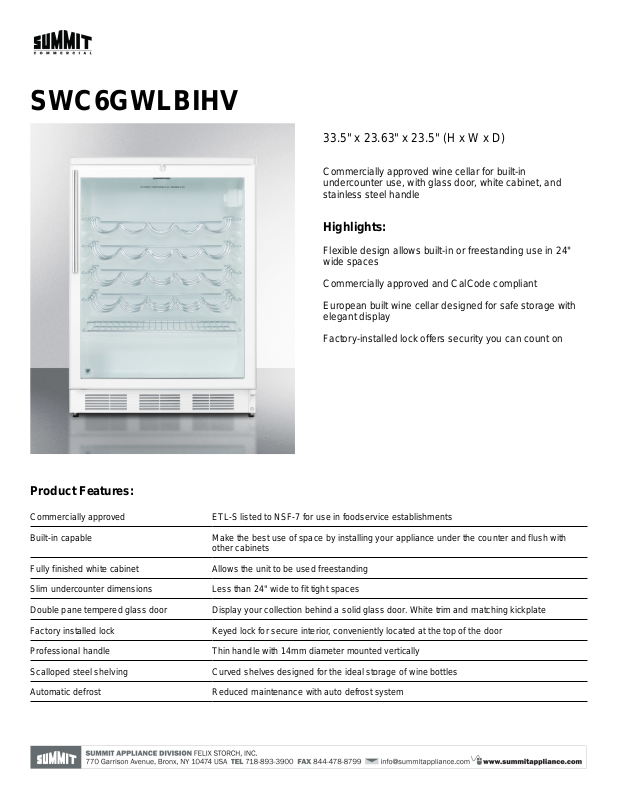

Summit SWC6GWLBIHV Specifications

SWC6GWLBIHV

33.5" x 23.63" x 23.5" (H x W x D)

Commercially approved wine cellar for built-in
undercounter use, with glass door, white cabinet, and
stainless steel handle

Highlights:

Flexible design allows built-in or freestanding use in 24"
wide spaces

Commercially approved and CalCode compliant
European built wine cellar designed for safe storage with

elegant display
Factory-installed lock offers security you can count on

Product Features:

Commercially approved ETL-S listed to NSF-7 for use in foodservice establishments
Built-in capable Make the best use of space by installing your appliance under the counter and flush with

other cabinets
Fully finished white cabinet Allows the unit to be used freestanding
Slim undercounter dimensions Less than 24" wide to fit tight spaces
Double pane tempered glass door Display your collection behind a solid glass door. White trim and matching kickplate
Factory installed lock Keyed lock for secure interior, conveniently located at the top of the door
Professional handle Thin handle with 14mm diameter mounted vertically
Scalloped steel shelving Curved shelves designed for the ideal storage of wine bottles
Automatic defrost Reduced maintenance with auto defrost system

SWC6GWLBIHV Specifications:

Overview

Height 33.5"
Width 23.63"
Depth 23.5"
Capacity 5.5 cu.ft.
Bottles 36 bottles
Defrost Type Automatic
Door Glass
Cabinet White
US Electrical Safety UL
Canadian Electrical

Safety
Sanitation ETL-S
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Weight 117.0 lbs.
Shipping Weight 125.0 lbs.
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years

Wine Cellar

Number of Zones 1
Door Swing RHD
Reversible Factory

Adjustable Shelves Yes
Shelf Type Scalloped
Shelf Qty 4
Thermostat Type Dial
Interior Light Yes
Fan Type Exterior
Freon R134a
Freon Amount 1.8
High Side PSI 285.0
Low Side PSI 70.0
Interior Height 1 26.0"
Interior Width 1 20.75"
Interior Depth 1 17.5"
Compressor Step

Height
Compressor Step Width 20.75"

ULC

Reversible

6.0"

Compressor Step Depth 5.0"
Level Legs 4
