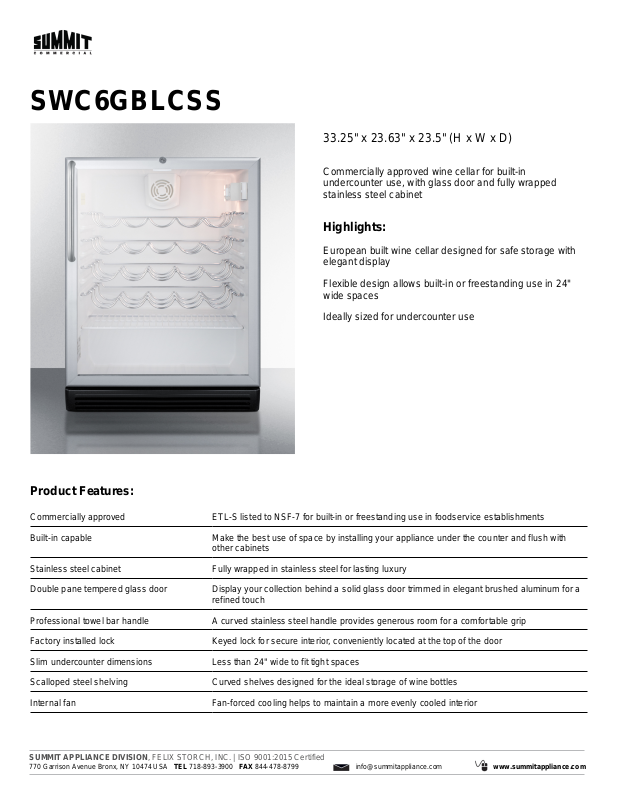

Summit SWC6GBLCSS Specification Sheet

SWC6GBLCSS

33.25" x 23.63" x 23.5" (H x W x D)

Commercially approved wine cellar for built-in
undercounter use, with glass door and fully wrapped
stainless steel cabinet

Highlights:

European built wine cellar designed for safe storage with
elegant display

Flexible design allows built-in or freestanding use in 24"
wide spaces

Ideally sized for undercounter use

Product Features:

Commercially approved ETL-S listed to NSF-7 for built-in or freestanding use in foodservice establishments
Built-in capable Make the best use of space by installing your appliance under the counter and flush with

other cabinets
Stainless steel cabinet Fully wrapped in stainless steel for lasting luxury
Double pane tempered glass door Display your collection behind a solid glass door trimmed in elegant brushed aluminum for a

refined touch
Professional towel bar handle A curved stainless steel handle provides generous room for a comfortable grip
Factory installed lock Keyed lock for secure interior, conveniently located at the top of the door
Slim undercounter dimensions Less than 24" wide to fit tight spaces
Scalloped steel shelving Curved shelves designed for the ideal storage of wine bottles
Internal fan Fan-forced cooling helps to maintain a more evenly cooled interior

SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified

770 Garrison Avenue Bronx, NY 10474 USA TEL [phone] FAX [phone] [e-mail] www.summitappliance.com

SWC6GBLCSS Specifications:

Overview

Height of Cabinet 33.25" (84 cm)
Width 23.63" (60 cm)
Depth 23.5" (60 cm)
Capacity 5.5 cu.ft. (156 L)
Bottles 36 bottles
Defrost Type Automatic
Door Glass
Cabinet Stainless Steel
US Electrical Safety UL
Canadian Electrical

Safety
Sanitation ETL-S
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Weight 125.0 lbs. (57 kg)
Shipping Weight 158.0 lbs. (72 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years

Wine Cellar

Number of Zones 1
Door Swing RHD
Reversible Yes
Adjustable Shelves Yes
Shelf Type Scalloped
Shelf Qty 4
Thermostat Type Dial
Interior Light Yes
Fan Type Interior and

Refrigerant Type R600a
Refrigerant Amount 0.67 oz.
High Side PSI 124.0
Low Side PSI 30.0
Interior Height 1 26.0" (66 cm)
Interior Width 1 20.75" (53 cm)
Interior Depth 1 17.5" (44 cm)
Compressor Step Height 6.0" (15 cm)
Compressor Step Width 20.75" (53 cm)
Compressor Step Depth 5.0" (13 cm)

ULC

Exterior

Level Legs 4
