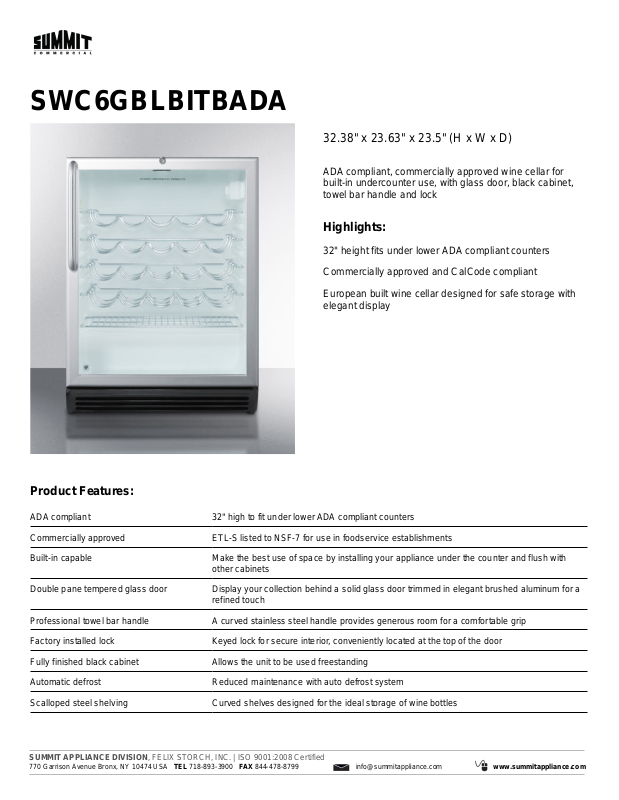

Summit SWC6GBLBITBADA Specifications

SWC6GBLBITBADA

32.38" x 23.63" x 23.5" (H x W x D)

ADA compliant, commercially approved wine cellar for
built-in undercounter use, with glass door, black cabinet,
towel bar handle and lock

Highlights:

32" height fits under lower ADA compliant counters
Commercially approved and CalCode compliant
European built wine cellar designed for safe storage with

elegant display

Product Features:

ADA compliant 32" high to fit under lower ADA compliant counters
Commercially approved ETL-S listed to NSF-7 for use in foodservice establishments
Built-in capable Make the best use of space by installing your appliance under the counter and flush with

other cabinets

Double pane tempered glass door Display your collection behind a solid glass door trimmed in elegant brushed aluminum for a

refined touch
Professional towel bar handle A curved stainless steel handle provides generous room for a comfortable grip
Factory installed lock Keyed lock for secure interior, conveniently located at the top of the door
Fully finished black cabinet Allows the unit to be used freestanding
Automatic defrost Reduced maintenance with auto defrost system
Scalloped steel shelving Curved shelves designed for the ideal storage of wine bottles

SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2008 Certified

770 Garrison Avenue Bronx, NY 10474 USA TEL [phone] FAX [phone] [e-mail] www.summitappliance.com

SWC6GBLBITBADA Specifications:

Overview

Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.38" (82 cm)
Width 23.63" (60 cm)
Depth 23.5" (60 cm)
Capacity 5.5 cu.ft. (156 L)
Bottles 36 bottles
Defrost Type Automatic
Door Glass
Cabinet Black
US Electrical Safety UL
Canadian Electrical

Safety
Sanitation ETL-S
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Weight 100.0 lbs. (45 kg)
Shipping Weight 117.0 lbs. (53 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years

Wine Cellar

Number of Zones 1
Door Swing RHD
Reversible Factory Reversible
Adjustable Shelves Yes
Shelf Type Scalloped
Shelf Qty 4
Thermostat Type Dial
Interior Light Yes
Fan Type Exterior
Refrigerant Type R134a
Refrigerant Amount 1.8 oz.
High Side PSI 285.0
Low Side PSI 70.0
Interior Height 1 26.0" (66 cm)
Interior Width 1 20.75" (53 cm)
Interior Depth 1 17.5" (44 cm)
Compressor Step Height 6.0" (15 cm)
Compressor Step Width 20.75" (53 cm)

ULC

Compressor Step Depth 5.0" (13 cm)
