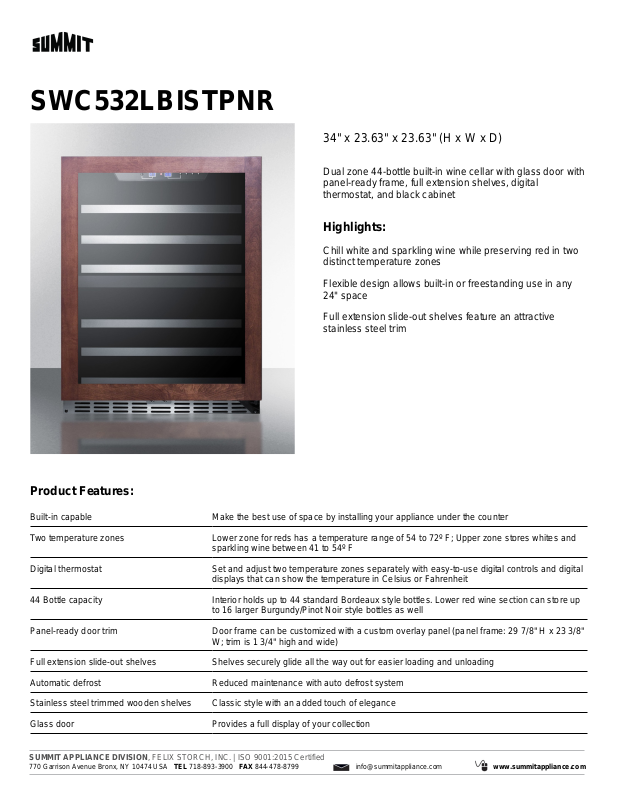

Summit SWC532LBISTPNR Specification Sheet

SWC532LBISTPNR

34" x 23.63" x 23.63" (H x W x D)

Dual zone 44-bottle built-in wine cellar with glass door with
panel-ready frame, full extension shelves, digital
thermostat, and black cabinet

Highlights:

Chill white and sparkling wine while preserving red in two
distinct temperature zones

Flexible design allows built-in or freestanding use in any
24" space

Full extension slide-out shelves feature an attractive
stainless steel trim

Product Features:

Built-in capable Make the best use of space by installing your appliance under the counter
Two temperature zones Lower zone for reds has a temperature range of 54 to 72º F; Upper zone stores whites and

sparkling wine between 41 to 54º F

Digital thermostat Set and adjust two temperature zones separately with easy-to-use digital controls and digital

displays that can show the temperature in Celsius or Fahrenheit

44 Bottle capacity Interior holds up to 44 standard Bordeaux style bottles. Lower red wine section can store up

to 16 larger Burgundy/Pinot Noir style bottles as well

Panel-ready door trim Door frame can be customized with a custom overlay panel (panel frame: 29 7/8" H x 23 3/8"

W; trim is 1 3/4" high and wide)
Full extension slide-out shelves Shelves securely glide all the way out for easier loading and unloading
Automatic defrost Reduced maintenance with auto defrost system
Stainless steel trimmed wooden shelves Classic style with an added touch of elegance
Glass door Provides a full display of your collection

SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified

770 Garrison Avenue Bronx, NY 10474 USA TEL [phone] FAX [phone] [e-mail] www.summitappliance.com

SWC532LBISTPNR Specifications:

Overview

Height of Cabinet 33.5" (85 cm)
Height to Hinge Cap 34.0" (86 cm)
Width 23.63" (60 cm)
Depth 23.63" (60 cm)
Depth with Handle 25.25" (64 cm)
Depth with door at

90°
Capacity 5.43 cu.ft. (154 L)
Bottles 44 bottles
Defrost Type Automatic
Door Glass/Panel-Ready

Cabinet Black
US Electrical Safety ETL
Canadian Electrical

Safety
Amps 1.1
Voltage/Frequency 115 V AC/60 Hz
Weight 117.0 lbs. (53 kg)
Shipping Weight 130.0 lbs. (59 kg)
Parts & Labor

Warranty
Compressor Warranty 5 Years

Wine Cellar

Number of Zones 2
Door Swing RHD
Reversible Yes
Shelf Type Wood
Shelf Qty 6
Thermostat Type Digital
Interior Light Yes
Refrigerant Type R600a
Refrigerant Amount 1.23 oz.
High Side PSI 270.0
Low Side PSI 103.0
Interior Height 1 13.0" (33 cm)
Interior Width 1 20.5" (52 cm)
Interior Depth 1 18.63" (47 cm)
Compressor Step

Height

46.0" (117 cm)

Frame

ETL-C

1 Year

5.0" (13 cm)

Compressor Step
Width

Compressor Step
Depth

Temperature Range 41º to 72ºF
Interior Height 2 13.25" (34 cm)
Interior Width 2 20.5" (52 cm)
Interior Depth 2 18.63" (47 cm)

20.5" (52 cm)

6.5" (17 cm)
