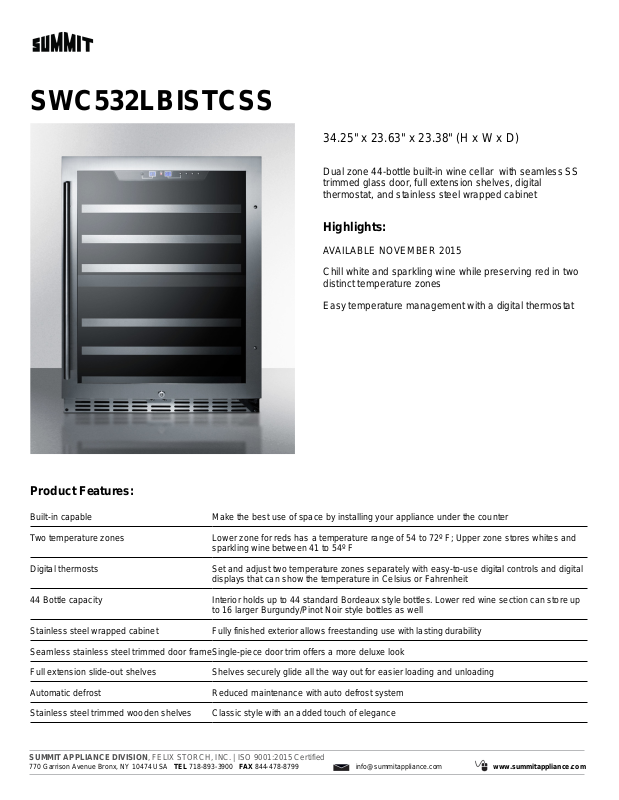

Summit SWC532LBISTCSS Specification Sheet

SWC532LBISTCSS

34.25" x 23.63" x 23.38" (H x W x D)

Dual zone 44-bottle built-in wine cellar with seamless SS
trimmed glass door, full extension shelves, digital
thermostat, and stainless steel wrapped cabinet

Highlights:

AVAILABLE NOVEMBER 2015
Chill white and sparkling wine while preserving red in two

distinct temperature zones
Easy temperature management with a digital thermostat

Product Features:

Built-in capable Make the best use of space by installing your appliance under the counter
Two temperature zones Lower zone for reds has a temperature range of 54 to 72º F; Upper zone stores whites and

sparkling wine between 41 to 54º F

Digital thermosts Set and adjust two temperature zones separately with easy-to-use digital controls and digital

displays that can show the temperature in Celsius or Fahrenheit

44 Bottle capacity Interior holds up to 44 standard Bordeaux style bottles. Lower red wine section can store up

to 16 larger Burgundy/Pinot Noir style bottles as well
Stainless steel wrapped cabinet Fully finished exterior allows freestanding use with lasting durability
Seamless stainless steel trimmed door frameSingle-piece door trim offers a more deluxe look
Full extension slide-out shelves Shelves securely glide all the way out for easier loading and unloading
Automatic defrost Reduced maintenance with auto defrost system
Stainless steel trimmed wooden shelves Classic style with an added touch of elegance

SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified

770 Garrison Avenue Bronx, NY 10474 USA TEL [phone] FAX [phone] [e-mail] www.summitappliance.com

SWC532LBISTCSS Specifications:

Overview

Height of Cabinet 34.25" (87 cm)
Width 23.63" (60 cm)
Depth 23.38" (59 cm)
Depth with Handle 25.0" (64 cm)
Depth with door at 90° 45.5" (116 cm)
Capacity 5.43 cu.ft. (154 L)
Bottles 44 bottles
Defrost Type Automatic
Door Glass
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical

Safety
Amps 1.1
Voltage/Frequency 115 V AC/60 Hz
Weight 112.0 lbs. (51 kg)
Shipping Weight 125.0 lbs. (57 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years

Wine Cellar

Number of Zones 2
Door Swing RHD
Reversible Yes
Shelf Type Wood
Shelf Qty 6
Thermostat Type Digital
Interior Light Yes
Refrigerant Type R600a
Refrigerant Amount 1.23 oz.
High Side PSI 270.0
Low Side PSI 103.0
Temperature Range 41º to 72ºF

ETL-C
