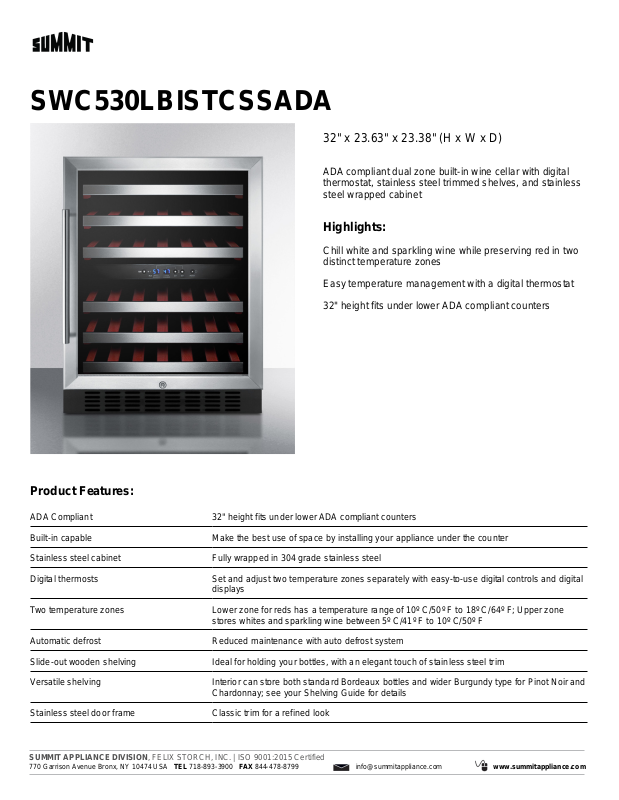

Summit SWC530LBISTCSSADA Specification Sheet

SWC530LBISTCSSADA

32" x 23.63" x 23.38" (H x W x D)

ADA compliant dual zone built-in wine cellar with digital
thermostat, stainless steel trimmed shelves, and stainless
steel wrapped cabinet

Highlights:

Chill white and sparkling wine while preserving red in two
distinct temperature zones

Easy temperature management with a digital thermostat
32" height fits under lower ADA compliant counters

Product Features:

ADA Compliant 32" height fits under lower ADA compliant counters
Built-in capable Make the best use of space by installing your appliance under the counter
Stainless steel cabinet Fully wrapped in 304 grade stainless steel
Digital thermosts Set and adjust two temperature zones separately with easy-to-use digital controls and digital

displays

Two temperature zones Lower zone for reds has a temperature range of 10º C/50º F to 18º C/64º F; Upper zone

stores whites and sparkling wine between 5º C/41º F to 10º C/50º F
Automatic defrost Reduced maintenance with auto defrost system
Slide-out wooden shelving Ideal for holding your bottles, with an elegant touch of stainless steel trim
Versatile shelving Interior can store both standard Bordeaux bottles and wider Burgundy type for Pinot Noir and

Chardonnay; see your Shelving Guide for details
Stainless steel door frame Classic trim for a refined look

SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified

770 Garrison Avenue Bronx, NY 10474 USA TEL [phone] FAX [phone] [e-mail] www.summitappliance.com

SWC530LBISTCSSADA Specifications:

Overview

Height of Cabinet 32.0" (81 cm)
Width 23.63" (60 cm)
Depth 23.38" (59 cm)
Depth with Handle 25.0" (64 cm)
Depth with door at 90° 45.5" (116 cm)
Bottles 46 bottles
Defrost Type Automatic
Door Glass
Cabinet Stainless Steel
US Electrical Safety CSA
Amps 2.0
Voltage/Frequency 115 V AC/60 Hz
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years

Wine Cellar

Number of Zones 2
Door Swing RHD
Reversible Yes
Shelf Type Wood
Shelf Qty 6
Thermostat Type Digital
Interior Light Yes
Refrigerant Type R134a
Refrigerant Amount 4.23 oz.
High Side PSI 270.0
Low Side PSI 103.0
Level Legs 2
