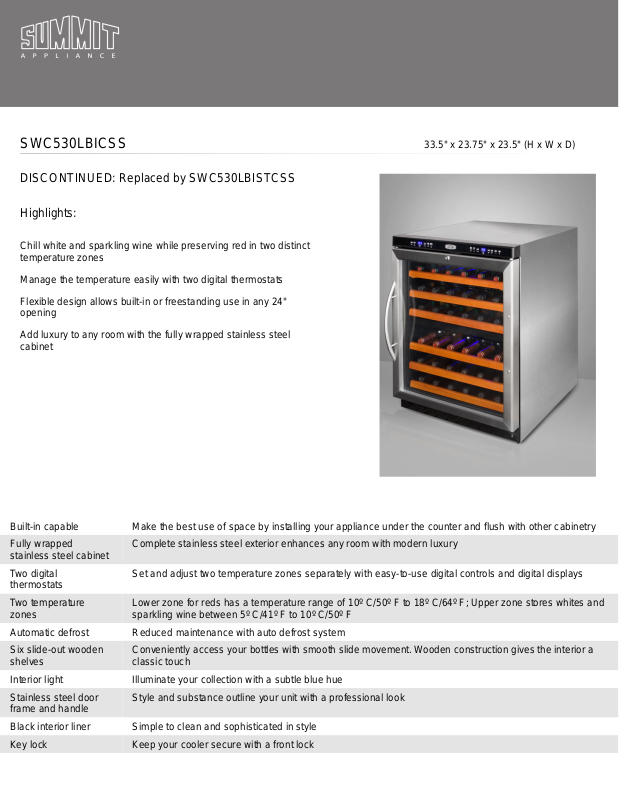

Summit SWC530LBICSS Specification Sheet

SWC530LBICSS 33.5" x 23.75" x 23.5" (H x W x D)

DISCONTINUED: Replaced by SWC530LBISTCSS

Highlights:

Chill white and sparkling wine while preserving red in two distinct
temperature zones

Manage the temperature easily with two digital thermostats
Flexible design allows built-in or freestanding use in any 24"

opening
Add luxury to any room with the fully wrapped stainless steel

cabinet

Built-in capable Make the best use of space by installing your appliance under the counter and flush with other cabinetry
Fully wrapped

stainless steel cabinet
Two digital

thermostats
Two temperature

zones
Automatic defrost Reduced maintenance with auto defrost system
Six slide-out wooden

shelves
Interior light Illuminate your collection with a subtle blue hue
Stainless steel door

frame and handle
Black interior liner Simple to clean and sophisticated in style
Key lock Keep your cooler secure with a front lock

Complete stainless steel exterior enhances any room with modern luxury

Set and adjust two temperature zones separately with easy-to-use digital controls and digital displays

Lower zone for reds has a temperature range of 10º C/50º F to 18º C/64º F; Upper zone stores whites and
sparkling wine between 5º C/41º F to 10º C/50º F

Conveniently access your bottles with smooth slide movement. Wooden construction gives the interior a
classic touch

Style and substance outline your unit with a professional look

Specifications:

Height 33.5"
Width 23.75"
Depth 23.5"
Capacity 5.2 cu.ft.
Ext Depth with Handle 25.25"
Interior Height 1 25.5"
Interior Width 1 20.5"
Interior Depth 1 18.0"
Comp Step Height 5.0"
Comp Step Width 18.0"
Comp Step Depth 5.0"
Shipping Weight 125.0 lbs.
Canadian Electrical Safety CSA
Amps 2.0
US Electrical Safety UL
Reversible Factory Reversible
Door Swing RHD
Shelf Quantity 6
Defrost Type Automatic
Depth with door at 90° 45.75"
Light true
Thermostat Type Digital
Fan Type Interior
Level Legs Quantity 4
High Side PSI 270.0
Freon Type R134a
Freon Oz 4.23
Low Side PSI 103.0
Compressor Warranty 5 Years
Parts/Labor Warranty 1 Year
