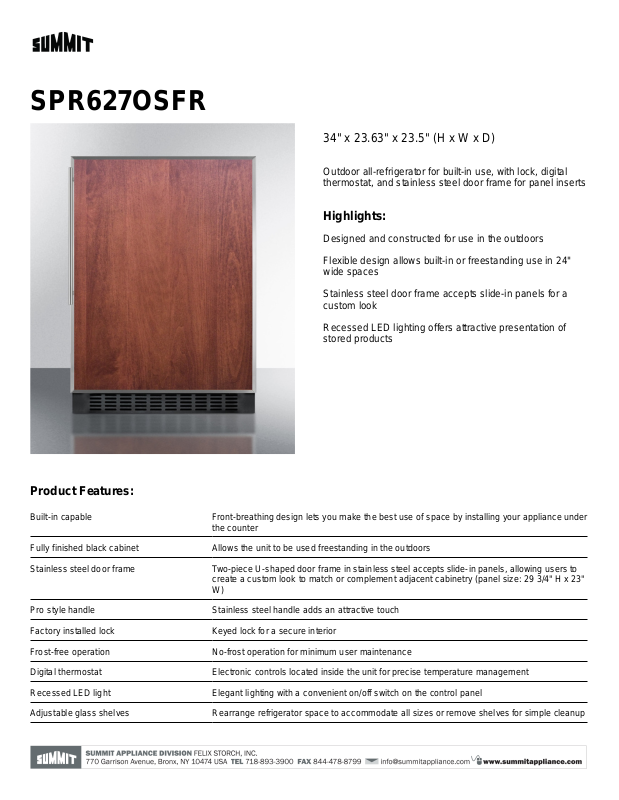

Summit SPR627OSFR Instruction Manual

SPR627OSFR

34" x 23.63" x 23.5" (H x W x D)

Outdoor all-refrigerator for built-in use, with lock, digital
thermostat, and stainless steel door frame for panel inserts

Highlights:

Designed and constructed for use in the outdoors
Flexible design allows built-in or freestanding use in 24"

wide spaces
Stainless steel door frame accepts slide-in panels for a

custom look
Recessed LED lighting offers attractive presentation of

stored products

Product Features:

Built-in capable Front-breathing design lets you make the best use of space by installing your appliance under

the counter
Fully finished black cabinet Allows the unit to be used freestanding in the outdoors
Stainless steel door frame Two-piece U-shaped door frame in stainless steel accepts slide-in panels, allowing users to

create a custom look to match or complement adjacent cabinetry (panel size: 29 3/4" H x 23"

W)
Pro style handle Stainless steel handle adds an attractive touch
Factory installed lock Keyed lock for a secure interior
Frost-free operation No-frost operation for minimum user maintenance
Digital thermostat Electronic controls located inside the unit for precise temperature management
Recessed LED light Elegant lighting with a convenient on/off switch on the control panel
Adjustable glass shelves Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup

SPR627OSFR Specifications:

Overview

Height 34.0"
Width 23.63"
Depth 23.5"
Depth with Handle 25.38"
Depth with door at 90° 45.63"
Capacity 4.6 cu.ft.
Defrost Type Frost-Free
Door Panel-Ready
Cabinet Black
US Electrical Safety ETL
Canadian Electrical

Safety
Sanitation ETL-S
Energy Usage/Year 250.0kWh/year
Amps 0.8
Voltage/Frequency 115 V AC/60 Hz
Weight 100.0 lbs.
Shipping Weight 110.0 lbs.
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years

Refrigerator Features

Door Swing RHD
Reversible Yes
Shelf Type Glass
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior and

Refrigerant Type R600a
Refrigerant Amount 0.99
High Side PSI 270.0
Low Side PSI 105.0
Interior Light Yes

Dimensions

Interior Height 24.0"
Interior Width 19.25"

ETL-C

Exterior
