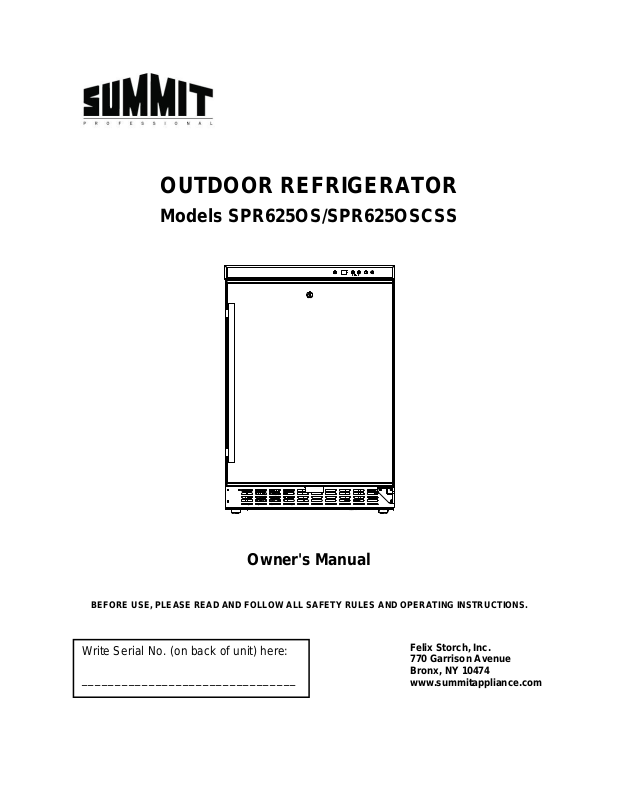

OUTDOOR REFRIGERATOR
Models SPR625OS/SPR625OSCSS
Owner's Manual
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS.
Write Serial No. (on back of unit) here:
________________________________
Felix Storch, Inc.
770 Garrison Avenue
Bronx, NY 10474
www.summitappliance.com
Page 2
TABLE OF CONTENTS
Appliance Safety 3
Important Safeguards 3-4
Location of Parts 5
Installation Instructions 5-8
Before Using Your Appliance 5
Installation of Your Appliance 5-6
Electrical Connection 6
Extension Cord 6
Reversing the Door Swing of Your Appliance 7
Installing the Stainless Steel Handle 8
Operating Your Appliance 8-9
Control Panel 8-9
ON/OFF Power 8
Key Lock 8
Setting the Temperature Control 8-9
Interior Light 9
Door Lock 9
Shelves 9
Care and Maintenance 10
Cleaning Your Appliance 10
Power Failure 10
Vacation Time 10
Moving Your Appliance 10
Energy Saving Tips 10
Troubleshooting 11
Limited Warranty 12
2
Page 3
APPLIANCE SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read
and obey all safety messages.
This
is the Safety Alert Symbol. The symbol alerts you to potential hazards that
can kill or injure you and others. All safety messages will follow the Safety
Alert Symbol and either the words "DANGER" or "WARNING".
Danger means that failure to heed this safety
statement may result in severe personal injury or
death.
Warning means that failure to heed this safety
statement may result in extensive product
damage, serious personal injury, or death.
All safety messages will al
and let you know what can happen if the instructions are not followed.
ert you about the potential hazard, tell you how to reduce the chance of injury,
IMPORTANT SAFEGUARDS
Before the appliance is used, it must be properly positioned and installed as
described in this manual, so read the manual carefully. To reduce the risk of fire,
electrical shock or injury when using the appliance, follow basic precautions,
including the following:
Plug into a grounded 3-prong outlet, do not remove grounding prong, do not use an adapter, and do
not use an extension cord.
Replace all panels before operating.
It is recommended that a separate circuit serving only your appliance be provided. Use re ceptacles
that cannot be turned off by a switch or pull chain.
Never clean appliance parts with flammable fluids. These fumes can create a fire hazard or explosion.
And do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any
other appliance. The fumes can create a fire hazard or explosion.
Before proceeding with cleaning and maintenance operations, make sure the power line of the unit is
disconnected.
Do not connect or disconnect the electric plug when your hands are wet.
Unplug the appliance or disconnect power before cleaning or servicing. Failure to do so can result in
electrical shock or death.
3
Page 4
Do not attempt to repair or replace any part of your appliance unless it is specifically recommended in
this manual. All other servicing should be referred to a qualified technician.
FOLLOW
Use two or more people to move and install appliance. Failure to do so can result in back or other
injury.
To ensure proper ventilation for your appliance, the front of the unit must be completely unobstructed.
Choose a well-ventilated area with temperatures above 44°F (7°C) and below 1 06°F (41°C).
The appliance should not be located next to ovens, grills or other sources of high heat.
The appliance must be installed with all electrical, water and drain connections in accordance with
state and local codes. A standard electrical supply (115 V AC only, 60 Hz), properly grounded in
accordance with the National Electrical Code and local codes and ordinance s, is required.
Do not kink or pinch the power supply cord of the appliance.
The size of the fuse (or circuit breaker) should be 15 amperes.
It is important that the appliance be leveled in order to work properly. You may need to make several
adjustments to level it.
All installations must be in accordance with local plumbing code requirements.
Make certain that the pipes are not pinched, kinked or damaged during installation.
Check for leaks after connection.
Never allow children to operate, play with or crawl inside the appliance.
Do not use solvent-based cleaning agents or abrasives on the interior. These cleaners may damage
or discolor the interior.
Use this appliance only for its intended purpose as described in this Owner’s Manual.
Keep fingers out of the “pinch point” areas. Clearances between the doors and betwee n the doors
and cabinet are necessarily small. Be careful closing doors when children are in the area.
WARNING CALLOUTS BELOW ONLY WHEN APPLICABLE TO YOUR MODEL
Risk of child entrapment!
Child entrapment and suffocation are not problems of the past. Junked or abandoned appliances are
still dangerous, even if they will “just sit in the garage a few days”.
Before discarding your old refrigerator:
Take off the doors
Leave the shelves in place so that children may not easily climb inside.
- SAVE THESE INSTRUCTIONS -
4
Page 5
LED Light
ed Light
L
Shelf

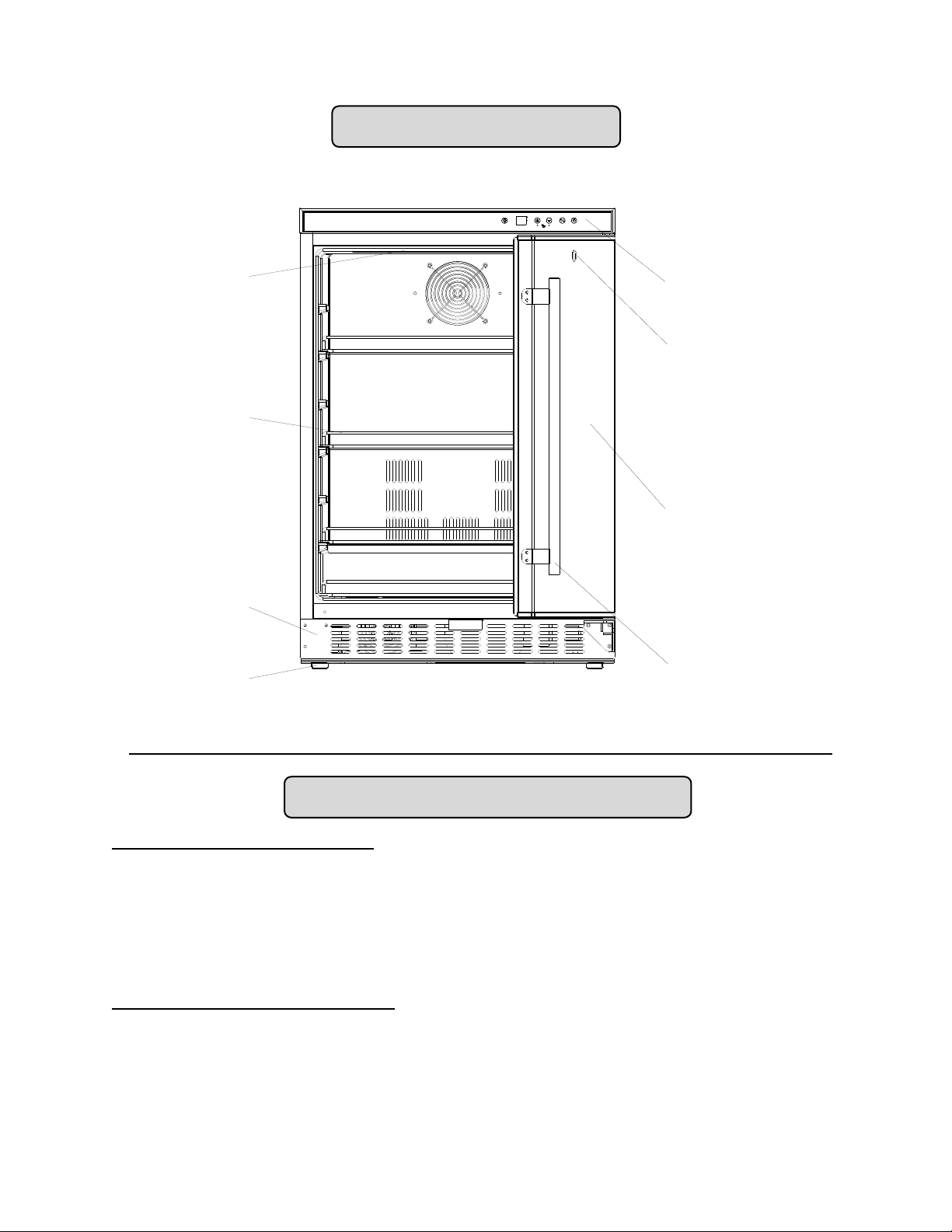

LOCATION OF PARTS
Digital Control Panel
Security Lock
Door
Stainless Steel Door
Bottom Grille
Stainless Steel Handle
Adjustable Legs
Handle
INSTALLATION INSTRUCTIONS
BEFORE USING YOUR APPLIANCE
Remove the exterior and interior packing.
Before connecting the appliance to the power source, let it stand upright for approximately 2 hours.
This will reduce the possibility of a malfunction in the cooling system from handling during
transportation.
Clean the interior surface with lukewarm water using a soft cloth.
Install the handle on the door. (See page 8.)
INSTALLATION OF YOUR APPLIANCE
The appliance is designed for built-in or recessed or free standing installation for indoor or outdoor
use.
CAUTION
Place your appliance on a floor that is strong enough to support it when it is fully loaded. To level the
unit, adjust the front leveling legs.
: This appliance is not designed for the storage of medicine or other medical products.
5
Page 6
For free standing installation, 5 inches (127mm) of space between the back and sides of the unit are
suggested, which allows the proper air circulation to cool the compressor and condenser. Even for
built-in installation, it is a must to keep ¼” (6.35mm) space on each side and at the top. Take care that
the air vent at the front of the appliance is never covered or blocked in any way.
NOTE: It is recommended that you do not install the appliance near an oven, radiator or other heating
source. Direct sunlight may affect the acrylic coating and heat sources may increase electrical
consumption. Don’t install in a location where the temperature will fall below 44°F (7°C). For best
performance, do not install the appliance behind a cabinet door or block the base grille.
Avoid locating the unit in moist areas.
Plug the appliance into an exclusive, properly grounded wall outlet. Do not under any circumstances
cut or remove the third (ground) prong from the power cord. Any questions concerning power and/or
grounding should be directed toward a certified electrician or an a uthorized service center.
ELECTRICAL CONNECTION
Improper use of the grounded plug can result in the risk of electrical shock. If the power cord i s
damaged, have it replaced by a qualified electrician or an authorized service center.
appliance should be properly grounded for your safety. The power cord of this appliance is equipped
This
with a three-prong plug which mates with standard three-prong wall outlets to minimize the possibility of
electrical shock.
Do not under any circumstances cut or remove the third (ground) prong from the power cord supplied. For
personal safety, this appliance must be properly grounded.
This appliance requires a standard 115/120 Volt AC ~ 60Hz three-prong grounded electrical outlet. Have
the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded.
When a standard 2-prong wall outlet is encountered, it is your responsibility and obligation to have it
replaced with a properly grounded 3-prong wall outlet.
To prevent accidental injury, the cord should be secured behind the appliance and not left exposed or
dangling.
The appliance should always be plugged into its own individual electrical outlet which has a voltage rating
that matches the rating label on the appliance. This provides the best performance and also prevents
overloading house wiring circuits that could cause a fire hazard from overheating. Never unplug the
appliance by pulling on the power cord. Always grip the plug firmly and pull straight out from the
receptacle. Repair or replace immediately all power cords that have become frayed or otherwise
damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either end.
When moving the appliance, be careful not to damage the power cord.
EXTENSION CORD
Because of potential safety hazards under certain conditions, it is strongly recommend ed that you do not
use an extension cord with this appliance. However, if you must use an extension cord it is absolutely
necessary that it be a UL/CUL-Listed, 3-wire grounding type appliance extension cord having a groundi ng
type plug and outlet and that the electrical rating of the cord be 115 volts and at least 10 amperes.
WARNING
6
Page 7
REVERSING THE DOOR SWING OF YOUR APPLIANCE
This unit has the capability of the door opening from either the left or right side. The unit is delivered to
you with the door opening from the left side. Should you desire to reverse the opening direction, please
follow the reversal instructions shown below.

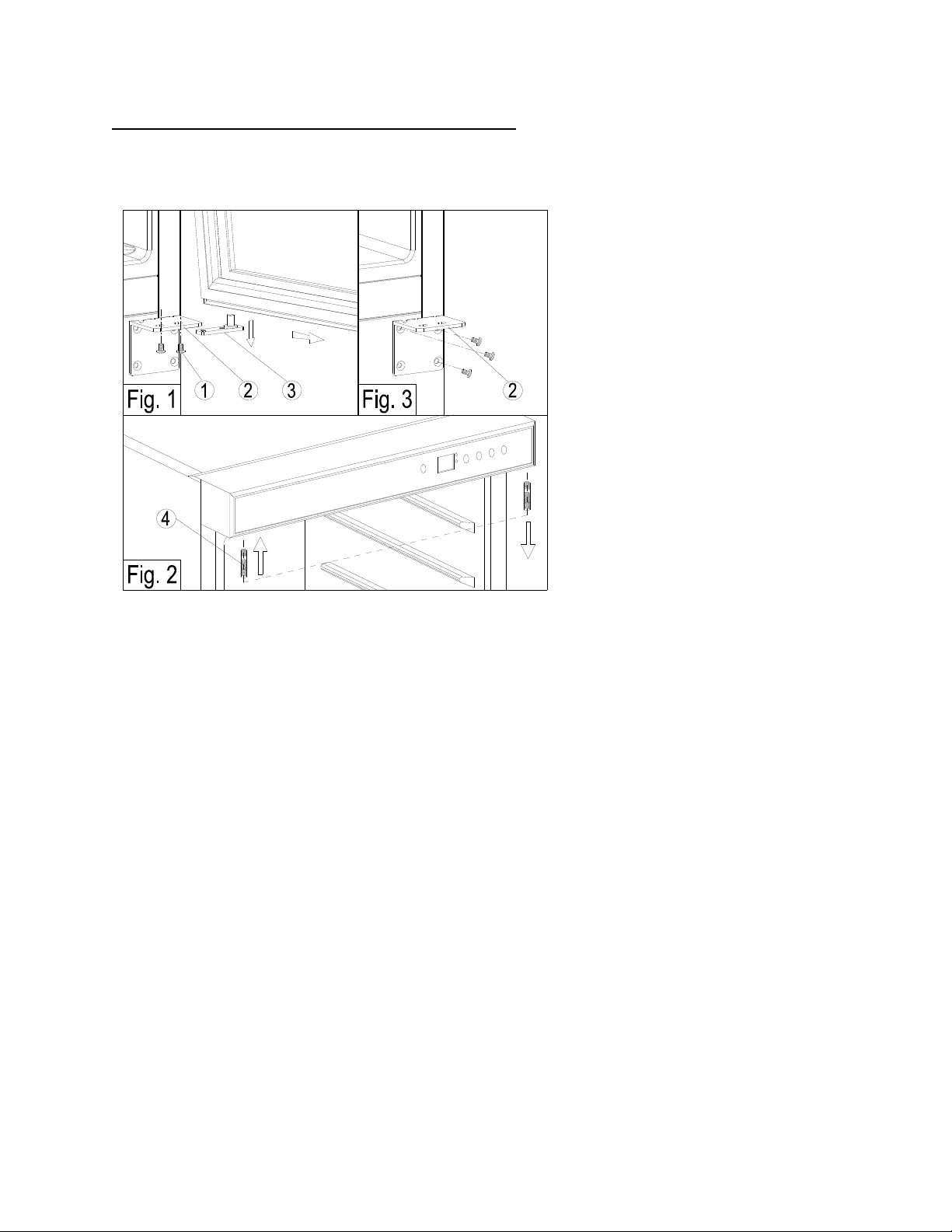

1. Lock Screws
2. Lower Door Hinge
3. Door Shaft Assembly
4. Door Axle
NOTE: All parts removed must be saved to allow the door swing to be reversed.
1. Open the door and remove the two lock screws (1) under the right bottom corner of the door that are
used to hold the lower door hinge (2) to the door shaft assembly (3). Be sure to support the door firmly
to prevent it from dropping after removing the screws. (Fig. 1)
2. Pull down to remove the door and place it on a padded surface to prevent scratching.
3. Remove the door axle (4) from the right upper hinge, then install and tighten it in the left upper hinge.
(Fig. 2)
4. Remove the lower door hinge (2) and install it at the designated position on the left side. (Fig. 3)
5. Set the door at the designated position and install the two screws (1) to connect the door shaft
assembly (3) with the lower door hinge (2). Tighten them before the door is leveled.
6. Remove the handle from the left side of the door and install it on the right side. (See next section.)
7
Page 8
INSTALLING THE STAINLESS STEEL HANDLE
This appliance includes a stainless steel handle that is not required to operate the unit. To install the
handle, follow the instructions below:
1. Using a screwdriver to remove the screws on the side of
door where the handle is to be installed.
2. Align the handle with the screws removed in step # 1.
Tighten the screws using a Phillips head screwdriver
until the handle is both flush and secured tightly against
the door side. (DO NOT over-tighten as this will cause
damage to the stainless steel door surface.)
Handle
Screw
Door
OPERATING YOUR APPLIANCE
It is recommended you install the appliance in a place where the ambient temperature is between 44º and
106ºF (7º - 41ºC). If the ambient temperature is above or below the recommended temperatures, the
performance of the unit may be affected. For example, placing your unit in extreme cold or hot conditions
may cause interior temperatures to fluctuate. The range of 34º - 43ºF (1º - 6ºC) may not be reached.

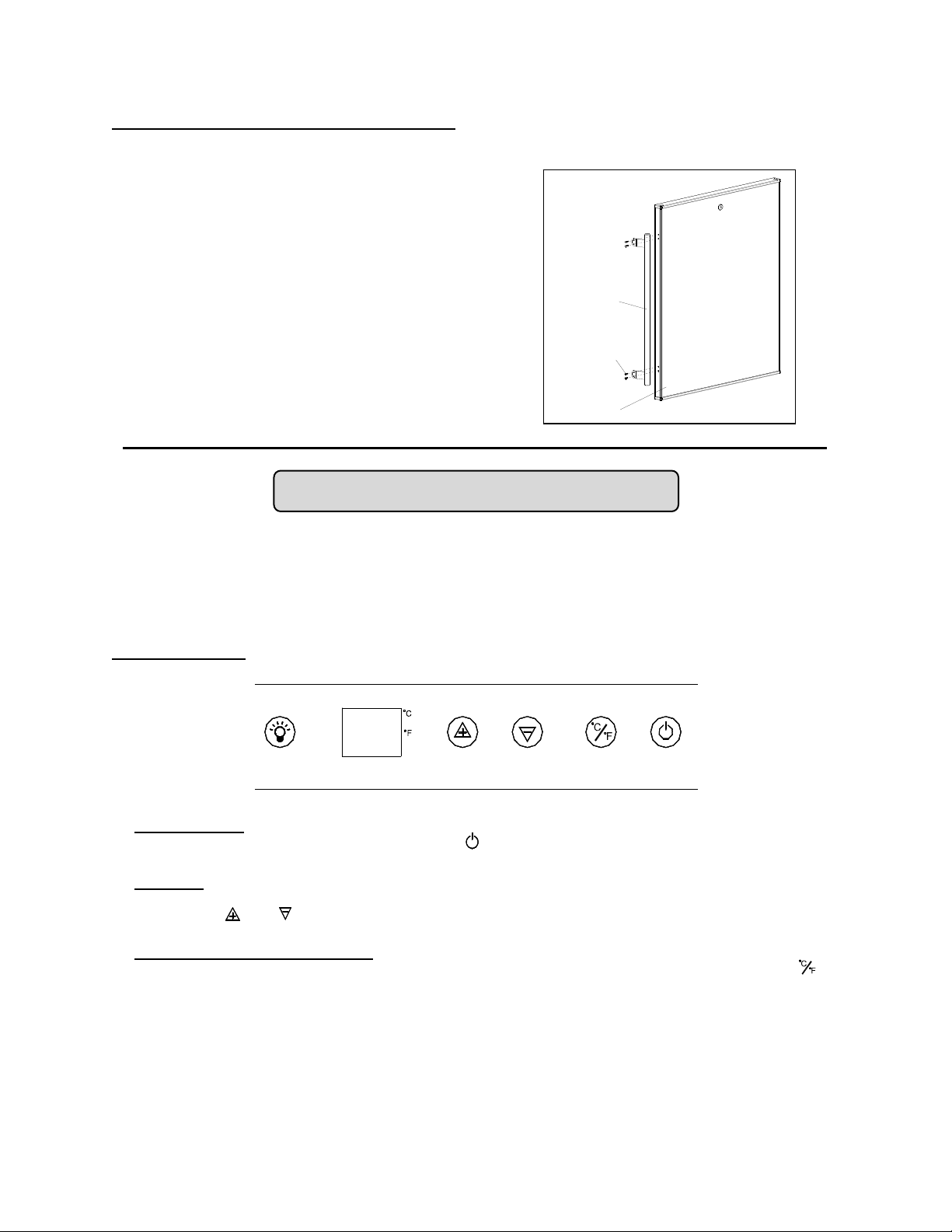

CONTROL PANEL
ON/OFF Power
To turn the appliance ON or OFF, touch the
Key Lock
If no key is touched for 2 minutes, the controls will be locked automatically. To release the lock,
touch the
Setting the Temperature Control
You can choose between Fahrenheit and Celsius for the temperature display by touching the
symbol. A Fahrenheit or Celsius degree indicator will appear next to the temperature display
window.
You can set the temperature by touching the UP and DOWN symbols. When you push the two
buttons for the first time, the LED readout will show the original temperature set previously. (The
temperature preset at the factory is 38°F (3°C).
The temperature you are setting will increase by one degree each time you touch the UP
symbol, and will decrease by one degree each time you touch the DOWN symbol.
symbol and hold for 5 seconds.
and symbols at the same time for at least 5 seconds.
8
Page 9
The range of the temperature control is from 34°F to 43°F.
To view the set temperature at any time, touch the UP or DOWN symbol. The set temperature
will flash in the display window for 5 seconds. After 5 seconds, the temperature inside the unit
will reappear in blue in the display window.
DOOR LOCK
Your unit is provided with a lock and key combination.
The keys are located inside the plastic bag that contains the Owner’s Manual. Insert the key into the lock
and turn it counterclockwise to unlock the door. To lock the door, do the reverse operation, making sure
the metal pin is engaged completely. Remove the key and put it in a secure place for safekeeping.

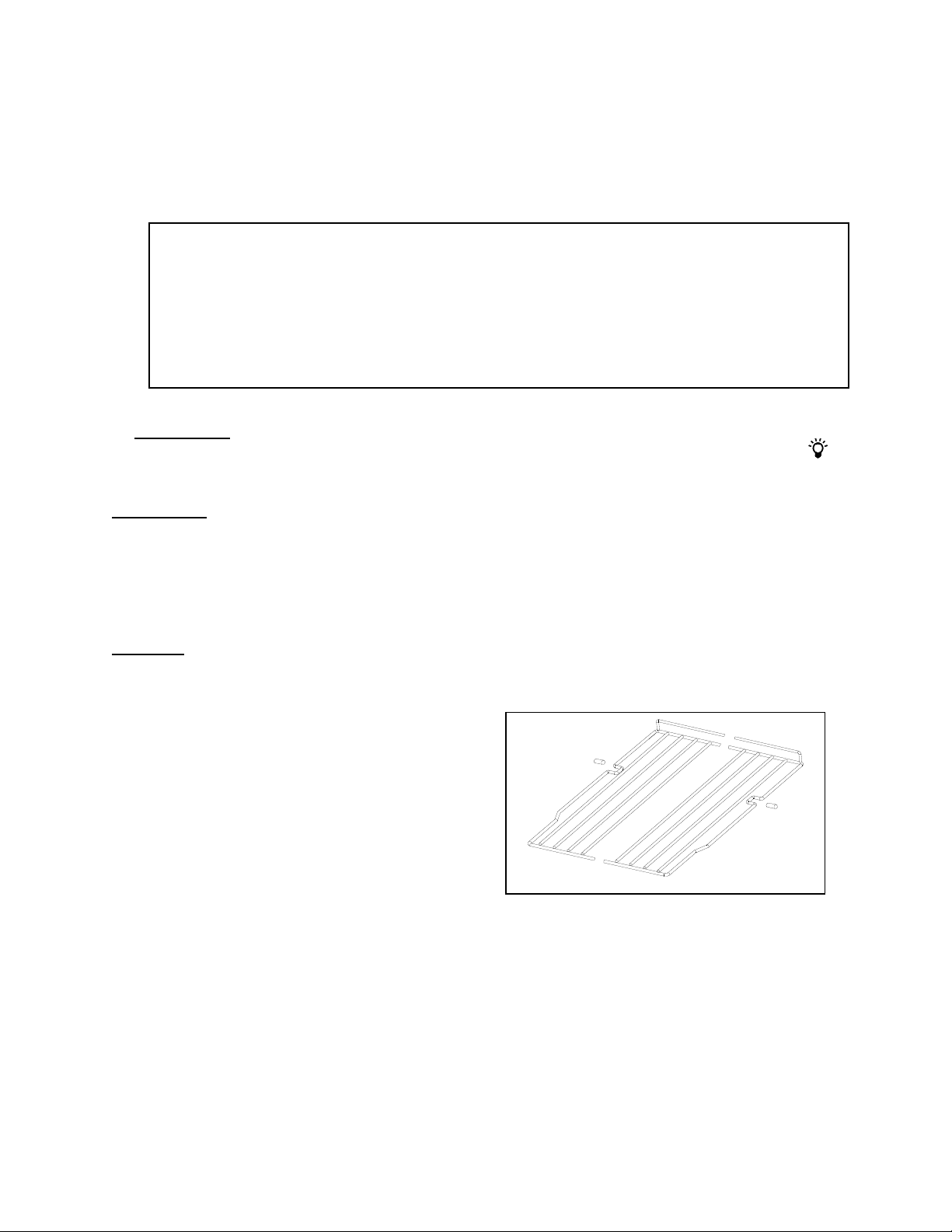

SHELVES
To prevent damaging the door gasket, make sure to have the door all the way open when pulling the
shelves out of the rail compartment.
NOTE:
If the unit is unplugged, or power is lost or turned off, you must wait 3 to 5 minutes before
restarting the unit. If you attempt to restart before this time delay, the unit will not start.
When you use the unit for the first time or restart the unit after it has been shut off for a long
time, there could be a few degrees variance between the temperature you select and the one
indicated on the LED readout. This is normal and is due to the length of the activation time.
There should not be a problem once the unit has been running for a few hours.
Interior Light
The unit is equipped with an interior LED light which can be turned ON or OFF by touching the
symbol.
For easy access to the stored content, you can pull
the shelf approximately halfway out of the rail
compartment. However this unit was designed with
a plastic post on each side of the shelf track to
prevent shelf contents from falling.
When removing the shelf from the inner rails, make
sure to remove all shelf contents first. Then move
the shelf to the position where the notches in the
shelf are exactly aligned with the plastic posts and
lift the shelf. In order to replace the shelf, repeat
this procedure in reverse.
9
Page 10
CARE AND MAINTENANCE
CLEANING YOUR APPLIANCE
Turn off the power, unplug the appliance, and remove all items, including shelves.
Wash the inside surfaces with a solution of warm water and baking soda (about 2 tablespoons of
baking soda to a quart of water).
Wash the shelves with a mild detergent solution.
Wring excess water out of the sponge or cloth when cleaning the area where the controls are located,
or any electrical parts.
Wash the outside cabinet with warm water and mild liquid detergent. Rinse well and wipe dry with a
clean soft cloth.
Use an approved stainless steel cleaner to clean the door and handle. Do not use steel wool or a
steel brush on the stainless steel.
CAUTION:
Failure to unplug the appliance during cleaning could result in electrical shock or other personal injury
POWER FAILURE
Most power failures are corrected within a few hours and should not affect the temperature of your
appliance if you minimize the number of times the door is opened. If the power is going to be off for a
longer period of time, you need to take the proper steps to protect the contents.
VACATION TIME
Short vacations: Leave the appliance operating during vacations of less than three weeks.
Long vacations: If the appliance will not be used for several months, remove all items and turn off
the appliance. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the
door open slightly, blocking it open if necessary.
MOVING YOUR APPLIANCE
1. Remove all items.
2. Securely tape down all loose items (shelves) inside your appliance.
3. Turn the adjustable legs up to the base to avoid damage.
4. Tape the door shut.
5. Be sure the appliance stays secure in the upright position during transportation. Also, protect the
outside of the appliance with a blanket or similar item.
ENERGY SAVING TIPS
The appliance should be located in the coolest area of the room or outdoor location, away from heat
producing appliances and out of direct sunlight.
Ensure that the unit is adequately ventilated. Never cover air vents.
Do not keep the door open any longer than necessary.
Let hot foods cool to room temperature before placing in the unit. Overloading the unit forces the
compressor to run longer.
Be sure to wrap foods properly, and wipe containers dry before placing them in the unit. This cuts
down on frost build-up inside the unit.
Unit shelves and storage bins should not be lined with aluminum foil, wax paper, or paper toweling.
Liners interfere with cold air circulation, making the unit less efficient.
Organize and label food to reduce door openings and extended searches. Remove as many items as
needed at one time, and close the door as soon as possible.
.
10
Page 11
TROUBLESHOOTING
You can solve many common problems easily, saving you the cost of a possible service call. Try the
suggestions below to see if you can solve the problem before calling a service technician.
Troubleshooting Guide
PROBLEM POSSIBLE CAUSE
Not plugged in.
The unit does not operate.
The unit is not cold enough.
Turns on and off frequently.
The light does not work.
Vibrations Check to assure that the appliance is level.
The unit seems to make too much noise.
The door will not close properly.
Display shows “EL” or “EH”.
If you've checked the table above and find that you still need help with your appliance, call our Customer
Service facility at
questions.
800-932-4267 between 9:00AM and 5:00PM ET. We will do our best to answer your
The appliance is turned off.
Tripped circuit breaker or blown fuse.
Check the temperature control setting.
External environment may require a higher setting.
The door is opened too often.
The door is not closed completely.
The door gasket does not seal properly.
The ambient temperature is warmer than normal.
A large amount of contents has been added to the
unit.
The door is opened too often.
The door is not closed completely.
The temperature control is not set correctly.
The door gasket does not seal properly.
Not plugged in.
Tripped circuit breaker or blown fuse.
The light switch is “OFF”.
A rattling noise may come from the flow of the
refrigerant, which is normal.
As each cycle ends, you may hear gurgling sounds
caused by the flow of refrigerant in your unit.
Contraction and expansion of the inside walls may
cause popping and crackling noises.
The appliance is not level.
The appliance is not level.
The door was reversed and not properly re-installed.
The gasket is dirty.
The shelves are out of position.
The air temperature sensor has failed.
11
Page 12
LIMITED WARRANTY
g
ONE-YEAR LIMITED WARRANTY
Within the 48 contiguous United States, for one year from the dat e of purchase, when this appliance is oper ated and
maintained according to instructions attached to or furnished with the product, warrantor will pay for factory-specified
parts and repair labor to correct defects in materials or workmanship. Service must be provided by a designated
service company. Outside the 48 states, all parts are warranted for one year from manufacturing defects. Plastic
parts, shelves and cabinets are warranted to be manufactured to commercially acceptable sta ndards, and are not
covered from damage during handling or breakage.
5-YEAR COMPRESSOR WARRANTY
1. The compressor is covered for 5 years.
2. Replacement does not include labor.
ITEMS WARRANTOR WILL NOT PAY FOR:
1. Service calls to correct the installation of your appliance, to instruct you how to use your appliance, to replace or
repair fuses or to correct wiring or plumbing.
2. Service calls to repair or replace appliance light bulbs or broken shelves. Consumable parts (such as filters) are
excluded from warranty coverage.
3. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation,
installation not in accordance with electrical or plumbing codes, or use of products not approved by warrantor.
4. Replacement parts or repair labor costs for units operated outside the United States.
5. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
6. Expenses for travel and transportation for product service in remote locations.
7. The removal and reinstallation of your appliance if it is installed in an inaccessible location or is not installed in
accordance with published installation instructions.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT
REPAIR AS PROVIDED HEREIN. IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR. WARRANTOR SHALL NOT BE
LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES DO NOT ALLOW THE EXCLUSION
OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF
IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS, SO THESE EXCLUSIONS OR LIMITATIONS MAY
NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE
OTHER RIGHTS, WHICH VA RY FROM STATE TO STATE.
WARNING! This product may contain chemicals known to the state of California
to cause cancer or birth defects or other reproductive harm. For more information,
visit: www.summitappliance.com/prop65
Chemicals known by the manufacturer to be present in this product in concentrations
her than threshold limits: NONE.
hi
FELIX STORCH, INC.
770 Garrison Avenue
Bronx, NY 10474
Phone: (718) 893-3900
Fax: (718) 842-3093
www.summitappliance.com
For parts and accessory ordering,
troubleshooting and helpful hints, visit:
www.summitappliance.com/support
12
Loading...
