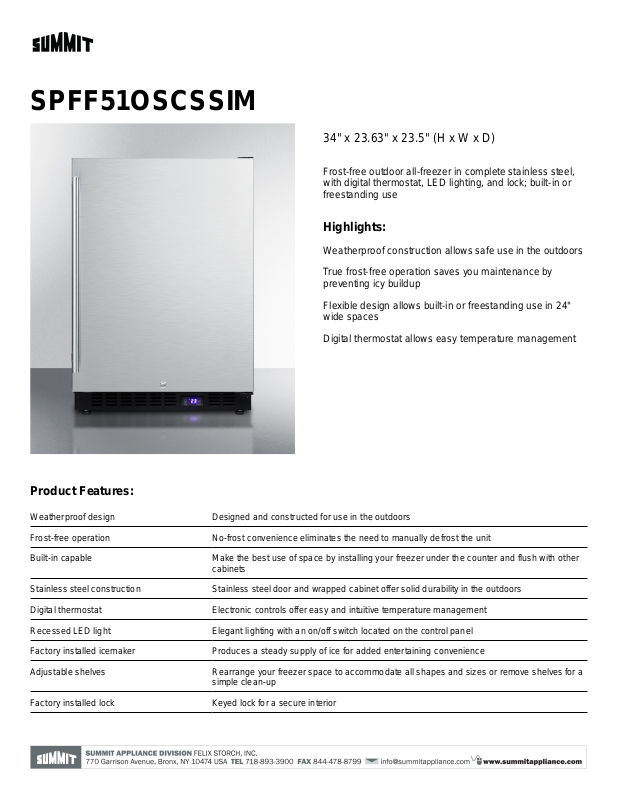

Summit SPFF51OSCSSIM Instruction Manual

SPFF51OSCSSIM

34" x 23.63" x 23.5" (H x W x D)

Frost-free outdoor all-freezer in complete stainless steel,
with digital thermostat, LED lighting, and lock; built-in or
freestanding use

Highlights:

Weatherproof construction allows safe use in the outdoors
True frost-free operation saves you maintenance by

preventing icy buildup
Flexible design allows built-in or freestanding use in 24"

wide spaces
Digital thermostat allows easy temperature management

Product Features:

Weatherproof design Designed and constructed for use in the outdoors
Frost-free operation No-frost convenience eliminates the need to manually defrost the unit
Built-in capable Make the best use of space by installing your freezer under the counter and flush with other

cabinets
Stainless steel construction Stainless steel door and wrapped cabinet offer solid durability in the outdoors
Digital thermostat Electronic controls offer easy and intuitive temperature management
Recessed LED light Elegant lighting with an on/off switch located on the control panel
Factory installed icemaker Produces a steady supply of ice for added entertaining convenience
Adjustable shelves Rearrange your freezer space to accommodate all shapes and sizes or remove shelves for a

simple clean-up
Factory installed lock Keyed lock for a secure interior

SPFF51OSCSSIM Specifications:

Overview

Height 34.0"
Width 23.63"
Depth 23.5"
Depth with Handle 25.35"
Depth with door at 90° 45.63"
Capacity 4.72 cu.ft.
Defrost Type Frost-Free
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical

Safety
Energy Usage/Year 474.0kWh/year
Amps 2.0
Voltage/Frequency 115 V AC/60 Hz
Weight 108.0 lbs.
Shipping Weight 128.0 lbs.
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years

Freezer

Door Swing RHD
Reversible Yes
Shelf Type Chrome
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and

Refrigerant Type R600a
Refrigerant Amount 1.24
High Side PSI 270.0
Low Side PSI 106.0

ETL-C

Exterior
