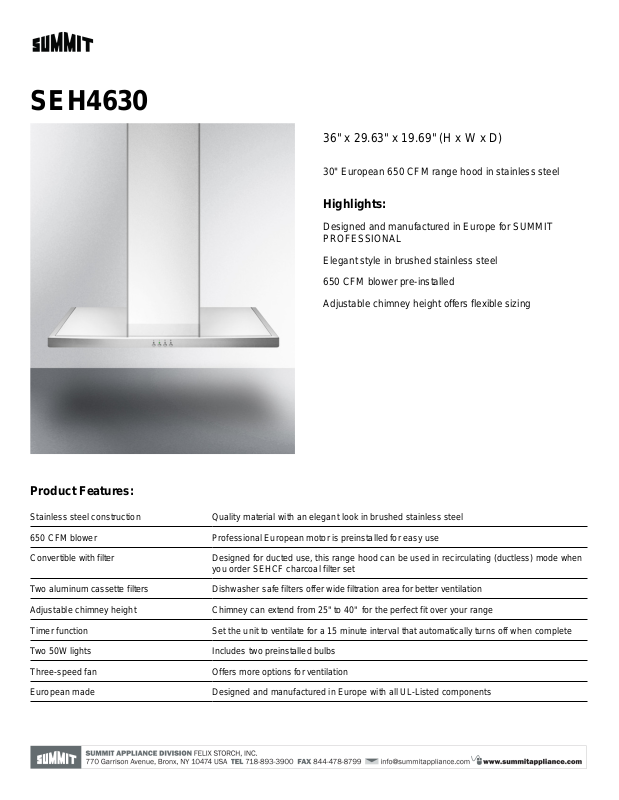

SEH4630

36" x 29.63" x 19.69" (H x W x D)

30" European 650 CFM range hood in stainless steel

Highlights:

Designed and manufactured in Europe for SUMMIT PROFESSIONAL

Elegant style in brushed stainless steel 650 CFM blower pre-installed Adjustable chimney height offers flexible sizing

Product Features:

Stainless steel construction Quality material with an elegant look in brushed stainless steel 650 CFM blower Professional European motor is preinstalled for easy use Convertible with filter Designed for ducted use, this range hood can be used in recirculating (ductless) mode when

you order SEHCF charcoal filter set Two aluminum cassette filters Dishwasher safe filters offer wide filtration area for better ventilation Adjustable chimney height Chimney can extend from 25" to 40" for the perfect fit over your range Timer function Set the unit to ventilate for a 15 minute interval that automatically turns off when complete Two 50W lights Includes two preinstalled bulbs Three-speed fan Offers more options for ventilation European made Designed and manufactured in Europe with all UL-Listed components

SEH4630 Specifications:

Overview

Height 36.0" Width 29.63" Depth 19.69" Cabinet Stainless Steel US Electrical Safety UL Canadian Electrical

Safety Voltage/Frequency 115 V AC/60 Hz Weight 43.0 lbs. Shipping Weight 80.0 lbs.

Range Hood

Installation Wall-Mounted Venting Convertible w/ Filter

Controls Push Button Light Yes Number of Lights 2 Light Type Halogen Number of Fan

Speeds Maximum Air

Movement Minimum Height 25.0" Maximum Height 40.0" Duct Shape 6" Round

650.0

ULC

Set
