Page 1

RANGE HOODS

Models

SEH1524 SEH1536

FELIX STORCH, INC. 770 Garrison Avenue Bronx, New York 10474 www.summitappliance.com

Page 2

TABLE OF CONTENTS

Safety Warnings................................................................................................2-4

Location of Parts..................................................................................................5

Technical Specifications......................................................................................6

Dimensional Diagram...........................................................................................7

Installation........................................................................................................8-10

Positioning the Range Hood......................................................................8

Preparing the Site...................................................................................8-9

Installing Mounting Brackets......................................................................9

Installing the Range Hood on the Wall..................................................9-10

Operation.............................................................................................................11

Speed Choice

Lighting

Efficient Ventilation

Cleaning and Maintenance............................................................................12-13

Carbon Filter Replacement......................................................................12

Replacement of Lighting Components.....................................................13

Moving the Hood......................................................................................13

Troubleshooting..................................................................................................14

Troubleshooting Guide Service and Spare Parts

Exploded View(For 24" Model)..............................................................................15

Parts List(For 24" Model).......................................................................................16

Exploded View(For 36" Model)..............................................................................17

Parts List(For 36" Model).......................................................................................18

Wiring Diagram...................................................................................................19

Limited Warranty.................................................................................................20

Page 3

SAFETY WARNINGS

a. This product is designed for domestic use. b. Electric input for the device must be 110-120 Volt, 60 Hz. c. A grounded cable is installed in your device. It must be connected to a grounded

electrical socket.

d. All of the electrical installation must be done by a qualified electrician.

Installations done by unqualified persons may result in poor performance, failure of the device, and accidents.

e. Do not let the power cord become pinched or squeezed during installation. Keep

the cord away from cooking surfaces; otherwise, the cord could melt and fire could

result. f. Do not connect the power cord before installation is complete. g. If the lights in your device have been on for a long time, do not touch them. They

are hot enough to burn your hands. h. Kitchen hoods are designed for cooking in domestic residences. There is a risk of

failure if they are used for other purposes, and this will void the warranty. i. Comply with local codes and regulations related to discharging air. (This warning

does not apply to hoods with no stack). j. Do not cook flammable foods below the hood. k. Start the hood after placing pots or pans on your cooking surface. Otherwise, high

temperatures may result in deformation of parts of the hood. l. Do not leave hot oil on the cooking surface. Pots that contain hot oil can ignite,

causing fires. m. When frying foods, be watchful of curtains. They may catch fire. n. Change the filters regularly. Oily residues could become fire risks. o. When replacing filters, always use the same type of filter as the original.

Substitutes may be unsuitable. p. Do not use the device without a filter. Do not remove filters while the device is

working. q. If there is ignition or sparking, cut off the electric power to the device. (Turn off the

switch.)

r. If the device is not cleaned regularly, built-up grime and dirt could cause a fire. s. When you make the stack installation for your hood, use 150 mm (5.9") diameter

pipes. The stack installation must be as short and with as few bends as possible.

t. Keep the packing materials away from children, as these materials could be

dangerous to them. u. Ensure that children do not play with the device. Do not let little children use the

device.

Page 4

v. If the electrical cable is defective, it must be changed by the manufacturer or a

qualified service technician.

w. If there is a fire, cut off the power to the hood and cooking devices and cover

the flame. Do not use water to extinguish the fire.

READ AND SAVE THESE INSTRUCTIONS

WARNING! TO REDUCE THE RISK OF A RANGE-TOP GREASE FIRE:

a. Never leave surface units unattended at high settings. Boilovers cause

smoking and greasy spillovers that may ignite. Heat oils slowly on low or

medium settings. b. Always turn hood ON when cooking at high heat or when flambéing food. c. Clean ventilating fans frequently. Grease should not be allowed to accumulate

on fan or ?lters. d. Use proper pan size. Always use cookware appropriate for the size of the

surface element.

WARNING! TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE-TOP GREASE FIRE, OBSERVE THE FOLLOWING:

a. SMOTHER FLAMES with a close-?tting lid, cookie sheet or metal tray, then

turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do

not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT. b. NEVER PICK UP A FLAMING PAN – you may be burned. c. DO NOT USE WATER, including wet dishcloths or towels, to douse the fire –

a violent steam explosion could result. d. Use an extinguisher ONLY if:

1. You know you have a Class ABC extinguisher, and you already know how to operate it.

2. The ?re is small and contained in the area where it started.

3. The ?re department is being called.

4. You can fight the fire with your back to an exit.

LIMITED WARRANTY

SUMMIT Appliance warrants this product to be free from defects in materials and workmanship for a period of one year from the date of original purchase or delivery. Any parts determined to be defective will be replaced by SUMMIT at no charge to you. Plastic parts, liners, and outer cabinets are warranted to be manufactured to commercially acceptable standards and free from defects at the time of delivery. This limited warranty does not apply to:

1. Improper installation

2. Customer misuse, negligence or damage

3. Incorrect electrical current

4. Products with serial number altered or removed

5. Products sold or used outside the fifty United States or District of Columbia

6. Commercial or industrial users

7. Damage to this product from accidents, alterations, failure to follow instructions, fire, floods, earthquakes, war, civil disturbance or Acts of God.

SUMMIT is not liable for consequential or incidental damage.

DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES

CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR. WARRANTOR SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS, SO THESE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE.

WARNING! TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR OTHER INJURY, OBSERVE THE FOLLOWING:

FELIX STORCH, INC.

Summit Appliance Division

770 Garrison Avenue

Bronx, NY 10474

Phone: (718) 893-3900

Fax: (718) 842-3093

www.summitappliance.com

For parts and accessory ordering,

troubleshooting and helpful hints, visit:

www.summitapplianceparts.com

Page 5

BLACK ( L )

WHITE ( N )

GREEN/YELLOW

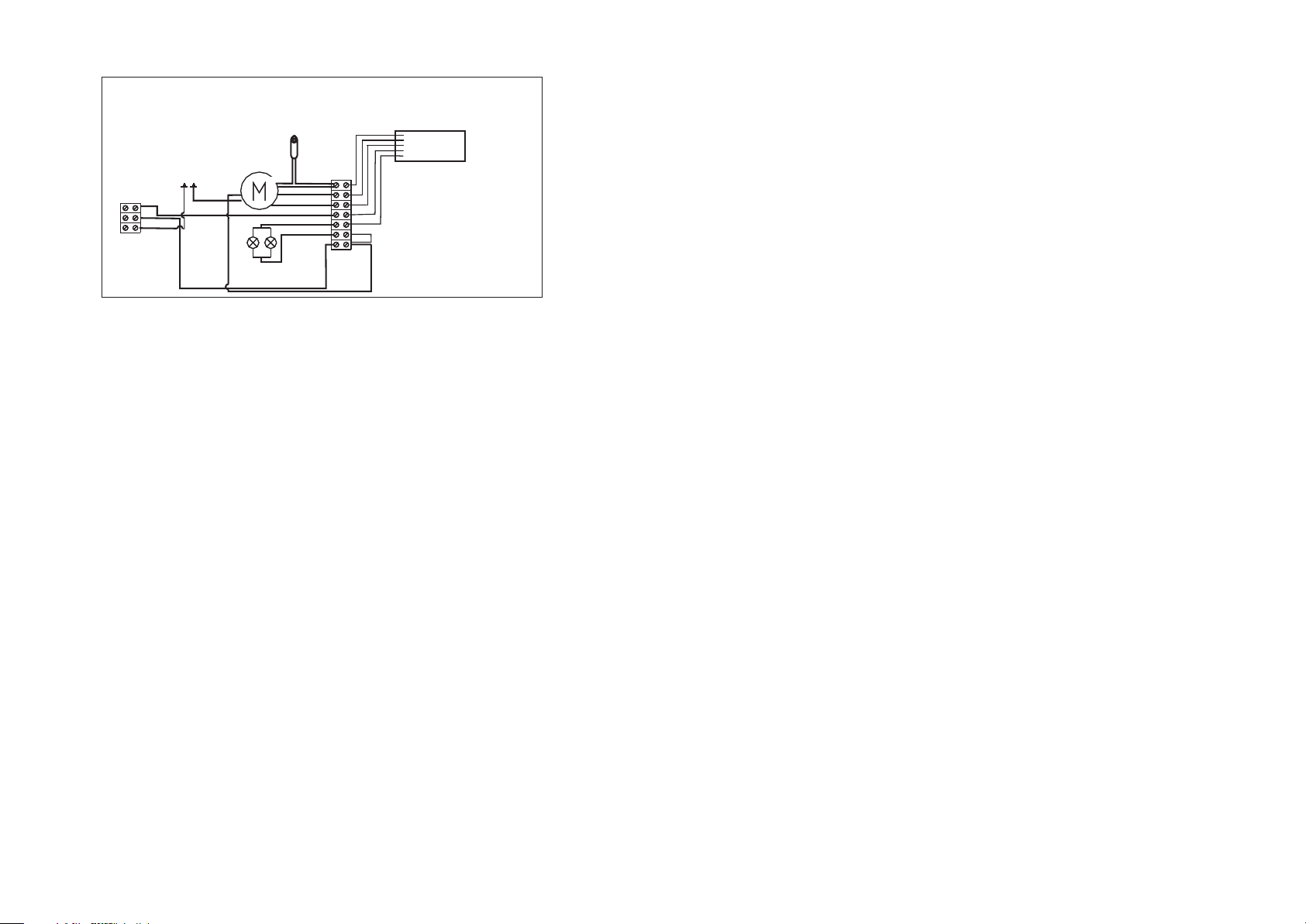

WIRING DIAGRAM

CAPASITOR

BROWN

BLUE

RED

Lamp 2x50W

BLUE WHITE

BLACK

WHITE

Motor: 340W / Lamp: 2X50W Input :110V AC 60 Hz

RED BLUE BLACK BROWN WHITE

CONTROL PANEL

a. Use this unit only in the manner intended by the manufacturer. If you have

questions, contact the manufacturer.

b. Before servicing or cleaning the unit, switch power off at the service panel and

lock the service-disconnecting means to prevent power from being switched on accidentally. If the service-disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.

c. To reduce the risk of fire or electric shock, do not use this fan with any solid-

state speed control device.

CAUTION:

a. The fan in this device is for general ventilating use only. Do not use to exhaust

hazardous or explosive materials and vapors.

b. To reduce the risk of fire and to properly exhaust air, be sure to duct air outside.

Do not vent exhaust air into spaces within wall, ceilings, attics, crawl spaces or garages.

c. Use only metal duct work.

WARNINGS ABOUT HANDLING AND CARRYING

a. All the materials used in the packaging of your device are suitable for recycling.

b. Comply with the warning labels on the packs during transportation.

c. Grasp handling grips while carrying your device.

Page 6

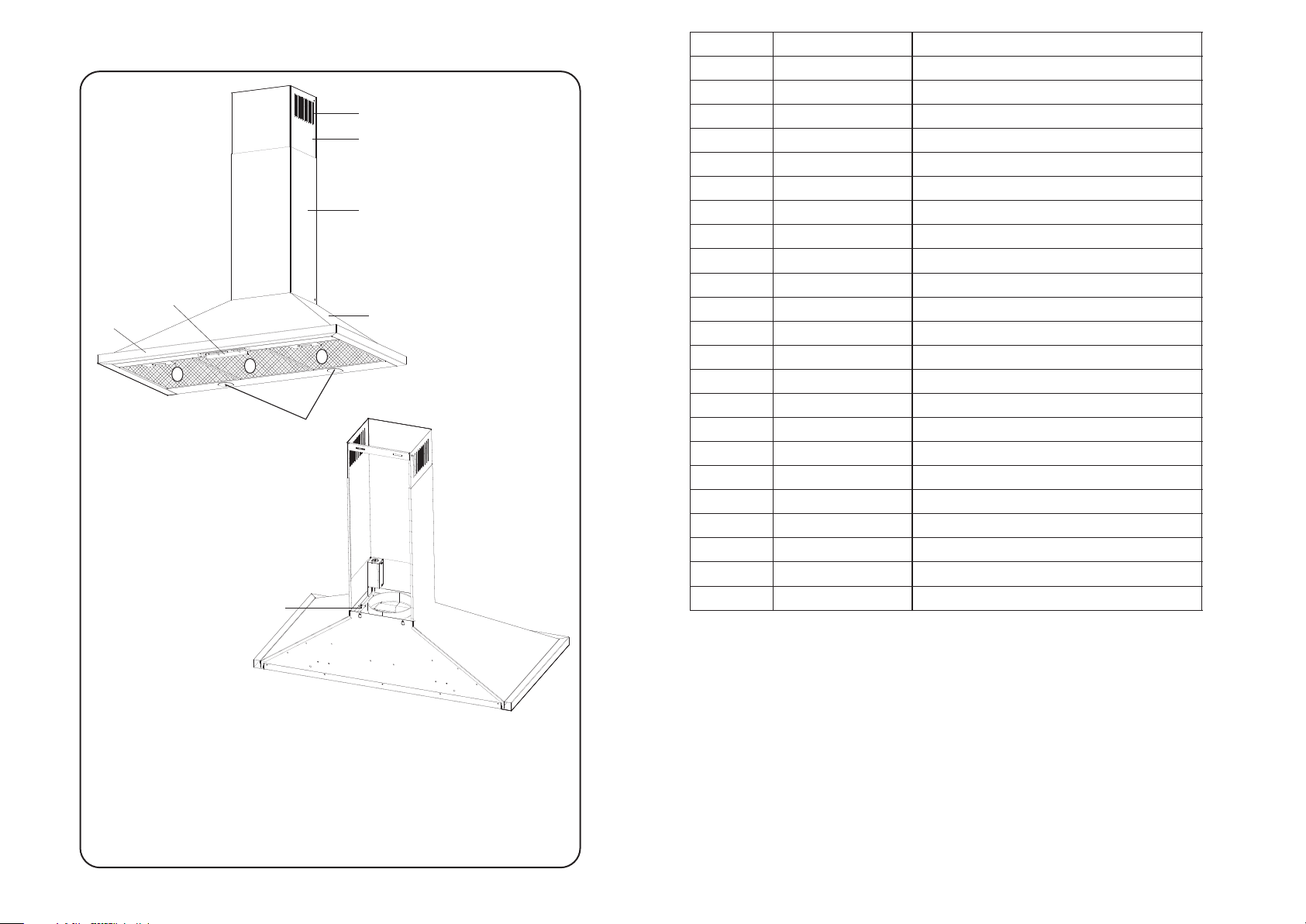

LOCATION OF PARTS

Model Model No

Pos.

1 2

7 8

11 12

SEH1536

2121.9.579.01

Part No.

YT971.1000.22

YT142.2120.06

YT207.1000.35

YT201.1000.22

YT201.1000.24

YT202.1000.16

YT460.1000.16

YT403.1000.10

YT404.1000.24

YT455.2120.01 YT458.2120.04

YT402.1000.02 YT402.2122.01

YT410.1000.09

YM972.2121.06

YM171.2120.601

YM121.2120.609

YM121.2120.610 YM913.2120.923 YM131.2120.642

YM131.2120.643

Spare Part

CARBON FILTER

ALUMINUM CASSETTE FILTER

CABLE FIXER(FOR CHIMNEY HOOD) CIRCUIT BOX COVER

CIRCUIT BOX

METAL VALVE

BLOWER HALOGEN LAMP-50W

POWER SUPPLY CORD

LAMP HOLDER GROUP

SLIDER BUTTON

CONNECTOR (3 PARTS)

CONNECTOR (7 PARTS)

CAPACITOR

CHIMNEY MOUNTING BRACKET SET

VALVE MOUNTING PLATE

CIRCUIT BOX MOUNTING PLATE

CONNECTOR BOX

BODY GROUP

INTERNAL CHIMNEY

EXTERNAL CHIMNEY

1-110 V Supply Cord

2-Control Panel 3-Front Panel 4-Aluminum Cassette Filters 5-IIIumination 6-Body 7-Ventilation 8-External Chimney 9-Internal Chimney

Figure 1

Page 7

EXPLODED VIEW

TECHNICAL SPECIFICATIONS

SEH1536

2121.9.579.01

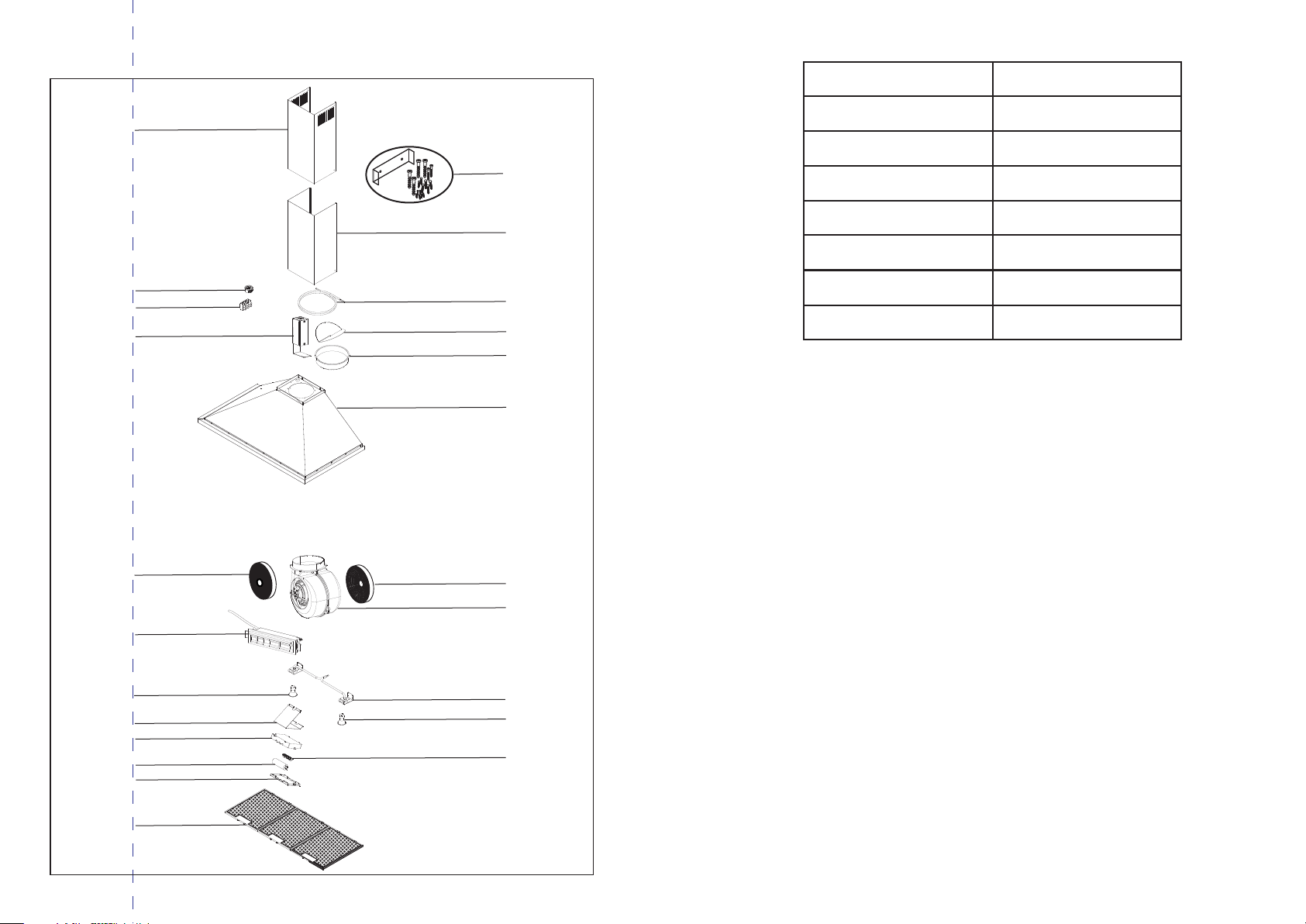

Exploded View For 36" Model

Model

Voltage(V)

Lamp (W)

Control Type

Motor Power (W)

Capacity (CFM)

Motor Insulation Class

Insulation Class

Table 2

SEH1524-SEH1536

110-120 V

2 x 50 W

Slider Button

340 W

500 CFM

CLASS I

Page 8

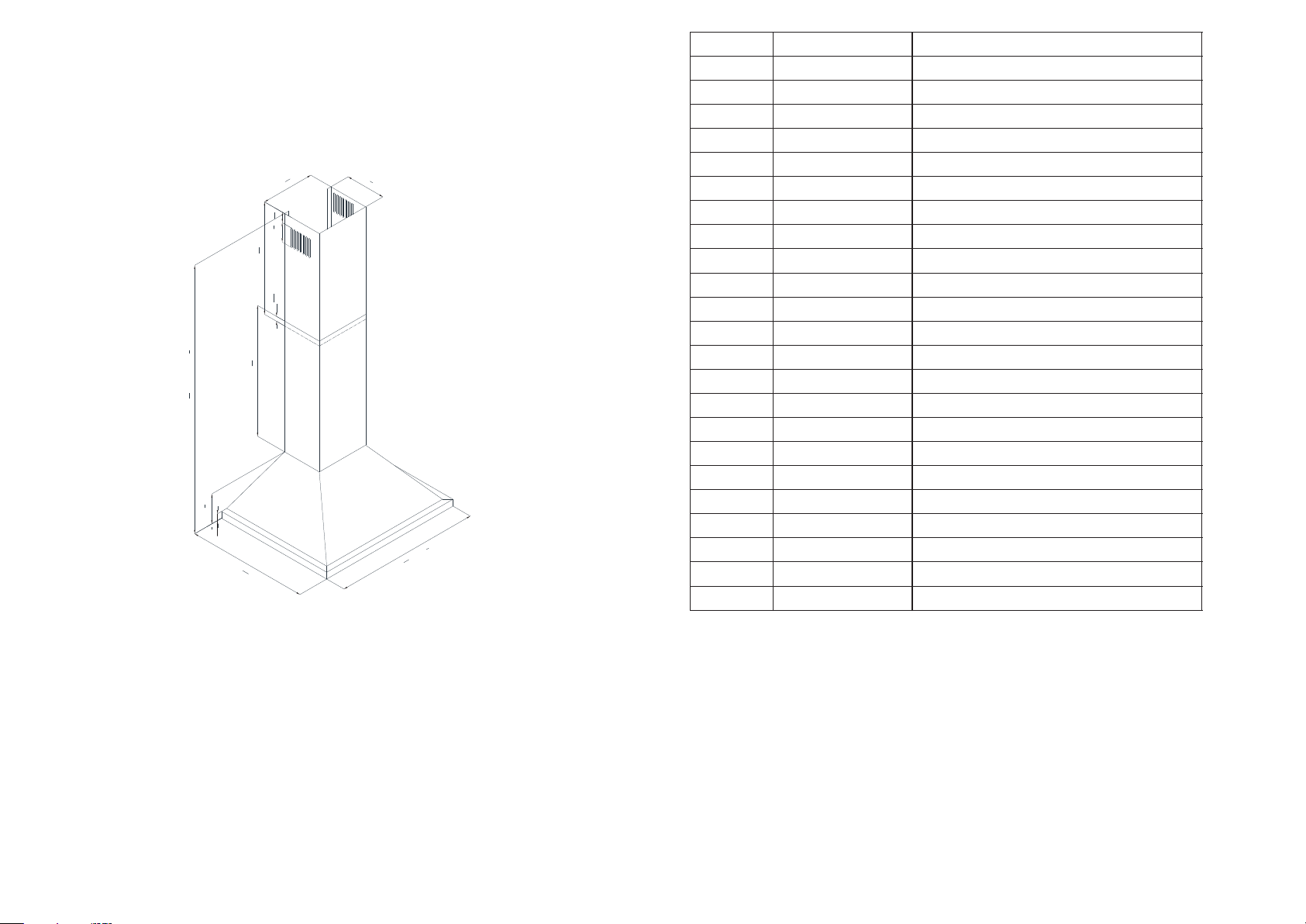

DIMENSIONAL DIAGRAM

WARNING!

TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.

/ Max 48

Min 29

Model Model No

Pos.

1 2

7 8

11 12

SEH1524

2121.6.579.01

Part No.

YT971.1000.22

YT142.2120.03

YT207.1000.35

YT201.1000.22

YT201.1000.24

YT202.1000.16

YT460.1000.16

YT403.1000.10

YT404.1000.24

YT455.2120.01 YT458.2120.04

YT402.1000.02 YT402.2122.01

YT410.1000.09

YM972.2121.06

YM171.2120.601

YM121.2120.609

YM121.2120.610 YM913.2120.627 YM131.2120.642

YM131.2120.643

Spare Part

CARBON FILTER

ALUMINUM CASSETTE FILTER

CABLE FIXER(FOR CHIMNEY HOOD)

CIRCUIT BOX COVER

CIRCUIT BOX

METAL VALVE

BLOWER HALOGEN LAMP-50W

POWER SUPPLY CORD

LAMP HOLDER GROUP

SLIDER BUTTON

CONNECTOR (3 PARTS)

CONNECTOR (7 PARTS)

CAPACITOR

CHIMNEY MOUNTING BRACKET SET

VALVE MOUNTING PLATE

CIRCUIT BOX MOUNTING PLATE

CONNECTOR BOX

BODY GROUP

INTERNAL CHIMNEY

EXTERNAL CHIMNEY

Page 9

EXPLODED VIEW

INSTALLATION

SEH1524

2121.6.579.01

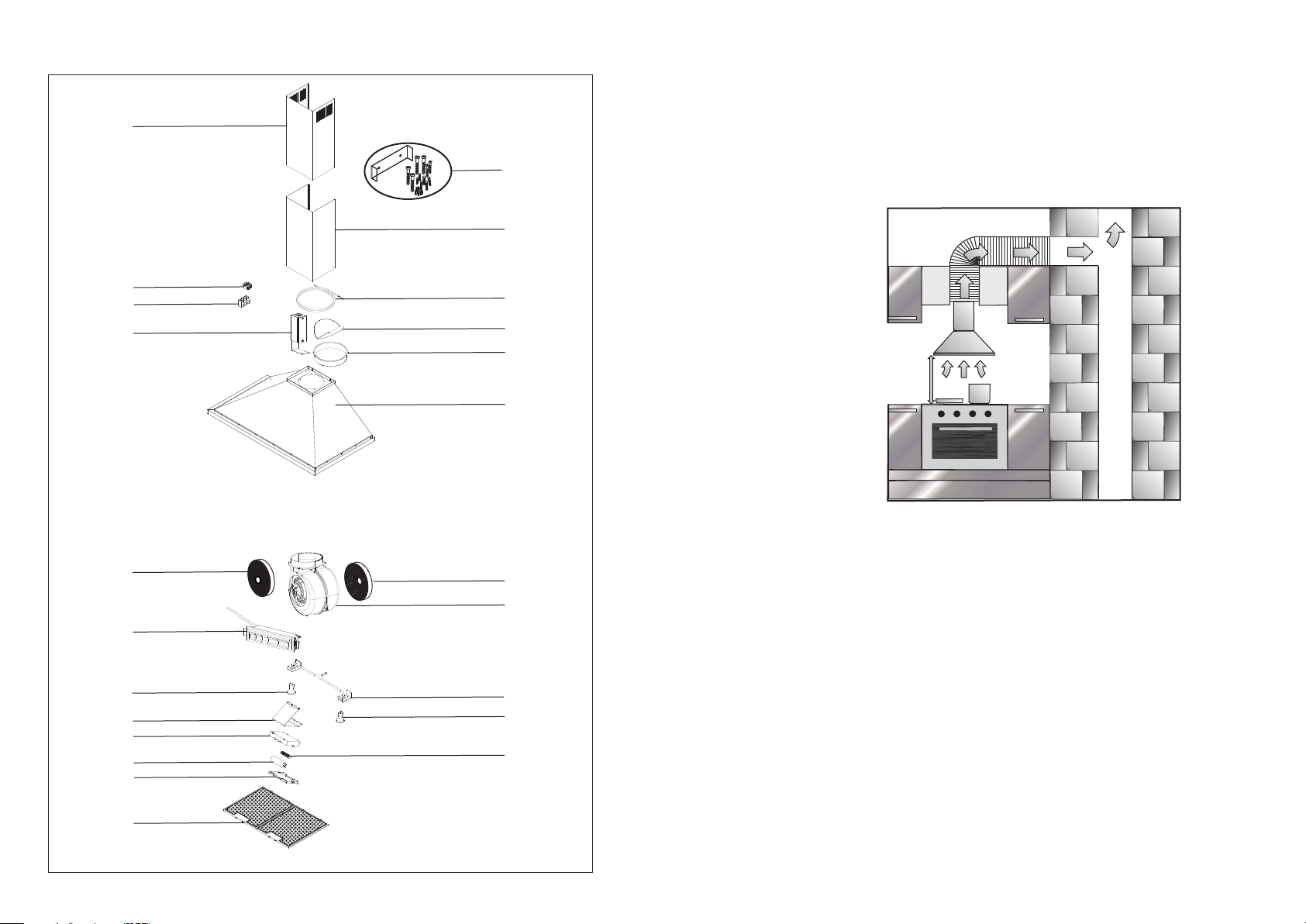

Exploded View For 24" Model

CAUTION: During installation, persons installing the hood must wear heavy gloves

to protect against sharp edges.

POSITIONING THE RANGE HOOD

Upon completion of installation, the distance between the hood and an electric

rangetop must be a minimum of 25" (65cm), and the distance between the hood and a gas rangetop must be a minimum of 30" (75cm).

min. 30" for gas ranges

min. 25" for electric ranges

PREPARING THE SITE

WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY, OBSERVE THE FOLLOWING: a. Installation work and electrical wiring must be done by quali?ed personnel in

accordance with all applicable codes and standards, including ?re-rated construction.

b. Sufficient air is needed for proper combustion and exhausting of gases through

the ?ue (chimney) of fuel-burning equipment to prevent backdrafting. Follow the range manufacturer's guidelines and safety standards such as those published by the National Fire Protection Association (NFPA), the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.

c. When cutting or drilling into wall or ceiling, do not damage electrical wiring and

other hidden utilities.

d. Ducted fans must always be vented to the outdoors.

Page 10

Fix the connector box to the motor junction plate with two 3,5 x 9,5 RYSB screws as shown.

INSTALLING MOUNTING BRACKETS

1. Construct wood wall framing with minimum thickness of 8 mm (0.3") that is flush with interior surface of wall studs. Make sure: a. the framing is centered over

installation location;

b. the height of the framing will allow

the mounting brackets to be secured to the framing.

2. After wall surface is finished, secure mounting brackets to framing using the assembly scheme.

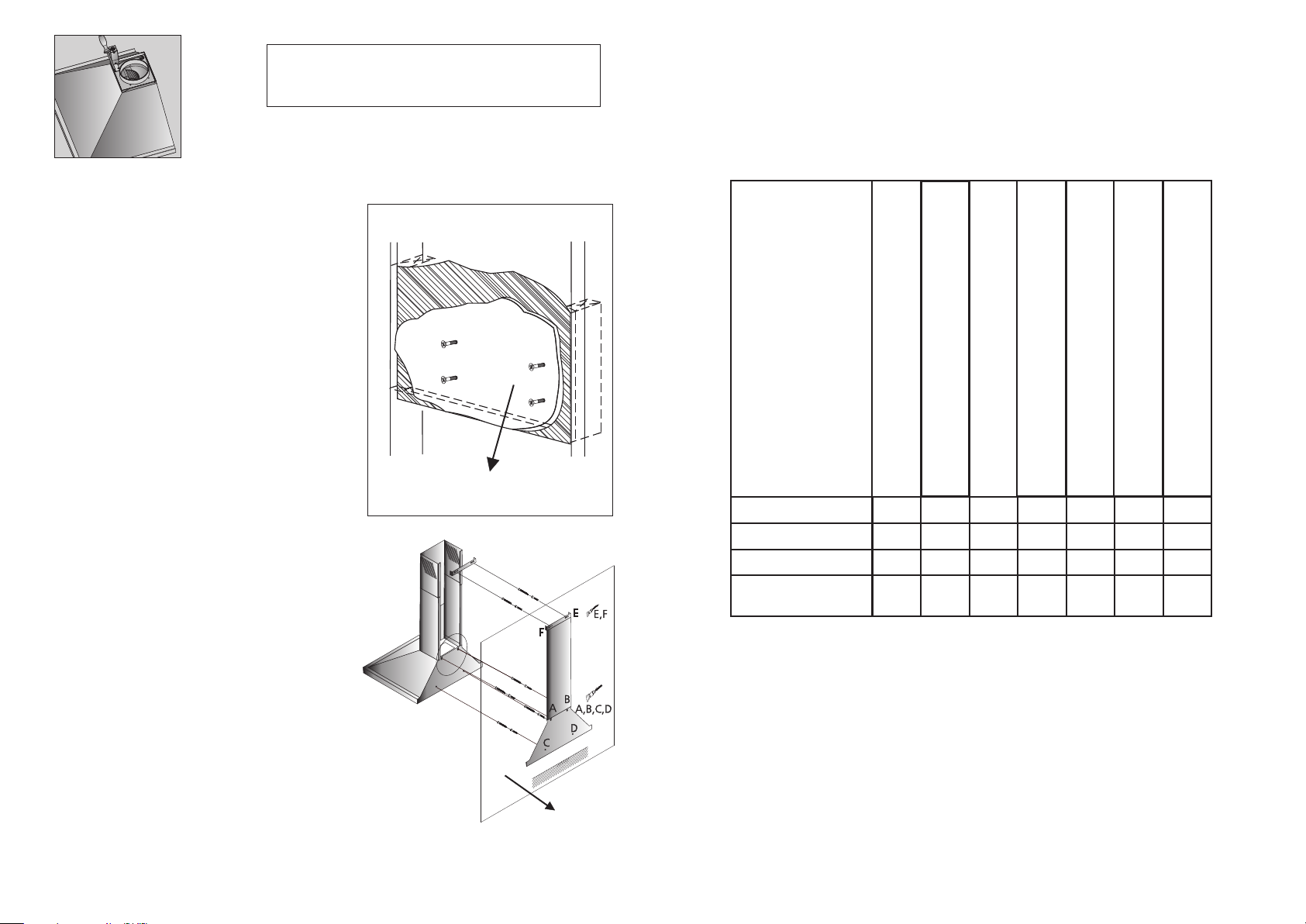

INSTALLING THE RANGE HOOD ON THE WALL

1. Bore the suspender holes:

Use the assembly template to bore holes. Using a Ø 10mm drill bit, drill 4 holes A, B, C, D into the wall. With the same drill bit, drill 2 holes (E, F) to screw on the chimney mounting plate. Drill holes must be about 9/16" (15 mm) below the ceiling.

2. Fix the inserts:

Fix 4 inserts of Ø 10mm into the holes A, B, C and D. Fix 2 inserts of Ø 10mm into the holes E and F.

FRAMING BEHIND DRYWALL

Ø8

Ø10

Ø8

Ø10

wood wall with minimum thicknes of 8 mm

wood wall

Ø10

TROUBLESHOOTING

If hood does not operate, before contacting customer service: Be sure that the power cable is connected to the power supply and that the electric fuse for the installation is in good condition. Before contacting the service, check your hood according to the table below. If the problem continues, contact your dealer or authorized service center.

Troubleshooting Guide

Hood does not operate

Illumination lamp does not illuminate

Air suction of hood is weak

It does not exhaust air(in the ambient without chimney)

Check motor switch.

Check Electric connection.

(Supply voltage should be 110-120 V, hood

(Motor switch should be in I,II,III position)

should be connected to grounded socket.)

Check aluminum filter.

Check lamp switch.

(Lamp switch should be in on position.)

Service and Spare Parts

You can obtain service advice and spare parts for your product directly from SUMMIT by calling us at 1-800-932-4267 or by going to our website at www.summitappliance.com/support Have the model number of your range hood handy. This can be found on the product label, which can be seen when you remove the aluminum cassette filter.

An exploded view, parts list and wiring diagram for your unit can be found on the following pages of this manual.

Check bulbs.

(Bulbs should be in good conditions.)

Check air outlet chimney.

(Aluminum cassette filter should be washed once a month

under normal conditions.)

(Air outlet chimney should be open.)

X X

replaced quarterly.)

Check carbon filter.

(If it operates with carbon filter, carbon filter should be

Page 11

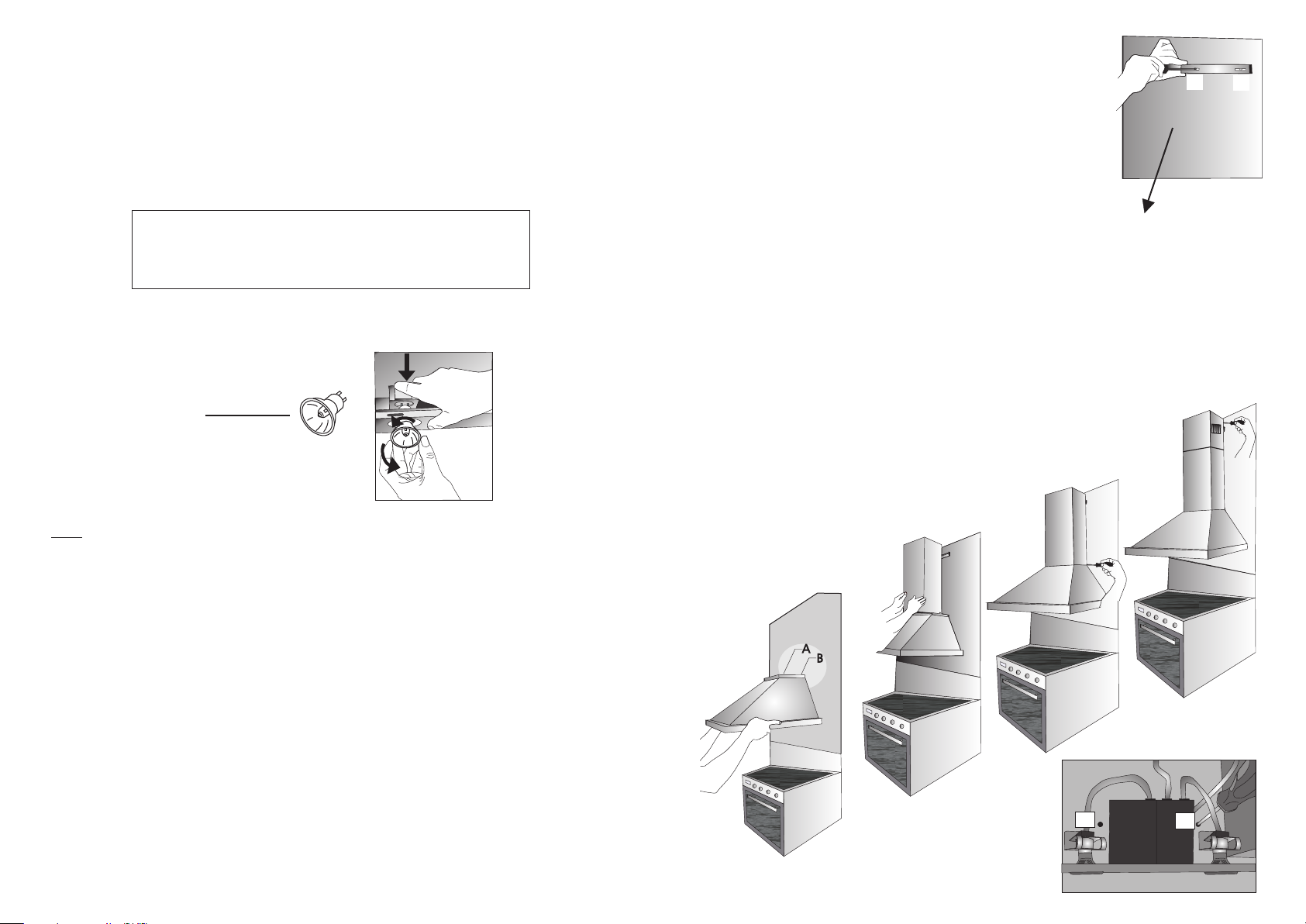

REPLACEMENT OF LIGHTING COMPONENTS

Disconnect the hood.

Remove the aluminum cassette filter.

In order to change the 50-watt halogen light bulb, refer to diagram below. (1) Press down on the back part of the lamp holder and (2) turn it counter-clockwise.

Replace old bulb with new one. Turn in reverse direction when installing new bulb.

3.Fix the suspender screws. Fix the screws to holes A and B.Keep a clearance of 5 mm (0.2") between wall and head of screws in order to hang the hood body easily.Fix the chimney mounting plate to holes E and F by using the screws provided with hood.

Chimney Mounting Plate

WARNING!

Be sure the bulb is cool before trying to change it.

50-W Halogen bulb

Note: Replacement bulbs can be purchased directly from SUMMIT by calling us at 1-800-932-4267 or by going to our website at www.summitappliance.com/support. Have the model number of your range hood handy.

MOVING THE HOOD

If you expect to have to move your range hood: * Keep original packaging. Move your hood using original packaging; comply

with moving instructions printed on the packaging.

wood wall

4. Hang the range hood on the wall: Hang the range hood on screws A and B, then tighten the screws securely. Fix two screws into the C and D holes through the corresponding holes inside the hood. Assemble flexible aluminum tubing to the plastic fitting on the hood. Connect the other end of the tubing to the wall outlet. Assemble upper exhaust to lower exhaust. Place both parts on the range hood. Screw lower exhaust to the body using the side holes. Fix upper exhaust by using the holes on the side of exhaust mounting plate fixed to holes E and F.

If you do not have original packaging: * Do not put any load on the range hood. * Avoid any possible impacts. * Pack the hood in such a way as to prevent damage.

Page 12

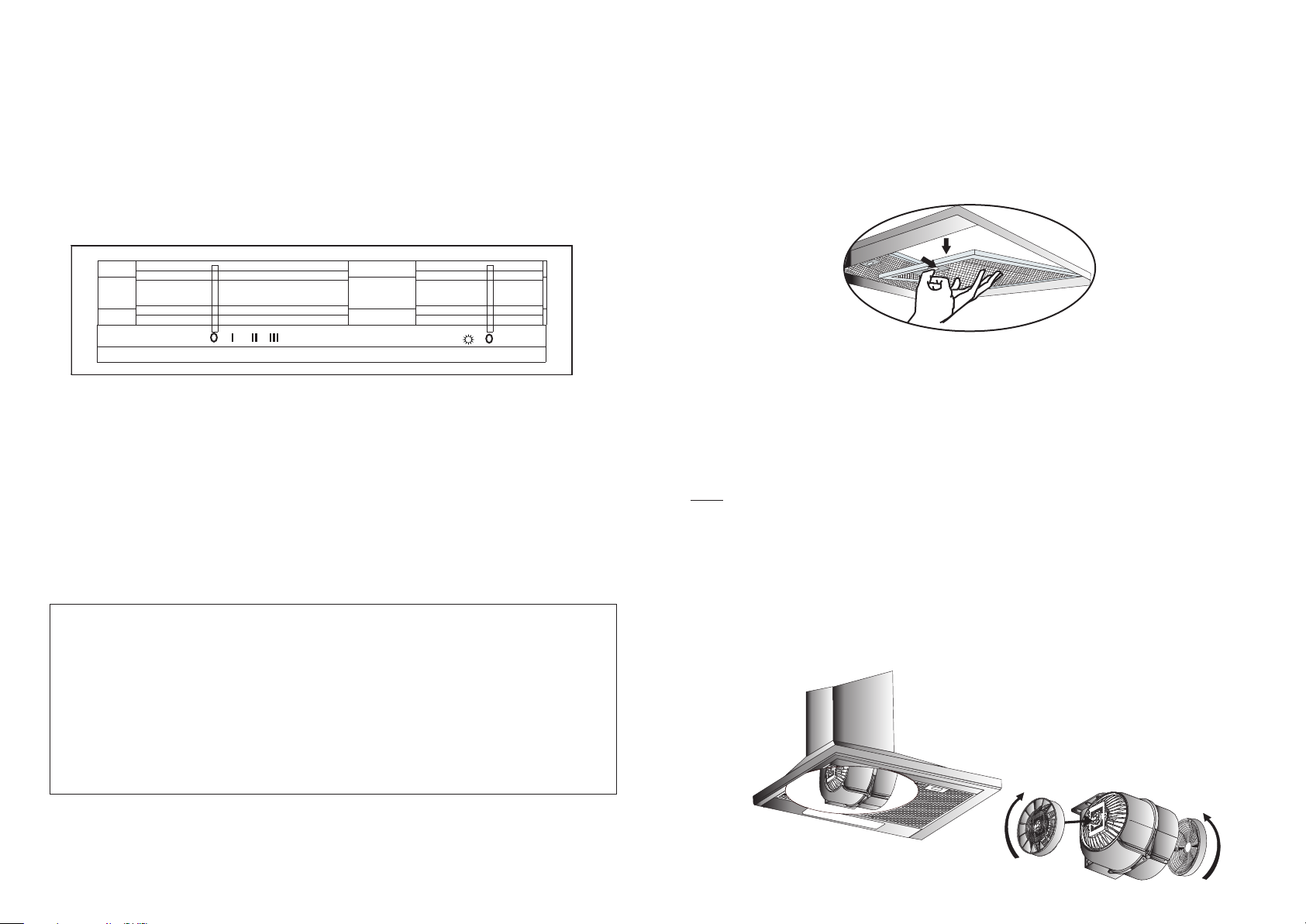

OPERATION

SPEED CHOICE

Product has three-speed motor and a multi-positioned switch to command the motor. For best performance, we recommend you to operate the unit at high speed in excessively smokey and smelly places. Motor starts as the slider switch is opened and stops as the slider set is closed.The slider button at the bottom of the device is for turning the device on. To turn on the device, slide the button to the right.

Hood must be started a few minutes before cooking starts and continue to operate after cooking is finished until odors and fumes are removed.

CLEANING AND MAINTENANCE

* Disconnect the device prior to maintenance (cut off its power supply by turning off

the switch).

* The aluminum cassette filter holds oils and dust from the air. The metal filter must

be washed in hot soapy water every month, if possible in the dishwasher at 140°F.

* To disassemble, press on the spring clamps at the edge of the cassette filter.

(Do not reassemble before drying after cleaning.)

LIGHTING

Hood has 2 lamps and a lamp switch to command the illumination. To turn the illumination on, slide the slider illumination button to the left.

EFFICIENT VENTILATION

For correct ventilation, windows opening outside must be kept closed. Doors and windows opening to other rooms may be kept open.

IMPORTANT NOTE!

Pay attention when operating the hood simultaneously with devices that work by burning the ambient air with fuel (such as gas heaters). The burning may be affected because the hood discharges air in the room to the outside.

This advice does not apply to hoods not having an outside exhaust.

* Outer surfaces of the hood should be wiped with a cloth dampened with a solution

of liquid detergent. Do not clean the unit with products containing corrosive substances.

* Avoid wetting switches or other electronic parts when cleaning with water or

other liquids.

* When cleaning stainless steel surfaces, use products specifically made for this

use.

Note: Aluminum filters may change color after several washings in the dishwasher.

This is normal and does not affect the performance of the filter.

CARBON FILTER REPLACEMENT

Before replacing the round carbon filters, disconnect the power to your device. The carbon filters are located behind the metal filter, on the left and the right sides of the blower. First, take out the metal filter. To replace the carbon filters, remove the old ones from the device and mount the new ones as shown. In kitchens that do not have a chimney outlet, the carbon filter should be replaced every 3-5 months depending on usage.
