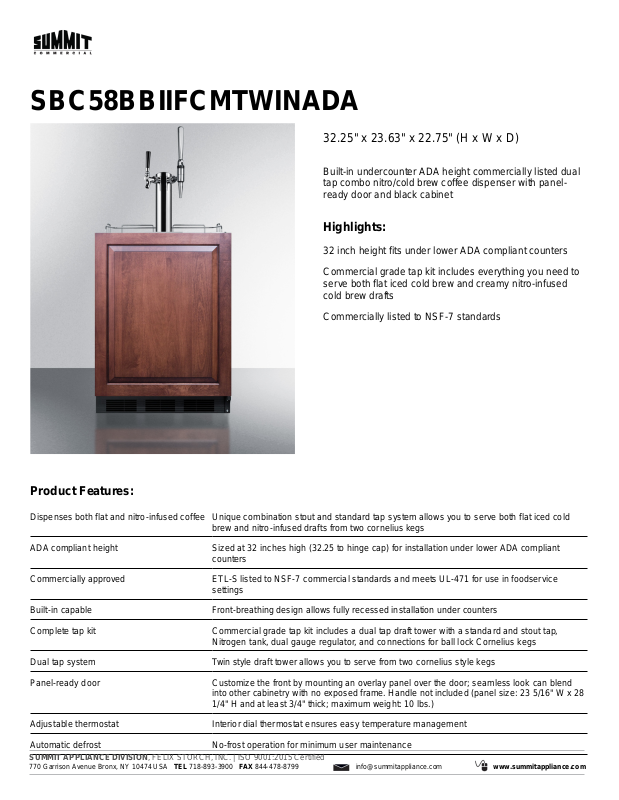

Summit SBC58BBIIFCMTWINADA Specifications

SBC58BBIIFCMTWINADA

32.25" x 23.63" x 22.75" (H x W x D)

Built-in undercounter ADA height commercially listed dual
tap combo nitro/cold brew coffee dispenser with panel­ready door and black cabinet

Highlights:

32 inch height fits under lower ADA compliant counters
Commercial grade tap kit includes everything you need to

serve both flat iced cold brew and creamy nitro-infused
cold brew drafts

Commercially listed to NSF-7 standards

Product Features:

Dispenses both flat and nitro-infused coffee Unique combination stout and standard tap system allows you to serve both flat iced cold

brew and nitro-infused drafts from two cornelius kegs

ADA compliant height Sized at 32 inches high (32.25 to hinge cap) for installation under lower ADA compliant

counters

Commercially approved ETL-S listed to NSF-7 commercial standards and meets UL-471 for use in foodservice

settings
Built-in capable Front-breathing design allows fully recessed installation under counters
Complete tap kit Commercial grade tap kit includes a dual tap draft tower with a standard and stout tap,

Nitrogen tank, dual gauge regulator, and connections for ball lock Cornelius kegs
Dual tap system Twin style draft tower allows you to serve from two cornelius style kegs
Panel-ready door Customize the front by mounting an overlay panel over the door; seamless look can blend

into other cabinetry with no exposed frame. Handle not included (panel size: 23 5/16" W x 28

1/4" H and at least 3/4" thick; maximum weight: 10 lbs.)
Adjustable thermostat Interior dial thermostat ensures easy temperature management
Automatic defrost No-frost operation for minimum user maintenance

SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified

770 Garrison Avenue Bronx, NY 10474 USA TEL [phone] FAX [phone] [e-mail] www.summitappliance.com

SBC58BBIIFCMTWINADA Specifications:

Overview

Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.25" (82 cm)
Width 23.63" (60 cm)
Depth 22.75" (58 cm)
Depth with door at 90° 45.0" (114 cm)
Capacity 5.5 cu.ft. (156 L)
Defrost Type Automatic
Door Panel-Ready
Cabinet Black
US Electrical Safety ETL
Canadian Electrical

Safety
Sanitation ETL-S
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Weight 110.0 lbs. (50 kg)
Shipping Weight 120.0 lbs. (54 kg)
Estimated Time to Ship 3 to 5 days
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years

Kegerator

Door Swing RHD
Reversible Factory Reversible
Tap Kit Yes
Number of Taps 2
Thermostat Type Dial
Interior Light Yes
Fan Type Exterior
Refrigerant R134a
Refrigerant Amount 1.8 oz.
High Side PSI 285.0
Low Side PSI 88.0
Inter Height 26.25" (67 cm)
Interior Width 21.0" (53 cm)
Interior Depth 17.75" (45 cm)
Compressor Step Height 5.5" (14 cm)
Compressor Step Width 21.0" (53 cm)
Compressor Step Depth 5.5" (14 cm)

ETL-C

Temperature Range 34º to 43ºF
