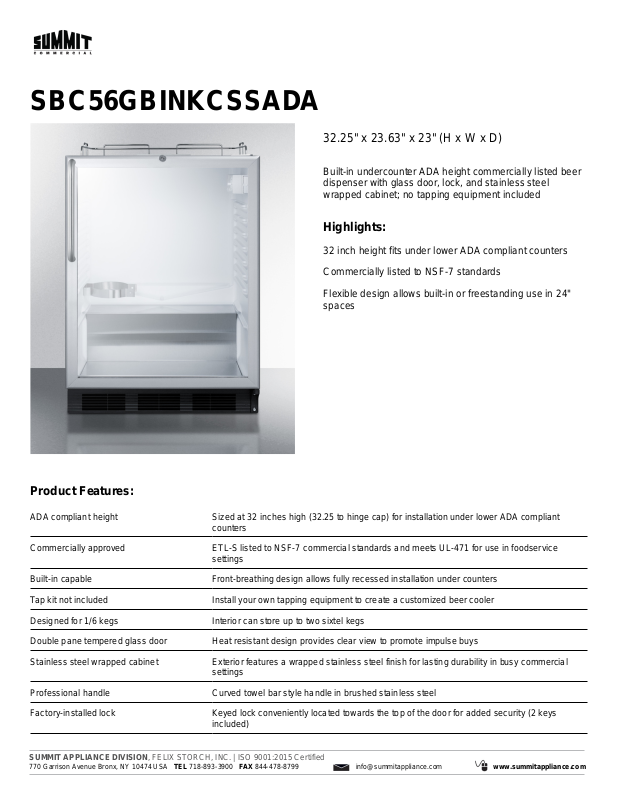

Summit SBC56GBINKCSSADA Instruction Manual

SBC56GBINKCSSADA

32.25" x 23.63" x 23" (H x W x D)

Built-in undercounter ADA height commercially listed beer
dispenser with glass door, lock, and stainless steel
wrapped cabinet; no tapping equipment included

Highlights:

32 inch height fits under lower ADA compliant counters
Commercially listed to NSF-7 standards
Flexible design allows built-in or freestanding use in 24"

spaces

Product Features:

ADA compliant height Sized at 32 inches high (32.25 to hinge cap) for installation under lower ADA compliant

counters

Commercially approved ETL-S listed to NSF-7 commercial standards and meets UL-471 for use in foodservice

settings
Built-in capable Front-breathing design allows fully recessed installation under counters
Tap kit not included Install your own tapping equipment to create a customized beer cooler
Designed for 1/6 kegs Interior can store up to two sixtel kegs
Double pane tempered glass door Heat resistant design provides clear view to promote impulse buys
Stainless steel wrapped cabinet Exterior features a wrapped stainless steel finish for lasting durability in busy commercial

settings
Professional handle Curved towel bar style handle in brushed stainless steel
Factory-installed lock Keyed lock conveniently located towards the top of the door for added security (2 keys

included)

SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified

770 Garrison Avenue Bronx, NY 10474 USA TEL [phone] FAX [phone] [e-mail] www.summitappliance.com

SBC56GBINKCSSADA Specifications:

Overview

Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.25" (82 cm)
Width 23.63" (60 cm)
Depth 23.0" (58 cm)
Depth with Handle 25.5" (65 cm)
Depth with door at 90° 44.5" (113 cm)
Capacity 5.5 cu.ft. (156 L)
Defrost Type Automatic
Door Glass
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical

Safety
Sanitation ETL-S
Amps 1.8
Voltage/Frequency 115 V AC/60 Hz
Weight 110.0 lbs. (50 kg)
Shipping Weight 120.0 lbs. (54 kg)
Estimated Time to Ship 3 to 5 days
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years

Kegerator

Door Swing RHD
Reversible Factory Reversible
Thermostat Type Dial
Interior Light Yes
Fan Type Exterior
Refrigerant R600a
Refrigerant Amount 0.67 oz.
High Side PSI 124.0
Low Side PSI 30.0
Inter Height 26.0" (66 cm)
Interior Width 21.0" (53 cm)
Interior Depth 18.0" (46 cm)
Compressor Step Height 7.0" (18 cm)
Compressor Step Width 21.0" (53 cm)
Compressor Step Depth 5.5" (14 cm)
Temperature Range 34º to 43ºF

ETL-C
