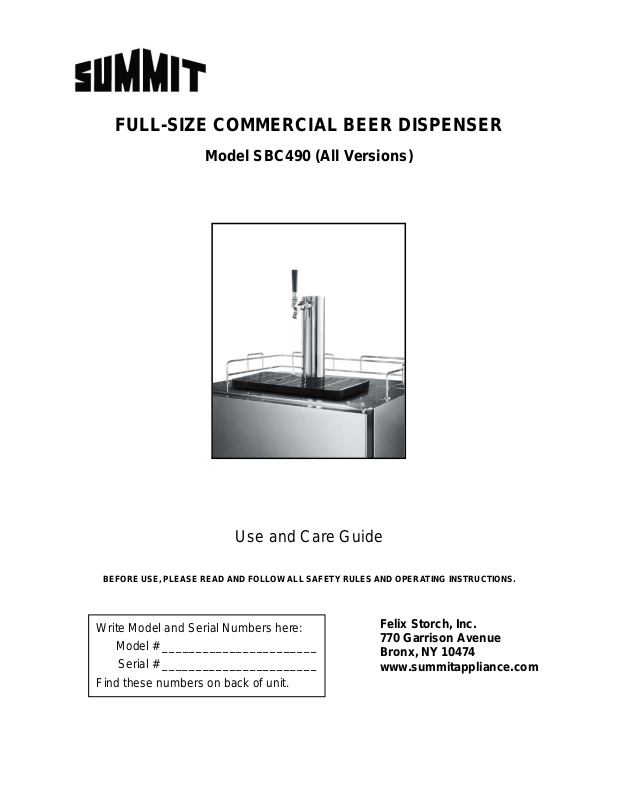

FULL-SIZE COMMERCIAL BEER DISPENSER

Model SBC490 (All Versions)

Use and Care Guide

BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS.

Write Model and Serial Numbers here:

Model # ______________ _________

Serial # ______________ ___ ______

Find these numbers on back of unit.

0

770 Garrison Avenu e
Bronx, NY 10474
www.summitappliance.com

TABLE OF CONTENTS

Important Safeguards ...........................................................................................2

Before Using for the First Time ............................................................................3

We Care About the Environment
Tips for Saving Energy

Disposing of a Worn-Out Appliance .....................................................................4

Placing and Installation .................................................................................. 4 - 5

Choosing the Right Place ..........................................................................4

Applications ...............................................................................................4

Connection to Power Supply .....................................................................5

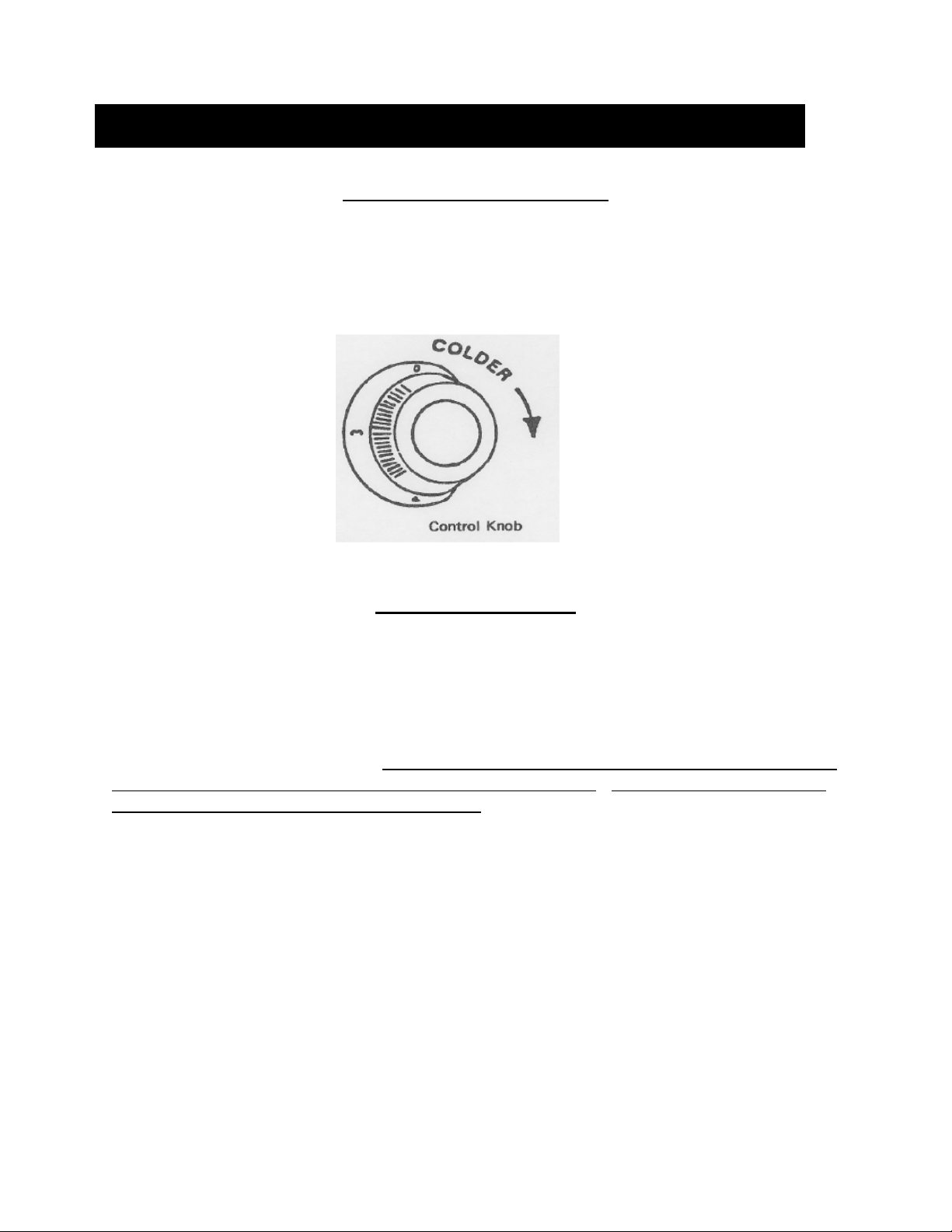

Temperature Control ............................................................................................6

How to Adjust the Thermostat
Temperature Selection

Installation ...................................................................................................... 7 - 9

Keg Tapper and Beer Keg .........................................................................7

Casters (for use as a freestanding beer cooler) .........................................8

Draft Arm Assembly ...................................................................................8

Guard Rail .................................................................................................8

CO2 Regulator and CO2 Cylinder ...............................................................9

Parts List ............................................................................................................ 10

Operation ........................................................................................................... 11

Dispensing Beer
Understanding Beer Temperature
Beer Serving Tips

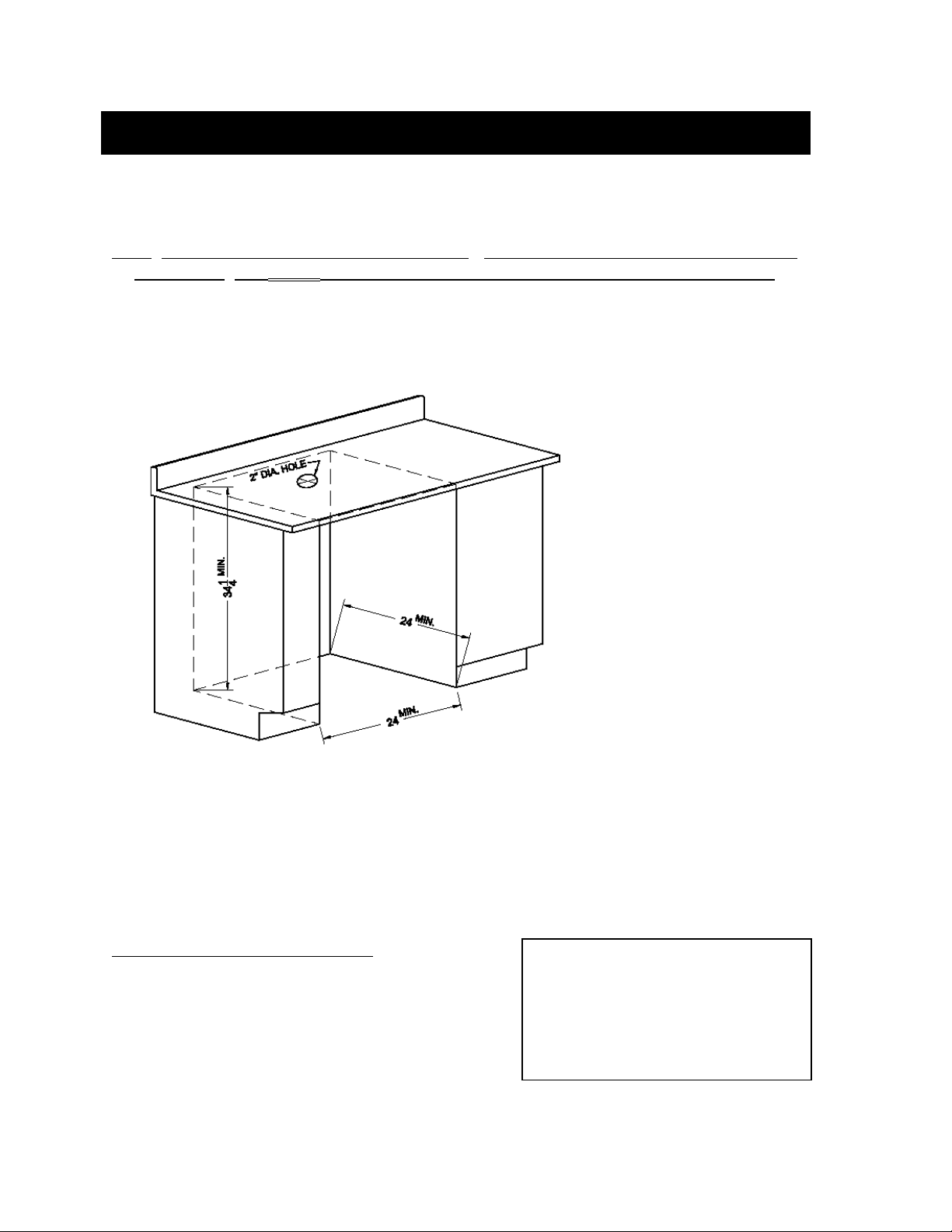

Converting the Beer Dispenser to a Built-In Unit ........................................ 12 - 13

Instructions for Buildi n g-In ....................................................................... 13

Maintenance and Cleaning .......................................................................... 14- 15

Automatic Defrosting of the Beer Dispenser ............................................ 14

Installing the Cleaning Kit ........................................................................ 14

Cleaning the Applianc e ............................................................................ 15

Noise ................................................................................................................. 16

Troubleshooting ......................................................................................... 17 - 18

Limited Warranty ................................................................................................ 19

1

IMPORTANT SAFEGUARDS

WARNING!

To reduce the risk of fire, electric shock or injury when using this appliance,
follow these basic precautions:

1. Read all instructions before using the appliance.

2. The appliance must be correctly connected to the power supply.

3. Immediately replace worn power cords, loose plugs and faulty power outlets.

4. Do not operate your appliance in the presence of explosive fumes.

5. Disconnect the appliance from the power supply before cleaning or repairing it. Only
a qualified technician should repair it.

6.

Never stand on top of or inside this appliance, or swing on the door.

7. To reduce likelihood of injury,

8. Do not operate the valve control unless the cylinder is completely installed and
connected.

DANGER! Risk of child entrapment!
Child entrapment and suffocation are not problems of the past. Junked or
abandoned appliances are still dangerous, even if they will "just sit at the curb for
a few days."

Before discarding your old appliance:

• Take off the door.

• Leave the shelves in place so that children may not easily climb inside.

SAFETY PRECAUTIONS REGARDING CO

Always connect the CO

explosion resulting in possible injury or death when the cylinder valve is opened.

Never connect the CO2 cylinder directly to the product container.
Always keep CO2 cylinders away from heat. Store extra cylinders in a cool place

(preferably below 70°F). Securely fasten cylinders with a chain in an upright position
when storing.

Never drop or throw a CO2 cylinder.
Always check the D.O.T. (Department of Transportation) test date on the cylinder neck

before installation. If it has been more than 5 years, do not use. Return the cylinder to
your gas supplier.

Never connect a product container unless there are at least two safety devices in the
pressure system: one on the CO2 regulator and the other on the product container or in
the pressure gas line.

cylinder to a regulator! Failure to do so may cause an

2

do not let children play with this or any other appliance.

(CARBON DIOXIDE) GAS

2

SAVE THESE INSTRUCTIONS

2

BEFORE USING FOR THE FIRST TIME

These instructions are i mportant, and we request you read them before using this beer
dispenser. They describe the appliance and the correct and safe way to use it.

The instructions were pr epared for various models so you may find descriptions of some
accessories and functions that do not apply to yours.
only, and are not recommended for perishable foods such as meats or dairy products.

Before connecting the appliance to the power supply, leave it standing for a least 8 hours
This allows the refrigerant to drain back into the compressor and reduces the risk of
malfunctions in the cooling system caused by shipping.

Clean the appliance thoroughly, especially the interior. (See Maintenance and Cleaning.)
Proper grounding must be ensured to reduce the risk of shock and f ire. Do not cut or
remove the grounding plug! Connect to a 120V, 60Hz grounded AC outlet having a
minimum 15 amps.
prong grounded wall out let. If you do not have one, have a certified electrician install the
proper outlet.

Our appliances are distribut ed in packaging made of environmentally friendly materials
which can safely be recycled, di sp osed of or destroyed with minimal environmental effects.
Our instruction manuals ar e printed on recycled paper or chlori ne-free bleached paper.

Do not use an extension cord. Use a three-prong plug with a three-

WE CARE ABOUT THE ENVIRONMENT

These units are designed for beer

.

TIPS FOR SAVING ENERGY

Try not to open the door too often, especially when the weather is hot and humid. Once you
open the door, try to close it as soon as possible.

If possible, disconnect t he power before changing a keg of beer .
For built-in models (model number contains “BI”): While these units are designe d for

under-counter use and the compressor cooling is fan-assisted, an air gap of 2” between the
rear of the unit and the wall or counter su rface behind is strongly recommended. This will
enhance cooling and reduce energy waste. Also leave at least 3/16” on both sides and
1/16” at the top. Be sure that air flow under the appliance is not blocked.

For free-standing models (model number does not contain “BI”): Your appliance is not
designed to operate in enclosed spaces. When placing your unit , make sure you allow at
least 4” of clearance at the sides, rear and top to allow for adequate airflow.

Set the thermostat from a higher t o lower setting whenever possible, depending on how full
the appliance is or what t he ambient temperature is.

Keep the unit out of direct sunlight.
Periodically, check that the beer dispenser seals well and no ne of the contents prevent the

door from closing.

3

DISPOSING OF A WOR N-OUT APPLIANCE

• When your appliance finally wears out, dispose of it.

• Before you dispose of your old appliance: Take the door or doors off but leave the

shelves and drawers in place so that children cannot easily climb inside.

• The refrige rating system of the appliance is filled with refrigerant and insulating

substances which should be separately recycled. Either have a licensed appliance
repair company or dealer remove the appliance or call your local recycling office for
the appropriate dispos al infor mati o n.

• For the sake of environmental protection, be careful not to damage the rear wall of

the appliance (the condenser unit or the tubes when moving the appliance) or any
part of the refrigeration system inside the appliance.

• This beer dispenser is 100% CFC -free, but the coolant is under pressure and

puncturing the sealed system could be dangerous. The coolant used in the sealed
system is non-toxic.

• Many older appliances may contain refrigerants that are harmful to the environment,

and should be recycled by a lawfully licensed company.

PLACING AND INSTALLATION

Choosing the Right Place

To ensure that your beer dispenser works at the maximum efficiency it was designed
for, install it in a location where there is proper air circulation and electrical connections.

Choose a location where the beer dispenser will be away from heat and will not be
exposed to direct sunlight.

Models SBC490OS, SBC490OS7, SBC490OSTWIN, and SBC490OS7TWIN are UL­approved for outdoor use. All other SBC490 models are designed for commercial use
indoors only and should not be used outdoors.

Applications

All SBC490 beer dispensers meet UL Commercial Standard 471 and are designed for
commercial use. Model names that include a ‘7’ (SBC4907, SBC490BI7, SBC490OS7,
etc.) are ETL-Sanitation listed to NSF-18 for use in foodserv i ce appli ca ti ons.

4

Connection to Power Supply

Connect this appliance to a 3-prong power supply socket outlet (which has a ground
terminal).
with an outlet that meets the local codes

Required nominal voltage and frequency are indicated on the rating plate. The
connection to the power supply and grounding has to be made according to current
standards and regulations.

The appliance resists temporary voltage fluctuations with a tolerance of -15 to 10%. On
model SBC490OS only, a GFCI (ground fault circuit interrupter) is built into every line
cord. In the event the cooler is not operating, first check to see that the GFCI has not
tripped, then press the reset button.

If you only have a two-prong outlet, have it replaced by a qualified technician

.

 DO NOT USE AN EXTENSION CORD 
