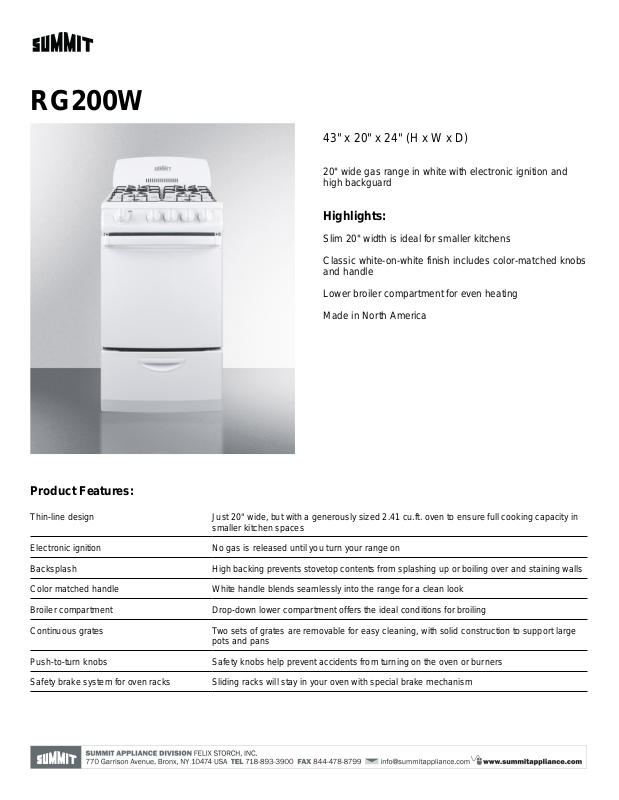

Summit RG200W Brochure

RG200W

43" x 20" x 24" (H x W x D)

20" wide gas range in white with electronic ignition and
high backguard

Highlights:

Slim 20" width is ideal for smaller kitchens
Classic white-on-white finish includes color-matched knobs

and handle
Lower broiler compartment for even heating
Made in North America

Product Features:

Thin-line design Just 20" wide, but with a generously sized 2.41 cu.ft. oven to ensure full cooking capacity in

smaller kitchen spaces
Electronic ignition No gas is released until you turn your range on
Backsplash High backing prevents stovetop contents from splashing up or boiling over and staining walls
Color matched handle White handle blends seamlessly into the range for a clean look
Broiler compartment Drop-down lower compartment offers the ideal conditions for broiling
Continuous grates Two sets of grates are removable for easy cleaning, with solid construction to support large

pots and pans
Push-to-turn knobs Safety knobs help prevent accidents from turning on the oven or burners
Safety brake system for oven racks Sliding racks will stay in your oven with special brake mechanism

RG200W Specifications:

Overview

Height 43.0"
Width 20.0"
Depth 24.0"
Depth with Handle 26.13"
Depth with door at 90° 40.25"
Door White
Cabinet White
US Electrical Safety CSA
Amps 5.0
Voltage/Frequency 115 V AC/60 Hz
Shipping Weight 155.0 lbs.
Parts & Labor Warranty 1 Year

Gas Range

Ignition Spark
LP Convertible Yes
Oven Capacity 2.41cu.ft
Cooktop Surface Metal
Burner Type Open
Number of Burners 4
Burner #1 BTU 9100.0
Burner #2 BTU 9100.0
Burner #3 BTU 9100.0
Burner #4 BTU 9100.0
Burner Controls Dial
Oven Controls Dial
Backguard Yes
Cleaning Type Manual
Oven Rack Qty 2
Oven Interior Height 15.0"
Oven Interior Width 16.0"
Oven Interior Depth 17.5"
Broiler Location Below Oven
