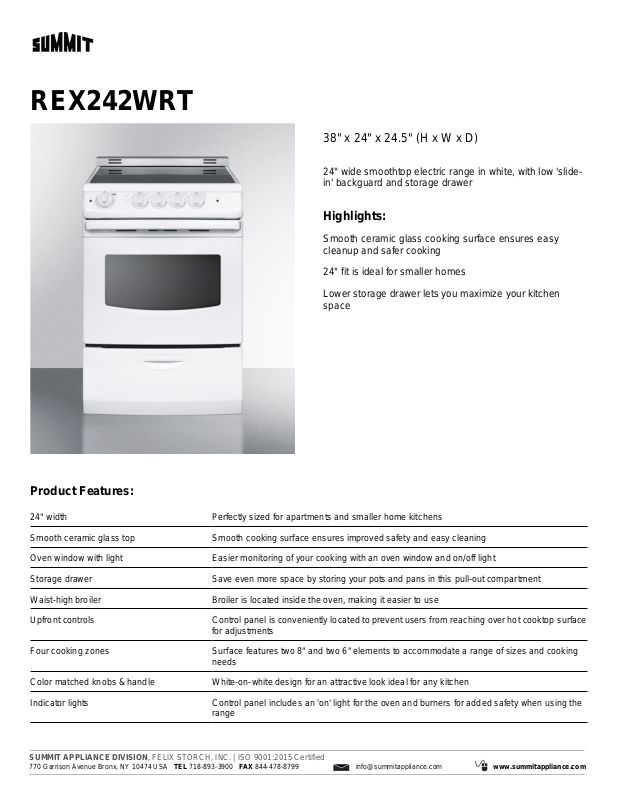

Summit REX242WRT Specification Sheet

REX242WRT

38" x 24" x 24.5" (H x W x D)

24" wide smoothtop electric range in white, with low 'slide­in' backguard and storage drawer

Highlights:

Smooth ceramic glass cooking surface ensures easy
cleanup and safer cooking

24" fit is ideal for smaller homes
Lower storage drawer lets you maximize your kitchen

space

Product Features:

24" width Perfectly sized for apartments and smaller home kitchens
Smooth ceramic glass top Smooth cooking surface ensures improved safety and easy cleaning
Oven window with light Easier monitoring of your cooking with an oven window and on/off light
Storage drawer Save even more space by storing your pots and pans in this pull-out compartment
Waist-high broiler Broiler is located inside the oven, making it easier to use
Upfront controls Control panel is conveniently located to prevent users from reaching over hot cooktop surface

for adjustments

Four cooking zones Surface features two 8" and two 6" elements to accommodate a range of sizes and cooking

needs
Color matched knobs & handle White-on-white design for an attractive look ideal for any kitchen
Indicator lights Control panel includes an 'on' light for the oven and burners for added safety when using the

range

SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified

770 Garrison Avenue Bronx, NY 10474 USA TEL [phone] FAX [phone] [e-mail] www.summitappliance.com

REX242WRT Specifications:

Overview

Height of Cabinet 38.0" (97 cm)
Width 24.0" (61 cm)
Depth 24.5" (62 cm)
Depth with Handle 26.13" (66 cm)
Depth with door at 90° 41.0" (104 cm)
Door White
Cabinet White
US Electrical Safety UL
Weight 135.0 lbs. (61 kg)
Shipping Weight 150.0 lbs. (68 kg)
Parts & Labor Warranty 1 Year

Electric Range

Oven Capacity 3.0 cu.ft. (85 L)
Cooktop Surface Glass
Element Type Glasstop
Number of Elements 4
Element #1 Size 8.0" (20 cm)
Element #1 Wattage 1700.0
Element #2 Size 6.0" (15 cm)
Element #2 Wattage 1200.0
Element #3 Size 6.0" (15 cm)
Element #3 Wattage 1200.0
Element #4 Size 8.0" (20 cm)
Element #4 Wattage 1700.0
Burner Controls Dial
Oven Controls Dial
Oven Light Yes
Cleaning Type Manual
Oven Rack Qty 2
Oven Window Yes
Oven Interior Height 17.0" (43 cm)
Oven Interior Width 20.0" (51 cm)
Oven Interior Depth 17.5" (44 cm)
Power Source 220V
Storage Compartment Yes
Broiler Location Inside Oven
