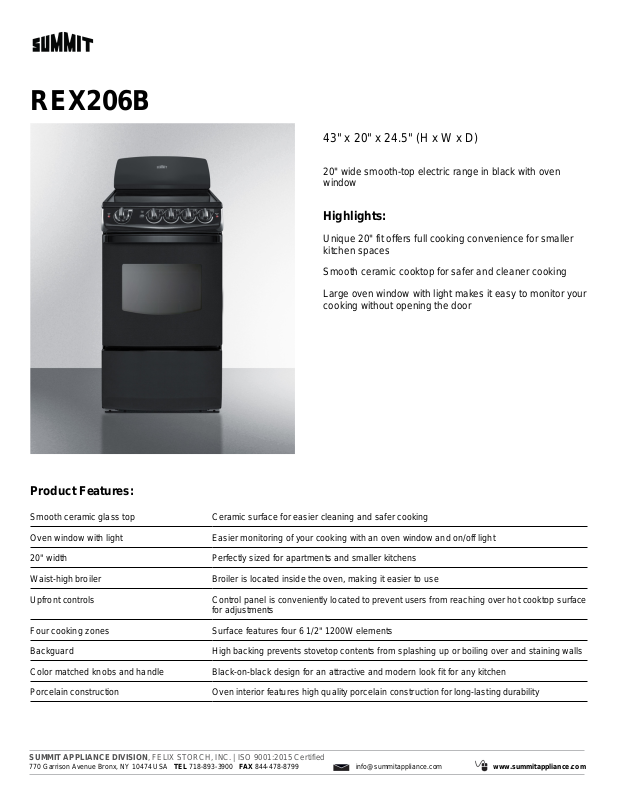

Summit REX206B Specification Sheet

REX206B

43" x 20" x 24.5" (H x W x D)

20" wide smooth-top electric range in black with oven
window

Highlights:

Unique 20" fit offers full cooking convenience for smaller
kitchen spaces

Smooth ceramic cooktop for safer and cleaner cooking
Large oven window with light makes it easy to monitor your

cooking without opening the door

Product Features:

Smooth ceramic glass top Ceramic surface for easier cleaning and safer cooking
Oven window with light Easier monitoring of your cooking with an oven window and on/off light
20" width Perfectly sized for apartments and smaller kitchens
Waist-high broiler Broiler is located inside the oven, making it easier to use
Upfront controls Control panel is conveniently located to prevent users from reaching over hot cooktop surface

for adjustments
Four cooking zones Surface features four 6 1/2" 1200W elements
Backguard High backing prevents stovetop contents from splashing up or boiling over and staining walls
Color matched knobs and handle Black-on-black design for an attractive and modern look fit for any kitchen
Porcelain construction Oven interior features high quality porcelain construction for long-lasting durability

SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified

770 Garrison Avenue Bronx, NY 10474 USA TEL [phone] FAX [phone] [e-mail] www.summitappliance.com

REX206B Specifications:

Overview

Height of Cabinet 43.0" (109 cm)
Width 20.0" (51 cm)
Depth 24.5" (62 cm)
Depth with Handle 26.0" (66 cm)
Depth with door at 90° 40.5" (103 cm)
Door Black
Cabinet Black
US Electrical Safety UL
Amps 40.0
Voltage/Frequency 220 V AC/60 Hz
Shipping Weight 150.0 lbs. (68 kg)
Parts & Labor Warranty 1 Year

Electric Range

Oven Capacity 2.4 cu.ft. (68 L)
Cooktop Surface Glass
Element Type Glasstop
Number of Elements 4
Element #1 Size 6.5" (17 cm)
Element #1 Wattage 1200.0
Element #2 Size 6.5" (17 cm)
Element #2 Wattage 1200.0
Element #3 Size 6.5" (17 cm)
Element #3 Wattage 1200.0
Element #4 Size 6.5" (17 cm)
Element #4 Wattage 1200.0
Burner Controls Dial
Oven Controls Dial
Oven Light Yes
Backguard Yes
Cleaning Type Manual
Oven Rack Qty 2
Oven Window Yes
Oven Interior Height 15.0" (38 cm)
Oven Interior Width 16.0" (41 cm)
Oven Interior Depth 17.5" (44 cm)
Power Source 220V
Broiler Location Inside Oven
