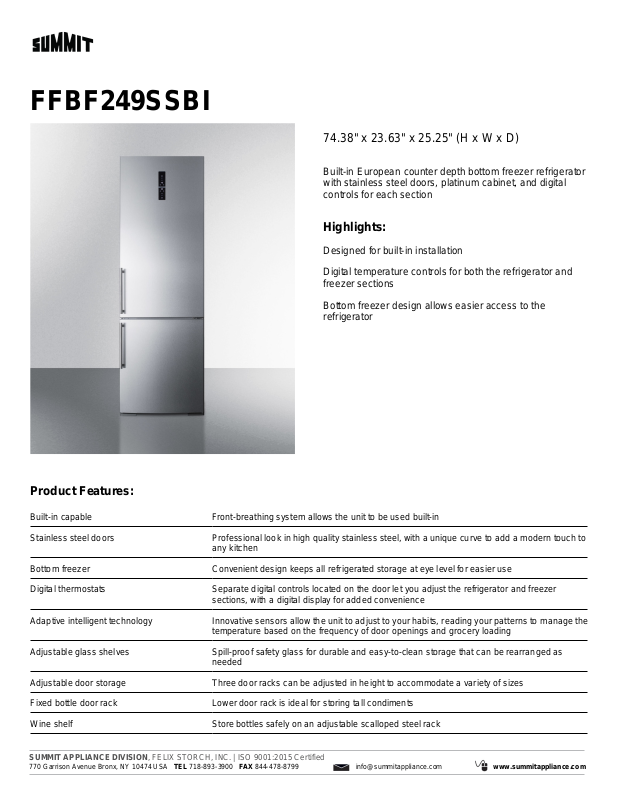

FFBF249SSBI

74.38" x 23.63" x 25.25" (H x W x D)

Built-in European counter depth bottom freezer refrigerator
with stainless steel doors, platinum cabinet, and digital
controls for each section

Highlights:

Designed for built-in installation
Digital temperature controls for both the refrigerator and

freezer sections
Bottom freezer design allows easier access to the

refrigerator

Product Features:

Built-in capable Front-breathing system allows the unit to be used built-in
Stainless steel doors Professional look in high quality stainless steel, with a unique curve to add a modern touch to

any kitchen
Bottom freezer Convenient design keeps all refrigerated storage at eye level for easier use
Digital thermostats Separate digital controls located on the door let you adjust the refrigerator and freezer

sections, with a digital display for added convenience
Adaptive intelligent technology Innovative sensors allow the unit to adjust to your habits, reading your patterns to manage the

temperature based on the frequency of door openings and grocery loading
Adjustable glass shelves Spill-proof safety glass for durable and easy-to-clean storage that can be rearranged as

needed
Adjustable door storage Three door racks can be adjusted in height to accommodate a variety of sizes
Fixed bottle door rack Lower door rack is ideal for storing tall condiments
Wine shelf Store bottles safely on an adjustable scalloped steel rack

SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified

770 Garrison Avenue Bronx, NY 10474 USA TEL [phone] FAX [phone] [e-mail] www.summitappliance.com

FFBF249SSBI Specifications:

Overview

Height of Cabinet 73.88" (188 cm)
Height to Hinge Cap 74.38" (189 cm)
Width 23.63" (60 cm)
Width with Door Open 24.63" (63 cm)
Depth 25.25" (64 cm)
Depth with Handle 27.25" (69 cm)
Depth with door at 90° 47.0" (119 cm)
Capacity 11.6 cu.ft. (328 L)
Defrost Type Frost-

Door Stainless Steel
Cabinet Platinum
US Electrical Safety UL
Canadian Electrical Safety ULC
Energy Usage/Year 380.0kWh/year
Amps 1.5
Voltage/Frequency 115 V AC/60 Hz
Weight 175.0 lbs. (79 kg)
Shipping Weight 200.0 lbs. (91 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years

Refrigerator-Freezer

Door Swing RHD
Reversible Factory

Adjustable Shelves Yes
Interior Drawers Yes
Drawer Qty 5
Crisper Qty 2
Crisper Finish Transparent
Crisper Cover Glass
Wine Bottle Shelving Yes
Interior Light Yes
Refrigerator - Interior

Height
Refrigerator - Interior

Width
Refrigerator - Interior

Depth
Refrigerator - Capacity 8.15 cu.ft

Free/Automatic

Reversible

38.5" (98 cm)

19.25" (49 cm)

17.5" (44 cm)

Refrigerator - Shelf Type Glass and

Refrigerator - Shelf Qty 3
Refrigerator - Full Door

Shelves
Refrigerator - Temperature

Range
Freezer - Interior Height 24.0" (61 cm)
Freezer - Interior Width 16.5" (42 cm)
Freezer - Interior Depth 13.0" (33 cm)
Freezer - Capacity 3.46 cu.ft
Thermostat Type Digital
Fan Type Interior and

Refrigerant Type R134a
Refrigerant Amount 5.11 oz.
High Side PSI 215.0
Low Side PSI 36.0
Level Legs 2
Condensor Location Rear of Unit
Freezer - Temperature

Range
Compressor Step Height 8.0" (20 cm)
Compressor Step Width 16.5" (42 cm)
Compressor Step Depth 5.0" (13 cm)

Scalloped

34º to 46ºF

Exterior

-6º to 6ºF

3
