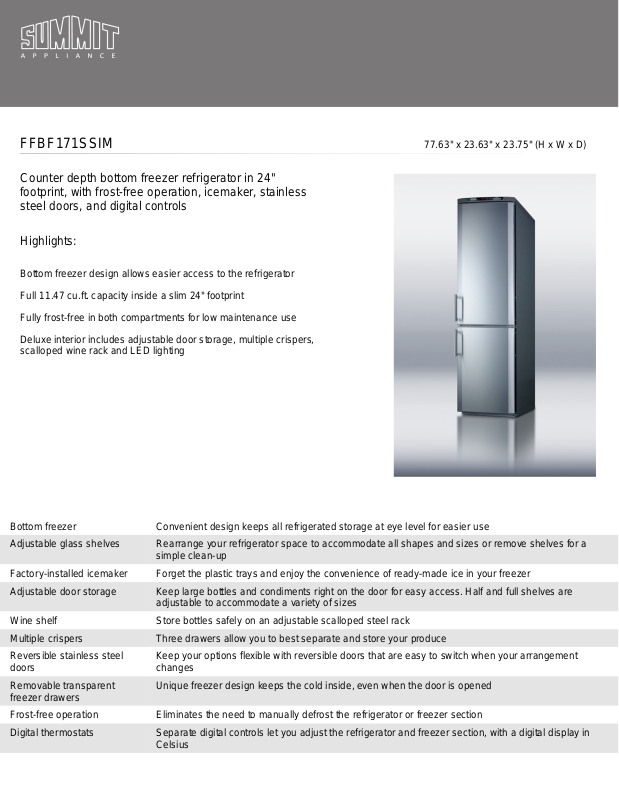

Summit FFBF171SSIM Specification Sheet

FFBF171SSIM 77.63" x 23.63" x 23.75" (H x W x D)

Counter depth bottom freezer refrigerator in 24"
footprint, with frost-free operation, icemaker, stainless
steel doors, and digital controls

Highlights:

Bottom freezer design allows easier access to the refrigerator
Full 11.47 cu.ft. capacity inside a slim 24" footprint
Fully frost-free in both compartments for low maintenance use
Deluxe interior includes adjustable door storage, multiple crispers,

scalloped wine rack and LED lighting

Bottom freezer Convenient design keeps all refrigerated storage at eye level for easier use
Adjustable glass shelves Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a

simple clean-up
Factory-installed icemaker Forget the plastic trays and enjoy the convenience of ready-made ice in your freezer
Adjustable door storage Keep large bottles and condiments right on the door for easy access. Half and full shelves are

adjustable to accommodate a variety of sizes
Wine shelf Store bottles safely on an adjustable scalloped steel rack
Multiple crispers Three drawers allow you to best separate and store your produce
Reversible stainless steel

doors
Removable transparent

freezer drawers
Frost-free operation Eliminates the need to manually defrost the refrigerator or freezer section
Digital thermostats Separate digital controls let you adjust the refrigerator and freezer section, with a digital display in

Keep your options flexible with reversible doors that are easy to switch when your arrangement

changes

Unique freezer design keeps the cold inside, even when the door is opened

Celsius

Specifications:

Height 77.63"
Width 23.63"
Depth 23.75"
Capacity 11.47 cu.ft.
Ext Depth with Handle 26.0"
Interior Height 1 39.25"
Interior Width 1 19.38"
Interior Depth 1 18.75"
Interior Height 2 25.5"
Interior Width 2 17.0"
Interior Depth 2 18.75"
Shipping Weight 190.0 lbs.
Weight 165.0 lbs.
Voltage/Frequency 115 V AC/60 Hz
US Electrical Safety CSA
Canadian Electrical Safety CSA
Amps 2.6
Energy Usage/Year 416.0 kWh/year
Reversible Yes
Door Swing RHD
Crisper Quantity 2
Shelf Quantity 5
Adjustable Shelf true
Shelf Type Glass
Crisper Cover Type Glass
Crisper Finish Transparent
Full Door Shelf Quantity 2
Half Door Shelf Quantity 3
Wine Bottle Holder true
Drawers true
Drawer Quantity 3
Wheel Quantity 2
Defrost Type Frost-Free
Depth with door at 90° 45.63"
Fan Type Interior
Thermostat Type Digital
Light true
Freon Oz 4.9
Level Legs Quantity 2
Low Side PSI 88.0
Refrigerant Type R134a
High Side PSI 250.0
Compressor Warranty 5 Years
Parts/Labor Warranty 1 Year
