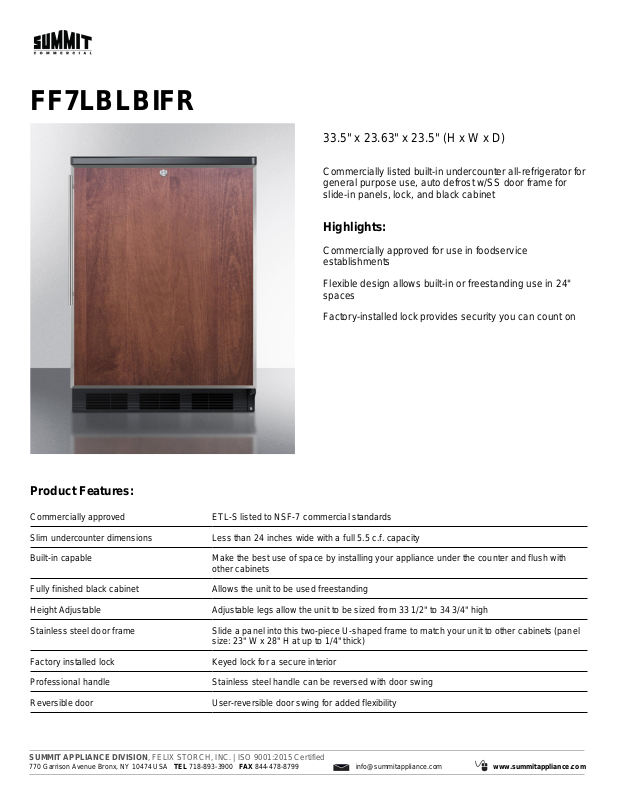

Summit FF7LBLBIFR Specification Sheet

FF7LBLBIFR

33.5" x 23.63" x 23.5" (H x W x D)

Commercially listed built-in undercounter all-refrigerator for
general purpose use, auto defrost w/SS door frame for
slide-in panels, lock, and black cabinet

Highlights:

Commercially approved for use in foodservice
establishments

Flexible design allows built-in or freestanding use in 24"
spaces

Factory-installed lock provides security you can count on

Product Features:

Commercially approved ETL-S listed to NSF-7 commercial standards
Slim undercounter dimensions Less than 24 inches wide with a full 5.5 c.f. capacity
Built-in capable Make the best use of space by installing your appliance under the counter and flush with

other cabinets
Fully finished black cabinet Allows the unit to be used freestanding
Height Adjustable Adjustable legs allow the unit to be sized from 33 1/2" to 34 3/4" high
Stainless steel door frame Slide a panel into this two-piece U-shaped frame to match your unit to other cabinets (panel

size: 23" W x 28" H at up to 1/4" thick)
Factory installed lock Keyed lock for a secure interior
Professional handle Stainless steel handle can be reversed with door swing
Reversible door User-reversible door swing for added flexibility

SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified

770 Garrison Avenue Bronx, NY 10474 USA TEL [phone] FAX [phone] [e-mail] www.summitappliance.com

FF7LBLBIFR Specifications:

Overview

Height of Cabinet 33.5" (85 cm)
Width 23.63" (60 cm)
Depth 23.5" (60 cm)
Depth with Handle 24.63" (63 cm)
Depth with door at 90° 46.13" (117 cm)
Capacity 5.5 cu.ft. (156 L)
Defrost Type Automatic
Door Panel-Ready
Cabinet Black
US Electrical Safety UL
Canadian Electrical

Safety
Sanitation ETL-S
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Shipping Weight 107.0 lbs. (49 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years

Refrigerator Features

Door Swing RHD
Reversible Yes
Height Adjustable 1
Shelf Type Glass
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Dial
Fan Type Exterior
Refrigerant Type R134a
Refrigerant Amount 1.8oz.
High Side PSI 285.0
Low Side PSI 70.0
Level Legs Qty 4
Interior Light Yes

Dimensions

Interior Height 27.75" (70 cm)
Interior Width 20.0" (51 cm)
Interior Depth 17.5" (44 cm)
Compressor Step Height 7.0" (18 cm)

ULC

Compressor Step Width 20.0" (51 cm)
Compressor Step Depth 6.0" (15 cm)
