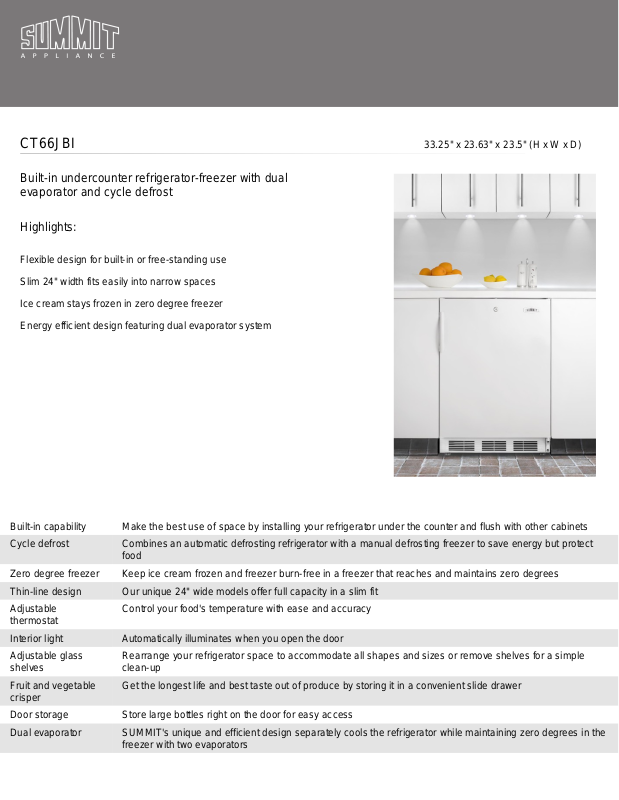

Summit CT66JBI Specification Sheet

CT66JBI 33.25" x 23.63" x 23.5" (H x W x D)

Built-in undercounter refrigerator-freezer with dual
evaporator and cycle defrost

Highlights:

Flexible design for built-in or free-standing use
Slim 24" width fits easily into narrow spaces
Ice cream stays frozen in zero degree freezer
Energy efficient design featuring dual evaporator system

Built-in capability Make the best use of space by installing your refrigerator under the counter and flush with other cabinets
Cycle defrost Combines an automatic defrosting refrigerator with a manual defrosting freezer to save energy but protect

food
Zero degree freezer Keep ice cream frozen and freezer burn-free in a freezer that reaches and maintains zero degrees
Thin-line design Our unique 24" wide models offer full capacity in a slim fit
Adjustable

thermostat
Interior light Automatically illuminates when you open the door
Adjustable glass

shelves
Fruit and vegetable

crisper
Door storage Store large bottles right on the door for easy access
Dual evaporator SUMMIT's unique and efficient design separately cools the refrigerator while maintaining zero degrees in the

Control your food's temperature with ease and accuracy

Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple

clean-up

Get the longest life and best taste out of produce by storing it in a convenient slide drawer

freezer with two evaporators

Specifications:

Height 33.25 up to 34.5"
Width 23.63"
Depth 23.5"
Capacity 5.1 cu.ft.
Ext Depth with Handle 24.63"
Interior Height 1 19.5"
Interior Width 1 20.5"
Interior Depth 1 17.0"
Interior Height 2 5.0"
Interior Width 2 19.0"
Interior Depth 2 11.5"
Comp Step Height 7.0"
Comp Step Width 20.5"
Comp Step Depth 5.0"
Height Adjustable true
Shipping Weight 104.0 lbs.
US Electrical Safety UL
Amps 1.3
Energy Usage/Year 434.0 kWh/year
Canadian Electrical Safety ULC
Voltage/Frequency 115 V AC/60 Hz
Reversible Yes
Door Swing RHD
Crisper Quantity 1
Shelf Quantity 3
Adjustable Shelf true
Shelf Type Glass
Crisper Cover Type Glass
Crisper Finish Transparent
Full Door Shelf Quantity 3
Defrost Type Cycle
Height to Hinge Cap 34.75"
Depth with door at 90° 45.75"
Fan Type Exterior
Thermostat Type Dial
Light true
High Side PSI 285.0
Level Legs Quantity 4
Freon Oz 2.6
Freon Type R134a
Low Side PSI 70.0
Parts/Labor Warranty 1 Year
Compressor Warranty 5 Years
