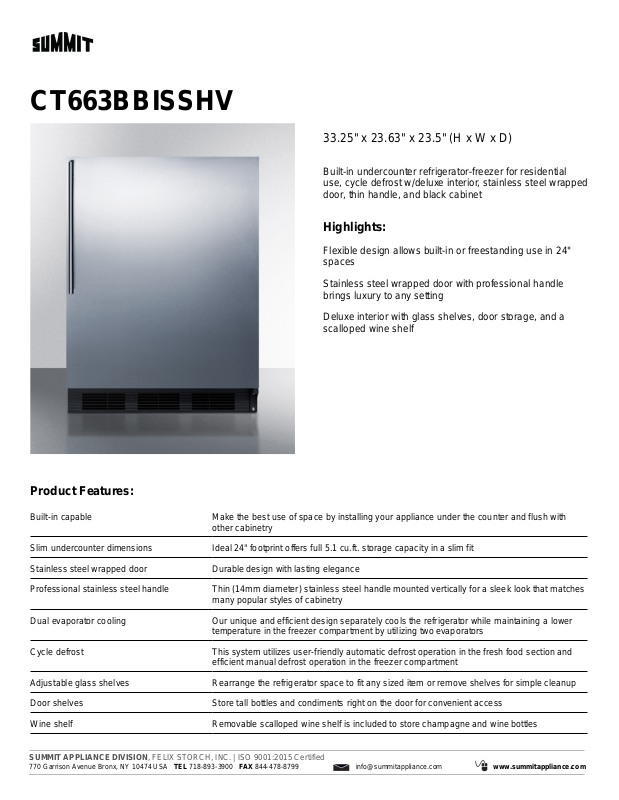

Summit CT663BBISSHVLHD Specifications

CT663BBISSHV

33.25" x 23.63" x 23.5" (H x W x D)

Built-in undercounter refrigerator-freezer for residential
use, cycle defrost w/deluxe interior, stainless steel wrapped
door, thin handle, and black cabinet

Highlights:

Flexible design allows built-in or freestanding use in 24"
spaces

Stainless steel wrapped door with professional handle
brings luxury to any setting

Deluxe interior with glass shelves, door storage, and a
scalloped wine shelf

Product Features:

Built-in capable Make the best use of space by installing your appliance under the counter and flush with

other cabinetry
Slim undercounter dimensions Ideal 24" footprint offers full 5.1 cu.ft. storage capacity in a slim fit
Stainless steel wrapped door Durable design with lasting elegance
Professional stainless steel handle Thin (14mm diameter) stainless steel handle mounted vertically for a sleek look that matches

many popular styles of cabinetry
Dual evaporator cooling Our unique and efficient design separately cools the refrigerator while maintaining a lower

temperature in the freezer compartment by utilizing two evaporators
Cycle defrost This system utilizes user-friendly automatic defrost operation in the fresh food section and

efficient manual defrost operation in the freezer compartment
Adjustable glass shelves Rearrange the refrigerator space to fit any sized item or remove shelves for simple cleanup
Door shelves Store tall bottles and condiments right on the door for convenient access
Wine shelf Removable scalloped wine shelf is included to store champagne and wine bottles

SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified

770 Garrison Avenue Bronx, NY 10474 USA TEL [phone] FAX [phone] [e-mail] www.summitappliance.com

CT663BBISSHV Specifications:

Overview

Height of Cabinet 33.25" (84 cm)
Width 23.63" (60 cm)
Depth 23.5" (60 cm)
Depth with door at 90° 45.38" (115 cm)
Capacity 5.1 cu.ft. (144 L)
Defrost Type Cycle
Door Stainless Steel
Cabinet Black
US Electrical Safety UL
Canadian Electrical Safety ULC
Energy Usage/Year 365.0kWh/year
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Weight 100.0 lbs. (45

Shipping Weight 105.0 lbs. (48

Estimated Time to Ship 2 to 4 days
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years

Refrigerator-Freezer

Door Swing RHD
Reversible Factory

Adjustable Shelves Yes
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Wine Bottle Shelving Yes
Interior Light Yes
Refrigerator - Interior

Height
Refrigerator - Interior Width 21.0" (53 cm)
Refrigerator - Interior

Depth
Refrigerator - Capacity 4.5 cu.ft
Refrigerator - Shelf Type Glass
Refrigerator - Shelf Qty 2
Refrigerator - Full Door

Shelves

18.0" (46 cm)

18.0" (46 cm)

kg)

kg)

Reversible

Freezer - Interior Height 5.25" (13 cm)
Freezer - Interior Width 19.0" (48 cm)
Freezer - Interior Depth 11.5" (29 cm)
Freezer - Capacity 0.6 cu.ft
Thermostat Type Dial
Fan Type Exterior
Refrigerant Type R134a
Refrigerant Amount 2.33 oz.
High Side PSI 285.0
Low Side PSI 70.0
Level Legs 4
Compressor Step Height 5.5" (14 cm)
Compressor Step Width 21.0" (53 cm)
Compressor Step Depth 6.0" (15 cm)

3
