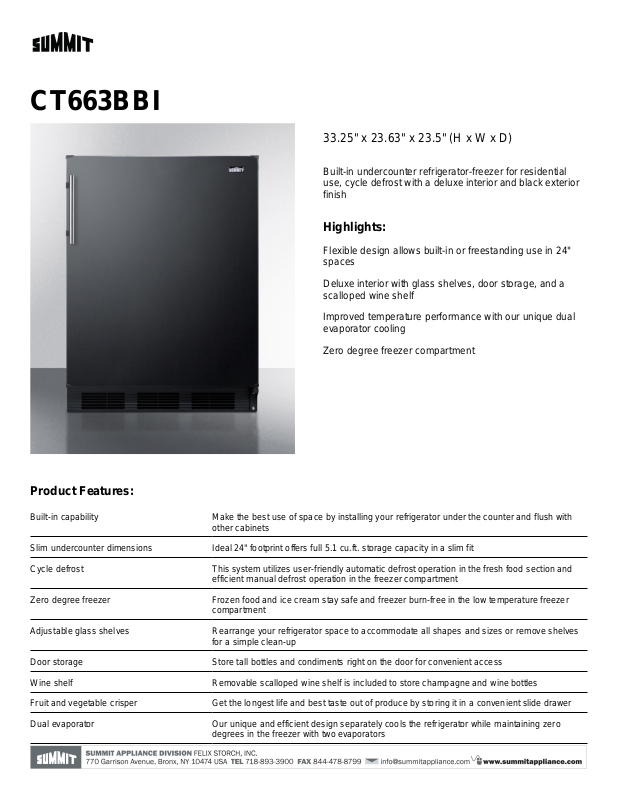

Summit CT663BBI Brochure

CT663BBI

33.25" x 23.63" x 23.5" (H x W x D)

Built-in undercounter refrigerator-freezer for residential
use, cycle defrost with a deluxe interior and black exterior
finish

Highlights:

Flexible design allows built-in or freestanding use in 24"
spaces

Deluxe interior with glass shelves, door storage, and a
scalloped wine shelf

Improved temperature performance with our unique dual
evaporator cooling

Zero degree freezer compartment

Product Features:

Built-in capability Make the best use of space by installing your refrigerator under the counter and flush with

other cabinets
Slim undercounter dimensions Ideal 24" footprint offers full 5.1 cu.ft. storage capacity in a slim fit
Cycle defrost This system utilizes user-friendly automatic defrost operation in the fresh food section and

efficient manual defrost operation in the freezer compartment
Zero degree freezer Frozen food and ice cream stay safe and freezer burn-free in the low temperature freezer

compartment
Adjustable glass shelves Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves

for a simple clean-up
Door storage Store tall bottles and condiments right on the door for convenient access
Wine shelf Removable scalloped wine shelf is included to store champagne and wine bottles
Fruit and vegetable crisper Get the longest life and best taste out of produce by storing it in a convenient slide drawer
Dual evaporator Our unique and efficient design separately cools the refrigerator while maintaining zero

degrees in the freezer with two evaporators

CT663BBI Specifications:

Overview

Height 33.25"
Width 23.63"
Depth 23.5"
Depth with door at 90° 45.38"
Capacity 5.1 cu.ft.
Defrost Type Cycle
Door Black
Cabinet Black
US Electrical Safety UL
Canadian Electrical Safety ULC
Energy Usage/Year 365.0kWh/yea

Amps 1.3
Voltage/Frequency 115 V AC/60

Weight 100.0 lbs.
Shipping Weight 109.0 lbs.
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years

Refrigerator-Freezer

Door Swing RHD
Reversible Yes
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Refrigerator - Interior

Height
Refrigerator - Interior Width 21.0"
Refrigerator - Interior Depth 18.0"
Refrigerator - Capacity 4.5 cu.ft
Refrigerator - Shelf Type Glass
Refrigerator - Shelf Qty 2
Refrigerator - Full Door

Shelves
Freezer - Interior Height 5.25"
Freezer - Interior Width 19.0"
Freezer - Interior Depth 11.5"
Freezer - Capacity 0.6 cu.ft
Adjustable Shelves Yes

Hz

18.0"

Wine Bottle Shelving Yes
Interior Light Yes
Thermostat Type Dial
Fan Type Exterior
Freon R134a
Freon Amount 2.33
High Side PSI 285.0
Low Side PSI 70.0
Level Legs 4
Compressor Step Height 5.5"
Compressor Step Width 21.0"
Compressor Step Depth 6.0"
