41’, 45’ & 50’ SUPERROLLER
41’, 45’ & 50’
HYDRAULIC WING FOLD
41’, 45’ & 50’ SUPERROLLER
SUPERROLLER
Operator’s
Manual
IMPORTANT
THE OPERATOR IS RESPONSIBLE
FOR ADJUSTING THE MACHINE SINCE
MACHINE DOES NOT COME “FIELD
READY” FROM FACTORY.
See www.summersmfg.com for latest version of all Summers Operator’s Manuals.
SUMMERS MANUFACTURING CO., INC.
WEB SITE: www.summersmfg.com
MADDOCK, NORTH DAKOTA 58348 ................................... (701) 438-2855
DEVILS LAKE, NORTH DAKOTA 58301 ............................... (701) 662-5391
8Z1080 © Summers Mfg. Co., Inc. 2014 Printed in USA
READ & UNDERSTAND OPERATOR’S
MANUAL BEFORE USING MACHINE.
CAUTION
Page 2
Warranty
Summers warrants only products of its manufacture against operational failure caused by defective materials
or workmanship which occur during normal use within 12 months from the date of purchase by the end user from
Summers’ dealer.
Summers’ obligation is to replace free of charge any part of any product that Summers inspection shows to be
defective excluding transportation charges to Maddock, ND or Devils Lake, ND and return and also excluding all
transportation costs from Summers’ dealer to the dealer’s customer and all other costs such as removal and installation expense.
Summers shall not be liable for loss of time, manufacturing costs, labor, material, loss of prots, consequential
damages, direct or indirect, because of defective products whether due to rights arising under the contract of sale or
independently thereof, and whether or not such claim is based on contract, tort or warranty.
Written permission for any warranty claim return must be rst obtained from authorized Summers’ personnel.
All returns must be accompanied with a complete written explanation of claimed defects and the circumstances of
operational failure.
Written warranty for all component parts used in the manufacture of Summers products is available upon request.
Warranty of such component parts will be determined by said component manufacturer upon their inspection of the
claimed defective part.
This express warranty is the sole warranty of Summers. There are no warranties, which extend beyond the warranty herein expressly set forth. The sales for products of Summers under any other warranty or guarantee express
or implied is not authorized. This warranty voids all previous issues.
SUMMERS MANUFACTURING CO. INC.
MADDOCK, NORTH DAKOTA 58348
DEVILS LAKE, NORTH DAKOTA 58301
2/95
Mathison’s - 1/2014
Page 3
INTRODUCTION
This manual provides the following information about your Summers Land Roller.
SECTION CONTENTS
Section 1 – SAFETY explains important safety precautions and familiarizes the Operator with the decals and their
locations.
Section 2 – ASSEMBLY includes step by step assembly instructions for your Summers Land Roller.
Section 3 – LAND ROLLER OPERATION provides necessary information for the operation and adjustment of the
machine.
Section 4 – MAINTENANCE covers recommended mechanical maintenance. TROUBLESHOOTING provides a quick
reference to solving problems. SPECIFICATIONS lists important dimensions, capacities and other technical information.
Section 5 – PARTS
OTHER ITEMS OF IMPORTANCE
A. Summers Mfg. Co., Inc. strongly recommends that each Land Roller Operator READ and UNDERSTAND the
Operator’s Manual before using the machine. In addition, this Operator’s Manual should be REVIEWED at
least ANNUALLY thereafter.
B. It is the policy of this company in improve its products whenever possible and practical to do so. We reserve
the right to make changes or improvements in the design or construction of parts at any time without incurring obligations to install such changes on products previously delivered.
C. Reference to “right” and “left” in this manual is determined when machine is viewed from the rear.
D. Parts are referenced in each drawing with the Summers Manufacturing Part Number. Use this Part Number
when ordering replacement parts from your Summers dealer. See back section of manual for description
of each Part Number.
E. WARNING – DO NOT ATTEMPT to raise machine into transport position if mud has built up on rollers or if
machine weight has been increased by any other means. Mechanical failure may occur.
F. Ability to safely operate the Summers Superroller is determined by both tractor horsepower and weight. The
minimum tractor weight for operating this implement is 16,000 lb. Minimum tractor engine horsepower is
160. Dual tires or single tires set at maximum width are required for safe operation of Land Roller.
G. Never tow this implement with less than a 16,000 lb. vehicle. Tongue weight in transport position is approxi-
mately 2000 lb. Tongue lift force when folding in and out of transport position is 2000 lb.
H. NEVER ALLOW anyone to walk or work under Land Roller wings or center section.
OWNER REGISTER
Name ________________________________ Size _____________________________________
Address ______________________________ Serial Number _____________________________
City __________________________________
(located by the hitch piece)
State/Prov. ____________________________ Date Purchased ____________________________
Mail Code _____________________________ Dealer ___________________________________
i
Page 4
TABLE OF CONTENTS
SECTION 1 – SAFETY
Safety-Alert Symbol ......................................................................................................................1-1
General Safety Practices ..............................................................................................................1-1
Safety During Transport................................................................................................................1-2
Safety Decals ...............................................................................................................................1-2
Decals and Their Locations ................................................................................................... 1-2-1-6
SECTION 2 – ASSEMBLY
General Assembly Safety Instructions ..........................................................................................2-1
Safety Alert Symbol ......................................................................................................................2-1
General Safety Practices ..............................................................................................................2-2
Set-Up of Frame ................................................................................................................. 2-3 – 2-9
Hydraulic Set-Up .................................................................................................................. 2-6, 2-7
Installation of Wing Rollers .........................................................................................................2-10
Decals.........................................................................................................................................2-12
SECTION 3 – LAND ROLLER OPERATION
Land Roller Operation Safety .......................................................................................................3-1
Steps Prior to Operation ...............................................................................................................3-1
Initial Hookup ................................................................................................................................3-2
Steps Required to Unfold from Transport to Field Position .................................................. 3-3, 3-4
Field Operation .............................................................................................................................3-5
Steps Required to Fold from Field to Transport Position ..............................................................3-5
Procedure to Adjust Hydraulic Cylinder Attach Eye Bolts ..................................................... 3-6, 3-7
Transporting .................................................................................................................................3-8
Unhooking Land Roller From Tractor ................................................................................. 3-9, 3-10
SECTION 4 – MAINTENANCE
Maintenance Safety ......................................................................................................................4-1
Maintenance for after the First Two Hours of Operation ..............................................................4-1
Daily and Periodic Maintenance ...................................................................................................4-1
Storage, Troubleshooting, Specications .....................................................................................4-2
Bolt Torque Specications ............................................................................................................4-3
SECTION 5 – PARTS
Hitch Center..................................................................................................................................5-2
Transport Rest ..............................................................................................................................5-3
Hydraulics .....................................................................................................................................5-4
Wing .............................................................................................................................................5-5
Roller Installation ..........................................................................................................................5-6
Safety Lights .................................................................................................................................5-7
Hub and Axle Components ...........................................................................................................5-8
Acre Meter Option ........................................................................................................................5-9
Part Numbers ..................................................................................................................5-10 – 5-11
ii
Page 5
SECTION 1 - SAFETY
SAFETY-ALERT SYMBOL
This symbol is used to denote possible danger and
care should be taken to prevent bodily injury.
This symbol means:
ATTENTION! BECOME ALERT!
YOUR SAFETY IS INVOLVED!
Denition of each Signal Word used in conjunction with the Safety-Alert symbol.
indicates an imminently hazardous situation which, if not avoided, will result in death
or serious injury. This signal word is to limited to the most extreme situations.
DANGER
indicates a potentially hazardous situation which, if not avoided, could result in death
or serious injury.
WARNING
indicates a potentially hazardous situation which, if not avoided, may result in minor
or moderate injury. It may also be used to alert against unsafe practices.
CAUTION
GENERAL SAFETY PRACTICES
1. READ AND UNDERSTAND Operator’s Manual before using machine. Review at least annually thereafter.
2. VERIFY all safety devices and shields are in place before using machine.
3. KEEP hands, feet, hair and clothing away from moving parts.
4. STOP engine, place all controls in neutral, set parking brake, remove ignition key and wait for all moving
parts to stop before servicing, adjusting, maintaining or unplugging.
5. BE CAREFUL when working around high pressure hydraulic system.
6. ALWAYS make sure Land Roller is lowered into eld position (cylinders extended), it is blocked to prevent
movement and that pressure is relieved from hydraulic circuits before servicing.
7. DO NOT ALLOW RIDERS.
8. USE EXTREME CARE when making adjustments.
9. KEEP CHILDREN AWAY from machinery at all times.
10. NEVER ALLOW anyone to walk or work under Land Roller wings or center section.
11. WARNING – DO NOT ATTEMPT to raise machine into transport position if mud has built up on rollers or if
machine weight has been increased by any other means. Mechanical failure may occur.
1-1
Page 6
SAFETY DURING TRANSPORT
1. Ability to safely operate the Summers Superroller is determined by both tractor horse-
power and weight. The minimum tractor weight for operating this implement is 16,000
lbs. Minimum tractor engine horsepower is 160. Dual tires or single tires set at maxi-
mum width are required for safe operation of Land Roller.
2. ONLY TOW at a safe speed – 20 MPH MAXIMUM. Use caution when making corners
and meeting trafc.
3. USE Safety Lights and Safety Chain between tractor drawbar and implement hitch when
transporting on public roads.
4. ALWAYS install transport safety chains and close wing lock hydraulic valve before trans-
porting on public roads.
5. FOLLOW ALL local laws governing transporting of farm machinery.
6. Use additional caution and reduce speed when towing under adverse conditions, when
turning and when on unlevel surfaces. Frequently check for trafc from rear, especially
during turns.
SECTION 1 - SAFETY
7. Stay clear of overhead lines and other overhead obstructions.
SAFETY DECALS
1. KEEP SAFETY DECALS CLEAN.
2. REPLACE missing or unreadable decals. New decals are available from your Summers
dealer by ordering correct part number (PN) located on the decal.
DECALS AND THEIR LOCATIONS

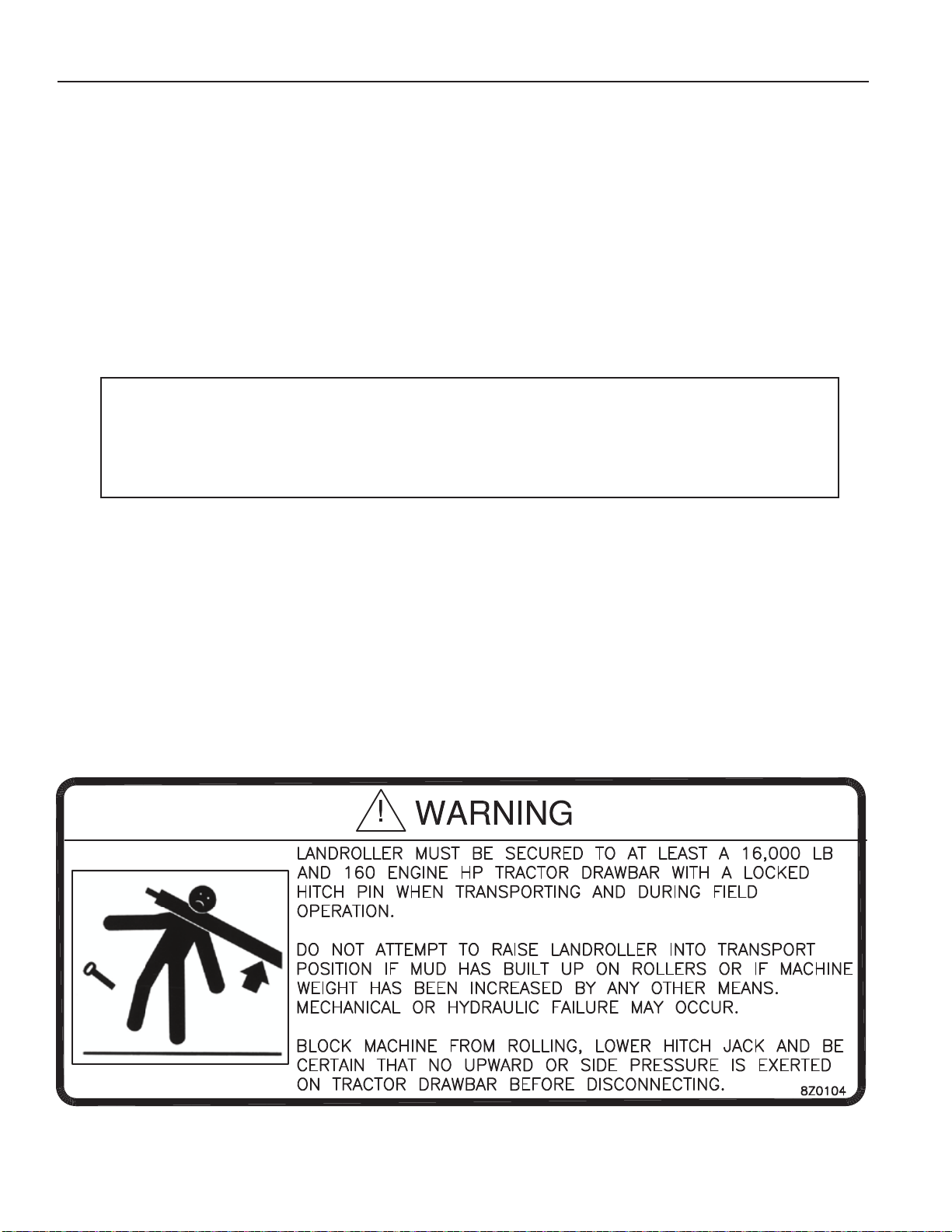

1. PN 8Z0075 – DECAL FOR REMOVING TRANSPORT LOCKS
2. PN 8Z0079 – DECAL FOR COMPANY IDENTIFICATION
1-2
Page 7
SECTION 1 - SAFETY
3. PN 8Z0086 – ELECTRICUTION DANGER
4. PN 8Z0087 – DECAL FOR PINCH POINT HAZARD
5. PN 8Z0104 – DECAL FOR LANDROLLER
1-3
Page 8
SECTION 1 - SAFETY

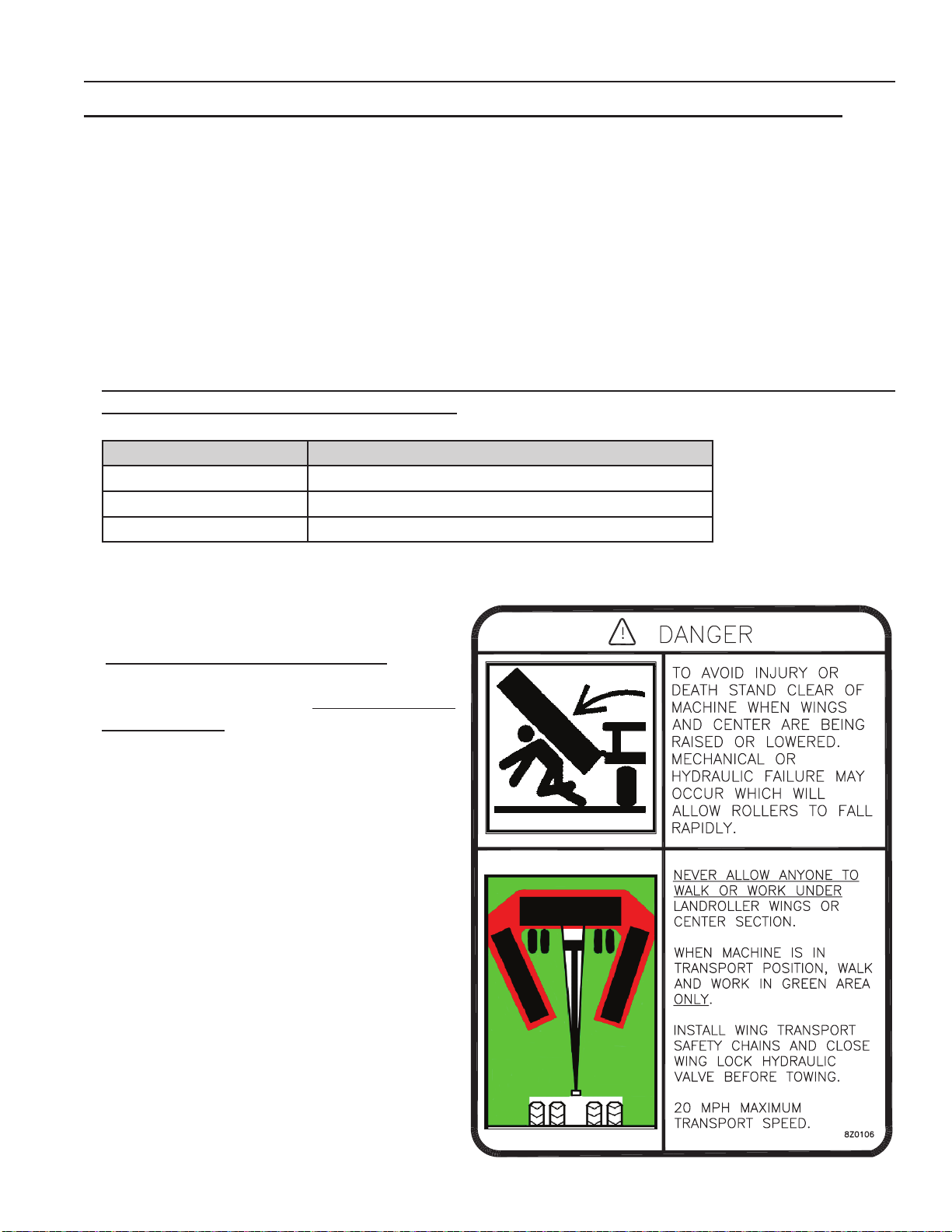

6. PN 8Z0106 – DECAL FOR LANDROLLER DANGER
7. PN 8Z0132 – SUPERROLLER ID DECAL
1-4
Page 9
SECTION 1 - SAFETY
8. PN 8Z0276 – DECAL FOR GENERAL CAUTION
9. PN 8Z0344 – DECAL FOR WING DANGER
10. PN 8Z0346 – DECAL FOR ELECTRICUTION DANGER
11. PN 8Z0800 – AMBER REFLECTOR
12. PN 8Z0805 – RED-ORANGE REFLECTOR
13. PN 8Z0810 – RED REFLECTOR
SAFETY LIGHT OPERATION
The Summers Safety Light Kit is equipped with a 7 pin connector. To protect 7 pin connector, store in dust cap
(8K8067) when not attached to towing vehicle.
1-5
Page 10
1-6
SECTION 1 - SAFETY
Page 11
SECTION 2 - ASSEMBLY
GENERAL ASSEMBLY SAFETY PRACTICES
1. READ AND UNDERSTAND Operator’s Manual before assembly of machine.
2. Machine should be assembled in a horizontal (eld) position only.
3. If machine is to be assembled INDOORS, check that exit door is:
MACHINE WIDTH MINIMUM DOOR WIDTH MINIMUM DOOR HEIGHT
41’ 17’2” 14’2”
45’ 17’2” 15’2”
50’ 16’10” 16’2”
4. Reference to “RIGHT” and “LEFT” is determined when machine IS VIEWED FROM THE
REAR.
5. Reference to “FORWARD” means TOWARDS THE TRACTOR.
6. Reference to “REAR” means AWAY FROM THE TRACTOR.
SAFETY-ALERT SYMBOL
This symbol is an alert to the potential
for personal injury. This symbol means
ATTENTION! BECOME ALERT!
YOUR PERSONAL SAFETY IS INVOLVED!
2-1
Page 12
SECTION 2 - ASSEMBLY
GENERAL SAFETY PRACTICES
YOU ARE RESPONSIBLE
for the safe assembly of the
machine.
DO NOT ALLOW CHILDREN
or other unauthorized persons
within the assembly area.
WEAR PERSONAL
PROTECTIVE EQUIPMENT
which includes a hard hat,
eye protection, work gloves
and steel toed boots with slip
resistant soles.
BLOCK UP ANY RAISED PART
of the machine. Be sure machine
is stable after blocking.
ALWAYS INSPECT LIFTING
CHAINS AND SLINGS for
damage or wear.
BE SURE LIFTING DEVICE
IS RATED TO HANDLE THE
WEIGHT.*
STOP ENGINE, place all
controls in neutral, set parking
brake, remove ignition key and
wait for all moving parts to stop
before servicing or adjusting.
DO NOT MODIFY equipment
or substitute parts in any way.
Unauthorized modication may
impair the function and/or safety
of the machine.
USE SUITABLE LIFTING
DEVICE for components which
could cause personal injury.
*APPROXIMATE WEIGHTS OF COMPONENTS (36” / 42” ROLLER)
PN DESCRIPTION WEIGHT (LB)
8P4000 HITCH 1405
CENTER SECTION 2424
WING 1300 / 1200
8P4213 ROLLER, 13’ (42”) 3925
ROLLER, 15’ 3409 / 4285
ALWAYS make sure Land
Roller is lowered into field
position (cylinders extended), it
is blocked to prevent movement
and that pressure is relieved
from hydraulic circuits before
servicing.
USE EXTREME CARE when
assembling, servicing or
adjusting.
PN DESCRIPTION WEIGHT (LB)
8P4205 ROLLER, 17-1/2’ (36”) 3913
8P5000 UPRIGHT TRNSPRT REST 162
8P5020 BRACE TRNSPRT REST 98
8P5040 CROSS TUBE TRNSPRT REST 395
8P8645 BOX HARDWARE PARTS 1000
2-2
Page 13
SECTION 2 - ASSEMBLY

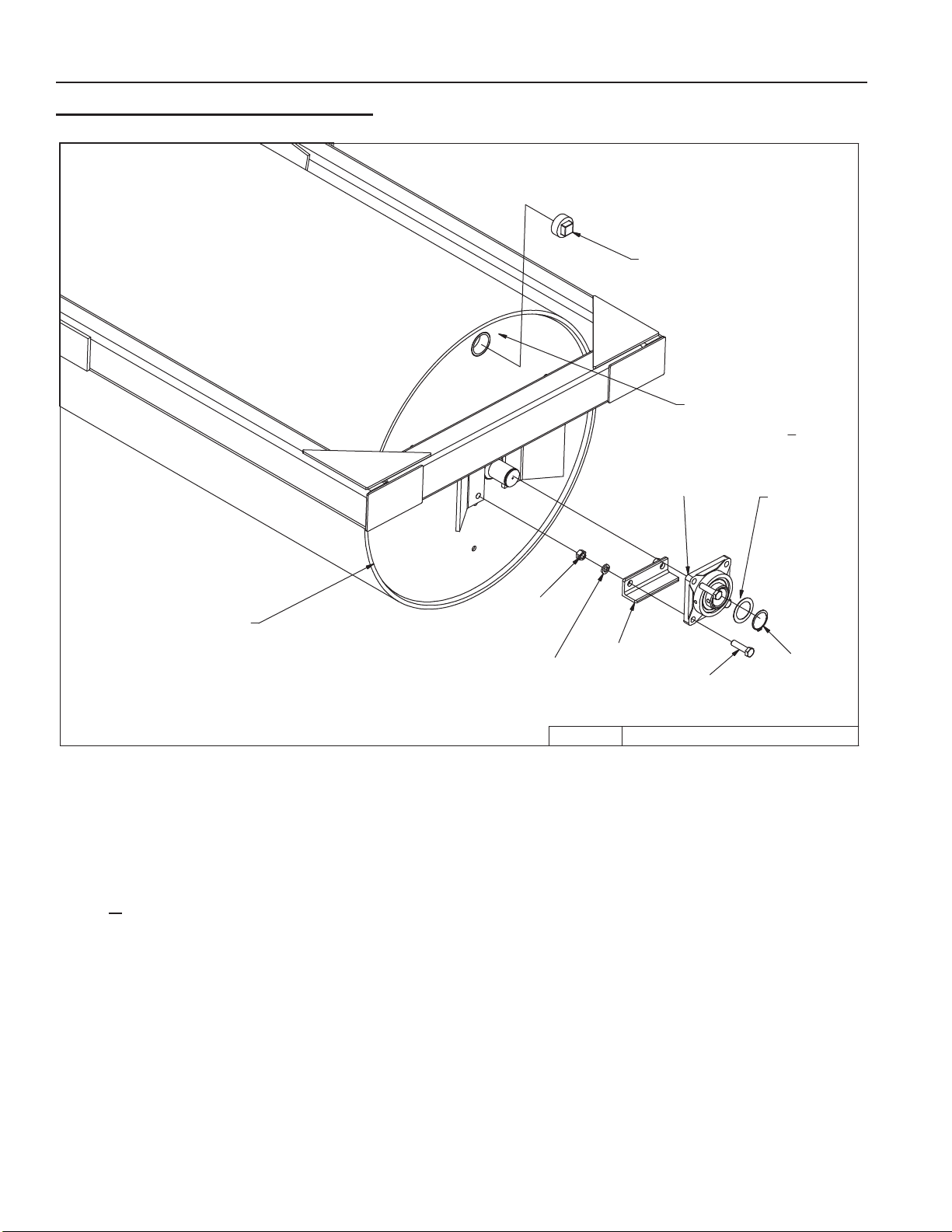

CENTER ROLLER INSTALLATION

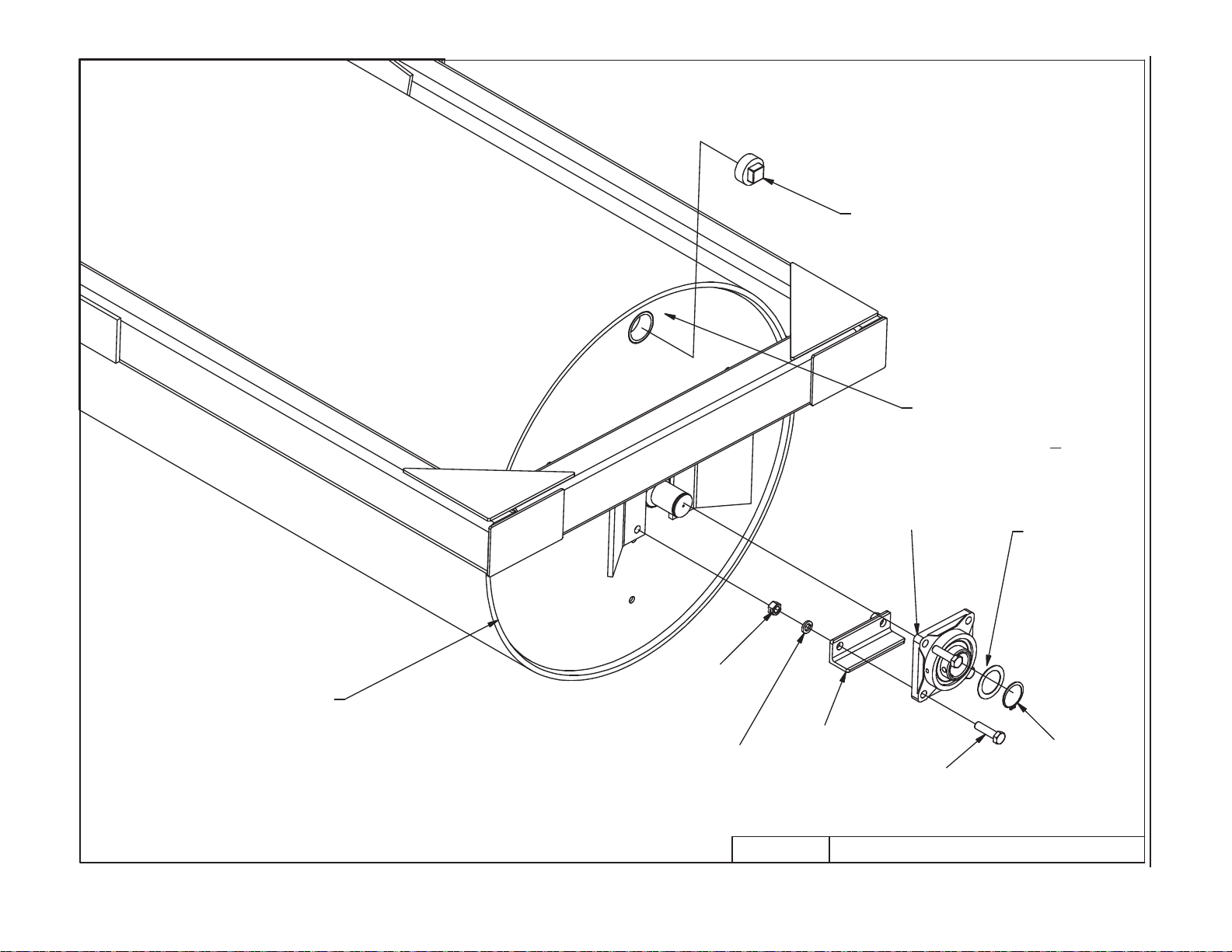

CR1. Position Center Roller on a rm, level surface. CAUTION: Each Roller weighs up to 4285#,
block to prevent unexpected movement.
CR2. Clean Roller pivot shafts.
CR3. Lower Center Frame over Roller. The Center weighs 2424#, use extreme caution when po-
sitioning over Roller.
CR4. Install bearings with grease zerks toward rear of machine. Apply anti-seize to shaft. Secure
to bolt plates with 3/4” x 2-3/4” bolts, lockwashers and locknuts. Install Reinforcement Angles
(8P5080) between bottom attach holes on inside of bolt plates.
CR5. Install Snap Rings.
8P4020 (36")
8P4040 (42")
8P4203 (36")
8P4215 (42")
8X0265
3/4" LN
8X0306
3/4" LW
3/4" X 2-3/4"
9LR4542.iam/
8R8010
8X0111A
CENTER_ROLLER1/14/2014
8P5080
8R8005
SNAP RING
2-3
Page 14
SECTION 2 - ASSEMBLY

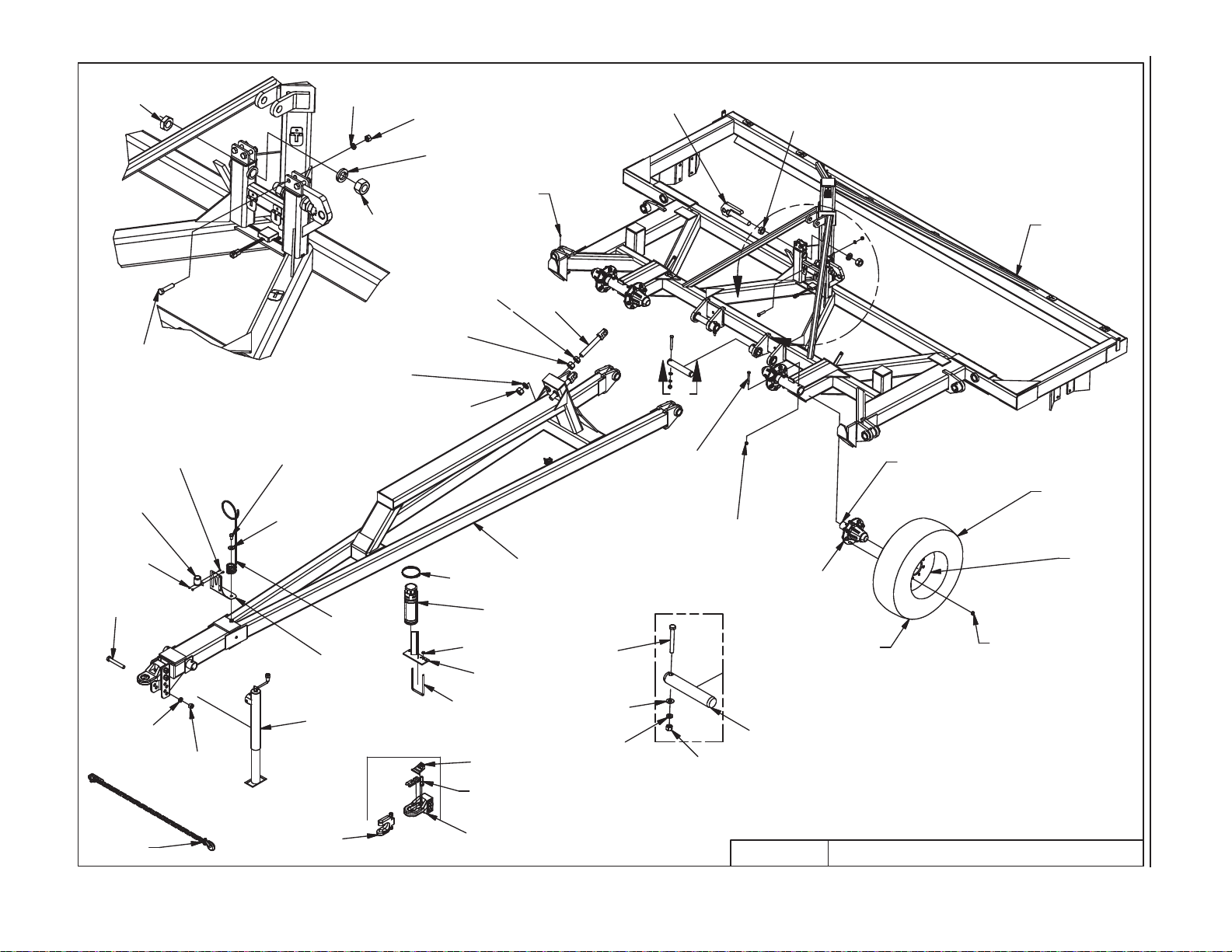

SET-UP OF HITCH AND CENTER FRAMES
F1. Install two outside hub assemblies ONLY. Apply good quality anti-seize to axles before installa-
tion. Retain axles into receiver tube with 1/2” x 4-1/2” bolt and locknut. Install Wheel and Tire
assemblies on outside hubs. Torque wheel nuts to 240 FT-LB.
F2. Lower tires to ground. Align Hitch to Center. Connect with 2” x 11” pins. Secure pins with
5/8” x 5” bolts, washers and locknuts.
F3. Install inside hub, wheel and tire assemblies following procedure in step F1 and as shown in
P-F1.
F4. Install remaining components as shown.
F5. Set Cylinder Attach Eye Bolts at mid adjustment, as shown in P-F2. Final adjustments will be
made after Wings are installed.
8X0286
1 1/2" JN
8X0092
5/8" X 2-3/4"
8K8067
8X0223
1/4" FN
8X0140
1 X 7"
8X0309
1" LW
8D2470
8X0000
1/4 X 3/4"
8X0281
NY-LOCK 1"
8X0110
3/4 X 1.25"
8X0318
3/4" FW
8D8490
8D8523
8D0724
OPTIONAL
8X0304
5/8" LW
8X0285
1 1/2" N
8X0315
1-1/2" LW
8D8500
8X0250
5/8" N
8X0315
1-1/2" LW
8X0721
ZERK 5/16"-24TPI
8X0286
1 1/2" JN
41' & 45' ONLY
8X0285
1 1/2" N
8X0285
1 1/2" N
8A1004
5" HC
8X0203
3/8" FN
8T4385
8A1157
3/8 X 4-1/16 X 7"
8D0722
8X0114
3/4 X 3"
8D0720
8L4628
8P4000
8Z1000
8X0095
5/8" X 5"
8X0304
5/8" LW
8X0323
5/8" FW
8P7240
8X0074
1/2" X 4-1/2"
NY-LOCK 5/8"-11NC
B
8X0242
NY-LOCK 1/2" N
8X0253
8X0286
1 1/2" JN
8K1105
812 HUB ASSY
8K7042
12.5L ASSY
OPT. 8K7430
340/65R18
8P3900
8K7150
AXLE ONLY
9LR4542.iam/
8P4020 (36")
8P4040 (42")
8K7028
8K7020
8K7123
TORQUE REQUIRED:

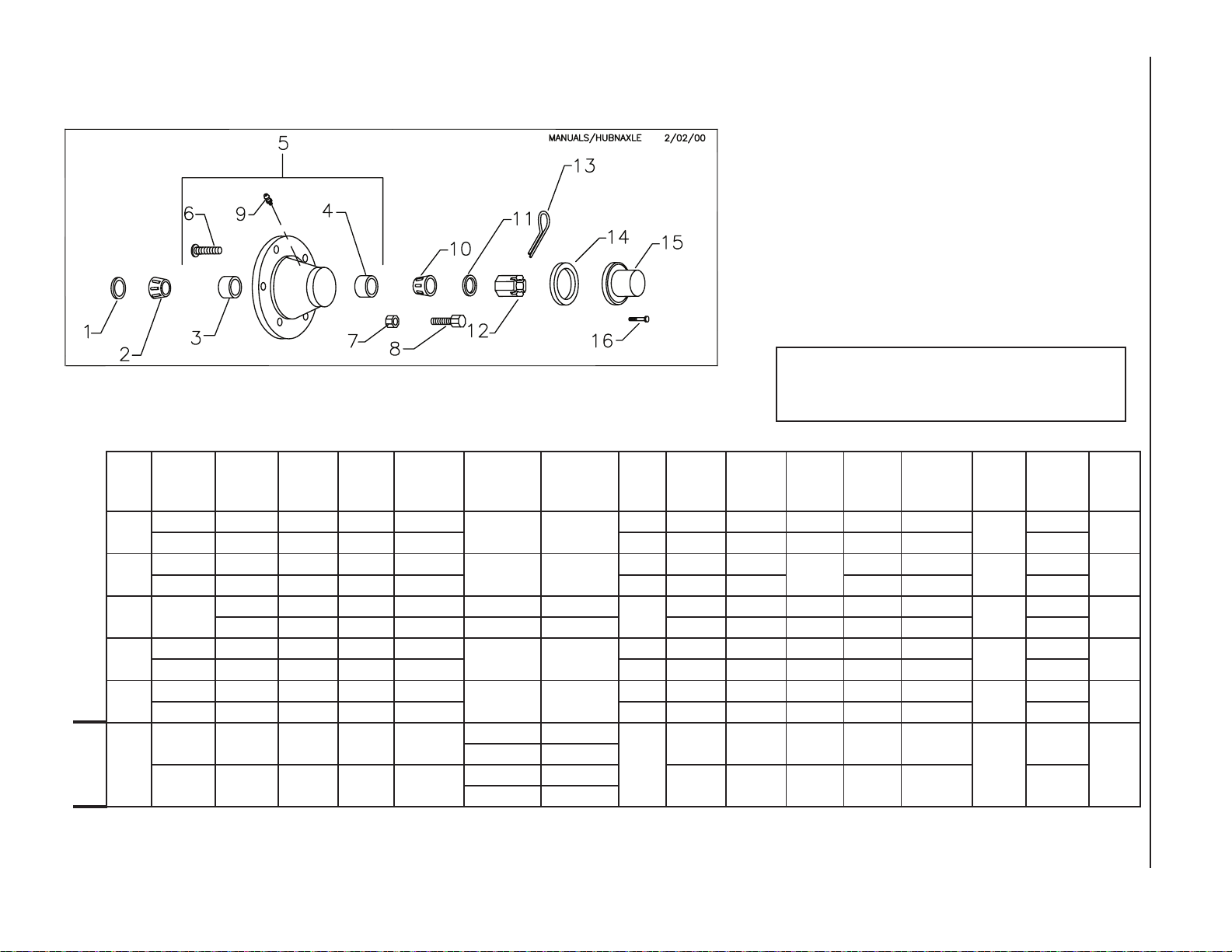

240 FT-LB
HITCH_CENTER12/11/2013
P-F1
P-F2
45’ LR w/Jam Nut
& Full Nut next to
Pin (shown). Use
Full Nut ONLY on
50’ LR.
2-4
Page 15
SECTION 2 - ASSEMBLY SECTION 2 - ASSEMBLY

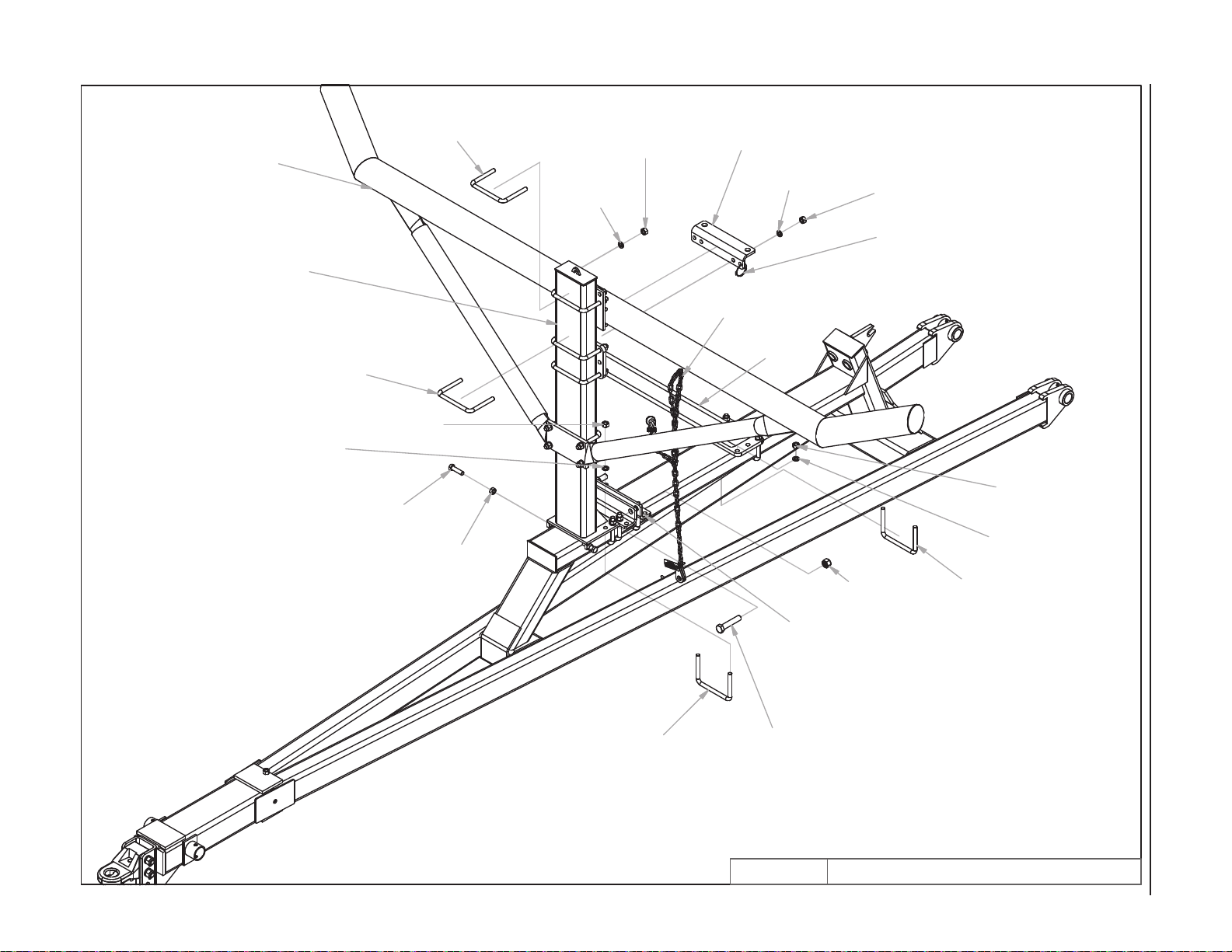

SET-UP OF TRANSPORT
REST
TR1. Install Transport Rest compo-
nents as shown.
a. Do not tighten 8X0111A Set
Bolts. These will be
adjusted after Wings are
installed
b. Position front 8P5060
against Upright. Tighten
U-bolt. Position and hand
tighten rear 8P5060. Insert
1” x 5” bolts through front
8P5060, loop end of Safety
Chains and rear 8P5060.
Fully tighten 1” locknut and
U-bolt for rear 8P5060.
c. Store hook end of Safety
Chains (8D2440) in Snap
Rings (8R8005).
8P5040
8P5000
8C1760
3/4 X 8-1/16 X 6"
8X0306
3/4" LW
8C1760
3/4 X 8-1/16 X 6"
8X0260
3/4" N
8X0306
3/4" LW
8X0260
3/4" N
8P5060
L 3.5 x 3 x 1/2
8X0306
3/4" LW
8D2440
8P5020
8X0260
3/4" N
8R8005
SNAP RING
(2X EACH SIDE)
8X0111A
3/4" X 2-3/4"
8X0259
3/4" JN
8C1760
3/4 X 8-1/16 X 6"
8P5060
L 3.5 x 3 x 1/2
8X0143
1X5"
8X0281
NY-LOCK 1"
8X0260
3/4" N
8X0306
3/4" LW
8C1760
3/4 X 8-1/16 X 6"
2-5
9LR4542.iam/
TRANSPORT_REST1/14/2014
Page 16
SECTION 2 - ASSEMBLY SECTION 2 - ASSEMBLY

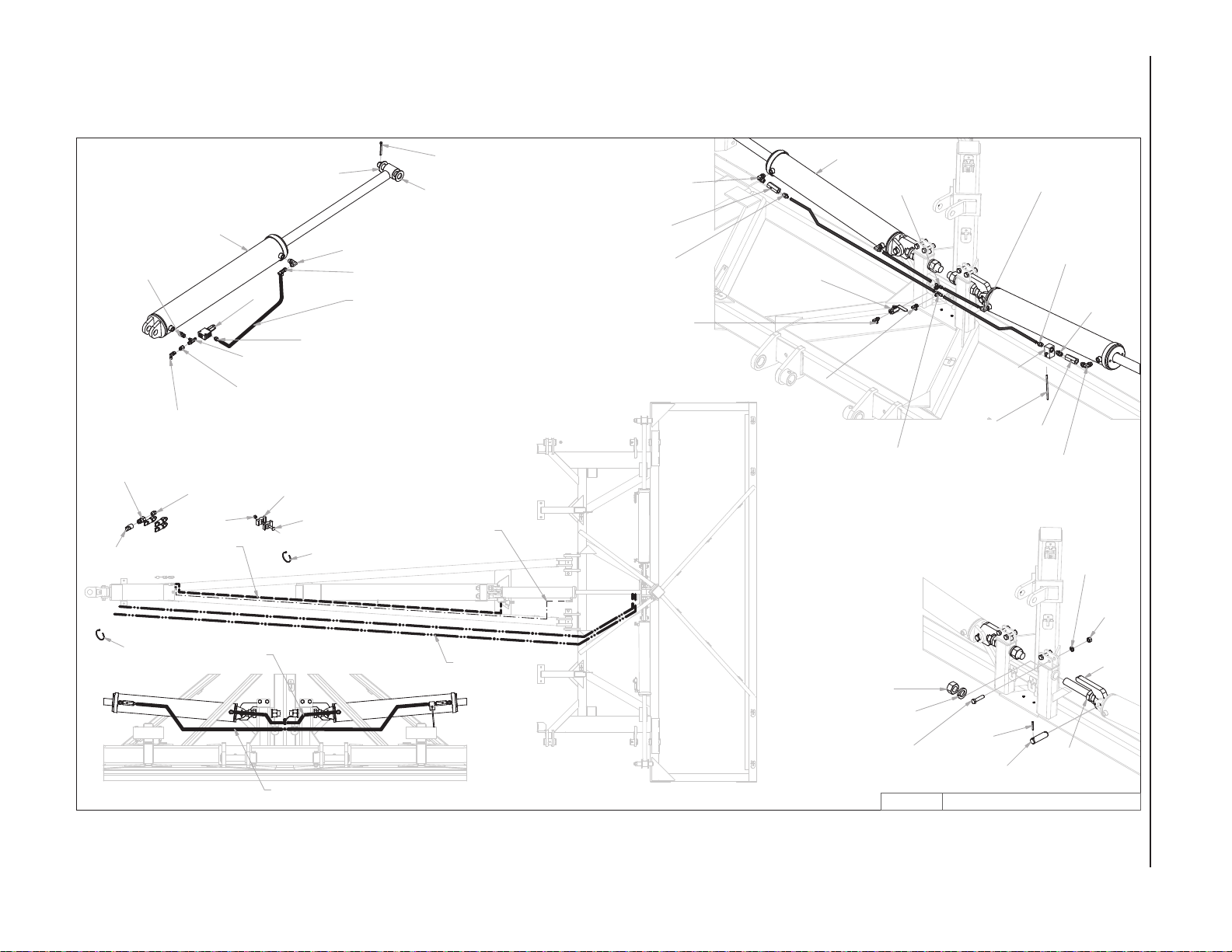

CENTER LIFT CYLINDER
8J5620
3/4" X #6 JIC (F-SW)
8J5700
#6 JIC(F-SW) X #6 JIC(M) 90° ADP
8D3212
3/4" ORB TIP ISO
3/4" ORB X #6 JIC(M)
8S3095
HYD CAPLUG
8C0532
8J7250
8J6004
9/16"X#6(M) RUN-T
8J7216
#6(M) X #6(F) 1/16" RSTR
8J5510
HOSE CLMP
8X0202
3/8" LN
8N3312
3/8"X312"
8X0327
1 1/4" FW
9/16" X #6 JIC(M)
8S2990
8X1130
CRG 3/8"x3"
CENTER TILT
8X0418
8K1620
8J6010
3/4-16ORB X #6JIC(M) 90° ADP
8J5298
#6 JIC(M+M+F-SW) TEE
8N3060
3/8"X60"
8J5500
Port 1
Port 2
BASE END CENTER TILT CYLINDER
8N3348
8G2285
GREEN
3/8"X348"
8C0532
8J5690
3/4-16X3/4-16 ORB M-SW 90° UNION
8J7116
8J5510
3/4" ORB X #6 JIC(M)
8J6000
9/16ORB X #6JIC(M) 90°
*
8J6002
TEE #6JIC(M) X 9/16ORB
8J7000
VALVE 9/16ORB
8J5700
#6 JIC(F-SW) X #6 JIC(M) 90° ADP
8J5300
#6 JIC(M) TEE
*FREE FLOW ARROW MUST POINT TOWARDS 8J5690 90° ELBOW
3/4-16ORB X #6JIC(M) 90° ADP
8J7040
THERMAL RELIEF
8A1954
1/4"X18"
3/4-16X3/4-16 ORB M-SW 90° UNION
8J6010
8J5510
3/4" ORB X #6 JIC(M)
8J5680
3/4"X3/4" UNION
8J7116
*
8J5690
8X0304
5/8" LW
8G2284
NYL. TIE YELLOW
WING LIFT
8N2024
1/4"X24" (2X)
8N2050
1/4"X50" (2X)
8N3390
3/8"X390" (2X)
8X0285
1 1/2" N
8X0315
1-1/2" LW
8X0092
5/8" X 2-3/4"
1/13/2014
2-6
8D9108
1/4 X 2" RP
8K9106
9LR4542.iam/
8X0250
5/8" N
8P7240
8X0286
1 1/2" JN
LANDROLLER WNGFLD HYD
Page 17
SECTION 2 - ASSEMBLY

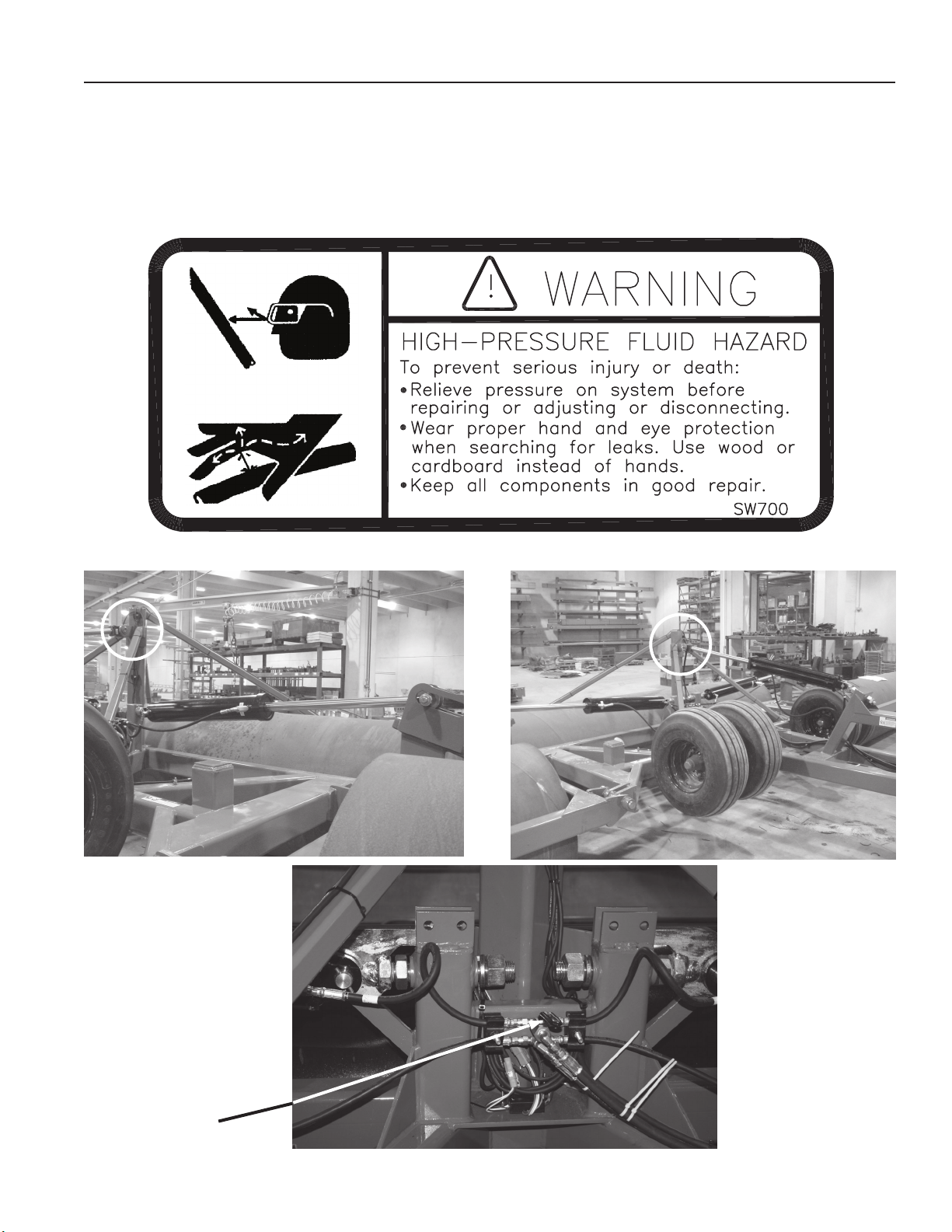

H1. Install Hydraulic components as shown.
a. Leave enough slack at hitch pivot to allow folding machine without stretching or pinching
hydraulic hoses.
b. Secure with nylon ties and clamps provided. Do not over tighten clamps.
H2. Block hydraulic cylinders so rods can extend 32” without contacting any obstructions. Fully
extend and retract cylinders 3 times to insure all air is purged from system.
H3. Connect Rod End of Center Tilt Cylinder to Center Clevis as circled in P-H1 and P-H2.
P-H1
P-H2
WING LOCK
HYD. VALVE
P-H3
2-7
Page 18
WING INSTALLATION
SECTION 2 - ASSEMBLY
8X0095
5/8" X 5"
8P3910
8X0323
5/8" FW
8X0253
NY-LOCK 5/8"-11NC
8X0304
5/8" LW
8D9108
1/4 X 2" RP
8X0281
NY-LOCK 1"
8P5070
3/4 X 4 X 7-3/4"
8K9106
8D0340
8C0532
8X0260
3/4" N
8X0143
1X5"
8X0316
1" FW
8S3059
2.067" CAPLUG
8X0306
3/4" LW
8X0282
8L0252
8P3500
8P3500
8T3300
41'
8P4067 - LEFT
8P4077 - RIGHT 8P4080 - RIGHT 8P4085 - RIGHT
12/31/2009
45' 50'
8P4070 - LEFT (SHOWN)
9LR4542.iam/
WING
8P4075 - LEFT

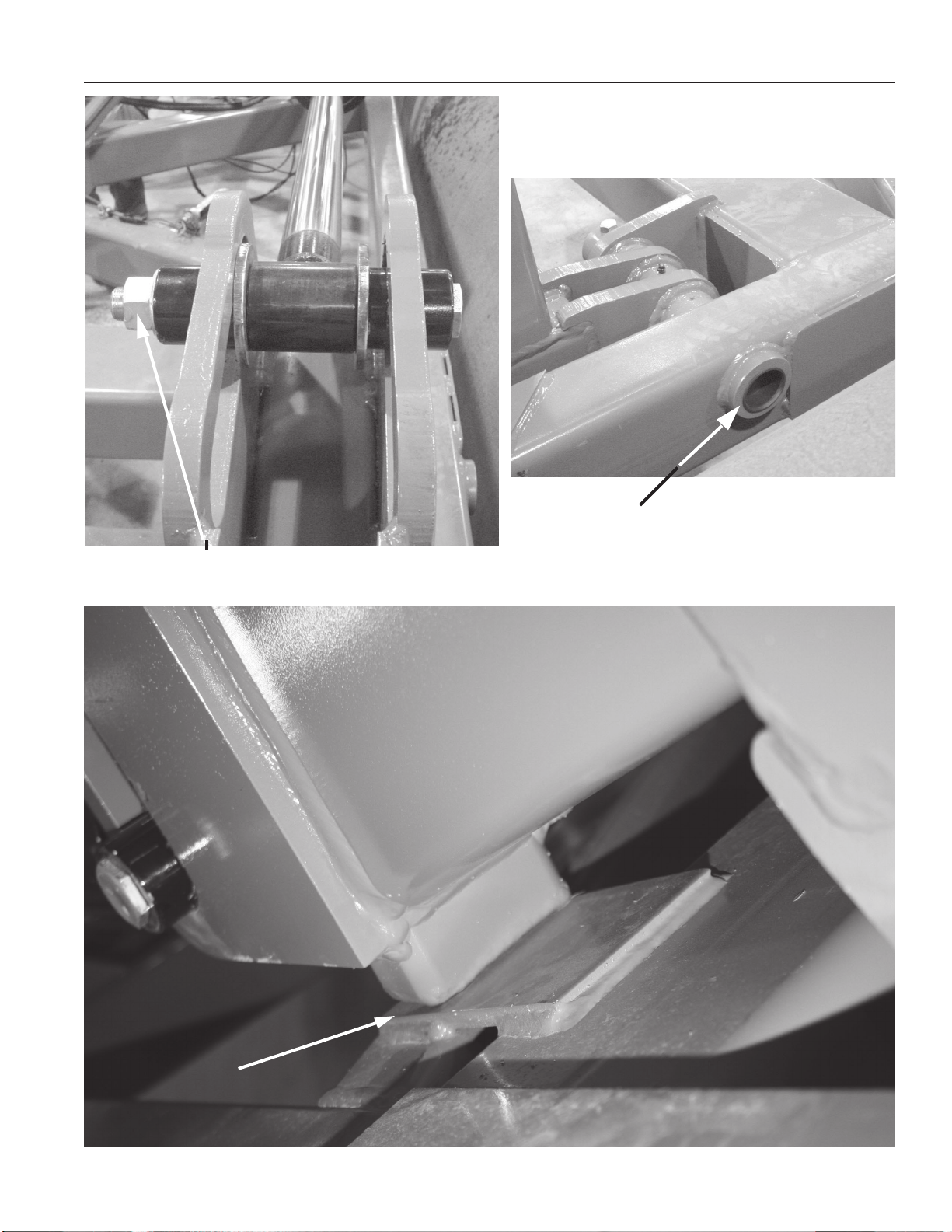

W1. Connect Left and Right Wings with 2” x 13-1/2” Pins. Position retaining holes in the inside
of pivots. Retain pins with 5/8” x 5” bolts, washers and nuts.
W2. Connect rod end of wing lift cylinders as shown. Do Not Overtighten Pivot Bolt (8T3300).
Pivot Bolt must be free to rotate (see photo P-W1).

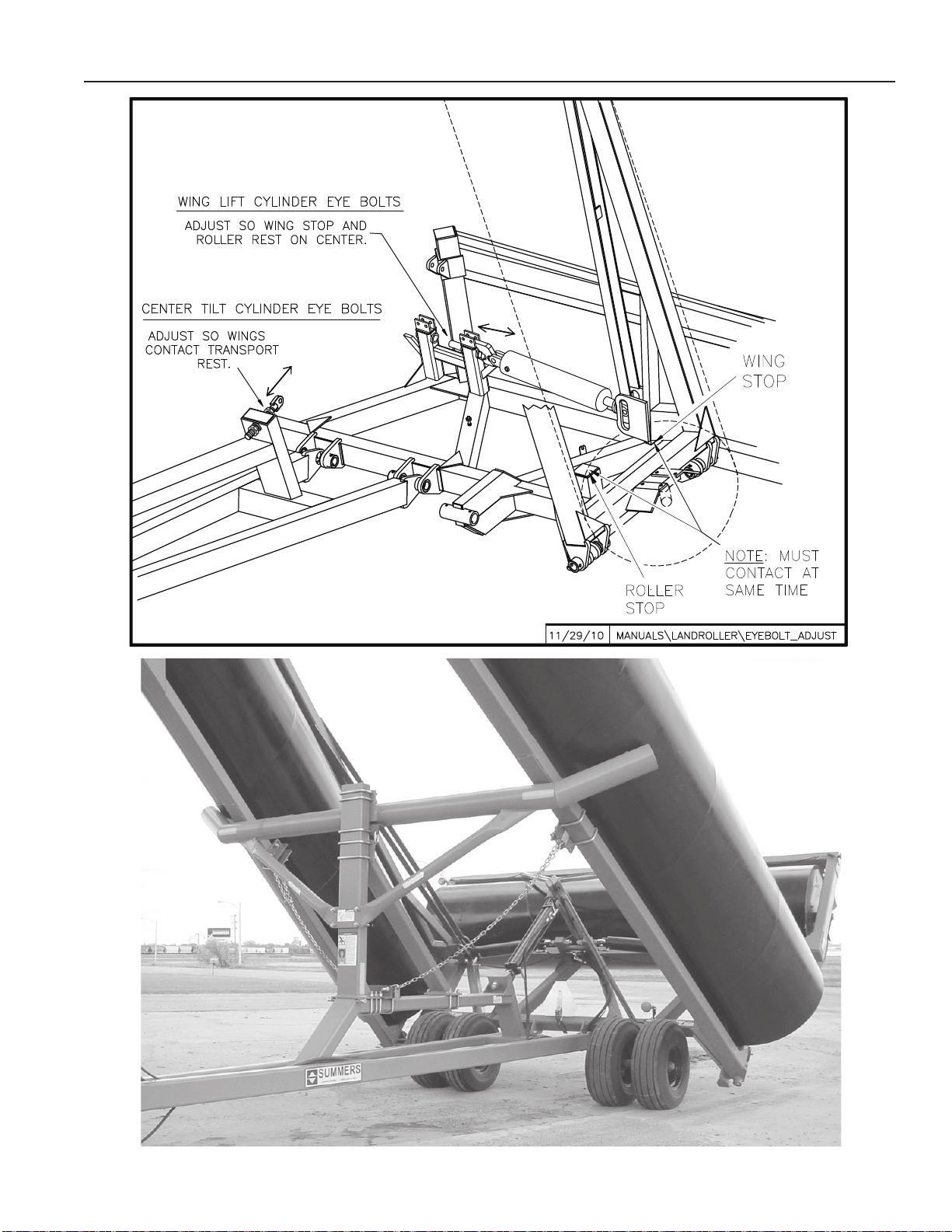

W3. Steps to adjust Cylinder Attach Eye Bolts:
a. Grease Zerks on Wing and Center pivots.
b. Raise Wings by retracting Wing Lift Cylinders.
c. Adjust Wing Lift Cylinder Eye Bolts so wing stop rests on center section when cylin-
ders are fully retracted (see photo P-W3).
d. With Wings folded up tilt machine forward by retracting Center Tilt Cylinder.
e. Adjust Center Tilt Cylinder Eye Bolt so wings rest on Transport Rest when cylinder is
fully retracted (see lower photo page 2-14).
f. Lower machine to Field Position.
W4. Install Wing Locks at location shown. Tighten 1” Lock Nut until one thread is past nylon
lock. Distance between 8P5070 is required for Safety Chain to pass through.
W5. Install 8S3059 Plugs behind rear pivot pins (see photo P-W2).
2-8
Page 19
SECTION 2 - ASSEMBLY
P-W2
P-W1
DO NOT OVER TIGHTEN.
PIVOT BOLT MUST BE FREE TO ROTATE.
8S3059
PLUG
CONTACT AREA:
MUST BE FREE
OF DIRT AND DEBRIS
P-W3
2-9
Page 20
SECTION 2 - ASSEMBLY

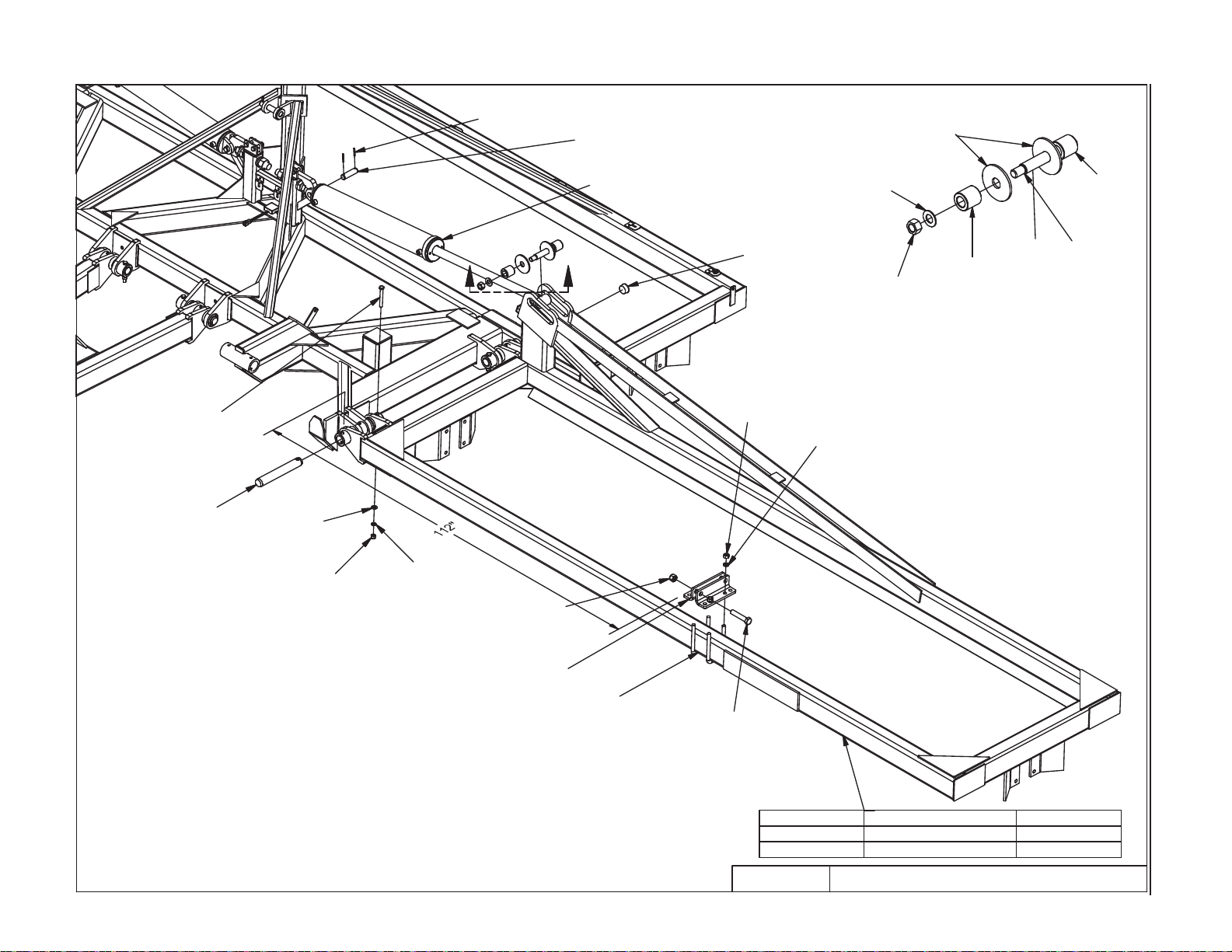

WING ROLLER INSTALLATION
8P3010
PLUG 2-1/2" NPT
STAMPED H LOCATION.
POSITION TOWARDS MACHINE
CENTER, NEXT TO H
8R8010
INGE.
8X0364
2-1/2" FW
(AS REQUIRED ON
OUTSIDE WING SO
WING ROLLER AND
WING STOP
CONTACT CENTER
IN TRANSPORT)
8X0265
8P4213 - 41' MACHINE WIDTH
8P4215 - 45' MACHINE WIDTH
8P4205 - 50' MACHINE WIDTH
3/4" LN
8X0306
3/4" LW
8P5080
8X0111A
3/4" X 2-3/4"
9LR4542.iam/
ROLLER_INSTALL12/11/2013
8R8005
SNAP RING

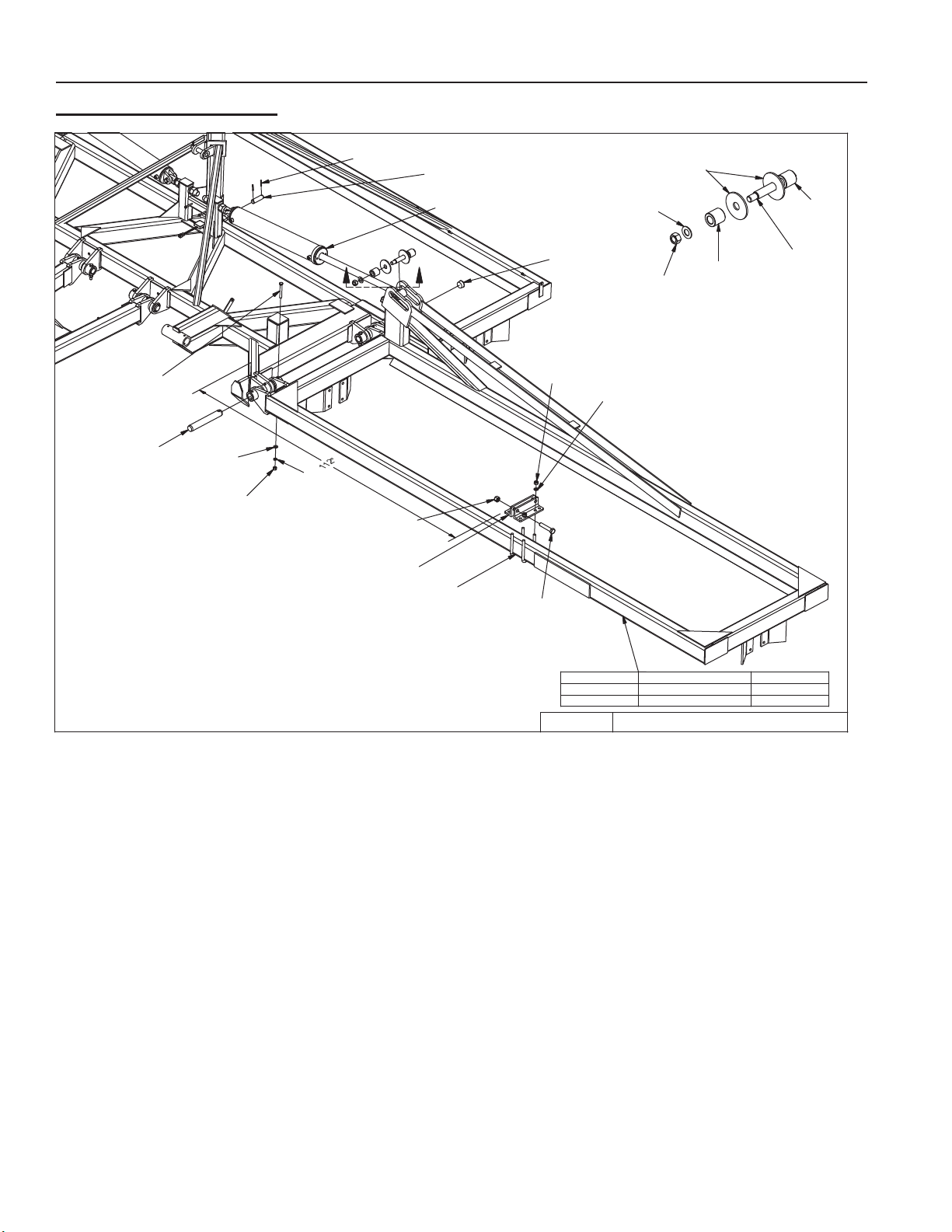

WR1. Clean Roller pivot shafts.
WR2. Position Rollers below Wings. CAUTION: Each Roller weighs up to 4285#, block to prevent
unexpected movement. Be careful when moving them. Use extreme caution when centering
on frame.
WR3. NOTE: An H has been stamped onto one end of each roller, position this H next to the Wing
Hinge.

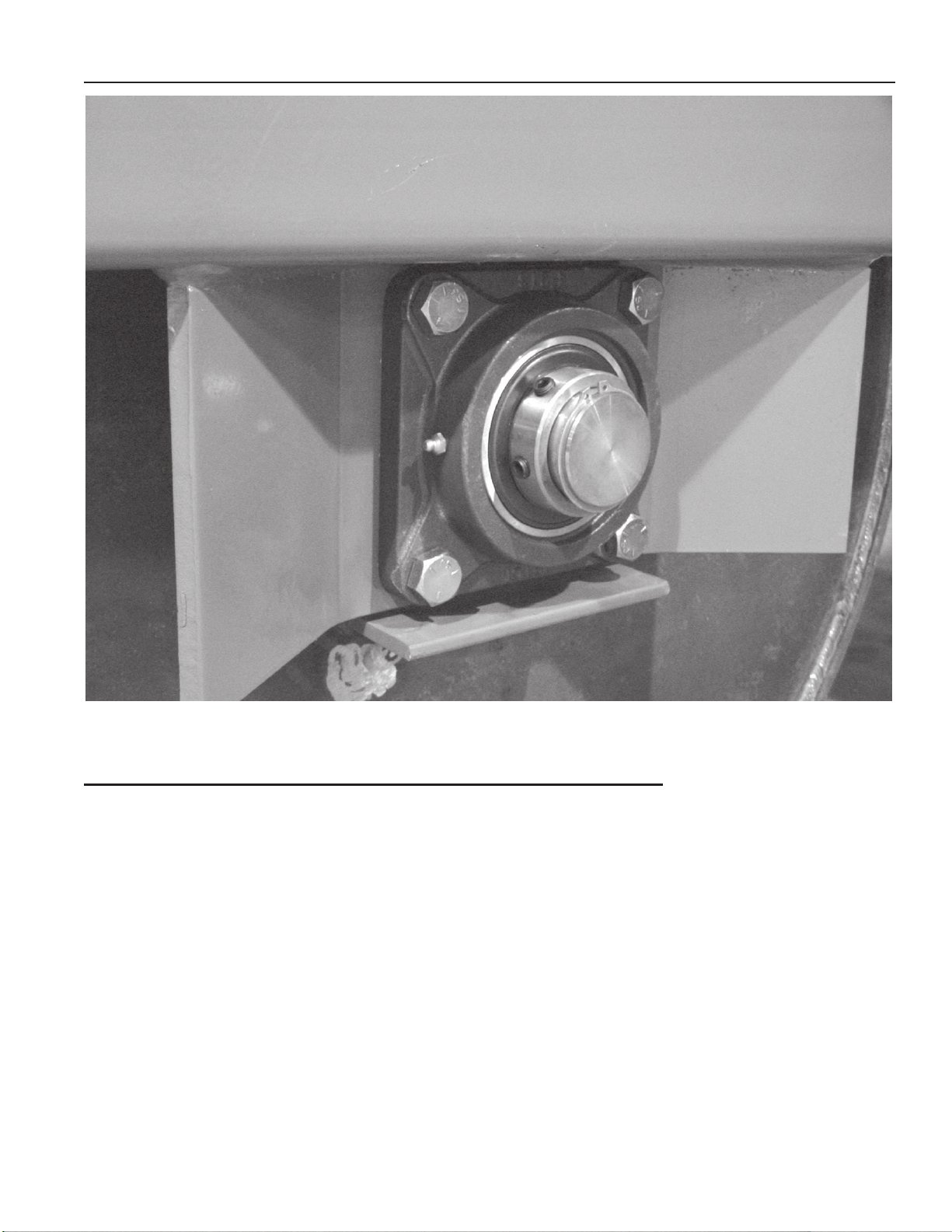

WR4. Install Bearings with grease zerk towards rear of machine. Apply anti-seize to shaft. Secure
to bolt plates with 3/4” x 2-3/4” bolts, lock washers and locknuts. Install Reinforcement Angles
between bottom attachment holes on inside of the bolt plate.
WR5. On the outside bearings only, install 2-1/2” ID at washers before installing snap ring. Install
Snap Rings (8R8005). Adjust quantity of 2-1/2” ID at washers so Wing Stop and Roller con-
tact Center at same time. See page 3-7.
2-10
Page 21
SECTION 2 - ASSEMBLY
FOLD AND UNFOLD LAND ROLLER WITH ROLLERS INSTALLED:
1. See Page 3-5 for STEPS REQUIRED TO FOLD FROM FIELD TO TRANSPORT POSITION. Follow these steps.
2. See Page 3-3 for STEPS REQUIRED TO UNFOLD FROM TRANSPORT TO FIELD
POSITION. Follow these steps.
NOTE: To prevent rust, spray paint Bearings and Roller Shaft after assembly is complete.
2-11
Page 22
SECTION 2 - ASSEMBLY

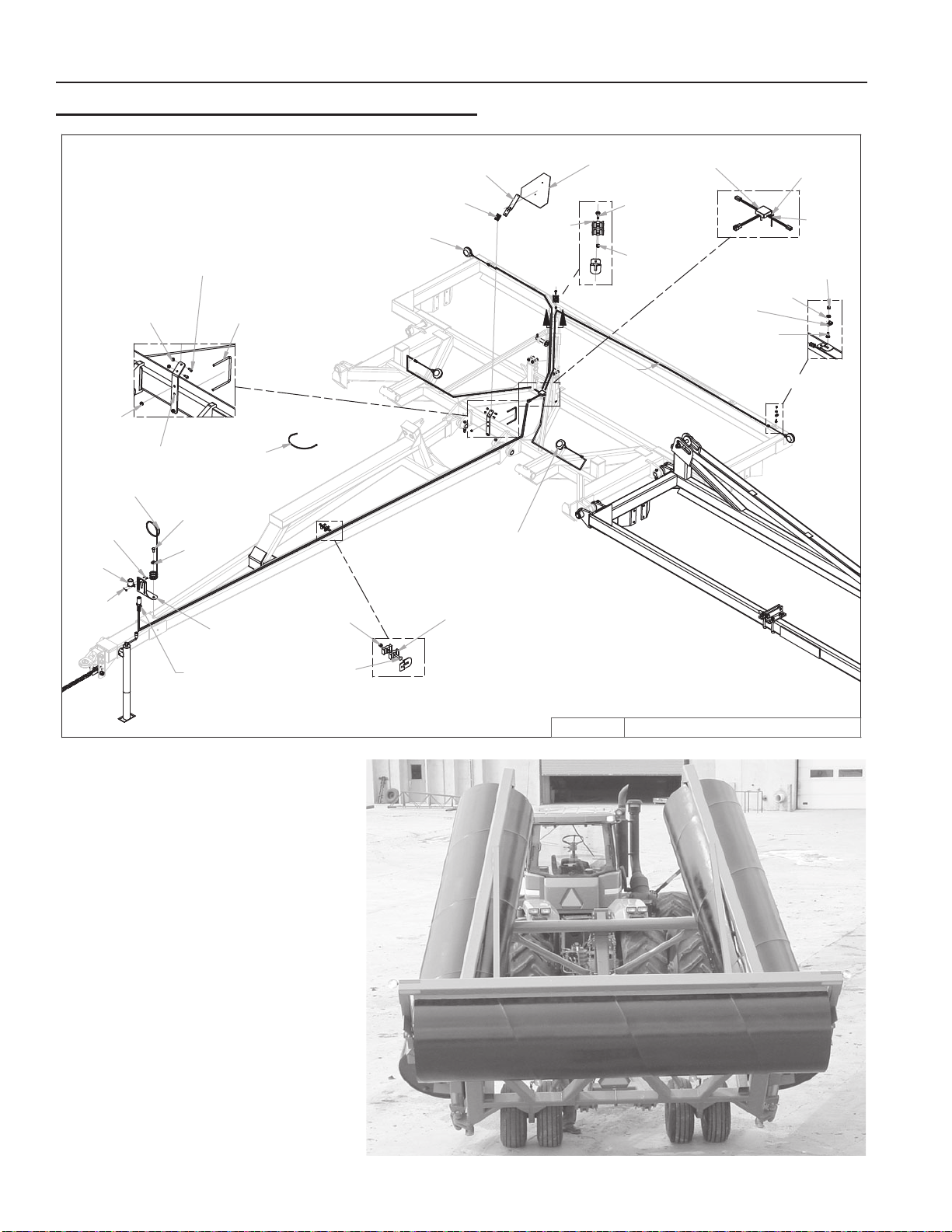

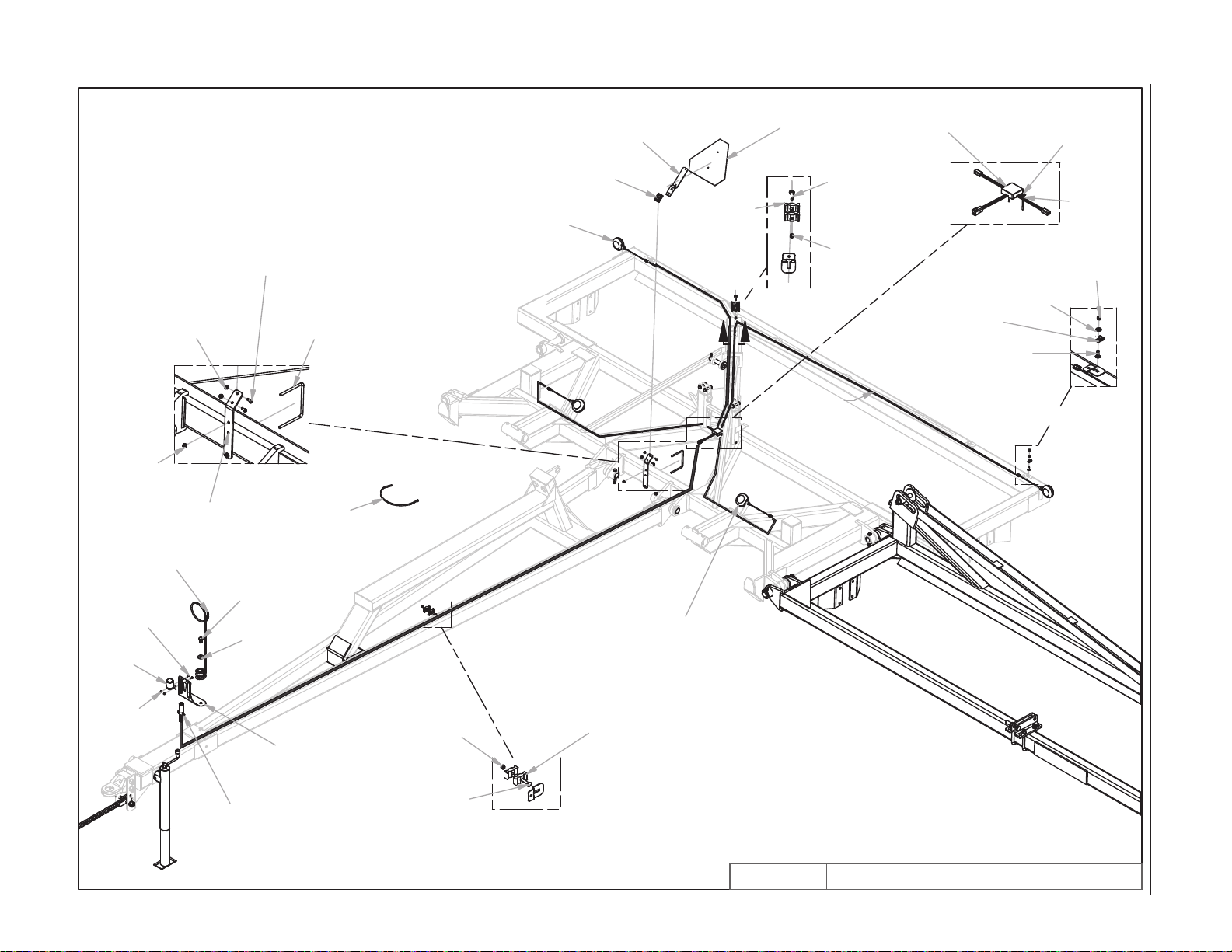

SAFETY LIGHT & DECAL INSTALLATION
8X0203
3/8" FN
8X0000
1/4 X 3/4"
8K8067
8X0211
5/16" FN
8D8500
8K8202
8X0021A
5/16 X 1"
3/8X6-1/16X5"
8X0110
3/4 X 1.25"
8X0318
3/4" FW
8A1155
8A4048
11" TIE
8K8030A
MODULE-ENHANCER
8X1120
CRG 3/8"x2"
8X0202
3/8" LN
8T2988
CRG 3/8"x1"
(1" USED ON CENTER
AND UPRIGHT SUPPORTS)
SCALE 1 / 17
8X0303
1/2" LW
8X1110
8X0164
#10 X 3" SCREW
DETAIL A
D
8X0205
#10 NUT
8X0202
3/8" LN
DETAIL D
SCALE 1 / 17
8K8090A
8S1124
8S1126
B
8S2990
HOSE CLMP
E
A
8S1120
(2" USED ON UPRIGHT)
8K8075A
EXTENSION
HARNESS
C
8K8095A
RED LIGHT
DETAIL E
SCALE 1 / 17
8X0223
1/4" FN
8D8490
8K8070B
7-PIN MAIN
HARNESS
CRG 3/8"x3"
(3" USED ON HITCH
AND CENTER
CROSS BRACES)
S1. Install Safety Light Kit and
SMV Sign as shown.
a. Leave slack at Hitch
Pivot to allow folding
machine without stretching or pinching wire harness.
b. Secure wire harness
with clamps and nylon
ties provided.
S2. Attach Decals at locations
shown on page 1-6.
8X0202
3/8" LN
8X1130
DETAIL C
SCALE 1 / 17
8S2990
HOSE CLMP
9LR4542.iam/
SAFETY LIGHTS12/11/2013
2-12
Page 23
SECTION 2 - ASSEMBLY
2-13
Page 24

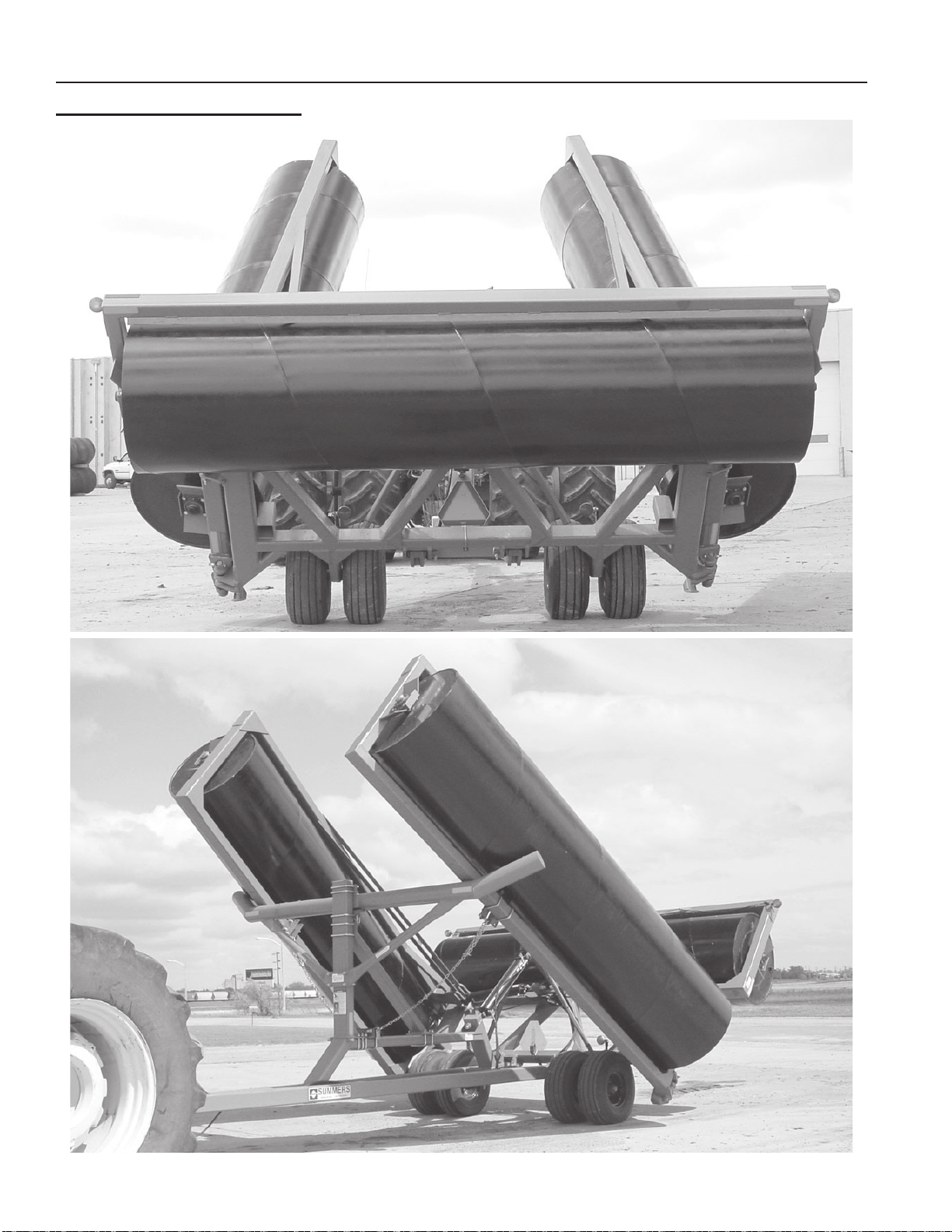

ASSEMBLY COMPLETE
SECTION 2 - ASSEMBLY
2-14
Page 25
SECTION 3 – OPERATION
LAND ROLLER OPERATION SAFETY
1. READ AND UNDERSTAND Operator’s Manual before using machine. Review at least annually
thereafter.
2. VERIFY that all safety devices and shields are in place before using machine.
3. KEEP hands, feet, hair and clothing away from moving parts.
4. STOP engine, place all controls in neutral, set parking brake, remove ignition key and wait
for all moving parts to stop before servicing, adjusting, maintaining or unplugging.
5. BE CAREFUL when working around high pressure hydraulic system.
6. ALWAY S make sure Land Roller is lowered into eld position (cylinders extended), is blocked to
prevent movement and that pressure is relieved from hydraulic circuits before servicing.
7. DO NOT ALLOW RIDERS.
8. USE EXTREME CARE when making adjustments.
9. KEEP CHILDREN AWAY from machinery at all times.
10. NEVER ALLOW anyone to walk or work under Land Roller wings or center section.
11. WARNING – DO NOT ATTEMPT to raise machine into transport position if mud has built up on
rollers or if machine weight has been increased by any other means. Mechanical failure may
occur.
STEPS PRIOR TO OPERATION:
1. COMPLETE WARRANTY REGISTRATION CARD.
A. Complete and return WARRANTY REGISTRATION CARD located at the beginning of this
manual. Returning this card entitles you to a free gift.
B. Complete the OWNER REGISTER also located at the beginning of this manual (Serial Num-
ber is located by the front of the hitch). Owner register information may be needed when
ordering parts.
2. VERIFY TRACTOR REQUIREMENTS.
A. WARNING: Land Roller must be attached directly to tractor drawbar and not an intermediate
towed vehicle or implement. Loss of control could result causing serious injury or death to
you or others.
B. Ability to safely operate the Summers Land Roller is determined by both tractor horsepower
and weight. The minimum tractor weight for operating this implement is 16,000 lbs. Minimum tractor engine horsepower is 160. Dual tires or single tires set at maximum width are
required for safe operation of the Land Roller.
C. The Summers Land Roller must be connected to a tractor drawbar with a locked draw pin.
The tractor drawbar must be able to withstand 2000 lb. of tongue weight during transport
(2200 lb. for 50’) and 2000 lb. tongue lifting force while folding in and out of transport position.
3-1
Page 26
SECTION 3 – OPERATION

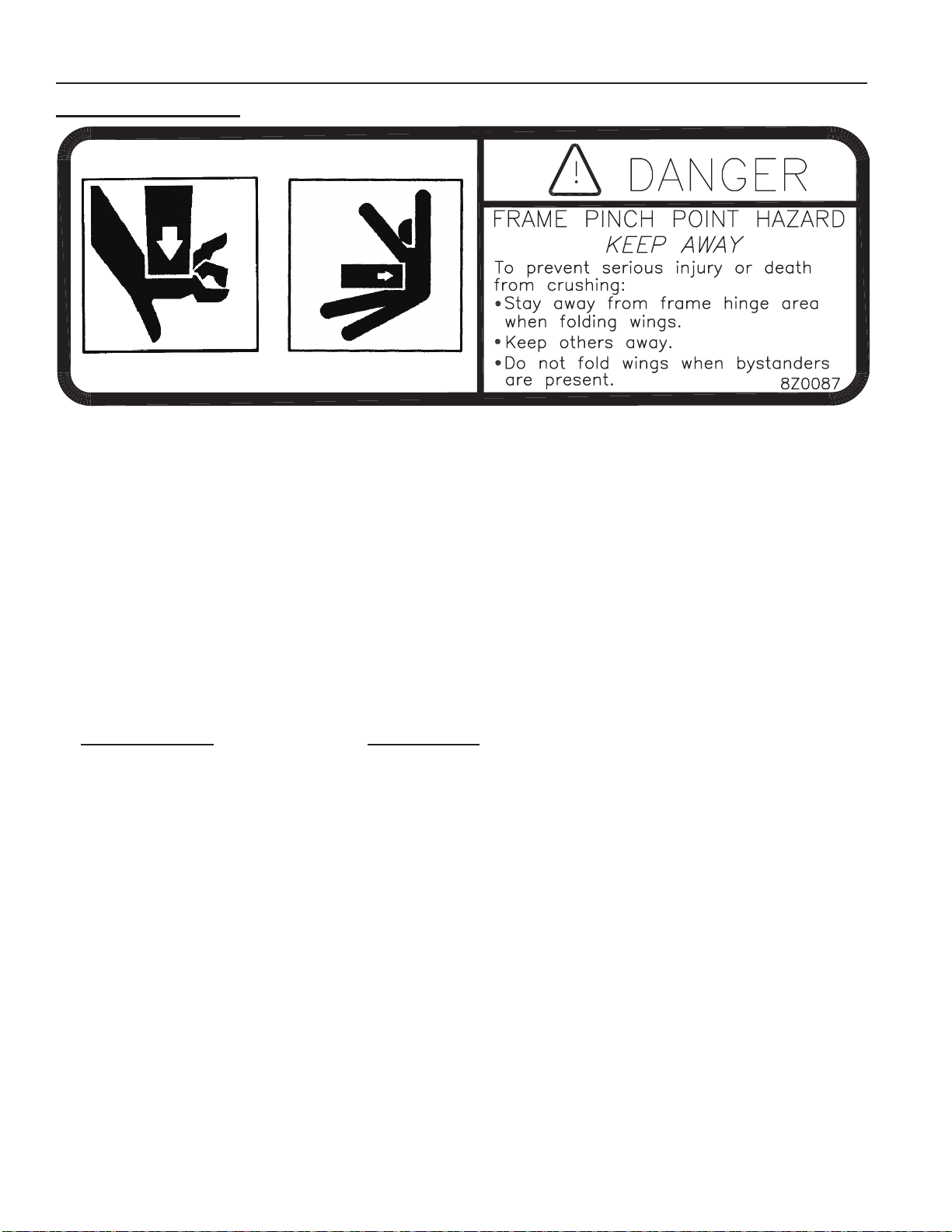

INITIAL HOOKUP:
1. Make tractor to hitch connection with locking draw pin and safety chain.
2. Retract jack and rotate into storage position.
3. Insure that tips and couplers are CLEAN. Plug Center Tilt Cylinder hoses into desired tractor
outlet. Adjust hydraulic ow rate to 35% of maximum.
4. Plug Wing Lift Cylinder hoses into desired tractor outlet. Adjust hydraulic ow rate to 35% of
maximum.
5. Connect safety Light Kit wiring harness to 7 pin receptacle.
6. If Land Roller is in Transport Position, follow “Steps Required to Unfold from Transport to Field
Position”, page 3-3.
7. INITIAL CHECK – with machine in Field Position
A. After receiving or assembling your Land Roller, it is a good practice to double check the entire
machine so all fasteners are securely tightened.
B. Make sure all grease ttings are in place and greased properly.
C. Inate tires to recommended ination pressure (see page 4-2), check that wheel nuts are
tightened to 240 ft-lb and check that wheel bearings are correctly adjusted.
NOTE: The rst time the Land Roller is folded into Transport Position and after any machine ad-
justment, it is very important to follow “STEPS REQUIRED TO FOLD FROM FIELD TO
TRANSPORT POSITION”, page 3-5. In addition to these steps, it is very important to retract
hydraulic cylinders slowly to insure Cylinder Attach Eye Bolts are correctly adjusted and that
hydraulic hoses and wires are not stretched or pinched.
3-2
Page 27
SECTION 3 – OPERATION
STEPS REQUIRED TO UNFOLD FROM TRANSPORT TO FIELD POSITION:
1. WARNING: Land Roller must be attached directly to tractor drawbar and not an intermediate towed
vehicle or implement. Loss of control could result causing serious injury or death to you or others.
2. Ability to safely operate the Summers Land Roller is determined by both tractor horsepower and
weight. The minimum tractor weight for operating this implement is 16,000 lb. Minimum tractor
engine horsepower is 160. Dual tires or single tires set at maximum width are required for safe
operation of the Land Roller.
3. The Summers Land Roller must be connected to a tractor drawbar with a locked draw pin. The
tractor drawbar must be able to withstand 2000 lb of tongue weight during transport (2200 lb. for
50’) and 2000 lb tongue lifting force while folding in and out of transport position.
4. Park tractor and Land Roller on a rm level surface with enough open area that will allow unfolding
Land Roller without contacting obstructions. WARNING: Land Roller height increases to:
MACHINE WIDTH FOLDING MAXIMUM MACHINE HEIGHT
41’ 17’
45’ 18’9”
50’ 21’6”
during fold and unfold sequence, insure
that wings will not contact overhead obstructions.
5. Unhook Wing Safety Lock Chains. Hook
Chains onto storage rings located below
Transport Cross Tube. Open wing lock
hydraulic valve.
3-3
Page 28
SECTION 3 – OPERATION

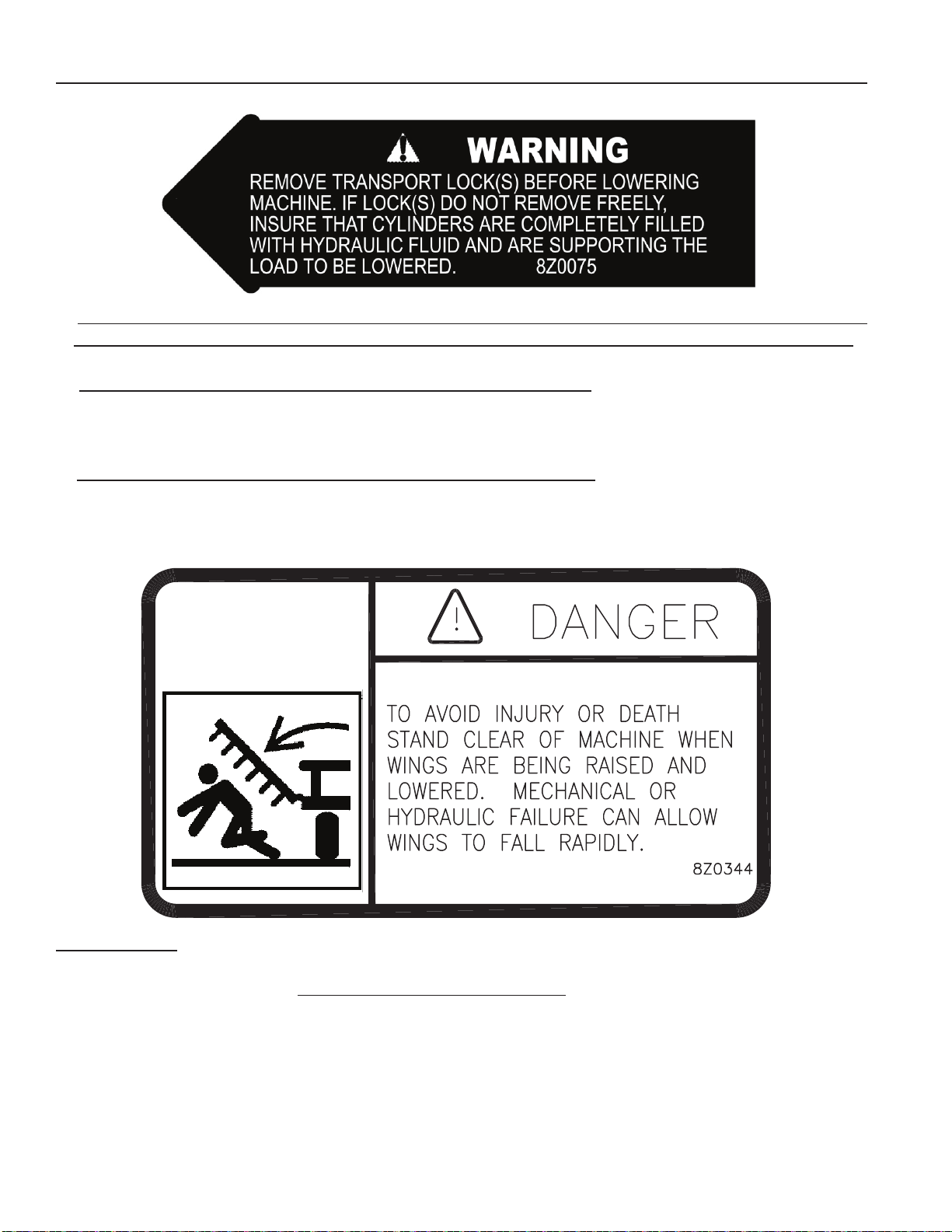

6. Operate tractor hydraulics from operator station only. Do not allow anyone to stand near Land
Roller when folding or unfolding. Do not raise or lower Land Roller when implement is moving.
7. Fully extend Center Tilt Cylinder, Wings will rotate rearward, maintain hydraulic pressure an
additional 5 seconds to insure cylinder and hoses are fully charged with oil. Retract Center Tilt
cylinder approximately 1/2”.
8. Lower wings with caution by fully extending Wing Lift cylinders.
IMPORTANT:
Two one-way restrictors are installed in the Wing lowering hydraulic circuit. These restrictors reduce
the chance of Wing free fall. Do Not remove these restrictors!
3-4
Page 29
SECTION 3 – OPERATION

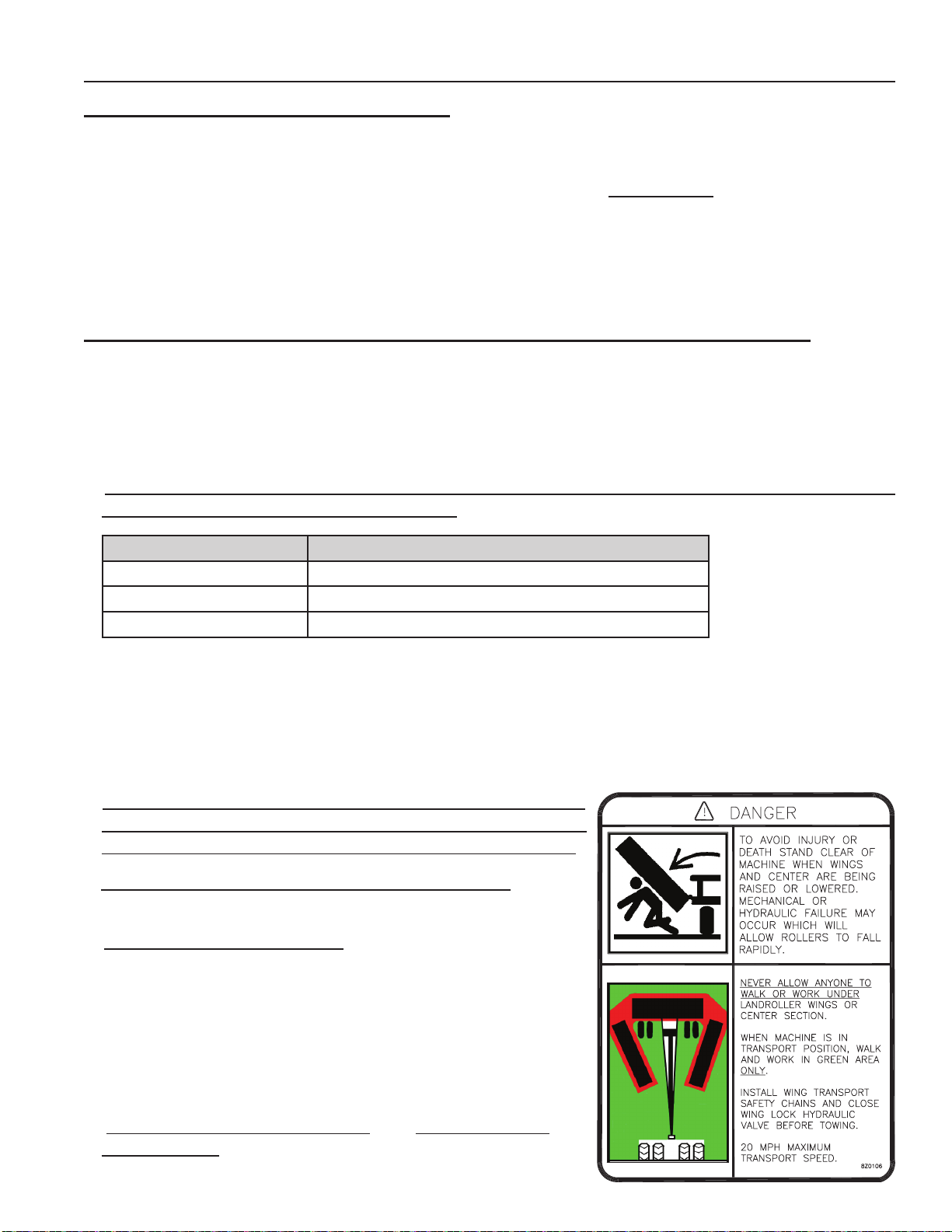

LAND ROLLER FIELD OPERATION:
1. If Land Roller is in Transport Position, follow “Steps Required to Unfold Land Roller from Transport
to Field Position”, page 3-3.
2. When in eld position, place Center Tilt Cylinder remote into oat position. This will allow rollers
to self level.
3. Choose an operating speed which achieves desired results. Operating at over 7 MPH will decrease
effectiveness and increase chance of immovable rocks denting roller tube. Denting of roller tube
is NOT covered by warranty.
STEPS REQUIRED TO FOLD FROM FIELD TO TRANSPORT POSITION:
1. WARNING: Never tow this implement with less than a 16,000 lb vehicle.
2. The Summers Land Roller must be connected to a tractor drawbar with a locked draw pin. The
tractor drawbar must be able to withstand 2000 lb of tongue weight during transport (2200 lb. for
50’) and 2000 lb tongue lifting force while folding in and out of transport position.
3. Park tractor and Land Roller on a rm level surface with enough open area that will allow folding
Land Roller without contacting obstructions. Land Roller height increases to:
MACHINE WIDTH FOLDING MAXIMUM MACHINE HEIGHT
41’ 17’
45’ 18’9”
50’ 21’6”
during fold and unfold sequence, insure that wings will not contact overhead obstructions. Operate
tractor hydraulics from the operator station only. Do not allow anyone to stand near Land Roller
when folding or unfolding.
4. WARNING: DO NOT ATTEMPT to raise machine into transport position if mud has built up
on rollers or if machine weight has been increased by any other means.
5. Fully extend Center Tilt cylinder, maintain hydraulic pressure an
additional 5 seconds to insure the cylinder and hoses are fully
charged with oil. Retract Center Tilt cylinder approximately 1/2”.
6. Raise wings with caution by retracting Wing Lift cylinders. Reduce
cylinder retract speed when wings are near transport position.
7. Fully retract Center Tilt cylinder, Wings will rotate forward and
must rest on Transport Cross Tube.
IMPORTANT: If Wings do not rest on Transport Cross Tube
or if there is additional cylinder stroke after Wings contact
Transport Cross Tube, follow “STEPS REQUIRED TO UNFOLD FROM TRANSPORT TO FIELD POSITION” page 3-3
and “PROCEDURE TO ADJUST CYLINDERS” page 3-6.
8. Install Wing Safety Lock Chains and close wing lock
hydraulic valve.
3-5
Page 30
SECTION 3 – OPERATION
PROCEDURE TO ADJUST HYDRAULIC CYLINDER ATTACH EYE BOLTS:

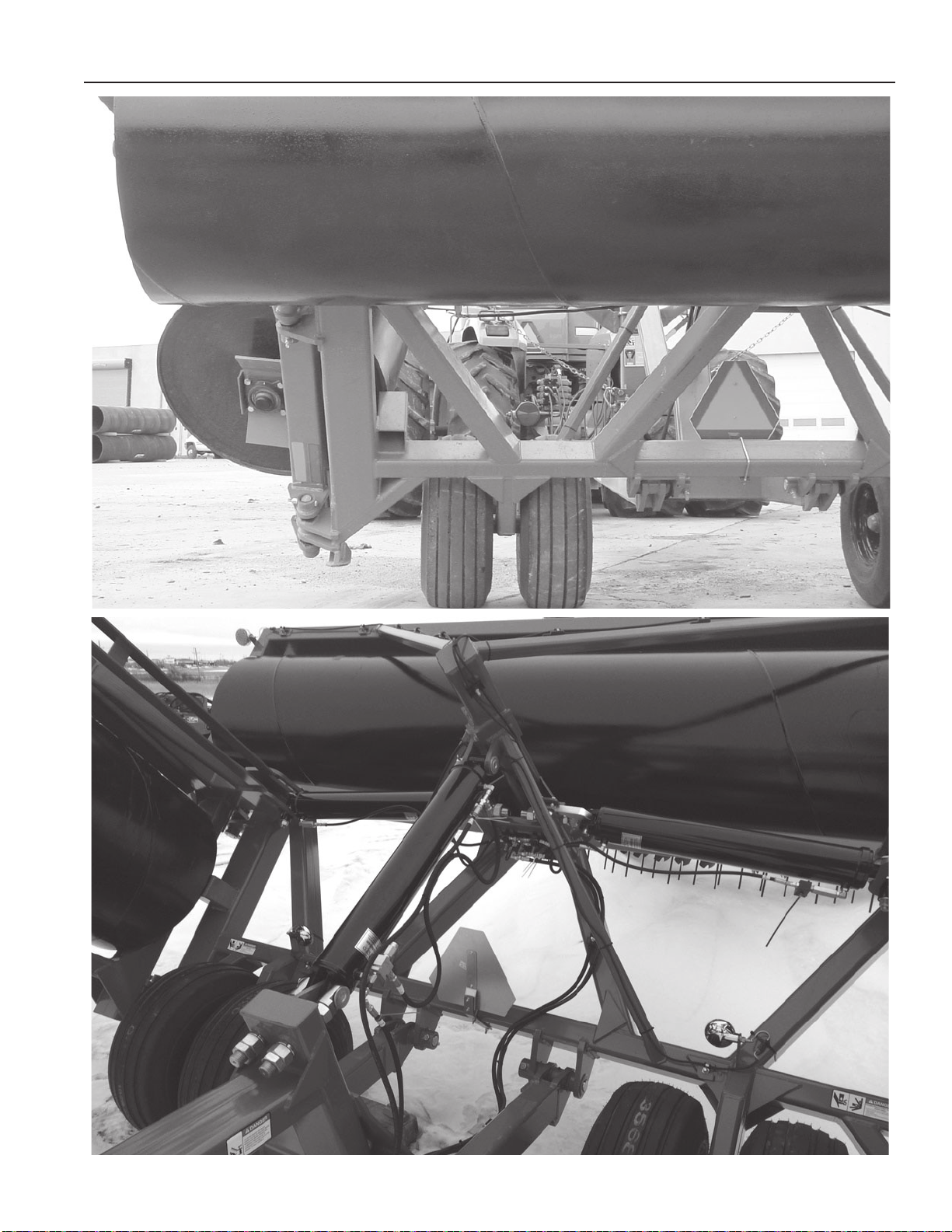

Refer to the drawing and photo on next page before adjusting Attachment Eye Bolts. Follow these
steps:
1. Adjust Wing Lift Cylinder Eye Bolts FIRST. Adjust Eye Bolts so Wing Stop and Roller rest on
Center contact areas when Wing Lift Cylinder is fully retracted.
a. If Wing does not contact Center, lower wing, relieve hydraulic pressure and adjust Eye Bolt
towards machine center line.
b. If Wing contacts Center before Wing Lift Cylinder is fully retracted, lower wing, relieve hy-
draulic pressure and adjust Eye Bolt away from machine center line.
c. If Wing Stop and Roller do not contact Center at same time, adjust quantity of 2-1/2” at
washers (8X0364) on outside Roller Shaft. See page 2-10.
NOTE: Dirt and debris must be cleared from contact area on Center before folding into transport
position. Dirt and debris in this area can prevent wing from folding correctly.
2. Next adjust Center Tilt Cylinder Eye Bolt. Adjust Eye Bolt so Wings contact Transport Rest Cross
Tube when Cylinder is fully retracted. Either Roller Tube or Wing Frame can make contact.
a. If Wings do not contact Cross Tube, lower machine into eld position, relieve hydraulic
pressure and adjust Eye Bolt forward.
b. If Wings contact Cross Tube before Center Tilt Cylinder is fully retracted, lower machine
into eld position, relieve hydraulic pressure and adjust Eye Bolt rearward.
c. If enough thread is exposed on the hole end of the Eye Bolt, locate 1-1/2” Jam Nut next to
cylinder to provide additional support.
d. If required the Upright can be adjusted towards the front or back OR the Cross Tube can
be adjusted up or down to allow Wings to fold correctly.
IMPORTANT: Hydraulic pressure must be relieved from cylinders before adjusting eyebolts. With
Land Roller in Field Position; shut off tractor, engage parking brake and relieve hydraulic pressure
by cycling remote lever.
IMPORTANT: When Cylinder Attach Eye Bolts are tightened insure that cylinder pins are aligned.
Misaligned cylinder pins will create additional stress on hydraulic cylinders causing premature
failure which can create a potentially hazardous situation.
NOTE: After any machine adjustment, it is very important to follow “STEPS REQUIRED TO FOLD
FROM FIELD TO TRANSPORT POSITION”, page 3-5. In addition to these steps, it is very important
to retract hydraulic cylinders slowly to insure Cylinder Attach Eye Bolts are correctly adjusted and
that hydraulic hoses and wires are not stretched or pinched.
3-6
Page 31
SECTION 3 – OPERATION
3-7
Page 32
SECTION 3 – OPERATION

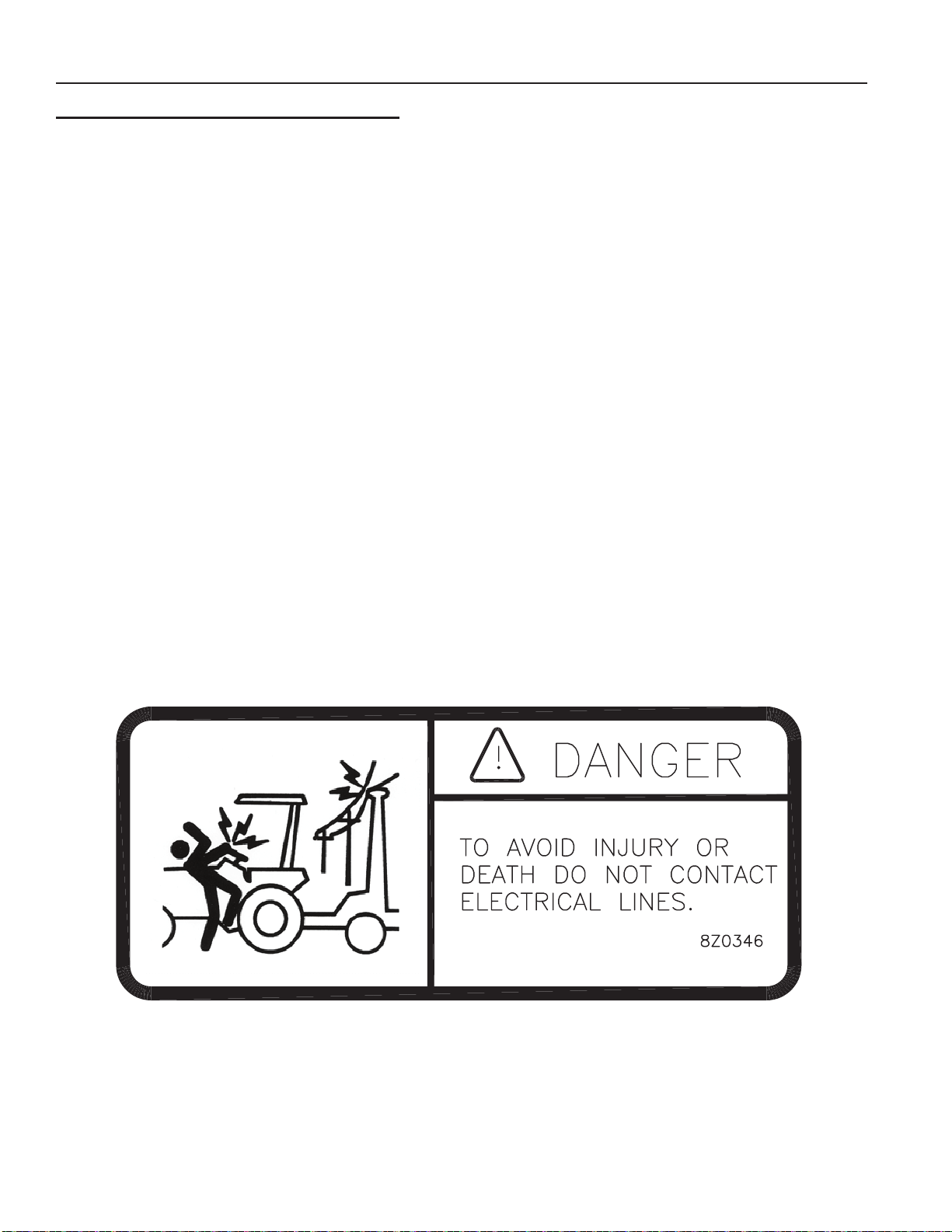

TRANSPORTING LAND ROLLER:
1. If Land Roller is in Field Position, follow “Steps Required to Fold Land Roller from Field to Trans-
port Position”, page 3-5.
2. Ability to safely operate the Summers Superroller is determined by both tractor horsepower and
weight. The minimum tractor weight for operating this implement is 16,000 lbs. Minimum tractor
engine horsepower is 160. Dual tires or single tires set at maximum width are required for safe
operation of Land Roller.
3. ONLY TOW at a safe speed – 20 MPH MAXIMUM. Use caution when making corners or meeting
trafc.
4. USE Safety Lights and Safety Chain between tractor drawbar and implement hitch when transport-
ing on public roads.
5. ALWAYS install wing transport safety chains and close wing lock hydraulic valve before transport-
ing on public roads.
6. FOLLOW ALL local laws governing transporting of farm machinery.
7. Use additional caution and reduce speed when towing under adverse conditions, when turning
and when on unlevel surfaces.
8. Stay clear of overhead lines and other overhead obstructions.
9. Frequently check for trafc from rear, especially during turns.
3-8
Page 33
SECTION 3 – OPERATION

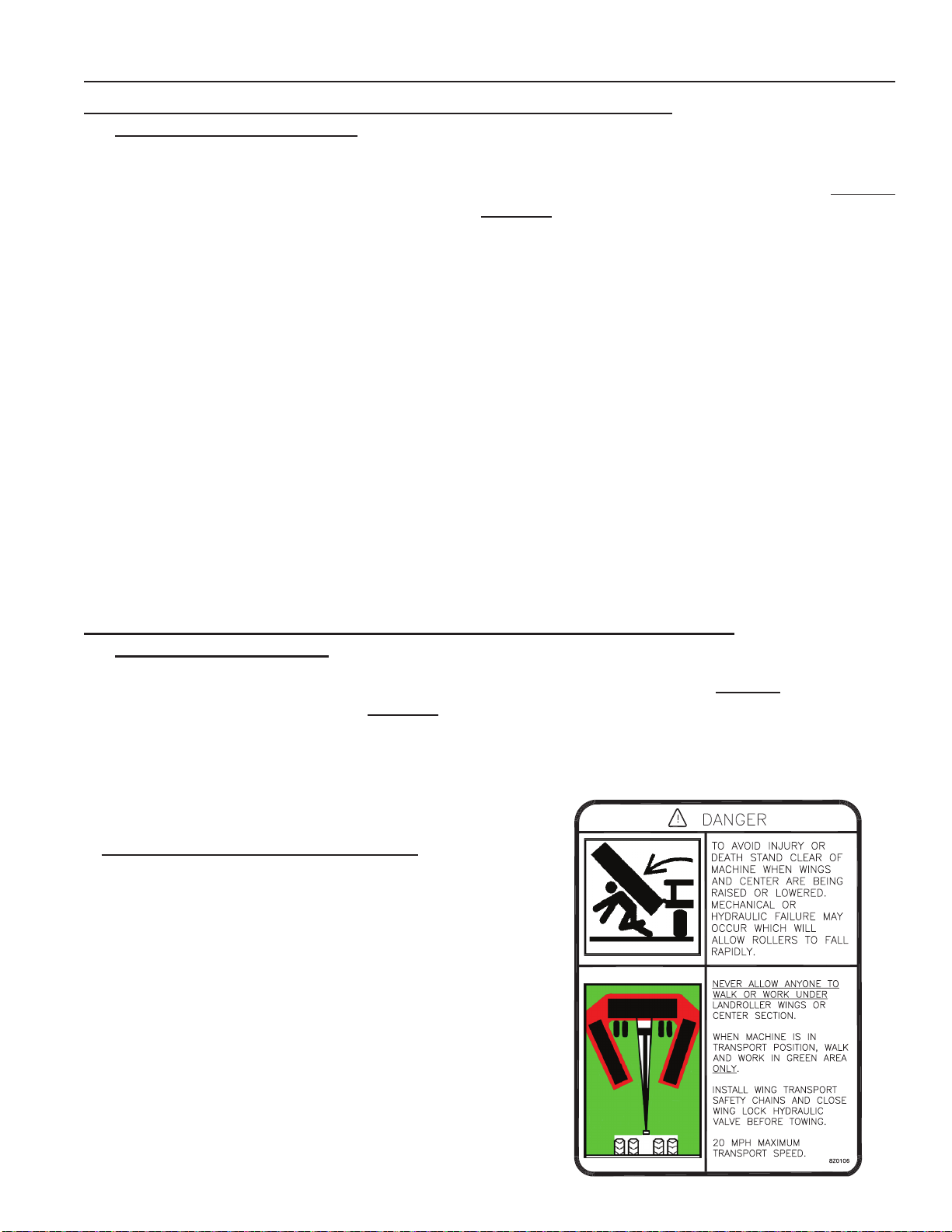

UNHOOKING LAND ROLLER FROM TRACTOR IN FIELD POSITION
(HIGHLY RECOMMENDED):
1. WARNING: It is highly recommended to unhook Land Roller in Field Position ONLY. NEVER
unhook Land Roller if positioned hydraulically between Field and Transport Position.
2. Choose a rm level surface with enough open area that will allow unfolding Land Roller without
contacting any obstructions. If Land Roller is in Transport Position, follow “Steps Required to
Unfold Land Roller from Transport to Field Position”.
3. With Land Roller in Field Position; shut off tractor, engage parking brake and relieve hydraulic
pressure by cycling remote lever.
4. Block rollers to prevent movement after hitch pin is removed.
5. Check that hitch pin is not bound with sideways or front to back pressure. If hitch pin is not free,
carefully reposition tractor.
6. Rotate jack into vertical position and extend jack until hitch piece lifts off tractor drawbar.
7. Disconnect wiring harness, hydraulic hoses and safety chain.
8. Recheck that hitch pin is free, if so, stand to the side of the hitch and remove hitch pin.
9. Carefully drive ahead.
UNHOOKING LAND ROLLER FROM TRACTOR IN TRANSPORT POSITION
(NOT RECOMMENDED):
1. It is highly recommended to unhook Land Roller in Field Position ONLY. NEVER unhook Land
Roller if positioned hydraulically between Field and Transport Position.
2. Wing weight of the Summers Land Roller transfers forward in Transport Position creating approximately 2000 LB of tongue weight (2200 lb. for 50’), keep this in mind and be careful when around
Land Roller. DO NOT ALLOW ANYONE TO WALK OR WORK UNDER LAND ROLLER WINGS
OR CENTER SECTION.
3. ONLY IF ABSOLUTELY NECESSARY, the Land
Roller can be unhooked from tractor in Transport
Position if the following precautions are taken.
A. Choose a very rm level surface.
B. Install Wing Safety Lock Chains and close wing
lock hydraulic valve.
3-9
Page 34
SECTION 3 – OPERATION
C. Block tires to prevent movement after hitch pin is removed.
D. Check that hitch pin is not bound with side or front to back pressure. If hitch pin is not free,
carefully reposition tractor.
E. With hitch pin free, if hitch piece lifts up on tractor drawbar, negative tongue weight exists.
DO NOT UNHOOK LAND ROLLER WITH NEGATIVE TONGUE WEIGHT. Negative tongue
weight can be caused by excessive ground slope (front of hitch higher than center section)
or incorrect machine adjustment (wings not rotated far enough ahead to transfer weight to
hitch piece). Relocate Land Roller to a more level surface, if negative tongue weight still
exists, follow “STEPS REQUIRED TO UNFOLD FROM TRANSPORT TO FIELD POSITION”
and adjust Land Roller to create adequate tongue weight.
NOTE: After any machine adjustment, it is very important to follow “STEPS REQUIRED TO FOLD FROM FIELD TO TRANSPORT POSITION”. In addition to these
steps, it is very important to retract hydraulic cylinders slowly to insure Cylinder
Attach Eye Bolts are correctly adjusted and that hydraulic hoses and wires are not
stretched or pinched.
F. If hitch piece is held up by tractor drawbar and can not be lifted off, positive tongue weight
exists. If positive tongue weight exists, carefully follow steps G through J.
G. Rotate jack into vertical position, place sturdy block under jack to distribute load over larger
area and extend jack until hitch piece just lifts off tractor drawbar.
H. Disconnect wiring harness, hydraulic hoses and safety chain.
I. Recheck that hitch pin is free, if so, stand to the side of the hitch and remove hitch pin.
J. Carefully drive ahead.
3-10
Page 35
SECTION 4 – MAINTENANCE
MAINTENANCE SAFETY
1. STOP engine, place all controls in neutral, set parking brake, remove ignition key and wait for all
moving parts to stop before servicing, adjusting or maintaining.

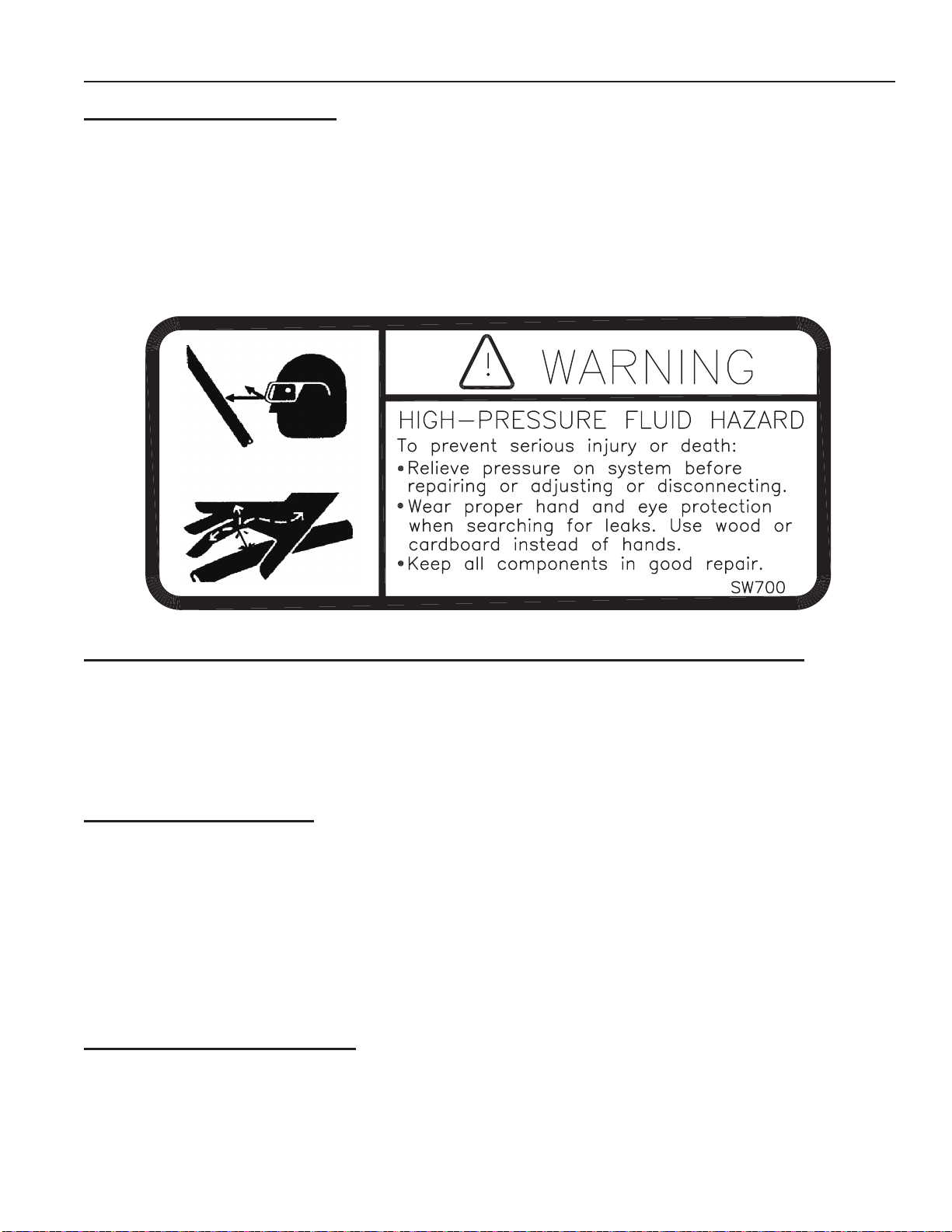

2. BE CAREFUL when working around high pressure hydraulic system.
3. ALWAYS make sure that Land Roller is lowered into eld position (cylinders extended), it is blocked
to prevent movement and pressure is relieved from hydraulic circuits before servicing.
4. USE EXTREME CARE when making adjustments.
5. KEEP CHILDREN AWAY from machinery at all times.
6. NEVER ALLOW anyone to walk or work under Land Roller Wings or Center Section.
MAINTENANCE FOR AFTER THE FIRST TWO HOURS OF OPERATION
1. Grease wing and hitch pivots.
2. Check all hydraulic components for leaks. (SEE HIGH-PRESSURE FLUID WARNING ABOVE.)
3. Check tightness of wheel nuts. Recommended torque 240 ft.-lbs.
4. Check tightness of wheel bearings.
5. Check tightness of all hardware. Pay special attention to hitch and pivot pin retaining bolts.
DAILY MAINTENANCE
1. Grease wing and hitch pivots.
2. Check all hydraulic components for leaks. (SEE HIGH-PRESSURE FLUID WARNING ABOVE.)
3. Check tightness of all wheel nuts. Recommended torque 240 ft.-lbs.
4. Check tire air pressure. Recommended air pressure is 90 PSI for the 12.5Lx15LRF.
BALL BEARINGS ON ROLLERS: To maximize bearing life, grease bearings at mid day or end of
day when bearings are at operating temperature. Every 20 hours: Add three strokes (approx.
.14 oz.) of grease.
PERIODIC MAINTENANCE
1. Repack wheel bearings and check tightness (See Page 5-8).
2. Check the tightness of all hardware. Pay special attention to hitch and pivot pin retaining bolts.
3. Check Land Roller for damaged or worn parts. Replace as needed.
4-1
Page 36
SECTION 4 – MAINTENANCE
STORAGE
1. Follow steps outlined in “UNHOOKING LAND ROLLER FROM TRACTOR IN FIELD POSITION”.
2. Clean and remove all excessive dirt and grease from Land Roller.
3. Grease all zerks.
4. To prevent rusting, repaint any areas that have been worn, chipped or scratched.
5. Apply grease* to any exposed part of cylinder shafts.
*NOTE: Before returning Land Roller into service, all grease must be removed from cylinder
shafts to prevent damage to seals.
TROUBLESHOOTING
PROBLEM CAUSE CORRECTION
Wings do not fold correctly A. Land Roller on uneven Move to level location.
onto Transport Cross Tube terrain.
NOTE: Either Roller Tube B. Cylinder Attach Eye Bolt(s) Adjust Cylinder Attach
or Wing Frame incorrectly adjusted. Eye Bolt(s). See Pages 3-6 & 3-7.
can make contact.
C. Debris has built up on Lower Wings and clean
contact area between contact area.
Wing and Center.
SPECIFICATIONS
Working Transport Transport Transport Machine Roller
Width Width Height** Length Weight Diameter
41’ 17’2” 14’2” 26’6” 20,500# 42”
45’ 17’2” 15’2” 26’6” 21,000# 42”
50’ 16’10” 16’ 26’3” 20,000# 36”
** Approximate, varies with machine adjustment.
Tire Size Rating Recommended Ination Pressure
Standard12.5Lx15 LRF 90 PSI
Optional 340/65R18 148 A8 78 PSI
Hub Size Rating Recommended Wheel Recommended Axle
Nut Torque Nut Torque
HD812 6100 LB. 240 ft.-lbs. 45 ft.-lbs., loosen until
20 MPH Maximum rst slot is aligned with
hole in axle, install cotter
pin, bend to retain.
4-2
Page 37
SECTION 4 – MAINTENANCE

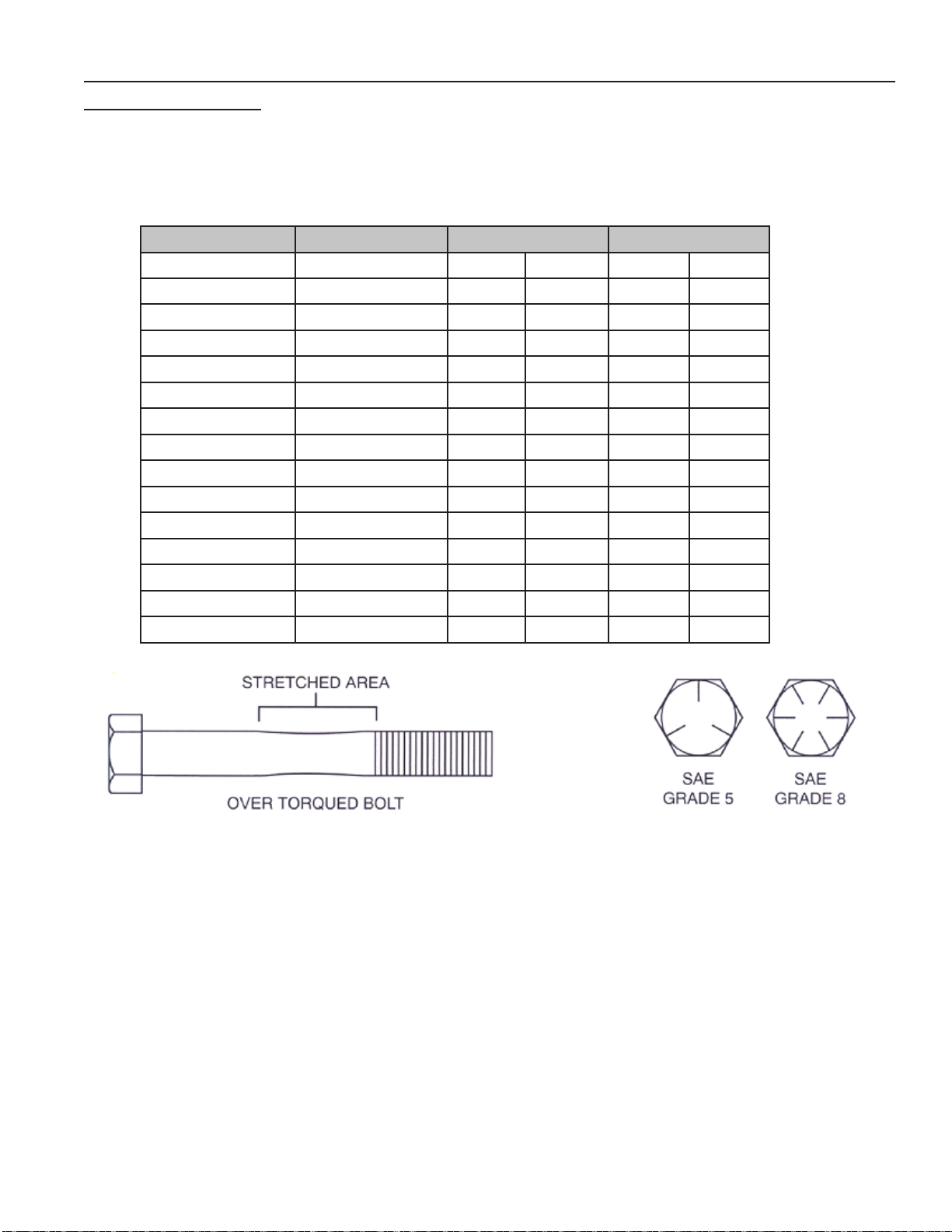

PROPER BOLT USE
DO NOT use these values if a different torque value or tightening procedure is given for a specic
application. Torque values listed are for general use only. Check tightness of fasteners periodi-
cally.
BOLT SIZE WRENCH SIZE GRADE 5 GRADE 8
ft-lbs N • m ft-lbs N • m
1/4” 7/16” or 3/8” 7 9.5 12 17
5/16” 1/2” 15 20 25 34
3/8” 9/16” 30 41 45 61
7/16” 5/8” or 11/16” 45 61 70 95
1/2” 3/4” 70 95 105 142
9/16” wheel bolts 7/8” 140 190 – –
5/8” 15/16” 170 231 210 285
5/8” wheel nuts 1-1/16” – – 240 325
3/4” 1-1/16”* or 1-1/8” 250 339 375 509
7/8” 1-5/16” 350 475 600 814
1” 1-1/2” 450 610 880 1193
1-1/4” 1-7/8” 500 678
1-1/2” 2-1/4” 570 773
2” 3-1/8” 1200 1627
*Nylon Lock Nut 3/26/12 TILLAGE
4-3
Page 38
SECTION 4 – MAINTENANCE
NOTES
4-4
Page 39
SECTION 5 – PARTS
OWNER REGISTER INFORMATION, LOCATED AT THE
BEGINNING OF THIS MANUAL, MAY BE NEEDED WHEN
ORDERING PARTS (SERIAL NUMBER IS LOCATED AT
THE FRONT OF HITCH).
5-1
Page 40
8X0286
1 1/2" JN
5-2
8X0092
5/8" X 2-3/4"
8X0000
1/4 X 3/4"
8K8067
8X0223
1/4" FN
8X0140
1 X 7"
8X0309
1" LW
8X0281
NY-LOCK 1"
8X0110
3/4 X 1.25"
8X0318
3/4" FW
8D8490
8D8523
8X0304
5/8" LW
8X0285
1 1/2" N
8X0315
1-1/2" LW
8D8500
8X0250
5/8" N
8X0315
1-1/2" LW
8X0721
ZERK 5/16"-24TPI
8X0286
1 1/2" JN
41' & 45' ONLY
8X0285
1 1/2" N
8X0285
1 1/2" N
8A1004
5" HC
8Z1000
8X0203
3/8" FN
8T4385
8A1157
3/8 X 4-1/16 X 7"
8D0722
8X0114
3/4 X 3"
8L4628
8P4000
8X0095
5/8" X 5"
8X0323
5/8" FW
8X0304
5/8" LW
8P7240
8X0074
1/2" X 4-1/2"
NY-LOCK 1/2" N
8X0253
NY-LOCK 5/8"-11NC
B
8X0242
8X0286
1 1/2" JN
8K1105
812 HUB ASSY
8K7042
12.5L ASSY
OPT. 8K7430
340/65R18
8P3900
8P4020 (36")
8P4040 (42")
SECTION 5 – PARTS
8K7150
AXLE ONLY
8K7028
8K7020
8K7123
TORQUE REQUIRED:
240 FT-LB
8D2470
8D0724
OPTIONAL
8D0720
9LR4542.iam/
HITCH_CENTER12/11/2013
Page 41
5-3
8P5040
8P5000
8C1760
3/4 X 8-1/16 X 6"
8X0306
3/4" LW
3/4 X 8-1/16 X 6"
8X0260
3/4" N
8X0111A
3/4" X 2-3/4"
8C1760
8X0259
3/4" JN
8X0306
3/4" LW
8X0260
3/4" N
8P5060
L 3.5 x 3 x 1/2
8X0306
3/4" LW
8D2440
8P5020
L 3.5 x 3 x 1/2
8P5060
8X0260
3/4" N
8R8005
SNAP RING
(2X EACH SIDE)
8X0281
NY-LOCK 1"
SECTION 5 – PARTS
8X0260
3/4" N
8X0306
3/4" LW
8C1760
3/4 X 8-1/16 X 6"
8C1760
3/4 X 8-1/16 X 6"
8X0143
1X5"
9LR4542.iam/
TRANSPORT_REST1/14/2014
Page 42
CENTER LIFT CYLINDER
8J5620
3/4" X #6 JIC (F-SW)
#6 JIC(F-SW) X #6 JIC(M) 90° ADP
5-4
8D3212
3/4" ORB TIP ISO
8S3095
HYD CAPLUG
8C0532
#6(M) X #6(F) 1/16" RSTR
8J5700
8J5510
3/4" ORB X #6 JIC(M)
8X0202
3/8" LN
8N3312
3/8"X312"
8X0327
1 1/4" FW
8J7250
9/16" X #6 JIC(M)
8J6004
9/16"X#6(M) RUN-T
8J7216
8S2990
HOSE CLMP
CRG 3/8"x3"
CENTER TILT
3/4-16ORB X #6JIC(M) 90° ADP
8J5500
8X1130
8G2285
GREEN
8J6010
8J5298
#6 JIC(M+M+F-SW) TEE
8N3060
3/8"X60"
8X0418
8K1620
8N3348
3/8"X348"
3/4-16X3/4-16 ORB M-SW 90° UNION
8J5690
8J7116
*
8J5510
3/4" ORB X #6 JIC(M)
8J6000
9/16ORB X #6JIC(M) 9 0°
8C0532
TEE #6JIC(M) X 9/16ORB
8J7000
VALVE 9/16ORB
#6 JIC(F-SW) X #6 JIC(M) 90° ADP
8J5700
#6 JIC(M) TEE
8J6002
8J5300
*FREE FLOW ARROW MUST POINT TOWAR DS 8J5690 90° ELBOW
3/4-16ORB X #6JIC(M) 90° ADP
8J7040
THERMAL RELIEF
8A1954
1/4"X18"
3/4-16X3/4-16 ORB M-SW 90° UNION
8J6010
8J5510
3/4" ORB X #6 JIC(M)
3/4"X3/4" UNION
8J7116
*
8J5690
8X0304
5/8" LW
8J5680
8X0250
5/8" N
SECTION 5 – PARTS
8G2284
NYL. TIE YELLOW
WING LIFT
8N2024
1/4"X24" (2X)
8N2050
1/4"X50" (2X)
8N3390
3/8"X390" (2X)
8X0285
1 1/2" N
8X0315
1-1/2" LW
5/8" X 2-3/4"
8X0092
1/13/2014
8D9108
1/4 X 2" RP
8K9106
9LR4542.iam/
8X0286
1 1/2" JN
LANDROLLER WNGFLD HYD
8P7240
Page 43
8D9108
1/4 X 2" RP
8K9106
8C0532
8L0252
8X0316
1" FW
8P3500
5-5
8X0095
5/8" X 5"
8P3910
8X0323
5/8" FW
8X0253
NY-LOCK 5/8"-11NC
8X0304
5/8" LW
8X0281
NY-LOCK 1"
8P5070
8D0340
3/4 X 4-1/16 X 7-3/4"
2.067" CAPLUG
8X0260
3/4" N
8X0143
1X5"
8S3059
8X0306
3/4" LW
8X0282
8P3500
8T3300
SECTION 5 – PARTS
41'
8P4067 - LEFT
8P4077 - RIGHT 8P4080 - RIGHT 8P4085 - RIGHT
45' 50'
8P4070 - LEFT (SHOWN)
9LR4542.iam/
8P4075 - LEFT
WING12/11/2013
Page 44
5-6
8P3010
PLUG 2-1/2" NPT
STAMPED H LOCATION.
POSITION TOWARDS MACHINE
CENTER, NEXT TO H
8R8010
SECTION 5 – PARTS
INGE.
8X0364
2-1/2" FW
(AS REQUIRED ON
OUTSIDE WING SO
WING ROLLER AND
WING STOP
CONTACT CENTER
IN TRANSPORT)
8P4213 - 41' MACHINE WIDTH
8P4215 - 45' MACHINE WIDTH
8P4205 - 50' MACHINE WIDTH
8X0265
3/4" LN
8X0306
3/4" LW
8P5080
8X0111A
3/4" X 2-3/4"
9LR4542.iam/
8R8005
SNAP RING
ROLLER_INSTALL12/11/2013
Page 45
5-7
8X0203
3/8" FN
8X0211
5/16" FN
8K8202
8X0021A
5/16 X 1"
3/8X6-1/16X5"
8A1155
8A4048
11" TIE
8K8090A
8S1124
8S1126
B
8S2990
HOSE CLMP
E
A
8S1120
(2" USED ON UPRIGHT)
8K8075A
EXTENSION
HARNESS
8K8030A
MODULE-ENHANCER
8X1120
CRG 3/8"x2"
8X0202
3/8" LN
8T2988
CRG 3/8"x1"
(1" USED ON CENTER
AND UPRIGHT SUPPORTS)
DETAIL A
SCALE 1 / 17
8X0303
1/2" LW
8X1110
8X0164
#10 X 3" SCREW
8X0205
#10 NUT
8X0202
3/8" LN
DETAIL D
SCALE 1 / 17
D
SECTION 5 – PARTS
8X0000
1/4 X 3/4"
8K8067
8X0223
1/4" FN
8D8500
8X0110
3/4 X 1.25"
8X0318
3/4" FW
8D8490
8K8070B
7-PIN MAIN
HARNESS
C
8X0202
3/8" LN
8X1130
CRG 3/8"x3"
(3" USED ON HITCH
AND CENTER
CROSS BRACES)
DETAIL C
SCALE 1 / 17
8K8095A
RED LIGHT
8S2990
HOSE CLMP
DETAIL E
SCALE 1 / 17
9LR4542.iam/
SAFETY LIGHTS12/11/2013
Page 46
5-8
HUB 1. SEAL
2. INNER
BEARING
3. INNER
RACE
4. OUTER
RACE
5. HUB ASSY
6. WHEEL
STUD
7. WHEEL NUT8.WHEEL
BOLT
9. HUB
ZERK
HUB AND AXLE COMPONENTS
Assembly Notes:
A. Before towing machine, pack wheel bearings
and ll 1/2 of hub cavity with high quality bearing
grease.
B. Tighten axle nut to 45 ft.-lbs, loosen nut until rst
slot is aligned with hole in axle, install cotter pin and
bend to retain.
Legend:
SMC Part Number
INDUSTRY Part Number or Size
10. OUTER
BEARING
11. AXLE
WASHER
12. AXLE
NUT
13. COTTER
PIN
14. HUB
CAP
GASKET
15. HUB
CAP
16. HUB
CAP
BOLT
SECTION 5 – PARTS
H413 N/A
H511 N/A N/A N/A N/A N/A
H517
H614
LR
HD812
** GBGI (Not Shown), 8R6921 Triple Lip (Shown) 11/6/07
*** Pre 2006 8K7120(SE17)
8D5120 8D5117 8D5336 8D5330 M6527850 8D5114 8X0708 8D5118 8X0317 8D5112 8X0410 M6527846
SE11 LM67048 LM67010 LM11910 H413 WB10 1/4-28NF LM11949 3/4" I.D. 3/4"-16 8/16X1" DC24
8D5120 8D5117 8D5336 8D5330 8D5111 8D5114 8X0721 8D5118 8D5112 8X0410 8D5113
SE11 LM67048 LM67010 LM11910 H511 WB10 5/16-24NF LM11949 3/4"-16 3/16X1" DC12
8D5234
8D5236
8D5238
8D5221 8D5317 8D5334 8D5336 8D5311 8D5114 8X0708 8D5117 8D5319 8D5312 8X0415 8D5213
SE13 LM29749 LM29710 LM67010 H611 WB10 1/4-28NF LM67048 1" I.D. 1"-14 3/16x1-1/2" DC13
8R6922** 8R6917 8R6925 8D5332 8R6911 8R6914 8X0708 8D5217 8D5319 8D5312 8X0415 8R6913
SE57 LM603049 LM603011 LM48510 H614 WB12 1/4-28NF LM48548 1" I.D. 1"-14 3/16x1-1/2" DC15
***8K7127
SEAL SE77
8K7128
SLEEVE
SE77-1
8D5217 8D5332 8D5336 8D5211 8D5215 8D5214 8X0721 8D5117 8S5219 8D5212 8X0415 8D5213
LM48548 LM48510 LM67010 H517 WB16 1/2-20UNF 5/16-24NF LM67048 7/8" I.D. 7/8"-14 3/16X1-1/2" DC13
N/A
N/A
8K7117
LM3780
8K7130
LM3720
8K7132
LM2720
8K7111
HD812
8K7115-9/16"* 8K7116-9/16"*
8K7122-5/8" 8K7123-5/8"
WB41 WB40
WB46 WB118
N/A N/A N/A
N/A N/A N/A
N/A
N/A N/A
8X0708
N/A
1/4-28NF
8K7118
LM2790
8D5319
1" I.D.
8D5312
1"-14
8X0415
3/16X1-1/2"
N/AH611
8K7113
N/A
DC17
N/A
N/A
N/A
Page 47
SUMMERS MFG. CO., INC.
3/21/12

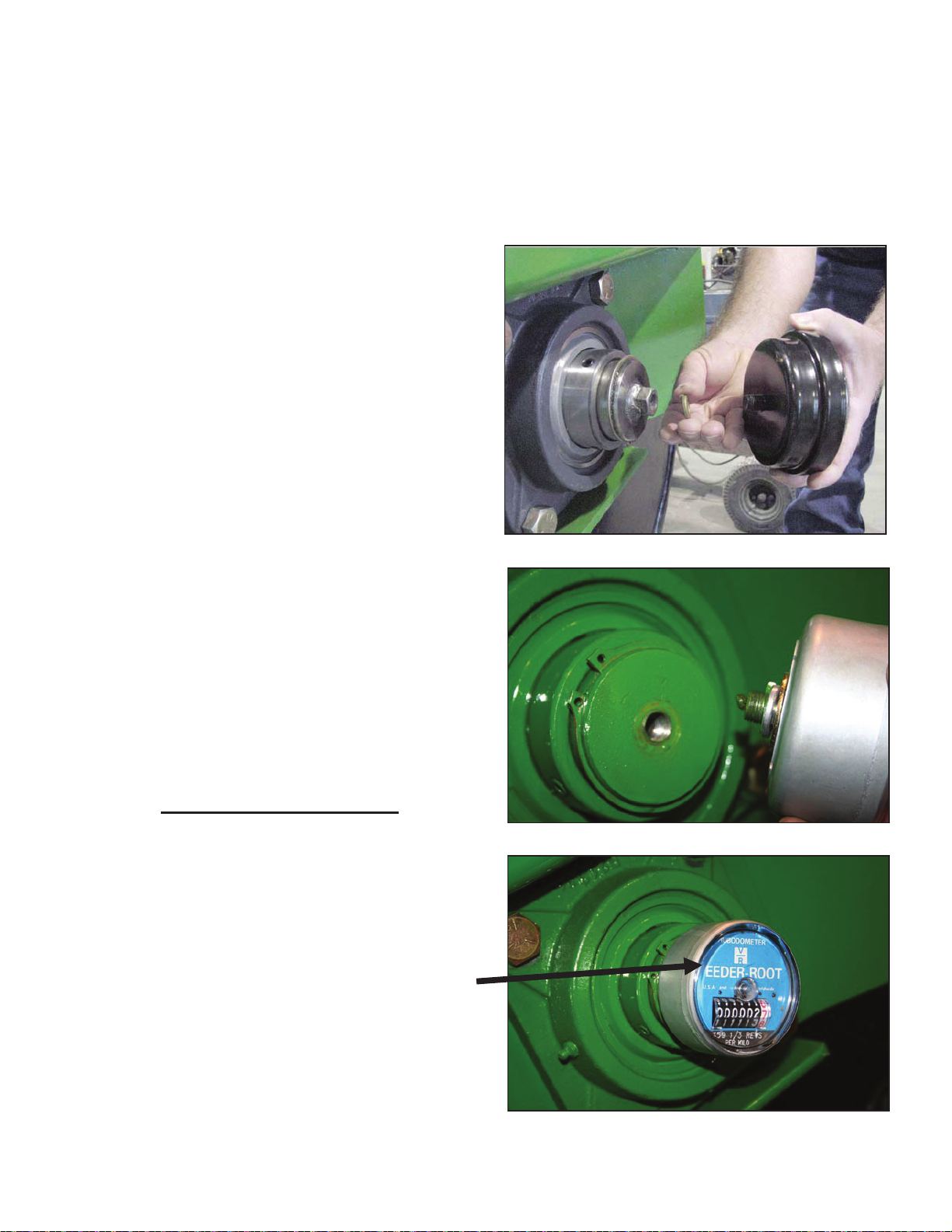

INSTALLATION AND OPERATION INSTRUCTIONS
FOR 8K1800
ACRE METER FOR SUPERROLLER
1. If Roller Shaft is not tapped, weld ½”-20
UNF nut at center of left pivot shaft of
middle roller. Position external taper of nut
toward shaft. Insure that threads are not
damaged by weld heat or spatter. Allow
weld to cool.
2. Attach Acre Meter with ½” lock washer.
Tighten to 260-390 in-lbs.
* For accurate logging of acres, it is important
that meter is mounted concentrically on
roller shaft.
* Do not use chemical agents such as thinner,
solvents or mineral spirits to clean Acre
Meter cover.
* Do not attempt to open meter! Attempting
to do so can cause injury and may destroy
Acre Meter.
CONVERSION FACTOR
NOTE: METER READING MUST BE
MULTIPLIED BY CONVERSION FACTOR FOR
ACTUAL ACRES.
MACHINE WIDTH FORMULA
30’ READING x 2.7 = ACRES
41’ READING x 3.6 = ACRES
45’ READING x 4 = ACRES
46’ READING x 4.1 = ACRES
50’ (36”) READING x 3.8 = ACRES
53’ READING x 4.7 = ACRES
62’ READING x 5.5 = ACRES
84’ (36”) READING x 6.5 = ACRES
84’ (42”) READING x 7.5 = ACRES
5-9
Cd1\8k\8k1800
Page 48
Stock Code Description
8A1155 U-BOLT 3/8 X 6-1/16 X 5” SQ
8A4048 NYLON TIE .18 X 11”
8A4050 NYLON TIE .30 X 8-7/8”
8A4052 NYLON TIE .30 X 15-1/4”
8C0532 HYD CYLINDER 5” X 32” 3500PSI
8C0535 SEAL KIT 5 X32”RAM3000&3500PSI
8C1760 U-BOLT 3/4 X 8 X 6” SQ
8D0340 U-BOLT 3/4 X 4 X 7-3/4” SQ
8D0720 HITCH PIECE CAST CAT.3CTD PNTD
8D0722 PERFECT HTCH BACKSTOP W/HDWE
8D0730 URETHANE CUSHION PERFCTHTCH
8D2440 SAFETY CHAIN 11000# 8MM X 84”
8D2470 SAFETY CHAIN 30400# 7/16” X 5’
8D3212 MALE TIP 3/4”-16 ORB ISO
8D5312 NUT 1”-14NF HEX SLOT GR2 PLN
8D5319 WASHER 1” AXLE
8D8490 PIONEER/ISO TIP HLDR BNT 978D8500 HYD HOSE HOLDER PNTD BLK 918D8521 JACK SPOOL 3 X 2.56- 1-29/32”
8D8523 JACK 8000# DROPLEG 5/8X4.25PIN
8D9108 ROLL PIN 1/4 X 2” YLW ZNC
8G2284 NYLON TIE .187 X 7-1/2” YELLOW
8G2285 NYLON TIE .187 X 7-1/2” GREEN
8J5100 #6 JIC(M) X #6 JIC(M) UNION
8J5300 #6 JIC (MALE) 3X TEE
8J5500 9/16”-18 ORB X #6 JIC(M) STR
8J5510 3/4”-16 ORB X #6 JIC(M) STR
8J5600 9/16”-18 ORB X #6 JIC(F-SW)STR
8J5620 3/4”-16 ORB X #6 JIC(F-SW)STR
8J5680 3/4”-16 ORB X 3/4”-16ORB UNION
8J5690 3/4-16X3/4-16 ORB M-SW90*UNION
8J5700 #6 JIC(F-SW) X #6 JIC(M)90*ADP
8J6000 9/16”-18 ORB X #6 JIC(M)90*ADP
8J6002 9/16”-18ORB X #6 JIC(M)BRNCH T
8J6004 9/16”-18ORB X #6 JIC(M)RUN TEE
8J6010 3/4”-16 ORB X #6 JIC(M)90*ADP
8J6060 3/4”-16ORB X #6JIC(F-SW)90*ADP
8J7000 BALL VALVE HYD 9/16”-18ORB(2X)
8J7040 THERMAL RELIEF MANIFLD 4000PSI
8J7116 3/4”-16 ORB(2X)1WAY 1/16”RESTR
8J7216 #6JIC(M)X6JIC(F)1/16”RSTR GOLD
8J7232 #6JIC(M)X6JIC(F)1/32”RSTR SLVR
8K1105 HUB&AXLE ASSY HD812(2.5”RCVR)
8K1620 PIN 1-1/4 X 6-1/8” 848K7020 WHEEL 15 X 10” 8 BOLT-VLV GRD
8K7028 TIRE 12.5L X 15” LRF TL HWYSRV
8K7111 HUB HD812 W/CUPS&ZRK 8BLT3LIP
8K7113 HUB CAP HD812 DC17
8K7117 BEARING INNER HD812 LM3780
8K7118 BEARING OUTER HD812 LM2790
8K7120 SEAL 2-1/2”ID HD812 SE17 -06
8K7122 STUD WHEEL 5/8-18UNFX2.5”978K7123 NUT 5/8”-18UNF WHEEL BOLT 978K7127 SEAL TRPL LIP EXTRNL HD812 068K7128 SEAL SLEEVE FOR 3X LIP 812 068K7130 RACE INNER HD812 LM3720
8K7132 RACE OUTER HD812 LM2720
8K7150 AXLE HD812 X 11.5” (2.5”DIA.)
Stock Code Description
8K8030 MODULE AG ENHANCED LIGHT 078K8067 DUST CAP FOR 7PIN CONNECT008K8070A MAIN HRNSS 7PIN
8K8075A EXT HRNSS NONDRAWBR
8K8088 LENS ONLY AMBER GROTE LGHT 008K8090A LIGHT AMBER
8K8092 LENS ONLY RED GROTE LIGHT 008K8095A LIGHT RED
8K8202 BRCKT SMV ATTCH BNT 45* LR 058K9106 PIN 1-1/4 X 4-3/8” HARDENED
8L0252 WASHER 1.28”IDX4.5ODX 1/4” ZDI
8L4628 EYEBOLT 1.5”DIAX1.25”EYE 1PCYZ
8N2024 1/4X 24”HYD HOSE #6FJX3000PSI
8N2050 1/4X 50”HYD HOSE #6FJX3000PSI
8N3312 3/8X 312”HYD HOSE #6FJX3000PSI
8N3348 3/8X 348”HYD HOSE #6FJX3000PSI
8N3390 3/8X 390”HYD HOSE #6FJX3000PSI
8P3010 PLUG 2-1/2” NPT SQUARE HD STL
8P3500 TUBE 2.25 X 1.27 ID- 2.25” 058P3900 PIN 2 X 11-1/8” HARDENED
8P3910 PIN 2 X 13-1/2” HARDENED
8P4215 ROLLER 42”DIAMETER 15’ 058P5000 UPRGHT TRNSPRT RST LNDRLLR 058P5020 BRACE TRNSPRT RST LANDRLLR 058P5040 CROSSTUBE TRNSPRT LNDRLLR 058P5060 ANGLE HTCH LCK 1/2X3X3.5- 14”
8P5070 ANGL WNG LCK 1/2X3X3.5- 10.25”
8P5080 ANGLE BRNG 3/8X2.5X2.5- 7-7/8”
8R8005 SNAP RING .078”FOR 2-1/2”DIA.
8R8010 BEARING 2-1/2”FLNG 4BLT-49/64”
8S1120 SIGN SLOW MOVING VEHICLE(SMV)
8S1124 MOUNTING SOCKET SMV SIGN ZDI
8S1126 MNT SPADE W/HRDWR SMV SIGN
8S2990 HYD HOSE CLAMP-LARGE-NYLON
8S3059 CAPLUG FITS 2.067”ID TUBE968T2988 CLAMP 3/8” WIRING MTL/RUB BCK
8T3300 PIVOT BOLT CHSLTRP&WNGLFT YZ
8X0000 BOLT 1/4-20X3/4”FLLTHDGR5 ZDI
8X0000B BOLT 1/4-20NC X 1” GR5 ZDI
8X0001 BOLT 3/8-16NC X 3/4” GR5 ZDI
8X0002 BOLT 3/8-16NC X 1” GR5 ZDI
8X0003 BOLT 1/4-20NC X 4-1/2” GR5 ZDI
8X0004 BOLT 3/8-16NC X 1-1/4” GR5 ZDI
8X0005 BOLT 1/4-20NC X 3-3/4” GR5 ZDI
8X0006 BOLT 3/8-16NC X 2-1/2” GR5 ZDI
8X0007 BOLT 3/8-16NC X 1-1/2” GR5 ZDI
8X0008 BOLT 3/8-16NC X 2” GR5 ZDI
8X0009 BOLT 1/4-20NC X 2” GR5 ZDI
8X0010 BOLT 1/4-20NC X 1-1/4” GR5 ZDI
8X0013 BOLT 1/4-20NC X 2-1/2” GR5 ZDI
8X0014 BOLT 1/4-20NC X 3” GR5 ZDI
8X0015 BOLT 3/8-16NC X 3-3/4” GR5 ZDI
8X0016 BOLT 3/8-16NC X 3” GR5 ZDI
8X0017 BOLT 3/8-16NC X 5” GR5 ZDI
8X0019 BOLT 3/8-16NC X 4-1/2” GR5 ZDI
8X0020 BOLT 3/8-16X3.5”FULLTHDGR5 ZDI
8X0021 BOLT 5/16-18NC X 3/4” GR5 ZDI
8X0021A BOLT 5/16-18NC X 1” GR5 ZDI
5-10
Page 49
Stock Code Description Stock Code Description
8X0021B BOLT 5/16-18NC X 1-1/4”GR5 ZDI
8X0022 SCKT CAP 5/16-18 X 1” GR5ZDI
8X0023 BOLT 5/16-18NC X 2” GR5 ZDI
8X0030 BOLT 5/16-18NC X 5” GR5 ZDI
8X0031 BOLT 7/16-14NC X 1” GR5 ZDI
8X0033 BOLT 7/16X1.25 5/8”THD GR5 ZDI
8X0034 BOLT 7/16X1.75 W/1”THD GR5 ZDI
8X0036 BOLT 7/16-14NC X 2” GR5 ZDI
8X0038 BOLT 7/16-14NC X 2-1/2”GR5 ZDI
8X0041 BOLT 7/16-14NC X 3” GR5 ZDI
8X0044 BOLT 7/16-14NC X 3-1/2”GR5 ZDI
8X0045 BOLT 7/16-14NC X 4-1/2”GR5 ZDI
8X0046 BOLT 7/16-14NC X 7-1/4”GR5 ZDI
8X0047 BOLT 7/16-14NC X 6” GR5 ZDI
8X0061 BOLT 1/2-13NC X 1-1/4” GR5 ZDI
8X0062 BOLT 1/2-13NC X 2” GR5 ZDI
8X0063 BOLT 1/2-13NC X 1-1/2” GR5 ZDI
8X0066 BOLT 1/2-13NC X 1-3/4” GR5 ZDI
8X0067 BOLT 1/2-13NC X 2-1/4” GR5 ZDI
8X0068 BOLT 1/2-13NC X 2-1/2” GR5 ZDI
8X0069 BOLT 1/2-13NC X 3” GR5 ZDI
8X0070 BOLT 1/2-13NC X 3-1/4” GR5 ZDI
8X0072 BOLT 1/2-13NC X 3-3/4” GR5 ZDI
8X0073 BOLT 1/2-13NC X 5” GR5 ZDI
8X0074 BOLT 1/2-13NC X 4-1/2” GR5 ZDI
8X0075 BOLT 1/2-13NC X 6” GR5 ZDI
8X0076 BOLT 1/2-13NC X 5-1/2” GR5 ZDI
8X0077 BOLT 1/2-13NC X 7-1/2” GR5 ZDI
8X0080 BOLT 1/2-13NC X 11” GR5 ZDI
8X0082 BOLT 1/2-13NC X 6-1/2” GR5 ZDI
8X0083 BOLT 1/2-13NC X 8” GR5 ZDI
8X0084 BOLT 1/2-13NC X 9” GR5 ZDI
8X0087 BOLT 5/8-11NC X 1-1/2” GR5 ZDI
8X0090 BOLT 5/8-11NC X 2-1/4” GR5 ZDI
8X0091 BOLT 5/8-11NC X 1-3/4” GR5 ZDI
8X0092 BOLT 5/8-11NC X 2-3/4” GR5 ZDI
8X0093 BOLT 5/8-11NC X 2” GR5 ZDI
8X0095 BOLT 5/8-11NC X 5” GR5 ZDI
8X0096 BOLT 5/8-11NC X 4” GR5 ZDI
8X0098 BOLT 5/8-11X 3.5”FULLTHDGR5ZDI
8X0099 BOLT5/8-11X6.75”W/3.5THDGR5ZDI
8X0101 BOLT 5/8-11NC X 8” GR5 ZDI
8X0102 BOLT 5/8-11NC X 9” GR5 ZDI
8X0106 BOLT 3/4X2.75”W/1.38THD GR8ZDI
8X0107 BOLT 3/4-10NC X 2” GR5 ZDI
8X0110 BOLT 3/4-10NC X 1-1/4” GR5 ZDI
8X0111 BOLT 3/4-10NC X 2-1/2” GR5 ZDI
8X0112 BOLT 3/4-10NC X 2-1/4” GR5 ZDI
8X0113 BOLT 3/4-10NC X 5” GR5 ZDI
8X0114 BOLT 3/4-10NC X 3” GR5 ZDI
8X0115 BOLT 3/4-10NC X 3-1/2” GR5 ZDI
8X0115A BOLT 3/4NCX 3.5”FULLTHD GR5ZDI
8X0115B BOLT 3/4-10NC X 3-1/2” GR8 ZDI
8X0116 BOLT 3/4-10NC X 6” GR5 ZDI
8X0117 BOLT 3/4-10NC X 7” GR5 ZDI
8X0118 BOLT 3/4-10NC X 4” GR5 ZDI
8X0118A BOLT 3/4-10NC X 4-1/4” GR5 ZDI
8X0119 BOLT 3/4-10NC X 7-1/2” GR5 ZDI
8X0120 BOLT 3/4-10NC X 9” GR5 ZDI
8X0121 BOLT 3/4-10NC X 6-1/2” GR5 ZDI
8X0122 BOLT 3/4-10NC X 4-1/2” GR5 ZDI
8X0123 BOLT 3/4-10NC X 5-1/2” GR5 ZDI
8X0125 BOLT 3/4-10NC X 10” GR5 ZDI
8X0130 BOLT 7/8-9NC X 2” GR5 ZDI
8X0132 BOLT 7/8-9NC X 2-1/2” GR5 ZDI
8X0133 BOLT 7/8-9NC X 3” GR5 ZDI
8X0138 BOLT 1-8NC X 5-1/2” GR5 ZDI
8X0139 BOLT 1-8NC X 3” GR5 ZDI
8X0140 BOLT 1-8NCX7” W/1.5”THDGR5ZDI
8X0143 BOLT 1-8NC X 5” GR5 ZDI
8X0164 SCRW TRSS HD SLOT#10X24-3” ZDI
8X0201 NUT 3/8”-16NC HEX GR2 ZDI
8X0202 NUT 3/8”-16NC NY-LOCK GR2 ZDI
8X0203 NUT 3/8”-16NC SER FLANG GR2ZDI
8X0204 NUT 3/8”-16NC HEX GR2 GALV
8X0205 NUT 10-24 HEX ZDI
8X0210 NUT 5/16”-18NC HEX GR2 ZDI
8X0211 NUT 5/16”-18NC SERFLANG GR2ZDI
8X0212 NUT 5/16”-18NC NY-LOCK GR2 ZDI
8X0218 NUT 1/4”-20NC SQ GR2 SS
8X0220 NUT 1/4”-20NC HEX GR2 ZDI
8X0222 NUT 1/4”-20NC NY-LOCK GR2 ZDI
8X0223 NUT 1/4”-20NC SER FLANG GR2ZDI
8X0232 NUT 7/16”-14NC HEX GR2 ZDI
8X0234 NUT 7/16”-14NC NY-LOCK GR2 ZDI
8X0240 NUT 1/2”-13NC HEX GR2 ZDI
8X0242 NUT 1/2”-13NC NY-LOCK GR2 ZDI
8X0244 NUT 1/2”-13NC FLANG TOP LOCK Z
8X0246 NUT 1/2”-13NC SER FLANG GR2 YZ
8X0250 NUT 5/8”-11NC HEX GR2 ZDI
8X0251 NUT 5/8”-11NC JAM GR2 ZDI
8X0253 NUT 5/8”-11NC NY-LOCK GR2 ZDI
8X0256 NUT 5/8”-11NC SER FLANG GR2 YZ
8X0259 NUT 3/4”-10NC JAM GR2 ZDI
8X0260 NUT 3/4”-10NC HEX GR2 ZDI
8X0261 NUT 3/4”-10NC NY-LOCK GR2 ZDI
8X0264 NUT 3/4”-10NC BEVL CNTRLCK ZDI
8X0265 NUT 3/4”-10NC CNTRLOCK GR2 ZDI
8X0266 NUT 3/4”-10NC SER FLANG GR2 YZ
8X0268 NUT 7/8”-9NC HEX GR2 ZDI
8X0269 NUT 7/8”-9NC JAM GR2 ZDI
8X0270 NUT 7/8”-9NC CNTRLOCK GR2 ZDI
8X0277 NUT 1”-8NC JAM GR2 ZDI
8X0278 NUT 1”-8NC JAM TOPLOCK GR2 ZDI
8X0280 NUT 1”-8NC HEX GR2 ZDI
8X0281 NUT 1”-8NC NY-LOCK GR2 ZDI
8X0282 NUT 1”-14NF TOPLOCK GR2 ZDI
8X0283 NUT 1-1/4”-7NC JAM GR2 ZDI
8X0284 NUT 1-1/4”-7NC HEX GR2 ZDI
8X0285 NUT 1-1/2”-6NC HEX GR2 ZDI
8X0286 NUT 1-1/2”-6NC JAM GR2 ZDI
8X0299 LOCKWASHER 1/4” EXT TOOTH SS
8X0300 LOCKWASHER 5/16” YLW ZNC
8X0301 LOCKWASHER 3/8” YLW ZNC
5-11
Page 50
Stock Code Description Stock Code Description
8X0302 LOCKWASHER 7/16” YLW ZNC
8X0303 LOCKWASHER 1/2” YLW ZNC
8X0304 LOCKWASHER 5/8” YLW ZNC
8X0306 LOCKWASHER 3/4” YLW ZNC
8X0307 LOCKWASHER 7/8” YLW ZNC
8X0308 LOCKWASHER 1/4” YLW ZNC
8X0309 LOCKWASHER 1” YLW ZNC
8X0311 LOCKWASHER 1-1/4” YLW ZNC
8X0315 LOCKWASHER 1-1/2” YLW ZNC
8X0316 WASHER 1” SAE FLAT ZDI
8X0317 WASHER 3/4” SAE FLAT ZDI
8X0318 WASHER 3/4”(13/16”ID)FLAT ZDI
8X0323 WASHER 5/8” SAE FLAT ZDI
8X0327 WASHER 1-1/4” SAE FLAT ZDI
8X0330 WASHER 17/32”ID X 1.25”OD ZDI
8X0331 WASHER 15/32”ID X 1.25”OD ZDI
8X0400 HAIR PIN CLIP 1/8 X 1-15/16”
8X0402 HAIR PIN CLIP 1/8 X 2-9/16”
8X0414 COTTER PIN 1/4 X 2” ZDI
8X0415 COTTER PIN 3/16 X 1-1/2”
8X0418 COTTER PIN 5/16 X 2-1/2” ZDI
8X0510 ROLL PIN 3/16 X 1-1/4” PLN
8X0520 ROLL PIN 3/16 X 2” YZ OR CAD-Y
8X0523 ROLL PIN 5/16 X 2-1/2” PLN
8X0605 SET SCRW SQ HD 7/16-14X 1” ZDI
8X0614 SET SCRW SQ HD 5/8-11 X 2” PLN
8X0632 SET SCRW SCKT 7/16-14X 1.5”PLN
8X0640 SET SCRW SQ HD 1/2-13X 1.5”PLN
8X0665 SET SCRW SQ HD 3/4-10X4.5” ZDI
8X0721 ZERK 5/16”-24 NF STR ZDI
8Z0075 DECAL TRNSPRT LCK WARNING TILL
8Z0079 DECAL “SUMMERS” 5 X 20”
8Z0086 DECAL ELECTROCUTION DANGER2PT
8Z0087 DECAL”WARNING”PINCH POINT038Z0104 DECAL”WARNING”LNDROLLER HITCH
8Z0106 DECAL”DANGER”LNDRLLR TRNSPRT
8Z0132 DECAL ID SUPERROLLER 058Z0276 DECAL GENERAL CAUTION 918Z0344 DECAL WING DANGER
8Z0346 DECAL ELECTROCUTION-TILLAGE
8Z0800 REFLECTOR AMBER ADHSVBCK988Z0805 REFLCTR REDORANGE ADHSVBK998Z0810 REFLECTOR RED ADHSV-BACK 988Z1080 OPER MAN 41&45’ SUPR ROLLR 05-
5-12
Page 51
History of Summers Manufacturing Co., Inc.
1965 – Summers Manufacturing is founded by Harley Summers, who purchases patent rights for Goebel truck and pickup hoists from the Goebel
Brothers of Lehr, ND. These hoists, produced in Harley Summers’ blacksmith shop the rst year, were distributed nationwide by a Cincinnati, Ohio, dealer. With increasing sales, the company soon outgrows the small shop. Summers wins the Herman harrow contract, beginning
the company’s Herman culti-harrow line. Summers builds a 7,200 square-foot factory in Maddock to meet the demand for truck and pickup
hoists, as well as Herman harrows.
1969 – Firm incorporates and becomes ofcially known as Summers Manufacturing Company, Inc.
1970 – Summers purchases rights to manufacture/market the Herman Harrow.
1973 – Company builds new 20,000 square-foot plant and ofces in Maddock, adding a 20,000 square-foot assembly plant in the fall of 1975 (com-
pleted in January 1976), bringing total square footage of Maddock factories to 47,000.
1977 – Summers introduces the Agri-sprayer, used in conjunction with the Herman culti-harrow to incorporate herbicides and liquid fertilizer.
1980 – Company purchases manufacturing and distributing rights to Crown rockpickers from Crown Manufacturers of Regina, Saskatchewan. This
forces another expansion project – a 26,000 square foot factory on a 24 acre site in Devils Lake, ND Industrial Park.
1981 – Company establishes a branch facility in Regina, Saskatchewan.
1982 – Devils Lake plant begins operations in January, manufacturing supersprayers and rockpickers. The Maddock factory begins producing the
Superweeder, a combination cultivator and harrow.
1983 – Summers buys manufacturing and distributing rights to the Fargo Field Sprayer line from Mid America Steel (formerly Fargo Foundry),
Fargo. This eld sprayer line is manufactured at the Devils Lake plant. Harley Summers is selected North Dakota’s small-businessman of
the year by the Small Business Administration.
1984 – Herman Diamond Disk, a disk harrow made in a diamond shape to reduce blade breakage from rocks, comes off the assembly line.
1985 – Summers signs a contract with Melroe Company of Bismarck to obtain exclusive manufacturing rights to the Melroe harrow line.
1989 – Summers purchases TorMaster Company of Hordean, Manitoba, giving the company a line of rolling packer equipment, comprised of harrow
packers and hydraulic fold coil packers.
1992 – A new engineering ofce/parts department is added to the Devils Lake factory.
1993 – Company adds two new products: a pickup-mounted sprayer with booms of 80 and 90 feet, and the Summers Superharrow, an extra-heavy-
duty residue-management tool designed for the minimum and no-till farmer.
1994 – a 50 by 125 foot addition to the Maddock factory is completed. Construction begins on a 24,576 square-foot addition to the Devils Lake fac-
tory, which enables the company to increase production of truck-mounted and pull-type supersprayers and rockpickers.
1996 – 1500 square foot ofce area added to the Maddock plant. Company introduces Chisel Plow with oating hitch and 700# trip assembly.
1997 – 16,800 square foot warehouse in Maddock purchased from local business.
1999 - Company introduces the Ultimate suspended boom trailer sprayer with hydraulic folding booms. Additional sizes added to the Chisel Plow
line, now ranging from 28’ to 54’.
2000 - Company introduces the Supercoulter, the innovative solution for excessive eld residue management on no-till, minimum-till, and conven-
tional-till farming operations.
2001 - Cold storage building completed at Devils Lake. Company extends boom lengths up to 110 feet on the Ultimate Supersprayer.
2002 - Company adds a warehouse and service man in Aberdeen, SD.
2003 - Company introduces the Ultimate NT Supersprayer featuring a bolt on axle for easier adjustment, and a new family of tanks that feature a
drainable sump and a common width dimension.
2004 - A 124 ft. x 310 ft. addition is added onto the current Devils Lake plant.
2005 - The Summers Superroller is added to the “Field Tested Tough” product line. Additional sizes of 56’, 58’ and 60’ are added to the Superchisel
line. Ultimate-Ultra NT Supersprayer introduced featuring 120’ & 133’ booms.
2006 - The Summers Coulter-Chisel, Rolling Choppers and 30’ Superroller were included in product line.
2007 - 62’ & 84’ 5 Section Landrollers and a 20’ Coulter-Chisel were introduced.
2008 - Disk-Chisels, ranging from 16’ to 40’ widths, are added to product line.
2009 – M105 and M108 Mounted Harrows added to selection of Mounted Attachments. SuperHarrow 2650, 50’ SuperCoulter, Hydraulic Fold Roll-
ing Chopper and 36” diameter Landrollers introduced.
2010 – Rolling Basket and 47’ Diamond Disk added to product line. A 124 ft. x 310 ft. addition to Devils Lake factory built for a state of the art
paint system.
2011 – Additional Supercoulter sizes were added along with larger tires for tillage implements. Ultimate and Ultra Supersprayers received an ad-
ditional tank size of 1650 gallons. Front Caster Wheel option was made available for chisel implements.
2012 – 41’, 46’ & 53’ Trail Type Landroller added to product line. Additional Superchisel sizes of 16’ & 20’ were added.
2013 – DT9530 added to product line. Internal Scraper in Rolling Baskets introduced. Finishing Coulter Gang becomes standard on the Diamond
Disk and 2510 DT. Additional sizes added the the Superchisel line. Ultimate and Ultra Supersprayer become available with the 1650 gallon
tank. Corporate ofces opened at Devils Lake plant. New building and location for the Aberdeen warehouse.
Summers distributes on a wholesale level to dealers and distributors throughout markets in North Dakota, South Dakota, Minnesota, Montana, Iowa,
Washington, Idaho, Oregon, Utah, Colorado, Kansas, Nebraska, Oklahoma, Texas, Manitoba, Saskatchewan, Alberta, British Columbia, Kazakhstan,
Russia and Australia, making it an international company.
Page 52
Tillage
Cultivators/Harrows
Rock Picker
Mounted Attachments
Land Rollers/Packers Sprayers
1-800-732-4347•www.summersmfg.com
Loading...
