INSTALLATION REQUIREMENTS
IMPORTANT NOTE:
This installation must be
completed by a qualified installer or Wolf
authorized service center technician.
Installer:
Please read the entire Installation
Instructions prior to installation. Save these
instructions for the local inspector’s reference, then leave them with the homeowner.
Homeowner:
Please read and keep these
instructions for future reference and be sure
to read the entire Use & Care Information
prior to use.
Any questions or problems about the
installation should be directed to your Wolf
dealer or Wolf Appliance Company, Inc. at
800-332-9513. You can also visit our website
at wolfappliance.com.
IMPORTANT NOTE:
This appliance must be
installed in accordance with National Electrical
Codes, as well as all state, municipal and local
codes. The correct voltage, frequency and
amperage must be supplied to the appliance
from a dedicated, grounded circuit which is
protected by a properly sized circuit breaker or
time delay fuse. The proper voltage, frequency,
and amperage ratings are listed on the product
rating plate.
Record the model and serial numbers before
installing the Pro ventilation hood liner. Both
numbers are listed on the rating plate, located
on the left wall of the hood liner shell.
Model Number
Serial Number
WOLF PRO VENTILATION HOOD LINERS
Dimensions in parentheses are in
millimeters unless otherwise specified.
LIST OF MATERIALS
The following is a list of materials shipped
with the Wolf Pro ventilation hood liner.
Stainless steel hood liner
Transition with backdraft damper (attached
inside hood liner—needs to be removed)
(2) Control knobs
Filters (installed in hood liner)
Grease cups (installed in hood liner—
Model L282212I only)
(10) #10 x 2" (51) self-tapping hex head
screws
(10) 10-24 washer nuts
Installation package (taped to filters)
Installation Instructions
Use & Care Information and product
registration card
Pro Hood Liner
4
WOLF PRO VENTILATION HOOD LINERS
ELECTRICAL REQUIREMENTS
Wolf Pro ventilation hood liners require a
separate, grounded 110/120 V AC, 60 Hz power
supply. The service should have its own 15
amp circuit breaker. Locate the electrical
supply within the shaded area shown in the
Installation Specifications illustration on
the following page.
You must follow all National Electrical Code
regulations. In addition, be aware of local
codes and ordinances when installing your
service.
ACCESSORIES
Optional accessories are available
through your
Wolf dealer. To
obtain local dealer
information, visit
the Locator section
of our website,
wolfappliance.com.
INSTALLATION CONSIDERATIONS
IMPORTANT NOTE:
Wolf Pro ventilation hood
liners are recommended for use with all Wolf
cooking appliances and are available to accommodate 30" (762), 36" (914), 42" (1067), 48"
(1219), 54" (1372) and 60" (1524) wide hoods.
Proper installation is the responsibility
of the installer. Product failure due to
improper installation is not covered
under the Wolf Warranty. Refer to the Wolf
Pro Ventilation Hoods Use & Care
Information for warranty details, or visit
the Contact/ Help section of our website,
wolfappliance.com.
Make sure you have the tools and materials
necessary for proper installation.
Any required service must be performed by
a Wolf authorized service center. Wolf is not
responsible for service required to correct a
faulty installation.
IMPORTANT NOTE:
Wolf Pro ventilation hood
liners (except Model L282212I) are shipped
without the blower assembly. Wolf internal,
in-line and remote blower assemblies are
available, refer to page 14. Use only a Wolf
blower with the Pro hood liner
IMPORTANT NOTE:
Wolf recommends that
the Pro ventilation hood liner be installed
30" (762) to 36" (914) above the countertop.
5
Dimensions in parentheses are in
millimeters unless otherwise specified.
INSTALLATION INSTRUCTIONS
OVERALL DIMENSIONS
PRO HOOD LINERS
Overall Widths 283/8" (721), 343/8" (873),
40
3
/8" (1026), 463/8" (1178),
523/8" (1330) and 583/8" (1483)
Overall Height
12" (305)
Overall Depth 221/2" (572)
Shipping Weight (shell only) 39–65 lbs
(18–29 kg)
Dimensions may vary to
+
–
1
/8" (3).
Model L282212I
30" TO 36"
(762–914)
TO COUNTERTOP
30" TO 36"
(762–914)
TO COUNTERTOP
E
12" (305)
HEIGHT OF LINER
221/2" (572)
DEPTH OF LINER
WIDTH OF LINER
DECORATIVE HOOD
HOOD LINER
HOOD LINER
DECORATIVE HOOD
6"
(152)
5"
(127)
LOCATION OF ELECTRICAL
INSTALLATION SPECIFICATIONS
Models L342212, L402212, L462212, L522212 and L582212
223/8" (568)
3"
(76)
283/8" (721)
OVERALL WIDTH
SUBTRACT 6" (152) FROM OVERALL WIDTH
3"
(76)
TOP WIDTH
3"
(76)
223/8"
(568)
12"
(305)
12" (305)
OVERALL
HEIGHT
221/2" (572)
OVERALL DEPTH
12" (305)
OVERALL
HEIGHT
1" (25)
3"
(76)
12"
(305)
4" (102)
4" (102)
OVERALL WIDTH
221/2" (572)
OVERALL DEPTH
6
WOLF PRO VENTILATION HOOD LINERS
INSTALLATION SPECIFICATIONS
The illustration and chart below provide
dimensions critical for proper installation of
the Pro hood liner.
Pro Hood Liners
Model (A) (B) (C) (D)
L282212I 283/8" (721) 71/2" (191) 143/16" (360) 411/16" (119)
L342212 343/8" (873) 91/2" (241) 173/16" (437) 513/16" (148)
L402212 403/8" (1026) 91/2" (241) 203/16" (513) 513/16" (148)
L462212 463/8" (1178) 91/2" (241) 233/16" (589) 513/16" (148)
L522212 523/8" (1330) 91/2" (241) 263/16" (665) 513/16" (148)
L582212 583/8" (1483) 91/2" (241) 293/16" (741) 513/16" (148)
Letters correspond to those in the illustration.
D
C
TO CENTER
OF TRANSITION
A
WIDTH OF
HOOD LINER
TO CENTER
OF TRANSITION
B
HEIGHT OF
TRANSITION
DECORATIVE HOODS
A decorative hood can be created out of wood,
plaster, tile or metal. The shape of the decorative hood is not critical. The only place where
the hood liner and outside cover must meet is
at the bottom edge of the liner. The decorative
hood and liner must fit at the bottom edge in
both width and depth.
The height of the hood liner does not have to
be the same as the height of the decorative
hood and is generally shorter.
The top depth of the hood liner, which is 12"
(305) standard, must be less than the interior
depth of the decorative hood. Measure the
interior depth of the hood at the top height of
the liner to make sure the liner will fit inside
the decorative hood.
The hood liner comes standard with a 4" (102)
lower reveal. Be sure to include this dimension
in your decorative hood selection.
Always use the interior measurements of the
decorative hood and measure in multiple
places. Use the smallest dimensions to verify
hood liner specifications.
7
Dimensions in parentheses are in
millimeters unless otherwise specified.
12" (305)
HEIGHT OF LINER
HOOD LINER
DUCTWORK INSTALLATION
THROUGH ROOF
8" ROUND DUCT (L282212I)
10" ROUND DUCT (ALL OTHER LINERS)
SOFFIT OR CABINET
OR DUCT COVER
VERTICAL DISCHARGE ONLY FOR VENTILATION HOOD LINERS.
VERTICAL DISCHARGE
221/2" (572)
DEPTH OF LINER
DECORATIVE HOOD
30" TO 36"
(762–914)
COUNTERTOP
TO BOTTOM OF
DECORATIVE HOOD
36" (914)
STANDARD
FLOOR TO
COUNTERTOP
HEIGHT
TRANSITION
17
3
/4"W x 41/4"D TO 8" ROUND
9
3
/8"H (L282212I)
22
1
/4"W x 9"D TO 10" ROUND
10"H (ALL OTHER LINERS)
DIMENSIONS INCLUDE FLANGES
ROOF CAP OR REMOTE BLOWER –
TRANSITION FROM 8" (203) TO 10" (254) DUCT
REQUIRED FOR REMOTE BLOWER
INSTALL DUCTWORK
IMPORTANT NOTE:
Wolf recommends that
the Pro ventilation hood liner be installed
30" (762) to 36" (914) above the countertop.
IMPORTANT NOTE:
Consult a qualified HVAC
Engineer for specific ducting applications.
IMPORTANT NOTE:
All Wolf ventilation hood
liners must exhaust to the outdoors. Always
use metal ducting. Do not use flex ducting.
Decide where the ductwork will run between
the hood liner and the outside. A straight,
short duct run will allow the hood liner to
perform more efficiently. Limit the number of
elbows and transitions to as few as possible.
Long duct runs, elbows and transitions will
reduce the performance of the hood liner. Wolf
recommends the maximum linear duct run be
no greater than 50' (15 m). The Pro hood liner
has a vertical discharge.
IMPORTANT NOTE:
There is a possibility of
noise issues, if there is a short duct run
coupled with a remote blower.
Always install a roof or wall cap if you are not
installing a remote blower. Connect 8" (203)
round metal ductwork for Model L282212I or
10" (254) round metal ductwork for all other
hood liners to the cap and work back towards
the hood. Use duct sealing tape on joints
between ductwork sections.
Wolf Pro hood liners come standard with a
backdraft damper included in the transition
assembly. Local codes may require the use of
an additional backdraft damper. Contact your
local HVAC professional for specific requirements. In cold weather installations, a backdraft damper is necessary to minimize the
backflow of cold air into the room.
Local building codes may require the use of
make-up air. Consult your local HVAC professional for specific requirements in your area.
To reduce the risk of fire, use only metal
ductwork.
To reduce the risk of fire and electric
shock, install this ventilation hood liner
only with a blower manufactured by
Wolf. Blower model numbers are listed
on page 14.
INSTALLATION INSTRUCTIONS
Ducting options for Pro hood liners
8
WOLF PRO VENTILATION HOOD LINERS
WALL PREPARATION
Construct the wood wall framing flush with
the wall studs and centered in the location
that the hood liner will be mounted. Use
the rough-in plate shipped with hood liner
to determine the location of the framing.
After the wall surface is finished, secure the
rough-in plate assembly to the wall.
Refer to the illustrations below for the location
of mounting holes for Pro hood liners and a
cross-section of a typical installation.
If you are installing LBLOWER-120INT, refer
to the internal blower information on page
11 and follow installation instructions
provided with the blower.
The hood liner assembly is shipped with
the rough-in plate/transition attached. The
transition is shipped upside down in the top
of the hood liner. It must be removed and
reinstalled in the proper position. Refer to
the illustration on the following page.
Remove the filters by pushing each filter up
at the angle it is placed in, and rotate down.
Remove the center filter first. Then take out
the grease cups placed on the bottom edge
of the hood liner coinciding with the bottom
edge of the filters (Model L282212I only).
Gloves should be worn to provide the
proper grip when removing filters.
Detach the rough-in plate/transition
assembly from the hood liner by removing
the screws on the top and back of the
assembly.
Separate the transition from the rough-in
plate by removing the four shipping screws.
Do not discard the screws
, they will be
needed to reinstall the transition to the
rough-in plate.
Framing must be tied together and to
ceiling joists to provide enough structural
strength to support the weight of the hood
liner and internal blower, if applicable.
9
1
/2
" (241)
21
1
/4
" (540)
8
1
/2
" (216)
6
1
/2
" (165)
*
*
*
*
*
*
*
*
5
1
/2
" (140)
5
1
/2
" (140)
6
1
/2
" (165)
10" (254)
*Dimension is 2" (51)
Mounting holes for Model L282212I Mounting holes for all liners except
Model L282212I

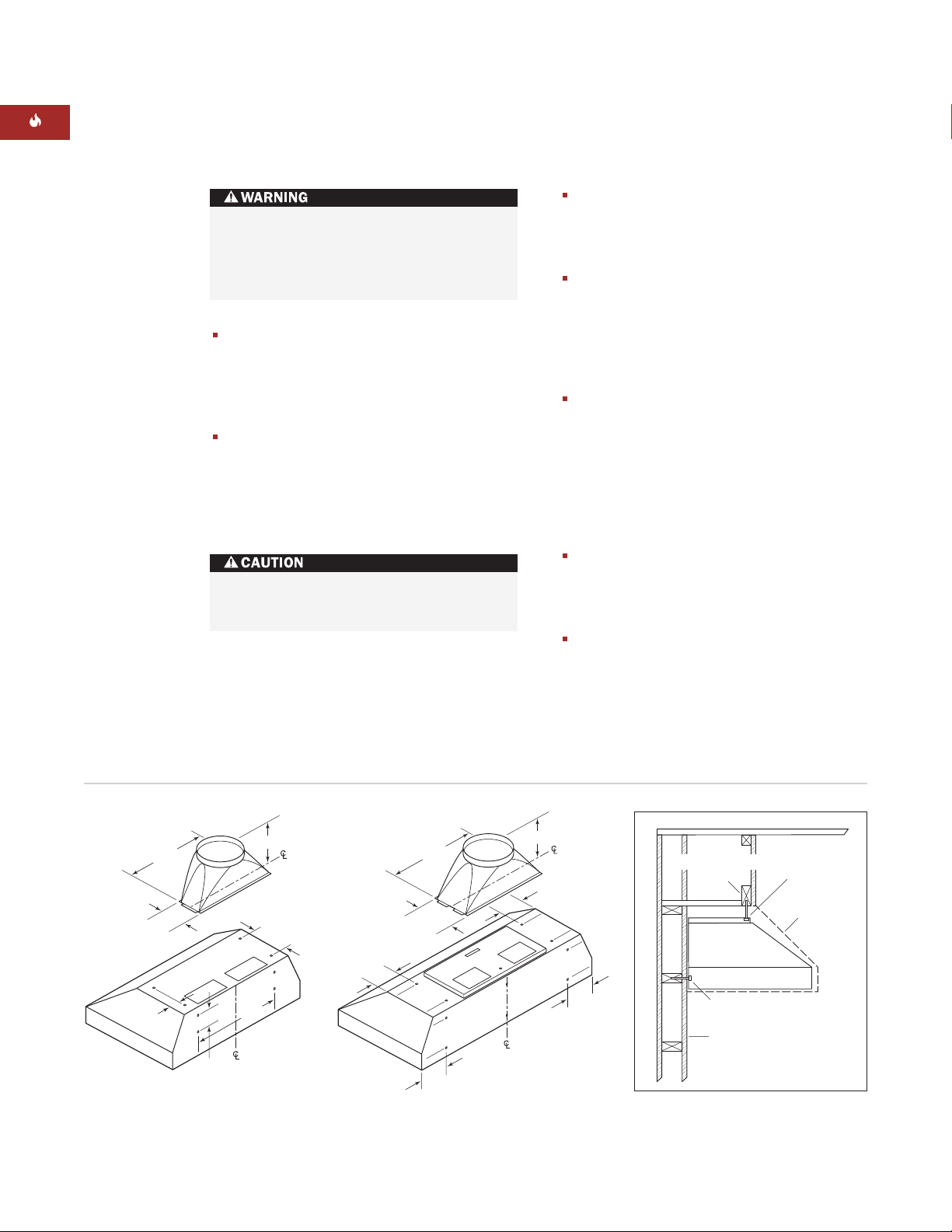

Installation cross-section
If wall framing is not available, wall
anchors must be used.
HOOD LINER PREPARATION
IMPORTANT NOTE:
Wolf recommends
installing the internal blower to the rough-in
plate assembly prior to mounting the hood liner.
1
7
" (191)
" (425)
8" (203)
*
1
3
" (83)
/4
3
16
/4
1
3
" (83)
/4
3
1
/16
" (30)
/2
*
1
16
"
/2
(419)
*Dimension is 2" (51)
2" (51) x 4" (102)
Framing
1
/16
7
" (179)
*
Hood Liner
#10 Screw
1
/2" (13) Drywall
#10 Screw
Decorative
Hood
9
Dimensions in parentheses are in
millimeters unless otherwise specified.
INSTALLATION INSTRUCTIONS
Attach the transition to existing ductwork
with sheet metal screws and duct sealing
tape.
If you are installing an in-line or remote
blower, drill a
7
/8" (22) hole through the
wood framing for the conduit. Refer to the
in-line and remote blower information on
pages 12–13 and follow installation instructions provided with the blower.
IMPORTANT NOTE:
Do not run wiring for the
remote blower through the ductwork.
INSTALL ROUGH-IN PLATE
Use the rough-in plate assembly to determine the location of wall studs. Position the
rough-in plate in the desired location and
mark the predrilled mounting holes on the
wall.
Install the #10 x 2" (59) screws (included
with the hood liner) through the mounting
holes on the rough-in plate. Verify that the
screws engage the wall studs or framing.
If not, wall anchors must be used.
IMPORTANT NOTE:
If additional support is
required for the hood liner, drill supplementary
mounting holes in the rough-in plate and use
these holes to attach the hood liner assembly
to the wall framing.
Rough-in plate assembly Hood liner installation
INSTALL THE HOOD LINER
IMPORTANT NOTE:
If a backsplash is to be
used, it should be installed before the hood
liner is mounted.
Align both ends of the hood liner assembly
with the ends of the rough-in plate. Refer to
the illustration on the following page.
Insert the back ends of the hood liner
assembly into the rough-in plate and push
the liner assembly toward the wall.
Place the studs on the rough-in plate into
the slots on the hood liner. Use the hex
head nuts (included with the hood liner) to
secure the liner assembly to the rough-in
plate.
Install the remaining #10 x 2" (59) screws
(included with the hood liner) in the lower
section of the liner. Verify that the screws
engage the wall studs or framing. If not,
wall anchors must be used.
Due to the weight of the hood liner, be
sure to have adequate manpower for
installation.
Shipping
Screws
Rough-In
Plate
Transition
Mounting
Holes
Soffit
Rough-In
Plate
Run a 120 V AC, 15 amp circuit (minimum)
power cable from the service panel to the
electrical box in the rough-in plate.
Remove the knockout and install the
conduit connector on the rough-in plate
hole. Refer to the illustration below for
wiring location.
Insert the conduit through the hole on top
of the rough-in plate to the electrical box.
Remove the electrical box cover from the
rough-in plate. Connect black wire to power
supply black wire, white wire to power
supply white wire and green wire to green
wire or bare wire.
Place all wiring connections inside the electrical box and reinstall on the rough-in
plate. Make sure that the wires are secure
and that no wires are pinched between the
cover and box.
Refer to the wiring diagram packaged with the
hood liner for more information.
10
WOLF PRO VENTILATION HOOD LINERS
INSTALL WIRING
This ventilation hood liner must be
properly grounded and should be installed
by a qualified electrician in accordance
with all applicable national and local
electrical codes.
Before servicing or cleaning, switch
power off at service panel and lock the
service disconnecting means to prevent
power from being switched on accidentally. When the service disconnecting
means cannot be locked, securely fasten
a prominent warning device, such as a
tag, to the service panel.

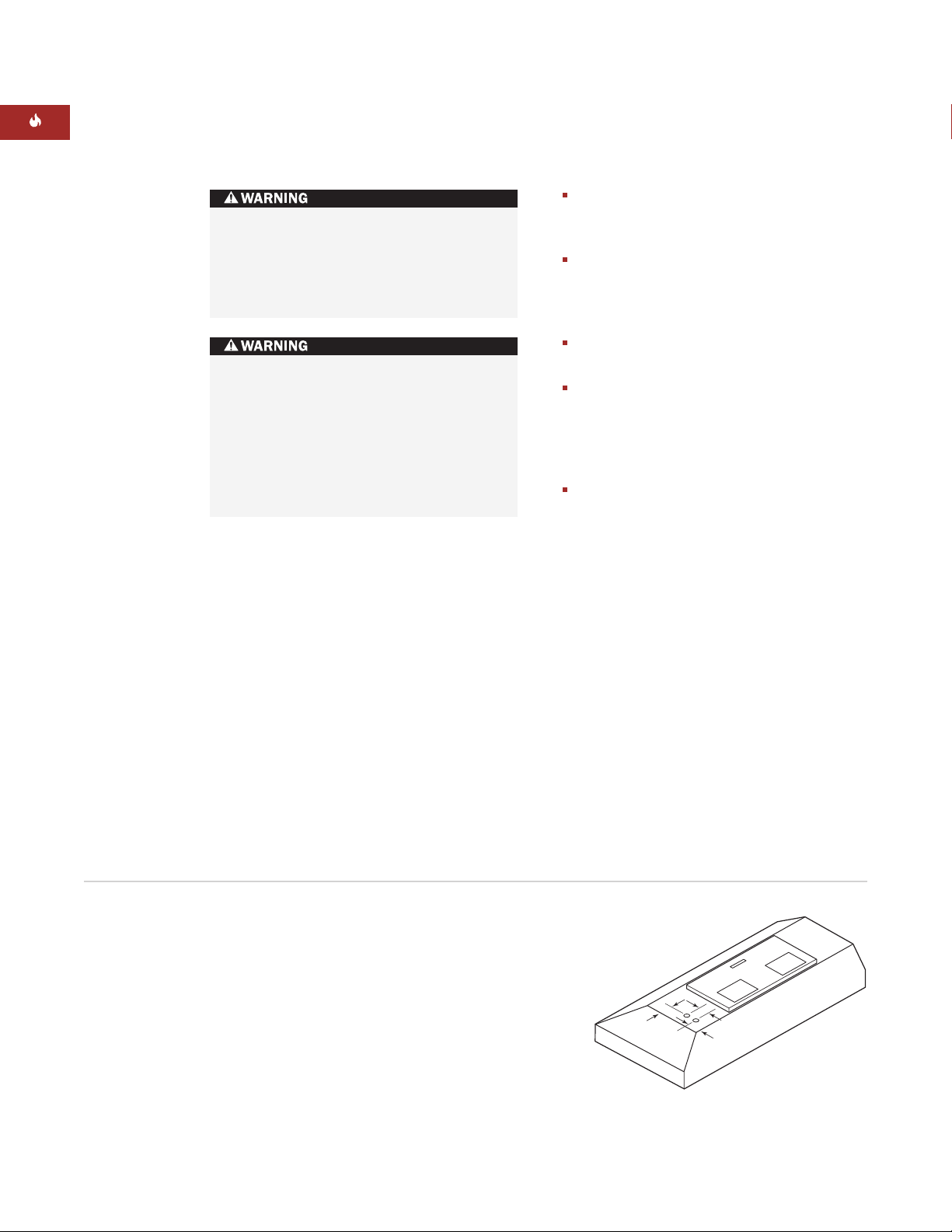

Pro hood liner wiring location
IMPORTANT
NOTE
You must follow
all National
Electrical Code
regulations. In
addition, be aware
of local codes and
ordinances when
installing your
service.
1
2
" (64)
/2
2
2" (51)
1
/2
" (64)
11
Dimensions in parentheses are in
millimeters unless otherwise specified.
INSTALLATION INSTRUCTIONS
INTERNAL BLOWER
IMPORTANT NOTE:
Refer to the installation
instructions provided with the internal
blower for additional mounting and wiring
instructions.
IMPORTANT NOTE:
Use wire connectors or
wire nuts approved by UL or C/UL.
IMPORTANT NOTE:
Wolf recommends
installing the internal blower to the rough-in
plate assembly prior to installing the hood
liner to the wall framing.
LBLOWER-120INT INSTALLATION
Slide the blower mounting tab into the
hood liner rough-in plate mounting slot.
Make sure the blower tab and mounting
slot are aligned properly front to back.
Secure the blower with the weld stud at the
back of the blower and hood liner rough-in
plate with the nut (included with the
blower).
Verify that the blower discharge aligns with
the rough-in plate discharge cut-out of the
hood liner.
Once the blower is attached to the hood
liner rough-in plate, install the rough-in
plate to the wall. Secure the power cord(s)
without damaging or pinching while
installing the hood liner shell.
Once the hood liner installation is complete,
plug the blower power cord(s) into receptacle(s) located near the center of the hood
liner shell. Use the clips on the interior of
the hood liner to keep excess power cord
away from moving parts.
IMPORTANT NOTE:
Before turning the power
on to the ventilation hood liner, make sure the
blower is off.
Internal blower installation
Weld Stud
Mounting Slot
Mounting
Ta b
Hood
Rough-In
Plate
Blower
Housing
Nut
12
WOLF PRO VENTILATION HOOD LINERS
IN-LINE AND REMOTE BLOWERS
BLOWER INSTALLATION
IMPORTANT NOTE:
Refer to the specific
installation instructions provided with each
blower for additional mounting instructions.
Locate the blower so that the length of the
duct run and number of elbows and transitions
are kept to a minimum. Wolf recommends the
maximum linear duct run be no greater than
50' (15 m).
If possible, remote blowers should be located
between wall studs or roof rafters. Avoid
pipes, wires or other ductwork that may be
running through the wall.
Be sure that there is enough space for any
transitions that may be needed between the
blower and the connecting ductwork. For best
performance, locate transitions nearest the
blower.
Refer to the illustrations below and on the
following page for overall dimensions of Wolf
in-line and remote blowers. Also refer to the
specific installation instructions provided with
each remote blower to verify cut-out dimensions.

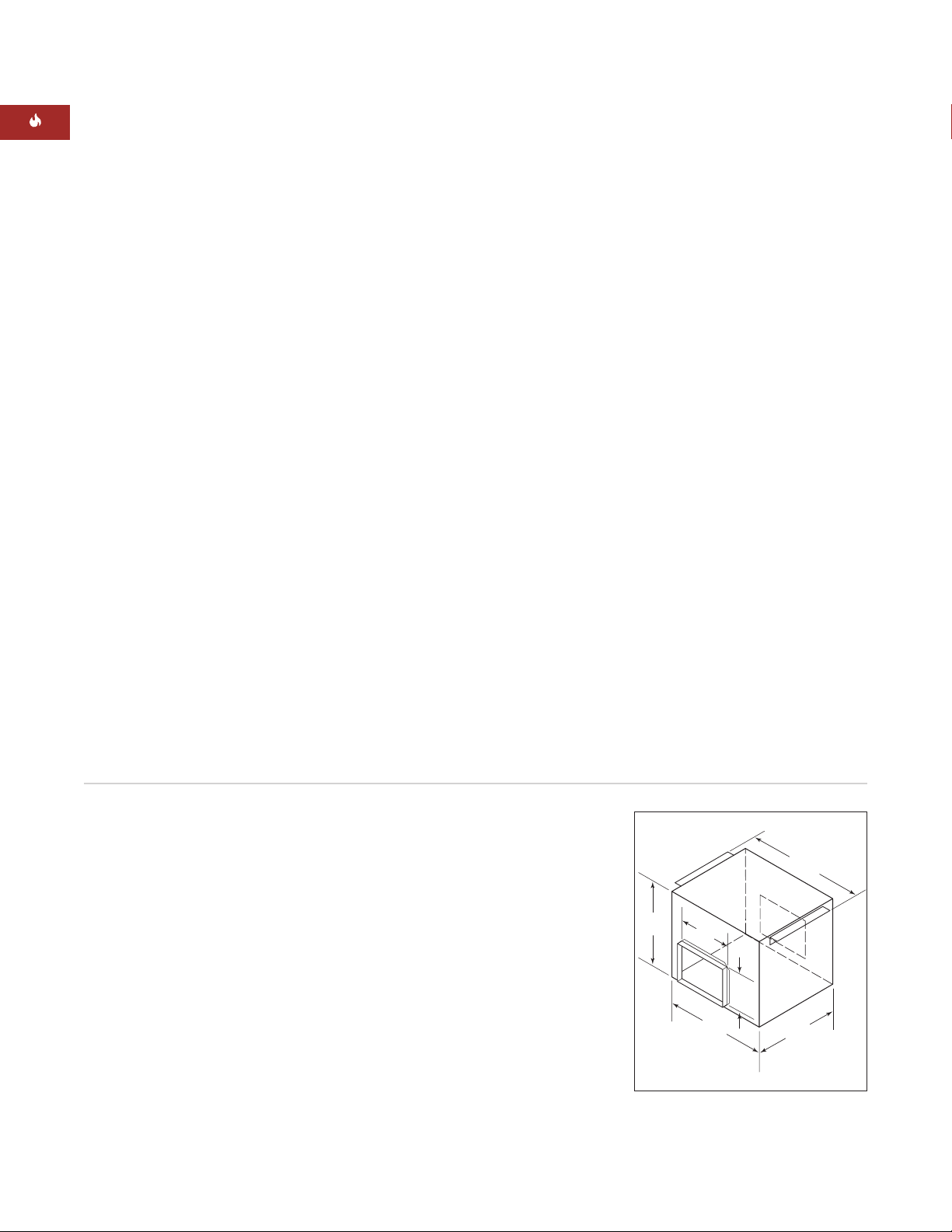

Dimensions for BLOWER-110IL
ACCESSORIES
Optional accessories are available
through your
Wolf dealer. To
obtain local dealer
information, visit
the Locator section
of our website,
wolfappliance.com.
7
24
/8
(632)
18"
(457)
12"
(305)
22"
(559)
8"
(203)
18"
(457)
"
13
Dimensions in parentheses are in
millimeters unless otherwise specified.
INSTALLATION INSTRUCTIONS
IN-LINE AND REMOTE BLOWERS
BLOWER WIRING
IMPORTANT NOTE:
Refer to the specific
installation instructions provided with each
blower for additional wiring instructions.
Follow wiring instructions at the blower as
outlined in the specific installation instructions provided with each blower. Black (L1)
to black, white (neutral) to white, or white
to blue, or white to brown (depending on
model) and green to grounding screw. Run
blower cable (ROMEX) to the hood liner.
Insert 6" (152) of ROMEX cable through the
knockout opening and into the electrical
box on the rough-in plate of the hood liner.
Secure the cable to the electrical box with
an appropriate connector.
Locate the cord assembly provided with the
blower. The cord assembly has two leads,
black (L1) and white (neutral). Connect
these leads to the leads from the blower,
black to black and white to white.
Connect
all
green and bare wires together
to the ground screw in the electrical box.
Plug the cord assembly into the receptacle
located near the center of the hood shell.
Use the clips on the interior of the hood to
keep excess power cord away from moving
parts.
Reinstall the electrical box cover and
screws. Make sure that all wires are secure
and that no wires are pinched between the
cover and box.
IMPORTANT NOTE:
Before turning the power
on to the ventilation hood liner, make sure the
blower is off.
When making electrical connections,
make sure the electrical power is turned
off at the power source or circuit breaker
before proceeding.

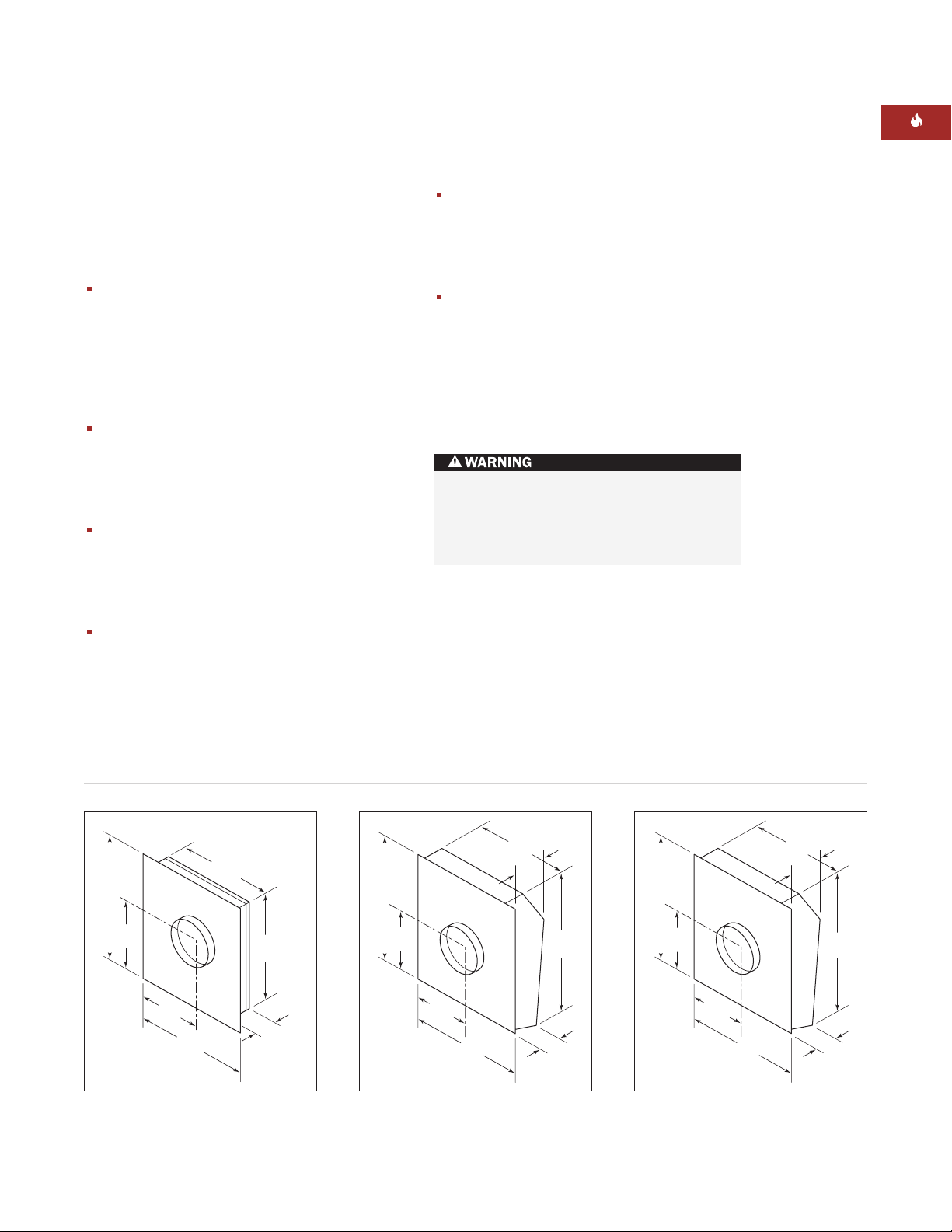

Dimensions for BLOWER-90REM
Dimensions for BLOWER-150REMDimensions for BLOWER-120REM
3
/4
20
"
28
(718)
1
/4
15
(394)
"
Diameter
1
"
/2
14"
(356)
10" (254)
3
/4
24
(629)
(527)
1
24
"
/2
(622)
3
4
"
/4
"
(121)
29
(749)
25"
(635)
21" (533)
10"
(254)
29
(749)
7
(184)
1
"
/2
1
"
/4
18" (457)
10"
1
"
/2
10" (254)
Diameter
3
14
"
/4
(375)
1
10
"
/8
(257)
22"
(559)
(254)
29
(749)
7
(184)
1
29
"
/2
(749)
1
/2
"
1
/4
"
14
(375)
10" (254)
Diameter
3
"
/4
3
10
"
/8
(264)
14
INTERNAL BLOWERS
(
805347) –
600 CFM internal blower
included with Model L282212I.
LBLOWER-120INT (805087) –
1200 CFM
internal blower for all Pro hood liners
except Model L282212I.
IN-LINE BLOWERS
BLOWER-110IL (808190) –
1100 CFM
in-line blower for all Pro hood liners except
Model L282212I.
REMOTE BLOWERS
BLOWER-90REM (801641) –
900 CFM
remote blower for all Pro hood liners except
Model L282212I.
BLOWER-120REM (801642) –
1200 CFM
remote blower for all Pro hood liners except
Model L282212I.
BLOWER-150REM (804701) –
1500 CFM
remote blower for all Pro hood liners except
Model L282212I.
Refer to the Wolf Design Guide for Pro
ventilation recommendations. You can also
visit our website at wolfappliance.com.
WOLF PRO VENTILATION HOOD LINERS
ACCESSORIES
Optional accessories are available
through your
Wolf dealer. To
obtain local dealer
information, visit
the Locator section
of our website,
wolfappliance.com.
INSTALL FILTERS / GREASE CUPS
Remove all packaging material from the
filters and the grease cups for Model
L282212I.
Slide the grease cups along the bottom
edge of the hood so that the lip of the
grease cup overhangs slightly (Model
L282212I only).
Install the filters. Orient each filter with
lines running vertically. Position the top
edge of the filter as shown in the illustration below. While pressing up against the
spring, rotate the bottom edge of the filter
into position (next to the grease cup on
Model L282212I). Gloves should be worn to
provide proper grip.
BLOWER ASSEMBLIES
Wolf Pro ventilation hood liners are shipped
without the blower assembly. Wolf internal,
in-line and remote blower assemblies are
available as sales accessories through your
Wolf dealer.
IMPORTANT NOTE:
Blower options vary with
the cooking surface. Use only a Wolf blower
with the Pro ventilation hood liner.
Filter installation and grease cup
installation (Model L282212I only)
Spring
Filter
Grease Cup SIDE VIEW
15
CONTACT
INFORMATION
Wolf Customer
Service:
800-332-9513
Website:
wolfappliance.com
IF YOU NEED SERVICE
Maintain the quality built into your Pro
ventilation hood liner by calling a Wolf
authorized service center.
For the name and number of the Wolf
authorized service center nearest you,
check the Locator section of our website,
wolfappliance.com
, or call Wolf Customer
Service at
800-332-9513
.
When calling for service, you will need the
model and serial number of your ventilation
hood liner. This information is found on the
rating plate located on the left wall of the
hood liner shell.
The information and images are the copyright
property of Wolf Appliance Company, Inc., an
affiliate of Sub-Zero Freezer Company, Inc.
Neither this book nor any information or images
contained herein may be copied or used in whole
or in part without the express written permission
of Wolf Appliance Company, Inc., an affiliate of
Sub-Zero Freezer Company, Inc.
©Wolf Appliance Company, Inc. all rights reserved.
TROUBLESHOOTING
IMPORTANT NOTE:
If the Pro ventilation hood
liner does not operate properly, follow these
troubleshooting steps:
Verify that power is being supplied to the
ventilation hood liner.
Check electrical connections to ensure that
the installation has been completed
correctly.
Refer to the Troubleshooting Guide in the
Wolf Pro Ventilation Hoods Use & Care
Information.
If the ventilation hood liner still does not
work, contact a Wolf authorized service
center. Do not attempt to repair the hood
liner yourself. Wolf is not responsible for
service required to correct a faulty
installation.
INSTALLATION INSTRUCTIONS
809342 7/2006
WOLF APPLIANCE COMPANY, INC. P. O. BOX 44848 MADISON, WI 53744 800-332-9513 WOLFAPPLIANCE.COM
Loading...
