PRO 48 USE & CARE GUIDE

Caring for your Sub-Zero and everything in it.

Contents

Important Note

PRO 48 Refrigeration . . . . . . . . . . . . . . . . . . . . . . . . . . 3

PRO 48 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

PRO 48 Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

PRO 48 Use & Care . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Keeping Food at Its Best . . . . . . . . . . . . . . . . . . . . . . 15

Food Storage Recommendations . . . . . . . . . . . . . . . 19

Water Filtration System Performance Data . . . . . . . . 25

California Certification . . . . . . . . . . . . . . . . . . . . . . . . 26

Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . . . . 27

Service Information . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Sub-Zero Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Features and specifications in this guide and on the website are subject to change at any time without notice. Check our website, subzero.com, for the most up-to-date specifications.

SUB-ZERO

is a registered trademark of Sub-Zero, Inc.

o ensure the safe and efficient use of Sub-Zero equip-

T ment, please take note of the following types of highlighted information throughout this guide:

IMPORTANT NOTE highlights information that is especially relevant to a problem-free installation.

CAUTION signals a situation where minor injury or product damage may occur if instructions are not followed.

WARNING states a hazard that may cause serious injury or death if precautions are not followed.

PRO 48 Refrigeration 3

subzero.com

Thank You

hank you for purchasing your new Sub-Zero PRO 48 unit.

T With Sub-Zero, you can rely on a 60-year tradition of quality and reliability.

Built in to cabinetry or free-standing, the PRO 48 is just the latest example of Sub-Zero pushing food preservation to new heights. And of course, the PRO 48 still meets rigorous Department of Energy standards for residential use. Featuring a glass door on model 648PROG or top-to-bottom stainless steel on model 648PRO. The PRO 48 brings together the latest technology and finest features in home refrigeration to give you the freshest food possible.

Your Sub-Zero is protected by a warranty that is one of the finest in the industry. Take a moment to read the warranty statement on page 31 and refer to it should service become necessary.

This Use & Care Guide will answer most of your questions about the features, operation and maintenance of your PRO 48 unit. If you have questions that are not addressed here, call Sub-Zero Customer Service at 800-222-7820 or visit our website, subzero.com.

Dual Refrigeration

he PRO 48 continues the Sub-Zero tradition of superior

T quality and reliability. Sub-Zero pioneered the development of our dual refrigeration system, giving you optimum fresh and freezer food storage in ideal self-contained sections. Both refrigerator and freezer maintain accurate, consistent temperatures. Dual refrigeration keeps your food fresh longer than any other system available.

With dual refrigeration, the freezer maintains a constant temperature within one degree of the temperature you set within our range of -5˚F (-21˚C) to +5˚F (-15˚C), without unwanted moisture and odor from the refrigerator. Similarly, you can adjust the refrigerator temperature within a range of 34˚F (1˚C) to 45˚F (7˚C), for proper humidity levels tailored for longer food life expectancy.

The dual refrigeration system also means there is no transfer of fresh food odors to frozen food or ice. The Sub-Zero system does not freeze the moisture out of the air in the fresh food section.

Sub-Zero dual refrigeration is also more energy efficient than old-fashioned single refrigeration systems. When the refrigerator is used frequently during the day it does not require the freezer to circulate its very cold, dry air to the refrigerator. Instead, the refrigerator uses moist air to keep fresh foods fresh and energy use minimal.

PRO 48 Features 4

PRO 48 Features

Alarm with an audible beep lets you know when doors

Can be built in or, with the free-standing accessory kit,

•

used in a free-standing application.

•

or drawers are left ajar.

• Dual refrigeration—two compressors and three

evaporators keep foods fresher longer and prevent odor transfer.

• Exterior temperature display with easy-to-read digital

readouts, accurate within one degree of your preset temperatures.

• Microprocessor and interior control panel with up-front

touch controls monitor pattern-sensing defrost and automatic service alerts.

• Holiday mode—power down one or both sides for

extended periods or just the weekend.

• Slide-out stainless steel bins—two versatile, removable

bins hold small items and fit neatly under any shelf.

• Crisper drawer is a touch-and-glide crisper with a

tight-seal glass lid that gives vegetables generous humidity.

• Drawers with dividers help you enjoy full access to

food with adjustable, removable, and interchangeable drawer dividers.

• Automatic ice maker lets you retrieve filtered ice from a

stainless steel bucket.

• Shelves are cantilevered and spill-proof, with stainless

steel trim (refrigerator); adjustable, removable and 100% stainless steel (freezer).

• Water filter is easy to replace and is just behind the

pop-up grille, for ice as pure as it is fresh.

• Easy-access grille pops up with a simple pull (no tools

needed) to reveal the water filter and condenser for cleaning.

• Stainless steel construction and classic finish (inside

and out) for professional strength and beauty.

• Advanced lighting—top LED lights bathe upper

compartments in a soft glow; on the refrigerator side, channeled sidewall LEDs can even serve as door area night lights (night light option available on model 648PROG only).

• Triple-pane, UV-resistant glass—specially treated glass

offers convenient visibility while filtering harmful rays and saving energy (model 648PROG only).

• For installations at or above 5,000' (1524 m) in eleva-

tion, high altitude glass is available as a special order.

• Certified by Star-K to meet religious regulations.

• UL approved for US and Canada.

• Sub-Zero products are covered by a two, five and

twelve year residential warranty (exclusions apply). See warranty details at the end of this guide.

• Auto-close system with an advanced hinge design lets

doors finish closing easily and automatically.

These appliances are Star-K compliant to meet strict religious regulations in conjunction with specific instructions found on www.star-k.org.

PRO 48 Models 5

subzero.com

Models 648PRO and 648PROG

REFRIGERATOR /FREEZER

Stainless steel construction

Easy-access grille

Water filter location

Holiday mode

Advanced lighting

Auto-close hinge system

Adjustable stainless steel shelves

Location of rating plate (open drawer)

Automatic ice maker

Dual refrigeration system

Exterior temperature display

Microprocessor and interior control panel

Alarm

Triple-pane, UV-resistant glass (648PROG)

Adjustable spillproof glass shelves

Slide-out stainless steel bins

Crisper drawer

Drawers with dividers

Model 648PRO

Model 648PROG

with glass door

Model 648PROG with glass door shown.

PRO 48 Use & Care 6

Electronic Control System

he electronic control system of the PRO 48 monitors and

T accurately displays compartment temperatures within one degree of your pre-set temperatures. It also monitors the operation of the unit and lets you know if there is a problem. The interior control panel located at the top of the refrigerator door compartment has key pads to set temperatures and control functions of the electronic control system. Refer to the illustration below.

TEMPERATURE CONTROL

Your new PRO 48 was thoroughly inspected and tested before it was shipped from the Sub-Zero factory. Temperatures are preset at 38°F (3°C) in refrigerator compartments and 0°F (-18°C) in the freezer compartments.

There are three sets of WARMER and COLDER key pads on the interior control panel, two for the refrigerator compartments (upper door and lower drawers) and one for the freezer compartments. To adjust the temperature in any of the three compartments, depress the WARMER or COLDER key pad for that compartment. Digital temperatures for each of the three compartments are displayed in the exterior temperature display.

EXTERIOR TEMPERATURE DISPLAYS

Electronic control system functions, such as digital temperatures and service indicators, are displayed in two exterior temperature displays located on the grille. The display in the lower left area of the grille shows the temperature and indicators for freezer compartments, and the display in the lower right gives readouts for refrigerator compartments. Refer to the illustrations below.

Exterior temperature displays.

Temperature ranges are -5°F (-20°C) to +5°F° (-15°C°) in the freezer sections and 34°F (1°C) to 45°F (7°C) in the refrigerator sections. It is normal for temperatures to fluctuate slightly, depending on external influences such as an open door, the degree of humidity and room temperature.

IMPORTANT NOTE: Always allow 24 hours for compart-

ments to reach the temperature you set.

Freezer Temperature

Controls

Interior control panel.

Ice Maker

On/Off

Power On/Off

Alarm

On/Off

Lights

On/Off

Refrigerator

Temperature Controls

Upper

Compartment

Drawer

Compartments

PRO 48 Use & Care 7

subzero.com

Electronic Control System

POWER ON/OFF

The POWER key pad on the control panel will shut off all electrical power to the unit. When the power is off, the OFF indicator light will be visible in the exterior temperature display. Using the POWER key pad means you do not have to shut off power at the circuit breaker or unplug the unit. The POWER key pad can be used for extended vacations.

It is possible to shut off power to one compartment of the PRO 48 for an extended period without affecting operation of the other compartments.

First, turn the unit off by depressing the POWER key pad. Then push and hold the WARMER key pad of the compartment you wish to shut down. Depress the POWER key pad to turn the unit back on. The disabled zone will be indicated with “--” in the exterior temperature display. Repeat the process to resume power to the compartment.

Be sure to shut off power to the unit at the circuit breaker during service.

ALARM FEATURE

The PRO 48 has an alarm feature that lets you know with an audible beep if a door or drawer is left ajar. The alarm will sound after 30 seconds if a door or drawer is left open and will stop once the door or drawer is closed. This alarm can be disabled for cleaning or restocking by depressing the ALARM key pad on the control panel.

ICE MAKER ON/OFF

The ICE MAKER key pad on the control panel switches power to the ice maker system on or off. Use the ICE MAKER key pad to shut down ice maker operation during extended vacations. The ice bucket icon will be visible in the exterior temperature display if the ice maker system is on.

VISUAL SERVICE DISPLAY

The electronic control system monitors compartment and component temperatures as well as the ice maker system. If there is a temperature or ice maker problem, you will be alerted by a flashing SERVICE indicator light in the exterior temperature display. This same SERVICE light will also flash if the condenser needs cleaning.

SABBATH MODE (STAR-K)

The PRO 48 features Sabbath mode for certain religious observances where lights and the ice maker need to be turned off.

To initiate Sabbath mode while the unit is on, press the POWER key pad on the control panel so that OFF is visible in the exterior temperature display. Then press and hold the POWER key pad for 10 seconds. This will turn the unit back on with lights and ice maker disabled. There will be four short beeps, indicating that the Sabbath mode has been set. To return the unit to normal operation, press and release the POWER key pad.

If you have questions about Star-K compliance, visit www.star-k.org.

PRO 48 Use & Care 8

Refrigerator Storage

ADJUSTABLE GLASS SHELVES

The adjustable glass shelves of the PRO 48 upper refrigerator compartment are cantilevered and spill proof with stainless steel trim.

To remove a shelf, tilt the shelf up at the front, then lift it up and out of the tracks on the rear wall of the refrigerator. To replace a shelf, insert in the tracks with the front of the shelf raised slightly. As you push the shelf in, lower the front of the shelf until it locks into position. Refer to the illustration of the adjustable glass shelves below.

IMPORTANT NOTE: Always be careful handling glass

shelves to prevent breaking the glass or scratching the interior.

ADJUSTABLE SLIDE-OUT BINS

The PRO 48 features two versatile, adjustable stainless steel slide-out bins that fit neatly under any refrigerator compartment shelf. The glass shelves have integrated rails that make it possible to position the slide-out bins in a variety of locations.

To remove the slide-out bin, simply pull the handle portion of the bin forward until it stops, lift it up and out of the rails mounted below the glass shelf. Refer to the illustration of the adjustable slide-out bin below.

Storage drawer with crisper lid.

CRISPER LID ASSEMBLY

The PRO 48 upper refrigerator drawer features a crisper lid to provide higher humidity in the drawer compartment. This assembly allows for easy access to the compartment and has a clear-view window for visibility of stored vegetables.

To remove the crisper lid assembly, pull the upper refrigerator drawer all the way out, raise the front edge of the crisper lid assembly up and pull out from the back. Refer to the illustration of the crisper lid above.

REFRIGERATOR DRAWER DIVIDERS

Adjustable glass shelves. Adjustable slide-out bin.

The PRO 48 refrigerator storage drawers give you full access to food with adjustable and removable dividers. The dividers are interchangeable between the upper and lower refrigerator drawer. Two long dividers run the full depth of the drawer, with shorter dividers that connect to the long dividers to compartmentalize the drawer.

To remove the short dividers, lift up and out of position from supports on the long dividers and sides of the drawer. The long dividers can also be removed by lifting up and out of position from drawer support tabs. Refer to the illustration of the storage drawer above.

PRO 48 Use & Care 9

subzero.com

Freezer Storage

ADJUSTABLE SHELVES

The adjustable shelves of the PRO 48 upper freezer compartment are cantilevered and 100% stainless steel.

The freezer shelves are repositioned the same way as the glass shelves in the refrigerator compartment. To remove or adjust the freezer shelves, first tilt the shelf up at the front, then lift it up and out of the tracks on the rear wall of the freezer.

To replace a shelf, insert in the tracks on the rear wall of the freezer with the front of the shelf raised slightly. As you push the shelf in, lower the front of the shelf until it locks into position.

ICE BUCKET REMOVAL

The automatic ice maker and stainless steel ice bucket are located in the lower freezer drawer.

To remove the ice bucket, pull the freezer drawer out until it stops, lift the ice bucket up and out of the drawer. The entire lower freezer drawer can now be used for more ice storage if necessary.

Storage Drawer Removal

he refrigerator and freezer storage drawers are remov-

T able for cleaning. The drawers have an automatic stop built in to prevent drawers from coming all the way out of the unit.

To remove, pull the drawer all the way out until it stops, lift up evenly on both sides of the drawer front and pull out. To reinstall, raise the front of the drawer and place onto the drawer slide tracks. Be sure to engage the front of the drawer slide with the drawer assembly. Refer to the illustration of the storage drawer removal below.

IMPORTANT NOTE: To reduce the weight of the drawer, be

sure to unload the contents before removing the drawer.

Storage drawers are heavy. Be sure to keep your feet clear as you remove the drawer.

Storage drawer removal.

PRO 48 Use & Care 10

Water Filtration System

he PRO 48 features a water filtration system that

T supplies filtered water to the ice maker to produce greattasting ice. The water filter has been factory installed behind the grille assembly.

It is important that the operation, maintenance and filter replacement requirements be carried out as scheduled. Refer to the following information on the water filter cartridge monitor.

WATER FILTER CARTRIDGE MONITOR

The water filter cartridge is designed to last for up to one year of continuous use of the ice maker. The electronic control system monitors the life of the water filter cartridge and indicates when it needs to be replaced. An indicator that reads “REPLACE FILTER” will be visible in the left side exterior temperature display. Follow steps to replace the water filter cartridge on the following page.

IMPORTANT NOTE: If the unit has been turned off or the

ice maker disabled for one month or longer, the water filter cartridge should be replaced once the unit and ice maker are back in operation.

IMPORTANT NOTE: Do not use with water that is microbi-

ologically unsafe or of unknown water quality without adequate disinfection before or after the system. Systems certified for cyst reduction may be used on disinfected waters that may contain filterable cysts.

Refer to the performance data on page 25 for additional information regarding the water filtration system.

Once the filter cartridge has been replaced, the control automatically resets the water filter life monitor and the “REPLACE FILTER” indicator will no longer be displayed.

Although it is designed to last for up to one year of use, the actual life of the filter cartridge may vary with water supply conditions. Therefore, it is recommended that the filter cartridge be replaced when the “REPLACE FILTER” indicator is displayed or if the ice cubes become hollow or smaller.

IMPORTANT NOTE: The warranty for the water filter

cartridge supplied with the unit only covers defects in materials or workmanship and not replacement due to normal use.

Replacement Sub-Zero water filter cartridges (4204490) can be ordered by calling 800-222-7820 or online at subzerowolfstore.com.

PRO 48 Use & Care 11

WATER FILTER

subzero.com

Water Filtration System

FILTER CARTRIDGE REPLACEMENT

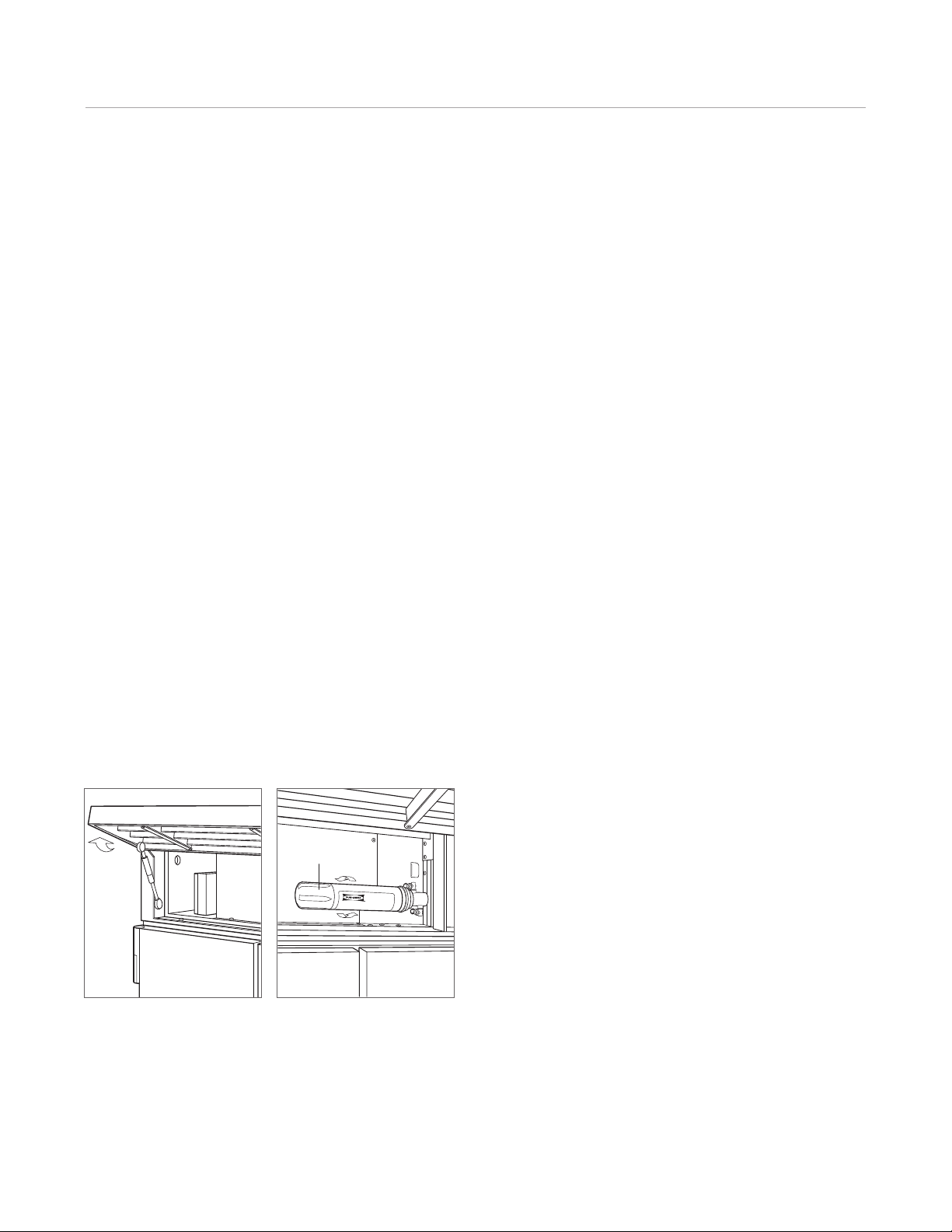

1) Lift the grille assembly to access the water filter. To lift the grille, pull out on the bottom edge of the grille and tilt the grille frame forward. Refer to the grille access illustration below.

2) Slowly rotate the old filter cartridge one-quarter turn counterclockwise to disengage. Gently twist until the cartridge is free from the base. DO NOT pull. There will be water in the filter cartridge, so it is normal for a small amount of water to spill out. Refer to the water filter illustration below.

3) Remove the new filter cartridge from its packaging and carefully remove the cap.

4) Line up the cartridge so that the locking tabs can be inserted into the filter head.

5) Rotate the filter cartridge into the base about one-quarter turn clockwise until it stops. DO NOT overtighten.

6) After the new filter cartridge is installed, the first full bucket of ice produced should be discarded. This will help clean the water system and clear air from the line. Allow 24 hours before discarding the first bucket of ice.

WATER FILTER BYPASS MODE

If you choose not to use the water filtration system, the system can be placed in water filter bypass mode. In this mode, the water supplied to the ice maker will not be filtered and the electronically controlled water filter monitor will be deactivated.

The water filtration system automatically goes into bypass mode when the filter cartridge is removed. Once a filter cartridge is reinstalled, the water filtration system will be activated and the water filter monitor function will resume.

IMPORTANT NOTE: If you are using a reverse osmosis

system, the water filter cartridge must be removed to put the water filtration system into bypass mode.

Grille access. Water filter.

PRO 48 Use & Care 12

Ice Maker Operation

he ice maker in the PRO 48 is fully automatic and has

T been tested at the Sub-Zero factory. To turn the ice maker on or off, depress the ICE MAKER key pad on the control panel. When the ice maker is on, it will be operating any time the drawer is closed.

IMPORTANT NOTE: A reverse osmosis system can be

used with the PRO 48, provided there is constant water pressure of 20 psi (1.4 bar) to 120 psi (8.3 bar) supplied to the unit at all times. In this application, the integrated water filtration system must be set to bypass mode. This is achieved by removing the water filter cartridge. Refer to page 11 for detailed instructions.

Ice Production

The ice maker is designed to produce enough ice for normal family use. The timing of ice making cycles will vary depending on load conditions, door and drawer openings and room temperature. On average, you can expect a cycle of ice (eight cubes per cycle) every two hours.

Door and Drawer Operation

he PRO 48 refrigerator and freezer door hinges have an

T auto-close system that allows doors to finish closing automatically. As you close the door, the built-in cam takes over to close the door the final 15°. A built-in door stop allows both doors to stay open at approximately 120°.

For corner applications, an optional door stop kit is available that limits the door opening to 90° (4152280). Optional accessories are available through your Sub-Zero dealer. To obtain local dealer information, visit the Showroom Locator section of our website, subzero.com.

The PRO 48 refrigerator and freezer drawers have an auto-close system that allows drawers to finish closing automatically. The drawers have an automatic stop built in at full extension.

For extra ice capacity, remove the ice bucket with the ice maker system on and allow the drawer to fill with ice.

IMPORTANT NOTE: Removing the ice bucket will not

increase the rate of ice production.

If ice is not used on a regular basis it tends to fuse together. To avoid this, empty the ice bucket periodically allowing it to replenish with a fresh supply.

PRO 48 Use & Care 13

subzero.com

Interior Cleaning

o clean interior surfaces and removable parts, wash with

T a mild solution of soap and luke-warm water with a little baking soda. Do not use vinegar. Rinse and dry thoroughly. Avoid getting water on lights and control panel.

Do not submerge or pour hot water over cold glass shelves.

Exterior Cleaning

To clean the exterior stainless steel surfaces of the PRO 48, use a soft, nonabrasive stainless steel cleaner like Signature Polish and apply with a soft, 100% lint-free cloth.

To bring out the natural luster of the stainless steel, lightly wipe the surface with a water-dampened microfiber cloth followed by a dry polishing chamois. All work should follow the grain direction of the finish. Better results are obtained by keeping the cloth in continuous contact with the stainless steel.

Condenser Cleaning

he condenser of the PRO 48 is located behind the grille

T at the top of the unit. The grille must be lifted to access the condenser area for cleaning. To lift the grille, pull out on the bottom edge of the grille and tilt the grille frame forward.

Use a soft bristle brush and vacuum to remove dust and lint from the condenser. Clean the condenser area every three to six months.

Failure to clean the condenser could result in temperature loss or mechanical failure or damage.

Before cleaning the unit, shut the electricity off at the control panel. When you clean the condenser, wear gloves to avoid injury from the sharp condenser fins.

Signature Polish is available from Signature Limited Laboratory, P. O. Box 13436, Dayton, Ohio 45413-0436, or 877-376-5474 (toll free).

Under no circumstances should you use a metallic or highly abrasive cleaner or cloth, as this will scratch the classic stainless steel finish.

PRO 48 Use & Care 14

Lighting Information

he PRO 48 features top LED lights that bathe the upper

T refrigerator and freezer compartments in a soft glow. The refrigerator compartment also has channeled sidewall LED lighting.

For model 648PROG with glass door, the LED lighting can be left on with the door closed and can serve as a doorarea night light. This feature can be activated or deactivated by depressing the LIGHT key pad.

IMPORTANT NOTE: This advanced lighting system needs

to be replaced by a Sub-Zero authorized service center technician.

The lighting in the refrigerator and freezer drawers use 40-watt appliance bulbs (3030180). The bulbs are easily accessible with the drawer open and are located on the ceiling of the drawer compartment.

To replace drawer compartment light bulbs, unscrew the bulb counterclockwise to remove and clockwise to install.

Vacation Time

or extended vacations, shut off power to the unit by

F depressing the POWER key pad. Empty all contents and block the doors and drawers open slightly. A one-inch space will let fresh air in to keep the interior dry and fresh. Upon return, the water filter should be discarded and replaced with a new filter before start up.

IMPORTANT NOTE: For extended vacations, refer to the

water filtration system information on pages 10–11.

For short vacations, remove all perishable items. Shut off the ice maker by pressing the ICE MAKER key pad and empty the ice bucket. It is not necessary to change the control settings.

If the unit is put into service temporarily and later shut off, block the doors and drawers open to allow fresh air to circulate inside the compartments. Be sure to shut off power to the unit by pressing the POWER key pad.

If your religious observances (Sabbath mode) require turning off the lights and ice maker, see Sabbath mode, page 7.

Be sure to shut off power to the unit at the circuit breaker before replacing light bulbs. Wear protective gloves when handling bulbs.

Keeping Food At Its Best 15

subzero.com

Keeping Food Fresh

our Sub-Zero unit features our unique dual compressor

Y refrigeration system to keep food fresher longer. However, the quality and safety of your food also depends on how you handle it.

The information in this section gives you the most up-todate handling and storage recommendations to help you keep food at its best. If you have specific questions that are not addressed here, contact a University or County Extension Service or your local utility company.

Most food inevitably deteriorates over time. From the very beginning until it is consumed, food undergoes changes. Microorganisms get into food, multiply and cause spoiling.

Enzymes that occur naturally in food continue the ripening process even after the food is harvested. Improper temperatures cause food to deteriorate faster. Changes in humidity cause wilting and shriveling that can lead to spoiling.

HANDLING RECOMMENDATIONS

• Follow the recommended storage times and tempera-

tures in this guide. Your Sub-Zero unit helps to slow the ripening process by tailoring temperatures to each section as needed.

• Use specially designed compartments for dairy foods,

deli foods and fresh produce. These compartments maintain temperature and humidity levels that keep specific food groups fresh.

• Rotate food in refrigeration units, using a first-in,

first-out system.

• When food does spoil, it’s usually obvious. It becomes

moldy, has an off-odor and looks rotten. But there are times when spoiling may not be so apparent. If you think a food has been stored too long, discard it. Don’t taste it to check if it’s okay.

Sub-Zero’s dual refrigeration system is specifically designed to combat these changes and keep your food fresh longer. The individual refrigerator and freezer systems have been designed to maintain accurate, consistent temperatures and proper humidity levels for longer food life expectancy. Dual refrigeration eliminates transfer of fresh food odors to frozen food or ice and does not freeze the moisture out of the air in the fresh food section.

In addition, good handling practices can minimize the rate of changes in food.

Food Storage Recommendations 16

Keeping Food Safe to Eat

ost food-borne illness is caused by bacteria such as

M Staphylococcus, Salmonella, E-coli and Clostridium Botulinum (the bacteria that causes botulism). These bacteria grow rapidly at temperatures between 40˚F (4˚C) and 140˚F (60˚C), a range that’s called the Danger Zone. Never leave food in the danger zone for more than two hours. When the bacteria have multiplied to the millions in warm temperatures, they cause illness. Some bacteria cause flu-like symptoms, while others cause serious illness or even death. Young children, the elderly and people who are already ill are more likely to become sick from food poisoning.

To reduce your risk of food-borne illness, use the following techniques to keep your food safe to eat:

WHEN YOU STORE FOOD

• Monitor temperatures of the refrigerator and freezer

sections on the electronic control panel of your Sub-Zero unit. Keep the refrigerator temperature at 40˚F (4˚C) or below and freezer temperature at 0˚F (-18˚C).

• Follow the recommended refrigerator and freezer

storage times and temperatures in this guide.

• Store raw meat, poultry and seafood separate from

other foods. Keep juices from these packages from dripping on other food.

• Never taste food that looks or smells strange to test its

freshness. Discard it.

WHEN YOU’RE SHOPPING

• Place packages of raw meat, seafood or poultry in

plastic bags to keep them from dripping on other foods.

• Shop for meat, seafood and poultry last. Don’t leave

these foods in a hot car when you’ve finished shopping. Take along a cooler in hot weather or when you have to travel long distances.

• Check ‘use by’ and ‘sell by’ dates on foods to make

sure they’re fresh. Use extra care when buying deli food. Buy only the amount you will use in 1–2 days. Discard hot or cold deli food that has been at room temperature for more than two hours.

• For refrigerator storage, leave raw meat, poultry and

seafood in its original wrapper unless it is torn. Repeated handling can introduce bacteria to these foods.

• Wrap food stored in the refrigerator in foil or plastic

wrap, or place it in plastic bags or airtight containers to keep it from drying out. Date all packages.

• For freezer storage, use freezer wrap, freezer-quality

plastic bags or aluminum foil over the commercial wrap if foods will be stored in the freezer for more than a couple of months. This minimizes dehydration and quality loss. Single layers of aluminum foil may tear and cause freezer burn.

Food Storage Recommendations 17

subzero.com

Keeping Food Safe to Eat

WHEN YOU PREPARE FOOD

• Clean everything that comes in contact with food.

• Wash your hands for 20 seconds before and after

handling food.

• Sanitize counters, equipment and utensils after

handling raw meat, seafood or poultry. Rinse with a diluted chlorine bleach solution of one teaspoon to one quart of water.

• Use clean kitchen towels, sponges and cloths. Replace

sponges every few weeks.

• Use disposable plastic gloves if you have an infected

cut or burn on your hands.

• Thaw food in the refrigerator or microwave oven, not

on the counter. When you thaw food in a microwave oven, cook it immediately.

• Marinate food only in the refrigerator.

• Rinse poultry and seafood in cold water before

cooking.

• Avoid cross-contamination in preparing food. Keep raw

meat, poultry and seafood and their juices away from other food. For example, don’t use the same surface and utensils for preparing raw meat, poultry and seafood that you use for preparing salad ingredients.

• Thoroughly clean your plastic and wooden cutting

boards. Wash with hot water and soap and rinse with a diluted chlorine bleach solution of one teaspoon to one quart of water.

WHEN YOU COOK FOOD

• Cook meat to an internal temperature of 165˚F (75˚C) or

above and poultry to 180˚F (80˚C) or above. For cuts more than two inches thick, use a meat thermometer to check the temperature. For thinner cuts, clear juices (not pink) are a sign of doneness.

• If you are cooking frozen meat or poultry that has not

been defrosted, increase the cooking time to 1 the time required for thawed items.

• Roast meats or poultry in oven temperatures of 325˚F

(165˚C) or above.

• Cook eggs until the yolk and white are firm, not runny.

• Don’t use recipes in which eggs remain raw or partially

cooked.

• If your microwave has a temperature probe, use it.

Check temperatures of meat and poultry in at least three spots. Rotate foods during microwaving.

• Don’t taste raw or partially cooked meat, poultry, eggs

or fish.

WHEN YOU HAVE LEFTOVERS

• Refrigerate or freeze cooked leftovers in small, covered

containers within two hours after cooking. Make sure there is adequate air space around the containers so that food can cool down quickly.

• Remove the stuffing from meat or poultry and store it

separately.

/2 times

• Date packages of leftovers and use within a safe

period of time.

• Cover and reheat leftovers thoroughly before serving.

• Bring sauces, soups and gravy to a boil. Heat other

foods to 165˚F (75˚C).

• If you think food may be spoiled, discard it. When in

doubt, throw it out.

Food Storage Recommendations 18

Fresh Food Storage

helf life of fresh foods varies depending on how fresh it is

S when you buy it. To keep your food fresher longer, follow the recommended storage tips.

Vegetables: Wash vegetables in cool water and drain. Store in airtight containers or plastic wrap. Vegetables stay fresh longer in high humidity storage.

Fruits: Wash and dry fresh fruits. Store more aromatic fruits in plastic bags. Most fruits stay fresh longer in low humidity storage.

Prepackaged meats: Store in original packaging. After opening, rewrap tightly in plastic wrap or aluminum foil.

Fresh meats, fish and poultry: Remove store wrappings, then rewrap in plastic wrap, foil or waxed paper and refrigerate immediately.

Eggs: Store eggs unwashed in their carton or a portable egg tray. Use within three weeks.

Milk, cream and cottage cheese: Keep carton closed. Store on refrigerator shelf and use within 1–2 weeks.

Cheese: Store in original packaging until ready to use. After opening, rewrap tightly in plastic wrap or aluminum foil.

Leftovers: Let cool and cover tightly with plastic wrap or foil. Airtight plastic containers work well to prevent drying out and odor transfer.

ETHYLENE

Some fruits and vegetables will produce ethylene, a gas that initiates the ripening process. Ethylene can cause premature ripening in some foods, while in others, it can actually cause damage. To reduce unnecessary spoilage of your fresh produce, do not store ethylene producing fruits and vegetables with those that are ethylene sensitive. Refer to the chart on page 23.

Frozen Food Storage

reezer storage: Wrap foods in material designed for

frozen food storage. The wrap must seal out air and moisture. Do not refreeze thawed meats.

Ice cream: The firmness of the ice cream will depend on its cream content. Higher quality ice creams usually have a higher cream content, requiring colder freezer temperatures to maintain their firmness. Soft ice cream is not always an indication of a temperature problem.

Make sure your refrigerator and freezer doors close freely and completely. Overloading will affect temperatures inside the unit. Do not fill your freezer with large quantities of unfrozen foods expecting them to fast freeze. Give the freezer ample time to circulate cold air around unfrozen items before adding additional items.

SUGGESTED FOOD STORAGE

The food storage charts on the following pages give you specific information to help you keep food safe and keep it at its best quality. The recommended storage temperatures will help you determine optimal storage conditions for your food. As a general rule, food that is handled properly and kept at temperatures below 40˚F (4˚C) will be safe to eat.

Storing food at temperatures below 40˚F (4˚C) keeps it out of the Danger Zone. The storage times for refrigeration will help keep food from spoiling or becoming dangerous to eat. The time limits for frozen foods are to maintain flavor and texture. Food kept frozen longer than the recommended time will still be safe to eat, but its quality may diminish.

Food Storage Recommendations 19

subzero.com

Fish, Meats and Poultry

RESH FISH AND SEAFOOD

cod, flounder, haddock sole bluefish, perch mackerel, salmon shrimp, oysters

FRESH MEAT

beef steaks, roasts lamb chops, roasts pork and veal chops, roasts variety meats (tongue, liver, etc.)

34–35˚F (1–2˚C) 34–35˚F (1–2˚C) 34–35˚F (1–2˚C) 34–35˚F (1–2˚C)

HAMBURGER, GROUND AND STEW MEATS

hamburger, stew meats, ground turkey, veal, pork, lamb and mixtures

34–35˚F (1–2˚C) 1–2 days 3–4 months Freeze in original wrap up to 2 weeks. Use

HOTDOGS AND LUNCH MEATS

hotdogs (opened package) hotdogs (unopened package) lunch meats (opened package) lunch meats (unopened package)

34–35˚F (1–2˚C) 34–35˚F (1–2˚C) 34–35˚F (1–2˚C) 34–35˚F (1–2˚C)

ecommended

emperature

34˚F (1˚C) 34˚F (1˚C) 34˚F (1˚C) 34˚F (1˚C)

torage Life

refrigerator)

(

2 days 2 days 4 days

1 day

3–5 days 3–5 days 3–5 days 1–2 days

1 week

2 weeks

3–5 days

2 weeks

torage Life

freezer)*

(

6 months 2–3 months 5–9 months

6 months

6–12 months

6–9 months 4–6 months 3–4 months

1–2 months 1–2 months 1–2 months 1–2 months

omments

Freeze in original wrap up to 2 weeks. Use freezer wrap, freezer-quality plastic bags or aluminum foil over the commercial wrap if foods will be frozen for more than a couple of months.

freezer wrap, freezer-quality plastic bags or aluminum foil over the commercial wrap if foods will be frozen for more than a couple of months.

Freeze in freezer wrap. Check ‘sell by’ dates. Do not use more than 1 week after this date.

BACON AND SAUSAGE

bacon raw sausage (pork, beef, turkey) smoked breakfast links or patties hard sausage (pepperoni, jerky sticks)

34–35˚F (1–2˚C) 34–35˚F (1–2˚C) 34–35˚F (1–2˚C) 34–35˚F (1–2˚C)

HAM AND CORNED BEEF

corned beef ham, whole ham, half ham, slices

34–35˚F (1–2˚C) 34–35˚F (1–2˚C) 34–35˚F (1–2˚C) 34–35˚F (1–2˚C)

FRESH POULTRY

chicken or turkey, whole chicken or turkey, pieces duck or goose

*Recommended freezer storage temperature is 0˚F (-18˚C).

34–35˚F (1–2˚C) 34–35˚F (1–2˚C) 34–35˚F (1–2˚C)

7 days

1–2 days

7 days

2–3 weeks

5–7 days

7 days 3–5 days 3–4 days

1–2 days 1–2 days 1–2 days

1 month 1–2 months 1–2 months 1–2 months

12 months

9 months 6 months

Keep wrapped, and store at recommended refrigerator temperatures.

For freezer storage, drain juices.

Freeze in original wrap up to 2 weeks. Use freezer wrap, freezer-quality plastic bags or aluminum foil over the commercial wrap if foods will be frozen for more than a couple of months.

Food Storage Recommendations 20

Fresh Vegetables

FRESH VEGETABLES

anise artichokes asparagus beans, green/ snap /lima* bean sprouts beets belgian endive bok choy

broccoli brussels sprouts cabbage carrots cauliflower celeriac celery chinese broccoli

chinese cabbage corn, sweet cucumbers* daikon eggplant* endive /escarole garlic horseradish

Recommended

Temperature

34–36˚F (1–2˚C)

34˚F (1˚C) 34–36˚F (1–2˚C) 40–45˚F (4–7˚C)

34˚F (1˚C)

34˚F (1˚C) 36–38˚F (2–3˚C)

34˚F (1˚C)

45˚F (7˚C)

34˚F (1˚C)

45˚F (7˚C)

34˚F (1˚C)

Storage Life (refrigerator)

2–3 weeks 1–2 weeks 2–3 weeks 7–10 days

7–9 days

3–4 months

2–4 weeks

3 weeks

1–2 weeks 3–5 weeks 3–6 weeks

1–5 months

3–4 weeks 6–8 months 1–2 months 10–14 days

2–3 months

5–8 days

10–14 days

4 months 1–2 weeks 2–3 weeks

6–7 months

10–12 months

Comments

Wash vegetables in cool water and drain. Store in airtight container or plastic wrap.

Most vegetables should be stored in higher humidity.

Discard any fresh vegetables that are moldy or have other signs of spoilage and wipe out the refrigerator compartment.

For fresh-cut produce, follow storage directions on package.

Refer to the list of ethylene sensitive and ethylene producing vegetables and fruits.

jerusalem artichokes kale kohlrabi leeks lettuce mushrooms okra* onions, bulb

onions, green parsley parsnips peas, pods and shelled peppers, bell* peppers, chile pumpkins* radicchio

*Sensitive to chill injury, a cause of spoilage. Damage may not be apparent until the vegetable is returned to a warmer temperature. See food preservation guide for complete instructions on freezing vegetables. Recommended freezer storage temperature is 0˚F (-18˚C).

34˚F (1˚C) 34˚F (1˚C) 34˚F (1˚C) 34˚F (1˚C) 34˚F (1˚C) 34˚F (1˚C) 45˚F (7˚C) 34˚F (1˚C)

34˚F (1˚C) 34˚F (1˚C) 34˚F (1˚C) 34˚F (1˚C) 45˚F (7˚C) 45˚F (7˚C)

38–45˚F (3–7˚C)

34˚F (1˚C)

1–2 weeks

1–2 months 10–14 days

2 months 2–3 weeks 1–2 weeks 1–2 weeks

1–6 months

7–10 days

1–2 months 4–5 months

1–2 weeks 2–3 weeks 2–3 weeks

3–4 months

2–3 weeks

Food Storage Recommendations 21

subzero.com

Fresh Vegetables

ecommended

emperature

RESH VEGETABLES

radishes romaine rutabagas salsify shallots snow peas spinach squash, summer*

tamarillos tomatoes (ripe) turnips water chestnuts watercress

34˚F (1˚C) 34˚F (1˚C) 34˚F (1˚C) 34˚F (1˚C) 34˚F (1˚C) 34˚F (1˚C) 34˚F (1˚C)

40–45˚F (4–7˚C)

37–40˚F (3–4˚C)

46–50˚F (8–10˚C)

34˚F (1˚C)

34–36˚F (1–2˚C)

34˚F (1˚C)

torage Life

refrigerator)

(

1–2 months

2–3 weeks

4–6 months 2–4 months

6 months

1–2 weeks

10–14 days

1–2 weeks

10 weeks

1–3 weeks

4–5 months 2–4 months

2–3 weeks

omments

Wash vegetables in cool water and drain. Store in airtight container or plastic wrap.

Most vegetables should be stored in higher humidity.

Discard any fresh vegetables that are moldy or have other signs of spoilage and wipe out the refrigerator compartment.

For fresh-cut produce, follow storage directions on package.

Refer to the list of ethylene sensitive and ethylene producing vegetables and fruits.

Food Storage Recommendations 22

Fresh Fruits

RESH FRUITS

apples* (macintosh, grimes golden, yellow newtown) apples apricots asian pears avocados* blackberries blood oranges blueberries cantaloupe*

cassavas cherries, sweet clementines cranberries* figs, fresh grapes guavas* honeydew

kiwifruit kumquats lychees nectarines oranges* papayas* peaches pears

ecommended

emperature

34–40˚F (1–4˚C)

30˚F (-1˚C)

34˚F (1˚C) 34˚F (1˚C) 40˚F (4˚C) 34˚F (1˚C)

40–44˚F (4–7˚C)

34˚F (1˚C)

36–41˚F (2–5˚C)

34˚F (1˚C) 34˚F (1˚C) 40˚F (4˚C)

36–40˚F (2–4˚C)

34˚F (1˚C) 34˚F (1˚C)

40–45˚F (4–7˚C)

45˚F (7˚C)

34˚F (1˚C) 40˚F (4˚C) 35˚F (2˚C) 34˚F (1˚C)

34–45˚F (1–7˚C)

45˚F (7˚C) 34˚F (1˚C) 34˚F (1˚C)

torage Life

refrigerator)

(

1–2 months

3–6 months

1–2 weeks

5–6 months

2–4 weeks

2–3 days 3–8 weeks

10–18 days

2–3 weeks

1–2 months

2–3 weeks 2–4 weeks

2–4 months

7–10 days 2–3 weeks 2–3 weeks 3–4 weeks

4–6 weeks 2–4 weeks 3–5 weeks 2–4 weeks 3–8 weeks 1–3 weeks 2–4 weeks 2–3 weeks

omments

Wash and dry most fruits, and store in the crisper compartment. (Do not wash berries and cherries until you are ready to use them, however.)

Most fruits should be stored in lower humidity.

Fully ripe fruits should be stored in the refrigerator at recommended temperatures to slow down the ripening process.

To hasten the ripening process, you can place unripe fruit in a paper bag that has holes poked in it. Close the bag and set it on a counter. The fruit will produce ethylene, a gas that initiates the ripening process. Check the bag each day.

Discard any fresh fruits that are moldy or have other signs of spoilage and wipe out the refrigerator compartment.

Refer to the list of ethylene sensitive and ethylene producing vegetables and fruits.

persimmons pineapple* plums and prunes pomegranates* quinces raspberries rhubarb strawberries

tangerines watermelon*

*Sensitive to chill injury, a cause of spoilage. Damage may not be apparent until the fruit is returned to a warmer temperature. See food preservation guide for complete instructions on freezing fruits. Recommended freezer storage temperature is 0˚F (-18˚C).

34˚F (1˚C) 45˚F (7˚C) 34˚F (1˚C) 40˚F (4˚C) 34˚F (1˚C) 34˚F (1˚C) 34˚F (1˚C) 34˚F (1˚C)

40˚F (4˚C) 45˚F (7˚C)

3–4 months

2–4 weeks 2–5 weeks

2–3 months 2–3 months

3–6 days 2–3 weeks 7–10 days

2–4 weeks 2–3 weeks

Food Storage Recommendations 23

subzero.com

Ethylene Gas

ETHYLENE PRODUCING FOODS

apples apricots avocados ripening bananas cantaloupe

ETHYLENE SENSITIVE FOODS

unripe bananas green beans belgian endive broccoli brussels sprouts

cherimoyas figs guavas honeydew kiwifruit

cabbage carrots cauliflower chard cucumbers

mamey sapote mangoes mangosteen nectarines papayas

eggplant unripe kiwifruit leafy greens lettuce okra

passion fruit peaches pears persimmons plantains

peas peppers spinach squash sweet potatoes

plums prunes quince tomatoes

watercress watermelon

IMPORTANT NOTE: Do not store ethylene producing foods with ethylene sensitive foods.

Food Storage Recommendations 24

Deli Foods, Dairy Products and Other Foods

ELI FOODS

thinly sliced lunch meats egg, chicken, tuna and ham salads macaroni salads pre-stuffed chops, chicken breasts store-prepared convenience meals

DAIRY FOODS

butter cottage or ricotta cheese cream cheese natural cheese (cheddar, brick, etc.) process cheese grated Parmesan or Romano yogurt whole, lowfat or skim milk

EGGS

fresh, in shell hard cooked liquid pasteurized or egg substitutes

opened unopened

ecommended

emperature

34–35˚F (1–2˚C) 34–35˚F (1–2˚C) 34–35˚F (1–2˚C) 34–35˚F (1–2˚C) 34–35˚F (1–2˚C)

34–35˚F (1–2˚C) 34–35˚F (1–2˚C) 34–35˚F (1–2˚C) 34–35˚F (1–2˚C) 34–35˚F (1–2˚C) 34–35˚F (1–2˚C) 34–35˚F (1–2˚C) 34–35˚F (1–2˚C)

34˚F (1˚C)

34–35˚F (1–2˚C)

34–35˚F (1–2˚C) 34–35˚F (1–2˚C)

torage Life

refrigerator)

(

1–2 days 3–5 days 3–5 days

1 day

1–2 days

3 months

1–2 weeks

2 weeks

3–6 months

3–4 weeks

1 year

1 month

1–2 weeks

3 weeks

1 week

3 days

10 days

torage Life

freezer)*

(

NR NR NR NR NR

1 year

4 weeks

6–8 months 6–8 months

NR NR

1 year

omments

Check ‘use by’ or ‘sell by’ dates. These foods do not freeze well. If you need to freeze, do so immediately, not after they have been held in the refrigerator.

Check ‘sell by’ dates.

Store cheese in original packaging until ready to use. After opening, rewrap tightly in plastic wrap or aluminum foil.

Thaw frozen cheese in the refrigerator to reduce crumbling.

Keep fresh eggs refrigerated.

Do not eat hard cooked eggs that have been at room temperature for more than 2 hours.

COOKED MEAT AND POULTRY LEFTOVERS

cooked meat and meat dishes gravy and meat broth fried or plain chicken, pieces cooked poultry dishes pieces covered with broth, gravy chicken nuggets, patties

34–35˚F (1–2˚C) 34–35˚F (1–2˚C) 34–35˚F (1–2˚C) 34–35˚F (1–2˚C) 34–35˚F (1–2˚C) 34–35˚F (1–2˚C)

3–4 days 1–2 days 3–4 days 3–4 days 1–2 days 1–2 days

2–3 months 2–3 months

4 months

4–6 months

6 months

1–3 months

Refrigerate or freeze leftovers in covered shallow containers within 2 hours after cooking. Reheat leftovers to 165˚F (74˚C).

SOUPS AND STEWS

vegetable meat added

*Recommended freezer storage temperature is 0˚F (-18˚C). (NR) stands for not recommended for freezing.

34–35˚F (1–2˚C) 34–35˚F (1–2˚C)

3–4 days 3–4 days

2–3 months 2–3 months

Reheat to at least 165˚F (74˚C) before serving.

Water Filtration System Performance Data 25

Performance Data Sheet

Sub-Zero Water Filtration System Model 4290510

Replacement Cartridge #4204490

This system has been tested according to NSF/ANSI 42/53 for reduction of the substances listed below. The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system, as specified in NSF/ANSI 42/53.

Average Max. Effluent Average Minimum

hlorine ― 2.0 mg/L ± 10% 1.88 mg/L 0.05 mg/L 0.06 mg/L 97.34% 96.80% ≥ 50%

T & O――――――――

Particulate ―

At l

eas

t 10,000

particles/ml

5,700,000/ml 30,583/ml 69,000/ml 99.46% 98.78% ≥ 85%

Average Maxi mum Average Minimum

Lead at pH 6.5 0.015 mg/L 0.15 mg/L ± 10% 0.153 mg/L <0.001 mg/L <0.001 mg/L 99.34% 99.34% 0.010 mg/L

Lead at pH 8.5 0.015 mg/L 0.15 mg/L ± 10% 0.150 mg/L <0.001 mg/L <0.001 mg/L 99.33% 99.33% 0.010 mg/L

Mercury at pH 6.5 0.002 mg/L 0.006 mg/L ± 10% 0.006 mg/L 0.0003 mg/L 0.0005 mg/L 95.00% 91.66% 0.002 mg/L

Mercury at pH 8.5 0.002 mg/L 0.006 mg/L ± 10% 0.006 mg/L 0.0008 mg/L 0.0015 mg/L 86.66% 75.00% 0.002 mg/L

Atrazine 0.003 mg/L 0.009 mg/L ± 10% 0.009 mg/L <0.002 mg/L <0.002 mg/L 77.77% 77.77% 0.003 mg/L

Benzene 0.005 mg/L 0.015 mg/L ± 10% 0.014 mg/L 0.0006 mg/L 0.0011 mg/L 95.71% 92.14% 0.005 mg/L

Carbofuran 0.04 mg/L 0.08 mg/L ± 10% 0.081 mg/L <0.001 mg/L <0.001 mg/L 98.76% 98.76% 0.04 mg/L

1,4-dichlorobenzene 0.075 mg/L 0.225 mg/L ± 10% 0.208 mg/L <0.0005 mg/L <0.0005 mg/L 99.75% 99.75% 0.075 mg/L

Lindane

0.0002 mg/L

0.002 mg/L ± 10% 0.002 mg/L 0.00003 mg/L 0.00007 mg/L 98.50% 96.50%

0.0002 mg/L

Toxaphene 0.003 mg/L 0.015 mg/L ± 10% 0.015 mg/L <0.001 mg/L <0.001 mg/L 93.33% 93.33% 0.003 mg/L

Turbidity 1 NTU* 11 ± 1 NTU 10.7 NTU 0.31 NTU 0.49 NTU 97.10% 95.42% 0.5 NTU

Cysts**

99.95% Reduction

Minimum 50,000/L 166,500/L <1/L <1/L >99.99% >99.99% >99.95%

Asbestos

99% Reduction

107to 108fibers/L†

155 MF/L <1 MF/L <1 MF/L >99.99% >99.99% >99%

Effluent % Reduction

tandard No. 42: Aesthetic Effects

Product Water Concentration

Reduction

Standard No. 53: Health Effects

aximum Permissible Product

Water Concentration

Maximum Permissible Product

ater Concentration

USEPA MCL

Influent Cha llenge

Concentration (mg/L)

Parameter

Average Influent

Concentration (mg/L)

Influent Cha llenge

oncentration

USEPA MCL

Average Influent

oncentra tion (mg/L)

*NTU - Nephelometric Turbidity Units; ** Based on the use of Cryptosporidium Parvum oocysts; † Fibers greater than 10 micrometers in length

Operating Specifications

Capacity: certified for up to 750 gallons (2,838 L); up to twelve months

Pressure Requirement: 35 – 120 psi (2.8 – 8.2 bar) Temperature: 33 – 100°F (0.6 – 38°C) Flow Rate: 0.78 gpm (2.9 Lpm)

Special Notices

For a replacement element please contact @ 1-800-768-0052 or order online at www.subzero.com

Change cartridge at least every twelve months. Installation and operation instructions, parts and service availability and standard warranty are included with the product when shipped. Replace water filter cartridge when filter indicator is lit or when water flow becomes too low. Use replacement water filter cartridge part

number 4204490. Replacement filter pricing information can be found at www.subzero.com.

Do not use with water that is microbiologically unsafe or of unknown water quality without adequate disinfection before or after the system.

Systems certified for cyst reduction may be used on disinfected waters that may contain filterable cysts.

This system must be installed, operated, maintained and filters replaced as required in order for the product to perform as advertised. Note that while the testing was performed under standard laboratory conditions, actual performance may vary. The contaminants or other

substances removed or reduced by this water treatment system are not necessarily in your water.

Manufactured for: Sub-Zero Freezer Company, PO Box 44130, Madison, WI 53744-4130. Phone: (800) 222-7820

Tested and certified by NSF International against NSF/ANSI Standard 42 for the reduction of Chlorine Taste and Odor, Particulate Class I; and against NSF/ANSI Standard 53 for the reduction of Lead,

ercury, Atrazine, Benzene, Carbofuran, 1,4-dichlorobenzene, Lindane, Toxaphene, Turbidity, Cysts

nd Asbestos.

subzero.com

A replacement filter can be ordered by calling 800-222-7820 or online at subzerowolfstore.com or subzero.com.

California Certification 26

State of California

Department of Health Services

Water Treatment Device

Certificate Number

Date Issued: April 18, 2005

Trademark/Model Designation

Replacement Elements

170805 -

Sub-Zero 4290510 4204490

Manufacturer:

Cuno, Incorporated

The water treatment device(s) listed on this certificate have met the testing requirements pursuant to Section

116830

of the Health and Safety Code for the following health related contaminants:

Cysts Turbidity

Asbestos

Lead Mercury

Atrazine Benzene

Carbofuran Lindane p-dichlorobenzene Toxaphene

Microbiological Contaminants and Turbidit

norganic/Radiological Contaminants

rganic Contaminants

Do not use where water is microbiologically unsafe or with water of unknown quality, except that systems certified for cyst reduction may be used on disinfected waters that may contain filterable cysts.

750 gals

Rated Service Capacity:

0.78 gpm

Rated Service Flow:

onditions of Certification:

Troubleshooting Guide 27

subzero.com

Frequently Asked Questions

ICE PRODUCTION

IMPORTANT NOTE:

is on. The ice bucket icon will be visible in the exterior temperature display if the ice maker system is on. If it is not on, use the ICE MAKER key pad on the control panel to turn on power to the ice maker system.

IMPORTANT NOTE: Dispose of the first bucket of ice

produced by your new unit to ensure that pipe residue or other particles associated with new water lines are not consumed.

Q: My ice maker isn’t producing very much ice.

A: On average, you can expect a cycle of ice (eight cubes

per cycle) every two hours.

Q: My ice is freezing together and clumping.

A: If ice is not used regularly it tends to fuse together.

You may need to discard the ice and allow ice to be replenished.

Q: My ice tastes funny and is discolored.

A: The PRO 48 has a water filtration system built into the

ice maker water line. The water filter cartridge should be replaced if the unit has been turned off for one month or more, or if the water filter cartridge has been in use for more than one year. Contact a plumber or water treatment contractor to discuss options for other source water condition problems.

NOISE

Q: Why do I hear my unit running constantly?

A: It is normal to hear the operation of fans and motors.

Sounds will be accentuated based on the placement of the unit and overall room design.

Make sure that the ice maker system

TEMPERATURE

IMPORTANT NOTE:

make sure the power for your unit is on. If the unit is not on, OFF will be visible in the exterior temperature display. Use the POWER key pad on the control panel to turn on power to the unit.

Q: How do I adjust the temperatures?

A: To adjust temperatures, refer to Temperature Control,

page 6.

Q: What are the suggested temperature settings?

A: The recommended settings are 38˚F (3˚C) for the refrig-

erator section and 0˚F (-18˚C) for the freezer section.

Q: Condensation is forming on the inside and outside of

my unit.

A: In climates with higher humidity, condensation will form

and is considered normal. Leaving the door open for a long period of time may also contribute to condensation forming on the inside your unit.

Q: My unit isn’t cooling properly.

A: Clean the condenser area as outlined on page 13.

DOOR OPERATION

Q: Why is my door hard to open?

A: Your unit was designed for an airtight seal. A vacuum

seal can form after the door is closed. Wait several seconds for pressure to equalize before reopening the door.

Q: The door on my unit is opening too fast and hitting the

wall or surrounding cabinets.

A: The unit may not be leveled properly or a door stop

may be required. Contact your Sub-Zero dealer for details on the door stop kit.

Unless the unit is being serviced,

Troubleshooting Guide 28

Troubleshooting

efrigerator/ freezer is not running.

f your PRO 48 unit is not operating properly, use the

I following troubleshooting guide before calling a Sub-Zero authorized service center. This guide will save you time and trouble and may avoid the expense of a service call.

SERVICE is illuminated in the exterior temperature display.

• The microprocessor has sensed a problem with the

operating system. There may be instructions in the exterior temperature display to solve the problem. If not, call Sub-Zero Customer Service at 800-222-7820.

SERVICE is flashing in the exterior temperature display.

• This happens when one or more of the zones runs

too long, or a temperature sensor may be faulty. This could be from a dirty condenser. If this occurs, clean the condenser following the procedure outlined on page 13. Turn the unit off with the POWER key pad and then restart by depressing the key pad again. If SERVICE is still flashing, call Sub-Zero Customer Service at 800-222-7820.

• Is there electrical power to the unit?

• Is the home circuit breaker or fuse off?

• Is the refrigerator/freezer control on?

• Is the condenser area clean?

• Has a door or drawer been left open for an extended

period? Be sure that food is not obstructing proper door or drawer closing.

• If the unit is still not running, it may be in defrost mode.

• Wait 30 minutes and try to restart again.

Refrigerator/freezer is warmer than usual.

• Is the control set properly?

• Is the condenser area clean?

• Has a door or drawer been left open for an extended

period? Be sure that food is not obstructing proper door or drawer closing.

• Has a large amount of food been added recently?

Service and ice lights are both flashing.

• This occurs when the solenoid valve for

the ice maker is activated too long. Check for excess water near the ice maker. If you see excess water, turn off the water at the shut-off valve and call for service. If there is no excess water, turn the unit off and back on to reset and see if this corrects the problem. If the problem continues, call Sub-Zero Customer Service at 800-222-7820.

Refrigerator/freezer runs for long periods of time.

• Is the condenser area clean?

• Has a door or drawer been left open for an extended

period? Be sure that food is not obstructing proper door or drawer closing.

• Has a large amount of food been added recently?

• On hot days and in warm room temperatures, the

motor runs longer.

• There may be normal operation noises related to refrig-

erant circulation, fan operation, ice maker operation, defrost cycle or compressor operation.

Troubleshooting Guide 29

subzero.com

Troubleshooting

here is no ice.

efrigerator/ freezer is frosted up.

• Has a door or drawer been left open for an extended

period? Be sure that food is not obstructing proper door or drawer closing.

• Are doors and drawers closing and sealing properly?

Contact your dealer if doors or drawers are not adjusted properly. When opening drawers, you may notice a side-to-side motion in the drawer. This motion is normal, with the tolerance built into the drawer slides. When the drawer is closed, it will automatically adjust and close with correct alignment.

Outside of the freezer section heats up.

• Clean the condenser area.

You hear unusual noises.

• These noises may be normal operating sounds related

to refrigerant circulation, fan operation, ice maker operation, defrost cycle or compressor operation. Noises may be more noticeable when doors are open.

You hear occasional buzzing.

• Is the water supply connected to ice maker and

turned on?

Condensation forms inside the unit.

• This is normal during periods of higher humidity

(summer) and with frequent door openings.

• Is the ice maker turned on?

• Is the water supply connected?

There is an odor inside the unit.

• Clean the unit thoroughly.

• Cover all food tightly.

• Discard outdated food.

Light bulb needs to be replaced.

• See Lighting Information, page 14.

Shut off power to the unit at the circuit breaker before replacing light bulbs. Wear protective gloves when handling bulbs.

You need product information.

• Call Sub-Zero Customer Service at 800-222-7820

or visit our website, subzero.com, for planning, installation and product information.

You need service.

• If service is necessary, maintain the quality built into

your Sub-Zero unit by calling a Sub-Zero authorized service center.

• Are doors and drawers closing and sealing properly?

Condensation forms outside the unit.

• During periods of high humidity, some condensation

may appear on outside surfaces. The condensation will disappear when the humidity drops. Be sure doors and drawers are closing and sealing properly. If condensation persists, contact your Sub-Zero authorized service center.

• To obtain the name and number of a Sub-Zero author-

ized service center, check the Contact & Support section of our website, subzero.com or call Sub-Zero Customer Service at 800-222-7820.

• When calling for service, you will need the model and

serial number of your unit. Both numbers are listed on the product rating plate located on the left side of the top freezer drawer compartment.

Service Information 30

Service Information

his Use & Care Guide gives you the tools necessary to

T preserve food at optimum quality in your PRO 48 unit. Keep doors and drawers closed as much as possible whenever the unit is operating.

If you do need service, be sure to have the model and serial numbers when you call. You’ll find these numbers listed on the product rating plate located on the left side of the top freezer drawer compartment. For location of the rating plate, refer to the illustration page 5. For warranty purposes, you will also need the date of installation and the name of your Sub-Zero dealer. Record this information below for future reference.

BEFORE CALLING FOR SERVICE

Before calling a Sub-Zero authorized service center, refer to the Troubleshooting Guide on pages 27–29. Check the household fuse or circuit breaker to see if it has been blown or tripped and that the electrical connection to the appliance has not been disconnected. A power outage may also have caused a disruption in service.

PRODUCT REGISTRATION

Register your new Sub-Zero today so that we may ensure your satisfaction. You may register by one of the following options:

Model Number:

Serial Number:

Installation Date:

Sub-Zero Authorized Service Center:

Phone:

Sub-Zero Dealer:

Phone:

1) Mail in the completed Sub-Zero Product Registration Card.

2) Register online at subzero.com.

3) Register by phone by calling the Sub-Zero Customer Service Department at 800-222-7820.

The model and serial numbers of your unit are printed on the enclosed Sub-Zero Product Registration Card. If you provide us with your e-mail address, we will send you exciting new product updates and recipes as they become available, along with information on special events.

©Sub-Zero, Inc. all rights reserved. The information and images in this guide are the copyright property of Sub-Zero, Inc. Neither this guide nor any information or images contained herein may be copied or used in whole or in part without the express written permission of Sub-Zero, Inc.

Sub-Zero Products Limited Warranty

RESIDENTIAL USE ONLY

FULL FIVE YEAR SEALED SYSTEM WARRANTY

LIMITED SIXTH THROUGH TWELFTH YEAR WARRANTY ON THE SEALED SYSTEM

FULL TWO YEAR WARRANTY ON TOTAL PRODUCT*

FULL FIVE YEAR SEALED SYSTEM WARRANTY

For five years from the date of original installation, your Sub-Zero warranty covers all parts and labor to repair or replace any components that prove to be defective in materials or workmanship in the sealed system. The sealed system consists of the compressor, condenser, evaporator, drier and all connecting tubing.

FULL TWO YEAR WARRANTY*

For two years from the date of original installation, your Sub-Zero warranty covers all parts and labor to repair or replace any part of the product, that proves to be defective in materials or workmanship.

LIMITED SIXTH THROUGH TWELFTH YEAR SEALED SYSTEM WARRANTY

From the 6th through the 12th year from the date of original installation, your Sub-Zero warranty covers all parts that prove to be defective in materials or workmanship in the sealed system (parts only). The sealed system consists of the compressor, condenser, evaporator, drier and all connecting tubing.

TERMS APPLICABLE TO EACH WARRANTY

All service provided by Sub-Zero under the above warranty must be performed by an authorized Sub-Zero service center, unless otherwise specified by Sub-Zero. Service will be provided in the home during the normal business hours. This warranty applies only to products installed for normal residential use. Details regarding a non-residential warranty are available upon request.

The warranty applies only to products installed in any one of the fifty states of the United States, the District of Columbia or the ten provinces of Canada. This warranty does not cover any parts or labor to correct any defect caused by negligence, accident or improper use, maintenance, installation, service or repair, including but not limited to improper removal and reinstallation (whether in the unit or at a remote location) of the condensing unit.

THE REMEDIES DESCRIBED ABOVE FOR EACH WARRANTY ARE THE ONLY ONES THAT SUB-ZERO WILL PROVIDE, EITHER UNDER THESE WARRANTIES OR UNDER ANY WARRANTY ARISING BY OPERATION OF LAW. SUB-ZERO WILL NOT BE RESPONSIBLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES ARISING FROM THE BREACH OF THESE WARRANTIES OR ANY OTHER WARRANTIES, WHETHER EXPRESS, IMPLIED OR STATUTORY.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights and you may also have other legal rights, which vary from state to state.

To receive parts and/or service and the name of the Sub-Zero authorized service center nearest you, contact your Sub-Zero dealer, distributor or the Sub-Zero Customer Service Department, P.O. Box 44130, Madison Wisconsin, 53744-4130; check the Contact & Support section of our website, subzero.com, or call 800-222-7820.

*Stainless Steel (classic, platinum and carbon) doors, panels, product frames and stainless interior surfaces are covered by a limited 60 day parts and labor warranty for cosmetic defects.

*Replacement water filter and air purification cartridges are not covered by the product warranty.

SUB -ZE RO, IN C. 4 717 HA MME RSL EY ROA D M A DI S ON , W I 5 374 4 80 0.2 22. 782 0 SU BZE RO. COM

37585 21 REV-C 8/ 2008

Sub-zero PRO48 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
