Sub-Zero IW30RH Installation manual

Wine Storage Installation Guide

WINE STORAGE

Contents

3 Wine Storage

4 Opening Dimensions

5 Electrical

6 Preparation

6 Anti-Tip Bracket

8 Placement

8 Alignment

10 Custom Panels

12 Panel Installation

14 Completion

Features and specications are subject to change at any time without notice. Visit subzero.com/specs for the most up-to-date information.

Important Note

To ensure this product is installed and operated as safely and efciently as possible, take note of the following types of highlighted information throughout this guide:

IMPORTANT NOTE highlights information that is especially

important.

CAUTION indicates a situation where minor injury or product

damage may occur if instructions are not followed.

WARNING states a hazard that may cause serious injury or

death if precautions are not followed.

IMPORTANT NOTE: Throughout this guide, dimensions in

parentheses are millimeters unless otherwise specied.

IMPORTANT NOTE: Save these instructions for the local

electrical inspector.

WINE STORAGE

Product Information

Important product information including the model and serial number are listed on the product rating plate. The rating plate is located on the handle side wall, directly below the control panel. Refer to the illustration below.

If service is necessary, contact Sub-Zero factory certied service with the model and serial number. For the name of the nearest Sub-Zero factory certied service or for questions regarding the installation, visit the contact & support section of our website, subzero.com or call Sub-Zero customer care at 800-222-7820.

RATING PLATE

Tools and Materials

• Screwdrivers—standard, Phillips and Torx.

• Power drill.

• Drill bits (masonry bits required for concrete installation).

• Standard socket and wrench set.

• 2' and 4' levels.

• Material to protect home, ooring and cabinetry during

installation.

Rating plate location.

subzero.com | 3

SITE PREPARATION

NOTE:

SIDE

Opening Dimensions

WINE STORAGE

OPENING

HEIGHT

(635)

25"

OPENING

DEPTH

TOP VIEW

OPENING WIDTH

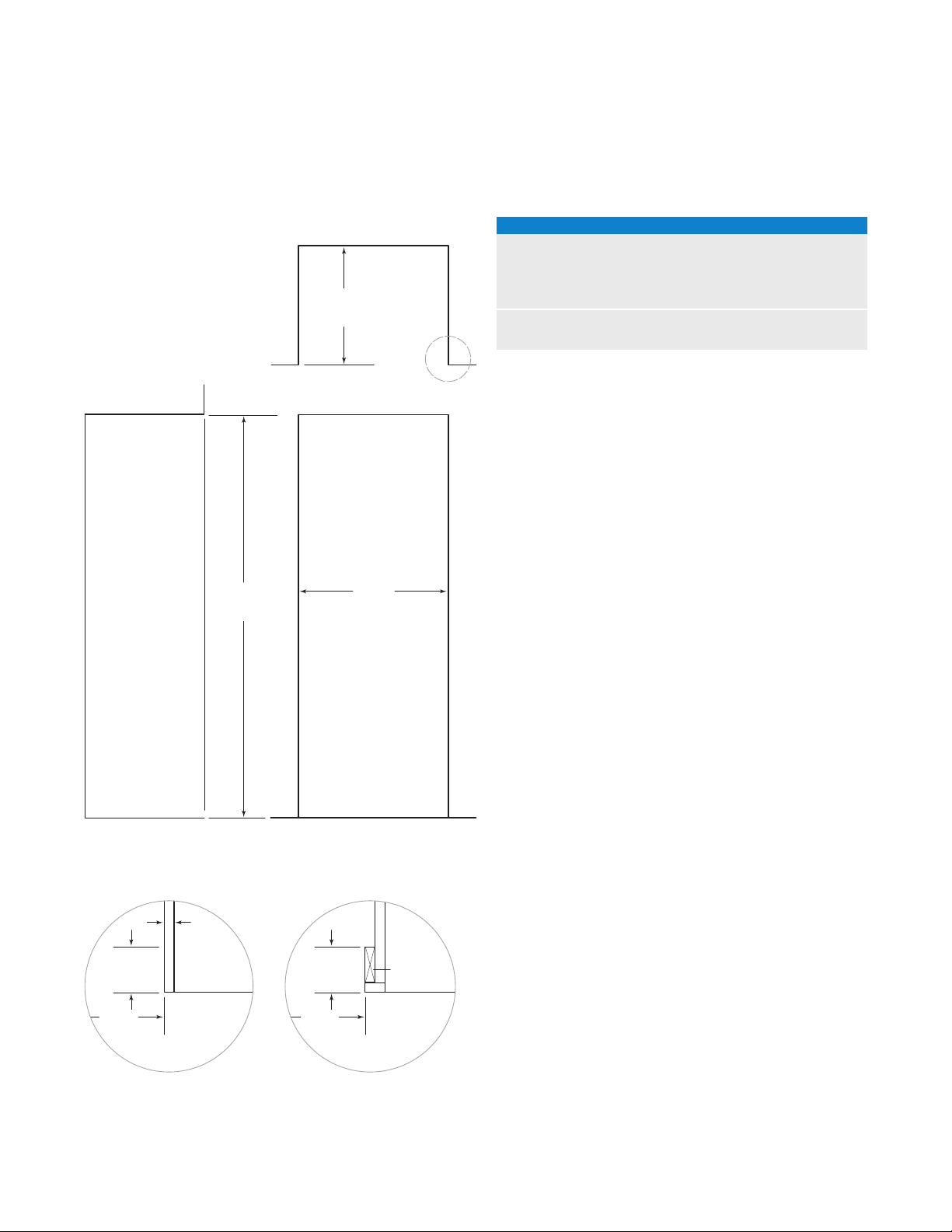

OPENING DIMENSIONS

COLUMN W H

IW-18 18" (457) 84" (2134) IW-24 24" (610) 84" (2134) IW-30 30" (762) 84" (2134)

TALL W H

IW-30R 30" (762) 84" (2134)

The depth of each wine storage model is 24" (610). Allow for panel thickness when planning the nished opening depth.

A minimum 3

/2" (89) nished return is required on all sides of the opening. Framed cabinets will require additional nished ller material behind the face frame for a proper installation. Refer to the illustration.

DUAL INSTALLATION

When installing two units side by side in a dual installation, the opening width is the width of the two units added

together. A dual installation kit will be required for this installation. If a dual installation kit is not specied, a minimum

(51) ller strip is required between units.

Dual installation kits are available through an authorized Sub-Zero dealer. For local dealer information, visit the nd a showroom section of our website, subzero.com. For questions regarding the installation, call Sub-Zero customer care at 800-222-7820.

VIEW

31/2" (89) finished returns will be visible and should be finished to match cabinetry.

/4"

(19)

31/2" (89)

FINISHED

RETURN

W W

FRAMELESS CABINETRY

TYPICAL

FRONT VIEW

31/2" (89)

FINISHED

RETURN

FRAMED CABINETRY

4 | Sub-Zero Customer Care 800.222.7820

FILLER

SITE PREPARATION

Electrical

Installation must comply with all applicable electrical codes.

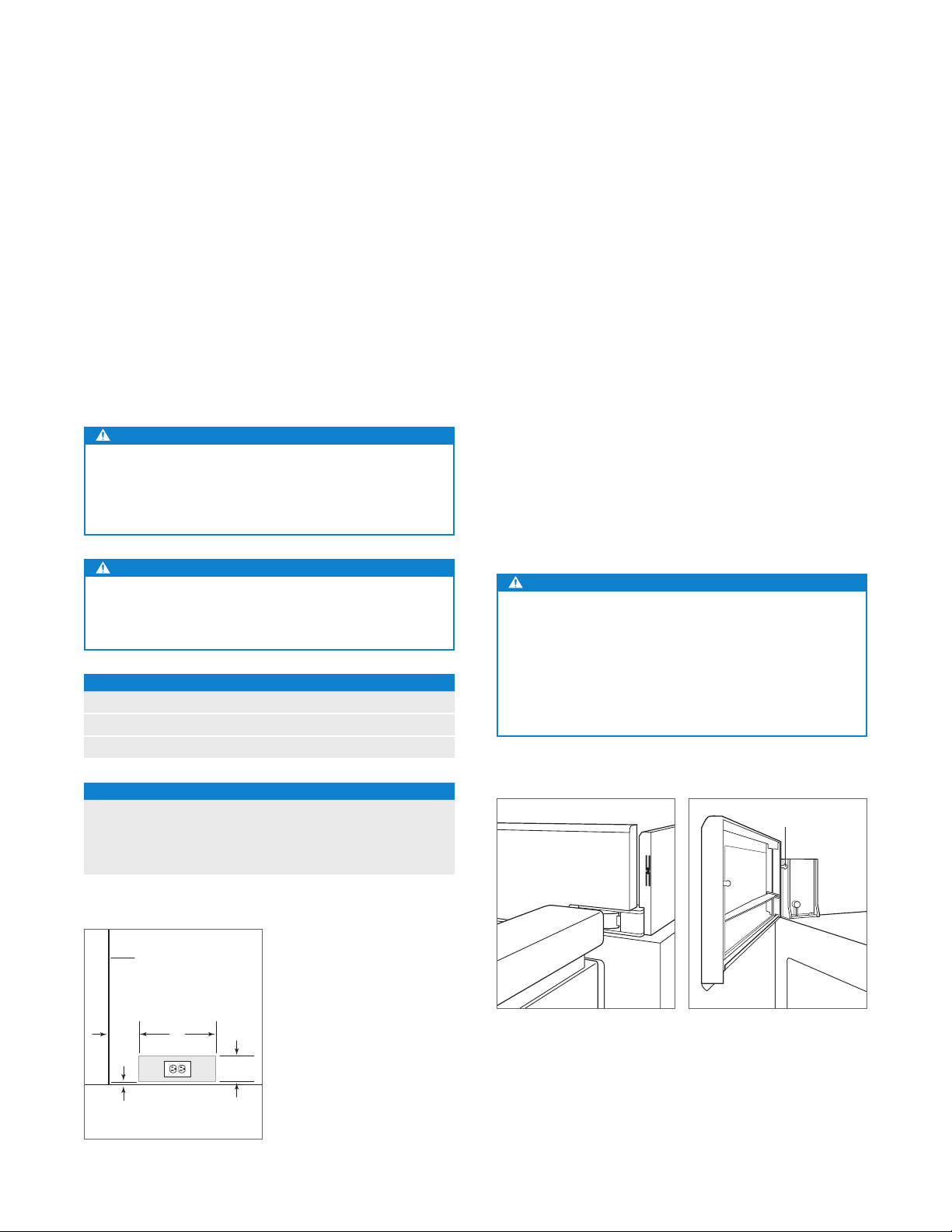

The electrical supply must be located within the shaded area shown in the illustration and chart below. A separate circuit, servicing only this appliance is required. A ground fault circuit interrupter (GFCI) is not recommended and may cause interruption of operation.

The electrical outlet must be positioned with the grounding prong to the right of the thinner blades.

CAUTION

The outlet must be checked by a qualied electrician to be sure that it is wired with the correct polarity. Verify that the outlet is properly grounded.

WARNING

Do not use an extension cord, two-prong adapter or remove the power cord ground prong.

ELECTRICAL REQUIREMENTS

Electrical Supply 115 VAC, 60 Hz Service 15 amp Receptacle 3-prong grounding-type

HOME SECURITY CONNECTION

If the unit will be connected to a home security system, lowvoltage leads must be provided to the unit. Two connectors are located behind the top trim. Provide 10'

(3 m) minimum

lead wires for each connector, exiting the back wall near the electrical receptacle.

Remove the top trim by disengaging the trim from the hinge side of the unit. Rotate the trim and remove the trim pin from the handle side vertical support. Refer to the illustrations below. Use spade terminals or wire nuts to make proper wiring connections. Refer to the following color codes:

• Normally open contacts—white with red stripe wire.

• Common—gray with white stripe wire.

CAUTION

The alarm circuit in the unit is intended as a lowvoltage, low-current device only. It should not be used to switch line power. Any unused terminals should be completely insulated and all wires should be secured away from conductive or moving components.

ELECTRICAL SUPPLY LOCATION

WIDTH A

18" Model 6" (152) 24" Model 91/2" (241) 30" Model 121/2" (318)

LEFT SIDE

OF OPENING

41/2"

(114)

/4" (6)1/4" (6)

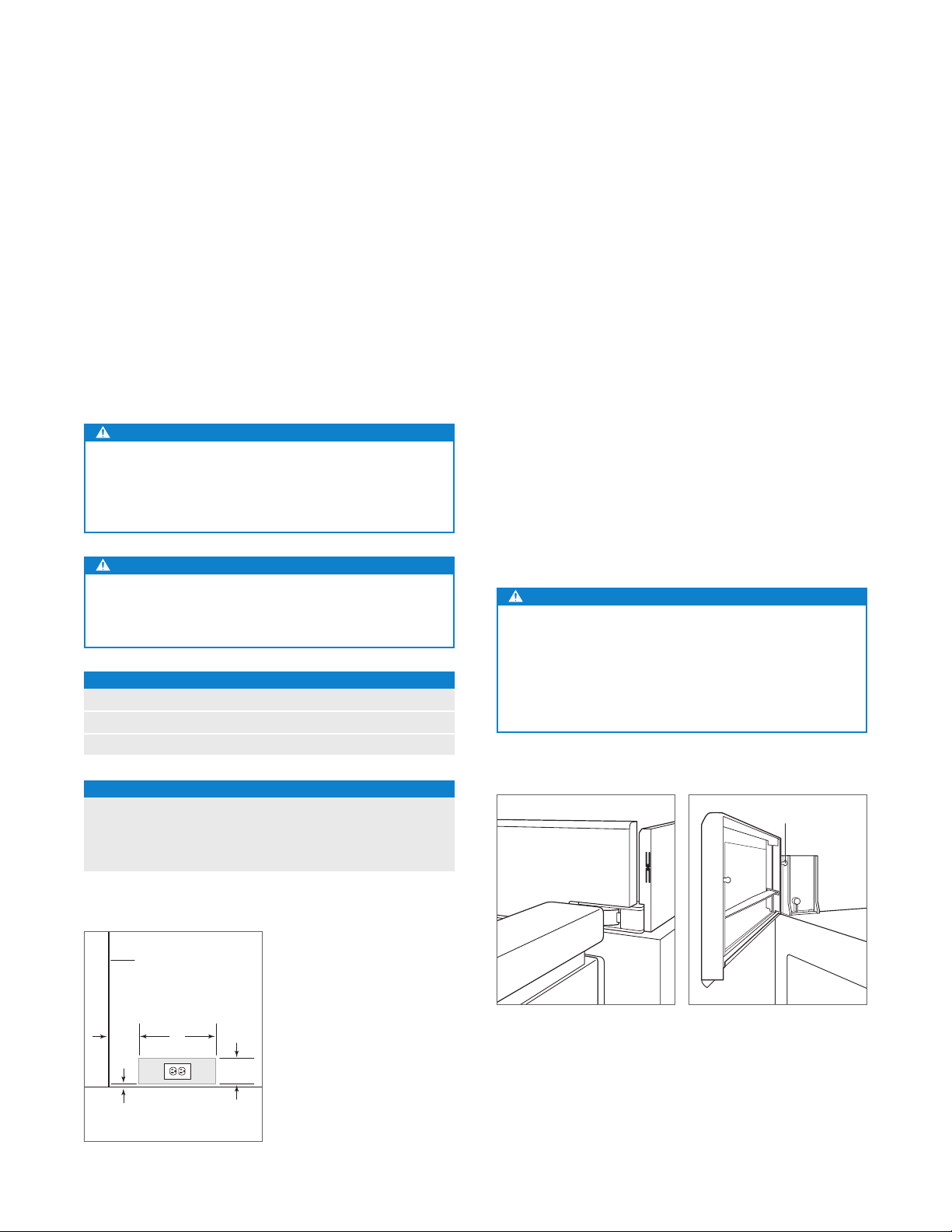

Electrical supply location.

FLOOR

41/4"

(108)

Top trim—hinge side.

Top trim—handle side.

subzero.com | 5

SITE PREPARATION

Preparation

Uncrate the unit and inspect for damage. Remove the wood base and discard shipping bolts and brackets. Remove and recycle packing materials. Do not discard the kickplate, antitip bracket and hardware.

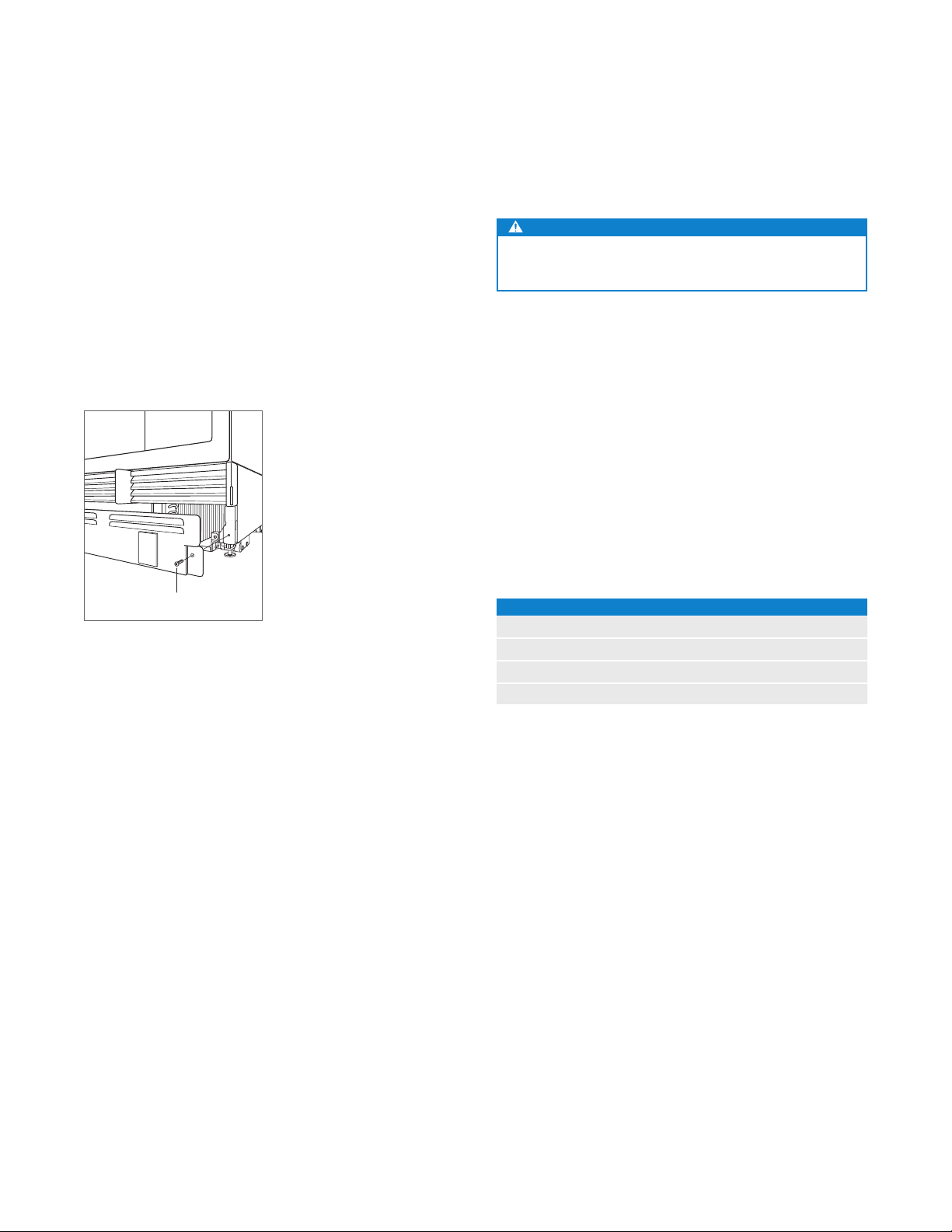

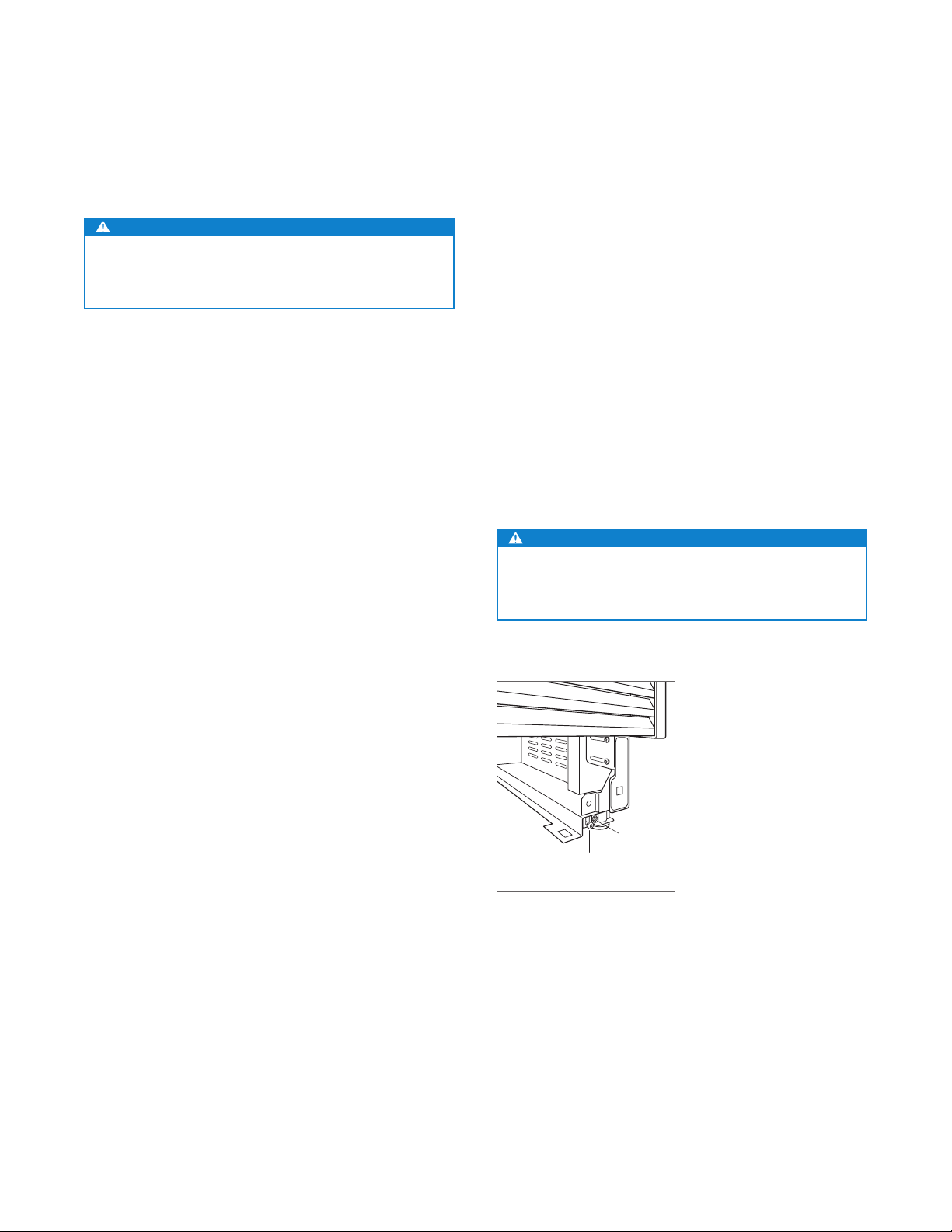

Remove the kickplate by extracting the two mounting screws. Refer to the illustration below.

SCREW

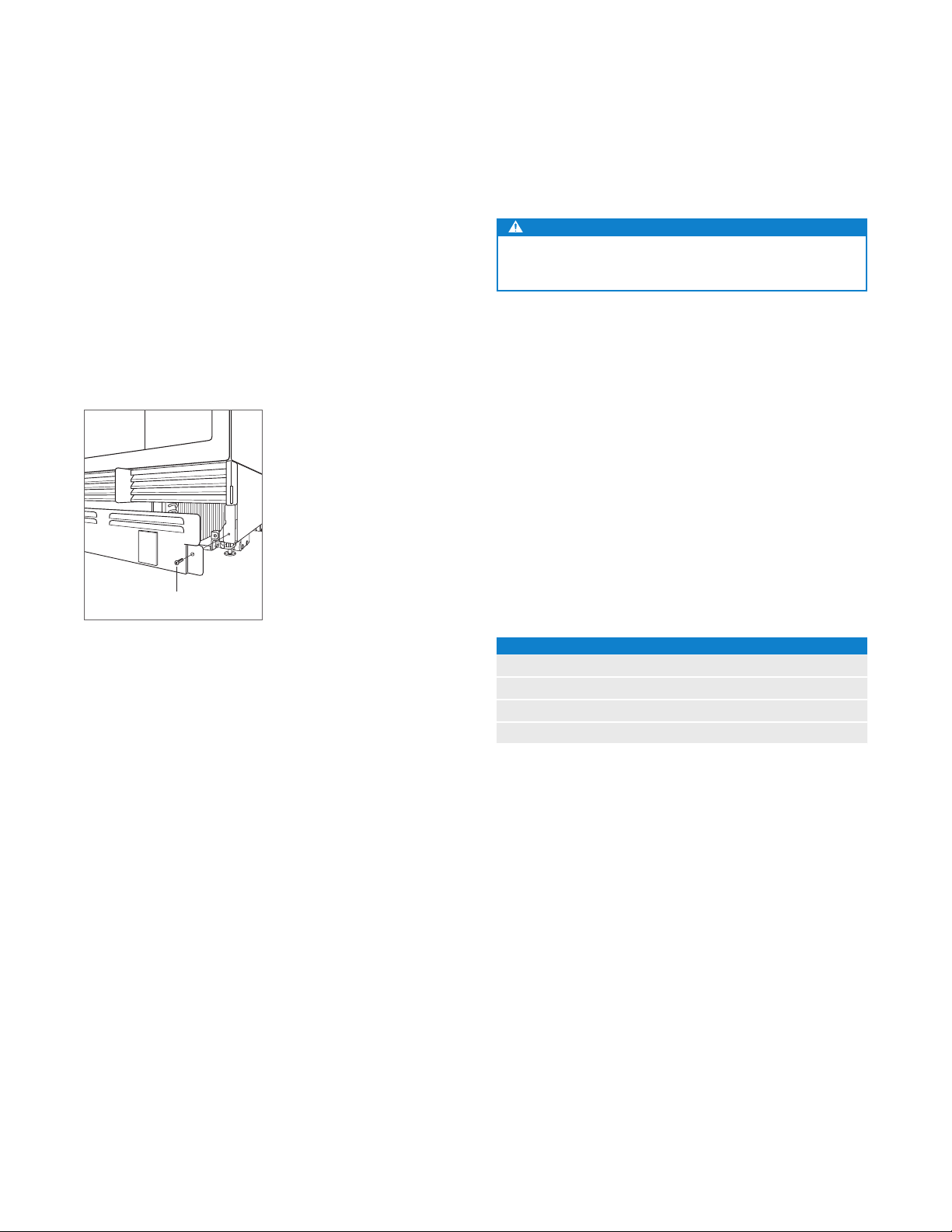

Kickplate removal.

Anti-Tip Bracket

WARNING

To prevent the unit from tipping forward, the anti-tip bracket must be installed.

The back of the anti-tip bracket must be installed 24" (610) from the front of the unit (without panels).

Use all anti-tip bracket hardware as instructed for wood or concrete oors.

IMPORTANT NOTE: For wood or concrete oor applications,

if the #12 screws do not hit a wall stud or wall plate, use the #8 screws and #12 washers with the wall anchors.

IMPORTANT NOTE: In some installations the subooring or

nished oor may necessitate angling the screws used to fasten the anti-tip bracket to the back wall.

ANTI-TIP HARDWARE

1 Anti-tip bracket

6 #12 x 2 2 6 #12 at washers

/2" pan head screws

/8"–16 x 33/4" wedge anchors

6 | Sub-Zero Customer Care 800.222.7820

SITE PREPARATION

Anti-Tip Bracket

WOOD FLOOR APPLICATION

After properly locating the anti-tip bracket in the opening,

drill pilot holes

/16" (5) diameter maximum in the wall studs or wall plate. Use the #12 screws and washers to secure the brackets. Verify the screws penetrate through the ooring

material and into wall studs or wall plate a minimum of

(19)

. Refer to the illustration and chart below.

/4"

CONCRETE FLOOR APPLICATION

After properly locating the anti-tip bracket in the opening,

drill pilot holes or wall plate. Drill a minimum of 1 washers to secure the brackets to the wall, and use the

/16" (5) diameter maximum in the wall studs

/8" (10) diameter holes into the concrete

/2" (38) deep. Use the #12 screws and

/8"

wedge anchors to secure the brackets to the oor. Verify the

screws penetrate wall studs or wall plate a minimum of

(19)

. Refer to the illustration and chart below.

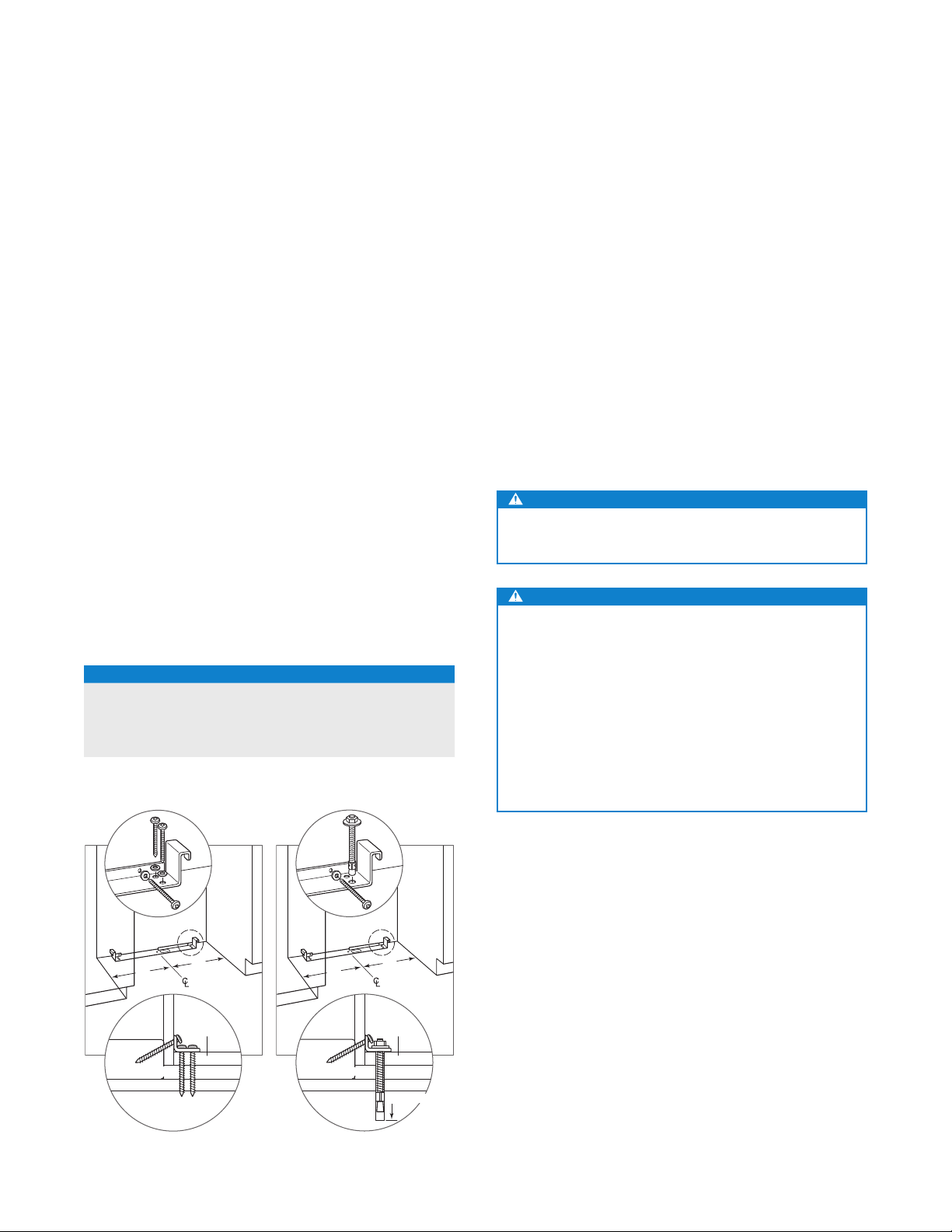

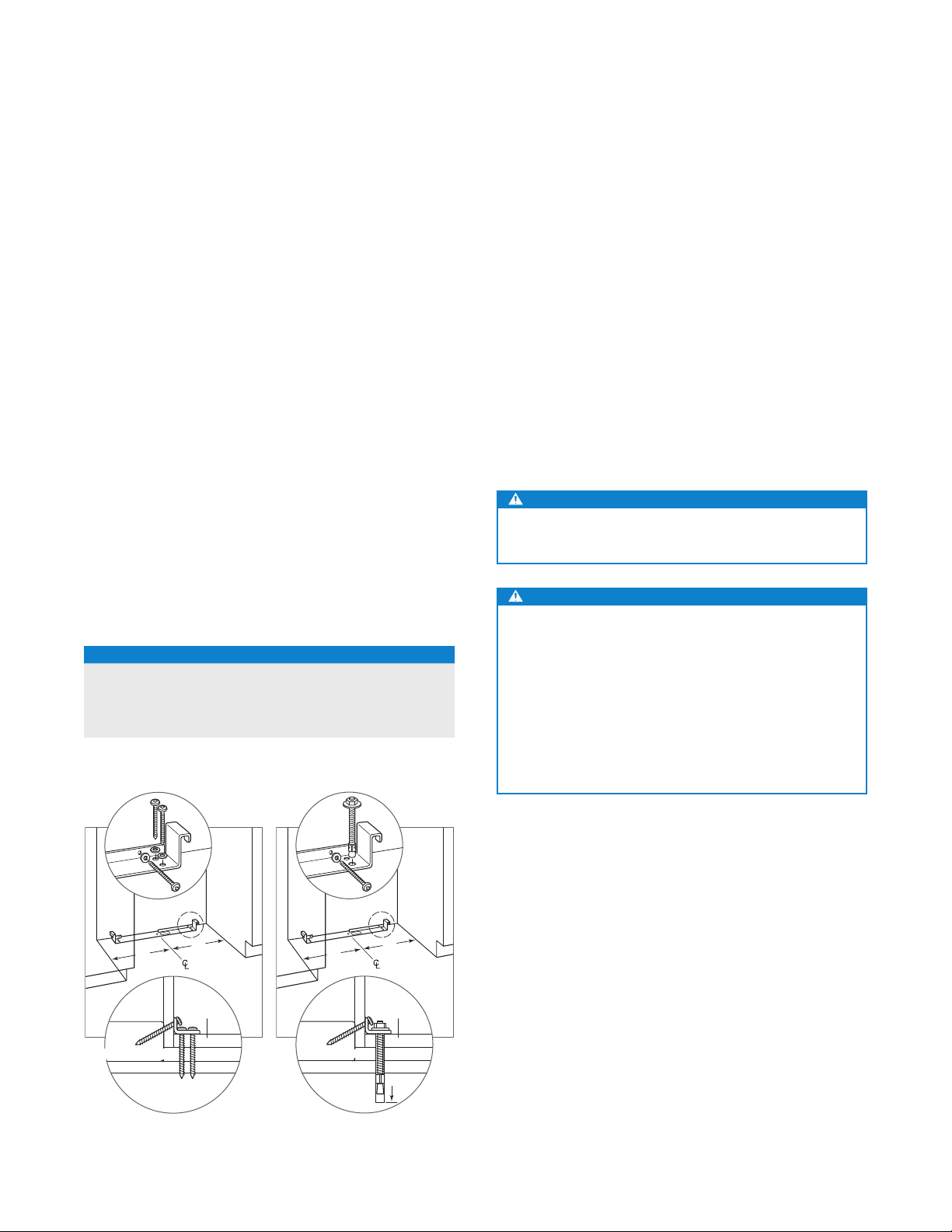

ANTI-TIP BRACKET PLACEMENT

WIDTH A

18" Model 9" (229) 24" Model 12" (305) 30" Model 15" (381)

/4"

CONCRETE WEDGE ANCHOR INSTALLATION:

1 Drill a

/8" (10) diameter hole any depth exceeding the minimum embedment. Clean the hole or drill additional depth to accommodate drill nes.

2 Assemble the washer and nut ush with the end of

anchor to protect threads. Drive the anchor through the material to be fastened until the washer is ush with the surface material.

3 Expand the anchor by tightening the nut 3–5 turns past

hand-tight position or to 25 foot-pounds of torque.

WARNING

Verify there are no electrical wires or plumbing in the area which the screws could penetrate.

CAUTION

Always wear safety glasses and use other necessary protective devices or apparel when installing or working with anchors.

Anchors are not recommended for use in lightweight masonry material such as block or brick, or for use in new concrete which has not had sufcient time to cure. The use of core drills is not recommended to drill holes for the anchors.

WALL PLATE

SUBFLOORING

Wood oor.

FINISHED FLOORING

WOOD FLOOR

WALL PLATE

SUBFLOORING

CONCRETE

FLOOR

FINISHED FLOORING

11/2"(38)

min

Concrete oor.

subzero.com | 7

INSTALLATION

Placement

CAUTION

Before moving the unit into position, secure the door/ drawers closed and protect any nished ooring.

Use an appliance dolly to move the unit near the opening. The front leveling legs are extended below the front rollers to improve stability during placement. Once the unit is placed in front of the opening, completely retract the front leveling legs to allow the unit to be rolled into position. Front and rear leveling legs can be adjusted from the front once the unit is positioned.

If the unit has been on its back or side, it must stand upright for a minimum of 24 hours before connecting power.

Plug the power cord into the grounded outlet and roll the unit into position. Verify the anti-tip bracket is properly engaged.

Alignment

LEVELING

Once the unit is in position, height adjustment can be made from the front. Using a Phillips drive, turn clockwise to raise the unit or counterclockwise to lower. Use the lowest torque setting when using a power drill. Do not turn the leveling legs by hand. Refer to the illustration below.

When the unit is properly leveled, door/drawer adjustments are less likely to be necessary.

IMPORTANT NOTE: Level the unit to the oor, not sur-

rounding cabinetry. This could affect the operation of the unit, such as door closing.

WARNING

To reduce the possibility of the unit tipping forward, the front leveling legs must be in contact with the oor.

8 | Sub-Zero Customer Care 800.222.7820

Leveling.

REAR

ADJUSTMENT

FRONT

ADJUSTMENT

INSTALLATION

Alignment

DEPTH ADJUSTMENT

Adjust the depth of the unit to t ush with surrounding cabinetry. Follow these steps for a precision t:

1 Place decorative panel on a protected work surface.

Place the panel thickness gauge next to the panel to determine which notch corresponds with the panel thickness. Refer to the illustration below. Once the proper notch has been determined, mark that notch with a marker.

2 With the door closed, position the top of the unit using

the panel thickness gauge. Refer to the illustration

below. Insert a #8 x hinge, then insert a #8 x

/2" stainless steel screw above the

/2" pan head screw on the handle side of the unit. For narrower units, the door may need to be opened to access the handle side screw location. Repeat the process to align the bottom.

SCREW

SIDE TRIM

ANCHORING

Once the top and bottom are aligned, verify the door/ drawers open properly, then install remaining screws in each side trim.

PANEL THICKNESS

Panel thickness.

GAUGE

CABINETRY

FACE

FRAME

Unit depth.

FRONT OF

UNIT

subzero.com | 9

PANEL INSTALLATION

Custom Panels

Custom door/drawer panels and handle hardware must be installed. Stainless steel panels are available through an authorized Sub-Zero dealer. For local dealer information, visit the nd a showroom section of our website, subzero.com.

The thickness of the custom panel can vary. A minimum

/8" (16) thick panel is required, but the thickness can be increased provided it does not exceed the maximum panel weight indicated in the chart below. The depth of each model is 24"

(610). Allow for panel thickness when planning

the nished opening depth.

PANEL REQUIREMENTS

WEIGHT PER PANEL MAX

Door 35 lb (16 kg)

Door (IW-30R) 25 lb (11 kg)

Drawer 15 lb (7 kg)

PANEL THICKNESS MIN

All Panels

/8" (16)

Reveals between panels can vary, 1/8" (3) reveals are typical.

CAUTION

When installing a panel thicker than 1" (25), the 90° stop may be required to prevent damage to the unit and adjacent cabinetry.

CAUTION

As reveals between cabinetry and the unit decrease, severe nger pinching can occur while door is closing.

Finish all sides of custom panels. They will be visible when the door is open.

D-style handles are recommended. Stainless steel tubular and pro handles are avail able through an authorized Sub-Zero dealer. For local dealer information, visit the nd a showroom section of our website, subzero.com. Door handles must be located near the edge of the panel opposite the hinge and should be centered top to bottom. Drawer handles must be located near the top edge of each panel.

10 | Sub-Zero Customer Care 800.222.7820

PANEL INSTALLATION

Custom Panels

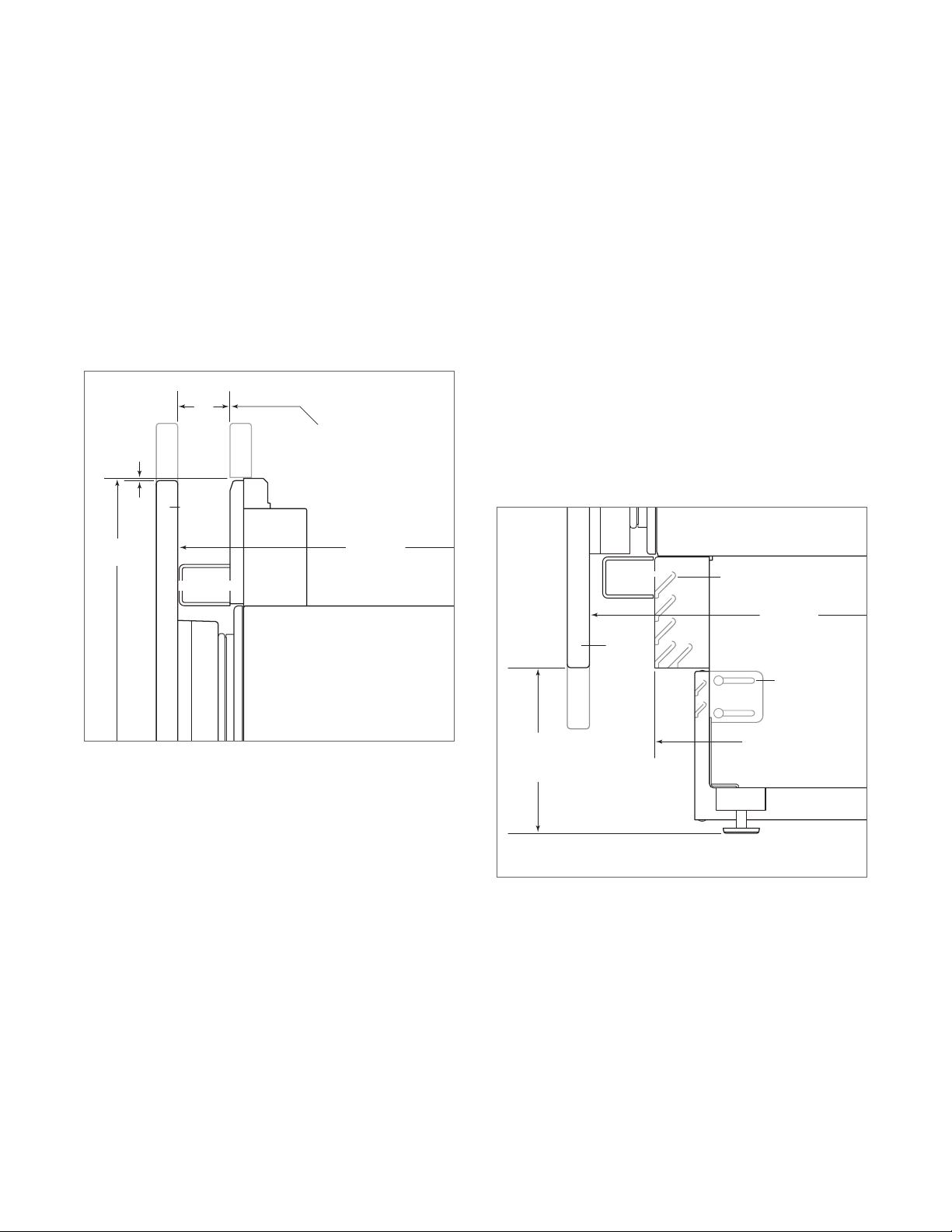

DOOR PANEL HEIGHT

The height of the custom door panel can extend beyond the typical panel height, provided it does not exceed the weight limit. Refer to the illustration below.

13/4"

(45)

A DECORATIVE VALANCE

/8" (3)

DOOR PANEL

84"

(2134)

HINGE

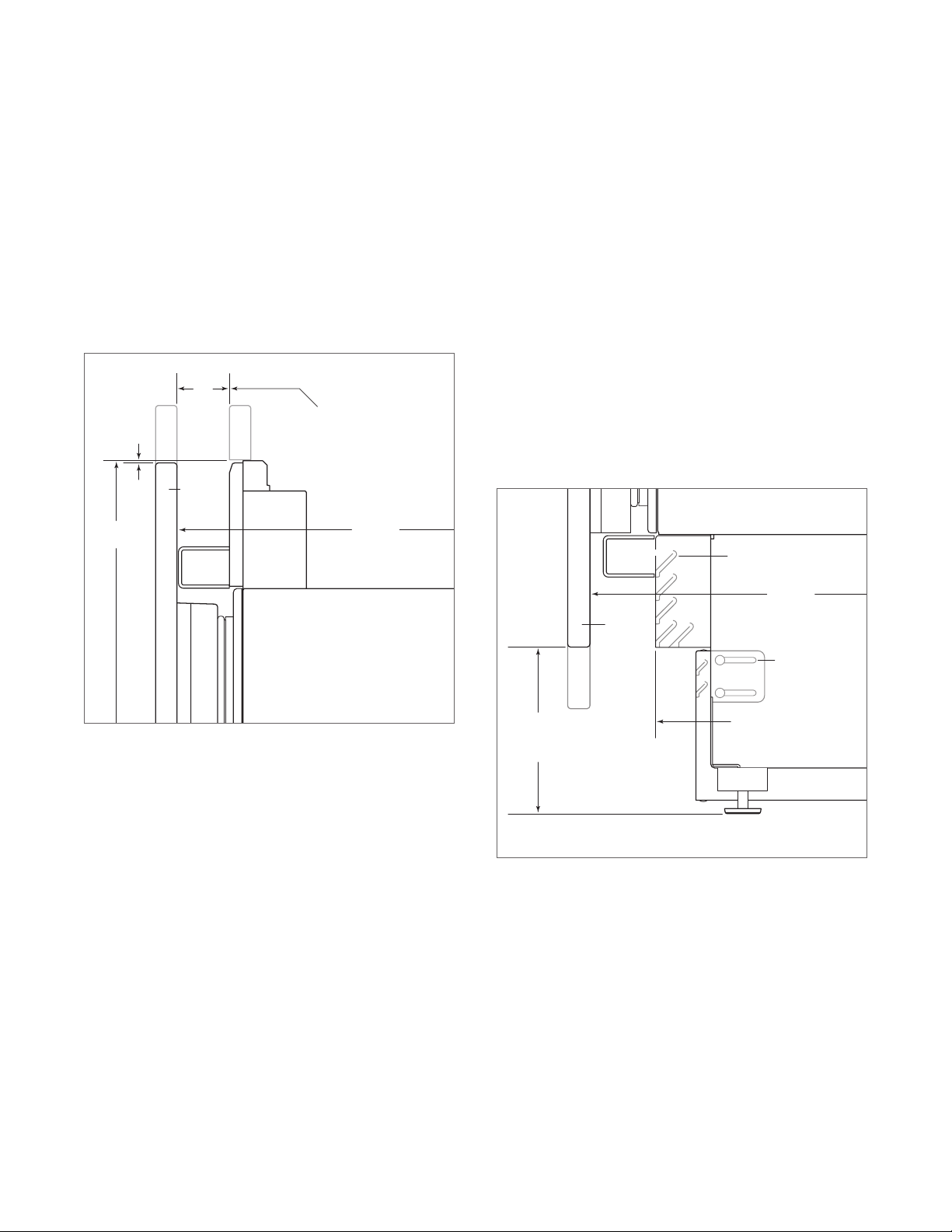

Upper valance—side view.

CANNOT EXTEND

BEYOND THIS PLANE

24" (610)

TO BACK OF UNIT

TOE KICK CLEARANCE

The height of the toe kick area can extend beyond the typical toe kick height, provided it does not exceed the dimensions in the illustration below. Toe kick heights from

(51) to 3

/8" (98) require a reduced toe kick accessory available through an authorized Sub-Zero dealer. For local dealer information, visit the nd a showroom section of our website, subzero.com. For questions regarding the installation, call Sub-Zero customer care at 800-222-7820.

VENTED

LOUVERS

24" (610)

TO BACK OF UNIT

11/8" (29)

MAX

TOE KICK

ADJUSTMENT

A DECORATIVE TOE KICK

CANNOT EXTEND

BEYOND THIS PLANE

2" (51)*

6" (152)

FROM

FLOOR

HINGE

DOOR PANEL

*2" (51) to 37/8" (98) requires sales accessory. **Column models only.

Toe kick (side view).

subzero.com | 11

PANEL INSTALLATION

EDGE OF DOOR PANEL

Panel Installation

DOOR PANEL

Typical panel dimensions are based on an 84" (2134) nished

height with

/8" (3) reveals. Template placement must be

adjusted for panels exceeding typical dimensions.

For model IW-30R, the door panel should be installed rst, followed by the upper then lower drawer panel.

Place the panel face down on a protected work surface. Position the template ush with the top and sides of the panel. Verify the correct side of the template is being used, then mark and drill holes. Refer to the illustration below.

For model IW-30R, align the notch in the template with the bottom of the door panel, then mark and drill holes. Refer to the illustration below.

TOP OF DOOR PANEL

TOP OF

DOOR PANEL

84" APPLICATION

83 7/8" ACTUAL

USE TABS FOR HINGE SIDE PANEL EDGE ON DUAL INSTALLATION

DOOR PANEL

BOTTOM OF

DOOR PANEL

TOP OF

DOOR PANEL

83 7/8" ACTUAL

84" APPLICATION

DUAL INSTALLATION SIDE PANEL EDGE ON USE TABS FOR HINGE

BOTTOM OF

DOOR PANEL

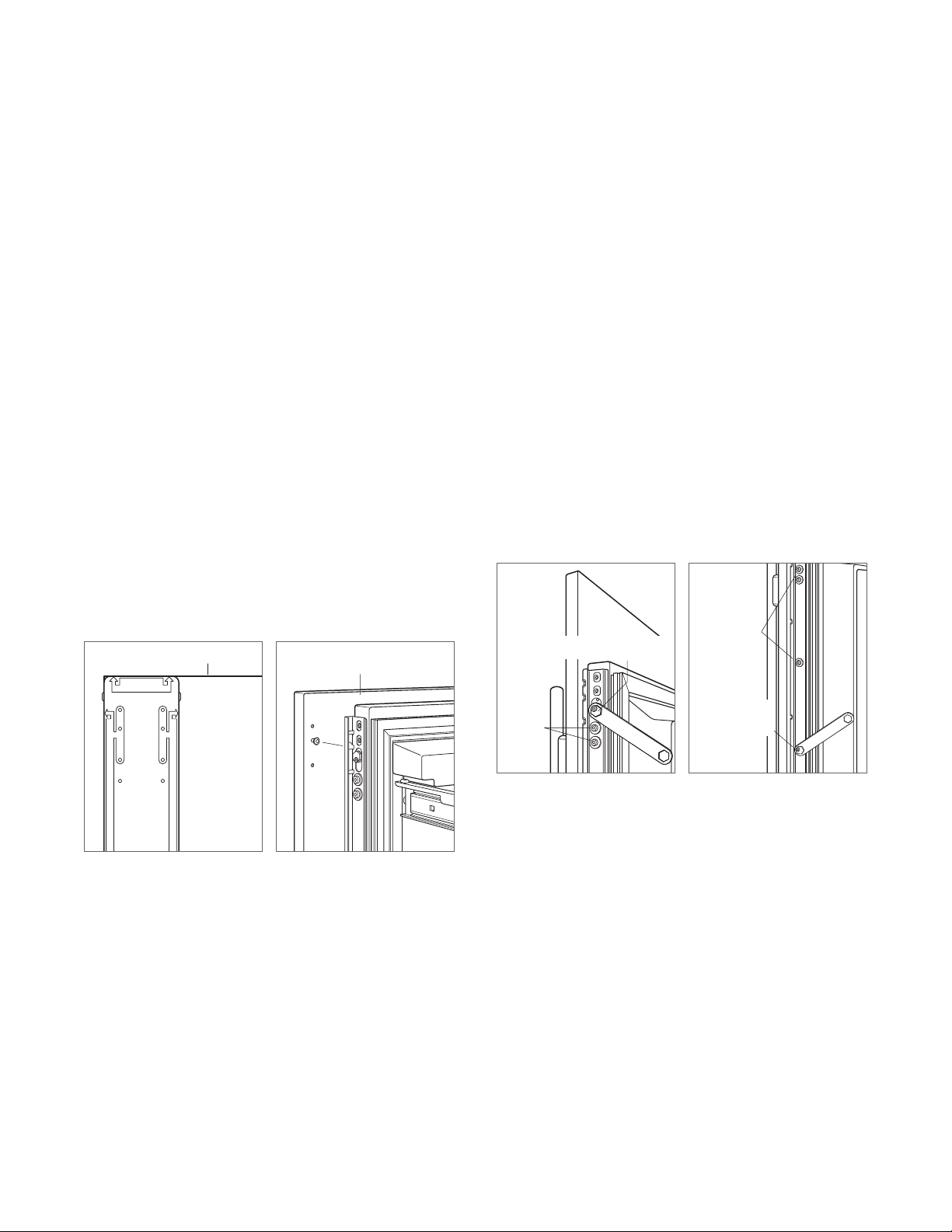

Use the T-20 torx drive provided to partially insert a #8 x

/2"

screw into the second hole from the top on each side of the

panel. The screws should be approximately

/16" (4) proud of the panel and will support the weight of the panel during installation.

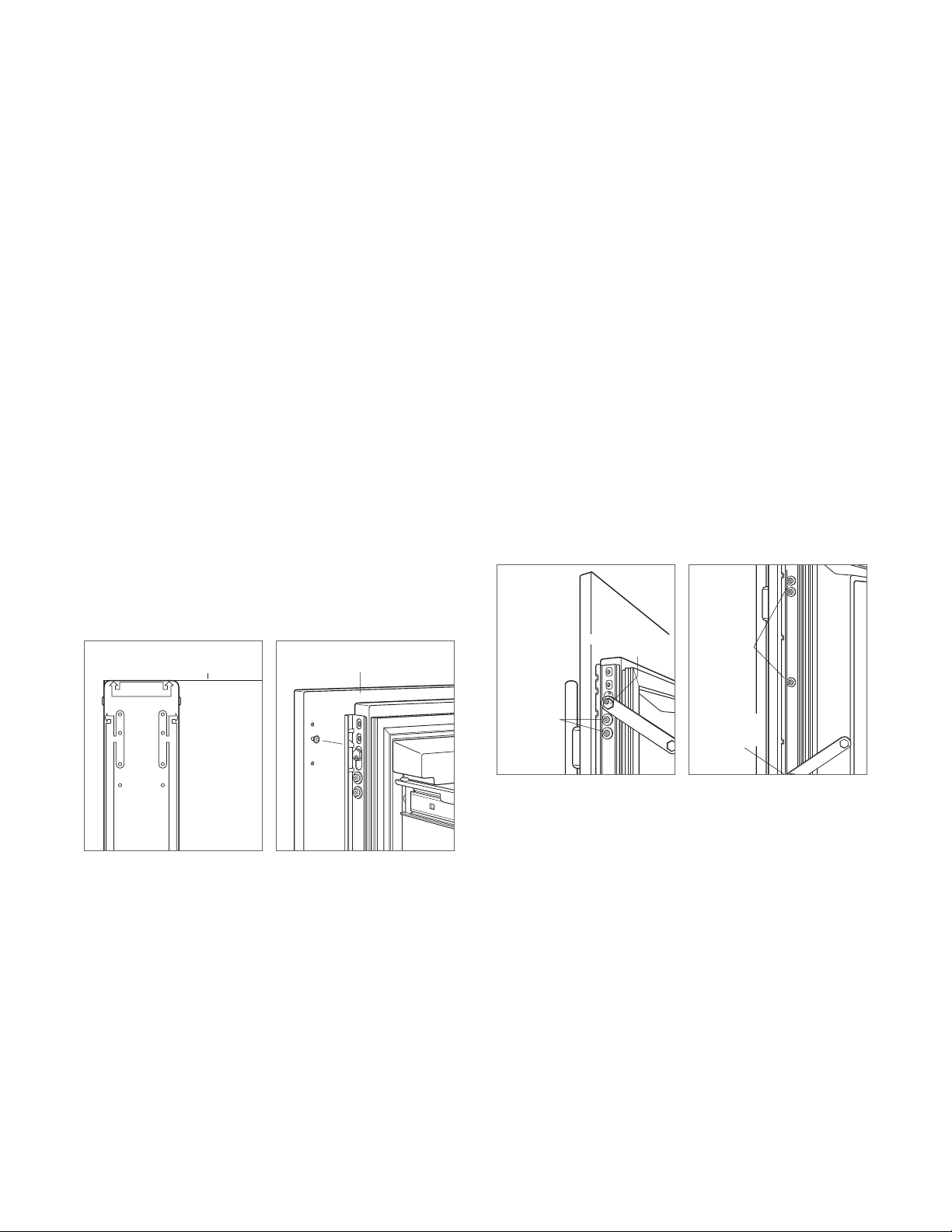

Align the support screws on the back of the panel with the slotted holes on both door mounting brackets. Opening the door slightly may help with alignment. Once the panel is

supported by the screws, partially insert a #8 x

/2" screw into the second hole from the bottom on each side of the panel, but do not tighten.

CAUTION

As the reveal between cabinets and the unit decreases, the potential exists for severe nger pinching if ngers are placed in the opening when the door is closing.

BACK OF

DOOR PANEL

Door panel template—top.

Door panel template—bottom (IW-30R only).

Door panel mounting.

12 | Sub-Zero Customer Care 800.222.7820

PANEL INSTALLATION

LEFT EDGE OF DRAWER PANEL

Panel Installation

DRAWER PANELS (IW-30R)

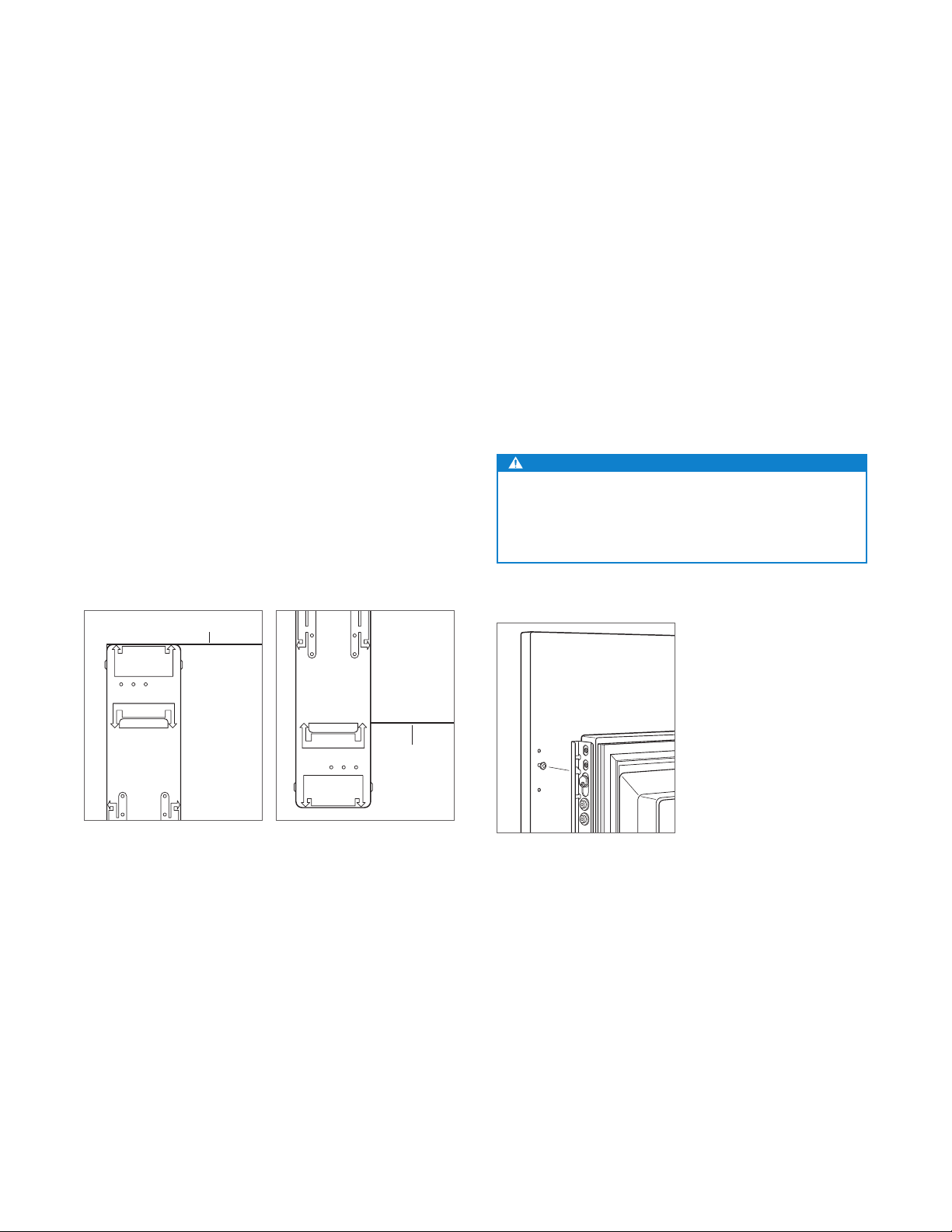

Use the T-20 torx drive provided, to partially insert a #8 x

/2"

screw into the second hole from the top on each side of the

panel. The screws should be approximately

/16" (4) proud of the panel and will support the weight of the panel during installation.

Align the support screws on the back of the panel with the slotted holes on both drawer mounting brackets. Refer to the illustration below. Opening the drawer slightly may help with alignment. Once the panel is supported by the screws,

partially insert a #8 x

/2" screw into the second hole from

the bottom on each side of the panel, but do not tighten.

TOP OF DRAWER PANEL

TOP OF

DRAWER PANEL

BACK OF

DRAWER PANEL

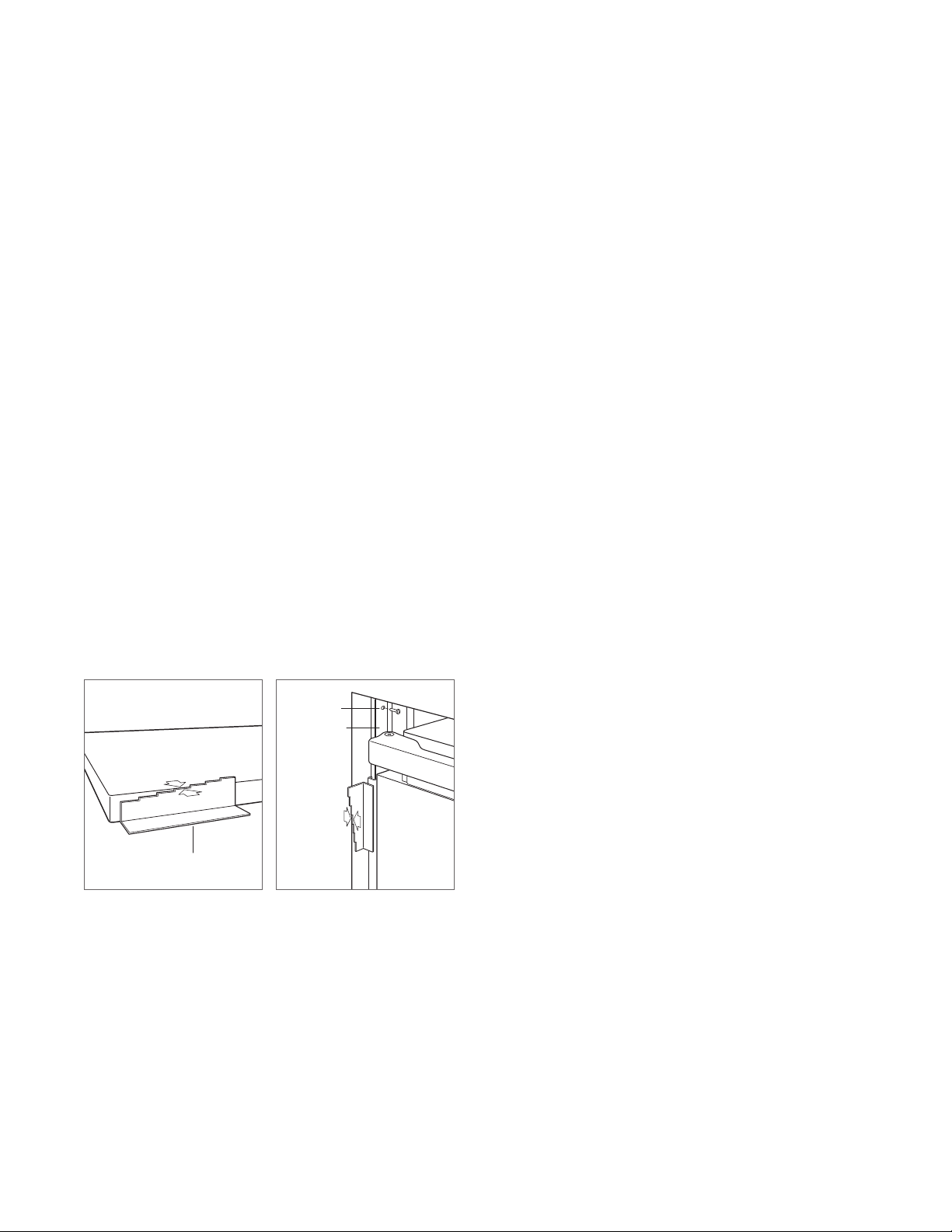

PANEL ADJUSTMENT

Close the door/drawers, now adjustments can be made to align panels and reveals.

For side-to-side adjustment, move panels side to side, then install and tighten all mounting screws.

For up-and-down and in-and-out adjustments, slightly loosen the bracket screws. Depending on the level of adjustment required, it may be helpful to loosen all of the bracket screws which will allow for maximum adjustment. Once the bracket screws are loosened, use the cam wrench provided to rotate the cams to make adjustments. After adjustments have been made, tighten all bracket screws. Refer to the illustrations below.

BRACKET

IN-AND-OUT

CAM

SCREWS

TOP HOLES FOR UPPER

AND LOWER

DRAWERS

WER PANEL

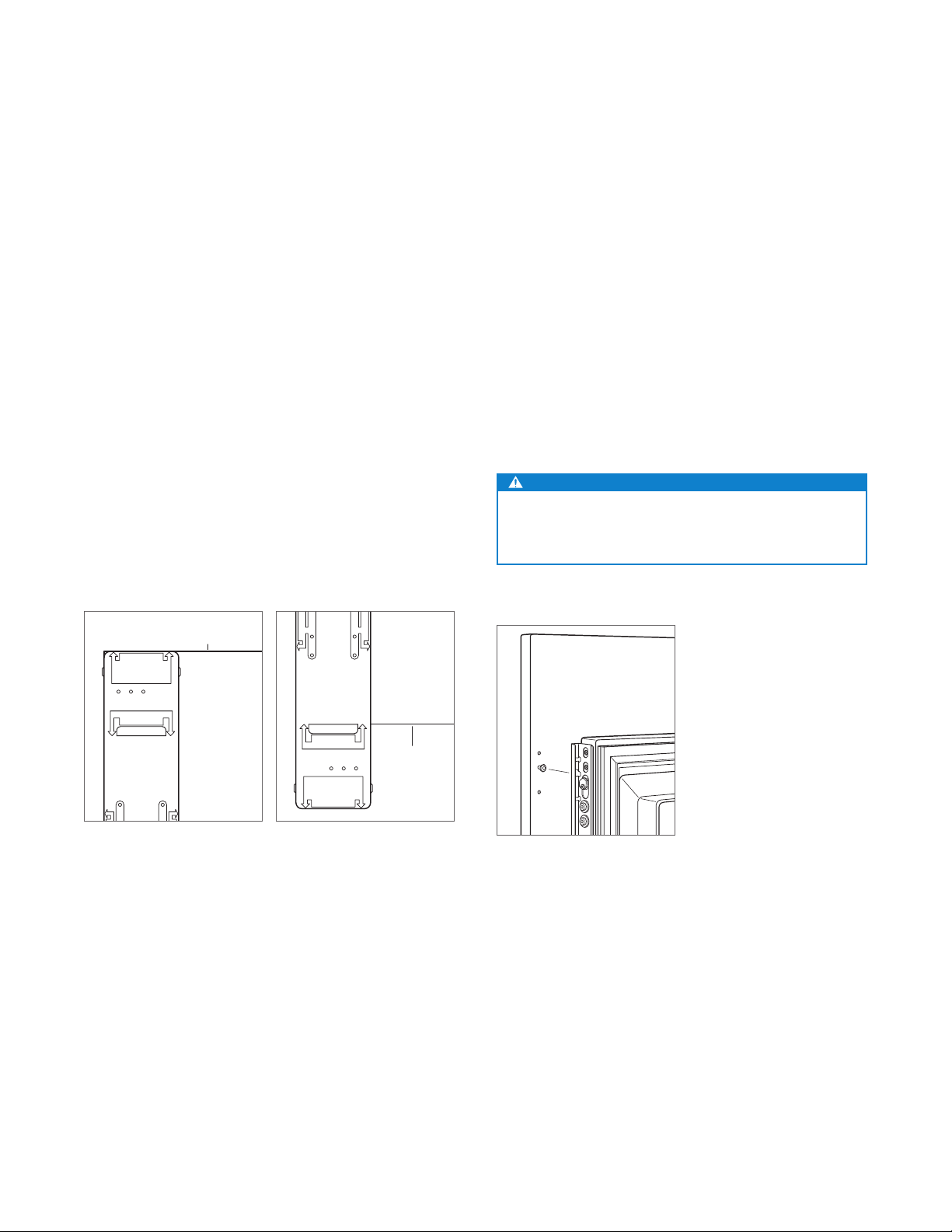

Drawer panel template—top. Drawer panel mounting.

BRACKET SCREWS

In-and-out adjustment.

UP-AND-DOWN

CAM

Up-and-down adjustment.

subzero.com | 13

INSTALLATION

Completion

DOOR TRIM INSTALLATION

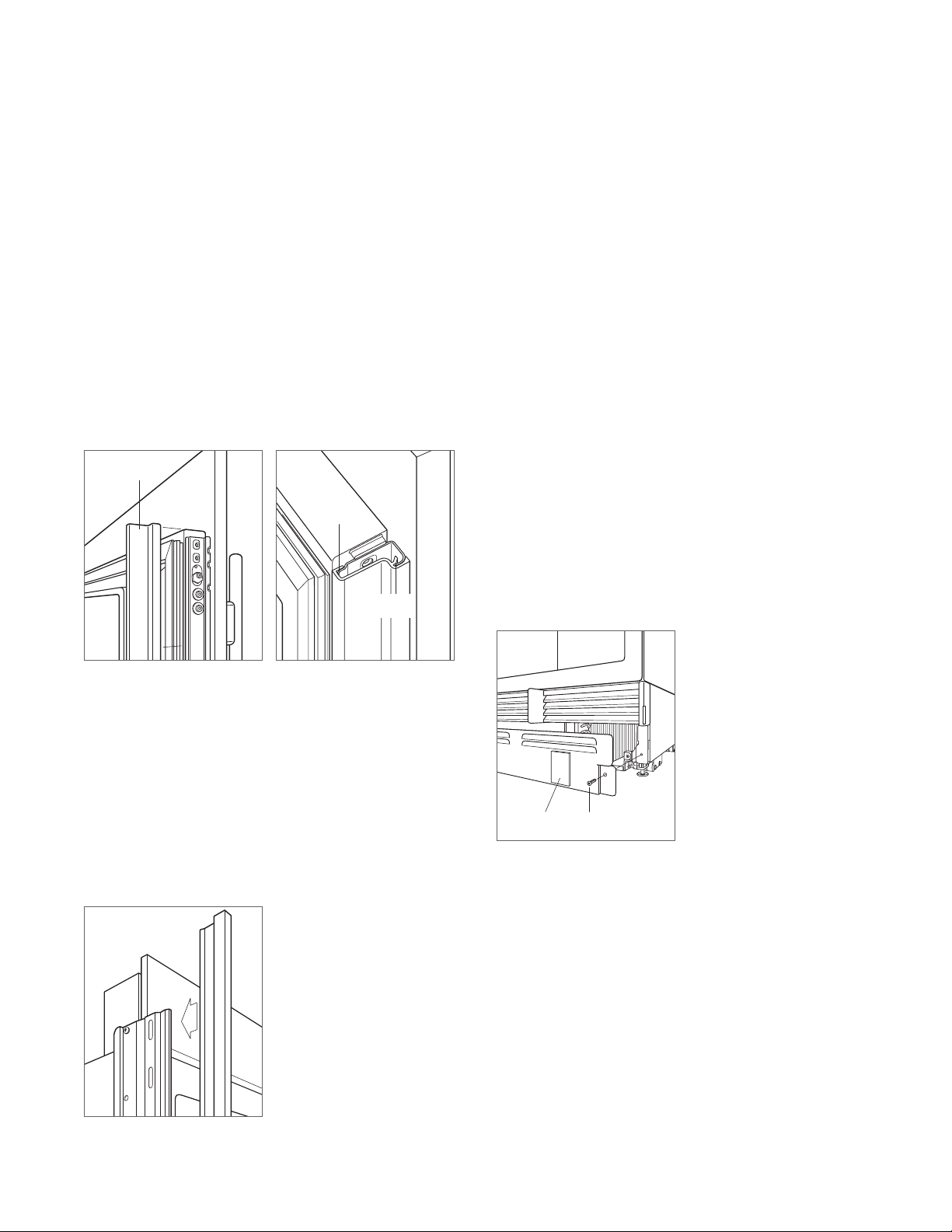

After panels have been adjusted, install the decorative side trim to the door/drawers. To install, start at the top and align the trim with the front and rear anges on the bracket, then snap into place by pushing the trim toward the back of the panel. Once the top is secure, continue the installation downward until the remaining trim is completely secure. Refer to the illustrations below.

DOOR TRIM

FRONT

FLANGE

REAR

FLANGE

Door trim.

Bracket anges.

KICKPLATE INSTALLATION

Position the kickplate and install using the two mounting screws. Refer to the illustration below. The kickplate must be removable for service. The oor cannot interfere with removal.

A maximum 6"

(152) decorative kickplate can be attached

to the factory-installed kickplate. The two rows of vented louvers can be covered if door panel is a minimum 4"

(102)

from nished oor.

To install a decorative kickplate, remove paper backing from the magnets and attach decorative kickplate to magnets. Magnets will allow decorative kickplate to be removed, if necessary.

Turn power on by touching ‘power’ on the control panel.

SIDE TRIM INSTALLATION

Install the decorative trim strip to the handle side of tall and column models. The side trim snaps over the bracket attached to the handle side of the unit. Refer to the illustration below.

Side trim.

14 | Sub-Zero Customer Care 800.222.7820

SCREWMAGNET

Kickplate installation.

+ 30 hidden pages
