Sub-Zero IW-30CI User Manual

WINE STORAGE

USE AND CARE GUIDE

CLEANING, MAINTENANCE, AND MORE

WINE STORAGE

Contents

4 Wine Storage Features

5 Interactive Control Panel

6 Storage

8 Operation

10 Care Recommendations

11 Technical Data

13 Troubleshooting

15 Sub-Zero Warranty

2 | Sub-Zero Customer Care 800.222.7820

WINE STORAGE

Customer Care

The model and serial number are printed on the enclosed product registration card. Both numbers are also listed on the product rating plate. Refer to page 4 for rating plate location. For warranty purposes, you will also need the date of installation and name of your authorized Sub-Zero dealer. Record this information below for future reference.

SERVICE INFORMATION

Model Number

Serial Number

Date of Installation

Certied Service Name

Certied Service Number

Authorized Dealer

Dealer Number

If your product ever needs attention, be sure to use a Sub-Zero Factory Certied Service provider recommended by our customer care center, or select one from our list of providers available at subzero.com/locator. All Factory Certied Service providers are carefully selected and thoroughly trained by us.

Important Note

To ensure this product is installed and operated as safely and efciently as possible, take note of the following types of highlighted information throughout this guide:

IMPORTANT NOTE highlights information that is especially

important.

CAUTION indicates a situation where minor injury or product

damage may occur if instructions are not followed.

WARNING states a hazard that may cause serious injury or

death if precautions are not followed.

IMPORTANT NOTE: Throughout this guide, dimensions in

parentheses are millimeters unless otherwise specied.

WARNING

PROPOSITION 65 FOR CALIFORNIA RESIDENTS Cancer and Reproductive Harm—

www.P65Warnings.ca.gov

subzero.com | 3

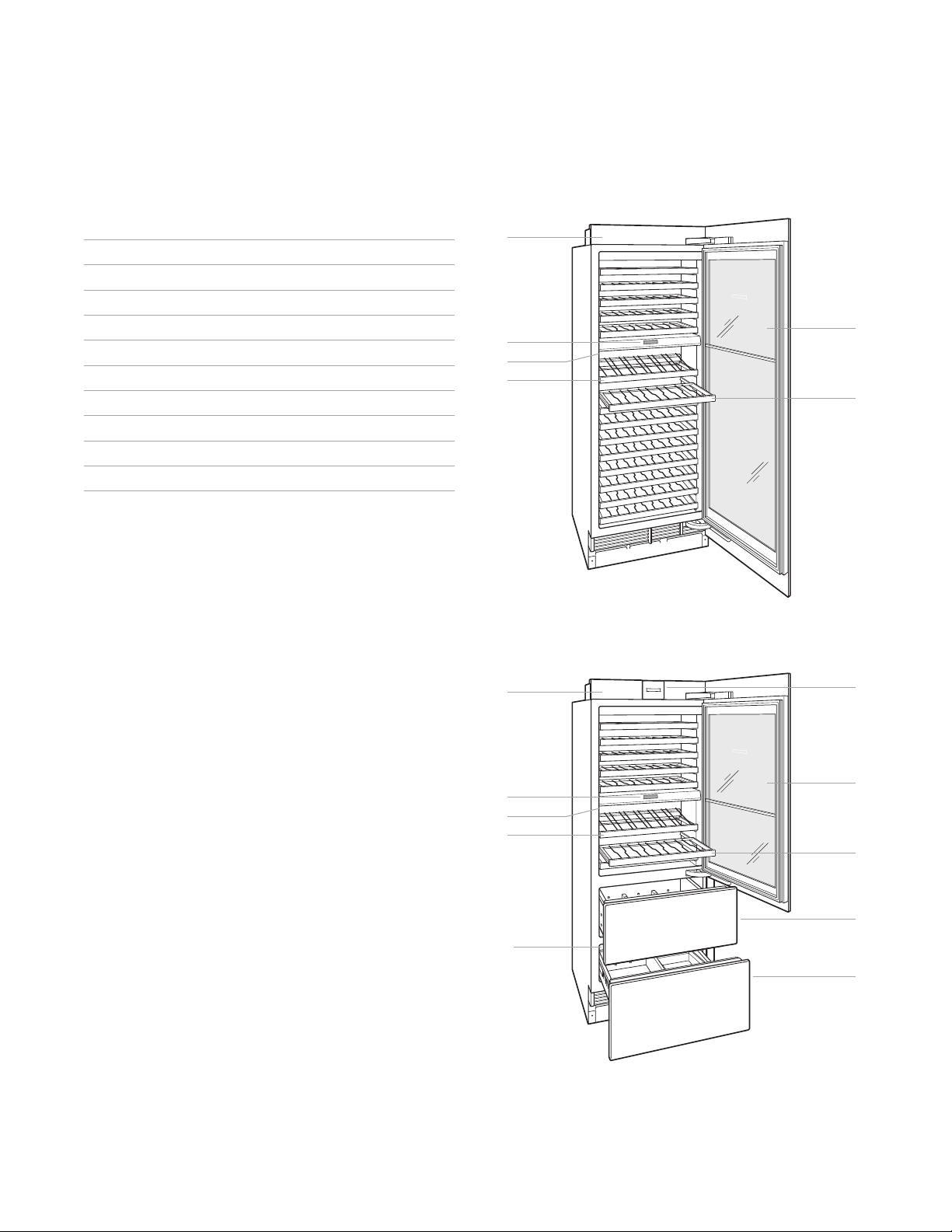

WINE STORAGE FEATURES

Wine Storage Features

FEATURES

Product Rating Plate

Interactive Control Panel

Wine Storage Racks

Display Rack

Full-View Glass Door

Home Security Connection

Refrigerator Storage Drawer

Freezer Storage Drawer*

Water Filtration System*

Automatic Ice Maker*

*Not available on all models.

2 1 4

Column model

2 1 4

Tall model (IW-30CI shown)

4 | Sub-Zero Customer Care 800.222.7820

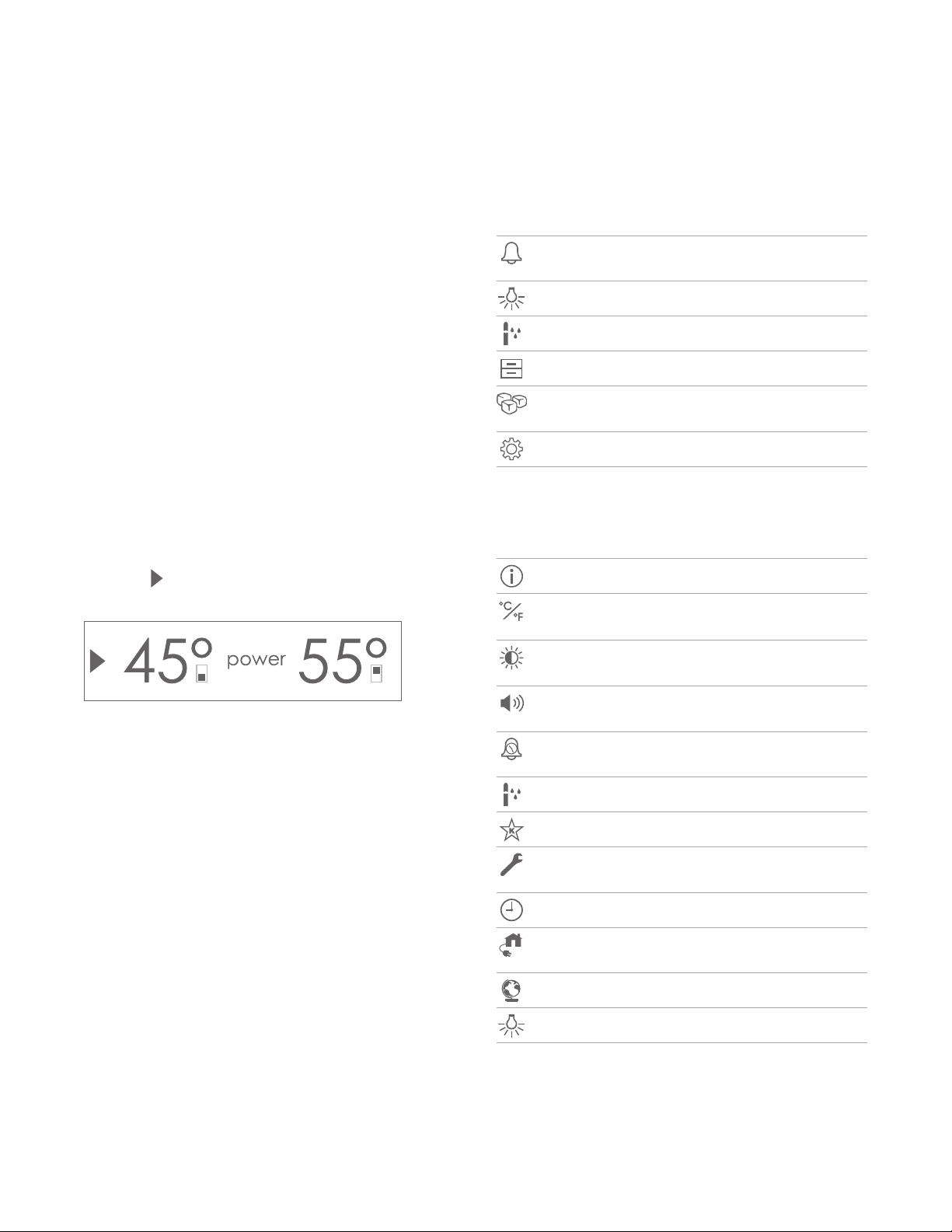

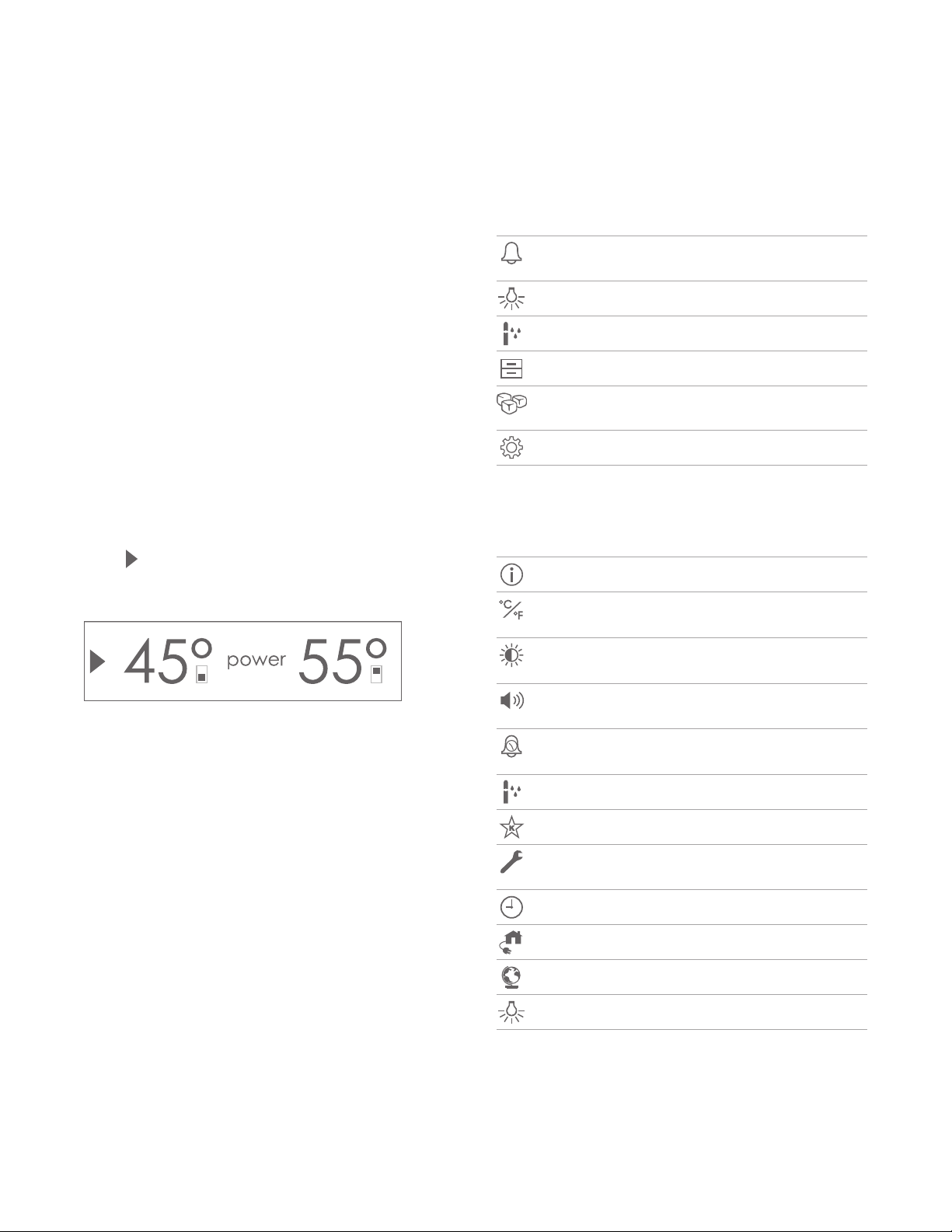

INTERACTIVE CONTROLS

Interactive Control Panel

For initial start up, touch and hold ‘power’ on the control panel for 2 seconds.

Temperature can be adjusted in one-degree increments on the home screen. All wine storage models have separate temperature controls for each zone. Temper atures are preset at 45°F the upper zone. Storage drawers are preset at 38°F refrigerator and 0°F

(7°C) for the lower zone and 55°F (13°C) for

(3°C) for

(-18°C) for freezer.

To change the temperature, touch the temperature being adjusted, then press ‘+’ or ‘-’ until desired temperature is displayed. Refer to the illustration below.

Once the temperature has been adjusted, additional features can be activated or deactivated from the options screen. Touch

Home screen

to view the options screen.

OPTIONS SCREEN

Touch to activate or deactivate door/drawer alarm.

Touch to activate accent lighting.

Touch to activate humidor feature.*

Touch to adjust drawer temperature.*

Touch to activate or deactivate ice maker system and max ice feature.*

Touch to view settings screen.

*Not available on all models.

SETTINGS SCREEN

Touch to view model information.

Touch to select temperature unit, Fahrenheit or Celsius.

Touch to adjust control panel brightness and contrast.

Touch to adjust door/drawer alarm volume and pitch.

Touch to adjust door/drawer alarm duration.

Touch to activate humidor feature.*

Touch to enter Sabbath mode.

Touch to view troubleshooting and service information.

Touch to set clock.

Touch to select smart home options.

Touch to select language options.

Touch to adjust soft on lighting.

*Not available on all models.

subzero.com | 5

STORAGE

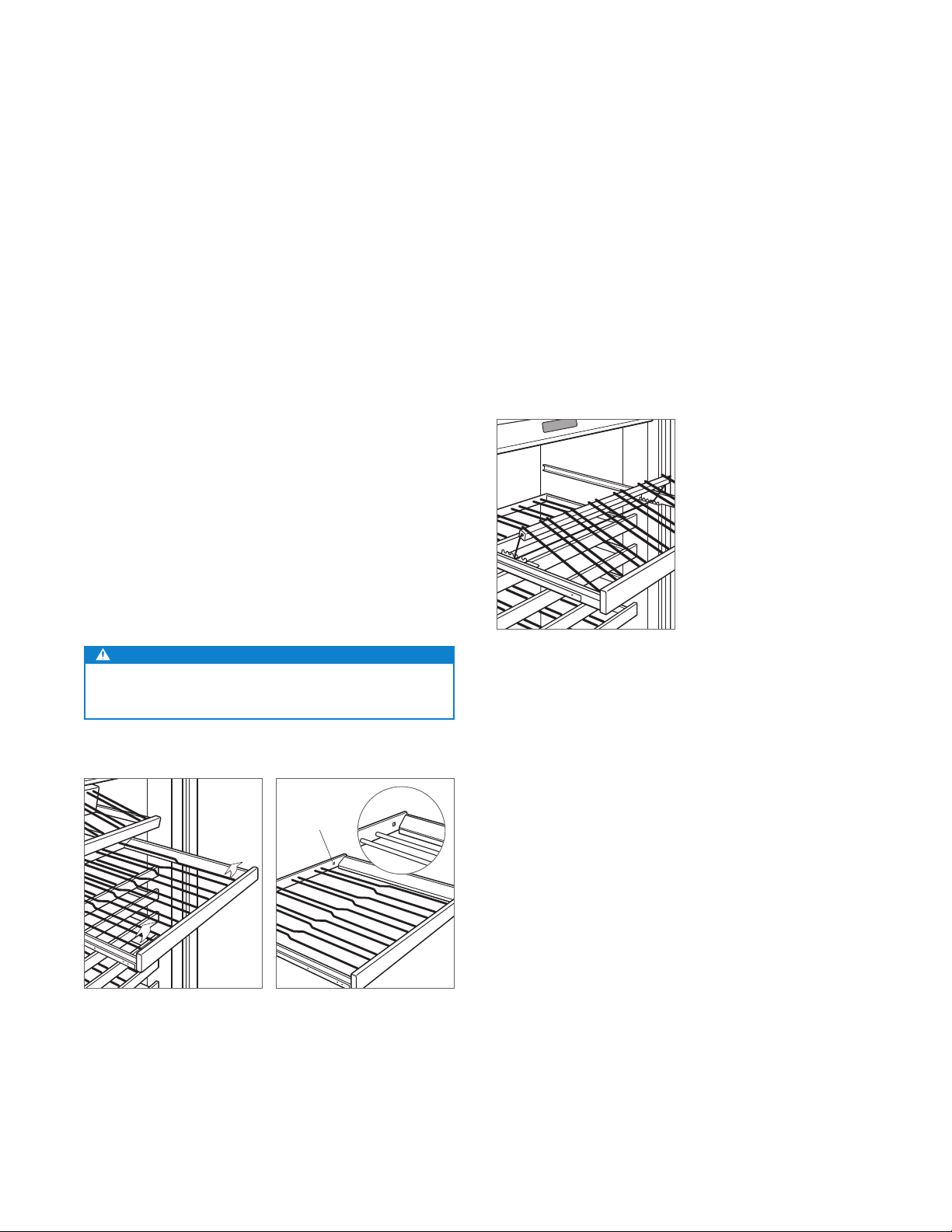

Wine Storage

WINE RACKS

The full-extension wine racks provide easy access to 750 ml, half-bottles and magnums. When storing magnums, the rack above must be removed.

To remove a wine rack, pull out to full extension, tilt up, then lift up and out. Refer to the illustration below. The top two racks in the upper compartment and top rack (top two for tall model) in the lower compartment cannot be placed in any other position. These racks can be identied by the small square cut-out located in the right rear corner. Refer to the illustration below.

The natural cherrywood facing on wine racks can be stained or replaced with wood to compliment cabinetry. For more information, refer to the Sub-Zero design guide, visit our website at subzero.com or contact Sub-Zero customer care at 800-222-7820.

CAUTION

Remove all bottles from the wine rack before removal.

DISPLAY RACK

The adjustable display rack is designed for wine to stay in contact with the cork at any position. Refer to the illustration below.

To remove the display rack, pull out to full extension, tilt up, then lift up and out.

Display rack

Wine rack removal

CUT-OUT

Rack position indicator

6 | Sub-Zero Customer Care 800.222.7820

STORAGE

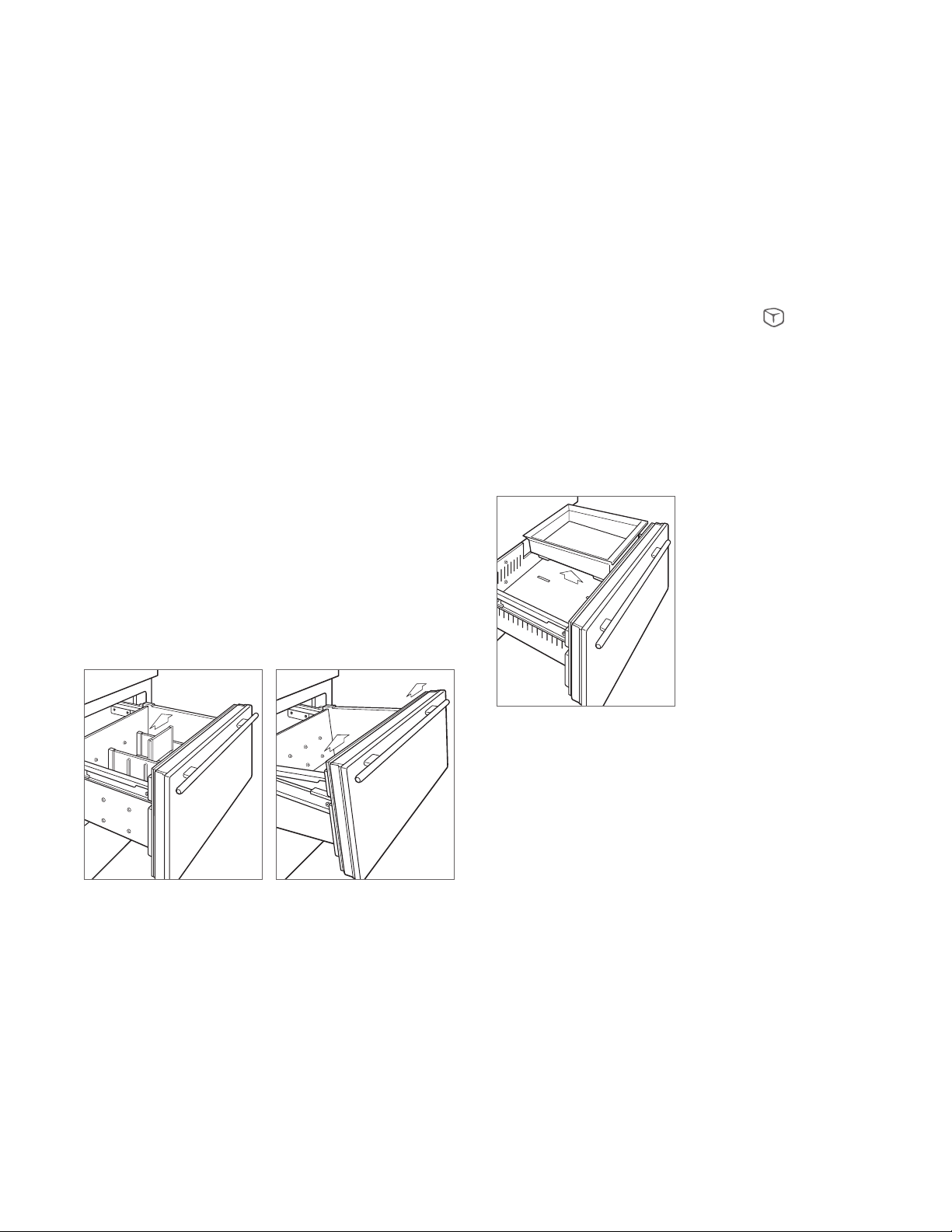

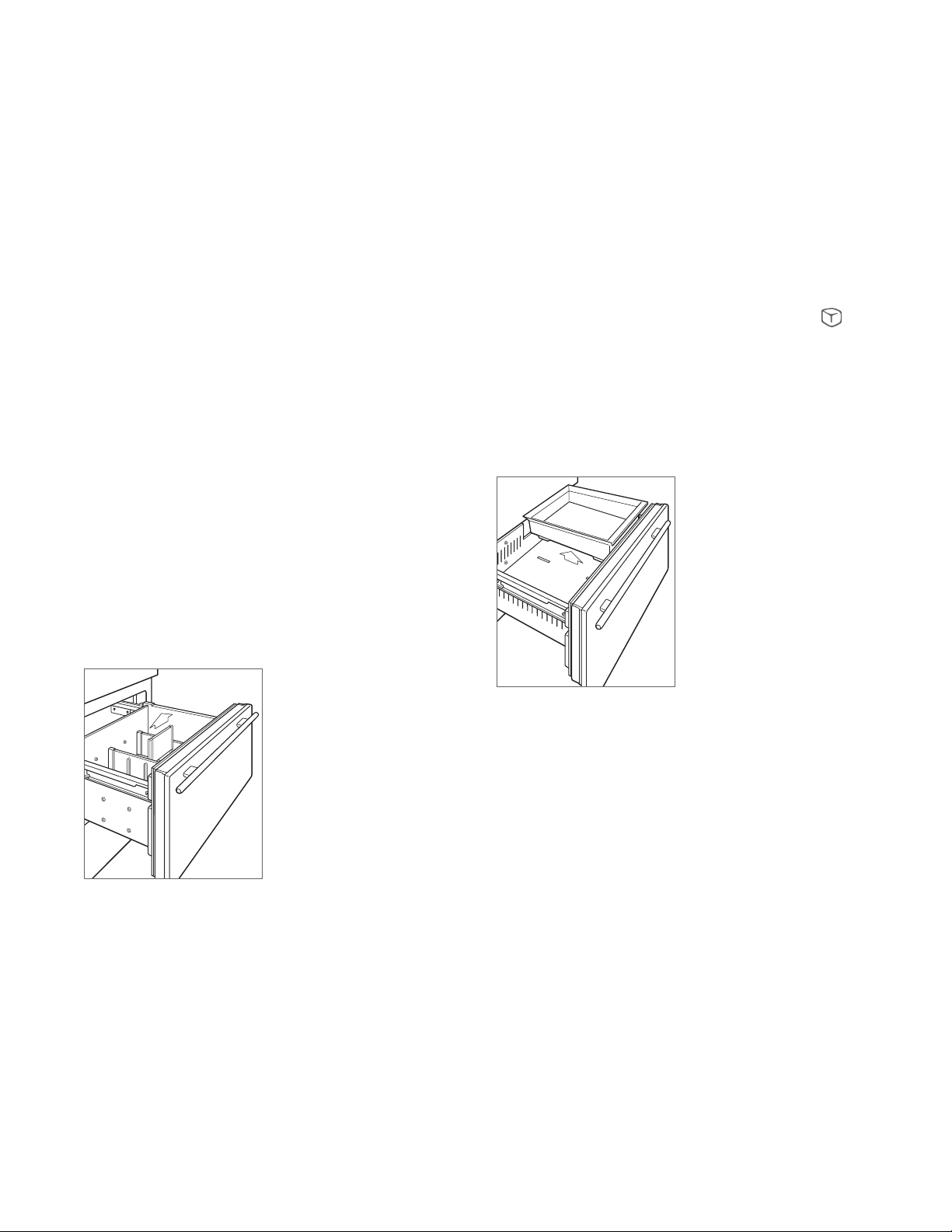

Storage Drawers—Tall Model

DRAWER DIVIDERS

To remove or adjust a short divider, ex the long divider slightly, then pull upward. Refer to the illustration below.

To remove a long divider, the short dividers must be removed. Pull the divider up until it stops, rotate counterclockwise, then pull upward. To reinstall, align grooves with drawer tabs, rotate clockwise, then slide down.

DRAWER REMOVAL

To remove, pull open until the drawer stops. Raise the drawer front and pull out the drawer. To reinstall, raise the front of the drawer and place onto the slides. Align the back of the drawer with hooks on the slide, then align the white pegs at the front of the slide with holes at the front of the drawer. Refer to the illustration below.

ICE CONTAINER

To remove the ice container, pull the freezer drawer open until it stops, then lift the container out. Refer to the illustration below.

The ice maker must be turned off by touching

when the ice container is removed. The unit is equipped with a 3-minute delay after the ice container has been removed, to ensure cubes are not ejected before the ice maker can be deactivated or ice container is reinstalled.

Ice container (IW-30CI)

Drawer dividers

Drawer removal

subzero.com | 7

OPERATION

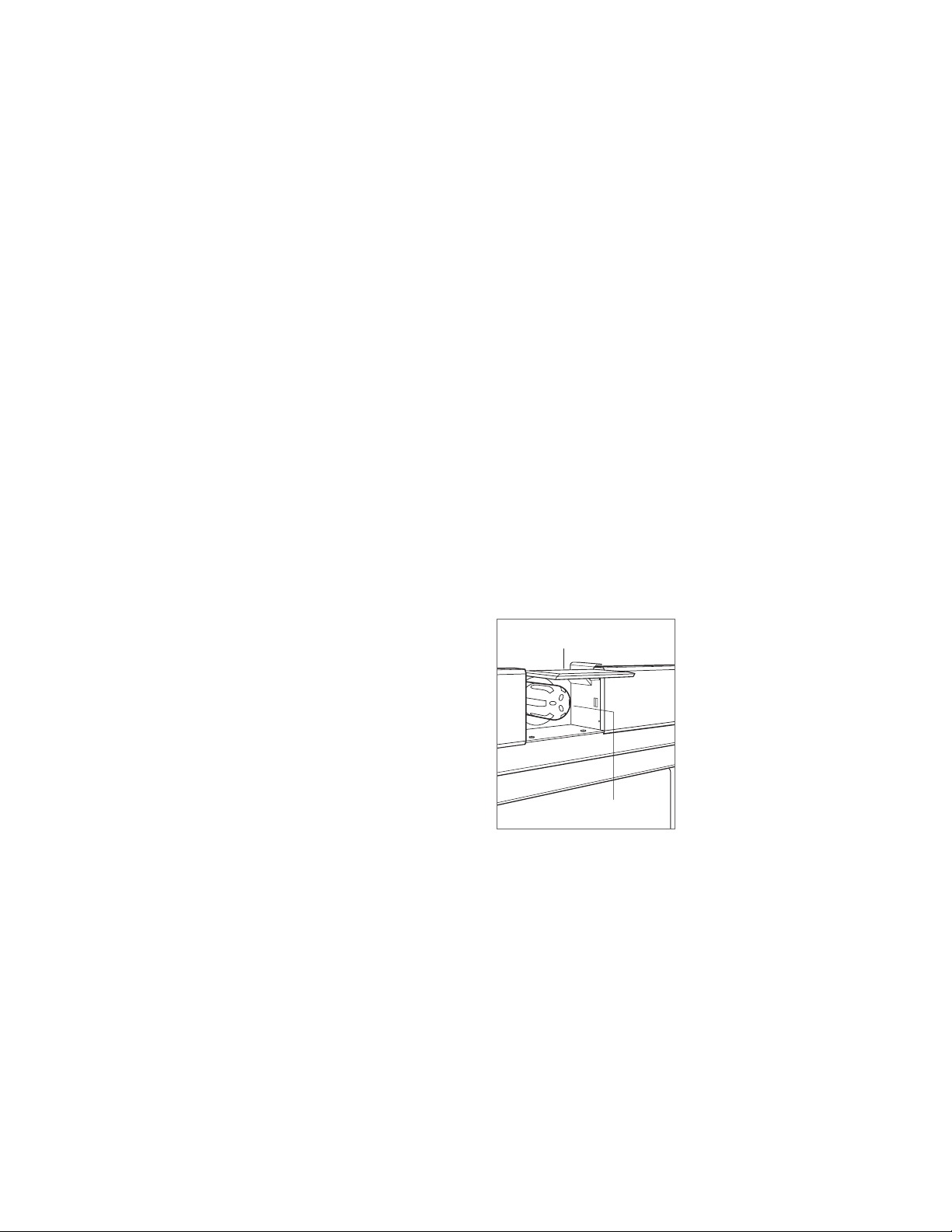

Water Filtration System

For model IW-30CI, the water ltration system supplies ltered water to the ice maker.

IMPORTANT NOTE: When using the water ltration system

for the rst time and after lter replacement, it is necessary to clear any air from the system and allow the lter to assist in cleaning the water lines. Discard the rst two full containers of ice.

If the water ltration system will not be utilized, it can be placed in water lter bypass mode by removing the lter.

The lter is rated for 750 gallons

(2839 L) or one year,

whichever comes rst. ‘Change Water Filter’ will appear on the control panel when the cartridge needs to be replaced. Touch ‘Snooze’ to delay reminder for 24 hours or until lter can be replaced.

Replacement Sub-Zero water lters can be ordered online at subzerowolfstore.com. For questions, contact Sub-Zero customer care at 800-222-7820.

WATER FILTER REPLACEMENT

1 To access the water lter, pull out on the bottom edge

of the access door and rotate upward. Refer to the illustration below.

2 To remove the old lter, rotate counterclockwise one-

quarter turn, then pull out. It is normal for a small amount of water to drip when the lter is removed. It should be wiped up with a paper towel or cloth.

3 Remove the new lter from packaging and remove

plastic cap.

4 Insert the new lter into the manifold and turn clockwise.

5 Once the new lter has been installed, follow instructions

on the control panel. The lter life cycle will reset for approximately one year.

ACCESS DOOR

8 | Sub-Zero Customer Care 800.222.7820

WATER FILTER

Water lter removal (IW-30CI)

OPERATION

Ice Maker Operation

For model IW-30CI, to initiate ice production, touch on the options screen. A single highlighted cube indicates the ice maker is active. Three highlighted cubes indicate the max ice feature is active. Max ice increases ice production up to 30% for a 24-hour period. During that period, some components may run at a higher speed resulting in a unique audible tone. This is typical and will revert back after 24 hours or when the ice container is full. To deactivate the ice maker, touch start-up, discard the rst few batches of ice. The ice may contain impurities from new plumbing connections.

If ice is not used regularly it may fuse together. To avoid, discard ice and allow ice maker to replenish.

The ice maker must be turned off by touching the ice container is removed. The unit is equipped with a 3-minute delay after the ice container has been removed, to ensure cubes are not ejected before the ice maker can be deactivated or ice container is reinstalled.

until no cubes are highlighted. After initial

when

Sabbath

This appliance is certied by Star-K to meet strict religious regulations in conjunction with specic instructions found on www.star-k.org.

For Sabbath mode, from the settings screen, touch follow instructions on the control panel.

and

subzero.com | 9

CARE RECOMMENDATIONS

Cleaning

INTERIOR CLEANING

To clean interior surfaces and all removable parts, wash with a mild solution of soap, water and baking soda. Rinse and dry thoroughly. Avoid getting water on lights, control panel and the cherrywood facing on wine racks.

Use a standard glass cleaner to clean the UV-resistant glass door.

CAUTION

Do not use vinegar, rubbing alcohol or other alcoholbased cleaners on any interior surface.

STAINLESS STEEL EXTERIOR

Use a nonabrasive stainless steel cleaner and apply with a soft lint-free cloth. To bring out the natural luster, lightly wipe surface with a water-dampened microber cloth followed by a dry polishing chamois. Always follow the grain of stainless steel.

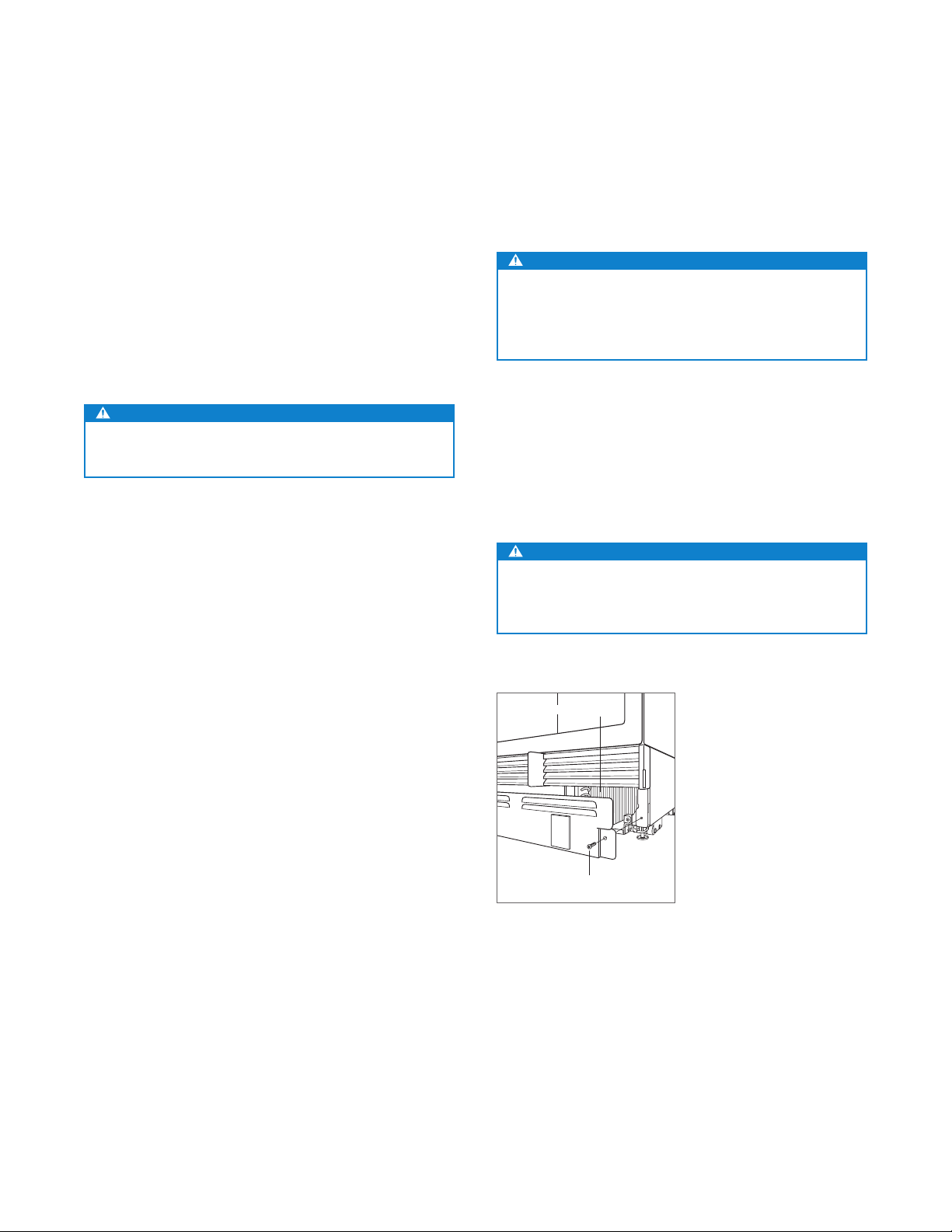

CONDENSER CLEANING

CAUTION

Before cleaning the condenser, turn power off at the control panel. Wear gloves to avoid injury from sharp condenser ns.

The condenser is located behind the grille. Remove the kickplate by extracting the two mounting screws. Refer to the illustration below. Use a soft bristle brush and vacuum to remove dust and lint from the condenser. Clean the condenser every three to six months.

IMPORTANT NOTE: To avoid damaging condenser ns,

vacuum in the direction of the ns.

CAUTION

Failure to clean the condenser could result in temperature loss, mechanical failure or damage.

CONDENSER

10 | Sub-Zero Customer Care 800.222.7820

SCREW

Condenser location

TECHNICAL DATA

Sub-Zero Water Filtration System Data

REPLACEMENT CARTRIDGE (4204490)

Tested and certied by NSF International against NSF/ANSI Standard 42 for the reduction of Chlorine Taste & Odor, Particulate Class I; and against NSF/ANSI Standard 53 for the reduction of Lead, Mercury, Atrazine, Benzene, Carbofuran, 1,4-dichlorobenzene, Lindane, Toxaphene, Turbidity, Cysts and Asbestos.

This system has been tested according to NSF/ANSI 42/53 for reduction of the substances listed below. The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system, as specied in NSF/ANSI 42/53.

OPERATING SPECIFICATIONS

Capacity: certied for up to 750 gallons (2,838 L); up to twelve months Pressure Requirement: 35 – 120 psi (2.8 – 8.2 bar) Temperature: 33 – 100°F (0.6 – 38°C) Flow Rate: 0.78 gpm (2.9 Lpm)

Standard

Chlorine, Taste & Odor 42 2.0 mg/L ± 10% 1.88 mg/L 0.05 mg/L 0.06 mg/L 97.34% 96.80% ≥ 50%

Particulate 42

Lead at pH 6.5 53 0.15 mg/L ± 10% 0.153 mg/L <0.001 mg/L <0.001 mg/L 99.34% 99.34% 0.010 mg/L

Lead at pH 8.5 53 0.15 mg/L ± 10% 0.150 mg/L <0.001 mg/L <0.001 mg/L 99.33% 99.33% 0.010 mg/L

Mercury at pH 6.5 53 0.006 mg/L ± 10% 0.006 mg/L 0.0003 mg/L 0.0005 mg/L 95.00% 91.66% 0.002 mg/L

Mercury at pH 8.5 53 0.006 mg/L ± 10% 0.006 mg/L 0.0008 mg/L 0.0015 mg/L 86.66% 75.00% 0.002 mg/L

Atrazine 53 0.009 mg/L ± 10% 0.009 mg/L <0.002 mg/L <0.002 mg/L 77.77% 77.77% 0.003 mg/L

Benzene 53 0.015 mg/L ± 10% 0.014 mg/L 0.0006 mg/L 0.0011 mg/L 95.71% 92.14% 0.005 mg/L

Carbofuran 53 0.08 mg/L ± 10% 0.081 mg/L <0.001 mg/L <0.001 mg/L 98.76% 98.76% 0.04 mg/L

1,4-dichlorobenzene 53 0.225 mg/L ± 10% 0.208 mg/L <0.0005 mg/L <0.0005 mg/L 99.75% 99.75% 0.075 mg/L

Lindane 53 0.002 mg/L ± 10% 0.002 mg/L 0.00003 mg/L 0.00007 mg/L 98.50% 96.50% 0.0002 mg/L

Toxaphene 53 0.015 mg/L ± 10% 0.015 mg/L <0.001 mg/L <0.001 mg/L 93.33% 93.33% 0.003 mg/L

Turbidity 53 11 ± 1 NTU 10.7 NTU 0.31 NTU 0.49 NTU 97.10% 95.42% 0.5 NTU

Cysts** 53 Minimum 50,000/L 166,500/L <1/L <1/L >99.99% >99.99% >99.95%

Asbestos 53 10

**Based on the use of Cryptosporidium Parvum oocysts † Fibers greater than 10 μm in length

Concentration

At least 10,000

particles/ml

to 108 bers/L

Inuent Challenge

NSF

Average Inuent

Concentration

5,700,000/ml 30,583/ml 69,000/ml 99.46% 98.78% ≥ 85%

†

155 MF/L <1 MF/L <1 MF/L >99.99% >99.99% >99%

Product Water Concentration % Reduction

Max Permissable

Product Water ConcentrationSubstance Average Max Efuent Average Minimum

SPECIAL NOTES

• Replacement Sub-Zero water lter cartridges can be ordered online

at subzerowolfstore.com. For questions, contact Sub-Zero customer care at 800-222-7820.

• Change lter cartridge at least every twelve months. High sediment

areas may require more frequent lter cartridge replacement.

• Installation and operation instructions, parts and service availability,

and standard warranty are included with the product when shipped.

• Replace water lter cartridge when the lter indicator is lit or when

water ow becomes too low. Use replacement water lter cartridge part number 4204490. Replacement lter pricing information can be found at subzero.com.

• Do not use with water that is microbiologically unsafe or of unknown

water quality without adequate disinfection before or after the system.

• Systems certied for cyst reduction may be used on disinfected

waters that may contain lterable cysts.

• This system must be installed, operated, maintained and lters

replaced as required in order for the product to perform as advertised.

• Note that while the testing was performed under standard labora-

tory conditions, actual performance may vary. The contaminants or other substances removed or reduced by this water treatment system are not necessarily in your water.

Manufactured for: Sub-Zero, Inc., P.O. Box 44848, Madison, WI 53744, 800-222-7820

subzero.com | 11

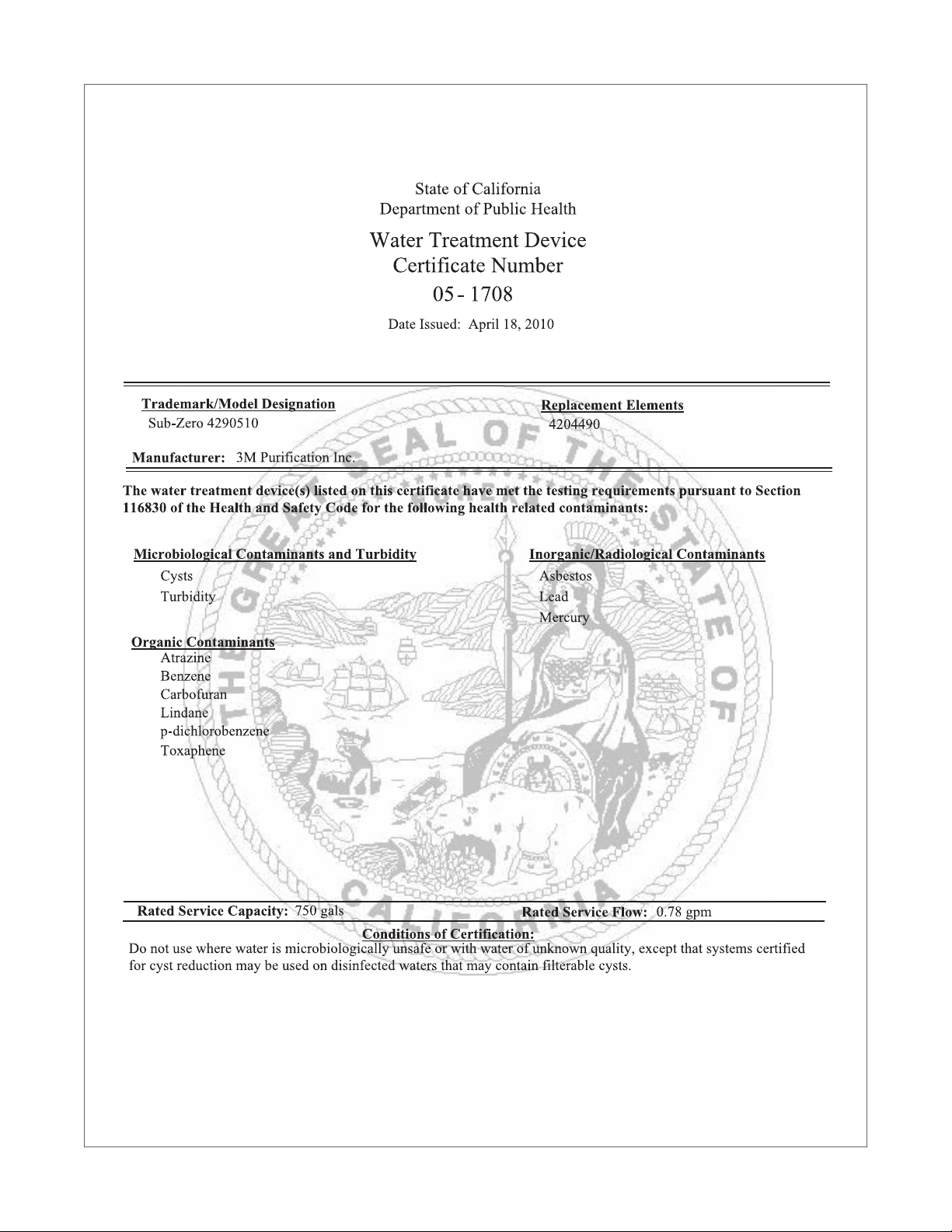

TECHNICAL DATA

12 | Sub-Zero Customer Care 800.222.7820

TROUBLESHOOTING

Troubleshooting

SERVICE INDICATOR

ashes in control panel display.

• Verify condenser is clean.

• Turn unit off at the control panel, then on. If indicator

continues to ash, contact Sub-Zero Factory Certied Service.

UNIT OPERATION

No lights or cooling.

• Verify power is on.

• Verify electrical power to unit and home circuit breaker

is on.

No lights.

• Door/drawer may have been left ajar which has disabled

lights to eliminate excess heat. If lights are out, close door/drawer for one hour. If lights are still out, contact Sub-Zero Factory Certied Service.

• Cabinet lighting must be replaced by Sub-Zero Factory

Certied Service.

High temperatures, unit runs excessively or unit giving off too much heat.

• Verify condenser is clean.

• Verify door/drawer is closing properly.

• Verify door/drawer has not been left ajar.

• Increased ambient temperatures may cause compres-

sors to run longer.

• If temperature display shows 45° and 55°, but is not

cooling, unit may be in showroom mode. Contact Sub-Zero Customer Care at 800-222-7820.

ODOR

• Unit should be cleaned before using for the rst time.

This will clear any odors that may have been trapped during shipping.

• Uncovered food could create odor which may require

cleaning.

Frost, condensation or ice build up inside unit.

• Verify condenser is clean.

• Verify door/drawer is closing properly.

• Verify door/drawer has not been left ajar.

• Verify door/drawer gasket does not have rips or tears. If

it does, contact Sub-Zero Factory Certied Service.

• If icing is heavy, turn unit off and use a hair dryer to melt

ice. Hair dryer should be set on low and kept moving at all times. Once ice has melted, wipe up water with a cloth or paper towel.

subzero.com | 13

TROUBLESHOOTING

Troubleshooting

ICE PRODUCTION

No ice.

• Verify ice cube indicator appears in control panel display.

• Verify ice maker has been on for at least 24 hours.

• Verify freezer temperature near 0°F.

• Verify ice container is properly installed.

• Verify ice maker arm in down position.

• Verify water is being supplied to unit.

• Verify water lter has been replaced within the last 12

months and installed properly.

• Verify water lter has been removed if a reverse osmosis

ltration system is being utilized.

Blue or green ice.

• Possible copper supply line corrosion. Contact plumber

to clean or replace.

Black ecks in cubes.

SERVICE

• Maintain the quality built into your product by contacting

Sub-Zero Factory Certied Service. For the name of the nearest Sub-Zero Factory Certied Service, check the Support and Service section of our website, subzero.com or call Sub-Zero customer care at 800-222-7820.

• When contacting service, you will need the model and

serial number of your unit. Both numbers are listed on the product rating plate. Refer to page 4 for rating plate location.

• For warranty purposes, you will also need the date

of installation and name of your authorized Sub-Zero dealer. This information should be recorded on page 3.

• Stop use and contact Sub-Zero Factory Certied

Service.

Bad taste.

• Defrost freezer and clean with soap and water.

• Place coffee grounds or charcoal briquettes in freezer to

absorb odor.

Hollow cubes.

• Clean condenser. Contact Sub-Zero Factory Certied

Service if unresolved.

Sub-Zero, Sub-Zero & Design, Sub-Zero & Snowake Design, Dual Refrigeration, The Living Kitchen, Great American Kitchens The Fine Art of Kitchen Design, Wolf, Wolf & Design, Wolf Gourmet, W & Design, red colored knobs, Cove, and Cove & Design are registered trademarks and service marks of Sub-Zero Group, Inc. and its subsidiaries. All other trademarks are property of their respective owners in the United States and other countries.

14 | Sub-Zero Customer Care 800.222.7820

+ 30 hidden pages
