SUB-ZERO ICBIC-24FI User Manual

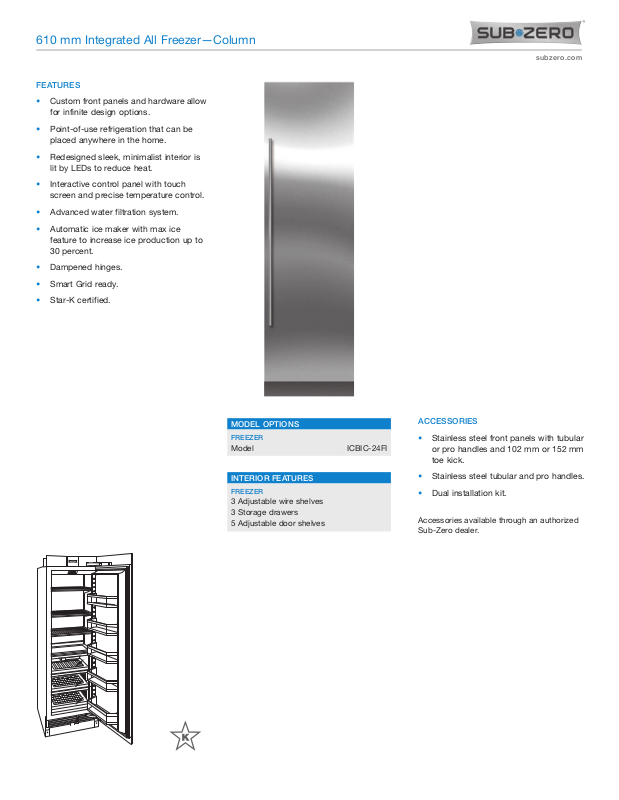

610 mm Integrated All Freezer—Column

FEATURES

• Custom front panels and hardware allow

for infinite design options.

• Point-of-use refrigeration that can be

placed anywhere in the home.

• Redesigned sleek, minimalist interior is

lit by LEDs to reduce heat.

• Interactive control panel with touch

screen and precise temperature control.

• Advanced water filtration system.

• Automatic ice maker with max ice

feature to increase ice production up to
30 percent.

• Dampened hinges.

• Smart Grid ready.

• Star-K certified.

subzero.com

MODEL OPTIONS

FREEZER

Model ICBIC-24FI

INTERIOR FEATURES

FREEZER

3 Adjustable wire shelves
3 Storage drawers
5 Adjustable door shelves

ACCESSORIES

• Stainless steel front panels with tubular

or pro handles and 102 mm or 152 mm
toe kick.

• Stainless steel tubular and pro handles.

• Dual installation kit.

Accessories avail able through an authorized
Sub-Zero dealer.

610 mm Integrated All Freezer—Column

NOTE: Shaded areas will be visib

SIDE

subzero.com

SPECIFICATIONS

PRODUCT

Dimensions 610 W x 2134 H x 610 D
Weight 154 kg

CAPACITY

Freezer 338 L

ELECTRICAL

Supply 220-240 V AC, 50/60 Hz
Service 10 amp circuit

PLUMBING

Supply

1

/4" OD copper, braided

stainless steel or PEX tubing

Pressure

2.4–8.3 bar

Overall dimensions do not include panels or
handles. Dimensions will vary with panel
thickness.

The depth of each integrated model is 610
mm. Allow for panel thickness when planning
the finished opening depth.

Specifications are subject to change without
notice.

Dimensions may vary ±3 mm.

DIMENSIONS

610 mm

W 610 mm

2134
mm*

MIN TO 2146 mm MAX

*2121 mm

45 mm

114 mm

1765

mm

A

102 mm

92 mm

ELECTRICAL

LEFT SIDE

OF OPENING

114

A

241 mm

mm

E

FLOOR

6 mm

PLUMBING

RIGHT SIDE

OF OPENING

A

140
mm

76 mm

AREA EXTENDS

FORWARD ON FLOOR

152
mm

13 mm

108
mm

INSTALLATION

2134 mm

H

OPENING

HEIGHT

572
mm

B

635 mm

OPENING

TOP VIEW

W

610 mm

OPENING WIDTH

DEPTH

89 mm

TYPICAL

©Sub-Zero, Inc. all rights reserved. 9/2013

VIEW

FRONT VIEW

le and should be finished to match cabinetry.

19 mm

TYPICAL
